Model VNM:

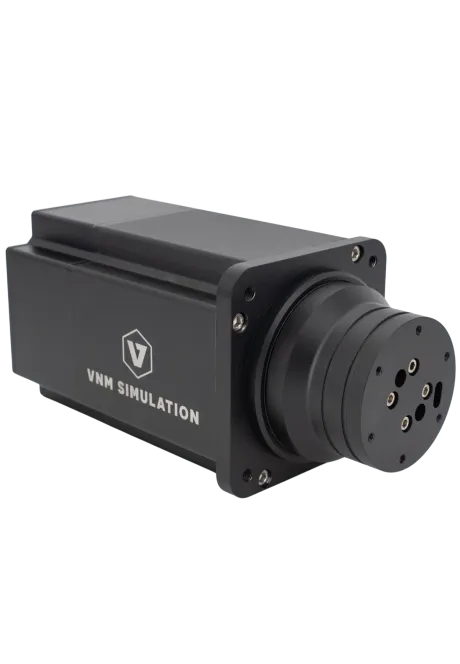

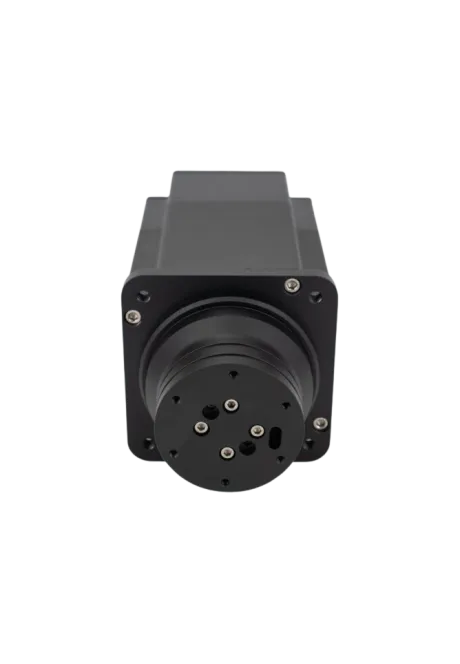

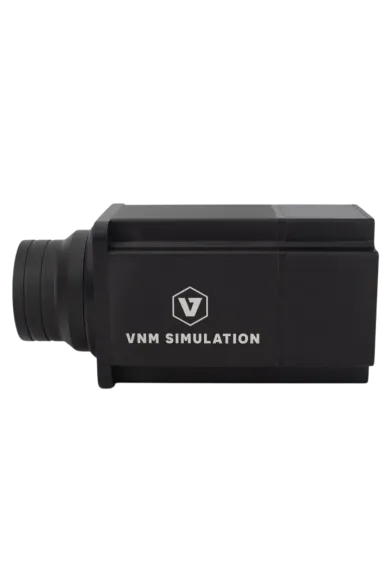

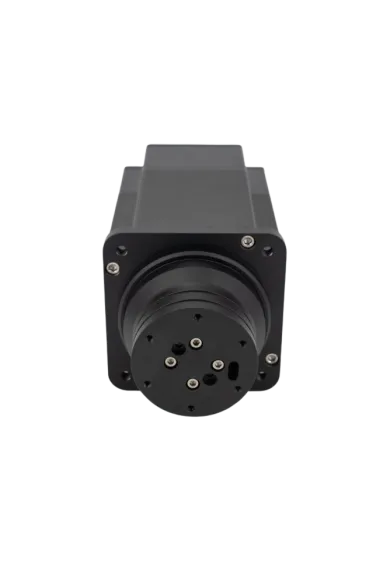

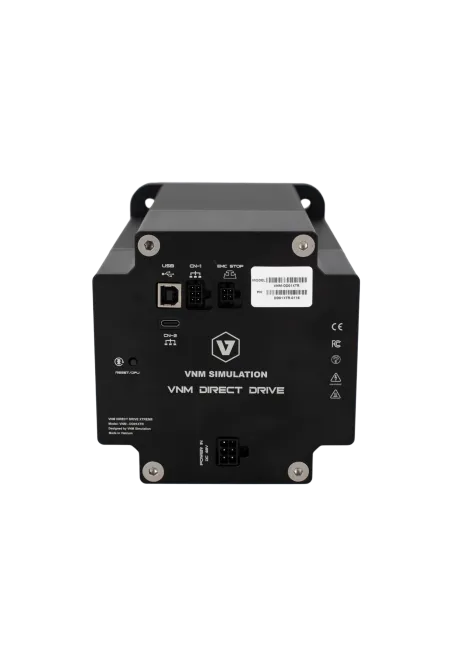

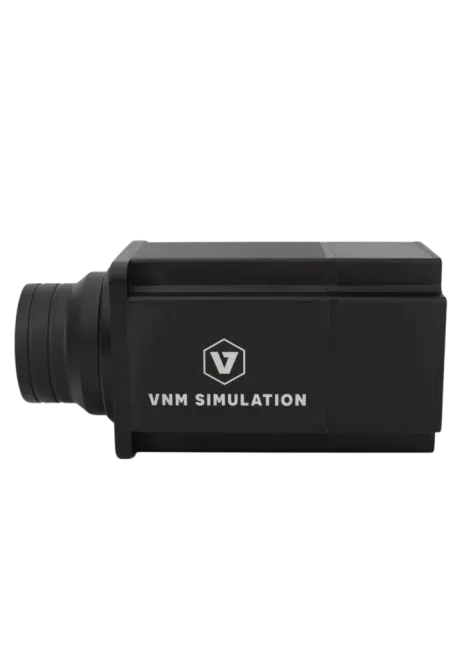

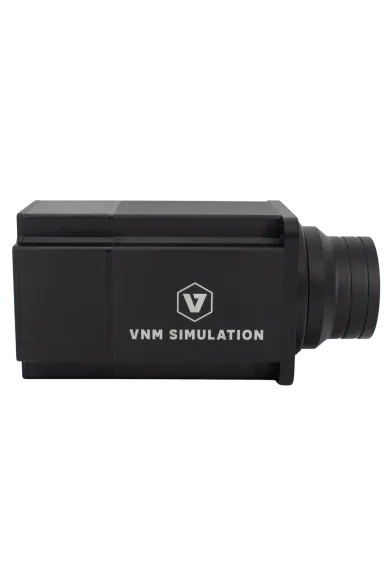

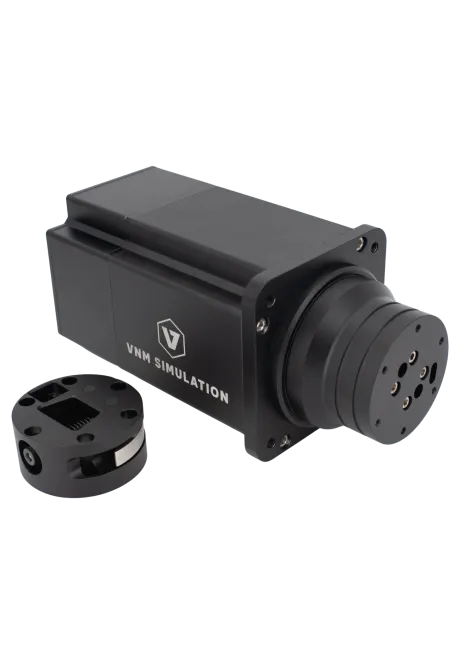

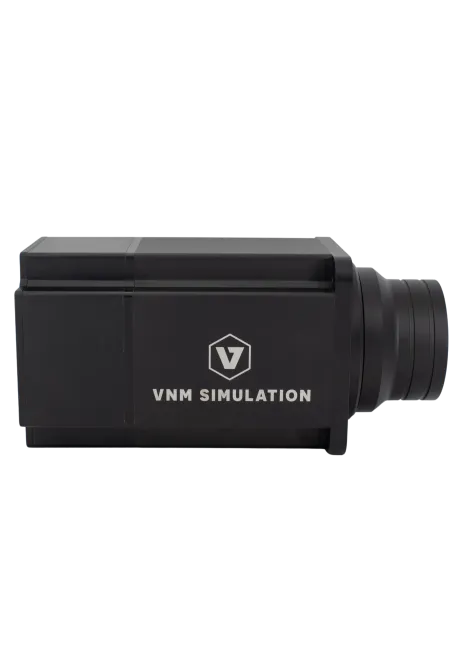

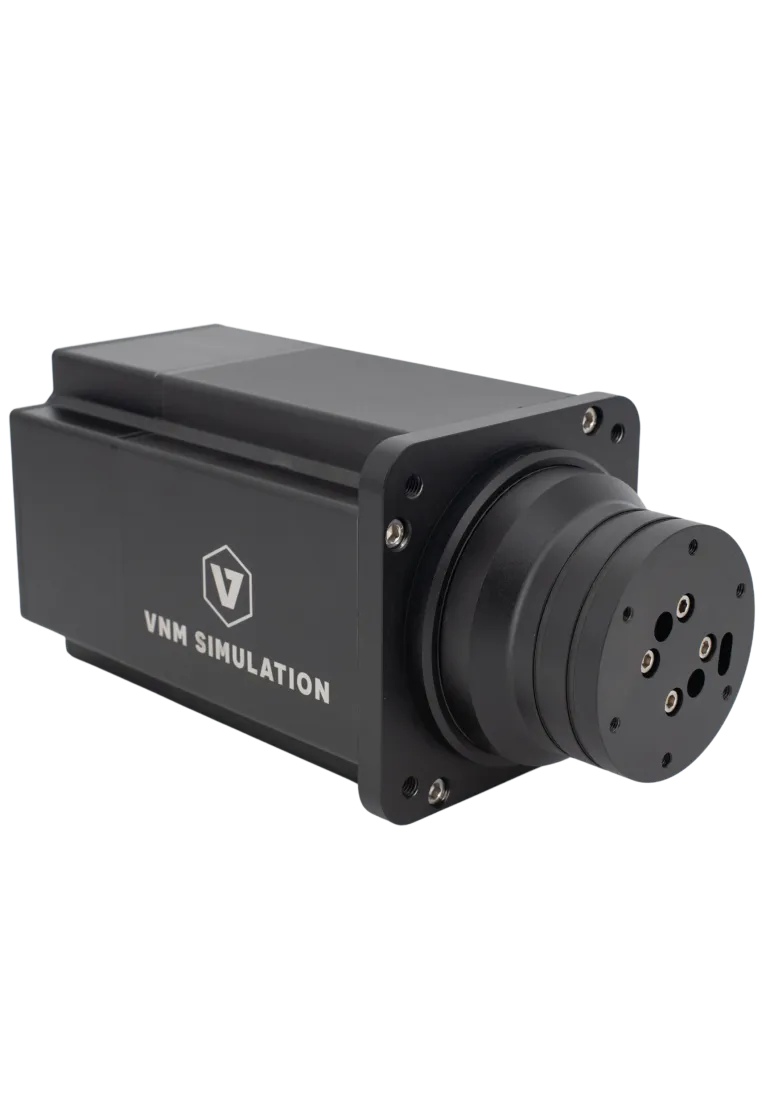

VNM Direct Drive Xtreme

VNM-DD01XTR
5,165.98zł

5,165.98zł
Lowest price in the last 30 days before the price reduction: 6,139.82zł
Shipping in 3-5 days

VNM Direct Drive Xtreme is a 32 Nm Direct Drive wheelbase with a 23-bit absolute encoder and extensive FFB adjustment. The box includes an E-stop button and the base-side Quick Release. Add a wheel separately, such as the VNM Apex-R, to complete the setup. The wheelbase is designed for PC.

Ask about product
Zapytanie dotyczy produktu: VNM Direct Drive Xtreme
* - pola obowiązkowe
Send
You will receive an 51.66zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Steering Wheels

VNM Apex-R Wheel

VNM Apex-R Wheel

1,233.56zł

+ Plug and Play Accessories

VNM Slipring

VNM Slipring

317.31zł
VNM Quick Relase Wheel Side

VNM Quick Relase Wheel Side Shipping in 3-5 days

247.97zł

You might also like



VNM Simulation Extreme Direct Drive 32 Nm

Welcome to the pinnacle of racing simulation technology with the VNM Simulation Extreme Direct Drive 32 Nm wheel base. Designed for uncompromising performance and precision, this advanced wheel base delivers unmatched realism and immersion for sim racing enthusiasts and professionals alike.

Key Features:

  • Xtreme Power: 32 Nm of torque for incredible force feedback that brings every track detail to your hands.
  • Direct Drive Excellence: Ultra-low latency and high fidelity – enhanced with Telemetry Force Feedback support (iRacing, ACC, rF2, Le Mans Ultimate).
  • Precision Engineering: Premium materials and components built to withstand the most intense racing conditions.
  • Customizable Experience: Adjust strength and behavior of the feedback system to suit your driving style.
  • Compatibility: Fully supports top racing titles like iRacing, EA WRC, Assetto Corsa, Automobilista 2 and more.

Why Choose VNM Extreme 32 Nm?

Experience the thrill of racing with unparalleled realism and control. Whether you're a seasoned pro or sim racing enthusiast, this powerhouse wheel base sets the benchmark for performance, durability and immersion.

Technical Data

Component Specification
Servo Customized smooth industrial servo with M8 x4 mounting holes
5 polepairs
Max torque: 32Nm
Dimensions: 130x130x231 mm
Encoder Absolute 23-bit encoder (8,388,608 CPR)
Controller Integrated controller with single core 480 MHz MCU
Customized FFB Adjustable strength for 11 game effects and 4 user-defined effects
Smoothness controls: damper, inertia, friction
Experimental Feature Crash effect reduction
Telemetry FFB for AC/ACC, iRacing, rFactor2, Le Mans Ultimate
Upgrade Option Industrial-grade slipring for 3rd-party steering wheels
Packing Box Dimensions: 50x36x25 cm
Weight: 16 kg
Box Includes VNM Direct Drive Xtreme
USB A–B cable (to base)
USB A–C cable (to wheel)
EMC Stop Button for DD
Quick Release Base-side only
Power Adapter

Included Documentation

  • User Manual
  • Game Config
  • Software Manual
  • QR Assembly
  • QR Installation
  • EMC Xtreme Installation

32 Nm continuous torque with adjustable strength

Xtreme uses an industrial servo motor with five pole pairs to drive the wheel directly. VNM specifies 32 Nm as continuous torque rather than a short-lived peak.

That headroom does not mean driving at maximum strength. Choose settings for the car, rim diameter and personal preference. A rigid mount and an accessible emergency stop are important parts of a setup using a wheelbase this powerful.

VNM Direct Drive Xtreme animacja mocowania kierownicy
VNM Direct Drive Xtreme ecosystem view

A 23-bit absolute encoder and aluminium construction

The absolute encoder reads shaft position at 8,388,608 positions per revolution. An integrated 480 MHz MCU controls the system. These figures describe measurement and control, not the number of effects supported in every game.

The CNC-machined aluminium housing is designed for front mounting. At 11.3 kg, the base requires a cockpit installation that accounts for both its weight and the forces transmitted through the wheel.

VNM SIMCENTER, telemetry and TIC mode

VNM SIMCENTER adjusts strength, damping, friction and inertia and stores game profiles. It allows steering response to be tuned rather than applying one set of settings to every car.

In supported titles, Telemetry FFB creates additional effects from simulator data. TIC blends them with the game's native Force Feedback at the chosen ratio. Check telemetry availability and setup separately from basic wheelbase support.

VNM Direct Drive Xtreme software
VNM Direct Drive Xtreme mounted on simrig

Front mounting and a separately chosen wheel

Mounting a steering wheel requires matching base-side and wheel-side VNM Quick Release parts. Both are sold separately, as is the wheel itself. VNM Apex-R is one compatible option; account for its supplied accessories when completing the mounting setup.

An optional Slipring tidies the USB connection but is not a universal solution for every display. For its installation, VNM recommends a front plate no thicker than 10 mm; a thicker bracket may need a spacer or slim USB-C connector.

Check pedals
Check steering wheels
Check other Direct Drive
Max torque
32
Encoder
23-bit Absolute Encoder
E-stop button
Yes
QR Included
Yes
Warranty
24 months
Wheelbase weight
16 kg
Resolution
23-bit (2 097 152 ppr)
Model
Xtreme
Force Feedback Type Support
Mixed Telemetry Effects Support
Telemetry Full Support
iRacing 360Hz
Parameter Details
SKU VNM-DD01XTR
Device type Direct Drive wheelbase
Continuous torque 32 Nm
Motor Custom industrial servo motor, 5 pole pairs
Encoder 23-bit absolute; 8,388,608 positions per revolution
Controller Integrated 480 MHz MCU
Force Feedback modes DirectInput FFB, VNM Telemetry FFB and TIC with an adjustable blend of both sources
FFB adjustment Strength, damping, friction and inertia; per-game profiles in VNM SIMCENTER
Software VNM SIMCENTER
Platform and connection Windows PC, USB
Housing CNC-machined aluminium
Mounting Front mount, M8 bolts
Dimensions without Quick Release 130 × 130 × 275 mm
Wheelbase weight 11.3 kg
Included power supply 48 V DC, 480 W
Quick Release Not included; base-side and wheel-side parts are sold separately
Safety button Aluminium E-stop included

1. What is VNM Direct Drive Xtreme?

It is a Direct Drive wheelbase for Windows PC simulators. The motor drives the wheel without a belt transmission, and VNM specifies 32 Nm of continuous torque. A steering wheel and pedals are not included.

2. Do I have to use all 32 Nm?

No. Strength is adjusted in VNM SIMCENTER and the game. High torque provides headroom, but settings should suit the wheel, rig and your own capabilities. Start the initial setup at low strength and increase it gradually.

3. What does a 23-bit absolute encoder mean?

The encoder distinguishes 8,388,608 positions in one shaft revolution to measure steering position precisely. Encoder resolution is not the update rate or the amount of Force Feedback torque.

4. What is the difference between Telemetry FFB and TIC mode?

Telemetry FFB uses additional data from a supported simulator to create wheel effects. TIC blends those effects with standard DirectInput FFB, with the balance set in VNM SIMCENTER. You do not have to replace all of the game's native feedback with telemetry effects.

5. Does Telemetry FFB work in every game supported by the base?

No. Standard Force Feedback support and telemetry support are separate. VNM lists games including iRacing, ACC and Le Mans Ultimate for Telemetry FFB and TIC. Other games can use DirectInput FFB without those additional effects.

6. Is a steering wheel or Quick Release included?

No. Neither the steering wheel nor either Quick Release part is included. The base-side QR and matching wheel-side adapter must be purchased separately. One wheel option is the VNM Apex-R; check its supplied accessories when choosing the required mounting parts.

7. Can I fit a third-party steering wheel?

Yes, with suitable mechanical adaptation and a matching Quick Release. Mechanical fit does not automatically make buttons, paddles and displays communicate through the base. The wheel electronics need their own compatible USB connection to the PC or a suitably matched Slipring connection.

8. Which cockpit mounting does Xtreme require?

VNM's current specification calls for front mounting with M8 bolts. The bracket must match the base and cockpit hole patterns and provide rigid support. Do not assume bottom or side mounting because it appears in another wheelbase's description.

9. Is an emergency stop button included?

Yes. An aluminium E-stop for emergency motor stopping is included. Position it within easy reach from the driving seat and use it according to the device instructions.

10. Is VNM Slipring required, and does it support every display?

Slipring is optional and is not included. VNM Slipring routes the connection through the rotating shaft without twisting a loose wheel cable. VNM recommends it primarily for screen-free wheels; some displays, including VoCore units, may disconnect.

11. How long is the warranty for VNM products?

VNM products purchased from Simline.eu are covered by full warranty protection for up to 2 years within the European Union, in accordance with VNM warranty terms.

12. How do I submit a warranty claim for a VNM product?

Simline.eu acts as an intermediary in the warranty process and handles claims for products purchased from us. Please email support@simline.eu with a description of the fault and photos and videos showing the issue, then pack the equipment.

Component Compatibility and conditions
Windows PC Supported; USB connection and configuration in VNM SIMCENTER
PlayStation / Xbox Consoles are not supported
Standard Force Feedback Games supporting DirectInput FFB, including iRacing, Assetto Corsa, ACC, Le Mans Ultimate, rFactor 2, Automobilista 2 and EA SPORTS WRC
Telemetry FFB and TIC Available in supported games, including iRacing, ACC and Le Mans Ultimate; correct software and telemetry configuration is required
Steering wheel Sold separately, for example VNM Apex-R; a matching QR fitting and electronics connection are required
Third-party wheels Require suitable mechanical adaptation and matching base-side and wheel-side QR parts, sold separately; buttons and displays need a compatible PC connection
VNM Slipring Optional VNM slip ring, sold separately; works best with screen-free wheels, while some display-equipped models may disconnect
Cockpit Rigid front mount with a matching hole pattern and M8 bolts; choose a bracket suitable for the base and rig

Official VNM SIMCENTER software and updates and VNM device documentation.

  • VNM Direct Drive Xtreme wheelbase
  • 48 V DC / 480 W power supply
  • Aluminium emergency stop button
  • USB Type-B cable for the base
  • USB Type-C cable for the steering wheel
  • User manual
  • Tools and screws

The steering wheel, base-side Quick Release, wheel-side Quick Release, VNM Slipring, cockpit bracket and pedals are sold separately.
