VNM Damper Kit

Name: VNM Damper Kit
Brand: VNM
SKU: VNM-PE01DK
Price: 664.29 PLN
Availability: InStock

Reference VNM-PE01DK

664.29zł

Shipping in 3-5 days

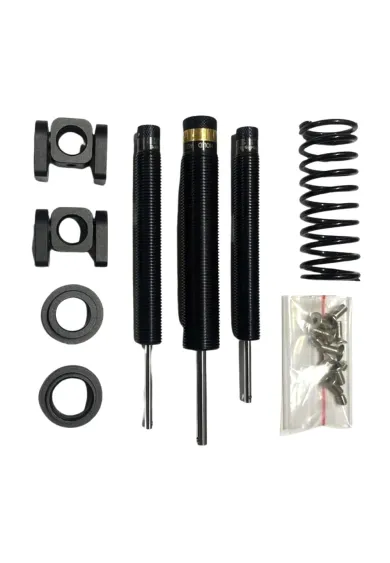

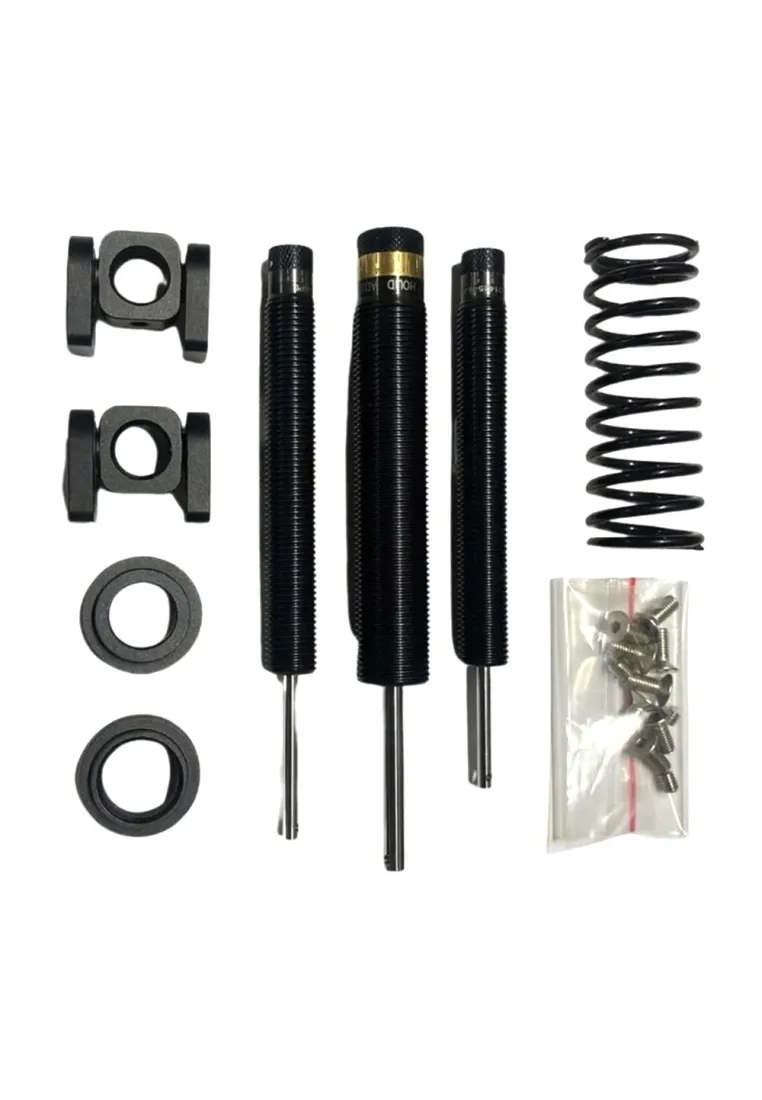

VNM Pedal Damper Kit contains three adjustable dampers for VNM V1 pedals: one for the brake and two for the throttle and clutch. It adds smoother hydraulic-style resistance without replacing sensors or electronics. The kit complements the VNM V1 Brake & Throttle, but it is not compatible with VNM Lite pedals.

Ask about product

You will receive an 6.64zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

VNM Damper Kit - Controlled damping across all three pedals

VNM Damper Kit zmienia sposób, w jaki gaz, hamulec i sprzęgło poruszają się pod stopą. Tłumiki dodają regulowany opór przypominający pracę układu hydraulicznego. Ruch staje się spokojniejszy i mniej gwałtowny, co ułatwia stopniowe wciskanie oraz płynne odpuszczanie pedału.

W komplecie znajdują się trzy elementy przygotowane do różnych zadań: jeden regulowany tłumik do hamulca oraz dwa tłumiki przeznaczone do gazu i sprzęgła. Nie jest to nowy zestaw pedałów ani moduł elektroniczny, lecz mechaniczne rozszerzenie zgodnej konstrukcji VNM.

VNM Damper Kit - damper for vnm pedals v1

VNM Damper Kit - Controlled damping across all three pedals

Individual resistance adjustment for each mechanism

Each damper can be tuned around the pedal it serves. The throttle usually benefits from an even, manageable movement, the brake from more deliberate control and the clutch from a release speed that is easy to judge. The kit allows those three responses to be set separately rather than forcing one feel across the complete pedal set.

Damping does not replace the force measured by the brake sensor. It affects the speed and smoothness of the mechanical movement. Drivers who also want to alter brake stiffness can use the separate VNM Pedal Brake Upgrade Kit V2.

Built for VNM V1 pedals, not the Lite version

The kit is made for the standard VNM Simulation pedal range, now commonly identified as VNM Pedals V1. It can upgrade the VNM V1 Brake & Throttle by using the brake and throttle dampers, while leaving the clutch component ready for a future three-pedal setup.

VNM Pedal Damper Kit is not compatible with VNM Lite pedals. The Lite construction does not provide the required mounting arrangement, so visual similarities between the two pedal families should not be treated as proof that the accessory will fit.

Mechanical installation with no extra wiring

Installation does not require a power cable, controller connection or software. Each damper attaches directly to the appropriate pedal mechanism. VNM provides separate installation guides for the throttle, brake and clutch because the mounting process is not identical across all three pedals.

Begin with a mild setting after installation and increase resistance in small steps. This makes it easier to preserve a clean pedal return and find a damping level that suits the seat position, pedal travel and chosen car. The VNM Pedal Heel Rest can bring the separate pedals together on a stable rig-mounted platform.

EAN13 8936230212048

Technical specification - VNM Pedal Damper Kit
Product details
Product code	VNM-PE01DK
Product type	Mechanical pedal damper kit
Weight	0.7 kg
Dimensions	18 × 18 × 8 cm
Operation and adjustment
Pedal feel	Adjustable hydraulic-style damping
Adjustment	Individually adjustable damper resistance
Electrical connection	Not required
Contents and compatibility
Brake damper	1 × adjustable damper
Throttle and clutch dampers	2 × adjustable damper
Compatible pedals	VNM Pedals V1 / standard VNM Simulation Pedal set
VNM Lite	Not compatible

VNM Pedal Damper Kit - questions and answers

1. What is the VNM Pedal Damper Kit?

It is a mechanical set of three adjustable dampers for VNM V1 pedals. One component is intended for the brake, with the other two serving the throttle and clutch.

2. How does the kit change pedal movement?

The dampers calm and smooth the mechanism while adding hydraulic-style resistance. This gives the driver more control over how quickly a pedal is pressed and released.

3. Can the damper resistance be adjusted?

Yes. Each damper has adjustable resistance, so the throttle, brake and clutch do not need to share the same feel. Increase the setting gradually and confirm that every pedal still returns freely.

4. Which pedals work with the VNM Pedal Damper Kit?

It is designed for the standard VNM Simulation pedal family, also known as VNM Pedals V1. This includes the VNM V1 Brake & Throttle.

5. Is the Damper Kit compatible with VNM Lite pedals?

No. VNM states that the Lite pedal construction cannot use the Damper Kit. Similar styling between the two product families does not mean the mounting points are interchangeable.

6. Can the kit be used with a two-pedal setup?

Yes. Fit the relevant brake and throttle dampers and keep the clutch component for a later three-pedal upgrade. The unused damper does not need to be connected electronically.

7. Does the kit replace any sensors or electronics?

No. It modifies mechanical resistance and movement only. The brake sensor, pedal controller and USB connection remain part of the existing pedal system.

8. How does it differ from the Brake Upgrade Kit V2?

The Damper Kit adds adjustable damping to the throttle, brake and clutch. The VNM Pedal Brake Upgrade Kit V2 is focused on changing the mechanical stiffness of the brake pedal itself.

9. Does installation require extra wiring?

No. The dampers attach mechanically and do not connect to a power supply or controller. VNM provides a separate installation guide for the throttle, brake and clutch.

10. Is a pedal baseplate required?

A separate baseplate is not required by the damper itself, but rigid pedal mounting helps the adjustment work consistently. The VNM Pedal Heel Rest combines separate VNM pedals into one rig-mounted module.
