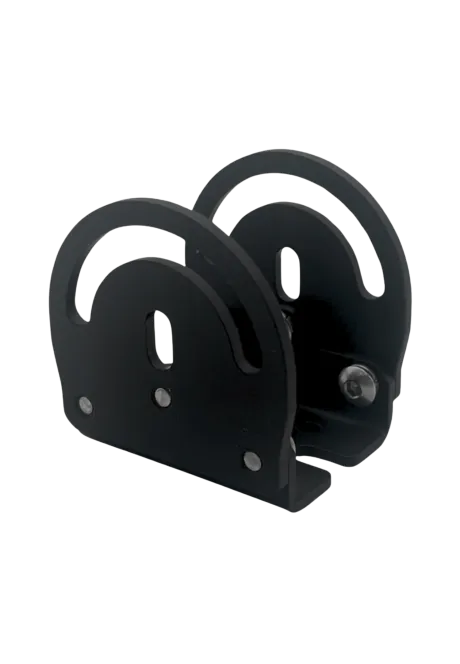

VNM Brake/Throttle Bracket both elements of product view

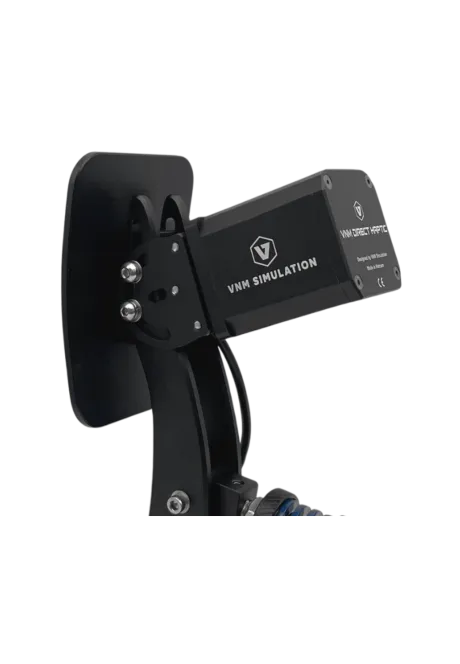

VNM Brake/Throttle Bracket example of product use

VNM Brake/Throttle Bracket

Name: VNM Brake/Throttle Bracket
Brand: VNM
SKU: VNM-HPRBK01
Price: 31.21 PLN
Availability: InStock

Reference VNM-HPRBK01

31.21zł

Shipping in 3-5 days

VNM Brake/Throttle Bracket securely fits the VNM Direct Haptic Pedals Reactor to either the brake or throttle. One bracket holds one reactor on one pedal. The reactor is not included. A working setup also requires the VNM Controller Box V2 and VNM Power Supply.

Ask about product

You will receive an 0.31zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

VNM Brake/Throttle Bracket - One bracket for a brake or throttle position

VNM Brake/Throttle Bracket installs a Direct Haptic reactor at either of the two most common pedal positions. The same bracket model can be used on the brake or accelerator, but each unit supports only one reactor at one position.

A rig with haptic feedback on both pedals needs two VNM-HPRBK01 brackets and two reactors. The effects can then be configured separately, for example to distinguish ABS activity from traction-control intervention.

VNM Brake/Throttle Bracket - One bracket for a brake or throttle position

Direct pulse transfer into the pedal

The bracket creates a stable connection between the pedal and the VNM Direct Haptic Pedals Reactor. This helps the pulse enter the pedal rather than being dispersed through loose hardware or unrelated rig components.

After installation, check the fasteners and cable path. The cable should remain outside the moving parts and must not be pulled tight when the brake or throttle reaches full travel.

The bracket is not a complete haptic kit

VNM-HPRBK01 is a mechanical mounting part. It includes neither the reactor nor its control electronics. Operation also requires the VNM Controller Box V2 and VNM Power Supply.

An older Controller Box V1 must be replaced with V2. Before ordering the full system, check the controller supplied with the existing pedals, as current VNM sets may already include the required version.

The clutch uses a different mount

VNM Brake/Throttle Bracket is not the universal mount for all three pedals. A clutch installation requires the separate VNM Clutch Bracket.

The easiest way to build the system is to choose the pedal positions first, count the reactors and then add the matching brackets. Brake and throttle use VNM-HPRBK01, while the clutch uses VNM-HPRBK02.

VNM Direct Haptic Pedals Reactor rear side view

Pedals accessories

VNM Direct Haptic Pedals Reactor

VNM

VNM-DRHT01

170.53zł

VNM Direct Haptic Pedals Reactor delivers ABS, traction-control, wheel-slip and surface cues beneath your foot. Operation requires the VNM Controller Box V2, VNM Power Supply and a pedal-specific mount: the VNM Clutch Bracket or VNM Brake/Throttle Bracket.

Pedals accessories

VNM Power Supply

VNM

VNM-DRHTPWADP120

52.03zł

VNM Power Supply is the dedicated power source for VNM Direct Haptic pedal reactors. Use it when expanding a single-reactor package or replacing a missing supply. It accepts 100–240 V AC at 50–60 Hz and forms part of a haptic system using the VNM Controller Box V2 - sold separately on our shop.

Pedals accessories

VNM Controller Box V2

VNM

VNM-PE02PCBBX

205.38zł

VNM Controller Box V2 updates the control electronics in a pedal setup and leaves room for further expansion. It handles stable signal processing and works with VNM software. The V2 unit is required when an older setup using a V1 box is upgraded with the VNM Direct Haptic Pedals Reactor.

Pedals accessories

VNM Clutch Bracket

VNM

VNM-HPRBK02

17.22zł

VNM Clutch Bracket secures the VNM Direct Haptic Pedals Reactor to the clutch pedal, helping each pulse reach the driver's foot. This product is the mount only; the reactor is not included. A working system also requires the VNM Controller Box V2 and VNM Power Supply.

EAN13 8936230212192

Technical specification - VNM Brake/Throttle Bracket
Product details
Product name	VNM Brake/Throttle Bracket
Product code	VNM-HPRBK01
EAN	8936230212192
Product type	Haptic reactor mounting bracket
Purpose and compatibility
Mounting position	Brake or throttle pedal
Reactor capacity	1 reactor per bracket
Compatible reactor	VNM Direct Haptic Pedals Reactor
Function	Secure mounting and direct pulse transfer into the pedal
Clutch installation	Requires VNM Clutch Bracket VNM-HPRBK02
Reactor, controller and power supply	Not part of this product; required separately for operation

VNM Brake/Throttle Bracket - questions and answers

1. What is VNM Brake/Throttle Bracket used for?

It mounts one VNM Direct Haptic reactor at either the brake or throttle pedal. The bracket provides a firm connection between the reactor and pedal.

2. Does one bracket cover both brake and throttle?

No. One bracket holds one reactor on one pedal. Haptics on both brake and throttle require two VNM-HPRBK01 brackets and two reactors.

3. Is the reactor included?

No. This product is the mounting bracket. Order the VNM Direct Haptic Pedals Reactor separately.

4. Can VNM-HPRBK01 be fitted to a clutch?

The clutch uses a different product: the VNM Clutch Bracket with product code VNM-HPRBK02.

5. Why is secure mounting important?

A firm connection directs the pulse into the pedal and limits vibration spreading through unrelated rig parts. Loose hardware can make the cue less distinct.
