VNM Controller Box V2 updates the control electronics in a pedal setup and leaves room for further expansion. It handles stable signal processing and works with VNM software. The V2 unit is required when an older setup using a V1 box is upgraded with the VNM Direct Haptic Pedals Reactor.

Ask about product

You will receive an 2.06zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Additional accessories

VNM Power Supply

52.11zł

VNM Brake/Throttle Bracket

31.22zł

VNM Clutch Bracket

17.25zł

VNM Direct Haptic Pedals Reactor

170.81zł

VNM Controller Box V2 - The signal hub for a pedal setup

VNM Controller Box V2 acts as the electronic hub between the pedals and the computer. It receives the pedal inputs, processes them and passes a clean signal to the sim. It is not an extra pedal or a complete haptic system. Its job is to keep the connected controls communicating properly.

The V2 model is particularly useful when an older VNM setup is being refreshed. Updating the controller can prepare existing pedals for newer accessories without replacing the entire mechanical assembly.

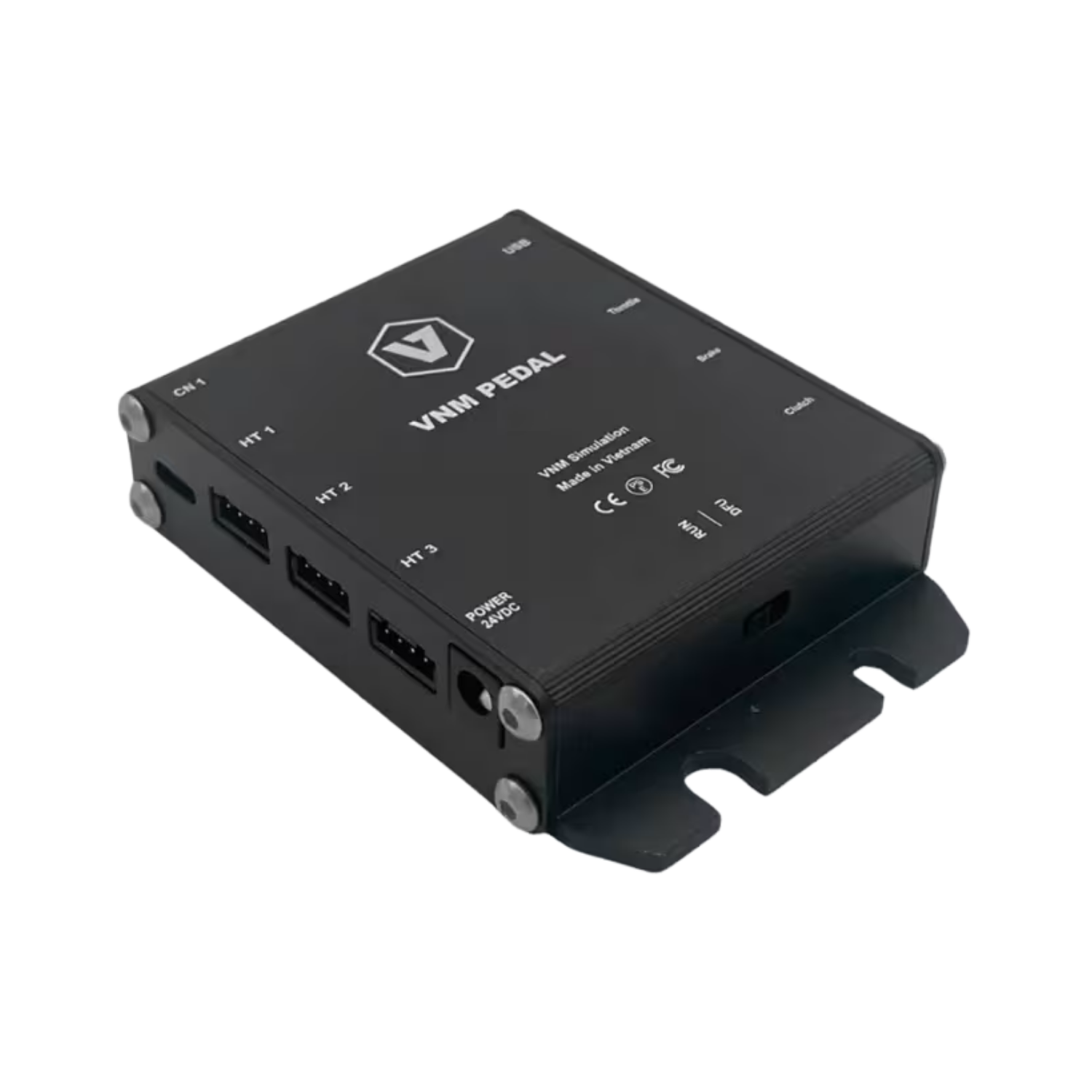

VNM Controller Box V2 - widok na obudowę kontrolera

VNM Controller Box V2 - The signal hub for a pedal setup

Calibration that suits the driver

VNM software provides access to pedal calibration, dead zones and response curves. A throttle can be made gentler near the start of its travel, while the brake can use a range that suits the driver's seating position and preferred pressure.

These adjustments matter after changing springs, elastomers, pedal angle or cockpit position. The controller does not alter the pedal mechanism, but it helps the game use the available movement and sensor signal in a practical way.

The controller required for Direct Haptic

An older setup fitted with VNM Controller Box V1 needs the V2 controller before it can use the VNM Direct Haptic Pedals Reactor. VNM gives the same instruction for suitably prepared third-party pedals. Electrical compatibility, cables and the correct reactor bracket still need to be checked for the specific pedal model.

Controller Box V2 does not replace the reactor or every part of its power system. The finished installation also needs the matching brackets and, depending on the configuration, a separate VNM Power Supply.

Check the existing box before ordering

Not every owner of current VNM pedals needs to buy this controller separately. Recent pedal sets may already include Controller Box V2, so the marking on the existing unit should be checked first. The upgrade is mainly relevant to older VNM V1 Brake & Throttle configurations and rigs being rebuilt around pedal haptics.

If you are buying a complete pedal set, compare the supplied controller version with the accessories planned for the rig. This quick check can prevent a duplicate purchase, especially when considering the VNM Lite Pedalset.

EAN13 8936230212154

Technical specification - VNM Controller Box V2
Product details
Product name	VNM Controller Box V2
Product code	VNM-PE02PCBBX
EAN	8936230212154
Device type	Pedal signal controller
Controller version	V2
Functions and expansion
Signal processing	Stable communication between the pedals and computer
Adjustments	Calibration, dead zones and response curves in VNM software
VNM Direct Haptic	V2 is required for an older Controller Box V1 or suitably compatible third-party pedals
Haptic reactor	Sold separately
Reactor brackets	Selected separately for throttle, brake or clutch
Haptic power supply	Separate system component selected for the installation

VNM Controller Box V2 - questions and answers

1. What is VNM Controller Box V2?

It is a controller that processes pedal signals and passes them to the computer. The V2 model updates an older VNM setup and prepares it for newer parts of the ecosystem.

2. Is Controller Box V2 a pedal set?

No. It is a separate electronic module. Pedals, sensors, haptic reactors, brackets and power components must be selected for the intended installation.

3. Which settings are available in VNM software?

The software provides pedal calibration, dead-zone adjustment and response curves. This makes it possible to refine the usable range after changes to springs, seating position or pedal mechanics.

4. Is V2 required for VNM Direct Haptic?

Yes, when the pedal setup has the older V1 controller. VNM also specifies V2 for a Direct Haptic installation using suitably compatible third-party pedals and the VNM Direct Haptic Pedals Reactor.

5. Do current VNM pedals already include Controller Box V2?

Recent VNM pedal sets may ship with the V2 controller. Check the marking on the box supplied with your pedals before ordering another unit.

6. Can the controller upgrade older VNM V1 pedals?

It is intended in part for older setups fitted with the V1 box. For the VNM V1 Brake & Throttle, check the controller version and cables already in use.

7. Does VNM Controller Box V2 work with other pedal brands?

VNM identifies V2 as a required component in a Direct Haptic setup using third-party pedals. This is not a claim of universal support. Sensors, wiring, the reactor bracket and guidance for the specific pedal model must still be checked.

8. Does Controller Box V2 power haptic reactors?

The box handles control and signals, but it does not replace every part of the installation. Depending on the configuration, a separate VNM Power Supply is also required.

9. Are a reactor and mounting bracket included?

Controller Box V2 should not be treated as a complete haptic kit. The Direct Haptic reactor and the bracket made for the throttle, brake or clutch are separate components.

10. What should I check before buying?

Confirm the version of the existing controller box, pedal model, cables and planned number of reactors. A haptic upgrade also needs the correct brackets and a power supply selected for the final configuration.
