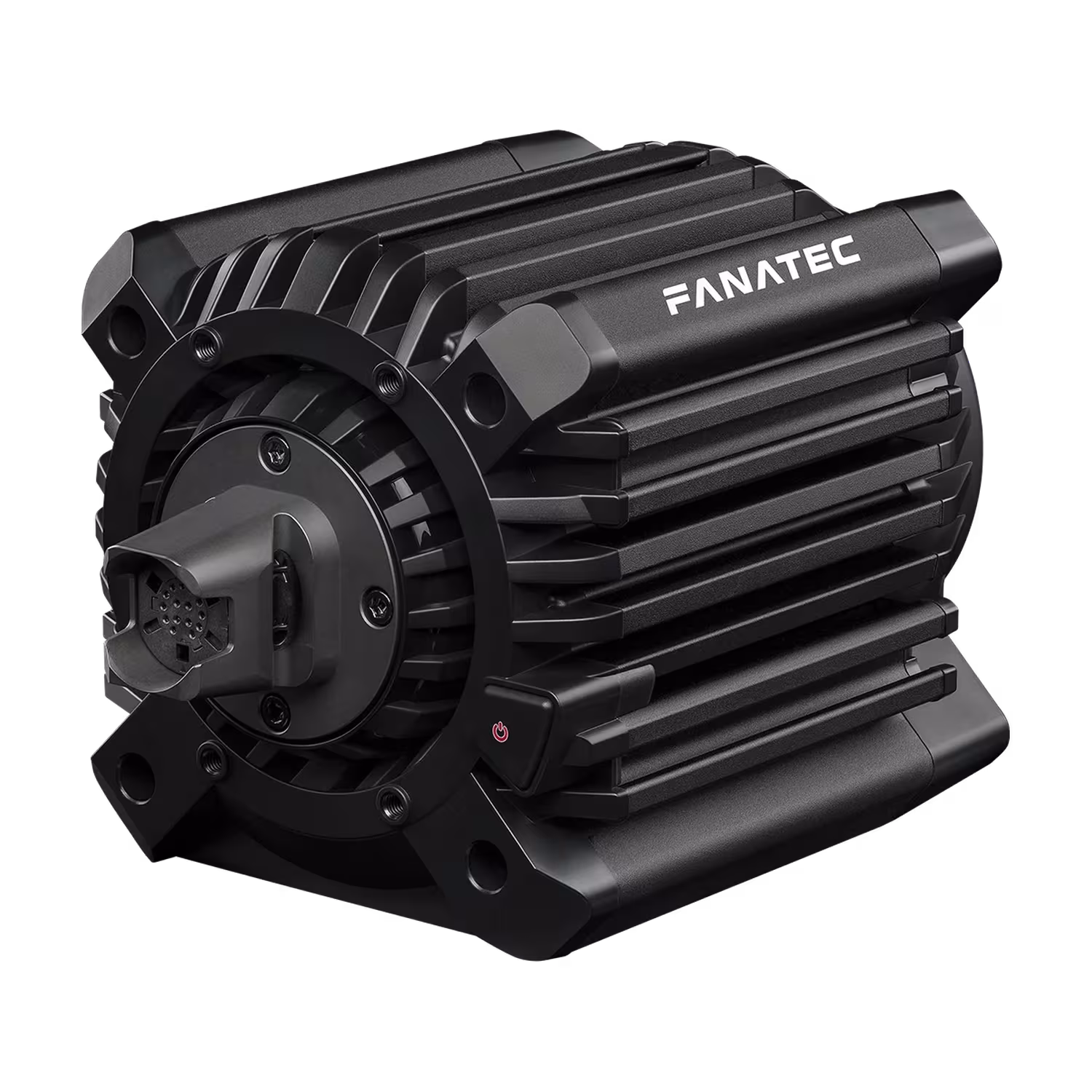

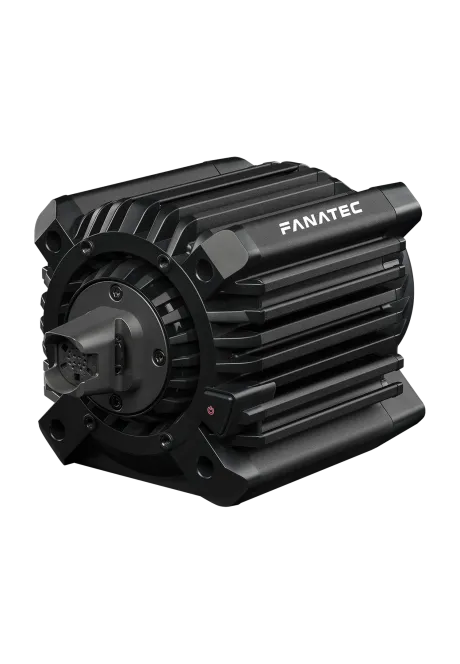

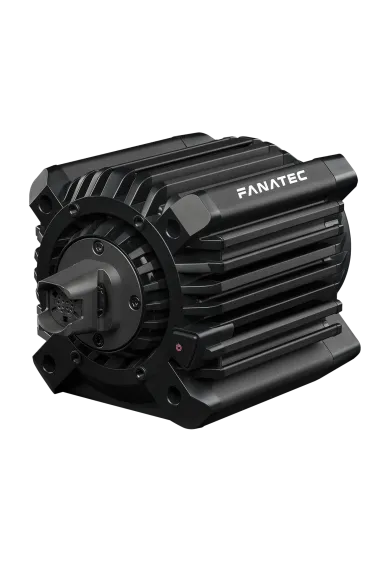

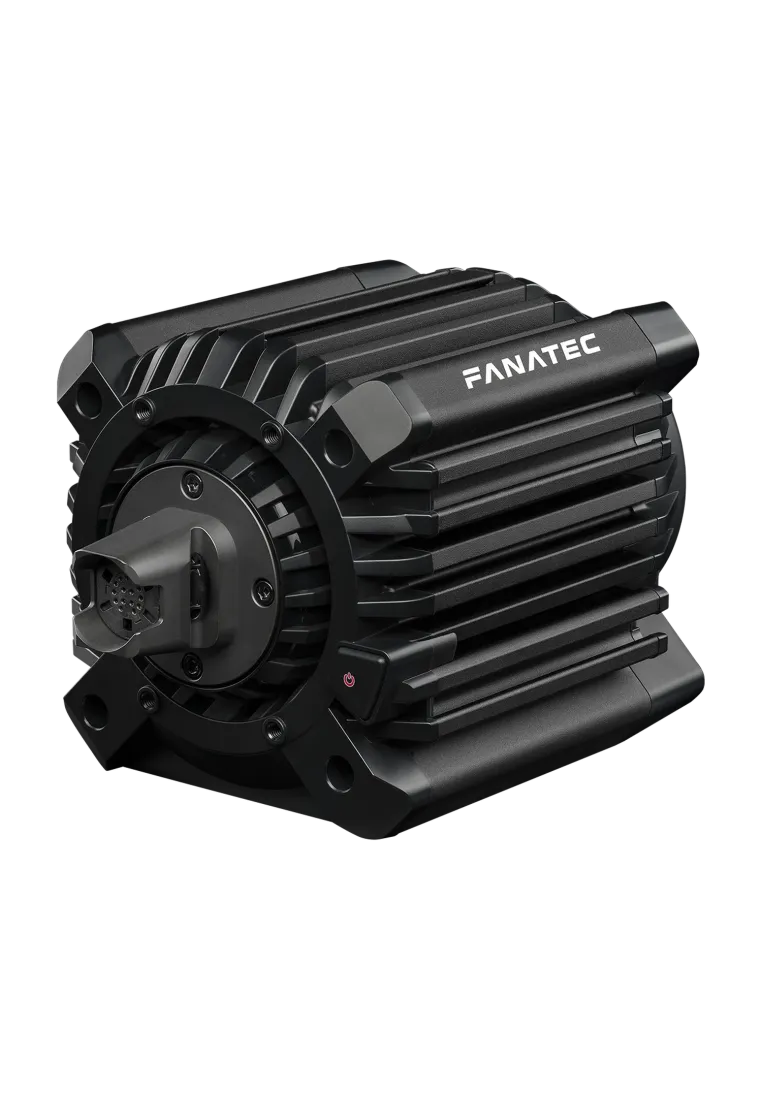

Fanatec ClubSport DD is a Direct Drive wheel base delivering 15 Nm holding torque after updating to firmware V1.4.2.3 or newer. It features FullForce, FluxBarrier, passive cooling, a contactless Hall sensor, and a preinstalled QR2 Base-Side (Type-F). The base works on PC and gains Xbox One and Xbox Series X|S compatibility when paired with an Xbox-licensed Fanatec steering wheel; it does not support PlayStation.
You might also like

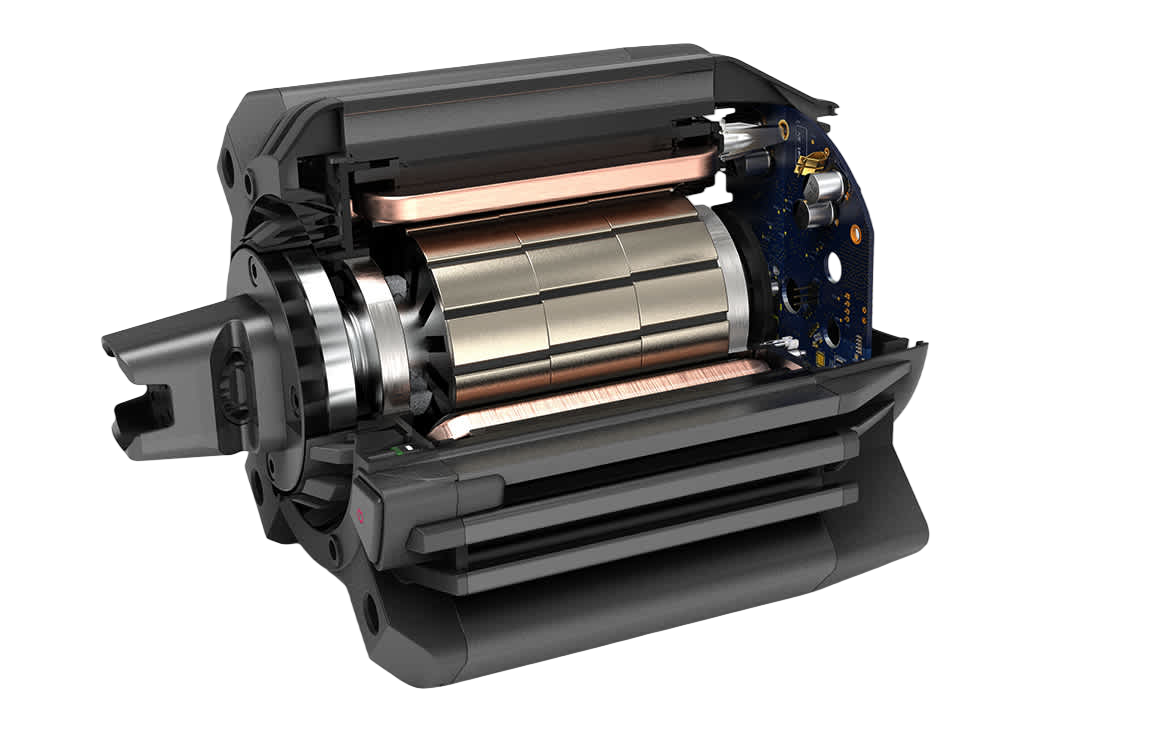

The custom servo motor applies force directly to the steering shaft without belts or gears. An optimised rotor-magnet skew angle reduces cogging, while FluxBarrier supports efficiency and smoothness. FullForce can reproduce additional high-frequency detail when implemented by the game.

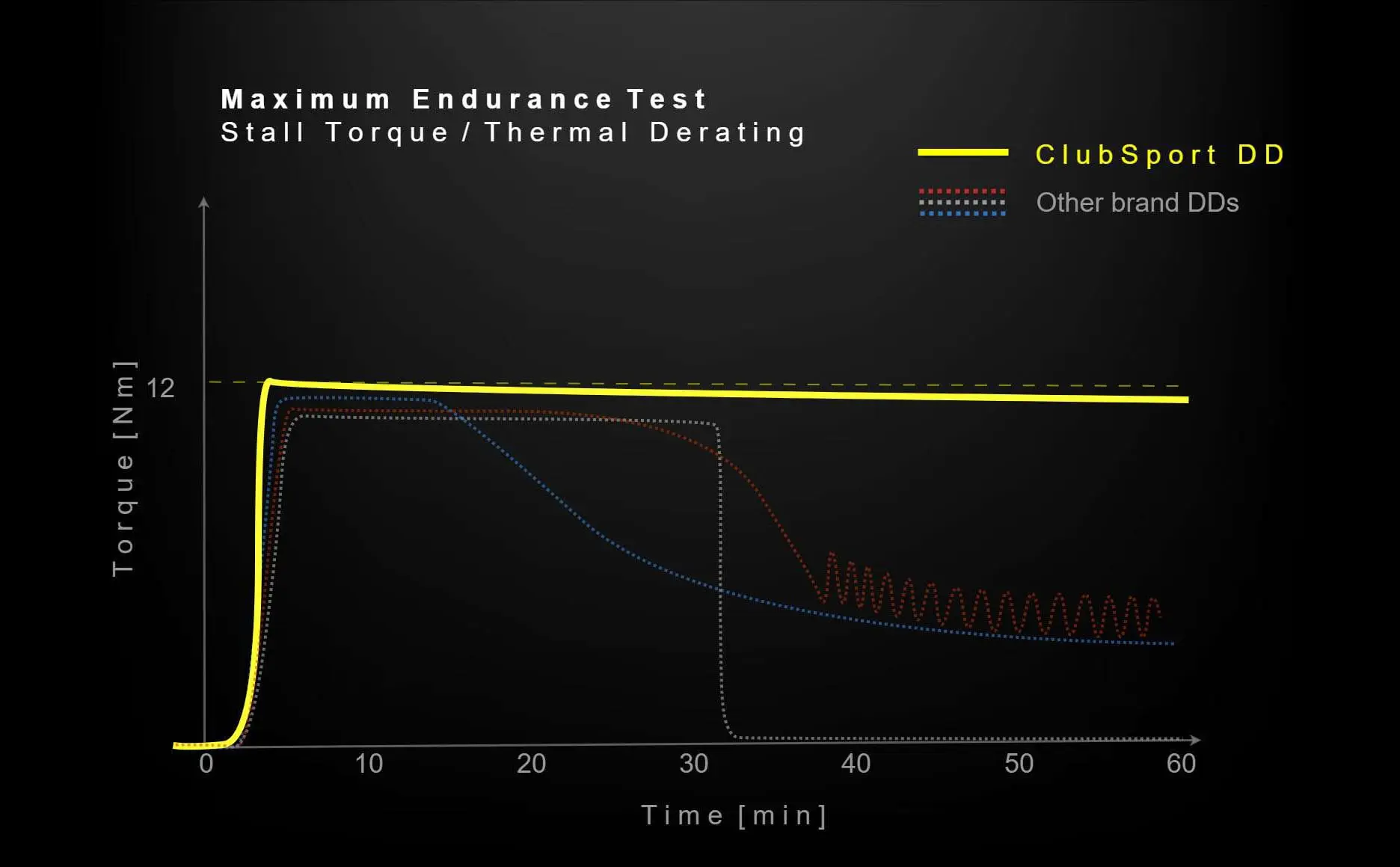

Firmware V1.4.2.3 raised holding torque from the original 12 Nm to 15 Nm without a hardware change. The current rating requires that firmware or a newer version. The design is intended to sustain its force during long sessions rather than treating the maximum figure only as a short peak.

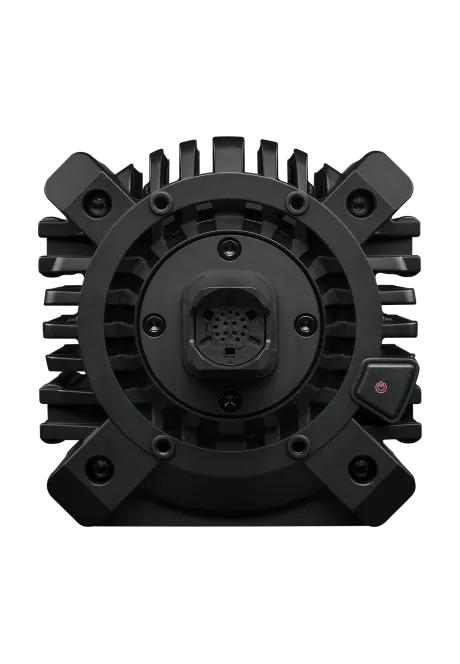

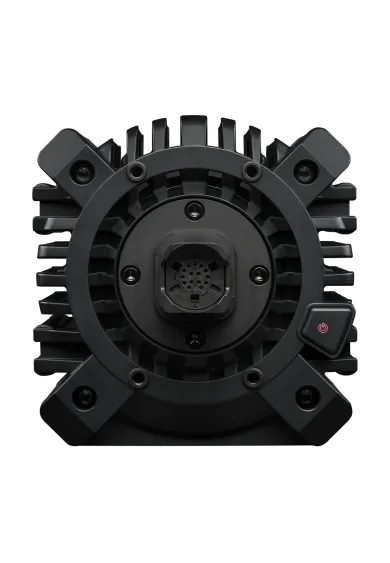

QR2 Base-Side (Type-F) was designed with the wheel base and uses diecast aluminium with a CNC-machined finish. Electronics are integrated into the shaft to reduce rotating mass. A compatible steering wheel can be exchanged without restarting the base or simulator.

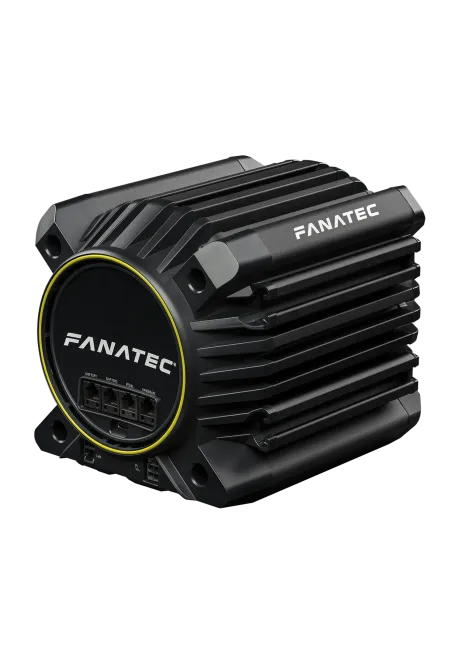

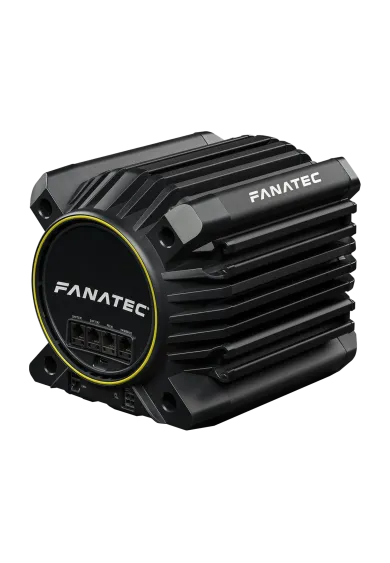

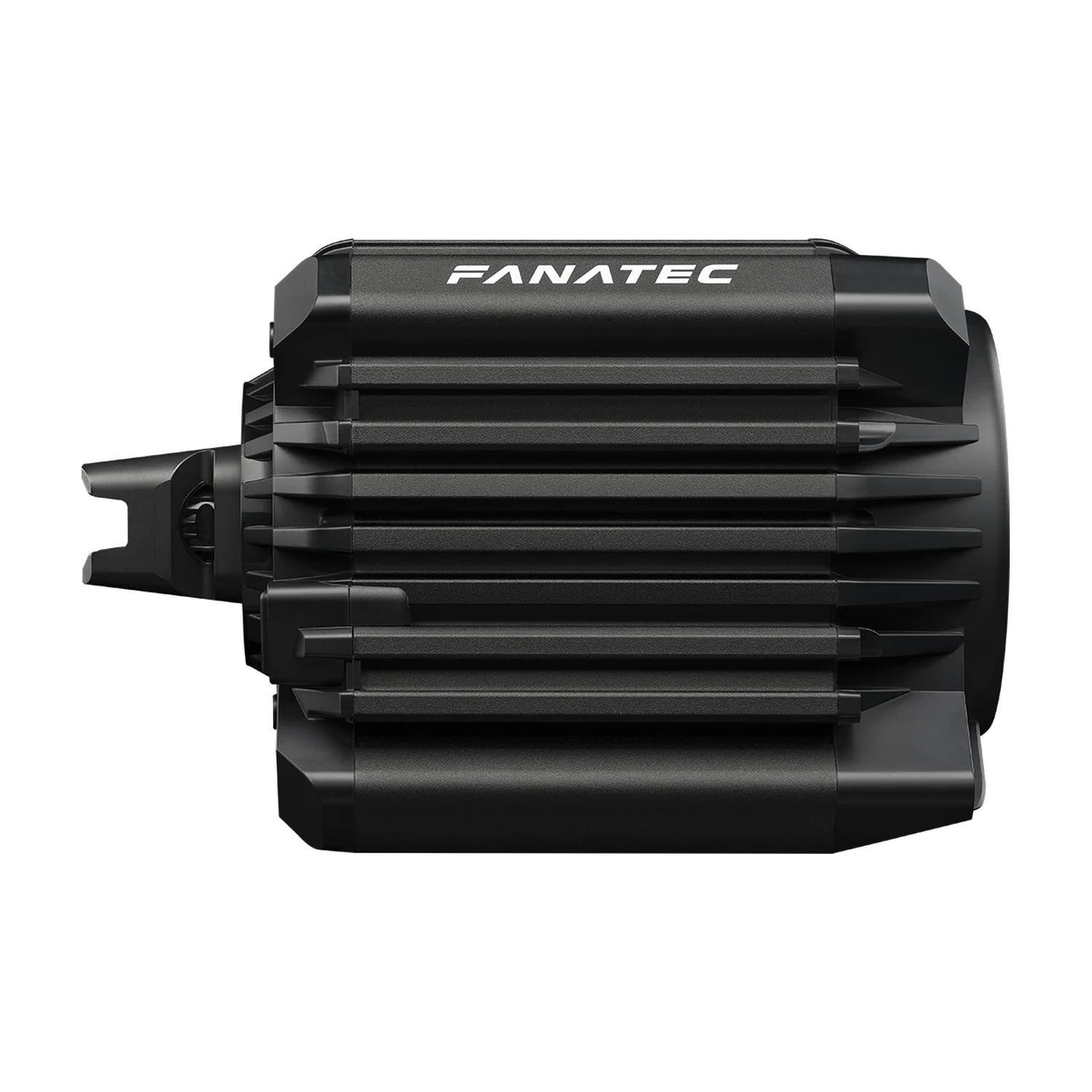

The housing dissipates heat passively, so the wheel base does not use a fan. T-nut rails on the sides and bottom support adjustable cockpit installation. The rear panel directly connects Fanatec pedals, shifter, and handbrake.

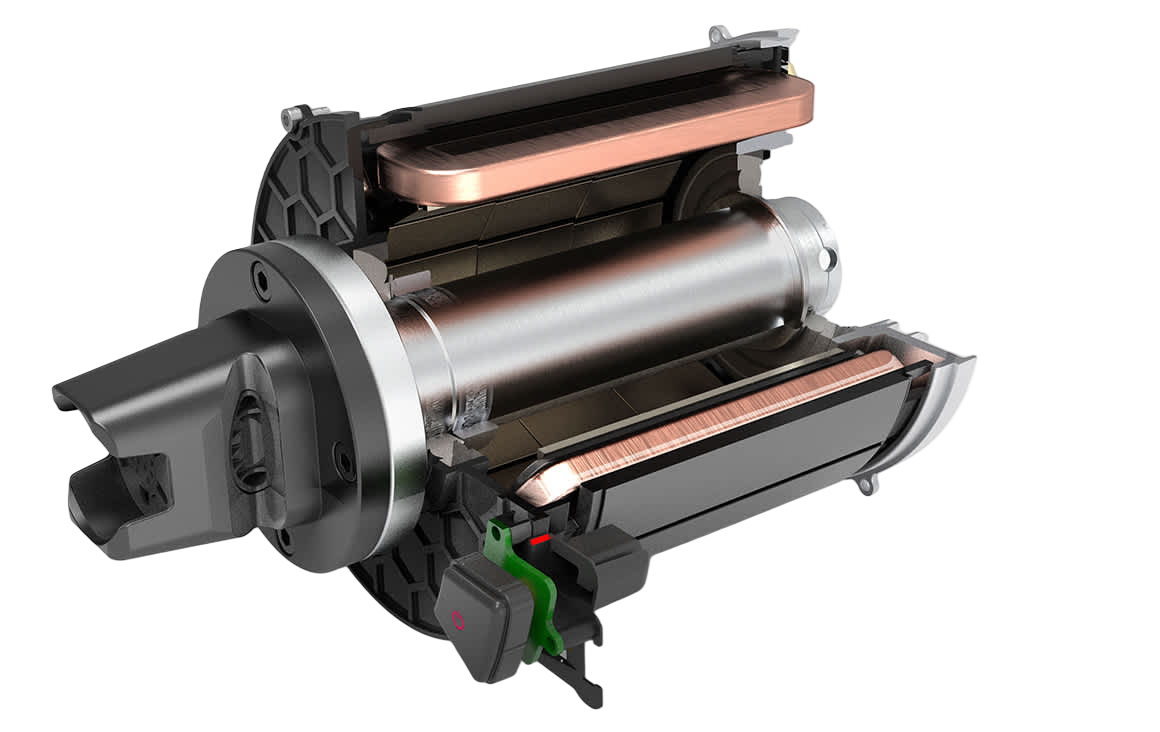

The motor uses a redesigned aluminium shaft built for greater strength and stability. Relocating the slip-ring electronics created space for thicker shaft walls, while the all-aluminium bearing seat improves radial-load capacity and rotational accuracy. It also provides more effective protection against EMI interference and ESD.
| Parameter | Data |
|---|---|
| SKU | CS_DD_EU |
| Drive type | Direct Drive with a custom servo motor developed in Germany |
| Holding torque | 15 Nm with firmware V1.4.2.3 or newer; previously 12 Nm |
| Force Feedback technology | FullForce; requires game implementation |
| Motor design | Optimised rotor-magnet skew angle to reduce cogging and FluxBarrier technology |
| Position sensor | High-resolution contactless Hall sensor |
| Rotation | Up to 2520°, adjustable and electronically limited |
| Quick release | QR2 Base-Side (Type-F), diecast aluminium with CNC finish, preinstalled |
| Wheel exchange | Hot-swap a compatible wheel without restarting the base or simulator |
| Data and power transfer | Slip ring; no external steering-wheel cable |
| Cooling | Passive; designed for thermally stable operation |
| Tuning | Standard and Advanced Tuning Menu |
| Mounting | Side and bottom T-nut rails; side or bottom hard mount |
| Mounting hardware | 4 M6 × 8 mm T-nuts; M6 × (10 + X) mm bolts not included |

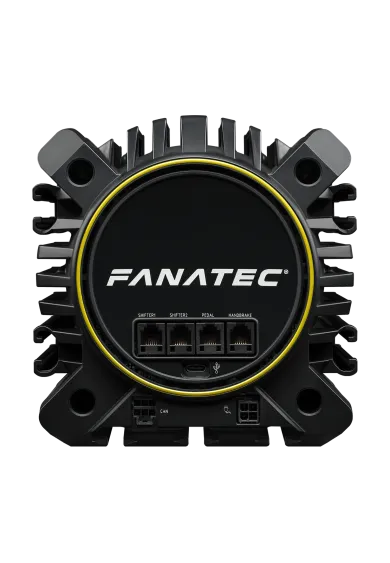

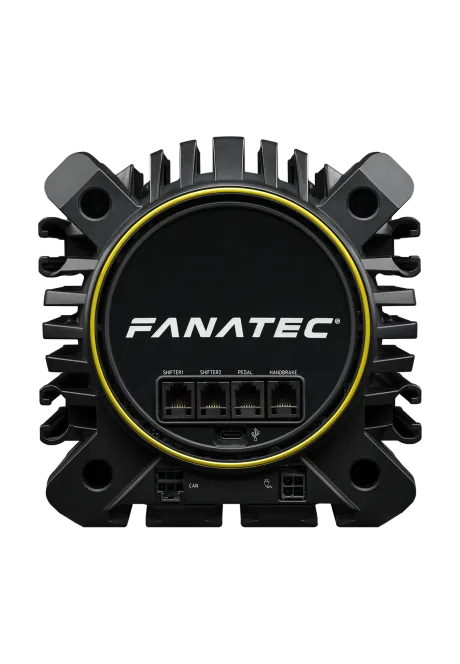

| Ports | Power, USB-C, Shifter 1, sequential-only Shifter 2, Pedals, Handbrake, and CAN for future accessories |
| Cables | USB-C to Type-A approximately 2.9 m; PSU lead approximately 1.4 m; power cord approximately 1.6 m |
| Platform or device | Status and conditions |
|---|---|
| Windows PC | Compatible with a suitable Fanatec wheel and supported game |
| Xbox One and Xbox Series X|S | Requires an Xbox-licensed Fanatec steering wheel |
| PlayStation 4 and PlayStation 5 | Not compatible; support cannot be added by an update |
| Fanatec steering wheels | Require QR2 Lite, QR2, or QR2 Pro Wheel-Side; QR2 Lite generally limits torque to 8 Nm, with manufacturer-specified exceptions |
| Fanatec pedals | Compatible; models without RJ12 may require an adapter |
| ClubSport Shifter and ClubSport Handbrake | Compatible |
| ClubSport Static Shifter Paddles | Not supported |
| Mounting accessories | ClubSport DD Table Clamp, ClubSport Table Clamp V2, and Podium Mounting Brackets, sold separately |
With firmware V1.4.2.3 or newer, the base sustains 15 Nm. Earlier firmware limited it to 12 Nm.
Yes, with a compatible Fanatec steering wheel and a supported game.
Yes, when paired with an Xbox-licensed Fanatec steering wheel. The game must also support the system.
No. ClubSport DD does not support PlayStation, and an update cannot add that compatibility.
No. The base supports FullForce, but each game must implement its effects.
Yes. QR2 Base-Side (Type-F) is preinstalled. The steering wheel needs a suitable QR2 Wheel-Side.
No. The product contains the wheel base, power supply, QR2 Base-Side, USB cable, and the items listed in the package contents.
It supports bottom or side mounting through the rails and included T-nuts. M6 bolts must be selected for the cockpit plate thickness.
No. The design dissipates heat passively and is intended to remain thermally stable during extended sessions.
Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.
As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.
Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.
Xbox compatibility is provided by a steering wheel equipped with officially licensed Xbox electronics. Once this steering wheel is attached to a compatible wheel base, the connected Fanatec setup can work with Xbox One and Xbox Series X/S. The availability of individual functions depends on the steering wheel, game and installed firmware.
The product can work with PlayStation 4 and PlayStation 5 as part of a setup using an officially compatible Fanatec wheel base. Within the Fanatec ecosystem, the electronics responsible for PlayStation compatibility are located in the wheel base rather than the steering wheel. A compatible steering wheel, pedals and other Fanatec devices can be connected to that base. Available functions may also depend on the game.
Yes. Fanatec products are designed to work with Windows PCs. The wheel base connects to the computer through USB, while some steering wheels, pedals and accessories operate through a compatible Fanatec wheel base. The current Fanatec driver is required for hardware configuration and firmware updates, while the available functions may also depend on the game.
Steering wheel, pedals, shifter, handbrake, table clamp, and hard-mount bolts are not included.
