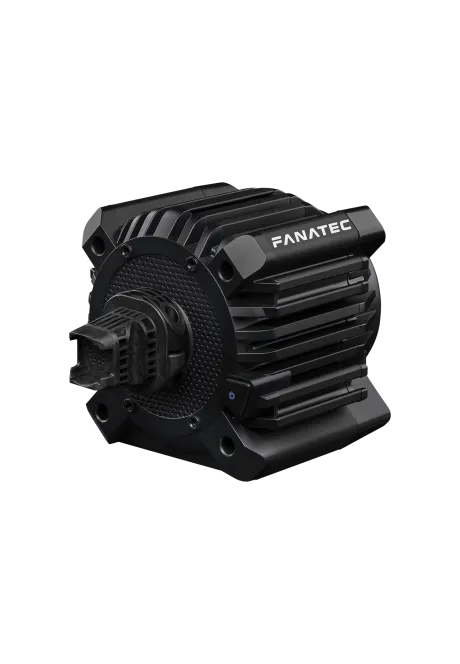

Fanatec Gran Turismo DD Pro 8 Nm front side view

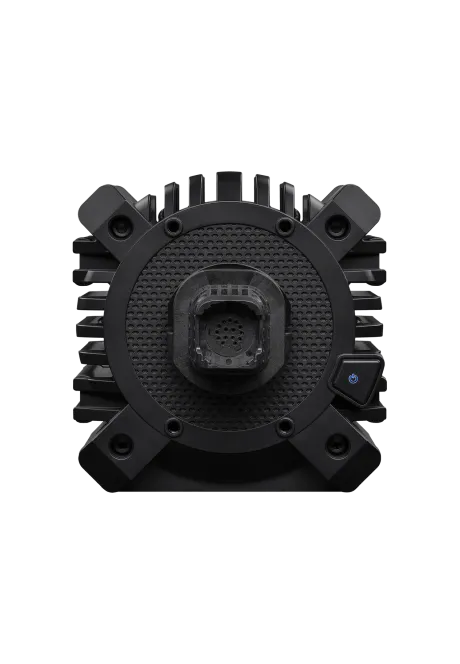

Fanatec Gran Turismo DD Pro 8 Nm front center view

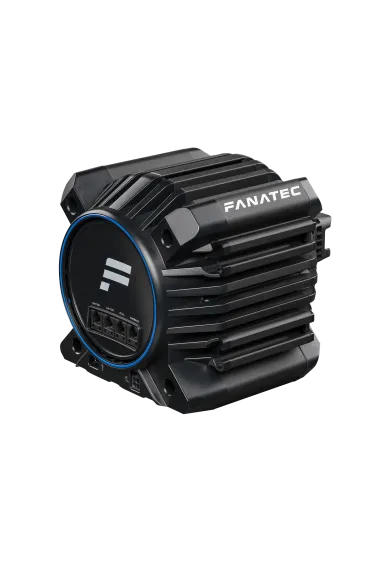

Fanatec Gran Turismo DD Pro 8 Nm rear side view

Fanatec Gran Turismo DD Pro 8 Nm side view

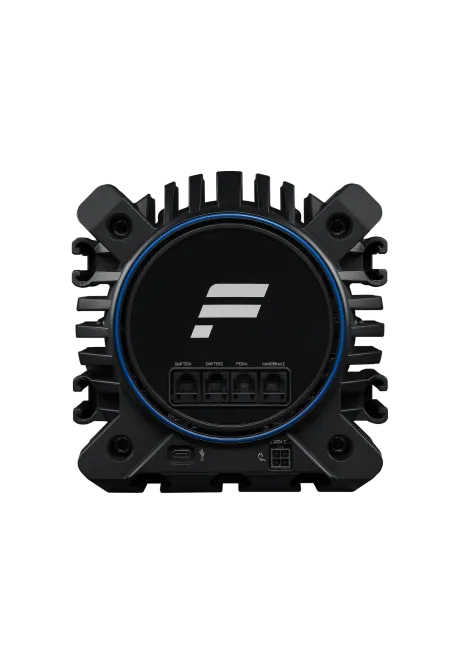

Fanatec Gran Turismo DD Pro 8 Nm rear center view

Fanatec Gran Turismo DD Pro 8 Nm

Name: Fanatec Gran Turismo DD Pro 8 Nm
Brand: Fanatec
SKU: CRD-9020006-EU
Price: 1950.41 PLN
Availability: InStock

Reference CRD-9020006-EU

1,950.41zł

Lowest price in the last 30 days before the price reduction: 5,999.00zł

Ready for shipping

Fanatec Gran Turismo DD Pro Wheel Base 8 Nm QR2 Lite is an officially licensed Direct Drive wheel base for PlayStation 5, PlayStation 4 and PC. The included Boost Kit 180 raises peak torque to 8 Nm, while the factory-installed QR2 Lite Base-Side Type-C is ready for compatible Fanatec steering wheels fitted with a suitable QR2 Wheel-Side. This package contains the wheel base and power supply, without a steering wheel, pedals or table clamp.

Ask about product

You will receive an 19.50zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

MOZA R5 bundle

1 Reviews

1,243.09zł 1,389.43zł

MOZA R3 bundle PC

2 Reviews

828.45zł 1,031.71zł

SIMAGIC Alpha EVO Pro

2,470.73zł 2,739.02zł

Moza R25 Ultra

3,462.60zł

Conspit Ares + Apex 310 + QR

3,531.98zł

Simagic Alpha Evo Ultra

3,885.36zł 4,226.83zł

Moza R5 PRO Bundle

1,462.60zł

Fanatec Gran Turismo DD PRO 5NM

2,398.37zł

Fanatec CSL Elite WRC

893.50zł

Fanatec CSL Steering Wheel BMW front view

Fanatec CSL BMW

649.59zł

Fanatec CSL GT3

812.20zł

Fanatec Clubsport Shifter SQ V1.5

953.66zł

Fanatec Clubsport Handbrake V2

649.59zł

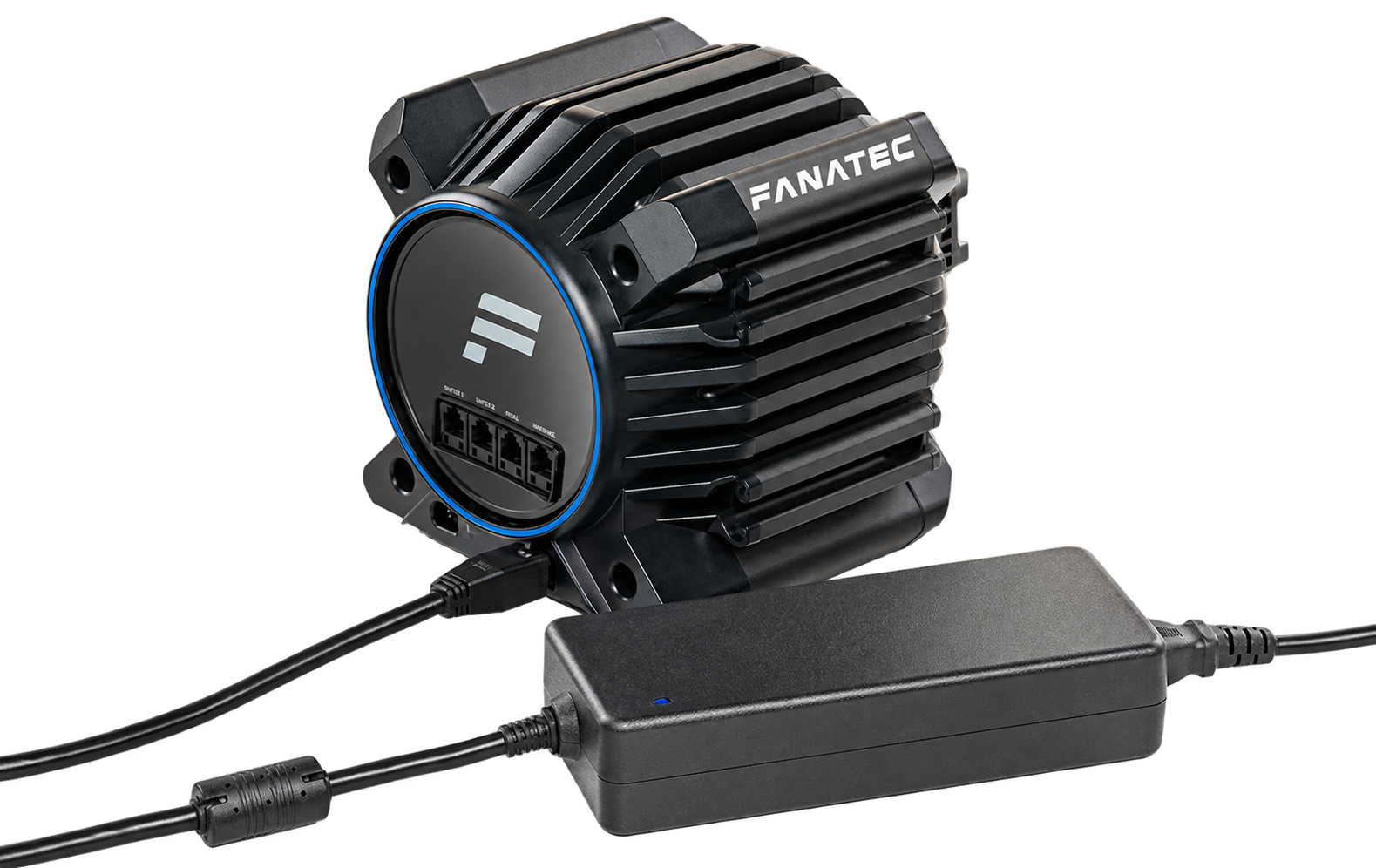

8 Nm with Boost Kit 180 included

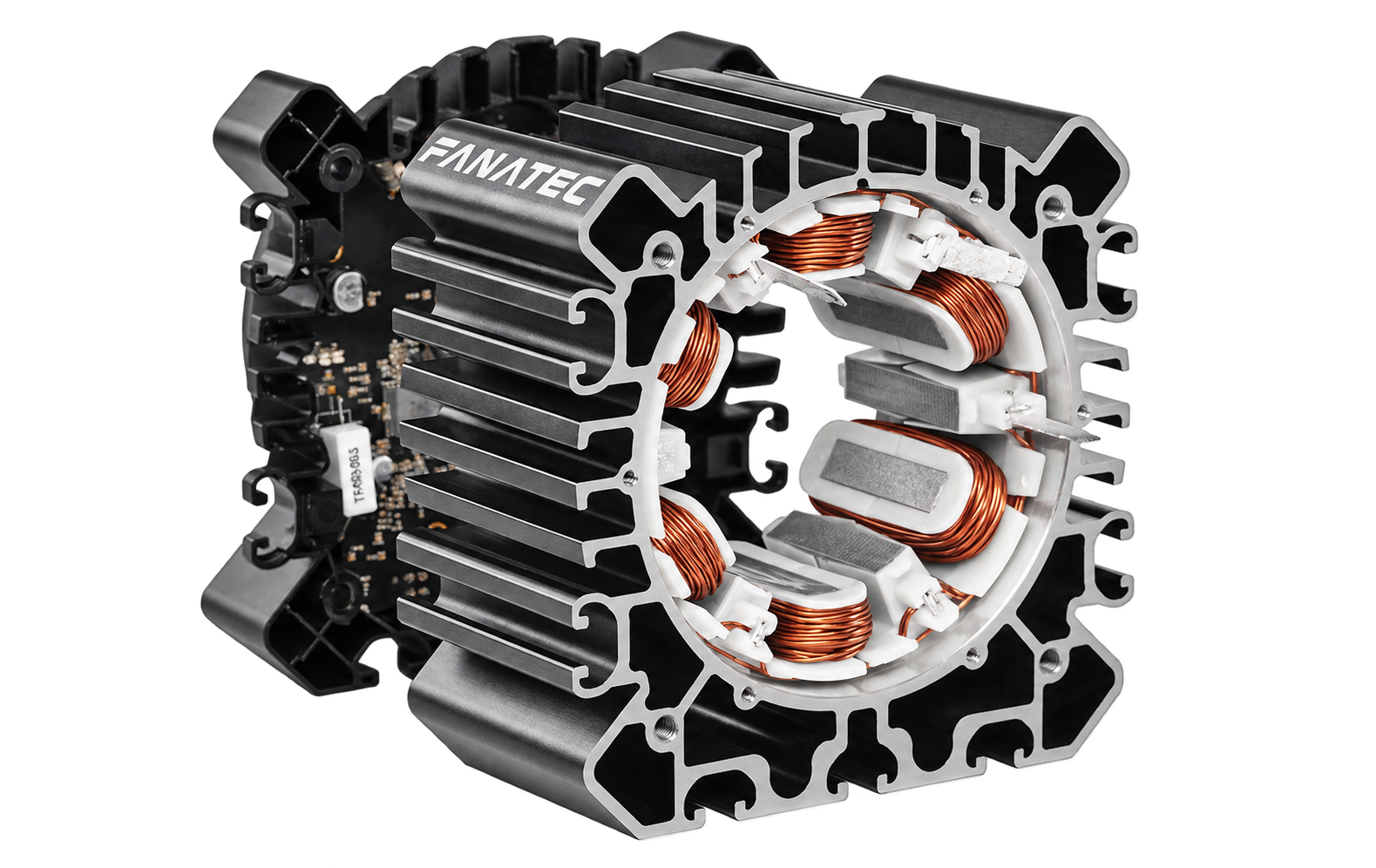

The Direct Drive motor sends force feedback straight through the steering shaft. The included Boost Kit 180 power supply unlocks 8 Nm of peak torque, giving the base more range to reproduce front axle load, grip changes and impacts than the 5 Nm configuration.

FluxBarrier technology reduces magnetic flux leakage, while a high-resolution contactless Hall sensor reads the steering position without mechanical wear at the measuring point. The shaft uses carbon fibre-enhanced composite. Its aluminium housing works as a passive heat sink, so the base does not need a cooling fan.

QR2 Lite and cockpit mounting

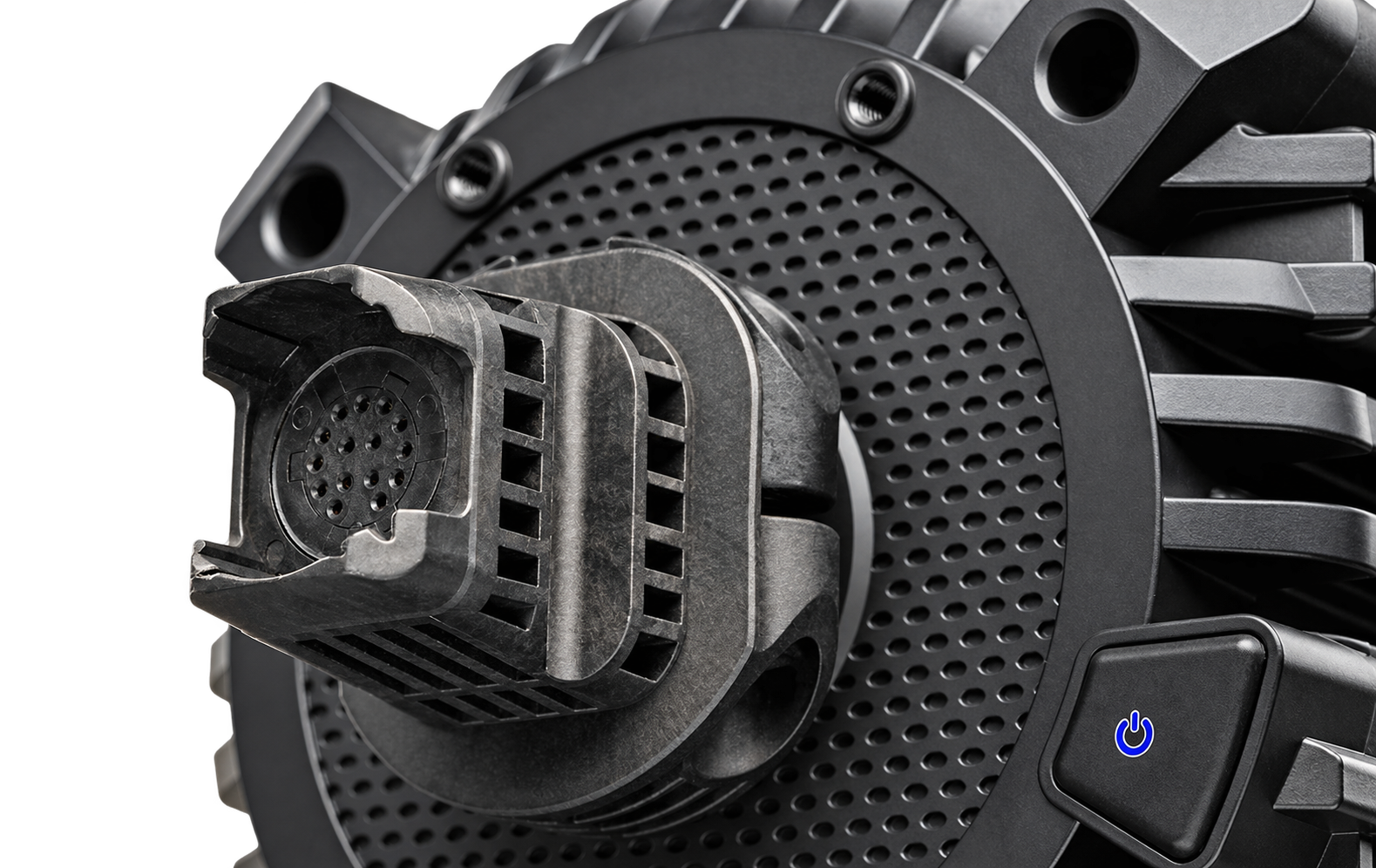

QR2 Lite Base-Side Type-C is installed at the factory. A compatible QR2 Wheel-Side is required on the chosen steering wheel, with its permitted torque limit taken into account. The connection is designed for quick wheel changes and a firm fit on the steering shaft.

Rails on the sides and bottom accept the four supplied T-nuts, allowing their positions to be matched to a cockpit mounting plate. The base also supports selected Fanatec mounting accessories. A table clamp is not included and must be ordered separately when the setup does not have a rigid wheel deck.

FullForce and wheel base tuning

FullForce expands the force feedback signal with higher-frequency effects. It can provide extra information about surface texture and vehicle behaviour, but it requires wheel base firmware V1.5.1.2 or newer and direct implementation by the game being played.

Standard Tuning Menu presents the essential adjustments for a quick setup. Advanced mode opens a broader set of controls for force, damping and steering behaviour. Rotation can be set up to 2520 degrees or electronically limited to suit the selected car.

Connections for the Fanatec ecosystem

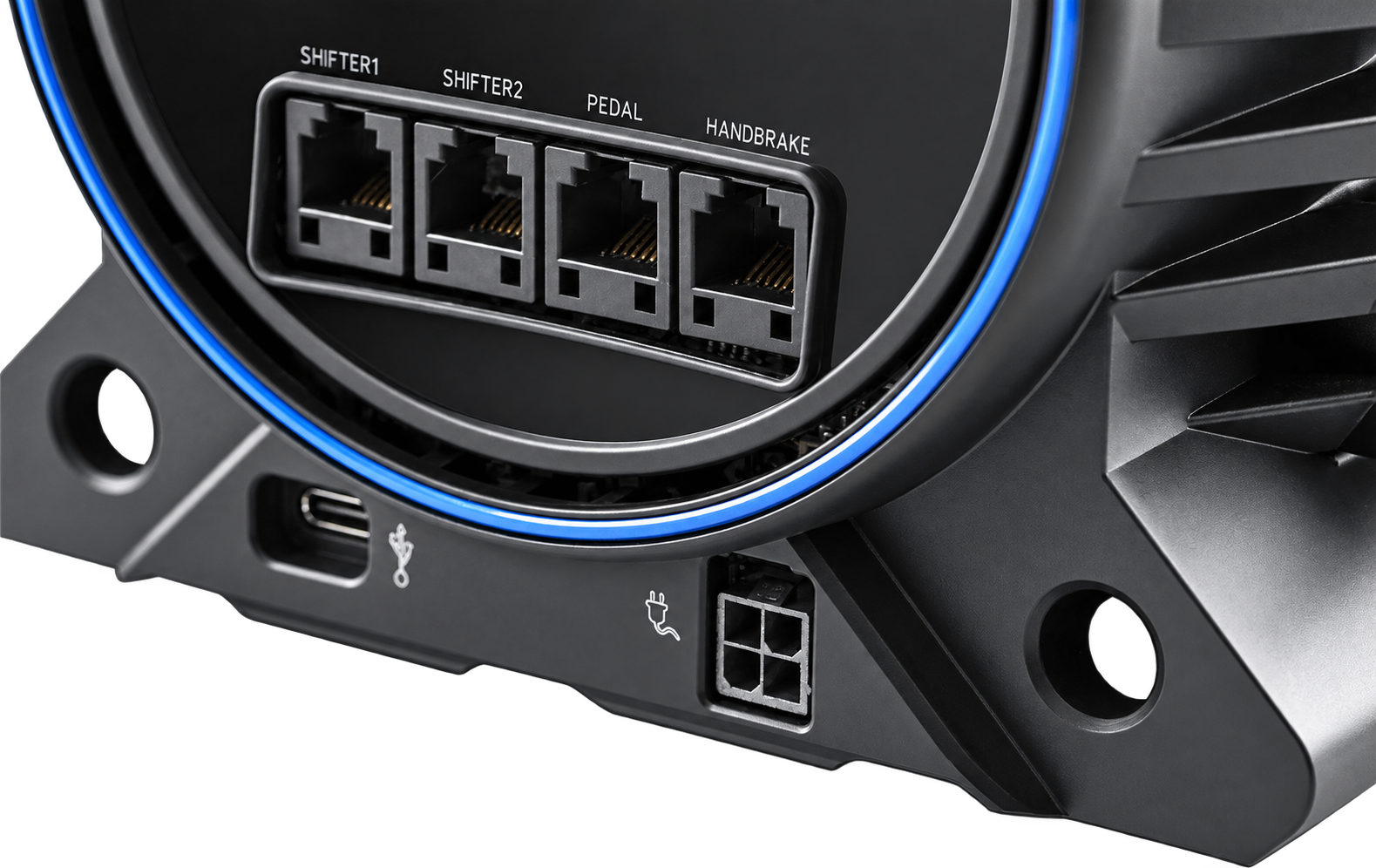

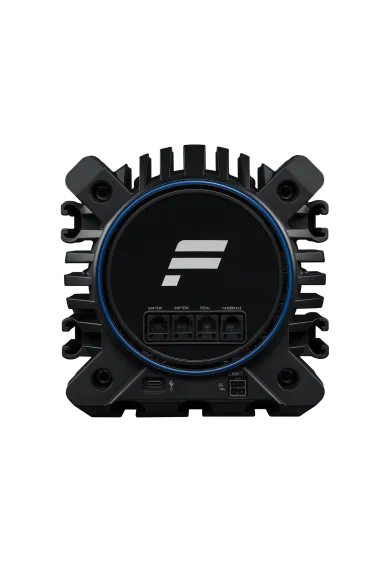

The rear panel provides dedicated ports for pedals, a handbrake and two shifting devices. The second shifter port supports sequential mode only. Connection to a console or PC uses the supplied USB Type-C to Type-A cable.

Threaded inserts on the front are intended for supported accessories such as the ClubSport Static Shifter Paddles. They are not mounting points for securing the entire wheel base to a cockpit from the front. The steering wheel, pedals, shifter and handbrake are selected separately for the intended setup.

Communication: USB
Fixing method: Bottom
Side
Platforms Compatibility: PC
PS Compatible
Xbox
Force Feedback Type Support: Mixed Telemetry Effects Support

Parameter	Details
Manufacturer	Fanatec
Product type	Direct Drive wheel base
Licence	Officially licensed for PlayStation
Peak torque	8 Nm
Power supply	Boost Kit 180, 180 W, included
Drive system	Direct Drive
Technologies	FullForce, FluxBarrier
FullForce requirement	Firmware V1.5.1.2 or newer and a supported game
Position sensor	High-resolution contactless Hall sensor
Steering shaft material	Carbon fibre-enhanced composite
Cooling	Passive, fanless
Housing	Aluminium with composite end caps
Maximum rotation	Up to 2520 degrees, electronically adjustable
Wheel base quick release	QR2 Lite Base-Side Type-C, factory-installed
Cockpit mounting	T-nut rails on the bottom and sides
Ports	Power, USB-C, Shifter 1, Shifter 2, Pedals, Handbrake
Platforms	PlayStation 5, PlayStation 4, PC; Xbox support depends on the steering wheel

Component or platform	Status	Information
PlayStation 5 and PlayStation 4	Compatible	The wheel base is officially licensed for PlayStation; available functions depend on the game
Windows PC	Compatible	Connects through the supplied USB cable
Xbox One and Xbox Series X\|S	Steering wheel dependent	Requires a Fanatec steering wheel with Xbox-compatible electronics
Fanatec Podium, ClubSport and CSL steering wheels	Conditionally compatible	The wheel requires a compatible QR2 Wheel-Side; check the torque limit of the selected quick release
Fanatec pedals	Compatible	Older models without an RJ12 connector may require a suitable adapter
Fanatec shifters	Compatible	Two shifter ports; Shifter 2 supports sequential mode only
Fanatec handbrakes	Compatible	Connects to the dedicated Handbrake port
Fanatec cockpits	Compatible	Mounts through the lower or side rails
CSL DD Table Clamp	Compatible	Sold separately; supports desks 5-60 mm thick
ClubSport Table Clamp V2	Compatible	Sold separately
Podium Mounting Brackets	Compatible	Sold separately and attached through the side mounting rails

1. Does the wheel base deliver 8 Nm out of the box?

Yes. The package includes the Boost Kit 180 power supply required for 8 Nm of peak torque.

2. Is a steering wheel included?

No. This package contains the wheel base, QR2 Lite Base-Side and power supply. A steering wheel with a suitable QR2 Wheel-Side is required separately.

3. Does it work with PlayStation 5 and PlayStation 4?

Yes. The model is officially licensed for PlayStation. The available functions depend on support in each game.

4. Can the wheel base be used on PC?

Yes. It supports Windows PCs and connects using USB.

5. Is it compatible with Xbox?

It can work with Xbox One and Xbox Series X|S when a Fanatec steering wheel with Xbox-compatible electronics is attached.

6. Can a QR1 steering wheel connect directly to this wheel base?

No. The installed QR2 Lite Base-Side Type-C requires the steering wheel to use a compatible QR2 Wheel-Side.

7. Is a table clamp included?

No. The compatible CSL DD Table Clamp and ClubSport Table Clamp V2 are available separately.

8. How is the wheel base mounted to a cockpit?

Rails on the bottom and sides accept the four supplied T-nuts. The mounting bolts must be selected for the plate or brackets used by the cockpit.

9. What is required for FullForce?

Wheel base firmware V1.5.1.2 or newer and a game with direct FullForce support are required.

10. Can pedals connect directly to the wheel base?

Yes. The dedicated Pedals port supports compatible Fanatec pedals. Older models without RJ12 may need an adapter.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

14. What does Xbox One and Xbox Series X/S compatibility mean for a Fanatec product?

Xbox compatibility is provided by a steering wheel equipped with officially licensed Xbox electronics. Once this steering wheel is attached to a compatible wheel base, the connected Fanatec setup can work with Xbox One and Xbox Series X/S. The availability of individual functions depends on the steering wheel, game and installed firmware.

15. What does PlayStation 4 and PlayStation 5 compatibility mean for a Fanatec product?

The product can work with PlayStation 4 and PlayStation 5 as part of a setup using an officially compatible Fanatec wheel base. Within the Fanatec ecosystem, the electronics responsible for PlayStation compatibility are located in the wheel base rather than the steering wheel. A compatible steering wheel, pedals and other Fanatec devices can be connected to that base. Available functions may also depend on the game.

16. Are Fanatec products compatible with a Windows PC?

Yes. Fanatec products are designed to work with Windows PCs. The wheel base connects to the computer through USB, while some steering wheels, pedals and accessories operate through a compatible Fanatec wheel base. The current Fanatec driver is required for hardware configuration and firmware updates, while the available functions may also depend on the game.
