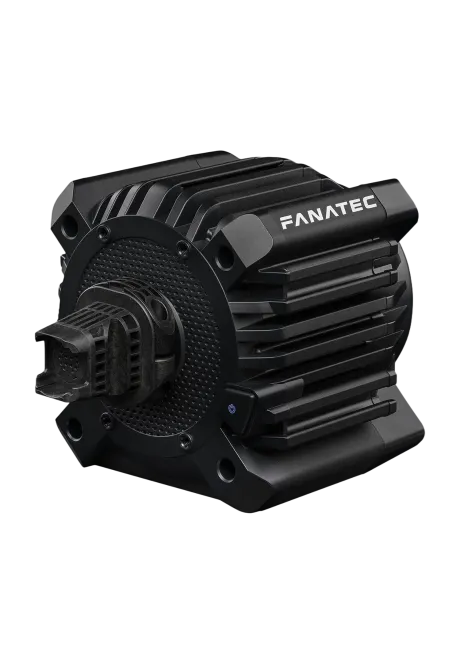

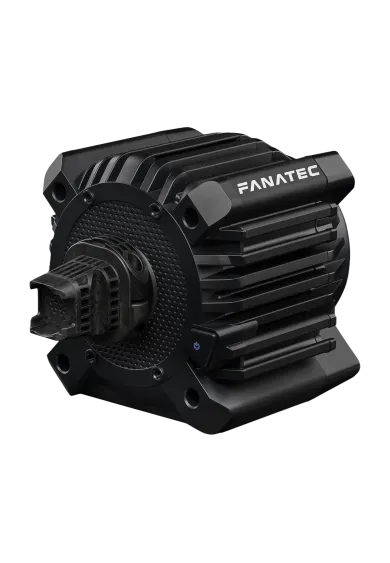

Fanatec Gran Turismo DD PRO wheelbase front view

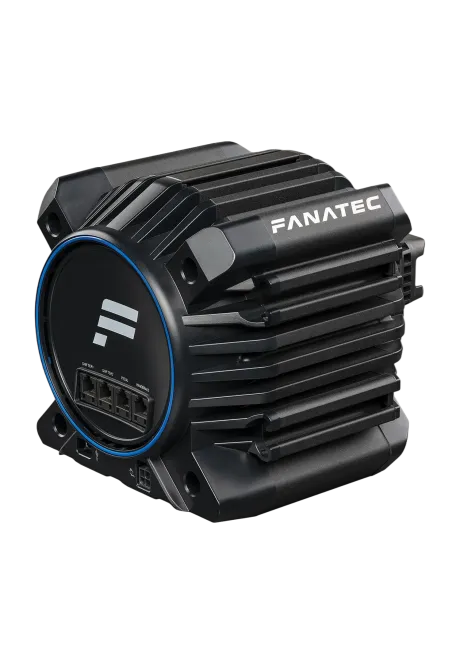

Fanatec Gran Turismo DD PRO wheelbase rear view

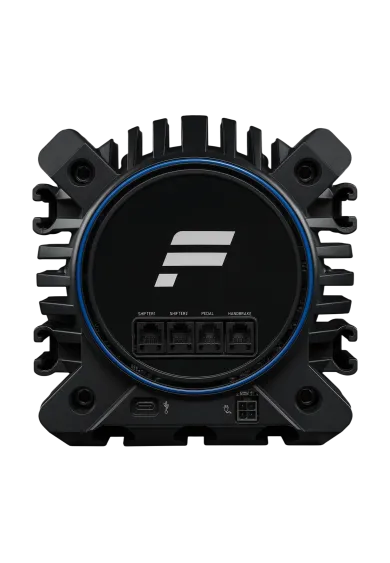

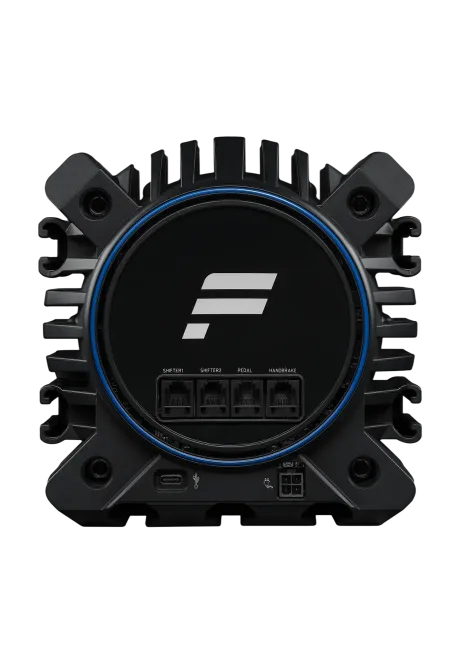

Fanatec Gran Turismo DD PRO wheelbase rear centered view

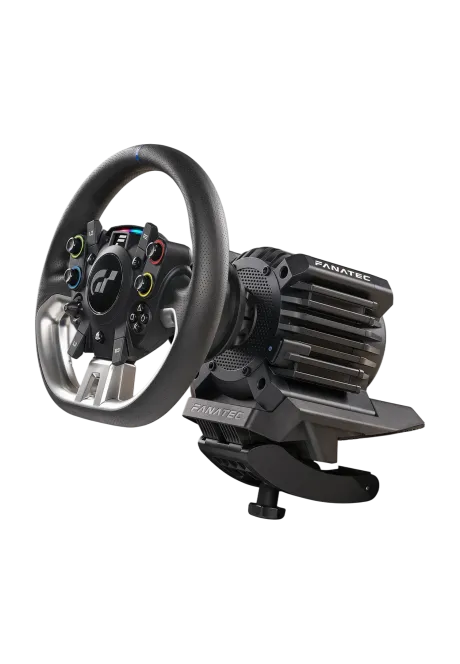

Fanatec Gran Turismo DD PRO wheel and wheelbase view

Fanatec Gran Turismo DD PRO wheelbase clip

Fanatec Gran Turismo DD PRO 5NM

Name: Fanatec Gran Turismo DD PRO 5NM
Brand: Fanatec
SKU: CRD-9020007-EU
Price: 2398.37 PLN
Availability: InStock

Reference CRD-9020007-EU

2,398.37zł

Ready for shipping

Fanatec Gran Turismo DD Pro 5 Nm QR2 Lite is a complete Direct Drive sim racing bundle officially licensed for Gran Turismo, PlayStation 5, and PlayStation 4. It includes a 5 Nm wheel base, a 280 mm steering wheel designed by Polyphony Digital, a steel throttle-and-brake pedal set, and a table clamp. Preinstalled QR2 Lite Base-Side and Wheel-Side components connect the base and wheel, while FullForce extends ffb details.

Ask about product

You will receive an 23.98zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Plug and Play Accessories

Fanatec Boostkit 180 8Nm

405.69zł

Fanatec Clubsport Handbrake V2

649.59zł

Fanatec Clubsport Shifter SQ V1.5

953.66zł

MOZA R5 bundle

1 Reviews

1,243.09zł 1,389.43zł

MOZA R3 bundle PC

2 Reviews

828.45zł 1,031.71zł

Conspit Ares + Apex 310 + QR

3,531.98zł

Moza R5 PRO Bundle

1,462.60zł

Direct Drive with 5 Nm peak torque

The Gran Turismo DD Pro transfers forces directly from the motor to the steering shaft without a belt or gear stage. With the included 5 Nm power supply, this version delivers 5 Nm of peak torque. A high-resolution contactless Hall sensor monitors shaft position, while Fanatec's FluxBarrier technology is designed to improve motor efficiency and smoothness.

The aluminium housing serves as both the structural chassis and a passive heatsink, so the base does not require a cooling fan. The Standard Tuning Menu provides a simplified starting point, while Advanced mode offers more detailed control of force-feedback behaviour. The separately sold Boost Kit 180 raises peak torque to 8 Nm; it is not included with this 5 Nm bundle.

A steering wheel designed for Gran Turismo

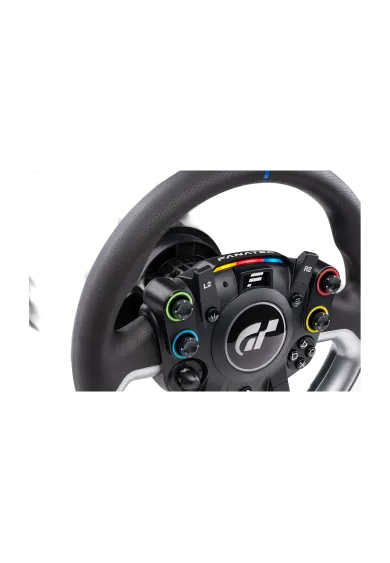

The round steering wheel was designed by Polyphony Digital specifically for Gran Turismo. Its 280 mm diameter and low weight support a responsive steering feel, while the tactile rubber grip creates a consistent contact surface. A blue centre stripe helps the driver track the wheel's position.

The front carries controls arranged around the PlayStation interface, including a main five-way directional stick and four additional five-way inputs. A white OLED shows Tuning Menu settings and supported telemetry, while the diffused RevLED strip provides engine-speed information. Ergonomic shift paddles are fitted behind the wheel, and a preinstalled QR2 Lite Wheel-Side connects it to the base.

QR2 Lite, table mounting and ecosystem expansion

The wheel base comes with a QR2 Lite Base-Side Type-C, matched to the preinstalled QR2 Lite Wheel-Side on the steering wheel. The tapered quick-release geometry creates a tight connection between the wheel and shaft. A clamp for tabletops between 5 and 60 mm thick is also included.

Side and bottom T-nut rails support hard mounting, with four M6 T-nuts supplied in the box. The wheel base provides connections for power, USB-C, pedals, handbrake and two shifters; the second shifter port supports sequential devices only. It works with Fanatec CSL, ClubSport and Podium steering wheels according to the installed quick release, as well as compatible Fanatec pedals, shifters and handbrakes.

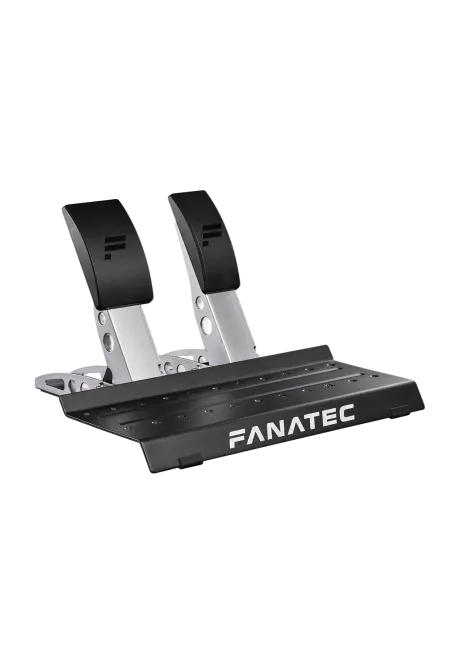

Steel pedals with contactless sensors

The bundle includes two pedals: throttle and brake. Their arms and bases are made from steel, and both axes use contactless 12-bit Hall sensors. The brake has a stiffer spring than the throttle and a PU-foam damper that adds progressive resistance through the pedal travel.

Pedal-module spacing can be adjusted along the heel rest, and the pedal faces offer height adjustment. The modular construction also permits inverted installation in a suitable cockpit. A CSL Pedals Clutch Kit or CSL Pedals Load Cell Kit can expand the set to three pedals. The latter replaces the standard brake with a pressure-sensing module, upgrades the electronics and allows the original brake pedal to become the clutch.

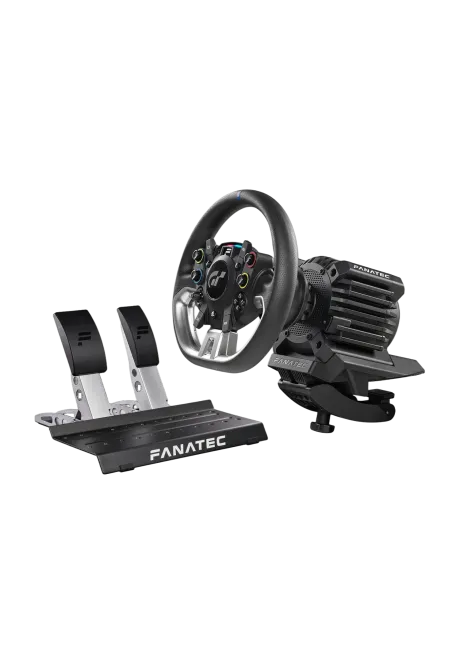

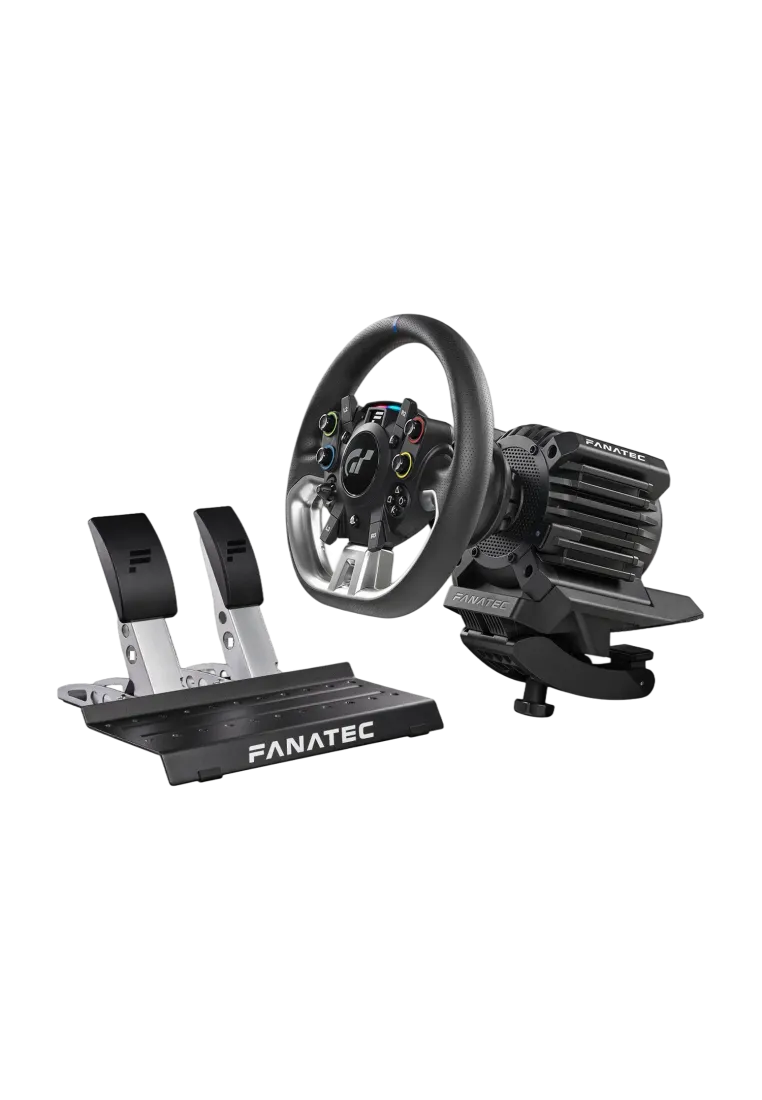

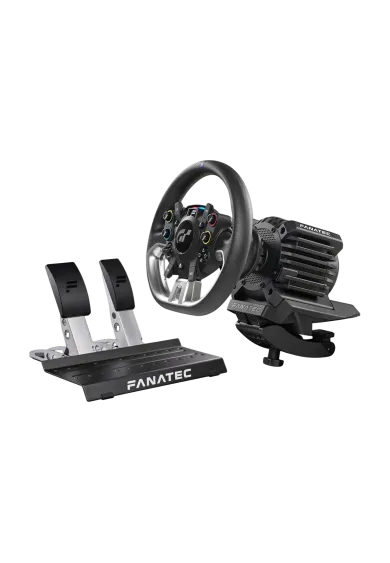

Gran Turismo DD Pro bundle with Direct Drive base, steering wheel and pedals

Direct Drive with 5 Nm peak torque

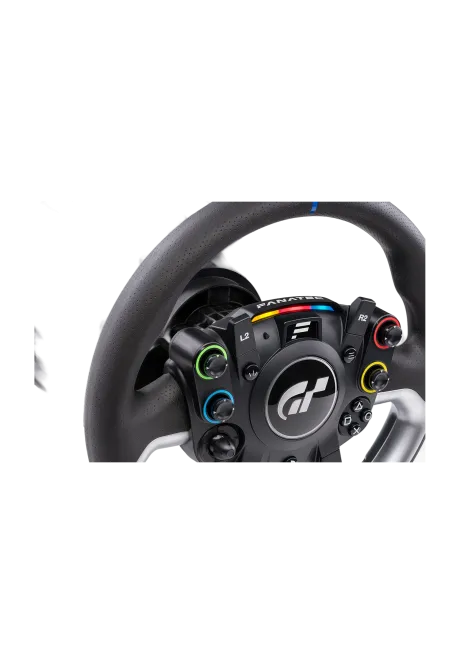

PlayStation controls, OLED and RevLED on the Gran Turismo DD Pro wheel

A steering wheel designed for Gran Turismo

QR2 Lite, table mounting and ecosystem expansion

Steel pedals with contactless sensors

Wheel size: 280
Steering wheel type: D-Shape
Grip material: PU
Buttons quantity: 12
Funky switch: Analog D-Pad
Yes
Display: Yes
RPM Leds: Yes
Max torque: 5 nm
QR Included: Yes
Type of pedals: Standard
Position of pedals: Standard
Platforms Compatibility: PC
Playstation 4/Playstation 5
Force Feedback Type Support: Mixed Telemetry Effects Support

Parameter	Data
SKU	CRD-9020007-EU
Product type	Complete Direct Drive sim racing bundle
Official licence	Gran Turismo, PlayStation 5, and PlayStation 4
Wheel base — drive	Direct Drive with a custom motor developed in Germany
Wheel base — peak torque	5 Nm; up to 4 Nm with linear FFS setting
Wheel base — power supply	Standard 90 W power supply; Boost Kit 180 is not included
Wheel base — optional upgrade	Separately sold Boost Kit 180 unlocks 8 Nm peak torque
Wheel base — Force Feedback	Direct Drive, FullForce, and patented FluxBarrier technology
Wheel base — FullForce requirement	Firmware V1.5.1.2 or newer and implementation by the game
Wheel base — position sensor	High-resolution contactless Hall sensor
Wheel base — steering axis	Carbon fibre-reinforced composite
Wheel base — rotation	Up to 2520°, adjustable and electronically limited
Wheel base — cooling	Passive, fanless; aluminium housing acts as a heat sink
Base-side quick release	QR2 Lite Base-Side (Type-C), preinstalled
Wheel-side quick release	QR2 Lite Wheel-Side, preinstalled
Steering wheel — design	Designed by Polyphony Digital for Gran Turismo
Steering wheel — diameter and shape	280 mm, round rim
Steering wheel — structure and grip	Fibreglass-reinforced plastic, tactile rubber grip, and blue centre stripe
Steering wheel — display and LEDs	White OLED and diffused RevLED strip with yellow, red, and blue LEDs
Steering wheel — controls	11 PlayStation-interface buttons, 5-way menu stick, 4 additional 5-way sticks, and ergonomic shifter paddles
Pedals — layout	Throttle and brake; upgradeable to a three-pedal setup
Pedals — construction	Steel arms and bases with pearl chrome plating; black powder-coated heel rest; plastic pedal faces
Pedals — sensors	Contactless 12-bit Hall sensors on throttle and brake
Pedals — brake resistance	Stiffer spring than the throttle and a progressive PU foam damper
Pedals — adjustment	Lateral position, pedal-face height, and inverted mounting capability
Table clamp	CSL DD Table Clamp included; supports 5–60 mm table thickness
Wheel-base hard mounting	Side and bottom T-nut rails; 4 M6 × 8 mm T-nuts included
Wheel-base hard-mount bolts	M6 × (10 + X) mm where X is the plate thickness; bolts not included
Wheel-base ports	Power, USB-C, Shifter 1, sequential-only Shifter 2, Pedals, and Handbrake

Platform or accessory	Status and notes
PlayStation 5 and PlayStation 4	Officially compatible; licensing is built into the wheel base
Windows PC	Compatible with major racing games; feature support depends on the game
Xbox One and Xbox Series X\|S	Not with the included wheel; requires an Xbox-licensed Fanatec steering wheel
Boost Kit 180	Compatible, sold separately; replaces the 90 W PSU and unlocks 8 Nm
CSL Pedals Clutch Kit	Compatible, sold separately; adds a third pedal
CSL Pedals Load Cell Kit	Compatible, sold separately; adds a third pedal, Load Cell brake, and upgraded electronics
CSL Pedals Tuning Kit	Compatible, sold separately; adds anodised aluminium pedal faces
Fanatec CSL, ClubSport, and Podium steering wheels	Compatible when the quick-release standard is matched
Fanatec pedals, shifters, and handbrakes	Compatible; older pedals without RJ12 may require an adapter
ClubSport Table Clamp V2 and Podium Mounting Brackets	Compatible and sold separately; CSL DD Table Clamp is already included

1. Is this a complete ready-to-race bundle?

Yes. It includes the wheel base, steering wheel, two pedals, table clamp, power supply, and required cables. A compatible console or PC and racing game are also needed.

2. How much torque does this version provide?

The standard 90 W power supply enables 5 Nm peak torque. Maximum output with the linear FFS setting is 4 Nm.

3. Is Boost Kit 180 included?

No. This variant includes the 5 Nm power supply. Boost Kit 180 is sold separately and can later increase peak torque to 8 Nm.

4. Does the bundle work with PlayStation 5 and PS4?

Yes. The wheel base is officially licensed for PlayStation 5 and PlayStation 4. Support for individual features also depends on the game.

5. Does the bundle work on PC?

Yes. Fanatec states compatibility with major PC racing games.

6. Does the included steering wheel enable Xbox compatibility?

No. To use the base on Xbox, it must be paired with an Xbox-licensed Fanatec steering wheel, and the game must support the system.

7. Do the pedals have a Load Cell brake?

No. The standard brake uses a Hall sensor, stiffer spring, and PU foam damper. A Load Cell brake can be added with the separately sold CSL Pedals Load Cell Kit.

8. Can a clutch be added?

Yes. CSL Pedals Clutch Kit adds a third pedal. Alternatively, Load Cell Kit adds a new brake, allowing the original brake pedal to become the clutch.

9. Is a table clamp included?

Yes. CSL DD Table Clamp is included and supports table thicknesses from 5 to 60 mm.

10. Does FullForce work in every game?

No. The wheel base requires firmware V1.5.1.2 or newer, and the game must implement FullForce effects.
