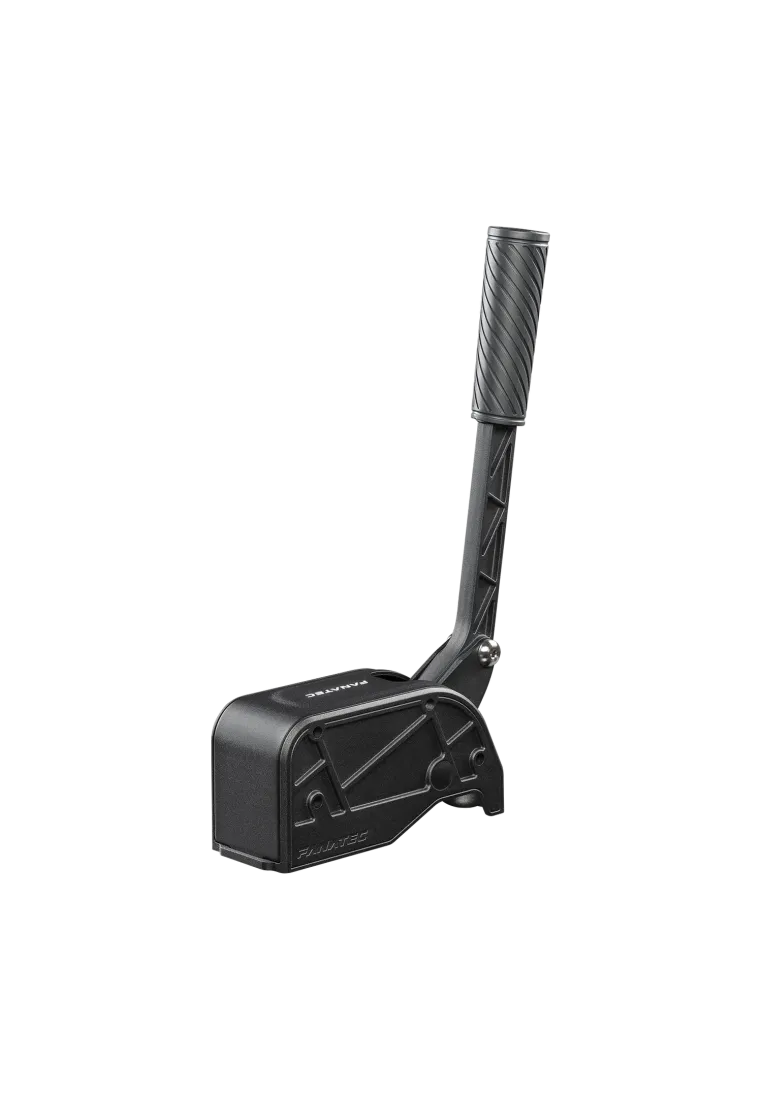

Fanatec Clubsport Handbrake V2 right side view
Fanatec Clubsport Handbrake V2 left side view
Fanatec Clubsport Handbrake V2 left side view in basic car mode
Fanatec Clubsport Handbrake V2 right side view in basic car mode
  • New
Fanatec Clubsport Handbrake V2 right side view
Fanatec Clubsport Handbrake V2 left side view
Fanatec Clubsport Handbrake V2 left side view in basic car mode
Fanatec Clubsport Handbrake V2 right side view in basic car mode

Fanatec Clubsport Handbrake V2

CRD-9050002-WW
812.20zł

812.20zł
Ready for shipping

The Fanatec Clubsport Handbrake V2 is an analogue sim-racing handbrake designed particularly for rallying and drifting. Its load cell sensor measures force applied through the lever, while the metal structure combines steel and aluminium parts with ball bearings at the pivot. The driver can adjust preload, select 60, 70 or 80 mm of travel, and change the lever angle and orientation. Capable to connect with fanatec wheelbase or pc.

Ask about product
Zapytanie dotyczy produktu: Fanatec Clubsport Handbrake V2
* - pola obowiązkowe
Send
You will receive an 8.12zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like



Analogue load cell input for rallying and drifting

The load cell sensor produces a smooth analogue signal instead of a basic on/off input. A compatible game can therefore detect how far the handbrake is being applied, allowing the driver to modulate force when initiating a slide, correcting the car's trajectory or rotating it through a tight hairpin.

This behaviour is aimed primarily at rallying and drifting, but it can also be used in other simulations that support an analogue handbrake. The available range and axis mapping depend on the game, platform, connection method and current firmware of the connected Fanatec device.

Close-up of the internal load cell and preload mechanism inside the Fanatec V2 handbrake
Fanatec Clubsport Handbrake V2 with its lever set to a horizontal orientation

Metal construction with a ball-bearing pivot

The housing and lever are made from black powder-coated aluminium, while the structure also uses steel components. Cast parts are CNC-finished. Compared with the previous generation, Fanatec redesigned the mechanism for greater strength and durability.

Ball bearings at the pivot support smooth and repeatable lever movement. The removable rubber grip has a spiral texture and can be pulled off while being turned slightly, then slid back onto the lever.

Adjustable preload, travel and lever angle

Removing the front cover provides access to the preload adjustment for the elastomer and load cell stack. Increasing preload raises the initial lever resistance, while reducing it creates a lighter response. Adjustment is made with the supplied 4 mm Allen key.

The travel spacer can be installed in two orientations to obtain 60 or 70 mm of movement, or removed for the full 80 mm travel. The lever has three main angle positions, supports an inverted orientation and includes a rear bolt assembly for fine adjustment of approximately 5 mm forward or backward.

Front three-quarter view of the Fanatec Clubsport Handbrake V2 in its vertical configuration
Close-up of the RJ12 port underneath the Fanatec Clubsport Handbrake V2 housing

Vertical or horizontal mounting with RJ12 or USB connection

Slotted mounting points allow the housing to be attached vertically or horizontally to an aluminium profile and angled slightly towards the driver. The supplied M6 T-nuts, bolts and washers support profile mounting. The included spacer also allows the handbrake to be fitted to the side of a ClubSport Shifter SQ V1.5, which is sold separately.

The 2 m RJ12 cable connects the handbrake to a compatible Handbrake port on a Fanatec wheel base or pedal set. The included ClubSport USB Adapter provides direct connection to a Windows PC. Table mounting requires a separate ClubSport Shifter SQ V1.5 and ClubSport Shifter Table Clamp.

Load cell mechanism inside the Fanatec V2 handbrake

Analogue load cell input for rallying and drifting

The load cell sensor produces a smooth analogue signal instead of a basic on/off input. A compatible game can therefore detect how far the handbrake is being applied, allowing the driver to modulate force when initiating a slide, correcting the car's trajectory or rotating it through a tight hairpin.

This behaviour is aimed primarily at rallying and drifting, but it can also be used in other simulations that support an analogue handbrake. The available range and axis mapping depend on the game, platform, connection method and current firmware of the connected Fanatec device.

Fanatec V2 handbrake in horizontal configuration

Metal construction with a ball-bearing pivot

The housing and lever are made from black powder-coated aluminium, while the structure also uses steel components. Cast parts are CNC-finished. Compared with the previous generation, Fanatec redesigned the mechanism for greater strength and durability.

Ball bearings at the pivot support smooth and repeatable lever movement. The removable rubber grip has a spiral texture and can be pulled off while being turned slightly, then slid back onto the lever.

Fanatec V2 handbrake with vertically mounted lever

Adjustable preload, travel and lever angle

Removing the front cover provides access to the preload adjustment for the elastomer and load cell stack. Increasing preload raises the initial lever resistance, while reducing it creates a lighter response. Adjustment is made with the supplied 4 mm Allen key.

The travel spacer can be installed in two orientations to obtain 60 or 70 mm of movement, or removed for the full 80 mm travel. The lever has three main angle positions, supports an inverted orientation and includes a rear bolt assembly for fine adjustment of approximately 5 mm forward or backward.

RJ12 port under the Fanatec V2 handbrake housing

Vertical or horizontal mounting with RJ12 or USB connection

Slotted mounting points allow the housing to be attached vertically or horizontally to an aluminium profile and angled slightly towards the driver. The supplied M6 T-nuts, bolts and washers support profile mounting. The included spacer also allows the handbrake to be fitted to the side of a ClubSport Shifter SQ V1.5, which is sold separately.

The 2 m RJ12 cable connects the handbrake to a compatible Handbrake port on a Fanatec wheel base or pedal set. The included ClubSport USB Adapter provides direct connection to a Windows PC. Table mounting requires a separate ClubSport Shifter SQ V1.5 and ClubSport Shifter Table Clamp.

Fixing method
Bottom
Side
Platforms Compatibility
PC
PS4 and PS5 with compatible Playstation Wheelbase
Xbox One and Series X/S with Xbox Compatible Wheel
Parameter Data
Product name Fanatec Clubsport Handbrake V2
Official manufacturer name ClubSport Handbrake V2
Manufacturer SKU CRD-9050002-WW
Product type Analogue sim-racing handbrake
Primary use Rallying and drifting
Sensor Precision load cell with analogue input
Construction Steel and aluminium; cast and CNC-finished components
Housing and lever finish Black powder-coated aluminium
Pivot Ball bearings
Grip Removable rubber grip
Preload adjustment Yes, for the elastomer and load cell stack
Lever travel 60, 70 or 80 mm
Main angle settings Three lever mounting positions
Fine angle adjustment Rear bolt assembly; approximately 5 mm forward or backward from the initial position
Lever orientation Standard or inverted
Housing mounting orientation Vertical or horizontal
Profile mounting Slotted holes permit angled placement; mounting hardware included
Shifter mounting Side-mounts to ClubSport Shifter SQ V1.5 with the supplied spacer
Fanatec ecosystem connection RJ12 to a compatible Handbrake port on a wheel base or pedal set
RJ12 cable 2 m, included
Standalone PC connection ClubSport USB Adapter, included
Package contents ClubSport Handbrake V2, lever, lever bolt, RJ12 cable, mounting spacer, 2 × 4 mm Allen keys, 2.5 mm Allen key, 4 × M5 × 30 mm bolts, 13 mm wrench, 2 × M6 × 12 mm bolts, 4 × M5 washers, 2 × M6 washers, 2 × M6 × 10 mm T-nuts, ClubSport USB Adapter and Quick Guide
Platform or device Status Notes
Windows PC through a compatible Fanatec base or pedal set Compatible Connects through a Handbrake port; functionality depends on the game
Windows PC as a standalone device Compatible Requires the included ClubSport USB Adapter; functionality depends on the game
Xbox One and Xbox Series X|S Conditionally compatible Requires a supported Fanatec base and an Xbox-licensed Fanatec steering wheel; support is game-dependent
PlayStation 4 and PlayStation 5 Conditionally compatible Requires a supported PlayStation-licensed Fanatec wheel base; support is game-dependent
CSL DD and Gran Turismo DD Pro Wheel Base Compatible RJ12 connection to the Handbrake port
ClubSport DD and ClubSport DD+ Compatible RJ12 connection to the Handbrake port
Podium Wheel Base DD1, DD1 PS4 and DD2 Compatible RJ12 connection to the Handbrake port
CSL Elite Wheel Base, V1.1 and PS4 version Compatible with note The signal works, but Fanatec states that maximum analogue output does not currently calibrate as intended on belt-driven bases
ClubSport Wheel Base V2 and V2.5 Compatible with note Fanatec's maximum analogue-output calibration note for belt-driven bases applies
CSL Elite Pedals Load Cell Kit and CSL Elite Pedals V2 Compatible Connects to the Handbrake port on the pedals
ClubSport Pedals V3 and V3 Inverted Compatible Connects to the Handbrake port on the pedals
ClubSport Shifter SQ V1.5 Mounting-compatible, sold separately The supplied spacer mounts the handbrake to the side of the shifter
Table mounting Conditionally supported Requires a ClubSport Shifter SQ V1.5 and ClubSport Shifter Table Clamp; both are sold separately

1. Does the Fanatec Clubsport Handbrake V2 provide analogue input?

Yes. Its load cell produces a smooth analogue signal, allowing a compatible game to detect how far the handbrake is applied rather than only on and off states.

2. Can the lever resistance be adjusted?

Yes. Preload adjustment changes the initial force applied to the elastomer and load cell stack. The adjustment mechanism is accessed under the front cover.

3. Which travel settings are available?

60, 70 and 80 mm. The two shorter settings use opposite orientations of the spacer, while removing it provides the full 80 mm travel.

4. Can the lever angle and orientation be changed?

Yes. The lever provides three main angle positions, an inverted orientation and fine adjustment of approximately 5 mm forward or backward through the rear bolt assembly.

5. Can the handbrake operate as a standalone PC device?

Yes. The included ClubSport USB Adapter connects it directly to a Windows PC. Analogue-axis support depends on the game.

6. Does it work on Xbox?

Yes, when connected to a supported Fanatec wheel base fitted with an Xbox-licensed Fanatec steering wheel. The game must also support a handbrake.

7. Does it work on PlayStation 4 and PlayStation 5?

Yes, when connected to a supported PlayStation-licensed Fanatec wheel base. The available functionality still depends on the game.

8. Can it be mounted to the ClubSport Shifter SQ V1.5?

Yes. The supplied spacer and hardware allow the handbrake to be attached to the side of the shifter. The shifter itself is sold separately.

9. Can the handbrake be clamped directly to a table?

Not by itself. Table mounting requires the handbrake to be attached to a ClubSport Shifter SQ V1.5 and then secured with the ClubSport Shifter Table Clamp. Both accessories are sold separately.

10. What is supplied in the box?

The handbrake with a separate lever, lever bolt, 2 m RJ12 cable, mounting spacer, bolts, washers, T-nuts and tools, ClubSport USB Adapter and Quick Guide.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

14. What does Xbox One and Xbox Series X/S compatibility mean for a Fanatec product?

Xbox compatibility is provided by a steering wheel equipped with officially licensed Xbox electronics. Once this steering wheel is attached to a compatible wheel base, the connected Fanatec setup can work with Xbox One and Xbox Series X/S. The availability of individual functions depends on the steering wheel, game and installed firmware.

15. What does PlayStation 4 and PlayStation 5 compatibility mean for a Fanatec product?

The product can work with PlayStation 4 and PlayStation 5 as part of a setup using an officially compatible Fanatec wheel base. Within the Fanatec ecosystem, the electronics responsible for PlayStation compatibility are located in the wheel base rather than the steering wheel. A compatible steering wheel, pedals and other Fanatec devices can be connected to that base. Available functions may also depend on the game.

16. Are Fanatec products compatible with a Windows PC?

Yes. Fanatec products are designed to work with Windows PCs. The wheel base connects to the computer through USB, while some steering wheels, pedals and accessories operate through a compatible Fanatec wheel base. The current Fanatec driver is required for hardware configuration and firmware updates, while the available functions may also depend on the game.

  • Fanatec ClubSport Handbrake V2
  • Lever
  • Lever bolt
  • 2 m RJ12 cable
  • Mounting spacer
  • 2 × 4 mm Allen key
  • 1 × 2.5 mm Allen key
  • 4 × M5 × 30 mm bolt
  • 1 × 13 mm wrench
  • 2 × M6 × 12 mm bolt
  • 4 × M5 washer
  • 2 × M6 washer
  • 2 × M6 × 10 mm T-nut
  • ClubSport USB Adapter
  • Quick Guide
