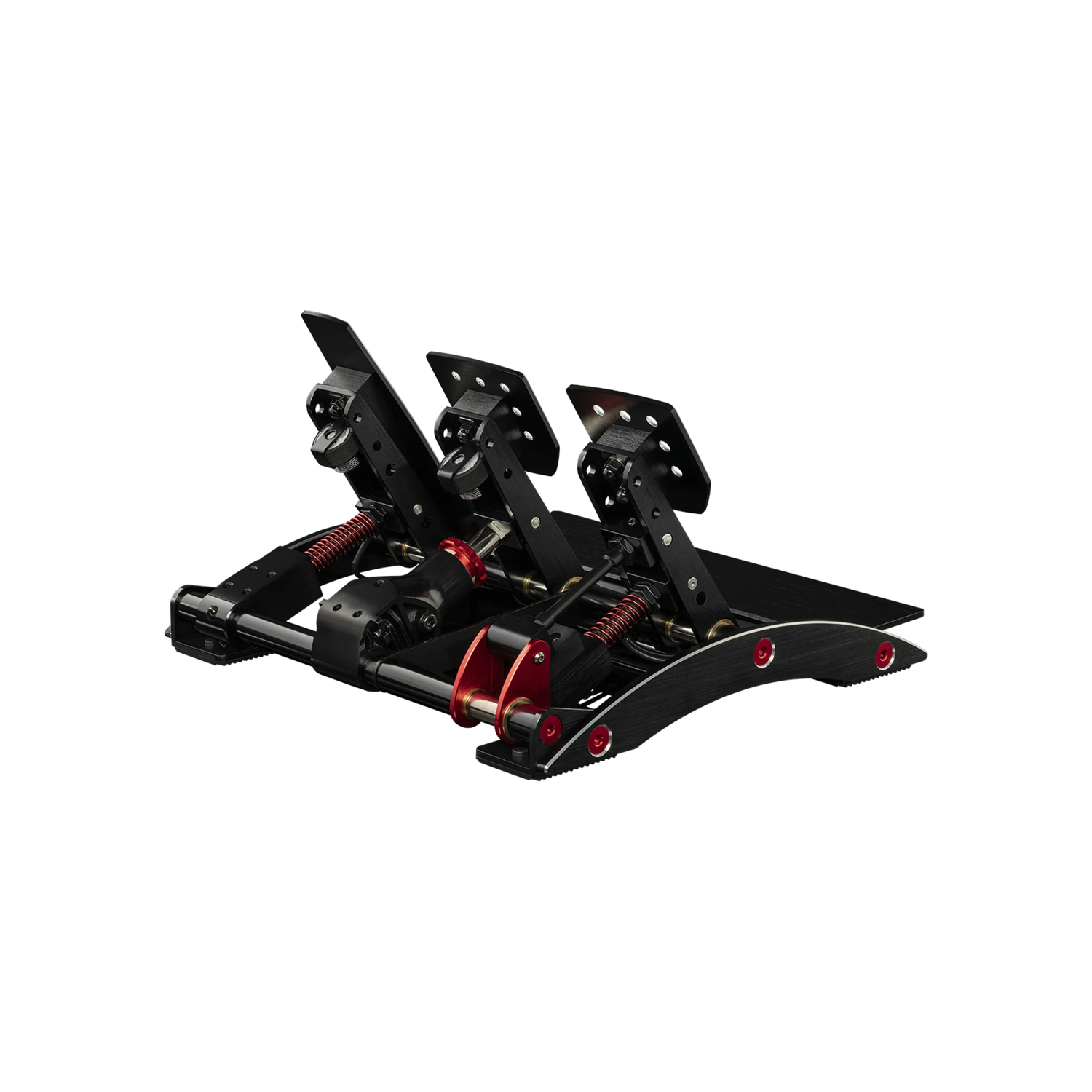

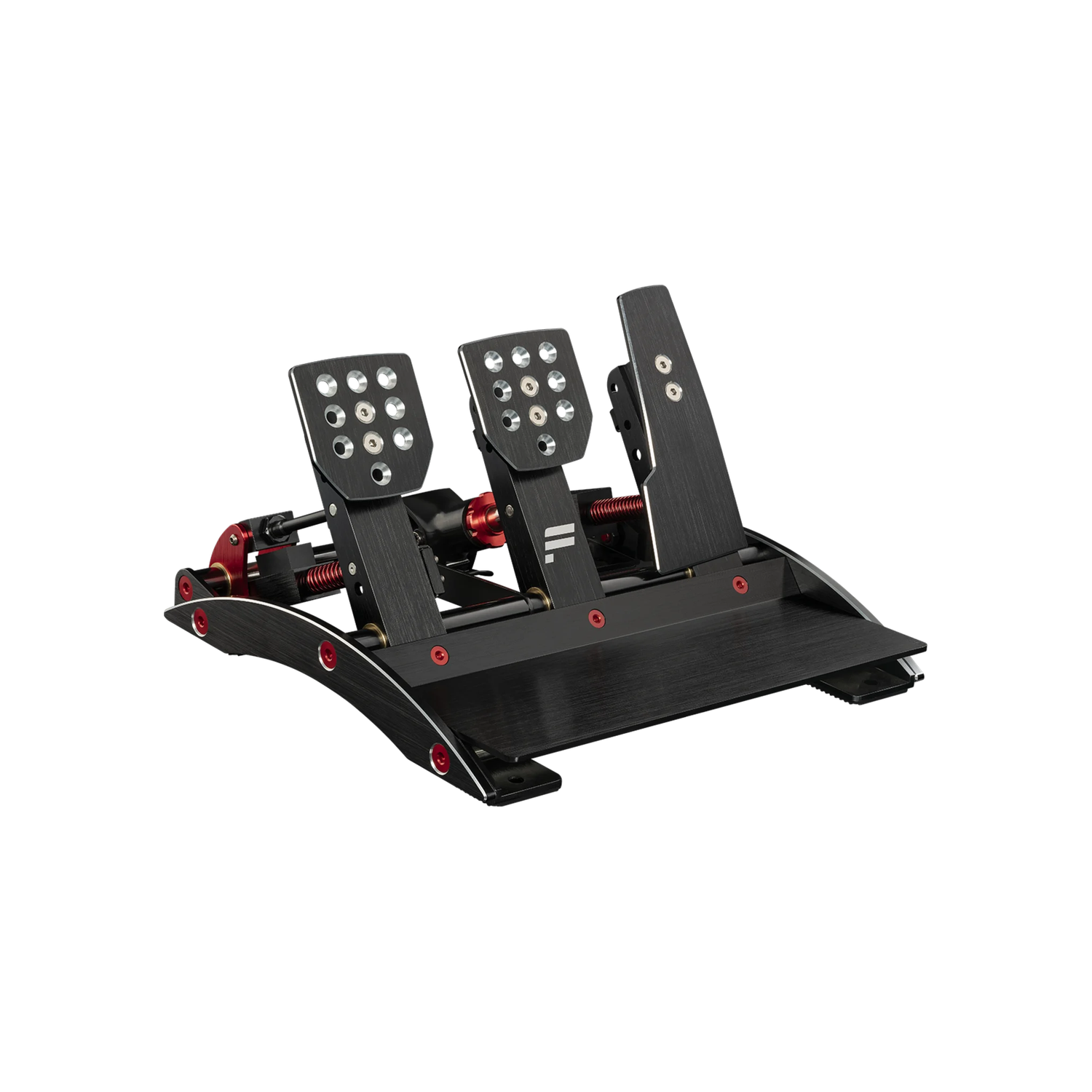

Fanatec Clubsport Pedals V3 rear side view

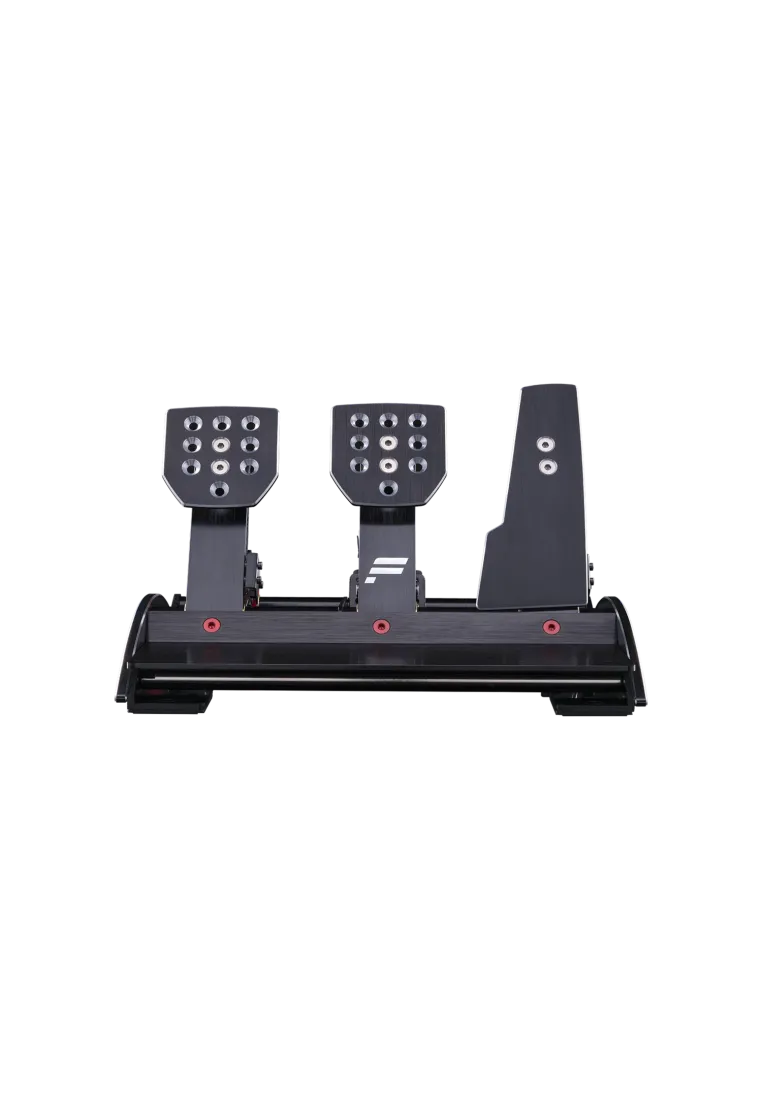

Fanatec Clubsport Pedals V3 Front center view

Fanatec Clubsport Pedals V3 front side view

Fanatec Clubsport Pedals V3

Name: Fanatec Clubsport Pedals V3
Brand: Fanatec
SKU: CSP_V3
Price: 1218.7 PLN
Availability: InStock

Reference CSP_V3

1,218.70zł

Ready for shipping

Fanatec ClubSport Pedals V3 is a three-pedal aluminium set with a 90 kg load-cell brake, contactless Hall sensors and 12-bit resolution. Adjustment covers pedal-face geometry, brake force and travel, plus throttle and clutch spring options.

Ask about product

You will receive an 12.19zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Additional accessories

Fanatec Clubsport Pedals V3 Brake Performance Kit

161.79zł

MOZA R5 bundle

1 Reviews

1,243.09zł 1,389.43zł

MOZA R3 bundle PC

2 Reviews

828.45zł 1,031.71zł

Conspit Ares + Apex 310 + QR

3,531.98zł

Moza R5 PRO Bundle

1,462.60zł

Fanatec Gran Turismo DD PRO 5NM

2,398.37zł

Fanatec CSL Elite WRC

893.50zł

Fanatec CSL Steering Wheel BMW front view

Fanatec CSL BMW

649.59zł

Fanatec CSL GT3

812.20zł

Fanatec Clubsport Shifter SQ V1.5

953.66zł

Fanatec Clubsport Handbrake V2

649.59zł

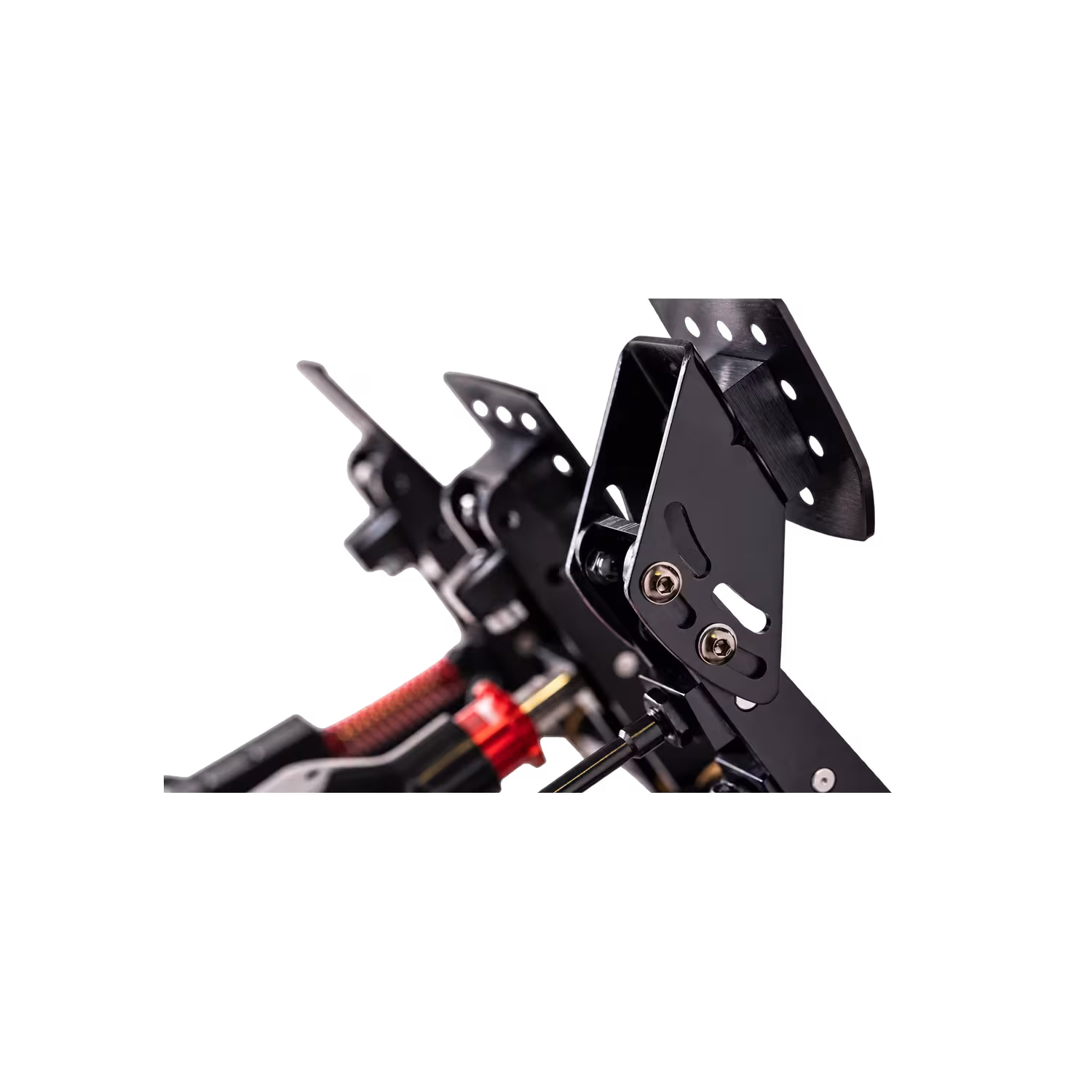

90 kg load-cell brake

The brake measures applied force through a 90 kg load cell. This supports muscle-memory braking rather than relying only on foot position, improving repeatability in braking zones.

Sensitivity and travel are adjustable, while the optional Brake Performance Kit further changes mechanical response through different elastomer combinations.

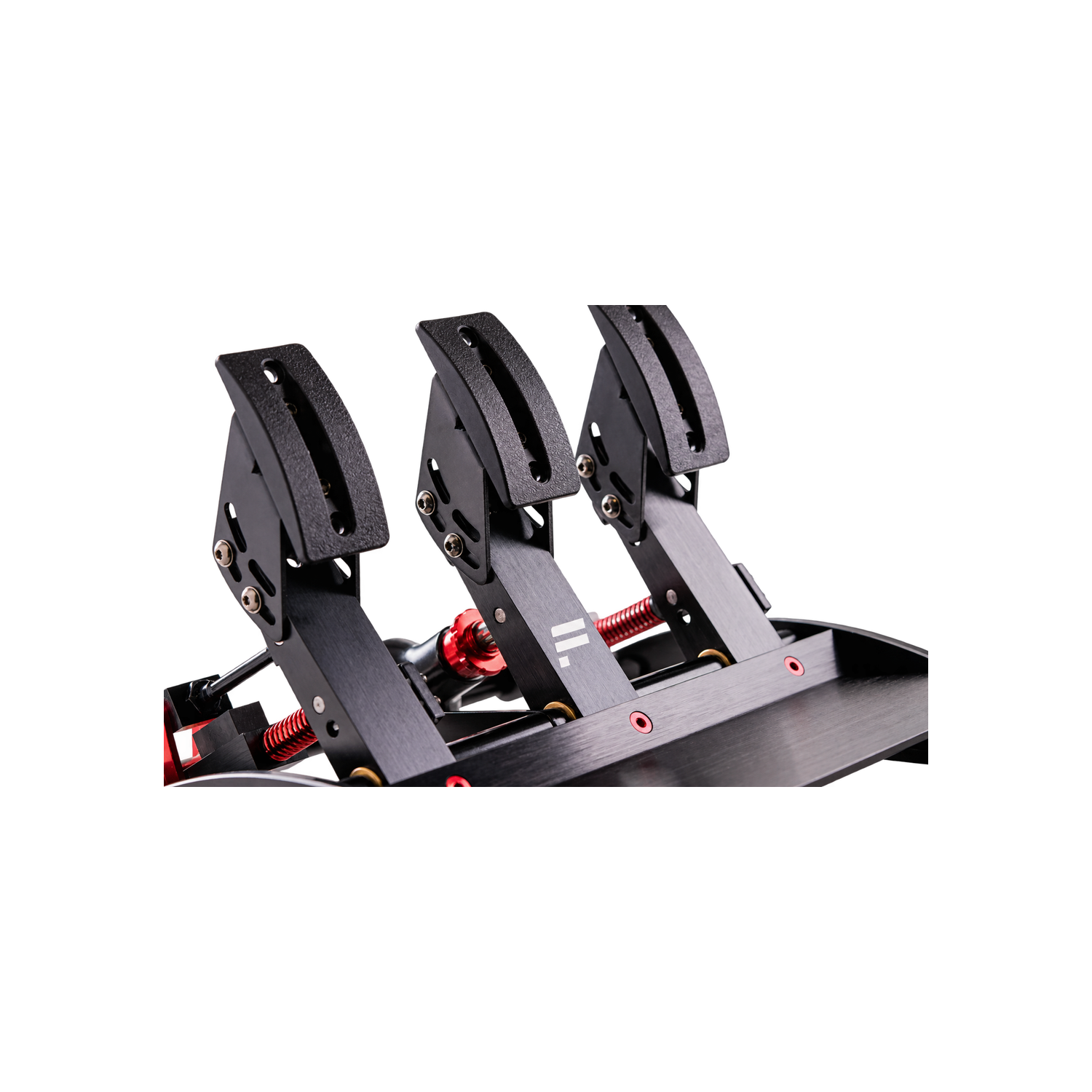

Three-pedal aluminium construction

Throttle, brake and clutch are built into a CNC-machined aluminium structure. D-shaped faces and extensions provide several face positions and angle options.

Throttle and clutch use contactless Hall sensors. All axes operate at 12-bit resolution, equal to 4096 steps.

Spring and pedal-feel adjustment

Alternative throttle and clutch springs are supplied. They let the driver change resistance without modifying the electronics.

An optional Damper Kit can be installed on throttle or brake. The Brake Performance Kit and Damper Kit perform different functions and are sold separately.

Vibration feedback and two connection methods

Vibration motors on throttle and brake can indicate wheelspin, oversteer, ABS or wheel lock. Effect availability depends on the game and Fanatec feature support.

On PC, the pedals connect through USB or through a wheel base by RJ12. Consoles require a compatible Fanatec wheel base; direct USB does not support console use.

Brake Sensor: LC 100 kg
Throttle Sensor: Hall sensor
Clutch sensor: Hall sensor
Pedals variant: 3 pedals
Type of pedals: Standard
Position of pedals: Standard
Platforms Compatibility: PC
PS Compatible
XBOX Compatible

Parameter	Details
Manufacturer	Fanatec
Type	Three-pedal sim racing set
Material	CNC-machined aluminium
Brake	90 kg load cell
Throttle and clutch	Contactless Hall sensors
Resolution	12-bit, 4096 steps per axis
Vibration	Motor on brake and throttle
Adjustment	Faces, arm angle, springs, brake sensitivity and travel
Connections	USB to PC or RJ12 to wheel base
Handbrake port	Yes
In the box	Pedals, D-shaped faces and extensions, stronger springs, USB and RJ12 cables, grease and guide

Component or configuration	Status	Information
PC through USB	Compatible	Can work with another-brand wheel if the game supports a second controller
Compatible Fanatec wheel base	Compatible	RJ12 connection
Consoles	Through Fanatec wheel base	The base must support the platform
ClubSport Pedals V3 Brake Performance Kit	Compatible	Changes brake travel and resistance
ClubSport Pedals V3 Damper Kit	Compatible	Fits throttle or brake
ClubSport USB Adapter	Not required	Pedals include their own USB port
ClubSport Handbrake	Compatible	Dedicated port in the pedal electronics

1. How many pedals are included?

Three: throttle, brake and clutch.

2. Which sensor does the brake use?

A 90 kg load cell.

3. Which sensors are used for throttle and clutch?

Contactless Hall sensors.

4. What is the axis resolution?

12-bit, equal to 4096 steps per axis.

5. Do the pedals provide vibration?

Yes, with separate motors on throttle and brake; operation depends on the game.

6. Can they connect directly to a PC?

Yes, with the supplied USB cable.

7. Does USB work on consoles?

No. Console use requires connection through a compatible Fanatec wheel base.

8. Can throttle and clutch resistance be changed?

Yes. Alternative springs are included.

9. Is the Brake Performance Kit compatible?

Yes. It is designed for the ClubSport Pedals V3 brake.

10. Is the Damper Kit included?

No. It is an optional accessory sold separately.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

14. What does Xbox One and Xbox Series X/S compatibility mean for a Fanatec product?

Xbox compatibility is provided by a steering wheel equipped with officially licensed Xbox electronics. Once this steering wheel is attached to a compatible wheel base, the connected Fanatec setup can work with Xbox One and Xbox Series X/S. The availability of individual functions depends on the steering wheel, game and installed firmware.

15. What does PlayStation 4 and PlayStation 5 compatibility mean for a Fanatec product?

The product can work with PlayStation 4 and PlayStation 5 as part of a setup using an officially compatible Fanatec wheel base. Within the Fanatec ecosystem, the electronics responsible for PlayStation compatibility are located in the wheel base rather than the steering wheel. A compatible steering wheel, pedals and other Fanatec devices can be connected to that base. Available functions may also depend on the game.

16. Are Fanatec products compatible with a Windows PC?

Yes. Fanatec products are designed to work with Windows PCs. The wheel base connects to the computer through USB, while some steering wheels, pedals and accessories operate through a compatible Fanatec wheel base. The current Fanatec driver is required for hardware configuration and firmware updates, while the available functions may also depend on the game.
