1,787.80zł

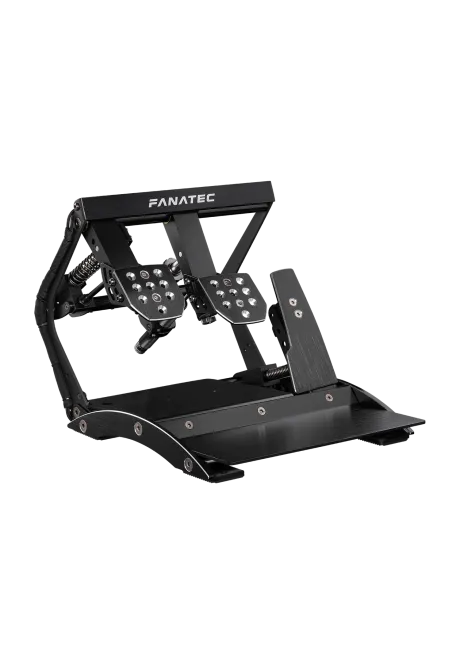

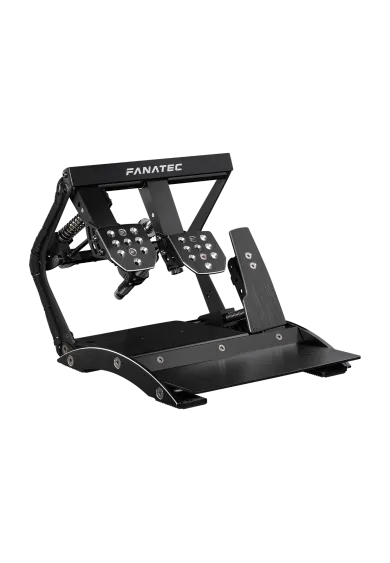

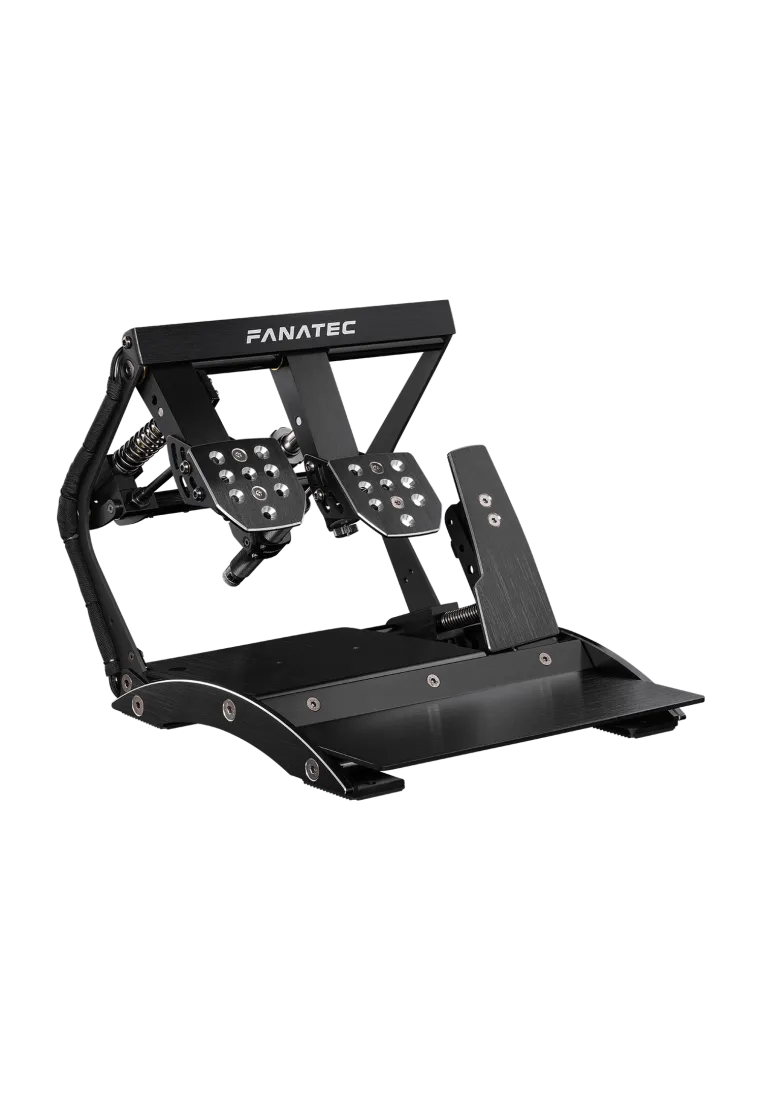

Fanatec ClubSport Pedals V3 Inverted combines an overhead-pivot brake and clutch with a floor-mounted throttle. The brake has a 90 kg load cell and a pre-installed adjustable damper. Throttle and clutch use Hall sensors. Adjust pedal-face position and throttle resistance, with vibration feedback for supported effects. Connect by USB to PC or RJ12 to a compatible base.
You might also like
Turn, spin, zoom, put it upside down - whatever You want.

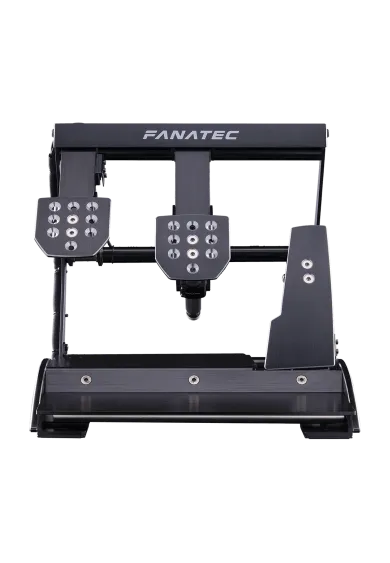

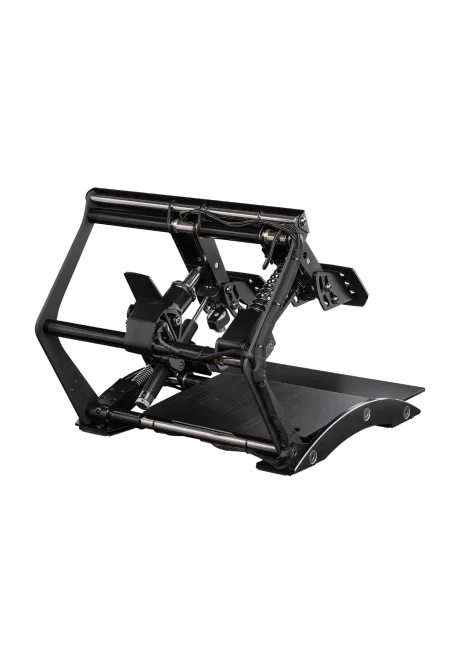

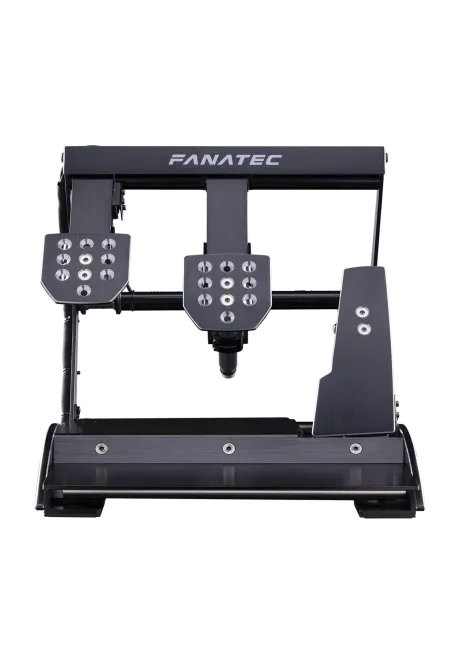

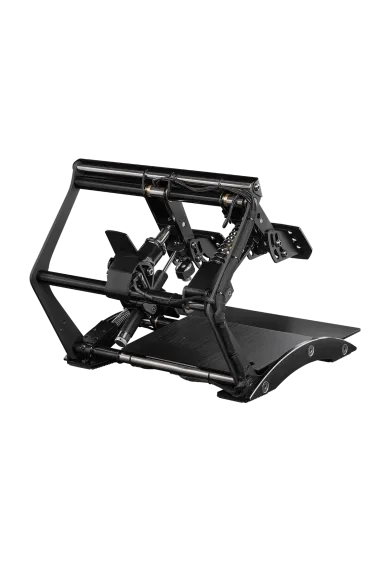

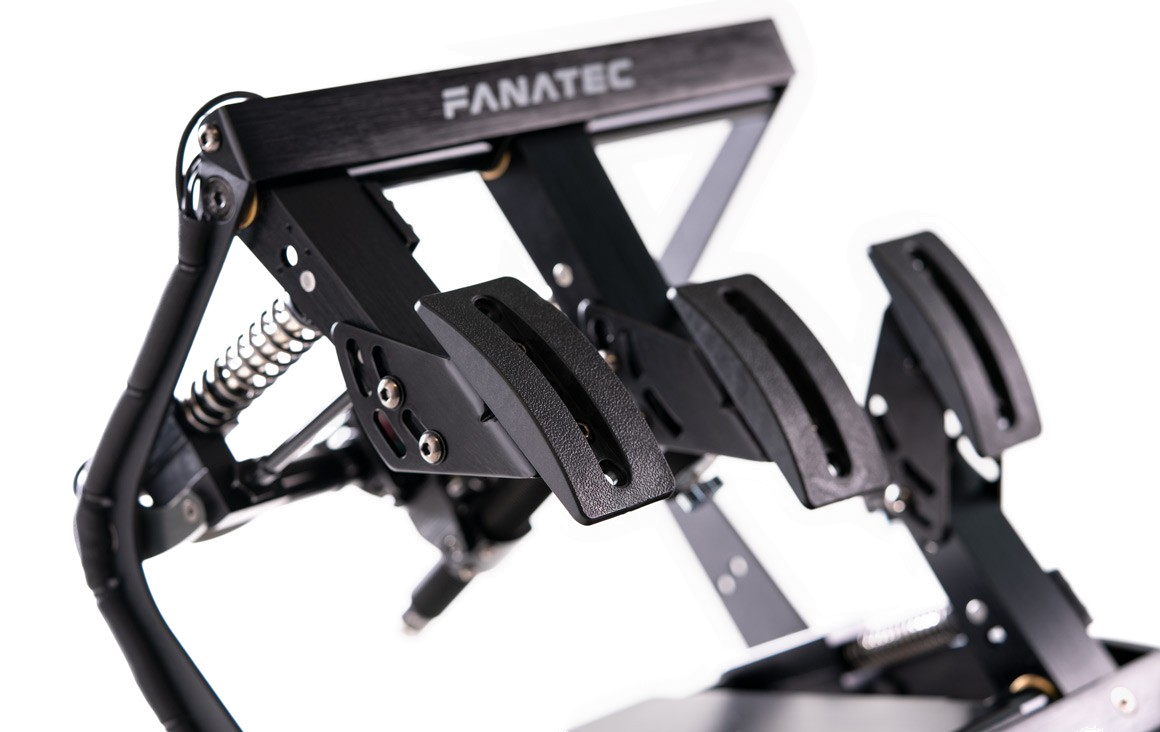

On V3 Inverted, the brake and clutch pivot points sit above the pedal faces on the upper frame. The throttle remains floor-mounted. Your foot follows a different arc when pressing the brake or clutch, rather than operating three pedals pivoting near the floor.
Compared with the standard V3 set, Inverted has longer pedal travel and different spacing. It is a separate, factory-assembled pedal set with a heel rest, not a bracket for inverting pedals you already own.

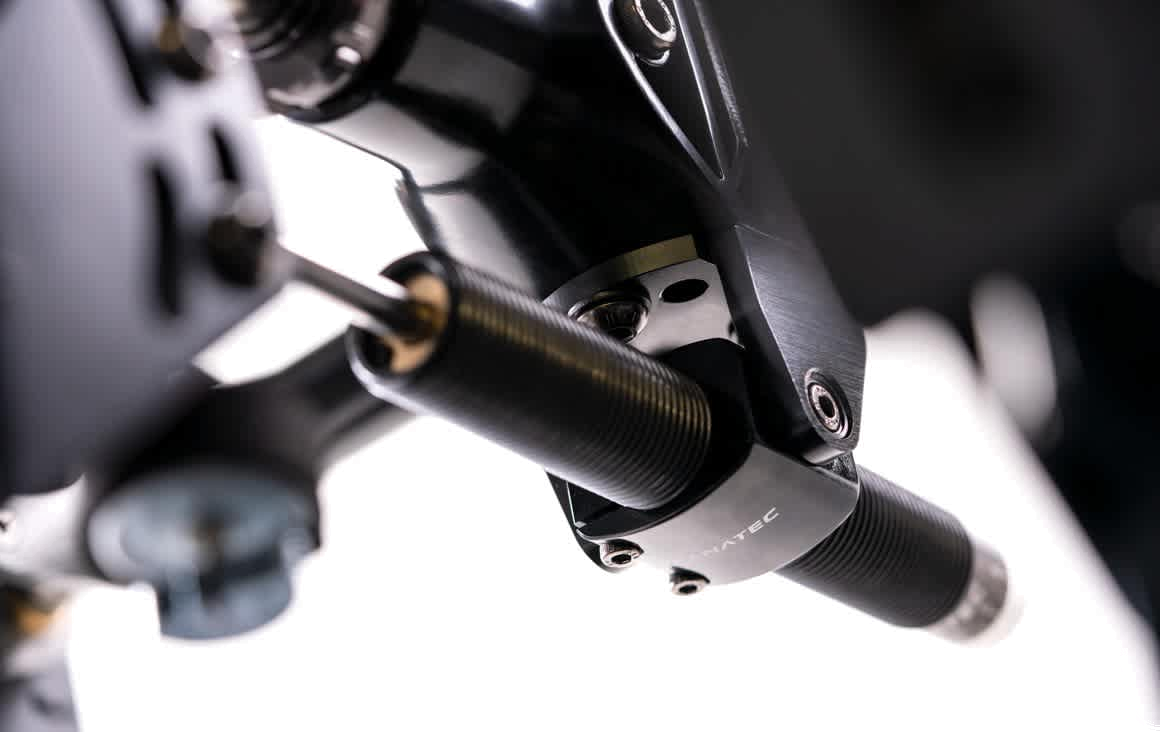

A brake damper is included and fitted at the factory. Turn its knob to change how strongly it damps pedal movement. Brake preload is adjusted separately using the preload screw, staying within the marked range.

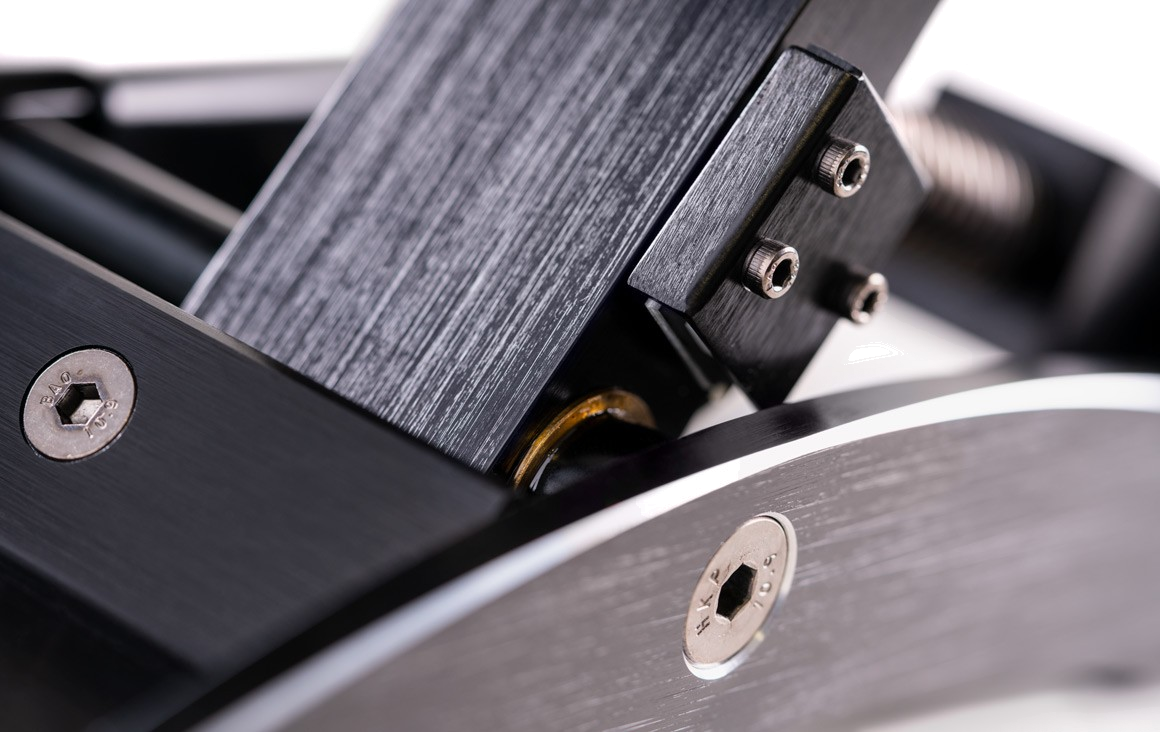

The brake signal comes from a 90 kg load cell, reading pressure rather than pedal travel alone. Adjust sensitivity through the Fanatec settings. The optional Brake Performance Kit changes brake stiffness and travel, but it is not supplied with this set and does not replace the damper.
Change the position and angle of the pedal faces, or swap the fitted metal faces for the supplied D-shaped alternatives. There are three pedal extensions: two are already on the brake and clutch, and the third can be fitted to the throttle.
If the throttle feels too light, install the supplied stronger spring with its matching guides. Throttle and clutch use contactless Hall sensors. Over a direct USB connection, all three axes provide 12-bit resolution, or 4096 signal levels per axis.
Separate vibration motors are fitted to the throttle and brake. Supported effects can indicate rear-wheel slip, locked tyres or ABS activity. Availability depends on the game, connection and telemetry support; not every title activates the motors automatically.
On PC, USB allows use alongside another brand's wheel if the game supports multiple controllers. Alternatively, connect by RJ12 to a Fanatec base. Console operation requires a compatible base. Choose one connection only: never connect USB and RJ12 at the same time.
Vibration motors are not included.
| Parameter | Details |
|---|---|
| Manufacturer | Fanatec |
| Model | ClubSport Pedals V3 Inverted |
| Number of pedals | 3: throttle, brake and clutch |
| Layout | Overhead-pivot brake and clutch, floor-mounted throttle |
| Construction | Metal construction with CNC-machined aluminium |
| Brake sensor | 90 kg load cell, measuring pressure |
| Throttle and clutch sensors | Contactless magnetic Hall sensors |
| USB resolution | 12-bit, 4096 values per axis |
| Resolution through a wheel base | Depends on the base; older PWT, PWTS, CSR and CSR Elite wheels limit the signal to 8-bit |
| Brake damper | Included and pre-installed; knob-adjustable damping |
| Brake adjustment | Mechanical preload and travel, plus electronic signal sensitivity |
| Vibration | Two motors, on throttle and brake; effects depend on the game and configuration |
| Pedal-face adjustment | Position and angle, using mounting holes and pedal extensions |
| Alternative pedal faces | 3 D-shaped faces, included |
| Throttle springs | Standard spring installed; additional stronger spring with matching guides |
| Computer connection | Direct USB |
| Wheel-base connection | RJ12 to a compatible Fanatec base's pedal port; never use simultaneously with USB |
| Handbrake connection | Dedicated socket for a compatible ClubSport Handbrake, sold separately |
| Cable lengths | RJ12: 150 cm; USB: 180 cm |
| Overall height in the mounting drawing | 320 mm |
| Mounting-point spacing in the template | 274.8 × 247.9 mm, width × length; not the set's external dimensions |
| Net weight, package dimensions and shipping weight | Not published in the official specification checked |
| Manufacturer warranty for a new product | 3 years under Fanatec's current terms |
| Hardware or platform | Compatibility and conditions |
|---|---|
| Windows PC through USB | Supported without a wheel base; the required cable is included |
| Other-brand wheels on PC | Supported when the pedals use their own USB connection and the game supports multiple controllers |
| Fanatec bases with an RJ12 pedal socket | Supported through the base's “Pedals” port |
| Older Fanatec wheels with a PS/2 pedal socket | Require a separate PS/2-to-RJ12 cable |
| Xbox One and Xbox Series X/S | Through a compatible Fanatec base with an Xbox-licensed steering wheel; not through the pedals' direct USB connection |
| PlayStation 4 and PlayStation 5 | Through an officially PlayStation-compatible Fanatec base; not through the pedals' direct USB connection |
| ClubSport USB Adapter | Not compatible. Use the pedals' built-in USB port for PC operation |
| ClubSport Pedals V3 Brake Performance Kit | Compatible, sold separately; follow the V3 Inverted installation procedure |
| Additional ClubSport Pedals V3 Damper Kit | Optional installation on the throttle. The brake already has a factory-installed damper |
| ClubSport Handbrake | Dedicated socket; use the connection cable appropriate for the handbrake model |
| In-game vibration effects | Depend on game support, telemetry and configuration; PC use may require additional software or a plugin |
The Brake Performance Kit, additional throttle damper, handbrake and wheel base are sold separately. Apart from the damper key, the manual calls for your own tools for adjustment and installation.
The brake and clutch pivot from the top of the frame. The throttle remains floor-mounted. All three pedals are included.
Yes. It is fitted at the factory and has a damping-adjustment knob. A second damper for the throttle is an optional accessory.
No. The damper changes movement damping, while Brake Performance Kit changes brake stiffness and travel through its spring elements. Brake Performance Kit is compatible with V3 Inverted but is not included.
The sensor measures pressure rather than pedal position alone. The 90 kg figure describes the sensor, not a requirement to press the pedal face with 90 kg of force. Brake signal sensitivity can be adjusted through Fanatec settings.
Yes, on the throttle and brake. Supported effects can indicate wheel slip, locked tyres or ABS, depending on the game and configuration. These are not active pedals with motor-controlled resistance.
No. Fanatec warns that using both connections simultaneously can damage the electronics. Use either USB to PC or RJ12 to the wheel base.
Yes, on PC with the pedals connected through their own USB cable. The game must support multiple controllers. This does not establish compatibility for a mixed-brand setup on consoles.
Three alternative D-shaped faces, three pedal extensions with two already fitted, and a stronger throttle spring with matching guides. The additional spring changes throttle resistance; a separate stronger clutch spring is not included.
They can be hard-mounted using Fanatec's template. If they are not bolted to a cockpit or wheel stand, the manual requires both stabilizer feet to be attached and the set placed on a flat surface. Rigid mounting is advisable for heavy braking.
No. V3 Inverted has its own USB port and is not compatible with the ClubSport USB Adapter. Use the supplied USB cable on PC.
Simline.eu is the largest authorised Fanatec partner in Poland and Europe. Fanatec products receive full warranty protection for up to 5 years within the European Union, in accordance with Fanatec warranty terms. The period depends on the product. The current manufacturer warranty for a new ClubSport Pedals V3 Inverted set is 3 years.
As an official Fanatec partner within the European Union, we handle valid warranty claims through Door-to-Door service. Collection and return of the equipment follow the instructions we provide.
Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle claims. Email support@simline.eu or fanatec@simline.eu with a fault description and photos or videos showing the problem, then prepare and pack the equipment.
Yes, through RJ12 to a compatible Fanatec base used with an Xbox-licensed steering wheel. The pedals' direct USB connection does not work on Xbox. Available functions also depend on the game and firmware.
Yes, through RJ12 to an officially PlayStation-compatible Fanatec base. The base contains the electronics that provide compatibility. Do not connect the pedals directly to the console over USB; available functions also depend on the game.
Yes. On a Windows PC, the pedals can operate as a separate USB device or through a compatible Fanatec base. Use the appropriate Fanatec software for configuration and updates. Check axis calibration after mechanical adjustments.
