Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro
Simucube 2 Pro

Simucube 2 Pro

sc2_pro
5,039.84zł

5,039.84zł
Lowest price in last 30 days : 5,039.84zł
Ready to send

The Direct Drive base Simucube 2 Pro offers up to 25 Nm of torque, zero latency, and high signal responsiveness while simultaneously avoiding throttling or cogging.

Ask about product
Zapytanie dotyczy produktu: Simucube 2 Pro
* - pola obowiązkowe
Send
You will receive an 50.40zł for each item of this product to use on your next purchase.
Close
Simucube Variant:
Shipping within 24 hours
Secure payments
Return within 14 days
Delivery from PLN 0

You might also like



SIMUCUBE SC2 Pro

SIMUCUBE SC2 Pro

THE NEXT BEST THING

Powerful. Precise.

Used by professional racers & sim racers, the Simucube 2 Pro with 25Nm of torque delivers the most realistic direct drive experience possible. We can't give you a real race car, but we can give you the next best thing.

SIMUCUBE 2 WHEELBASES

Race with confidence

There is absolutely no hint of cogging, torque ripple, grainness or notchiness in Simucube 2 wheelbases resulting in a consistently smooth & immersive racing experience. The high fidelity of our wheelbases will allow you to feel every aspect of the road.

DURABLE AND RELIABLE

A direct drive wheelbase you can trust

Sim racers need durable and reliable equipment. Simucube 2 wheelbases are built to stand the test of time. Using high-grade hardware in all aspects of manufacturing, you don't need to worry about our products breaking or shutting down mid-race.

ENDLESS POSSIBILITIES

Tailor your wheelbase to your own style

There are endless customization possibilities in TrueDrive. However, if you just want to find a profile and drive, that's possible too. There are hundreds of quality profiles to choose from.

Comparision of Simucube wheelbases:

MOTORDirect Drive optimized ultra low torque ripple motor...
SC2 WIRELESS WHEEL™ SUPPORTIncluded
SIMUCUBE QUICK RELEASE™Not Included
MAX TORQUE17 Nm
MAX TORQUE SLEW RATE4.8 Nm/ms
ANGLE SENSOR22 bit absolute
TORQUE OFF BUTTONStandard (Premium optional)
POWER SUPPLY280 W
WHEEL BASE DIMENSIONS INCL. SQR™130 x 130 x 250 mm
MOUNTING HOLESM8 x 4 pcs threaded hole
MOUNTING HOLE PATTERN DIA145 mm
FLANGE CENTERING HOLE DIA110 mm
WHEEL BASE WEIGHT8.0 kg
STANDARD WARRANTY24 months
TORQUE RECONSTRUCTION PROCESSINGYes
STATIC FORCE REDUCTIONYes
NATURAL DAMPING, INERTIA AND FRICTION FILTERSYes
ULTRA LOW LATENCY MODEYes
TORQUE SLEW RATE ADJUSTMENT1 – 4.8 Nm/ms
MOTORHigh response speed DD optimized ultra low torque ripple motor
SC2 WIRELESS WHEEL™ SUPPORTIncluded
SIMUCUBE QUICK RELEASE™Not Included
MAX TORQUE25 Nm
MAX TORQUE SLEW RATE8.0 Nm/ms
ANGLE SENSOR22 bit absolute
TORQUE OFF BUTTONStandard (Premium optional)
POWER SUPPLYR2 1 x 450 W Peak
WHEEL BASE DIMENSIONS INCL. SQR™130 x 130 x 270 mm
MOUNTING HOLESM8 x 4 pcs threaded hole
MOUNTING HOLE PATTERN DIA145 mm
FLANGE CENTERING HOLE DIA110 mm
WHEEL BASE WEIGHT11.1 kg
STANDARD WARRANTY24 months
TORQUE RECONSTRUCTION PROCESSINGYes
STATIC FORCE REDUCTIONYes
NATURAL DAMPING, INERTIA AND FRICTION FILTERSYes
ULTRA LOW LATENCY MODEYes
TORQUE SLEW RATE ADJUSTMENT1 – 8.0 Nm/ms
MOTORMaximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor
SC2 WIRELESS WHEEL™ SUPPORTIncluded
SIMUCUBE QUICK RELEASE™Included
MAX TORQUE32 Nm
MAX TORQUE SLEW RATE9.5 Nm/ms
ANGLE SENSOR24 bit Hiperface
TORQUE OFF BUTTONPremium (with remote power switch)
POWER SUPPLY1000 W
WHEEL BASE DIMENSIONS INCL. SQR™115 x 115 x 310 mm
MOUNTING HOLES9 mm dia x 4 pcs through hole
MOUNTING HOLE PATTERN DIA130 mm
FLANGE CENTERING HOLE DIA110 mm
WHEEL BASE WEIGHT11.3 kg
STANDARD WARRANTY60 months
TORQUE RECONSTRUCTION PROCESSINGYes
STATIC FORCE REDUCTIONYes, in detail adjustable
NATURAL DAMPING, INERTIA AND FRICTION FILTERSYes, in detail adjustable
ULTRA LOW LATENCY MODEYes
TORQUE SLEW RATE ADJUSTMENT1 – 9.5 Nm/ms

Simucube 2 SportSimucube 2 ProSimucube 2 Ultimate
MOTORDirect Drive optimized ultra low torque ripple motor...High response speed Direct Drive optimized ultra low torque ripple motor Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor
SC2 WIRELESS WHEEL™ SUPPORTIncludedIncludedIncluded
SIMUCUBE QUICK RELEASE™Not IncludedNot IncludedIncluded
MAX TORQUE17 Nm25 Nm32 Nm
MAX TORQUE SLEW RATE4.8 Nm/ms8.0 Nm/ms9.5 Nm/ms
ANGLE SENSOR22 bit absolute22 bit absolute24 bit Hiperface
TORQUE OFF BUTTONStandard (Premium optional)Standard (Premium optional)Premium (with remote power switch)
POWER SUPPLY280 WR2 1 x 450 W Peak1000 W
WHEEL BASE DIMENSIONS INCL. SQR™130 x 130 x 250 mm 130 x 130 x 270 mm115 x 115 x 310 mm
MOUNTING HOLESM8 x 4 pcs threaded holeM8 x 4 pcs threaded hole9 mm dia x 4 pcs through hole
MOUNTING HOLE PATTERN DIA145 mm145 mm130 mm
FLANGE CENTERING HOLE DIA110 mm110 mm110 mm
WHEEL BASE WEIGHT8.0 kg11.1 kg11.3 kg
STANDARD WARRANTY24 months 24 months60 months
TORQUE RECONSTRUCTION PROCESSINGYesYesYes
STATIC FORCE REDUCTIONYesYesYes, in detail adjustable
NATURAL DAMPING, INERTIA AND FRICTION FILTERSYesYesYes, in detail adjustable
ULTRA LOW LATENCY MODEYesYesYes
TORQUE SLEW RATE ADJUSTMENT1 – 4.8 Nm/ms 1 – 8.0 Nm/ms1 – 9.5 Nm/ms
Max torque
25
Max Torque Slew Rate
8Nm/ms
Encoder
22 bit absolute
E-stop button
Yes
QR Included
No
Warranty
24 months
Fixing method
Front mount
Wheelbase weight
11,1 kg
Simucube Version
Pro

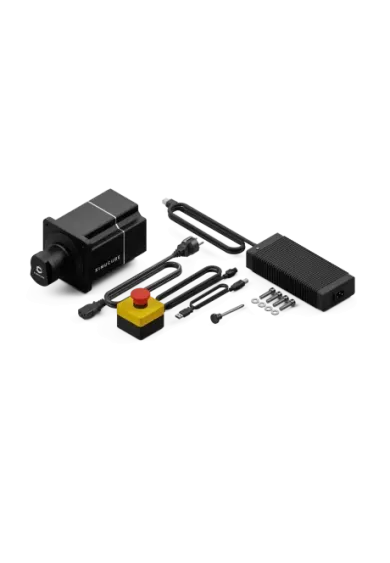

  • Simucube 2 Sport Wheel Base

  • Power Supply

  • All required cables

  • Standard Torque Off Button

  • Fixings for Wheel Base

  • Pin for Simucube Quick Release

  • Does NOT include: Simucube Quick Release Side Parts

Drivers (True Drive)

True Drive

Simucube 2 Manuals

Download Simucube 2 user manual, English

Download Simucube 2 user manual, German

Download Simucube 2 user manual, Spanish

Download Simucube 2 user manual, French

Download Simucube 2 user manual, Russian

Simucube 2 Wheelbase Dimensions

Simucube 2 Pro Dimensions

Simucube 2 Sport Dimensions

Simucube 2 Ultimate Dimensions

Simucube 2 Limited-Warranty Documentation

https://www.simucube.com/limited-warranty

Simucube Mount Dimensions & Guides

Simucube Mount Dimensions

Simucube Mount Drilling Guide
Simucube Mount Manual
Simucube Mount Manual 2
