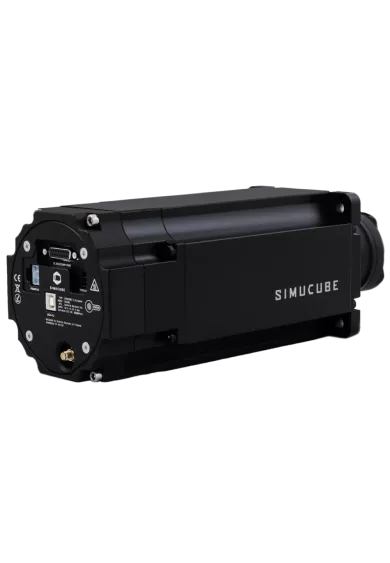

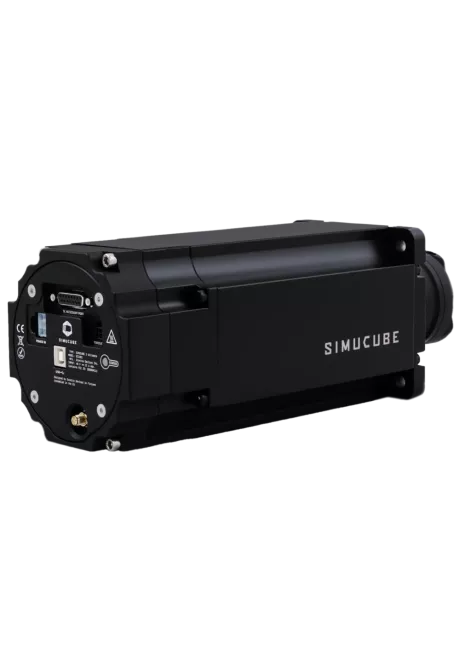

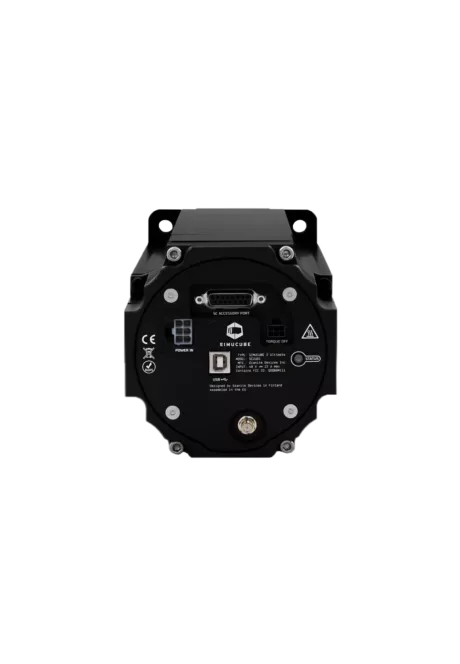

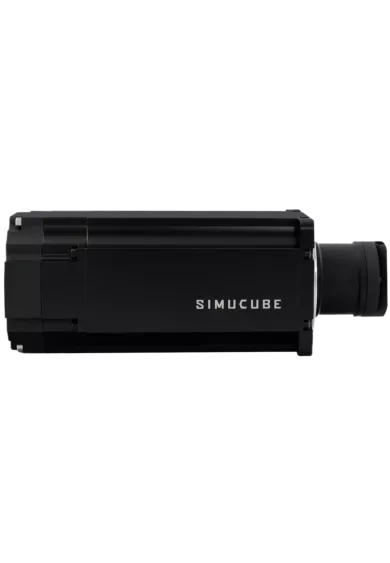

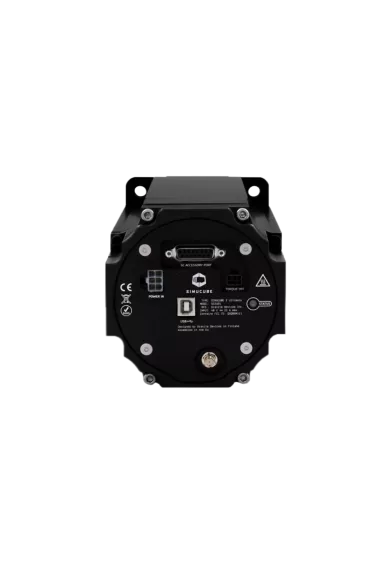

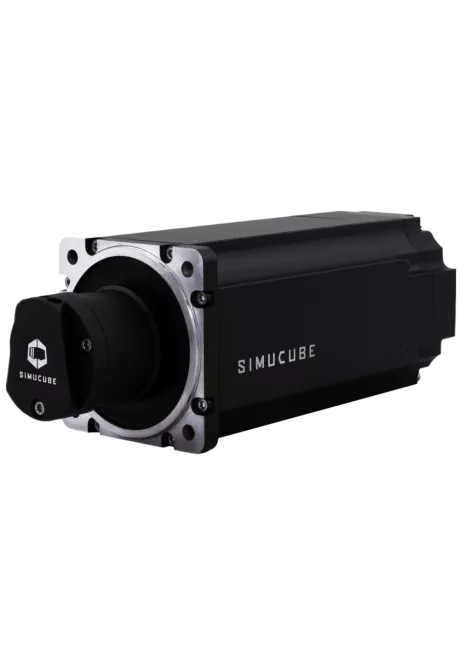

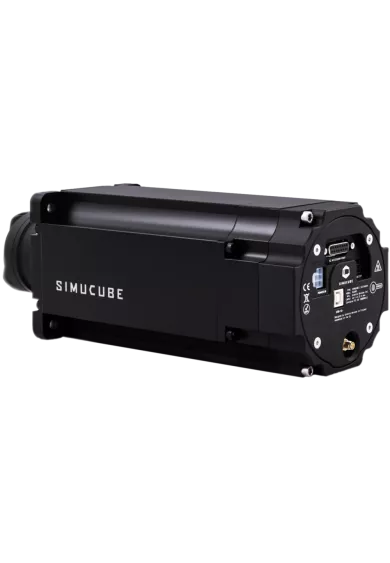

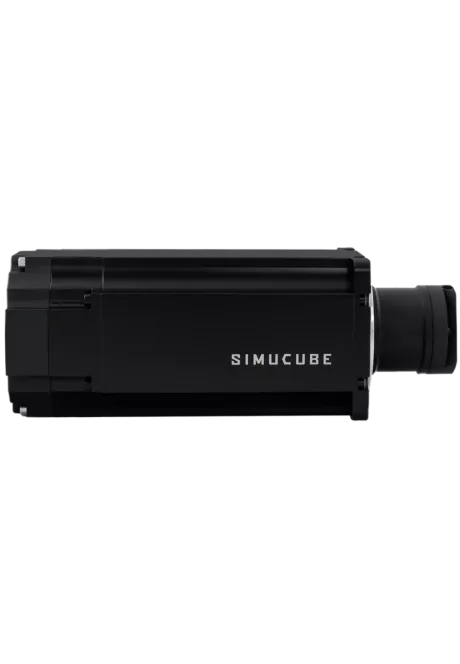

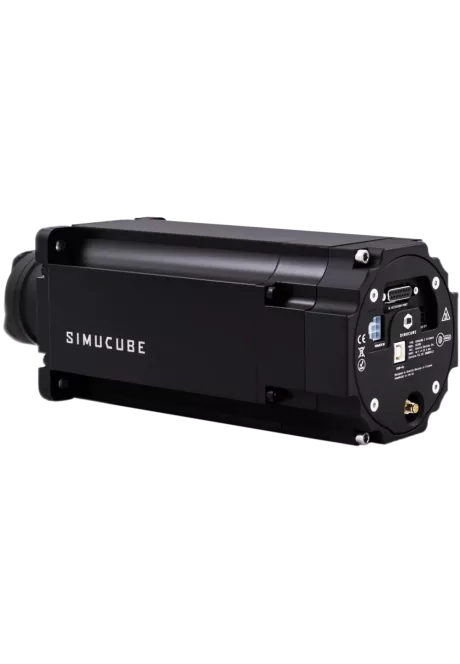

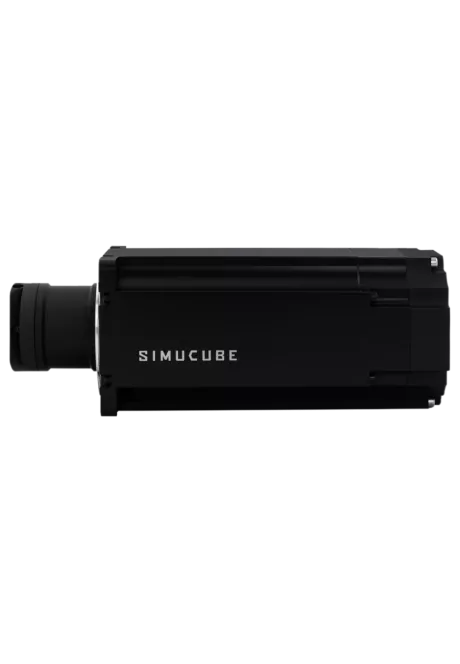

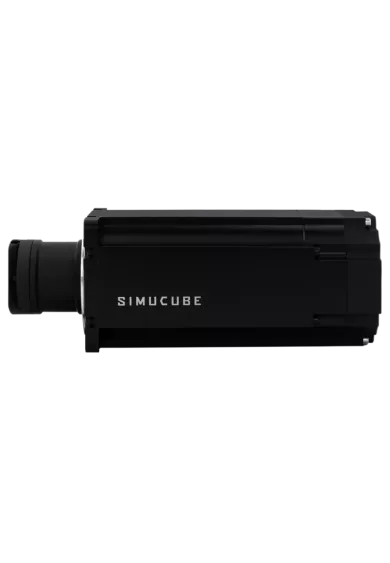

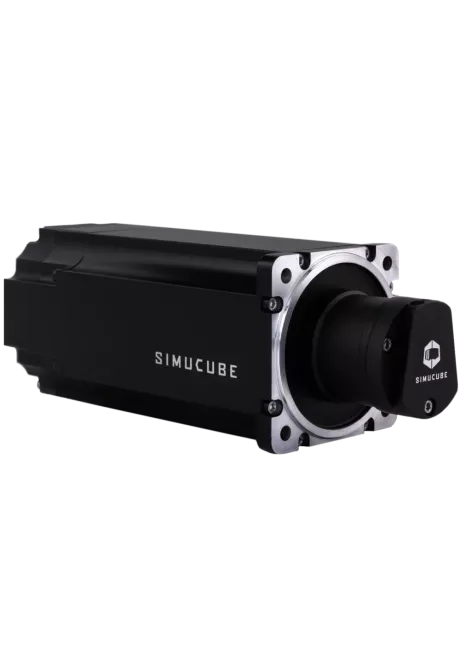

Simucube 2 Ultimate is the highest-quality sim racing equipment available. Designed and crafted with race drivers and future champions in mind, it reflects the behavior of a car as realistically as possible without compromising. With an impressive 32 Nm of torque, zero latency, and an uninterrupted signal, it is a tool built for winning.
SIMUCUBE SC2 Ultimate
SIMUCUBE SC2 Ultimate
PINNACLE OF DIRECT DRIVE TECHNOLOGY
For those who want the best
Packing 32Nm of torque, the Simucube 2 Ultimate is designed for the most discerning and demanding sim racing enthusiasts who seek the absolute pinnacle of performance.
SIMUCUBE 2 WHEELBASES
Race with confidence
There is absolutely no hint of cogging, torque ripple, grainness or notchiness in Simucube 2 wheelbases resulting in a consistently smooth & immersive racing experience. The high fidelity of our wheelbases will allow you to feel every aspect of the road.
DURABLE AND RELIABLE
A direct drive wheelbase you can trust
Sim racers need durable and reliable equipment. Simucube 2 wheelbases are built to stand the test of time. Using high-grade hardware in all aspects of manufacturing, you don't need to worry about our products breaking or shutting down mid-race.
ENDLESS POSSIBILITIES
Tailor your wheelbase to your own style
There are endless customization possibilities in TrueDrive. However, if you just want to find a profile and drive, that's possible too. There are hundreds of quality profiles to choose from.
Comparision of Simucube wheelbases:
MOTOR | Direct Drive optimized ultra low torque ripple motor... |
SC2 WIRELESS WHEEL™ SUPPORT | Included |
SIMUCUBE QUICK RELEASE™ | Not Included |
MAX TORQUE | 17 Nm |
MAX TORQUE SLEW RATE | 4.8 Nm/ms |
ANGLE SENSOR | 22 bit absolute |
TORQUE OFF BUTTON | Standard (Premium optional) |
POWER SUPPLY | 280 W |
WHEEL BASE DIMENSIONS INCL. SQR™ | 130 x 130 x 250 mm |
MOUNTING HOLES | M8 x 4 pcs threaded hole |
MOUNTING HOLE PATTERN DIA | 145 mm |
FLANGE CENTERING HOLE DIA | 110 mm |
WHEEL BASE WEIGHT | 8.0 kg |
STANDARD WARRANTY | 24 months |
TORQUE RECONSTRUCTION PROCESSING | Yes |
STATIC FORCE REDUCTION | Yes |
NATURAL DAMPING, INERTIA AND FRICTION FILTERS | Yes |
ULTRA LOW LATENCY MODE | Yes |
TORQUE SLEW RATE ADJUSTMENT | 1 – 4.8 Nm/ms |
MOTOR | High response speed DD optimized ultra low torque ripple motor |
SC2 WIRELESS WHEEL™ SUPPORT | Included |
SIMUCUBE QUICK RELEASE™ | Not Included |
MAX TORQUE | 25 Nm |
MAX TORQUE SLEW RATE | 8.0 Nm/ms |
ANGLE SENSOR | 22 bit absolute |
TORQUE OFF BUTTON | Standard (Premium optional) |
POWER SUPPLY | R2 1 x 450 W Peak |
WHEEL BASE DIMENSIONS INCL. SQR™ | 130 x 130 x 270 mm |
MOUNTING HOLES | M8 x 4 pcs threaded hole |
MOUNTING HOLE PATTERN DIA | 145 mm |
FLANGE CENTERING HOLE DIA | 110 mm |
WHEEL BASE WEIGHT | 11.1 kg |
STANDARD WARRANTY | 24 months |
TORQUE RECONSTRUCTION PROCESSING | Yes |
STATIC FORCE REDUCTION | Yes |
NATURAL DAMPING, INERTIA AND FRICTION FILTERS | Yes |
ULTRA LOW LATENCY MODE | Yes |
TORQUE SLEW RATE ADJUSTMENT | 1 – 8.0 Nm/ms |
MOTOR | Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor | |
SC2 WIRELESS WHEEL™ SUPPORT | Included | |
SIMUCUBE QUICK RELEASE™ | Included | |
MAX TORQUE | 32 Nm | |
MAX TORQUE SLEW RATE | 9.5 Nm/ms | |
ANGLE SENSOR | 24 bit Hiperface | |
TORQUE OFF BUTTON | Premium (with remote power switch) | |
POWER SUPPLY | 1000 W | |
WHEEL BASE DIMENSIONS INCL. SQR™ | 115 x 115 x 310 mm | |
MOUNTING HOLES | 9 mm dia x 4 pcs through hole | |
MOUNTING HOLE PATTERN DIA | 130 mm | |
FLANGE CENTERING HOLE DIA | 110 mm | |
WHEEL BASE WEIGHT | 11.3 kg | |
STANDARD WARRANTY | 60 months | |
TORQUE RECONSTRUCTION PROCESSING | Yes | |
STATIC FORCE REDUCTION | Yes, in detail adjustable | |
NATURAL DAMPING, INERTIA AND FRICTION FILTERS | Yes, in detail adjustable | |
ULTRA LOW LATENCY MODE | Yes | |
TORQUE SLEW RATE ADJUSTMENT | 1 – 9.5 Nm/ms |
Simucube 2 Sport | Simucube 2 Pro | Simucube 2 Ultimate | ||
MOTOR | Direct Drive optimized ultra low torque ripple motor... | High response speed Direct Drive optimized ultra low torque ripple motor | Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor | |
SC2 WIRELESS WHEEL™ SUPPORT | Included | Included | Included | |
SIMUCUBE QUICK RELEASE™ | Not Included | Not Included | Included | |
MAX TORQUE | 17 Nm | 25 Nm | 32 Nm | |
MAX TORQUE SLEW RATE | 4.8 Nm/ms | 8.0 Nm/ms | 9.5 Nm/ms | |
ANGLE SENSOR | 22 bit absolute | 22 bit absolute | 24 bit Hiperface | |
TORQUE OFF BUTTON | Standard (Premium optional) | Standard (Premium optional) | Premium (with remote power switch) | |
POWER SUPPLY | 280 W | R2 1 x 450 W Peak | 1000 W | |
WHEEL BASE DIMENSIONS INCL. SQR™ | 130 x 130 x 250 mm | 130 x 130 x 270 mm | 115 x 115 x 310 mm | |
MOUNTING HOLES | M8 x 4 pcs threaded hole | M8 x 4 pcs threaded hole | 9 mm dia x 4 pcs through hole | |
MOUNTING HOLE PATTERN DIA | 145 mm | 145 mm | 130 mm | |
FLANGE CENTERING HOLE DIA | 110 mm | 110 mm | 110 mm | |
WHEEL BASE WEIGHT | 8.0 kg | 11.1 kg | 11.3 kg | |
STANDARD WARRANTY | 24 months | 24 months | 60 months | |
TORQUE RECONSTRUCTION PROCESSING | Yes | Yes | Yes | |
STATIC FORCE REDUCTION | Yes | Yes | Yes, in detail adjustable | |
NATURAL DAMPING, INERTIA AND FRICTION FILTERS | Yes | Yes | Yes, in detail adjustable | |
ULTRA LOW LATENCY MODE | Yes | Yes | Yes | |
TORQUE SLEW RATE ADJUSTMENT | 1 – 4.8 Nm/ms | 1 – 8.0 Nm/ms | 1 – 9.5 Nm/ms |
- Max torque
- 32
- Max Torque Slew Rate
- 9,5Nm/ms
- Encoder
- 24 bit Hiperface
- E-stop button
- Yes - premium
- QR Included
- Yes
- Warranty
- 60 months
- Fixing method
- Front mount
- Wheelbase weight
- 11,3 kg
Simucube 2 Sport Wheel Base
Power Supply
All required cables
Standard Torque Off Button
Fixings for Wheel Base
Pin for Simucube Quick Release
Does NOT include: Simucube Quick Release Side Parts
Simucube 2 Manuals
https://www.simucube.com/limited-warranty
Simucube Mount Drilling Guide
