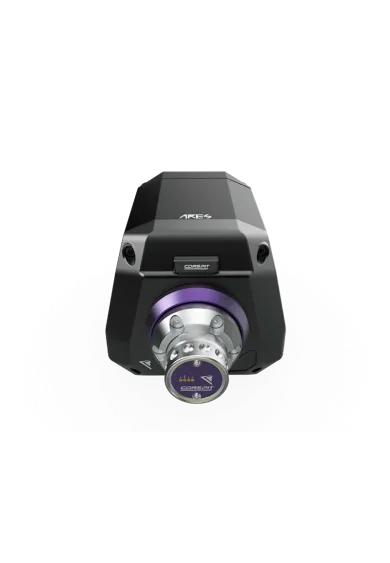

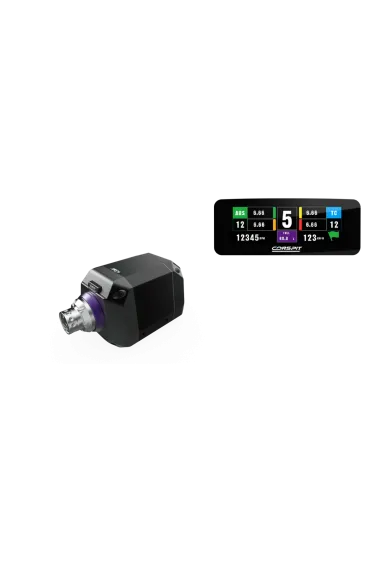

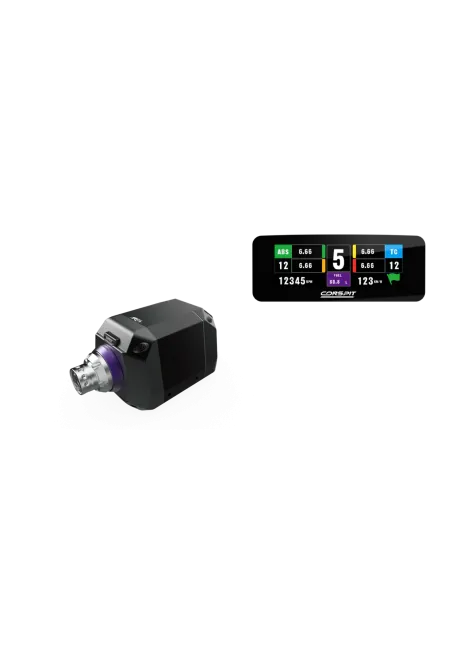

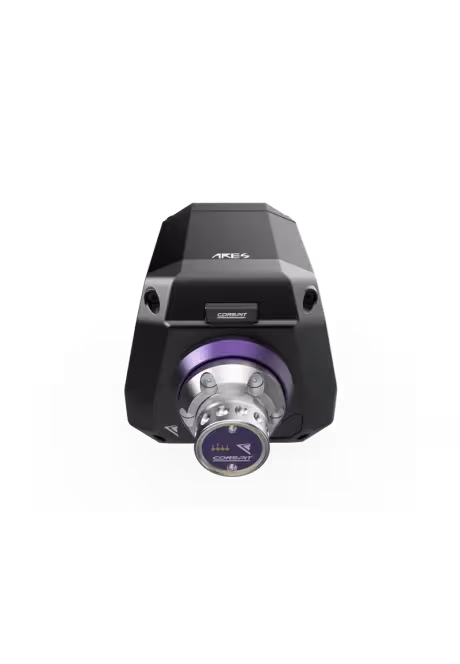

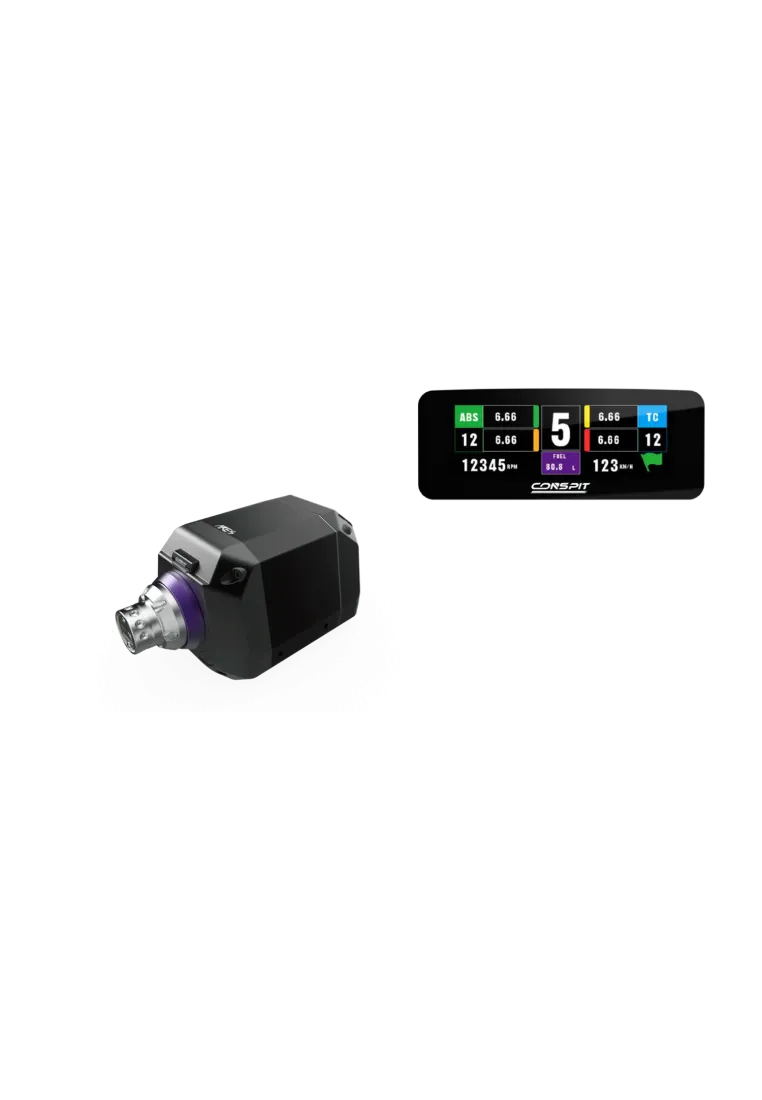

Conspit ARES 12 + Free CSD NANO combines a 12 Nm Direct Drive wheel base with a compact telemetry screen. The Conspit ARES 12 uses a 23-bit optical encoder, while the included Conspit CSD NANO attaches magnetically to the front of the base and connects through pogo-pin contacts at no extra cost. The base provides bottom M6 and side M8 mounting points. Its 2.99-inch LCD works with Conspit Link 2.0 and SimHub.
Conspit CDR Quick Release is a solid, lightweight wheel adapter that lets you change your wheel in just a few seconds. Built from 6061 aluminum, it’s ultra-tight, no-play, and keeps a perfect data connection. Works with Conspit wheelbases and standard 50–70 mm adapters.
192.15zł
The CONSPIT CES E-STOP is a professional emergency stop button designed for ARES wheelbases. It instantly cuts off power, ensuring maximum safety during sim racing. With durable construction, quick installation, and a twist-lock mechanism, it’s perfect for home setups, training centers, and professional simulators.
190.24zł
Conspit ARES 15cm Extension Rod – CNC aluminum spacer for Direct Drive bases, 6×70 mm mount. Improves cockpit ergonomics, comfort, and steering precision for sim racers.
Conspit ARES 15cm Extension Rod
411.38zł
The Conspit ARES Bending Version brackets allow secure mounting of Direct Drive wheelbases on profile rigs, offering angle adjustment, high durability, and compatibility with ARES 12 and ARES 20 Platinum.
Conspit ARES WheelBase Bracket
134.96zł
Conspit Front Mount Bracket is a strong aluminum mount made for Ares wheelbases. It keeps your base perfectly stable, even under heavy FFB. Easy to install, perfectly aligned, and tough enough to last a lifetime.
76.86zł
You might also like
Master The Scene
CONSPIT unites elite professional drivers with a premier motorsport engineering team to create its first Direct‑Drive wheelbase. The ARES series—including ARES 12 and ARES 20 Platinum—offers exceptional performance and clear competitive advantages across multiple domains
Built for sim racers demanding peak performance, the ARES features a 23‑bit high‑resolution optical encoder (< 0.01° precision) paired with a custom dual skewed‑pole direct‑drive motor. The optimized force feedback system delivers ultra‑smooth, highly detailed tactile realism
Equipped with a 23‑bit encoder delivering sub‑0.01° angular resolution, ensuring vastly superior accuracy and stability compared to magnetic systems. It eliminates coaxiality and consistency errors for refined feedback
The ARES optical encoder outperforms magnetic alternatives with identical resolution, offering smoother and more precise feedback
Featuring a leading motor control system, delivering stable, efficient, and accurate force feedback. With a torque slew rate of up to 9.5 Nm/ms, even fine details are faithfully reproduced
Unlike typical industrial servo motors, the ARES engine is custom-designed specifically for sim racing—optimizing torque response, cogging torque (< 2.3 %), and feedback smoothness
The skewed pole design in both stator and rotor dramatically reduces torque ripple, electromagnetic vibration, and noise—enhancing NVH characteristics.
Compact yet powerful: using high magnetic‑permeability cores, strong NdFeB magnets, optimized air-gap ratio, and high slot fill factor enables intense torque output
Through multiple design simulations and prototypes, the electromagnetic layout—optimized with skewed poles and precise magnetic circuitry—yields exceptionally smooth steering performance.
Real‑time high-frequency temperature monitoring ensures stable motor and control system performance, even during long endurance sessions
Conspit bases testing on precision industry-grade torque sensors (resolution < 0.01 Nm, up to 1 kHz sampling), ensuring performance data matches actual driver sensations.
Using Conspit Link 2.0, users can calibrate torque parameters, responsiveness, and high-frequency noise—based on objective diagnostics—to fine-tune feedback feel
The lightweight, sleek aluminum design ensures strong visual appeal and performance suitability in compact sim setups.
Machined in aerospace aluminum with advanced cooling and finishing techniques, combined with modular POGO magnetic expansion and built-in safety features
The wheelbase features magnetic POGO contacts at the front, enabling quick installation and future upgrades with additional functional modules
A dedicated safety mode ensures safe usage for all, including supervised use by children—ideal for family and training environments
Software that enables full function configuration, FFB adjustment, system monitoring, and switching between pro presets—created by professional drivers and vehicle dynamics engineers.
The CDR Quick Release System is built around the same specs most of the sim-racing world uses, so you don’t have to worry about compatibility — it fits a wide range of wheelbases and steering wheels. It’s made for quick swaps and easy setup changes, letting you attach or remove your wheel in seconds without any fuss.
External kill-switch ideal for coaching, sim centers, or safe supervised use scenarios
CONSPIT unites elite professional drivers with a premier motorsport engineering team to create its first Direct‑Drive wheelbase. The ARES series—including ARES 12 and ARES 20 Platinum—offers exceptional performance and clear competitive advantages across multiple domains
Built for sim racers demanding peak performance, the ARES features a 23‑bit high‑resolution optical encoder (< 0.01° precision) paired with a custom dual skewed‑pole direct‑drive motor. The optimized force feedback system delivers ultra‑smooth, highly detailed tactile realism
Equipped with a 23‑bit encoder delivering sub‑0.01° angular resolution, ensuring vastly superior accuracy and stability compared to magnetic systems. It eliminates coaxiality and consistency errors for refined feedback
The ARES optical encoder outperforms magnetic alternatives with identical resolution, offering smoother and more precise feedback
Featuring a leading motor control system, delivering stable, efficient, and accurate force feedback. With a torque slew rate of up to 9.5 Nm/ms, even fine details are faithfully reproduced
Unlike typical industrial servo motors, the ARES engine is custom-designed specifically for sim racing—optimizing torque response, cogging torque (< 2.3 %), and feedback smoothness
The skewed pole design in both stator and rotor dramatically reduces torque ripple, electromagnetic vibration, and noise—enhancing NVH characteristics.
Compact yet powerful: using high magnetic‑permeability cores, strong NdFeB magnets, optimized air-gap ratio, and high slot fill factor enables intense torque output
Through multiple design simulations and prototypes, the electromagnetic layout—optimized with skewed poles and precise magnetic circuitry—yields exceptionally smooth steering performance.
Real‑time high-frequency temperature monitoring ensures stable motor and control system performance, even during long endurance sessions
Conspit bases testing on precision industry-grade torque sensors (resolution < 0.01 Nm, up to 1 kHz sampling), ensuring performance data matches actual driver sensations.
Using Conspit Link 2.0, users can calibrate torque parameters, responsiveness, and high-frequency noise—based on objective diagnostics—to fine-tune feedback feel
The lightweight, sleek aluminum design ensures strong visual appeal and performance suitability in compact sim setups.
Machined in aerospace aluminum with advanced cooling and finishing techniques, combined with modular POGO magnetic expansion and built-in safety features
The wheelbase features magnetic POGO contacts at the front, enabling quick installation and future upgrades with additional functional modules
A dedicated safety mode ensures safe usage for all, including supervised use by children—ideal for family and training environments
Software that enables full function configuration, FFB adjustment, system monitoring, and switching between pro presets—created by professional drivers and vehicle dynamics engineers.
The CDR Quick Release System is built around the same specs most of the sim-racing world uses, so you don’t have to worry about compatibility — it fits a wide range of wheelbases and steering wheels. It’s made for quick swaps and easy setup changes, letting you attach or remove your wheel in seconds without any fuss.
External kill-switch ideal for coaching, sim centers, or safe supervised use scenarios
| Product Name: | ARES 12 |
|---|---|
| Product Dimensions: | 134 × 150 × 260 mm |
| Net Weight: | 5,6 kg |
| Maximum Torque: | 12 Nm |
| Encoder: | 23-bit High-Resolution Optical Encoder |
| Motor: | Direct Drive |
| Quick Release: | CONSPIT CDR |
| Mounting: | M6 x 4 (bottom), M8 x 4 (sides) |
| Platform: | PC (Windows) |
| E‑Stop: | CES E-Stop (optional) |
| Connection: | USB direct |
| Cable: | USB 3.0 cable |
| Software: | Conspit Link 2.0 |
Here’s a quick bundle of all the important links for the ARES series — manuals and the Conspit Link software. Everything in one place so you don’t have to dig around. Makes setup and the first run way smoother.
| Component | Parameter | Details |
|---|---|---|
| ARES 12 | Type | Direct Drive wheel base |
| ARES 12 | Maximum torque | 12 Nm |
| ARES 12 | Torque slew rate | 4.8-8 Nm/ms |
| ARES 12 | Encoder | 23-bit optical encoder, angular precision below 0.01 degrees |
| ARES 12 | Cogging torque | Below 2.3% |
| ARES 12 | Dimensions | 134 x 150 x 260 mm |
| ARES 12 | Net weight | 5.6 kg |
| ARES 12 | Mounting points | 4 x M6 bottom, 4 x M8 side |
| ARES 12 | PC connection | USB 3.0 |
| ARES 12 | Software | Conspit Link 2.0 |

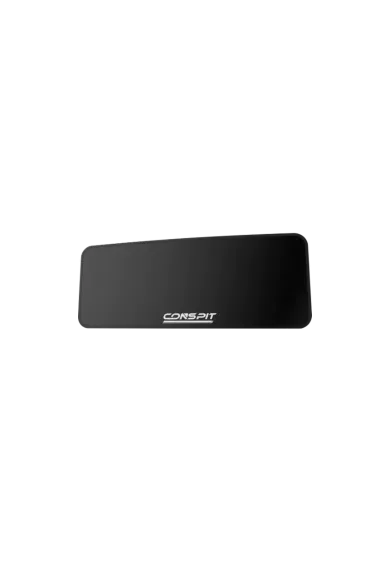

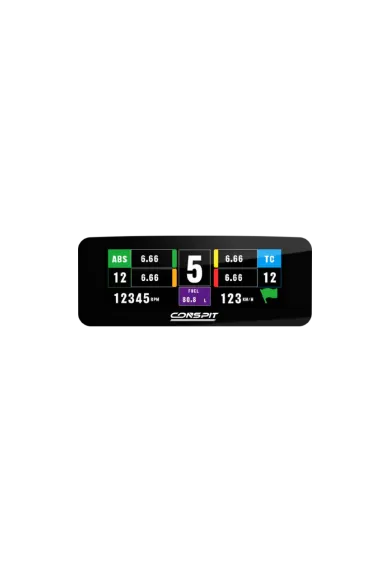

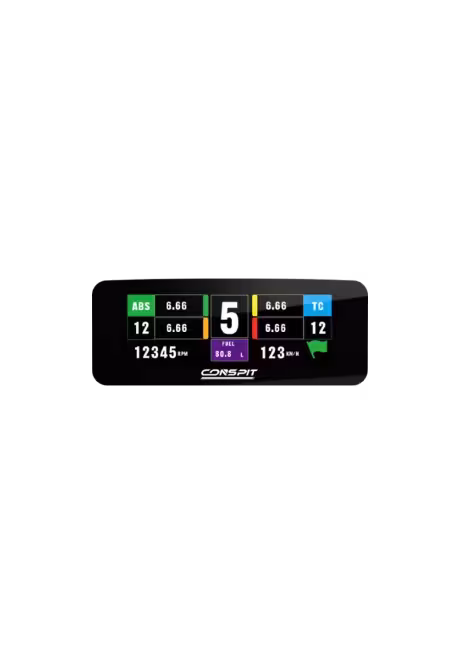

| CSD NANO | Display | 2.99-inch colour LCD |
| CSD NANO | Resolution | 800 x 268 pixels |
| CSD NANO | Dimensions | 92 x 27 x 13 mm |
| CSD NANO | ARES 12 mounting | Magnetic, pogo-pin contacts |
| CSD NANO | Universal connection | USB-C |
| CSD NANO | Supported environments | Conspit Link 2.0, SimHub, custom images and video files |
| Bundle | Platform | Windows PC |
| Device or use | Compatibility | Notes |
|---|---|---|
| Windows PC | Yes | Target platform for the wheel base and display. |
| Conspit Link 2.0 | Yes | Wheel-base configuration and native CSD NANO layouts. |
| SimHub | Yes, for CSD NANO | Requires the official CSDNano.shdp file. |
| ARES 12 front magnetic interface | Yes | CSD NANO power and data through pogo pins. |
| Conspit CDR system | Yes | The wheel-side CDR component is required and sold separately. |
| Bottom cockpit mounting | Yes | Four M6 points. |
| Side cockpit mounting | Yes | Four M8 points; brackets are selected separately. |
| PlayStation and Xbox | No confirmed support | The manufacturer specifies Windows PC. |
| Item | Quantity | Information |
|---|---|---|
| Conspit ARES 12 wheel base | 1 | 12 Nm Direct Drive wheel base. |
| Wheel-base power supply | 1 | Power supply for ARES 12. |
| USB 3.0 cable | 1 | Connects the wheel base to the PC. |
| Conspit CSD NANO display | 1 | Complete display included free. |
| USB Type-C cable for CSD NANO | 1 | For the display's universal connection. |
| Adhesive-backed metal plate | 1 | Supports alternative CSD NANO installation. |
The steering wheel, wheel-side CDR component, wheel-base brackets, CES E-Stop, pedals and cockpit are not included.
You receive the ARES 12 wheel base with its power supply and USB cable, plus a complete CSD NANO with a USB-C cable and metal mounting plate.
Yes. The complete CSD NANO display is part of the bundle and is included free.
The wheel base delivers up to 12 Nm of torque.

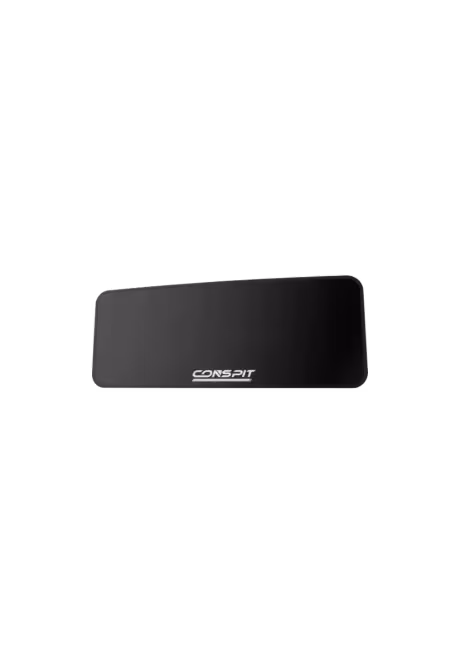

The housing measures 92 x 27 x 13 mm and contains a 2.99-inch LCD.

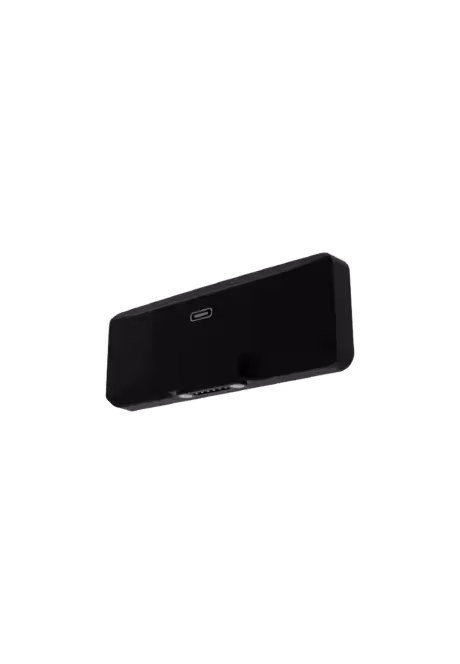

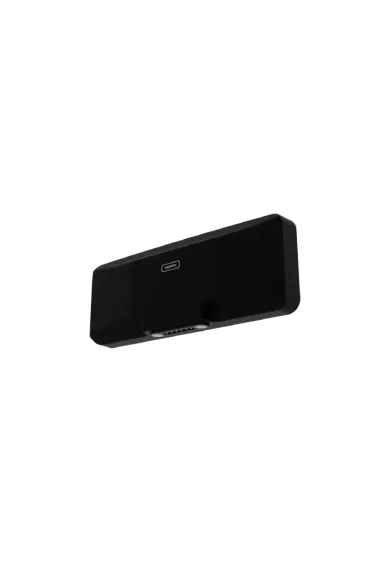

No. ARES 12 transfers power and data to CSD NANO through magnetic pogo-pin contacts.
Yes. Install the official CSDNano.shdp device file and configure the screen in SimHub.
No. The wheel-side CDR component must be selected separately.
No. The CES E-Stop is an optional accessory for ARES wheel bases.
The wheel base provides four M6 threads on the bottom and four M8 threads on the sides.
The manufacturer confirms Windows PC support. PlayStation and Xbox compatibility is not specified.
Simline.eu is an authorised CONSPIT partner in Poland and Europe. CONSPIT products are covered by warranty protection for up to 2 years within the European Union, according to CONSPIT warranty terms.
Simline.eu assists with the warranty process and manages the claim after receiving the required documentation. Once the issue has been reviewed, we provide the next instructions.
Email support@simline.eu or conspit@simline.eu. Include a fault description and photos or videos showing the problem. Further instructions will be provided after review.
