2,765.04zł

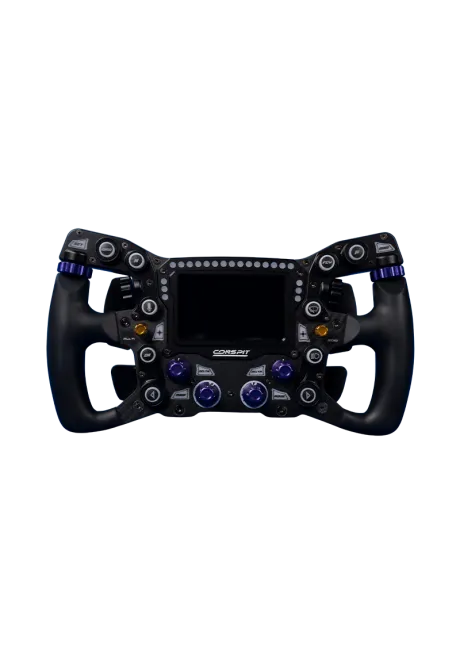

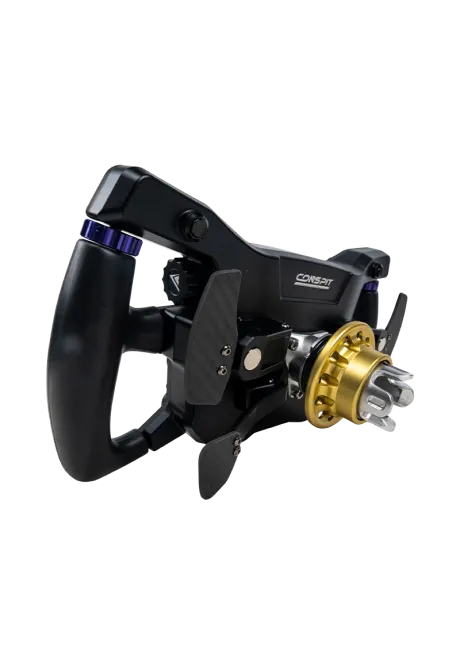

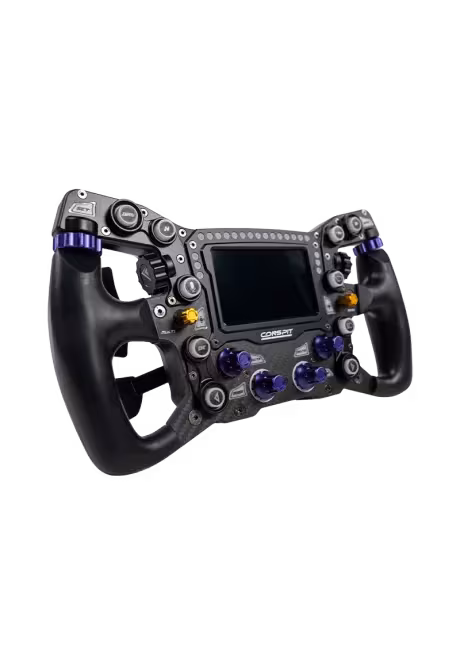

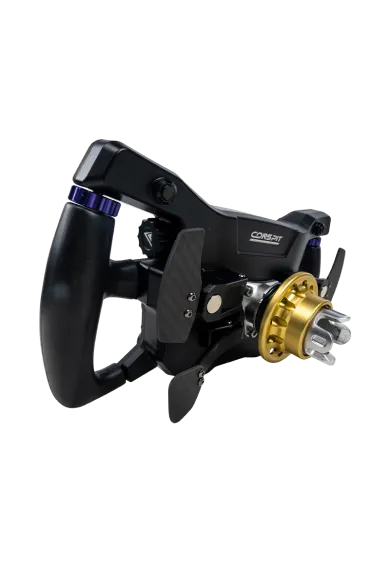

Conspit MAX 01 Formula Wheel is a high-end F1-style simracing wheel featuring a 300 mm grip, 4″ SimHub-compatible touchscreen with 21 RGB LEDs, dual-clutch paddle, magnetic shifters, advanced encoder mapping via P‑ENC and Link 2.0 control engine—built for pros.
The CONSPIT CDP Quick Release is a Formula-inspired, CNC-machined connector for sim racing. Compatible with ARES wheelbases, it delivers unmatched signal reliability, torque precision, and zero mechanical play – designed for professional-level performance.
273.17zł
You might also like
MAXimum Racing Sensation
Engineered for competitive sim drivers, the MAX 01 leverages CONSPIT’s proprietary advanced control system and offers 100% plug‑and‑play compatibility with SimHub, empowering racers to realize their peak performance.

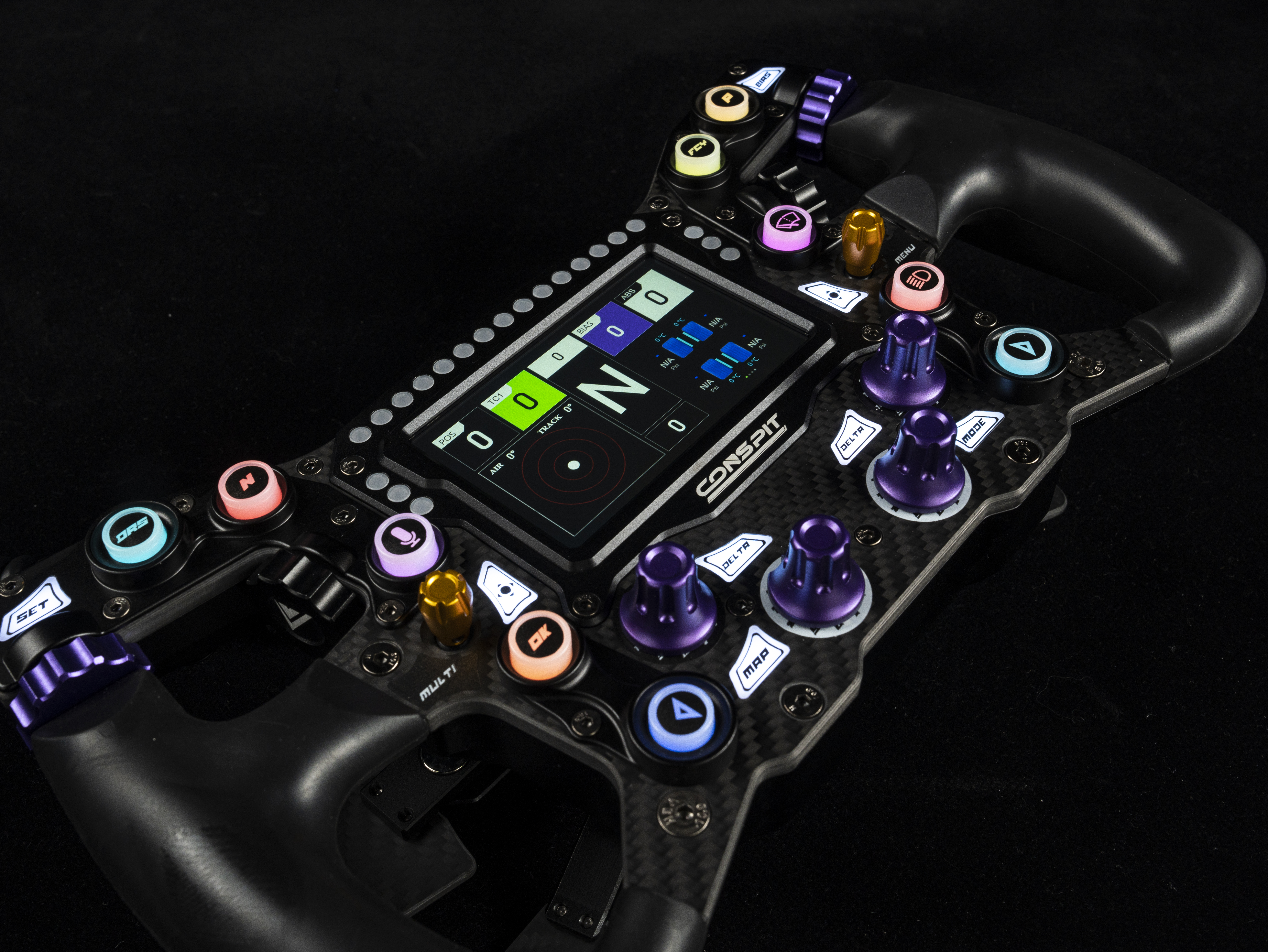

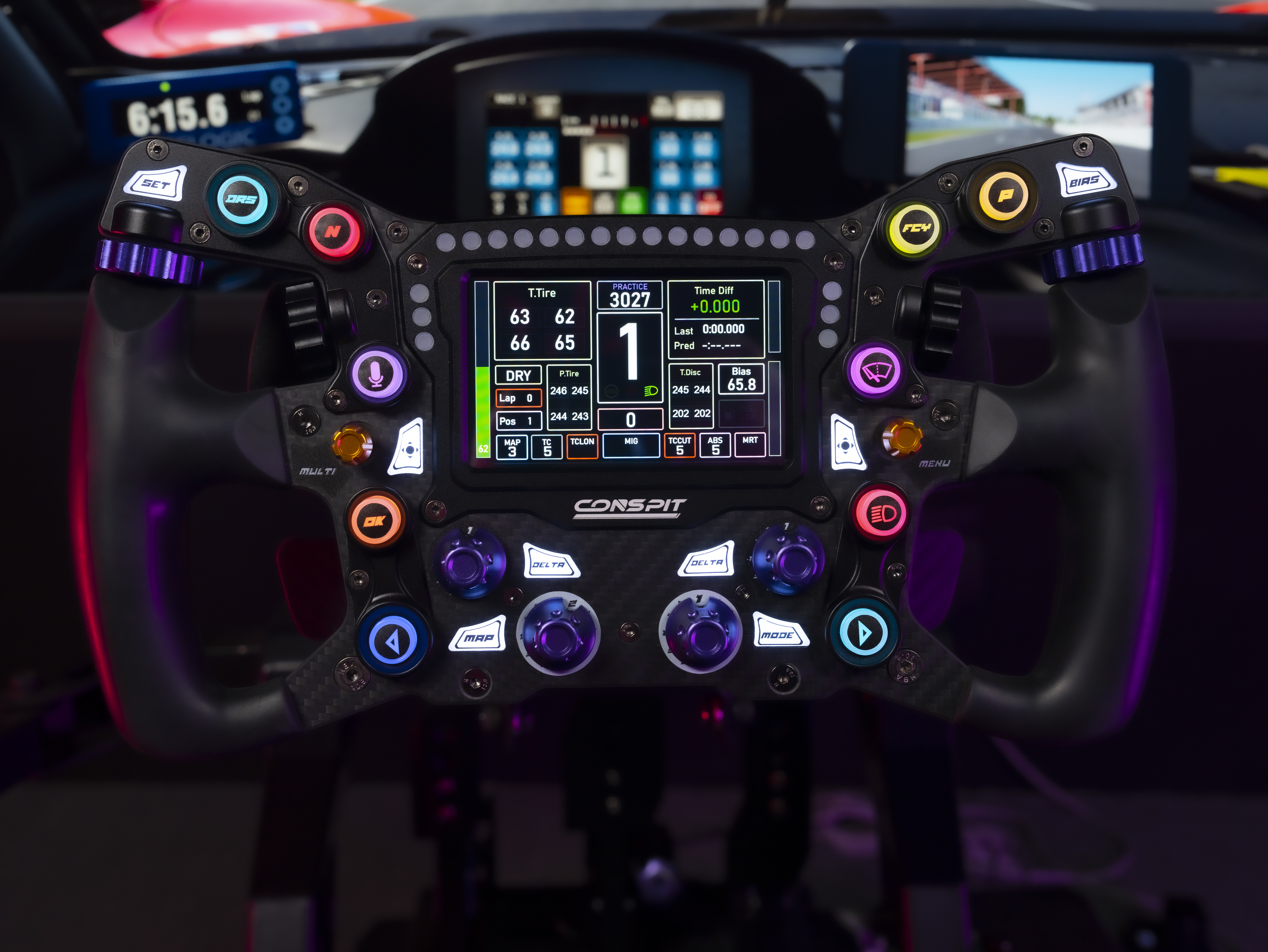

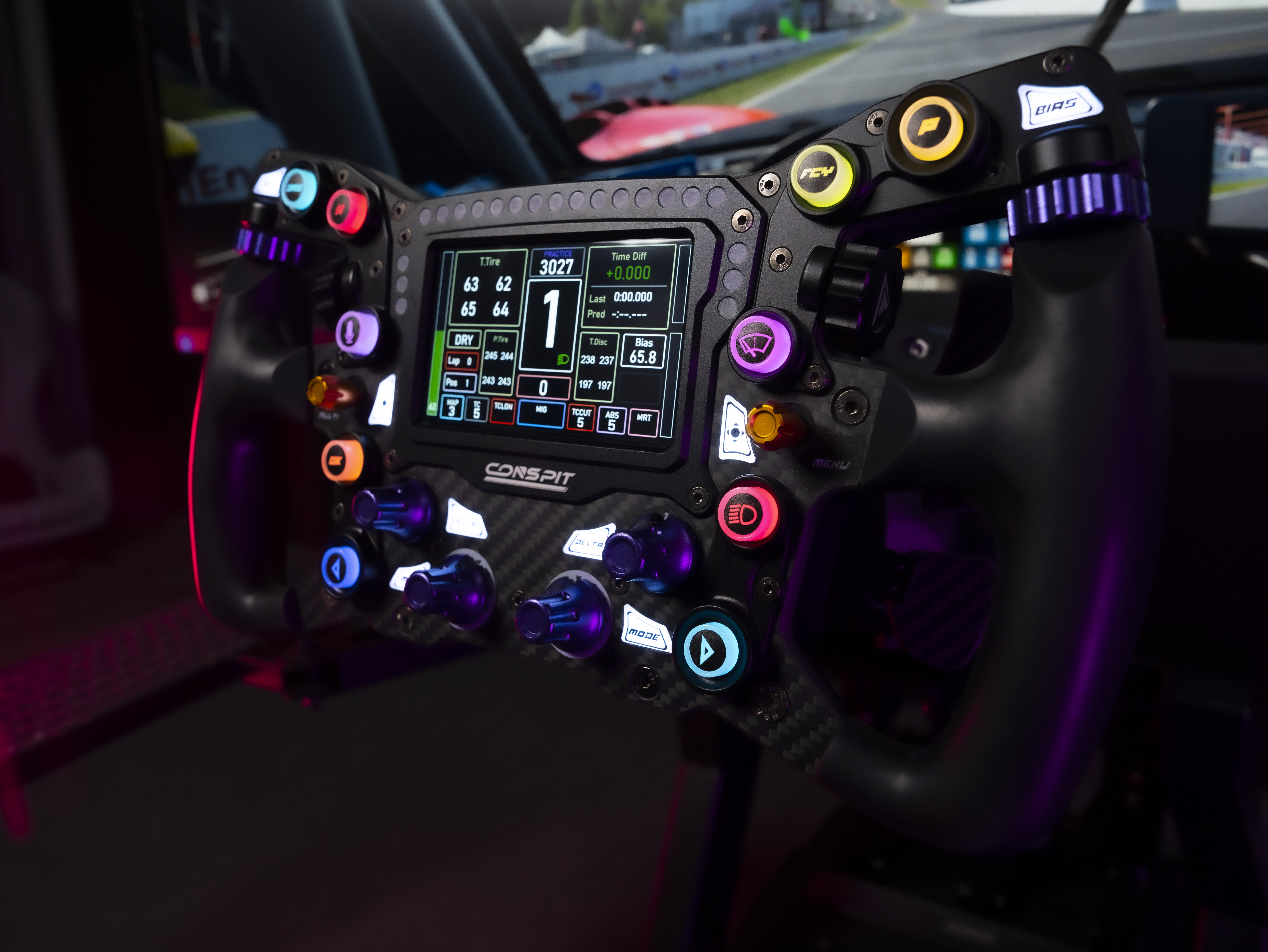

4″ high‑resolution touchscreen with 21 programmable RGB dash lights
Seamlessly integrates with SimHub, enabling rich telemetry visuals and customizable dashboards
Includes a custom SimHub dash UI created by CONSPIT to match hardware layout
Built into a robust aluminum frame with protective flanges around the screen
10 RGB modular buttons with precise tactile response
8 RGB function‑light zones to display vehicle status, track alerts, or sector data
All button and light assignments plus telemetry feedback are fully customizable

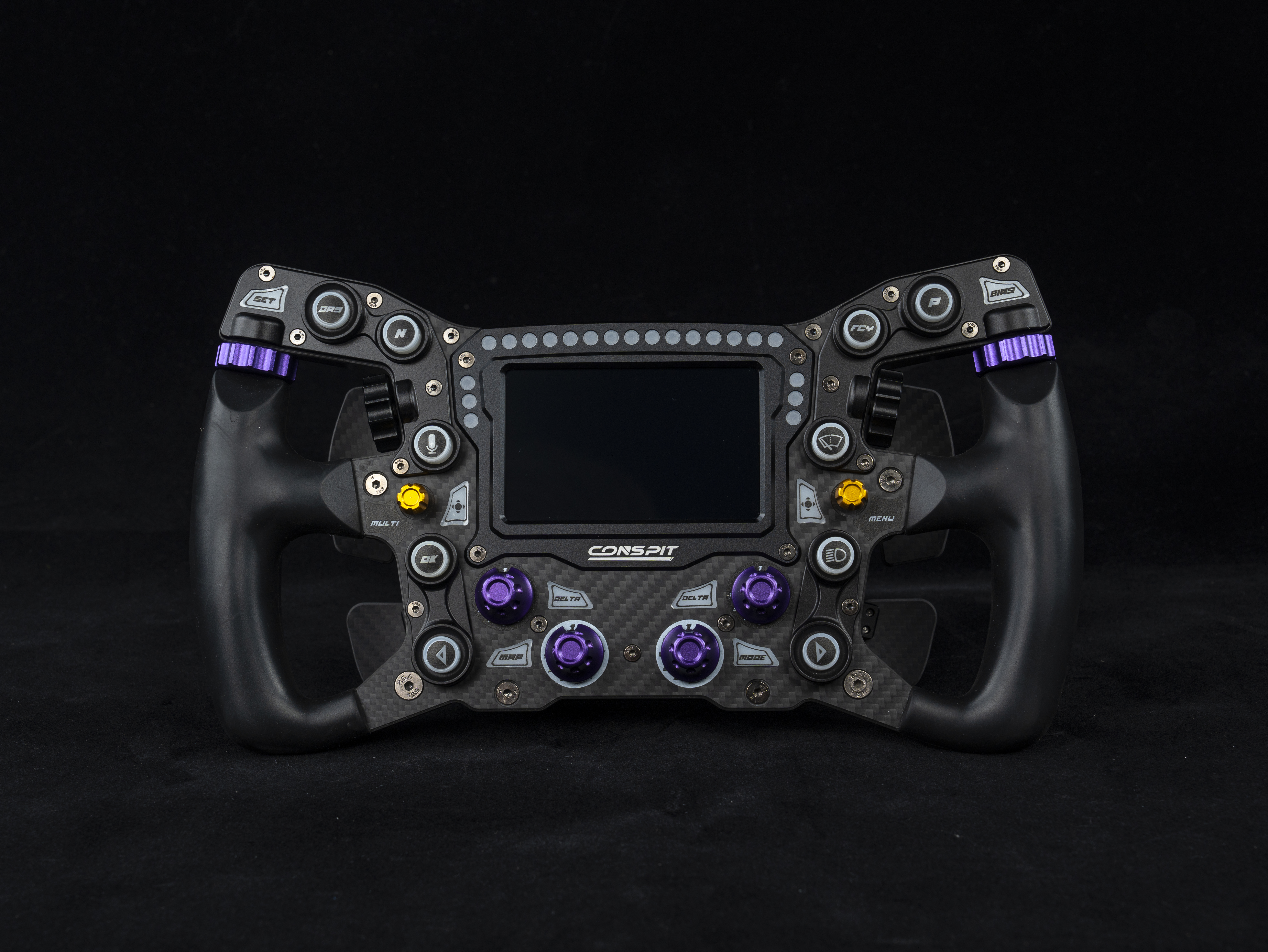

5 mm carbon fiber front panel bonded to a single-piece aluminum-alloy body
Optimized stress zones and cutouts ensure rigidity under high torque
Encoders, thumb-wheels, and button surrounds are machined metal, delivering premium tactile feedback
Retrieved from real race car design, two push buttons behind the wheel offer quick access without repositioning your hands.

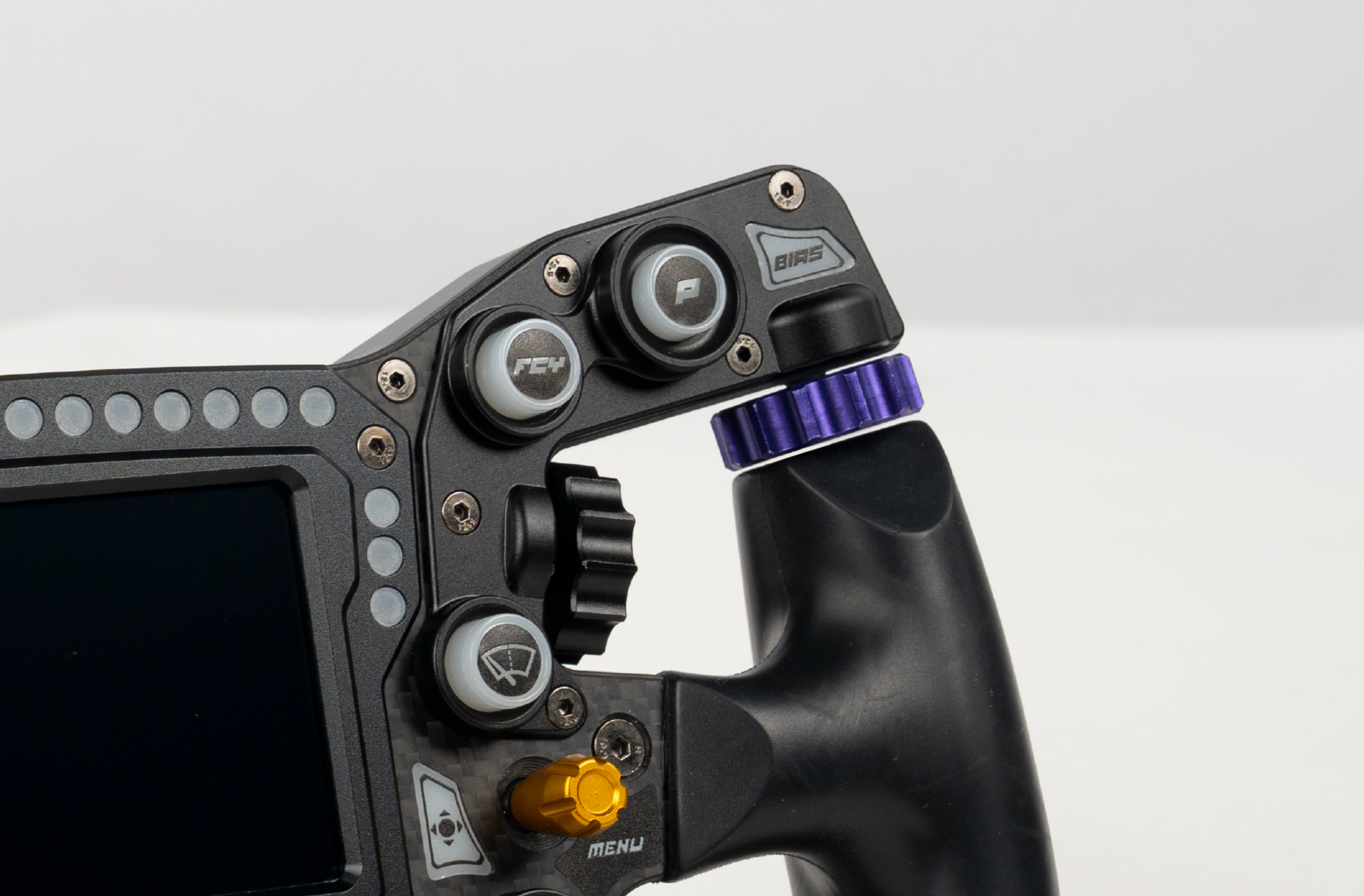

Purple thumb wheels feature an exposed design—usable by thumb and index finger from behind, improving mid-race adjustment efficiency while adding a unique aesthetic

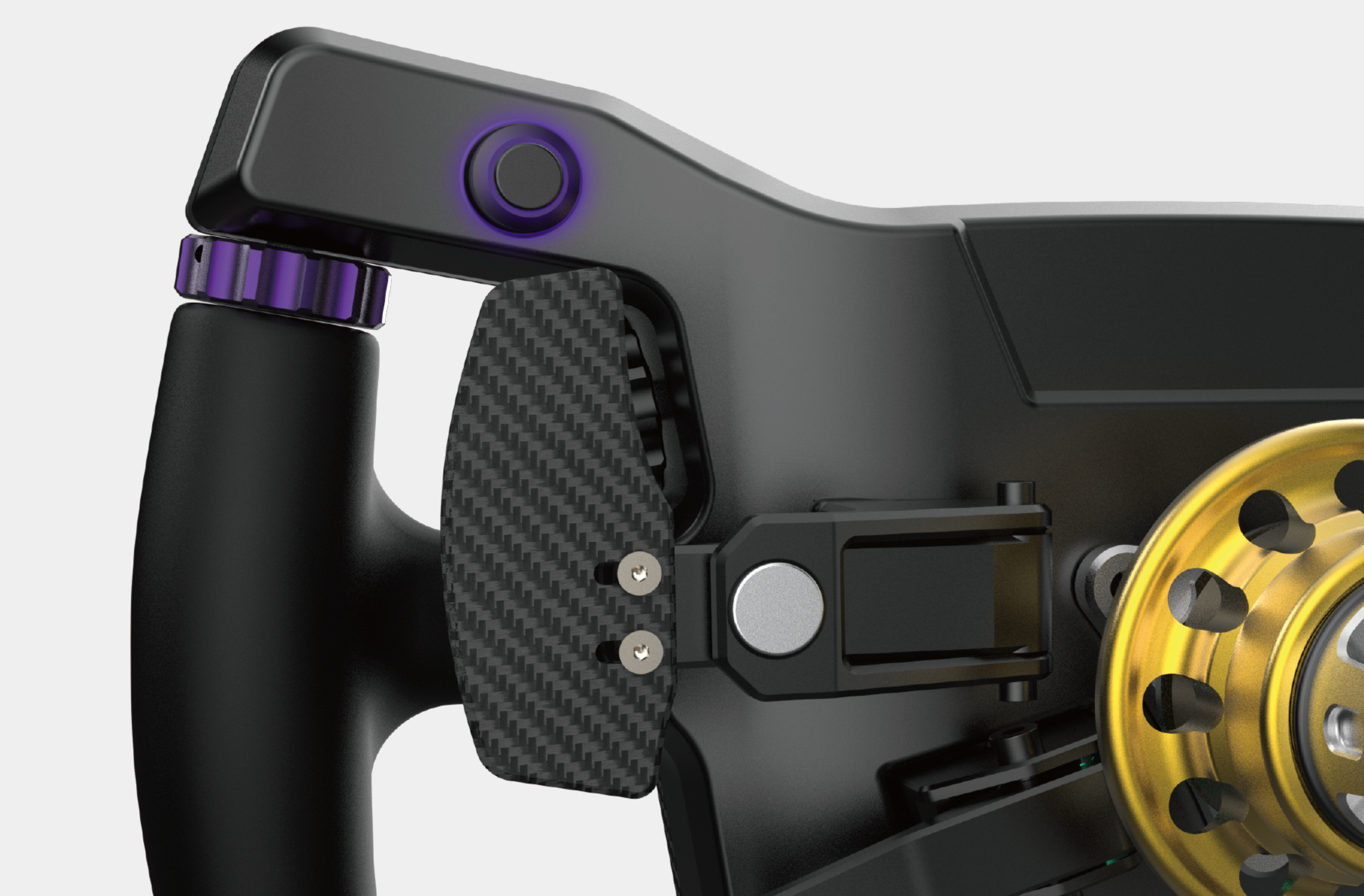

Shift paddles engineered for a quiet, tactile feel balance
Dual-clutch paddles offer firm feedback for reliable race starts and launch control
300 mm grip-to-grip span crafted for long-session comfort
Grips made from dual-injection TPU, molded to resist wear and fading

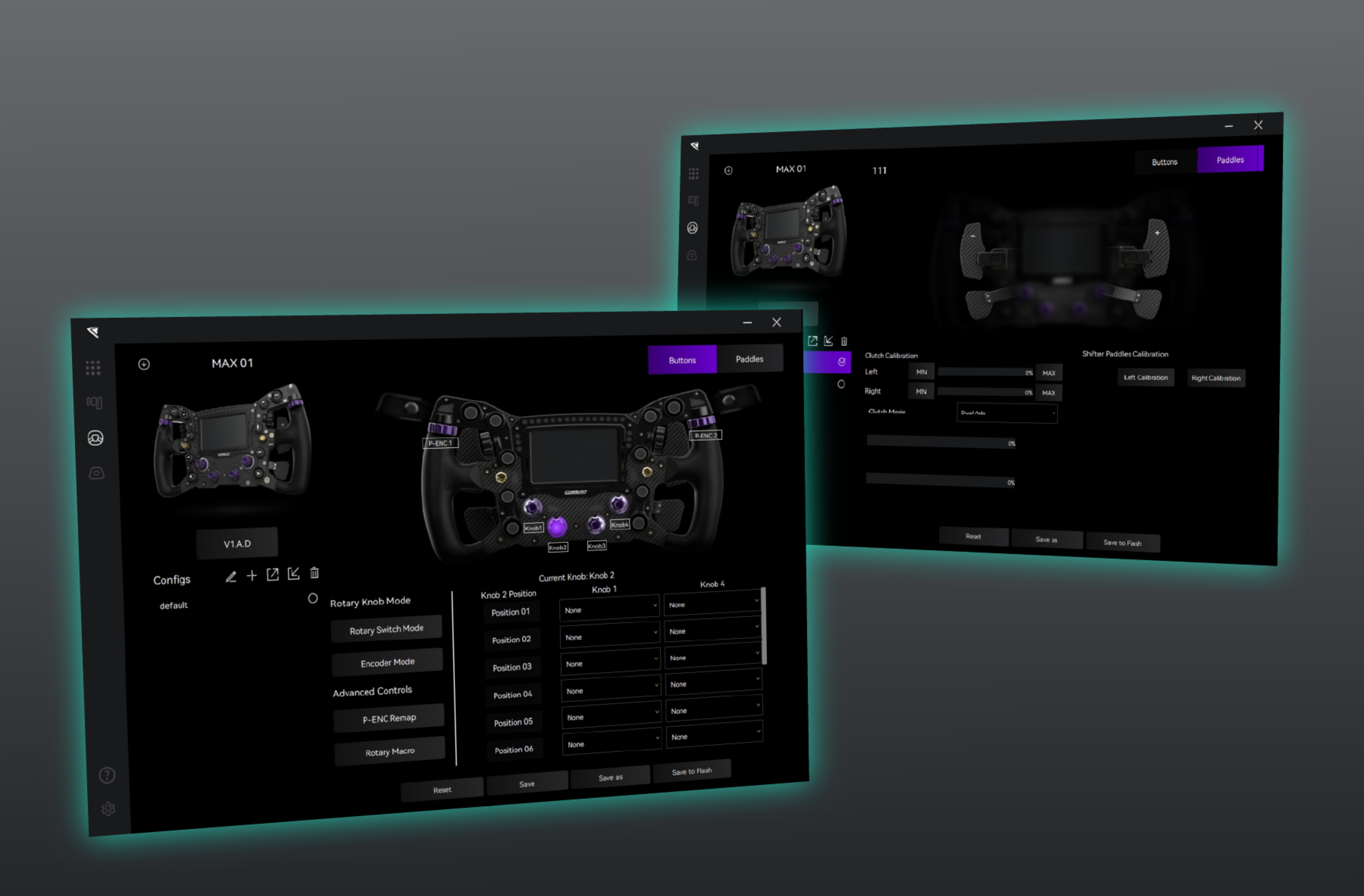

Unlock fast calibration and deep customization through Conspit Link 2.0, offering:
Dual-Mode Rotary Knobs: configure as standard encoders or fixed-position rotary switches
Encoders Remap (P-ENC): shift functions of the rotary knob positions to thumb encoders—allowing multi-level car setup control without extra hardware
Rotary Macro: lower knob adjusts upper knob profiles to switch swiftly between preset control maps

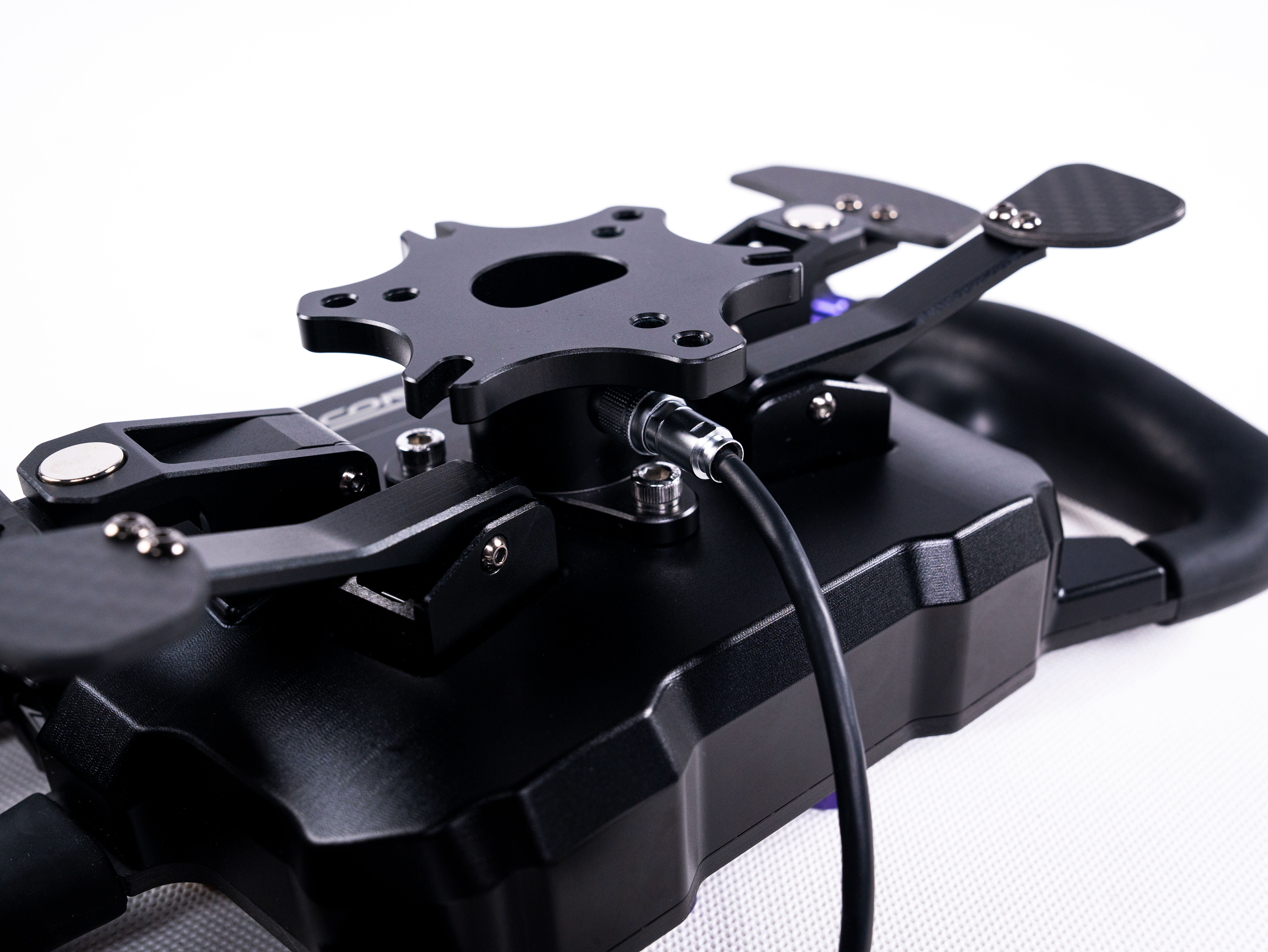

Includes a 70 mm PCD adapter (with 50→70 mm spacer) for broad compatibility
Built with military-grade quick-connectors and detachable USB coiled cable for stable plug-and-play use

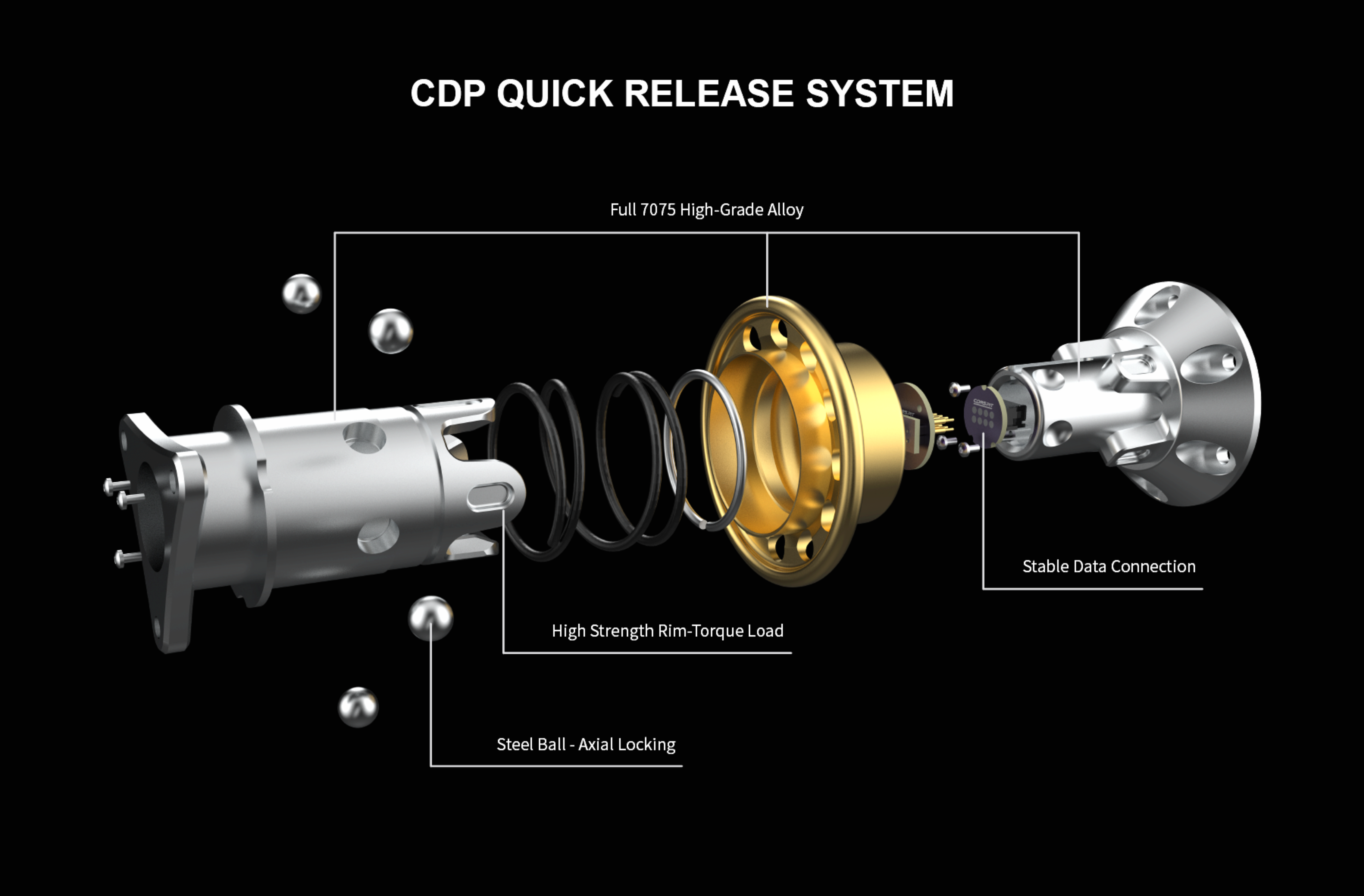

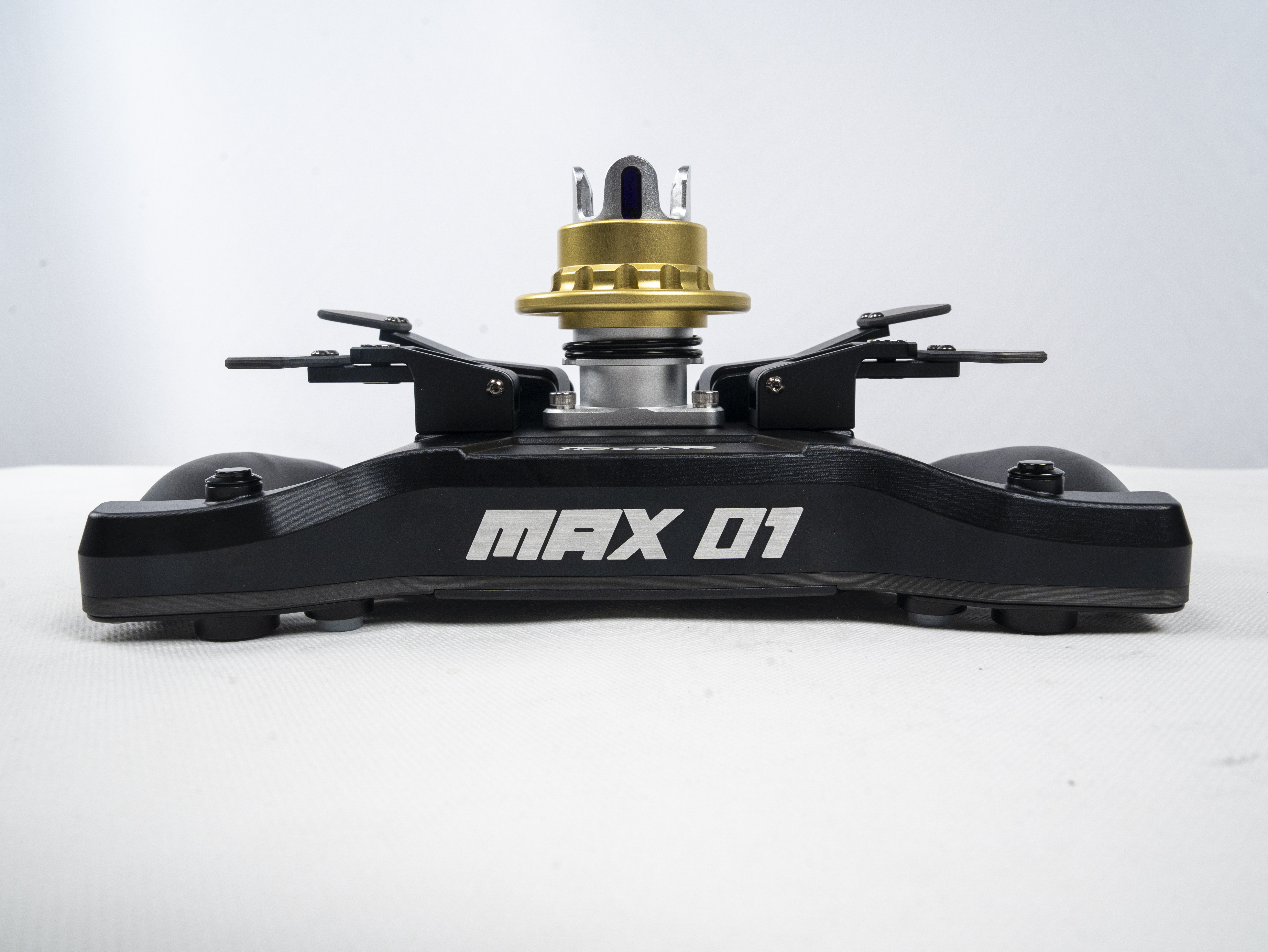

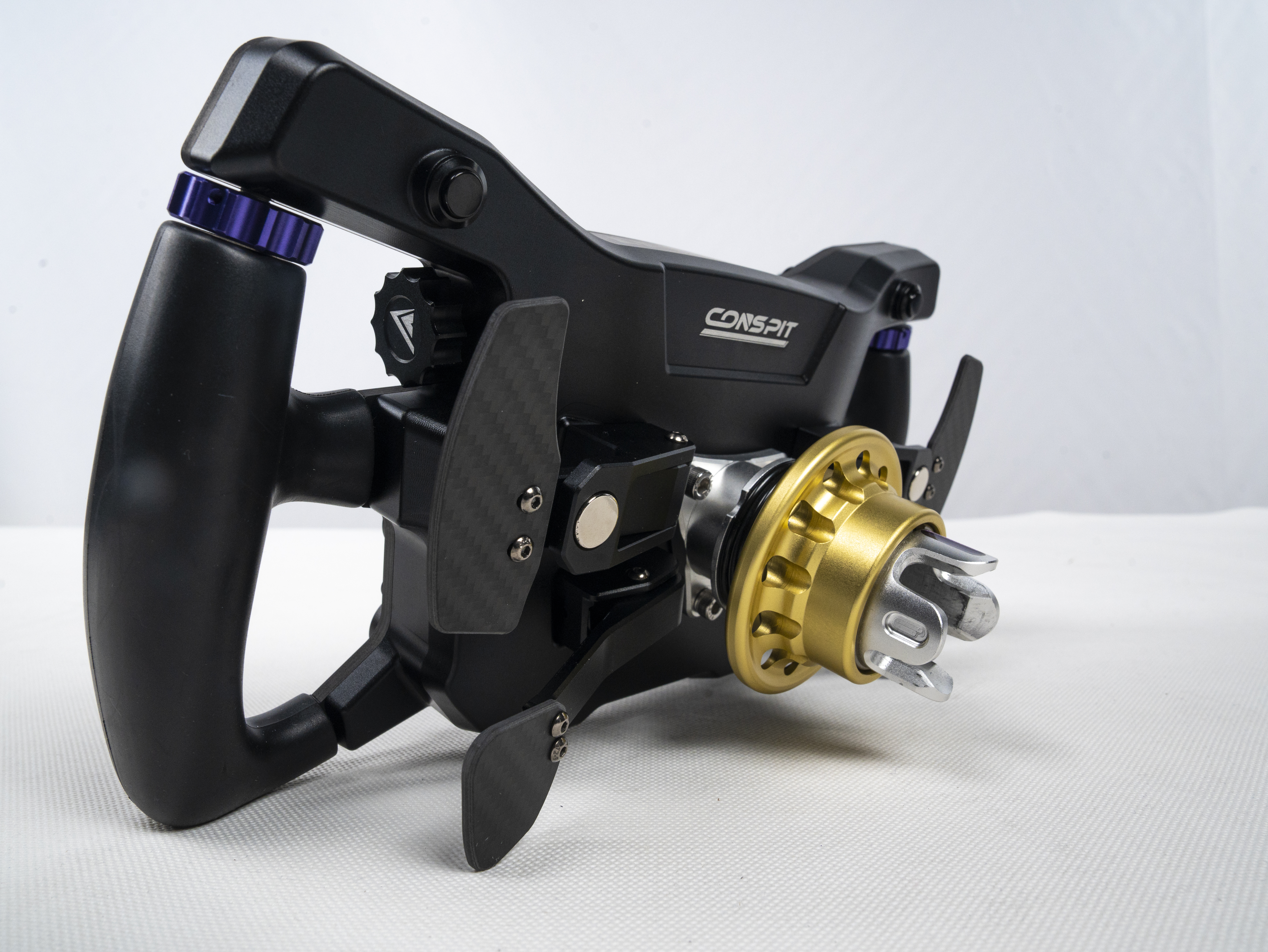

Optional CDP Quick Release system allows direct mounting to CONSPIT ARES wheelbases
Built with CNC-machined 7075 aluminum clasp and precision ball-locking mechanism
Torque is carried via clasp; balls ensure axial positioning; spring contacts deliver EMI-resistant electrical stability
Designed for zero-play reliability even under extreme load through optimized contact geometry
Engineered for competitive sim drivers, the MAX 01 leverages CONSPIT’s proprietary advanced control system and offers 100% plug‑and‑play compatibility with SimHub, empowering racers to realize their peak performance.
4″ high‑resolution touchscreen with 21 programmable RGB dash lights
Seamlessly integrates with SimHub, enabling rich telemetry visuals and customizable dashboards
Includes a custom SimHub dash UI created by CONSPIT to match hardware layout
Built into a robust aluminum frame with protective flanges around the screen
10 RGB modular buttons with precise tactile response
8 RGB function‑light zones to display vehicle status, track alerts, or sector data
All button and light assignments plus telemetry feedback are fully customizable
5 mm carbon fiber front panel bonded to a single-piece aluminum-alloy body
Optimized stress zones and cutouts ensure rigidity under high torque
Encoders, thumb-wheels, and button surrounds are machined metal, delivering premium tactile feedback
Retrieved from real race car design, two push buttons behind the wheel offer quick access without repositioning your hands
Purple thumb wheels feature an exposed design—usable by thumb and index finger from behind, improving mid-race adjustment efficiency while adding a unique aesthetic.
Shift paddles engineered for a quiet, tactile feel balance
Dual-clutch paddles offer firm feedback for reliable race starts and launch control
300 mm grip-to-grip span crafted for long-session comfort
Grips made from dual-injection TPU, molded to resist wear and fading
Unlock fast calibration and deep customization through Conspit Link 2.0, offering:
Dual-Mode Rotary Knobs: configure as standard encoders or fixed-position rotary switches
Encoders Remap (P-ENC): shift functions of the rotary knob positions to thumb encoders—allowing multi-level car setup control without extra hardware
Rotary Macro: lower knob adjusts upper knob profiles to switch swiftly between preset control maps
Includes a 70 mm PCD adapter with spacer for compatibility with most Direct Drive bases
Constructed with high-strength quick connectors and a detachable coiled USB cable to ensure stable, plug‑and‑play use
Optional CDP Quick Release system enables direct attachment to CONSPIT ARES bases
Features an F1-inspired CNC-machined 7075 aluminum clasp and ball-lock mechanism
Clasp handles torque transmission; balls ensure precise axial alignment; spring contacts provide EMI-resistant electrical stability over wireless alternatives
Engineered to resist wear and maintain zero-play operation even under high load
| Structure: | MAX 01 |
| Main Material: | Carbon Fiber, Aluminum Alloy |
| Product Dimensions: | 300x170x87 mm |
| Net Weight: | 1400 g (Excluding QR/adapter) |
| Dashboard: | 4.0" 800*480 (Compatible with SimHub) |
| Indicators: | 29 x RGB LEDs |
| RGB Buttons: | 10x |
| Encoder Wheels: | 4x |
| Rotary Switches: | 4x 12-position |
| 7-way Joysticks: | 2x |
| Clutch Paddles: | 2 x modular Hall sensored clutch paddles |
| Shift Paddles: | Silent magnetic Hall sensored shift paddles |
| Platform: | Windows PC |
| Connection: | USB, CAN |
| Software: | SimHub + Conspit Link 2.0 |
No need to dig through forums or random groups — everything you need for MAX 01 is right here. Click the file name and the PDF pops open in a new window. Couldn’t be easier.
