Conspit CHS Shifter

Name: Conspit CHS Shifter
Brand: Conspit
SKU: CON-CHS
Price: 1349.59 PLN
Availability: OutOfStock

Reference CON-CHS

1,349.59zł

PREORDER

The Conspit CHS Shifter combines a 7+R H-pattern and sequential +/- operation in one housing. Separate mechanical paths retain a distinct feel for each mode, while shift force can be adjusted from 3 to 10 kg. Hall sensors, tunable damping and nine RGB LEDs work with CONSPIT Link 2.0 and SimHub. The shifter connects directly to a PC over USB. Explore more handbrakes and shifters available from Simline.eu.

Ask about product

You will receive an 13.50zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Conspit ARES 12

2,039.02zł

Conspit ARES Platinum 20

2,869.11zł

Conspit PW1

6,506.50zł

Conspit MAX 01

2,765.04zł

Conspit H3 Handbrake

1,104.07zł

Conspit CPP APEX

1,169.92zł

Conspit CPP EVO 3 V2 3 pedal set front view

Conspit CPP EVO V2

2,765.00zł

Two modes with separate mechanical paths

The Conspit CHS Shifter provides a seven-speed H-pattern with reverse and a two-way sequential +/- mode. Its Dual-Trace construction gives each mode a dedicated mechanical path. The H-pattern therefore retains clearly defined gates, while sequential shifts use a short and direct movement.

A dedicated selector on the housing changes the operating mode. Both sets of inputs can be assigned in the game beforehand, so switching from the H-pattern to sequential operation does not require repeated remapping. This makes one control suitable for road cars, historic racers, rally cars and modern competition vehicles.

Adjustable force, travel and damping

Shift force is adjustable with a hex key across a range of 3 to 10 kg. The mechanism can therefore be set for light, frequent movements or a firmer and more pronounced engagement. In H-pattern mode, full travel measures 38 mm or 12 degrees, while activation starts after 12 mm or 4.5 degrees of movement.

Sequential mode uses an asymmetric SnapShift short-throw mechanism. The forward movement for a downshift is slightly shorter than the rearward movement for an upshift. Tunable damping can reduce unwanted vibration and mechanical noise or preserve a more direct and solid action.

Hall sensors, lockout trigger and RGB indication

Contactless magnetic Hall sensors read the mechanism position. Reverse and seventh gear are protected by a separate lockout trigger located below the knob, requiring a deliberate action before the lever can enter either outer position.

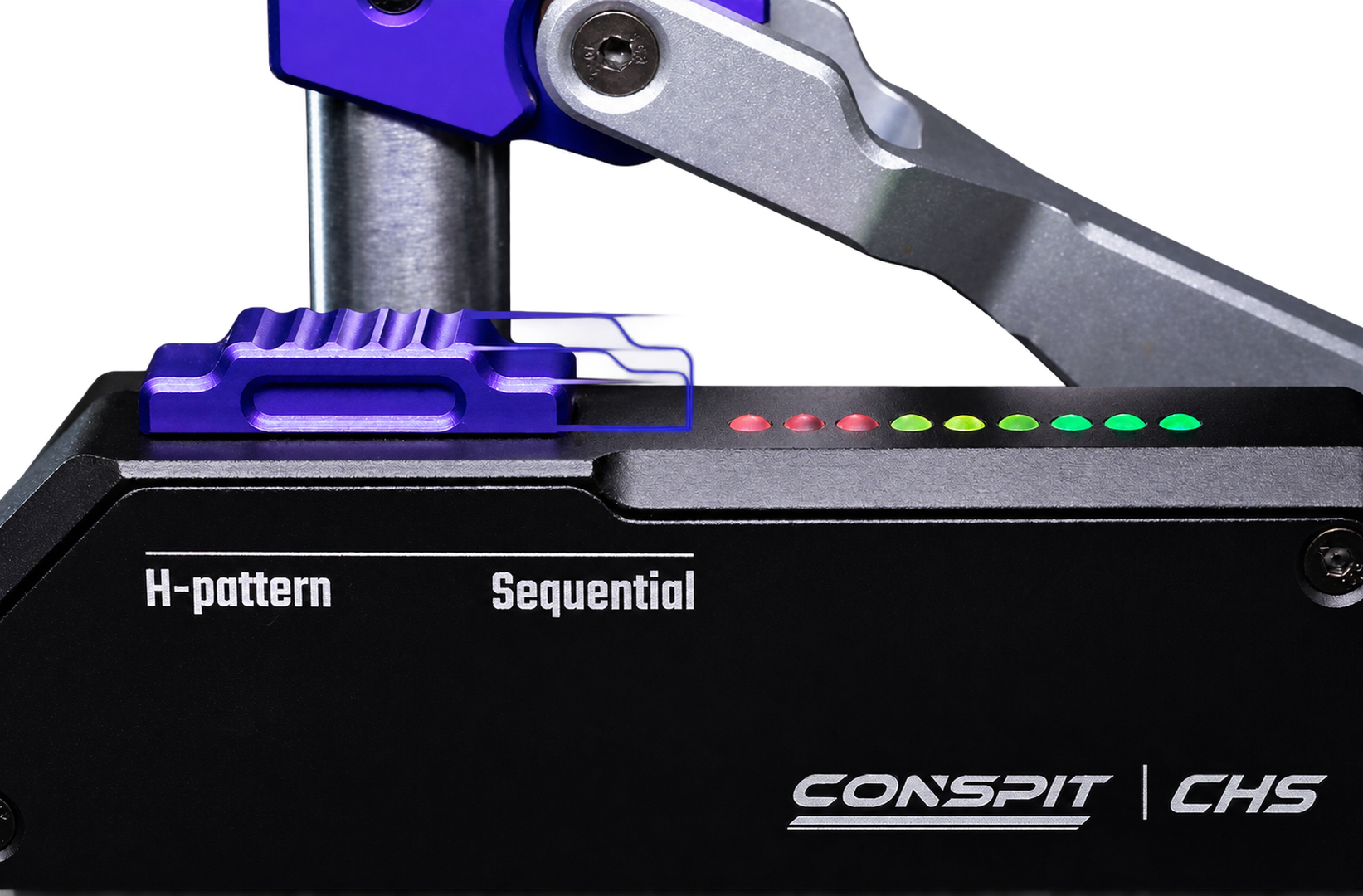

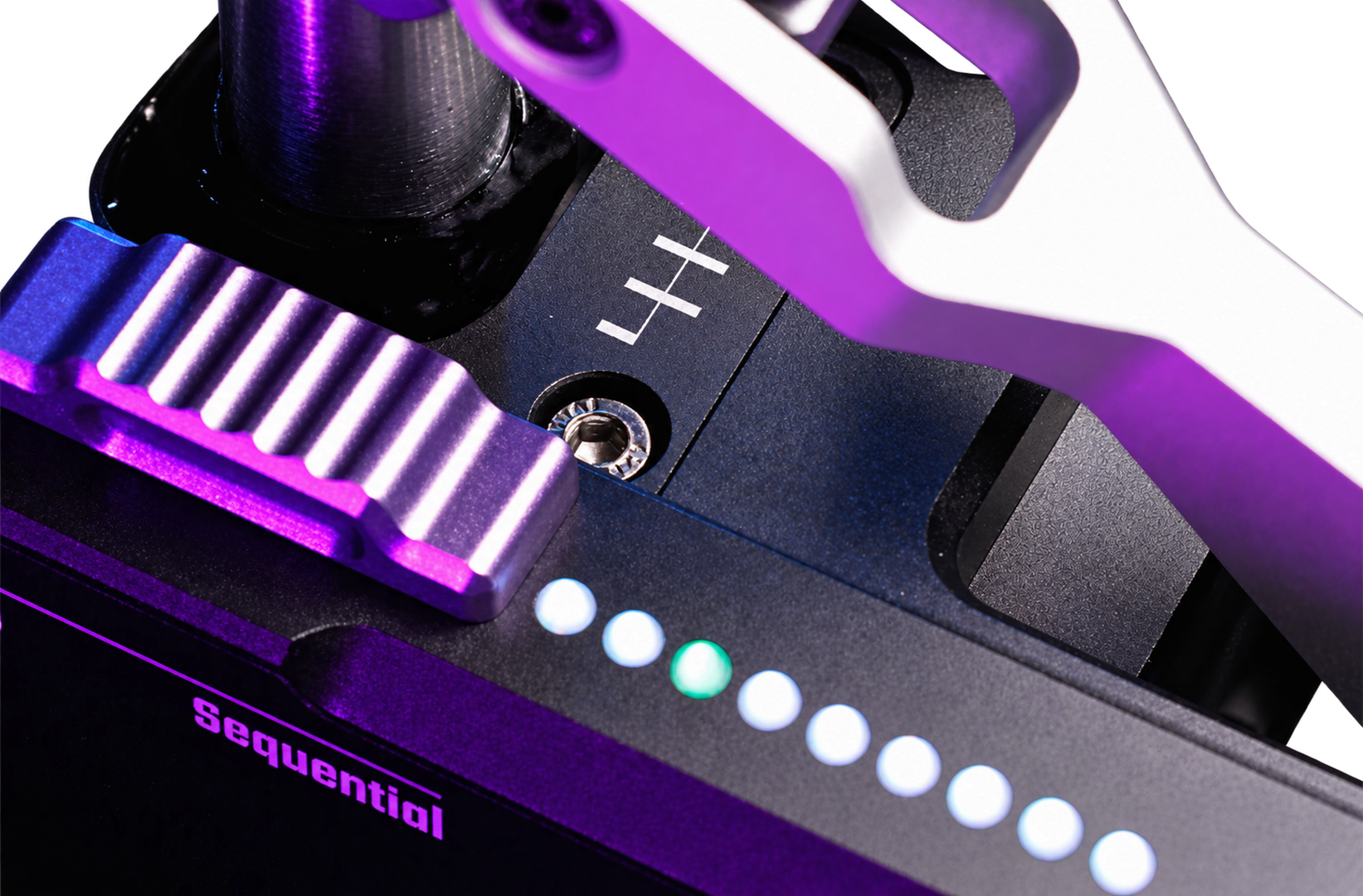

Nine RGB LEDs are built into the housing. With CONSPIT Link 2.0, they can display the selected gear, an RPM shift point or the active preset. SimHub mode allows the lighting to respond to supported telemetry data and vehicle states.

Compact mounting and two lever heights

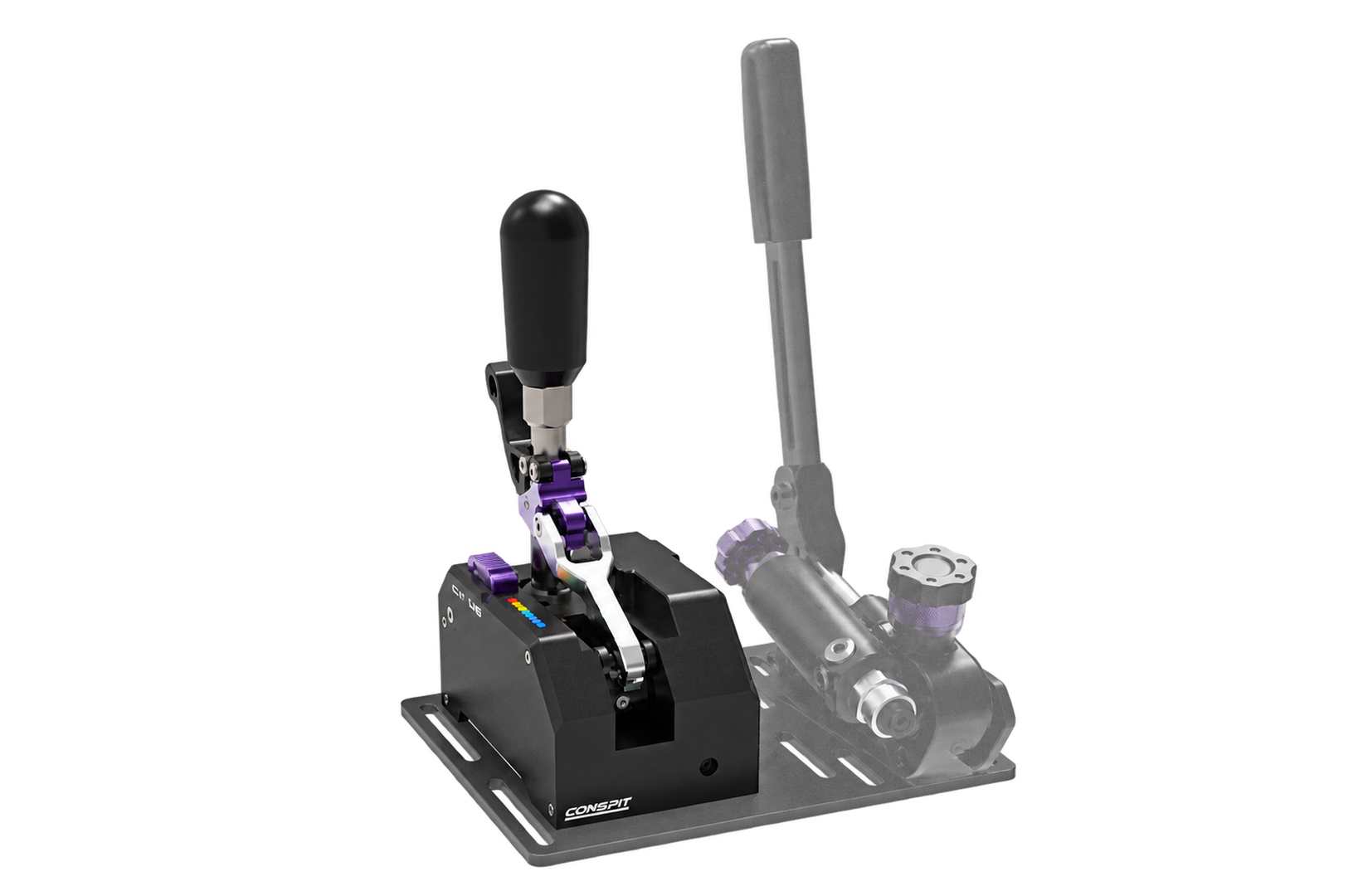

The base occupies 95 x 165 mm, and the shifter stands 255 mm high with the standard lever. An included 50 mm extension link increases the overall height to 305 mm. This can position the knob closer to the wheel or provide a longer lever for sequential driving. The knob uses an M10 x 1.5 external thread with a 15 mm threaded length.

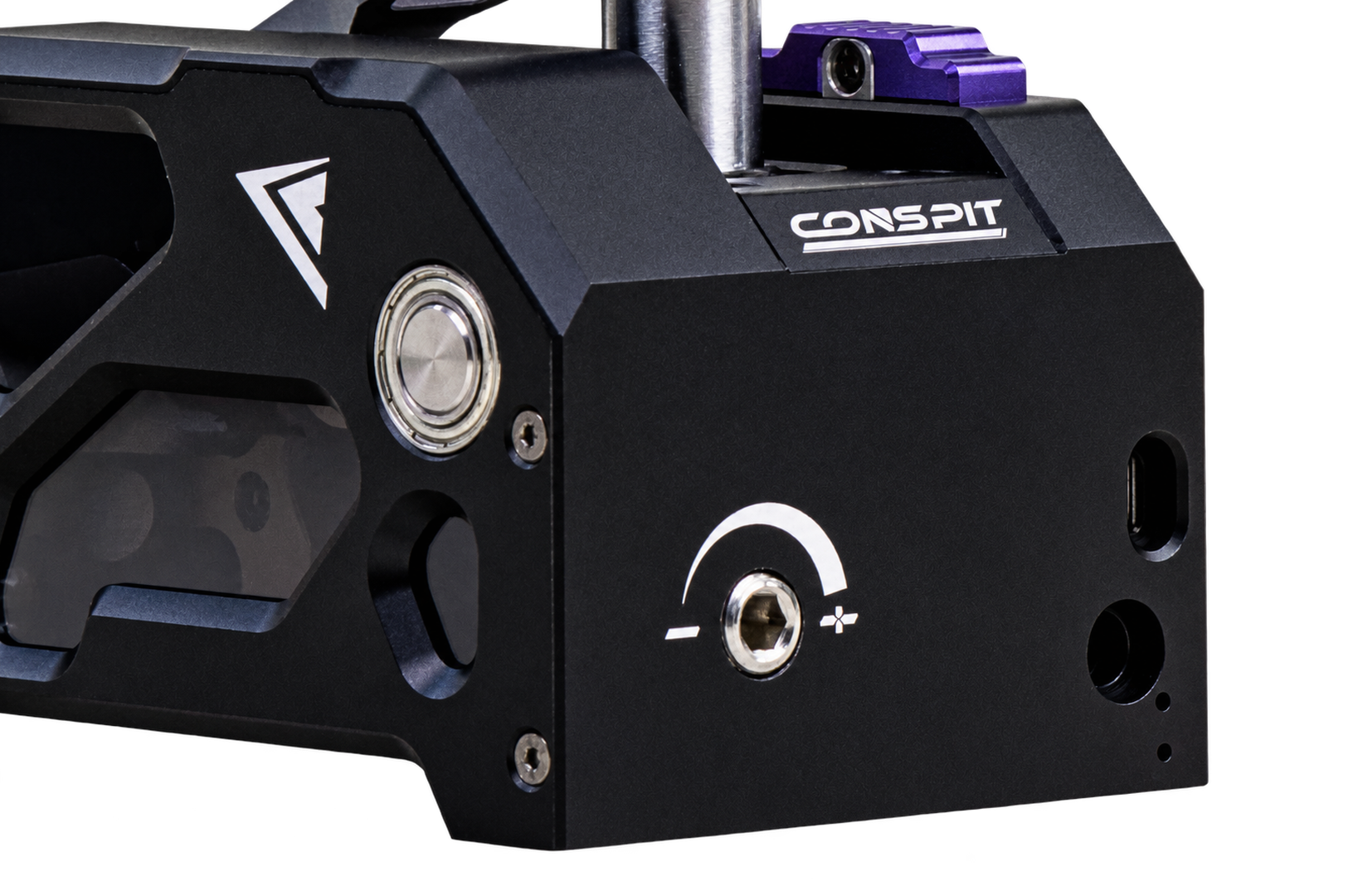

A one-piece aluminium load-bearing chassis combines the mounting structure, mechanism support and reinforcement. Key components use heat-treated 45# steel, and the mechanism has completed a one-million-cycle validation. Installation uses bottom M5 threads or Ø6.5 mm holes in the adapter bars. A clear side window is fitted as standard, with a dark-tinted replacement included.

Fixing method: Bottom
Shifter/Handbrake mount: Excluded

Parameter	Details
Manufacturer	CONSPIT
Model	CHS Shifter / CHS Dual-Mode Shifter
Type	Dual-mode sim racing shifter
H-pattern mode	7 forward gears + reverse
Sequential mode	+/- operation with SnapShift mechanism
Shift-force adjustment	3-10 kg, adjusted with a hex key
H-pattern travel	38 mm / 12°
Engagement start point	12 mm / 4.5° in both modes
Sequential travel	Asymmetric short throw; forward downshift travel is shorter than rearward upshift travel
Sensors	Magnetic Hall sensors
Indicators	9 RGB LEDs
Dimensions	95 x 165 x 255 mm with standard lever
Extended height	305 mm with the included 50 mm extension link
Net weight	2.0 kg
Materials	Aluminium alloy; heat-treated 45# steel for key components
Side window	Clear window factory-fitted; dark-tinted window included
Shift-knob thread	M10 x 1.5 x 15 mm external thread
Mounting	Bottom M5 threads; Ø6.5 mm holes in adapter bars
Platform	PC
Connection	Direct USB
Software	CONSPIT Link 2.0; SimHub for RGB control
Durability validation	1,000,000 cycles: 500,000 lateral movements and 500,000 fore-aft movements

Platform, system or component	Compatibility and conditions
PC	The platform specified by the manufacturer; direct USB connection.
CONSPIT Link 2.0	Supports device configuration and the nine RGB LEDs.
SimHub	Supported for RGB configuration and compatible telemetry data.
Games supporting H-pattern and sequential shifters	The relevant inputs must be assigned in the game's control settings. CONSPIT does not publish a closed title list.
Flat shifter mounting plates	Installation through the bottom M5 threads is possible after checking the hole pattern.
Aluminium-profile cockpits	Installation through the adapter bars and Ø6.5 mm holes is possible; mounting position and hardware must match the profile.
Replacement knobs	A matching M10 x 1.5 thread and suitable engagement length are required.
Consoles	No confirmed support. The manufacturer specifies PC only.

Item	Details
Conspit CHS Shifter	Complete mechanism with shift knob and factory-fitted clear side window
Extension link	50 mm long; increases overall height to 305 mm
Dark-tinted side window	Alternative to the clear panel
USB cable	For direct connection between the shifter and PC
Adapter bars	Two flat mounting parts with Ø6.5 mm holes
Mounting hardware and hex keys	Parts required for basic installation and mechanism adjustment

1. Which modes does the Conspit CHS Shifter support?

It operates as a seven-speed H-pattern shifter with reverse and as a two-way sequential +/- shifter.

2. Do the controls need to be remapped after changing modes?

No, provided both sets of inputs have already been assigned in the game. The dedicated selector can then change the operating mode without remapping.

3. What is the shift-force adjustment range?

Shift force can be adjusted with a hex key from 3 to 10 kg.

4. How are reverse and seventh gear protected?

A separate trigger below the knob unlocks access to both outer positions.

5. How does sequential travel work?

The SnapShift mechanism uses an asymmetric short throw. Forward downshift travel is slightly shorter than rearward upshift travel.

6. Which sensors are fitted?

The shifter uses contactless magnetic Hall sensors.

7. What can the nine RGB LEDs display?

CONSPIT Link 2.0 can use them for gear, shift-RPM and preset indication. SimHub supports compatible telemetry-driven effects.

8. How can the Conspit CHS Shifter be mounted?

The housing has bottom M5 threads, while the supplied adapter bars use Ø6.5 mm holes. Compare the pattern with the cockpit plate or profile before installation.
