1,553.66zł
Conspit 300 GT is a 300 mm Formula‑style sim racing wheel weighing just 1 150 g. It features a 2.99″ LCD, over 110 customizable controls, 56 RGB lights, magnetic & dual‑clutch paddles, plus a Quick‑Con USB connection.
The CONSPIT CDP Quick Release is a Formula-inspired, CNC-machined connector for sim racing. Compatible with ARES wheelbases, it delivers unmatched signal reliability, torque precision, and zero mechanical play – designed for professional-level performance.
273.17zł
You might also like
Race‑Grade 3D Carbon Reinvented

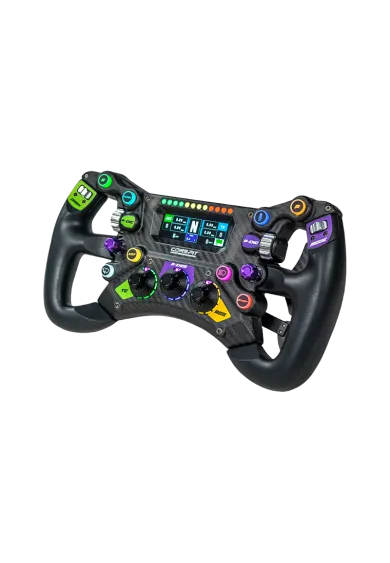

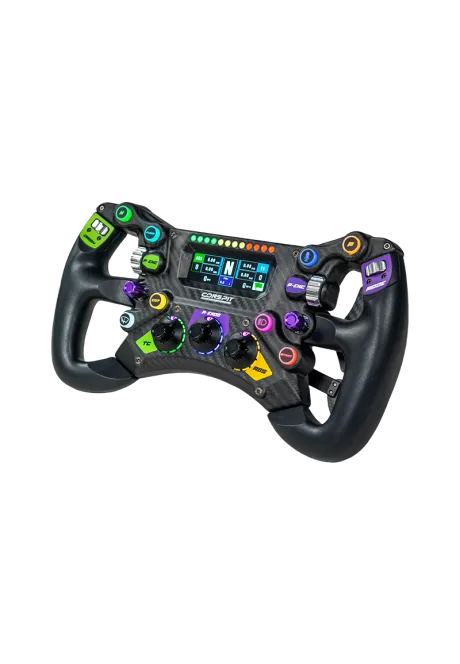

The Conspit 300 GT merges CONSPIT’s proprietary engineering with a lightweight T‑300 carbon front and precision-milled aluminum rear. This Formula-style wheel brings an elegant, ergonomic interface to serious sim racers. It boasts an interactive display-to-control system that sets a new standard in performance aesthetics.
The wheel’s hybrid frame includes a 3D-molded carbon fiber front panel and a CNC-machined high-strength aluminum body. Weighing approximately 1,150 g, this architecture minimizes rotational inertia while maximizing torsional rigidity to deliver clean and precise force feedback.
Made from 12 layers of T‑300 prepreg, the front cover weighs just 43 g yet delivers strength up to 16 times greater than standard composite panels. It is formed using the same compression molding methods trusted in Le Mans-level applications.
A one-piece aluminum shell is CNC-routed to exacting tolerance and weighs only 222 g. The result is a structurally rigid, durable rear housing that balances the ultra-light front section for overall stability.
With support for over 110 programmable controls—including buttons, encoders, rotary knobs, and joysticks—the 300 GT delivers flexibility needed for complex race setups, letting you customize in-car functionality without distraction.
Each of the eight ErgoTouch RGB buttons requires about 500 g of actuation force and features silicone cushioning plus crisp tactile rebound. Lighting and behavior can be customized using CONSPIT Link 2.0 or SimHub.
Two ThumbClick rotary knobs are optimized for ergonomic thumb usage, with fine-tuned resistance, dial size, and click feel designed to minimize accidental inputs while increasing command control.
Three central dual-mode knobs switch between incremental (+/–) and absolute mapping via software settings. Additionally, twisting the middle knob can remap the two vertical encoders to specific functions like TC1/TC2 or Bias/ABS.
The two vertical encoders are remappable depending on the central knob setting, enabling drivers to assign different functions dynamically—ideal for race scenarios.
Rotating the central knob reassigns encoder functions in real time—for example, mapping encoder 2 to “TC1” and encoder 3 to “TC2” in one position, or to “Bias” and “ABS” in another.

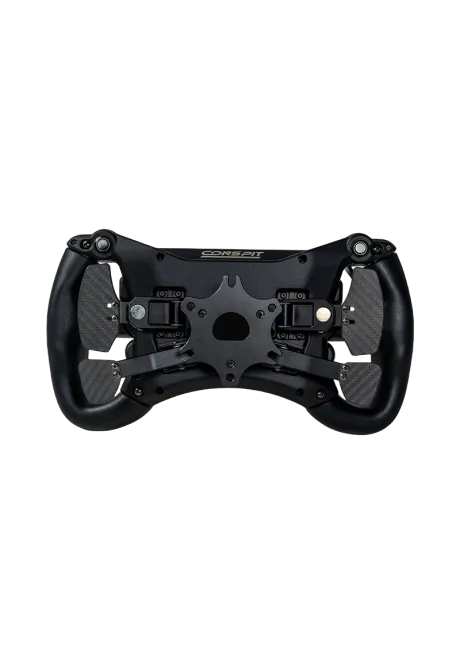

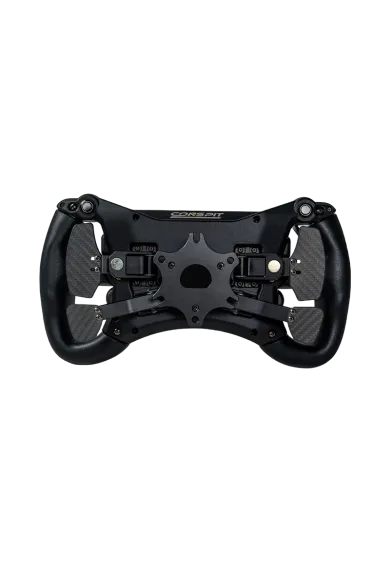

Two shortcut controls on the back allow quick adjustment of key settings like ERS deployment or diff preload while staying focused in the corner and maintaining grip on the wheel.

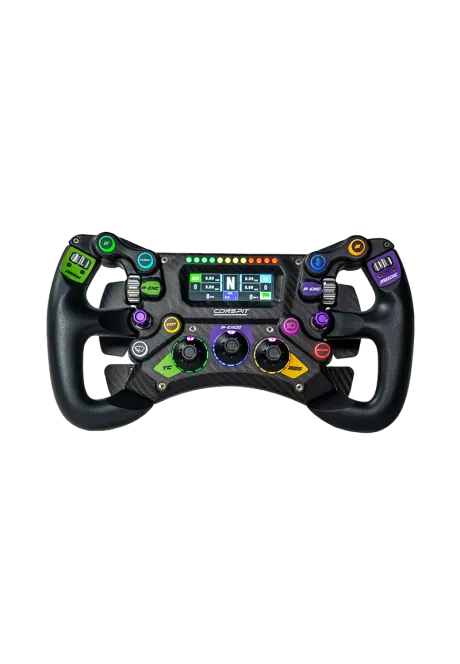

The full-color 2.99-inch LCD features an 800×268 resolution dashboard with five default telemetry pages. It seamlessly integrates with the encoder remapping function, showing live control assignments when switched.
The integrated 2.99″ display provides instantaneous visualization of current encoder mappings (e.g. TC1/TC2 → Bias/ABS) whenever the mode is changed, giving drivers clear, live feedback.
With eight button LEDs, twelve RPM LEDs, and thirty-six encoder ring LEDs, the wheel delivers extensive visual feedback. All LEDs are customizable via Link 2.0 or SimHub, and can display real-time telemetry data.
Hall-effect shifters feature adjustable resistance settings—550 gf, 660 gf, or 900 gf—and endure over 500,000 shifts with less than 4% pressure deviation. They deliver quiet, sharp feedback in real race conditions.
The wheel includes two Hall-sensor engagement paddles with configurable bite point and driving axis modes, adjustable through CONSPIT Link 2.0. This enables smooth, reliable starts in every situation.
Soft-touch grips made from high-grade TPU and dual-injection molding offer exceptional durability—up to three times more than standard thermoplastic grips—and are resistant to dirt and wear for long endurance sessions.

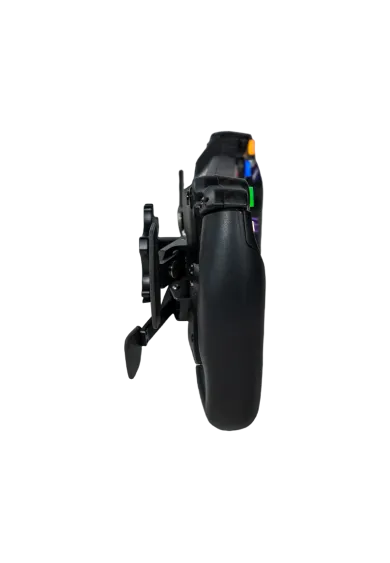

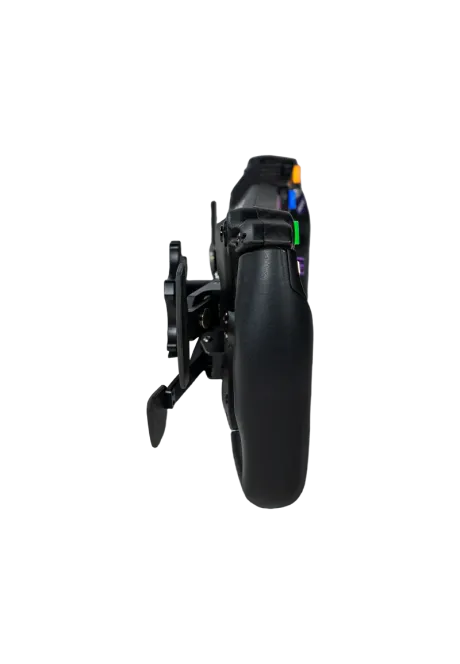

Ergonomically shaped for both full palm and 2‑ or 3‑finger grips, the wheel features a curved lower section that enhances force transfer and reduces hand strain during extended use.
The 300 GT comes with a durable Quick‑Con USB adapter and spiral cable, compatible with standard 50/70 mm Quick Release hubs. This ensures plug-and-play installation and reliable connection for any wheel base.
For installation on ARES or ARES Platinum bases, the optional CDP Quick Release offers a CNC-machined 7075 aluminum clamp with ball-lock mechanism. It delivers zero-play torque transfer and stable EMI-resistant power/data connection under high load.
The Conspit 300 GT fuses advanced CONSPIT engineering with a lightweight T‑300 carbon fiber front and a precision-machined aluminum shell. It offers a Formula-style ergonomic layout, interactive display control, and a sleek aesthetic suited for high-level sim racing.
Combining a 3D-molded T‑300 carbon front panel and high-strength aluminum body, the wheel weighs just around 1,150 g. This structure reduces rotational inertia while delivering strong torsional stability and clear force feedback.
Built from 12 layers of T‑300 prepreg carbon fiber weighing only 43 g, this front housing delivers high tensile strength—up to 16× that of standard composite molding techniques—using Le Mans-level compression molding technology.
The rear housing is a one-piece, CNC-machined aluminum alloy shell weighing approximately 222 g. It provides structural rigidity and balance without excess mass.
With support for over 110 programmable inputs—buttons, encoders, rotary switches, and joysticks—the 300 GT is built for maximum configuration and usability during complex race setups.
Each ErgoTouch RGB button is designed with a 500 g actuation, silicone damping, and solid rebound. Lighting and response behavior can be customized via SimHub or CONSPIT Link 2.0.
The ergonomic ThumbClick dials are finely tuned for thumb operation, balancing diameter, resistance, and click feel to reduce unintended activations and enhance control.
Three central knobs support a 12-position switch, allowing seamless toggling between incremental (+/−) and absolute modes via CONSPIT Link 2.0.
The two vertical encoders are remappable depending on the central knob setting, enabling drivers to assign different functions dynamically—ideal for race scenarios.
Rotating the central knob reassigns encoder functions in real time—for example, mapping encoder 2 to “TC1” and encoder 3 to “TC2” in one position, or to “Bias” and “ABS” in another.
Located on the back, two shortcut buttons let users adjust race parameters like ERS boost or differential preload without removing hands from the wheel.
This proprietary display offers a sharp 800×268 resolution and multiple dashboard layouts. It works in real time with the encoder remap function for integrated use.
The integrated 2.99″ display provides instantaneous visualization of current encoder mappings (e.g. TC1/TC2 → Bias/ABS) whenever the mode is changed, giving drivers clear, live feedback
Eight button LEDs, twelve RPM indicators, and thirty-six encoder ring lights are all customizable. You can match telemetry colors and create immersive visual feedback using SimHub or Link 2.0.
These Hall-effect paddles offer adjustable pressure settings (550, 660, 900 gf) tested over 500 k shifts with under 4% pressure deviation, ensuring stable and durable performance.
Configurable bite point and axle modes through CONSPIT Link 2.0, these Hall-sensor clutch paddles deliver steady, smooth engagement during every start.
Dual-injection TPU grips—three times more durable than typical TPE—are resistant to wear, dirt, and peeling, supporting long endurance sessions.
Optimized for both full-hand and fingertip grips, the curved lower grip reduces strain and enhances force transfer during extended use.
Equipped with a 70 mm PCD Quick‑Con adapter and military-grade spring lug, it ensures plug-and-play USB compatibility with most wheelbases.
Compatible with CONSPIT ARES and ARES Platinum base units, the optional Quick Release uses CNC-machined 7075 aluminum and a ball-lock }mechanism that ensures zero-play, long-term reliability, and EMI-resistant digital transmission.
| Product name: | 300 GT |
|---|---|
| Main Material: | Carbon Fiber, Aluminum Alloy |
| Product Dimensions: | 300x165x90 mm |
| Net Weight: | 1150 g (Excluding QR/adapter) |
| Dashboard: | 2.99" 800*268 color display |
| Indicators: | 48 x RGB LEDs (12 Rev Lights, 36 Knob Lights) |
| RGB Buttons: | 8 x |
| Encoder Wheels: | 4 x |
| Rotary Switches: | 3 x 12-position |
| 7-way Joysticks: | 2 x |
| Clutch Paddles: | 2 x modular Hall sensored clutch paddles |
| Shift Paddles: | Silent magnetic Hall sensored shift paddles |
| Platform: | Windows PC |
| Connection: | USB direct, CONSPIT CAN |
| Software: | SimHub (RGB) + Conspit Link 2.0 |
Everything you might need for the 300 GT is right here. Click the title and the PDF opens in a new window — no digging through forums, no hassle.
