438.29zł

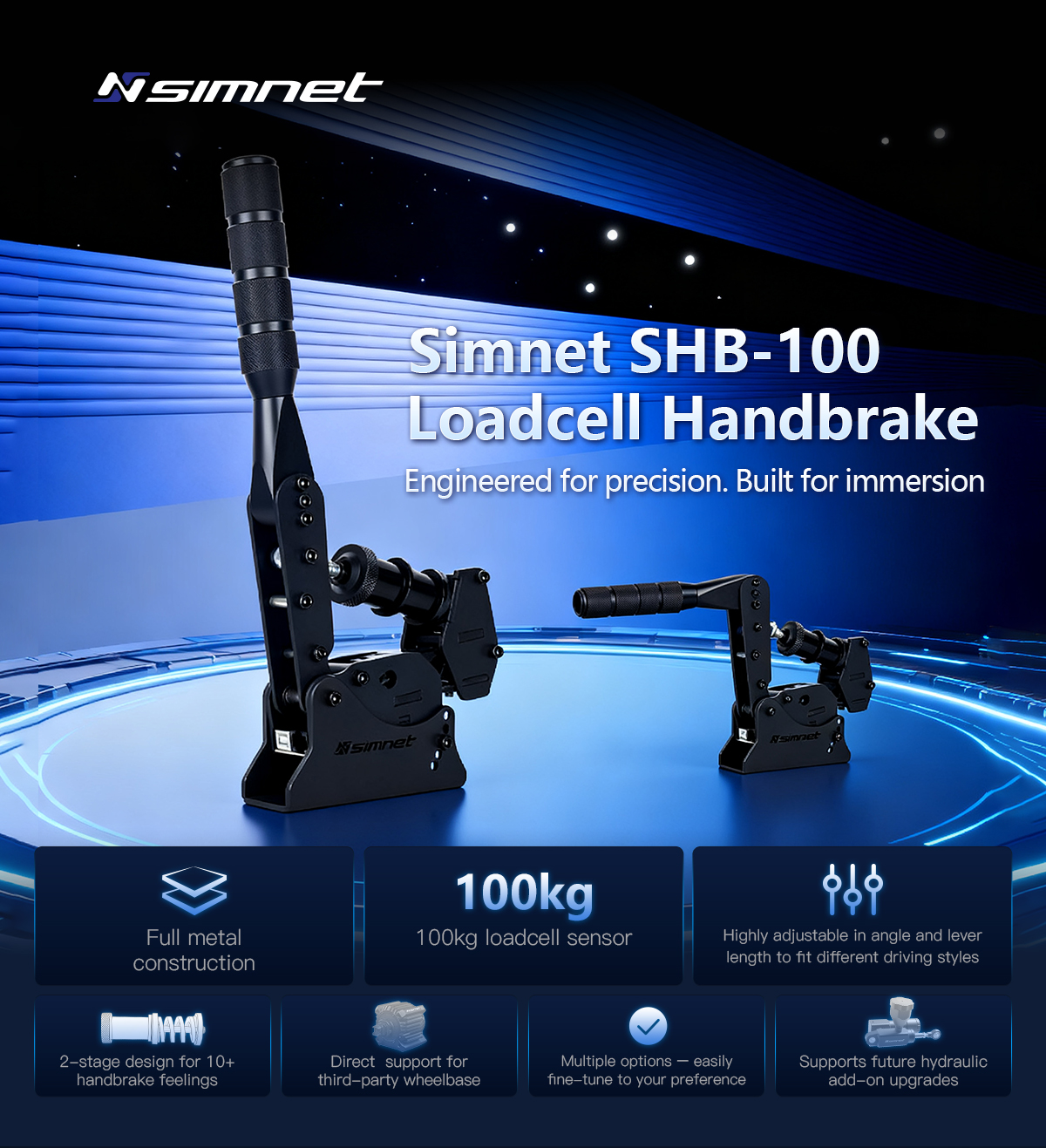

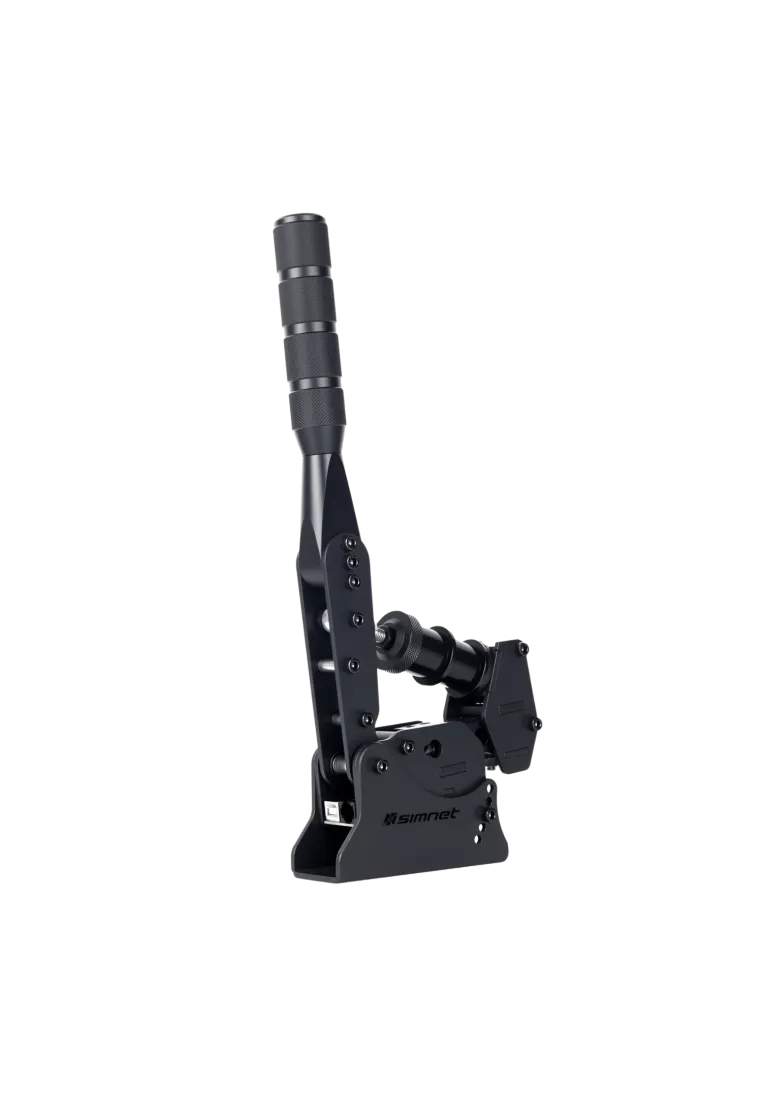

486.99zł -10%The Simnet SHB-100 is a full-metal loadcell handbrake with a 100 kg sensor and an incredibly customizable feel. You get precision bearings, adjustable lever angle, optional extensions, and a two-stage resistance system with over 10 spring and elastomer combos. With Simnet software you can fine-tune dead zone, response curve, and sensitivity to match your exact driving style.
The Simnet Hydro-Link Pro Kit is an advanced modification designed to transform a standard Load Cell brake into a system with true hydraulic characteristics. By utilizing a proprietary pressure transfer design, this mod eliminates the "mushy" feel of traditional elastomers, replacing it with the firm, progressive resistance found in real race cars. It is an essential upgrade for sim racers seeking maximum consistency in every braking zone.
438.29zł

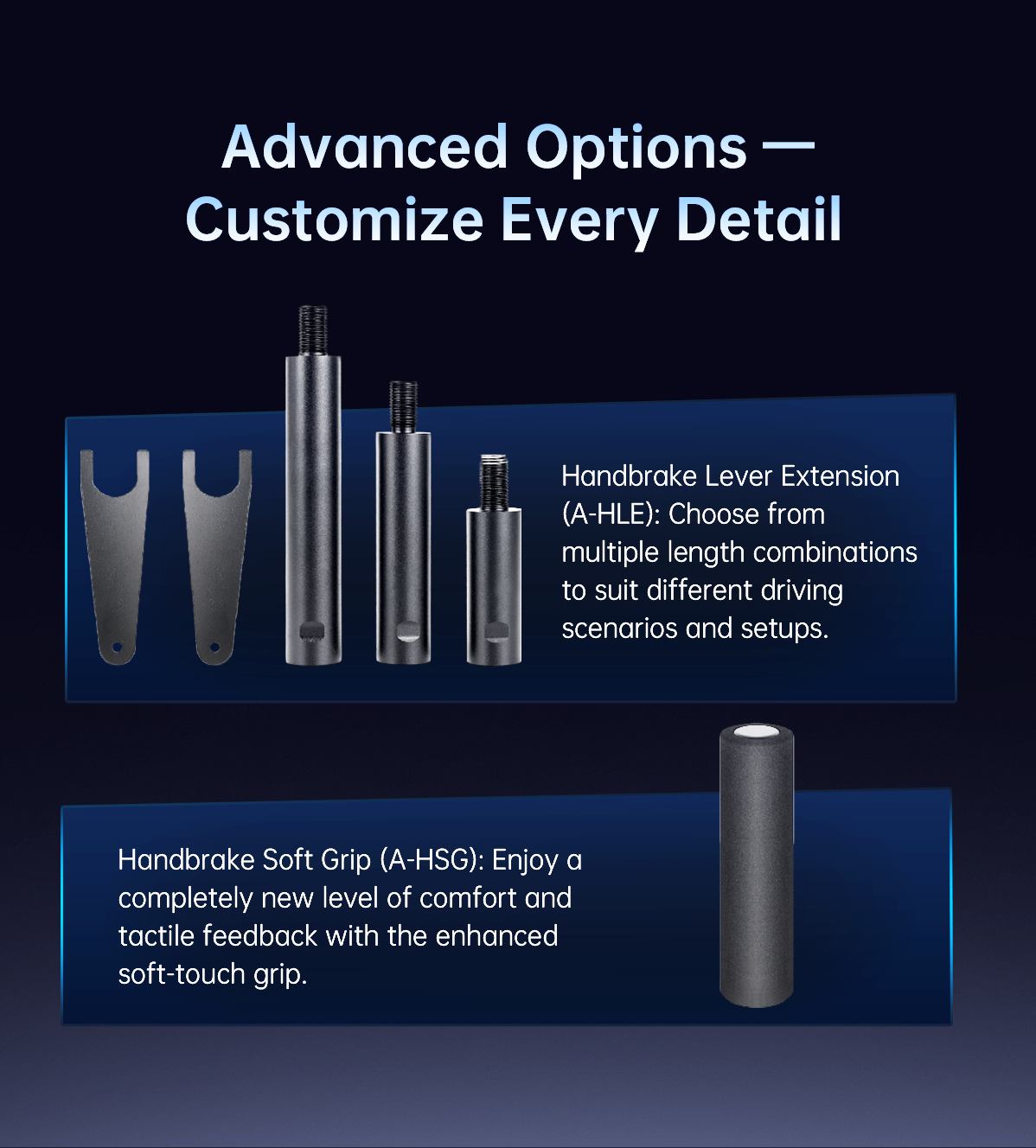

The Simnet A-HLE is basically a simple CNC-machined extension for the SHB-100 handbrake, but it makes way more difference than you'd think. You get a few different lengths, so you can set the lever exactly how you like it — higher, lower, softer, tighter, whatever fits your drift or rally vibe. It’s solid, clean, and installs in a minute. Nothing fancy, just a small upgrade that suddenly makes the whole handbrake feel better.
65.12zł
The Simnet A-HSG is a soft foam grip that instantly makes the SHB-100 feel nicer to hold. It gives you a more secure, comfortable grab, doesn’t tire your hand as fast, and you slip it on in a couple of seconds. A tiny upgrade that ends up making a surprisingly big difference, especially if you drift a lot or run long sessions.
35.85zł
You might also like
| Technical Specifications – Simnet SHB-100 Handbrake | |
|---|---|
| Model | SHB-100 (SN-SHB-100) |
| Brake sensor | Load cell 100 kg |

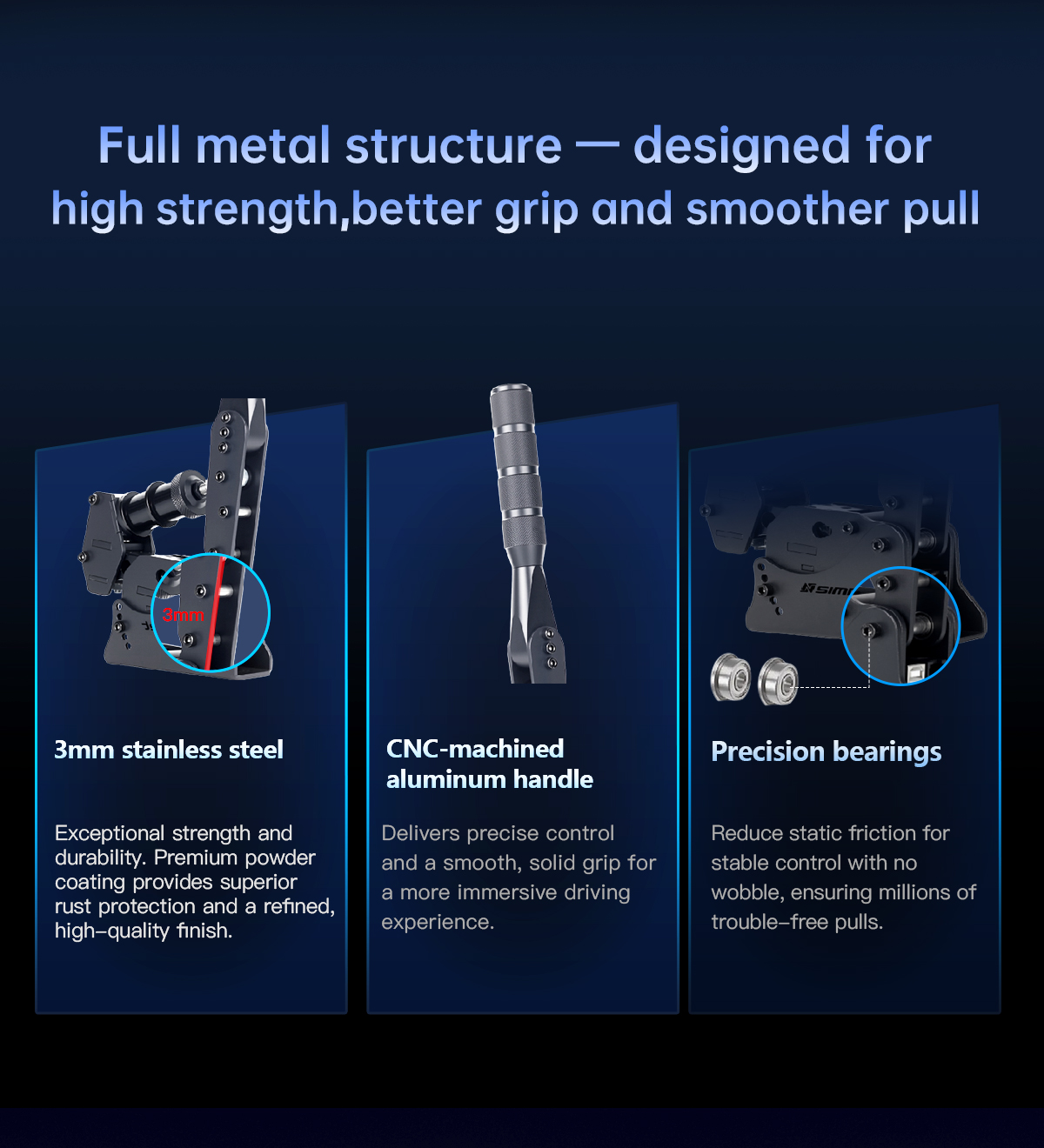

| Material | Fully metal | CNC aluminium grip + powder-coated steel body |
| Operating modes | 2 modes (analogue axis + digital button) |
| Elastomer and spring system | 2-stage | 2 blue elastomers + 2 springs + 3 spacers | 10+ feel combinations |
| Lever angle adjustment | Yes – wide-range angle and arm length adjustment |
| Grip | CNC aluminium | optional Extension Kit +20 cm (sold separately) |
| Hydraulic upgrade | Yes – future hydraulic installation ready |

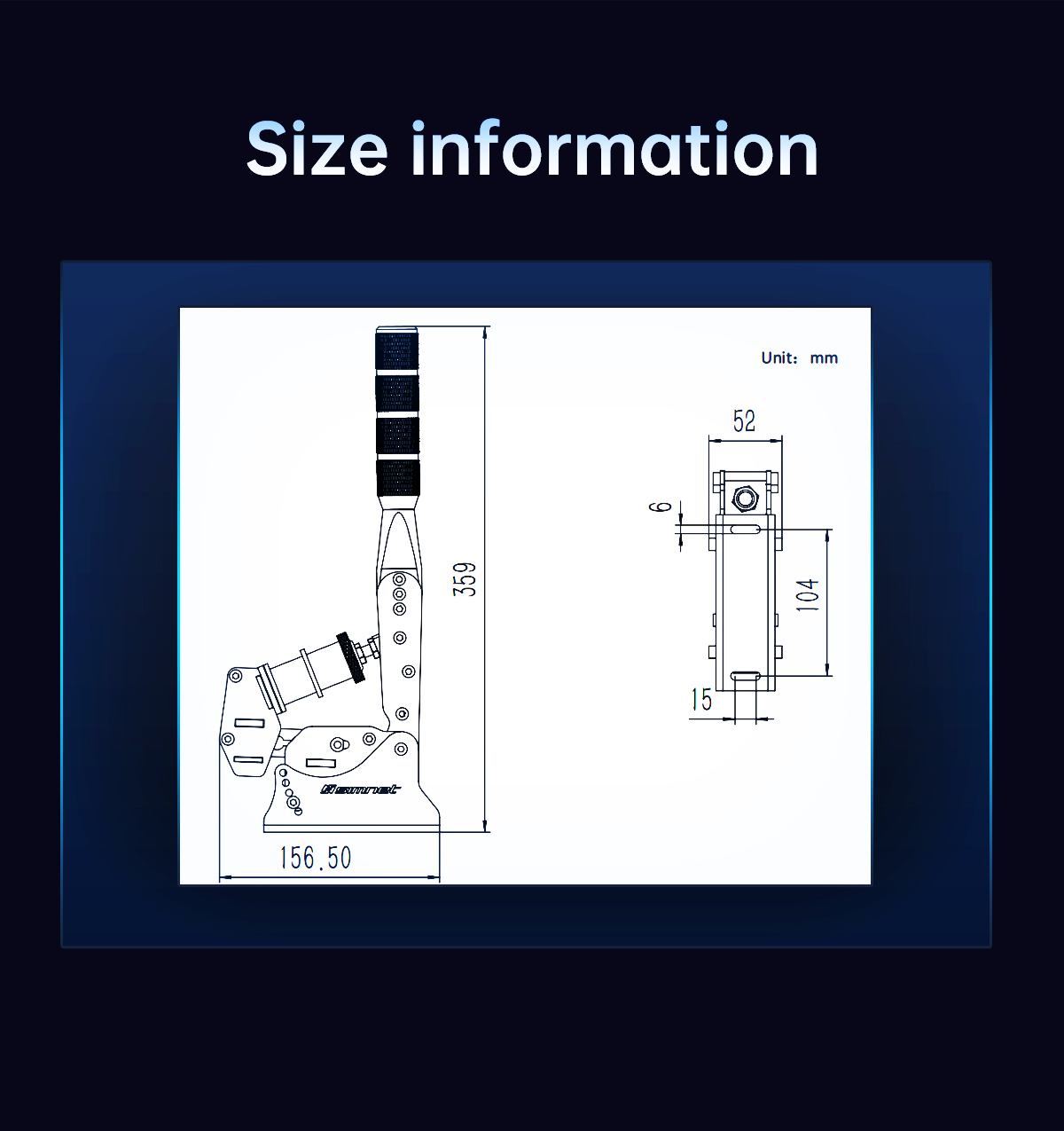

| Dimensions | 32 × 21 × 10 cm |
| Weight | approx. 2 kg |
| Connection | USB (plug & play) | direct Fanatec wheelbase support |
| Software | SimNet Connect Manager (calibration, dead zones, sensitivity, firmware) |

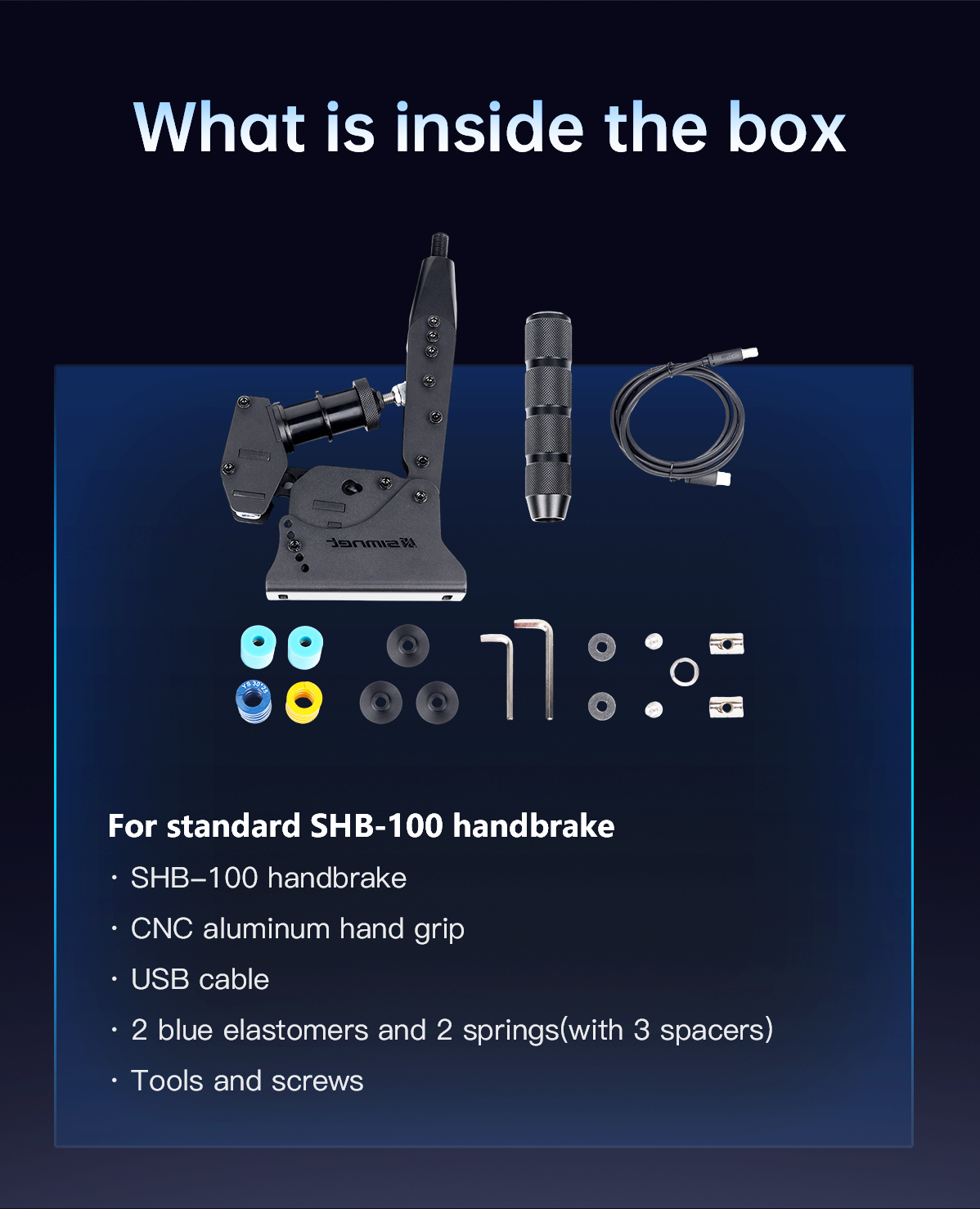

| In the box | SHB-100 handbrake | CNC aluminium grip | USB cable | 2 blue elastomers | 2 springs (3 spacers) | tools | bolts |
| Platform | PC (Windows) |
| Manufacturer | Simnet Racing |
A 100 kg load cell measures the actual force applied to the lever rather than its angular rotation as a potentiometer does. This means each pull is directly proportional to how hard you push — exactly like in a real racing car. The result is exceptional precision and smooth braking modulation that is immediately noticeable over cheaper plastic alternatives.

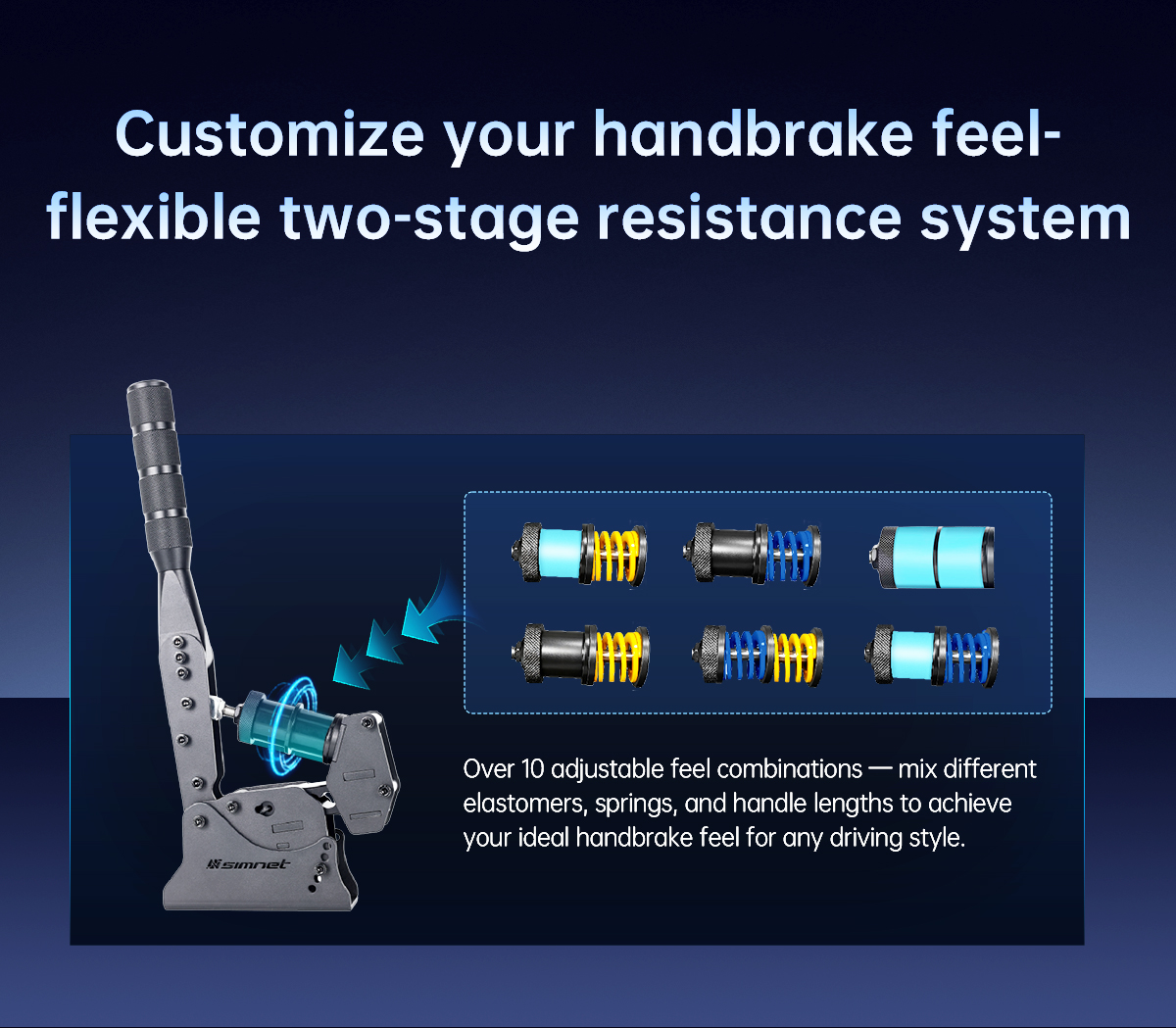

The SHB-100's two-stage system combines 2 blue elastomers with 2 springs and 3 spacers to create over 10 different lever feel configurations. The first stage simulates slack and light initial resistance; the second delivers the main braking resistance. Changing combinations takes seconds without tools, letting you dial in anything from a soft progressive rally feel to a firm, direct drift response.

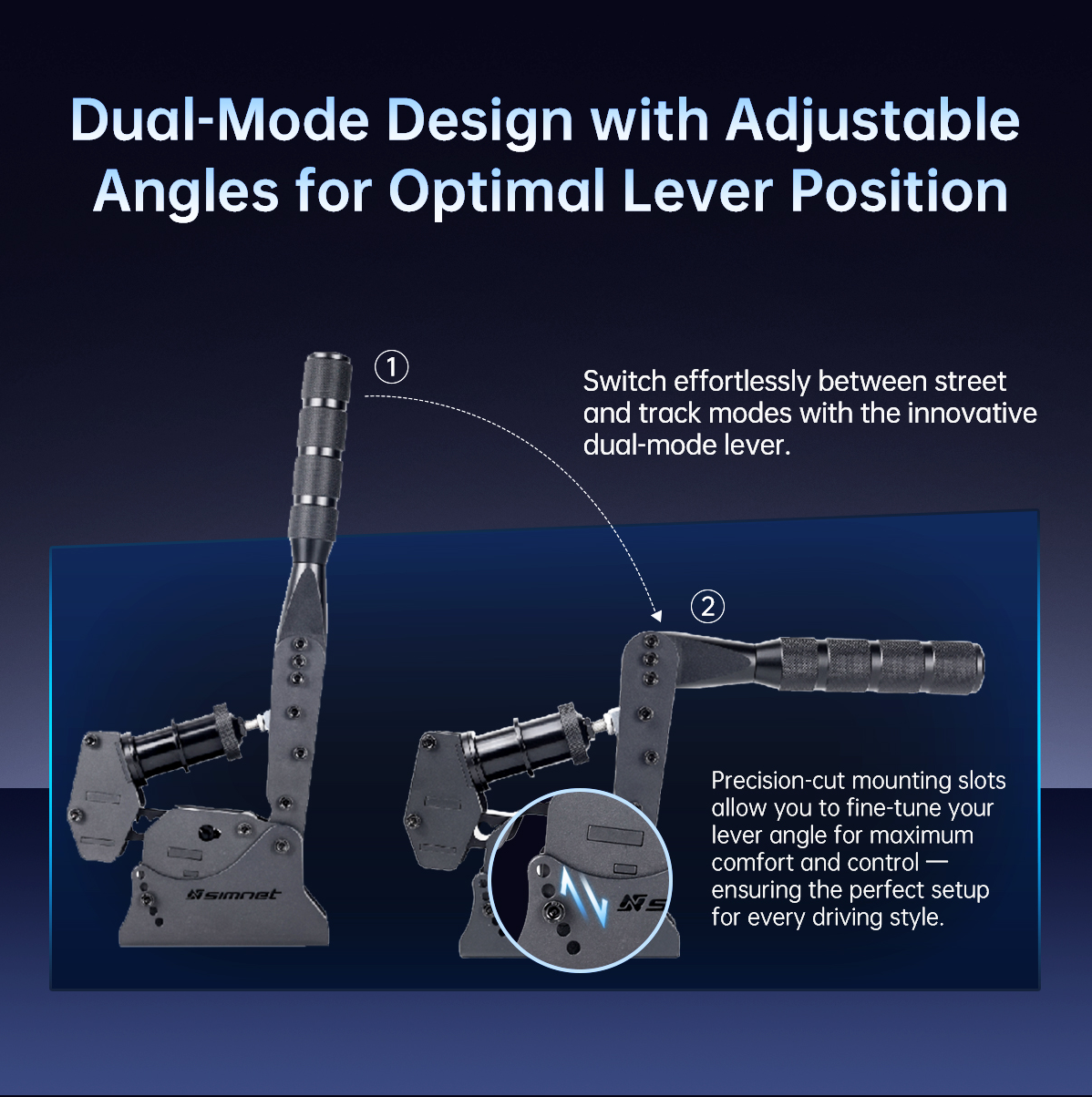

The SHB-100 offers wide-range lever angle and arm length adjustment, allowing precise ergonomic setup for any seating position and driving style — from rally to drift. The standard CNC aluminium grip provides secure hold, and the optional Extension Kit (sold separately) adds 20 cm of additional lever arm for users who prefer a longer throw.
The SHB-100 connects to PC via USB in plug & play mode — no driver installation needed. It also supports direct connection to Fanatec wheelbases via a dedicated port, simplifying cockpit cabling and integrating the handbrake fully into the Fanatec ecosystem. Users with other wheelbase brands connect via USB to PC.

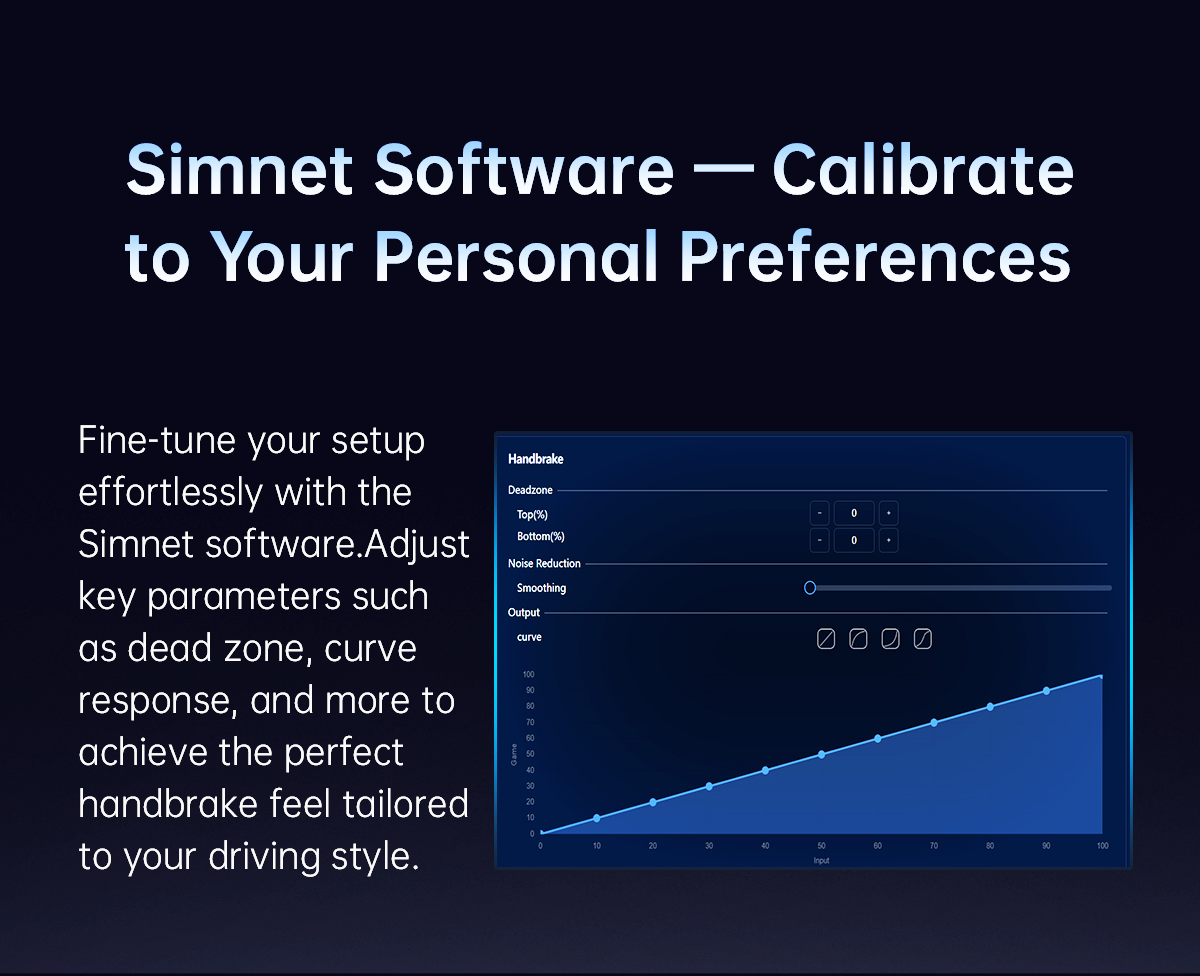

SimNet Connect Manager is the configuration software for the SHB-100. It allows you to calibrate the load cell sensor, set dead zones, adjust sensitivity and install firmware updates. All parameters are applied in real time, enabling precise handbrake tuning without interrupting a racing session.
The Simnet SHB-100 was designed with future expandability in mind — its housing and lever mechanism are prepared for an optional hydraulic system upgrade. This means buying the SHB-100 is not just a handbrake purchase for today, but an investment in a platform that can evolve to a higher realism level without replacing the entire unit.
The SHB-100 excels in rally (Dirt Rally, WRC, EA Sports WRC), drift and off-road driving — disciplines where precise handbrake force modulation directly impacts performance. Its all-metal build and 100 kg load cell deliver sensations simply unavailable from plastic potentiometer handbrakes, while the accessible price makes the SHB-100 one of the most cost-effective load cell handbrake choices on the market.
