The SimNet A-PSH is a shared mounting plate for the SSQ-1 shifter and SHB-100 handbrake. Each device can be positioned independently, horizontally, vertically and through the available range of angular adjustment. Flip the plate to change between LHD and RHD layouts. This product is the mount only; the shifter and handbrake are sold separately.
You might also like

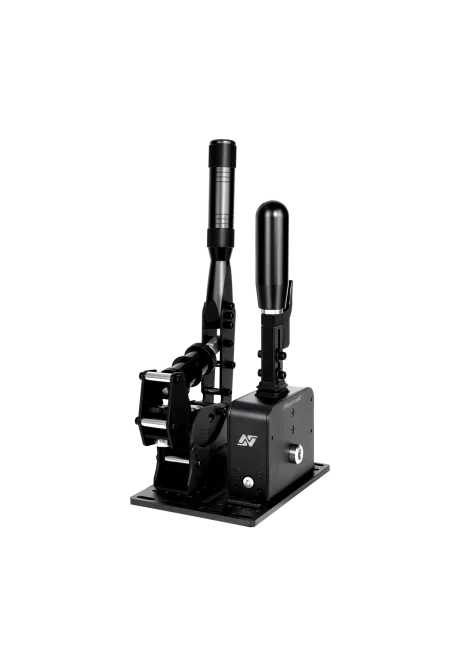

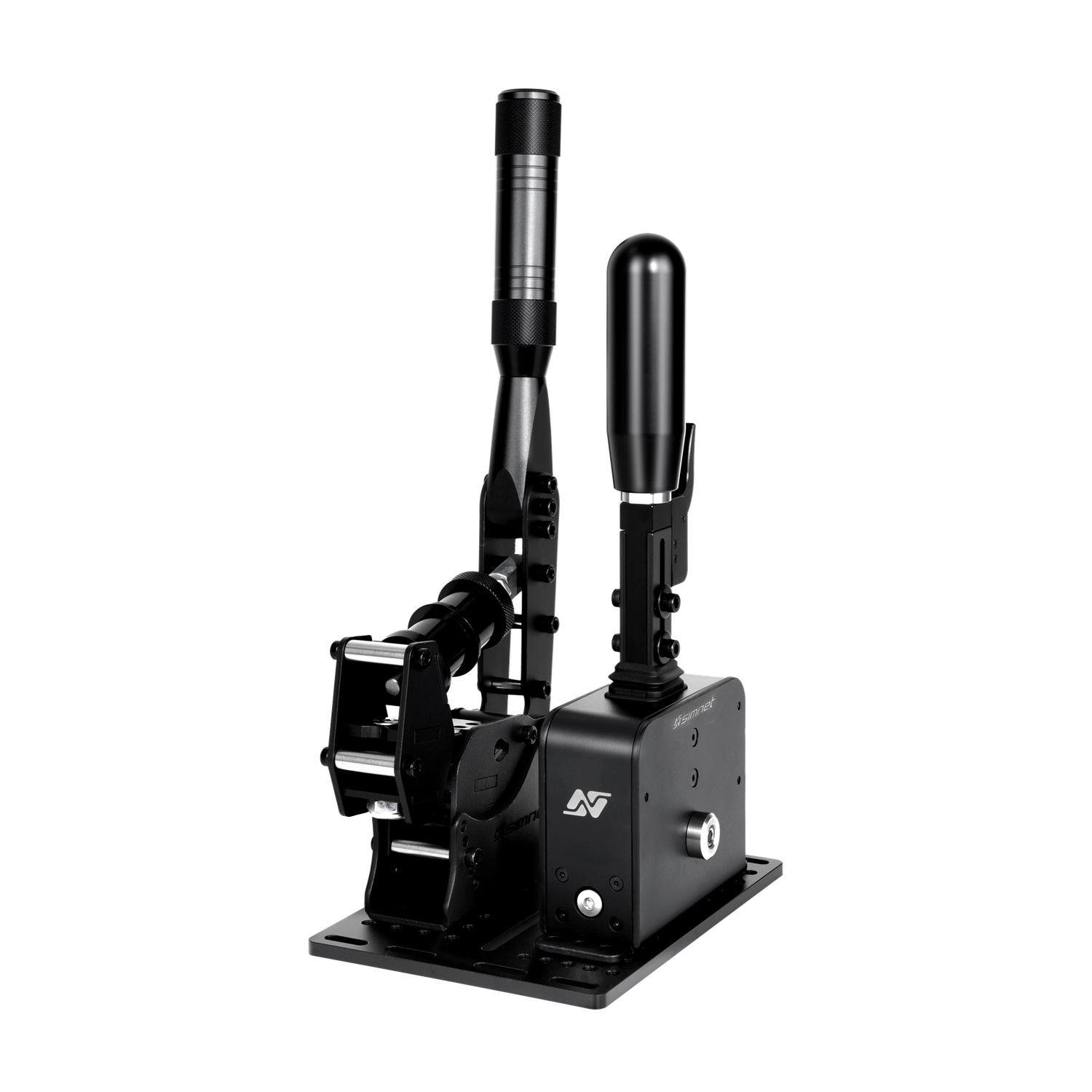

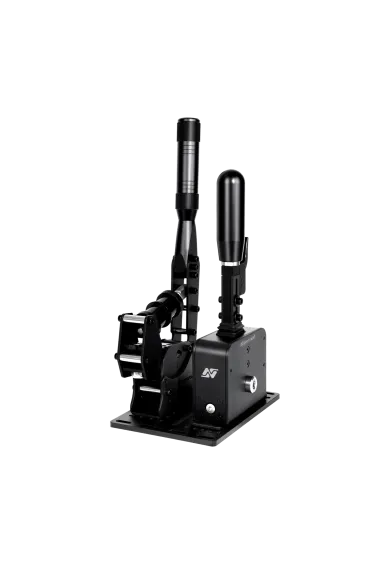

The A-PSH mounts the SIMNET SSQ-1 sequential shifter and SHB-100 handbrake together. Both controls can sit side by side instead of needing separate mounts. This arrangement is useful for rally and drift driving, where your hand frequently moves between the gear lever and handbrake. The shifter and handbrake are purchased separately.
Sharing a plate does not mean both levers need matching positions. Each device can be adjusted horizontally and vertically, with angular adjustment within the range provided by the mount. Place the shifter where you naturally reach for a gear change, then position the handbrake separately. SIMNET does not specify the angular range in degrees.

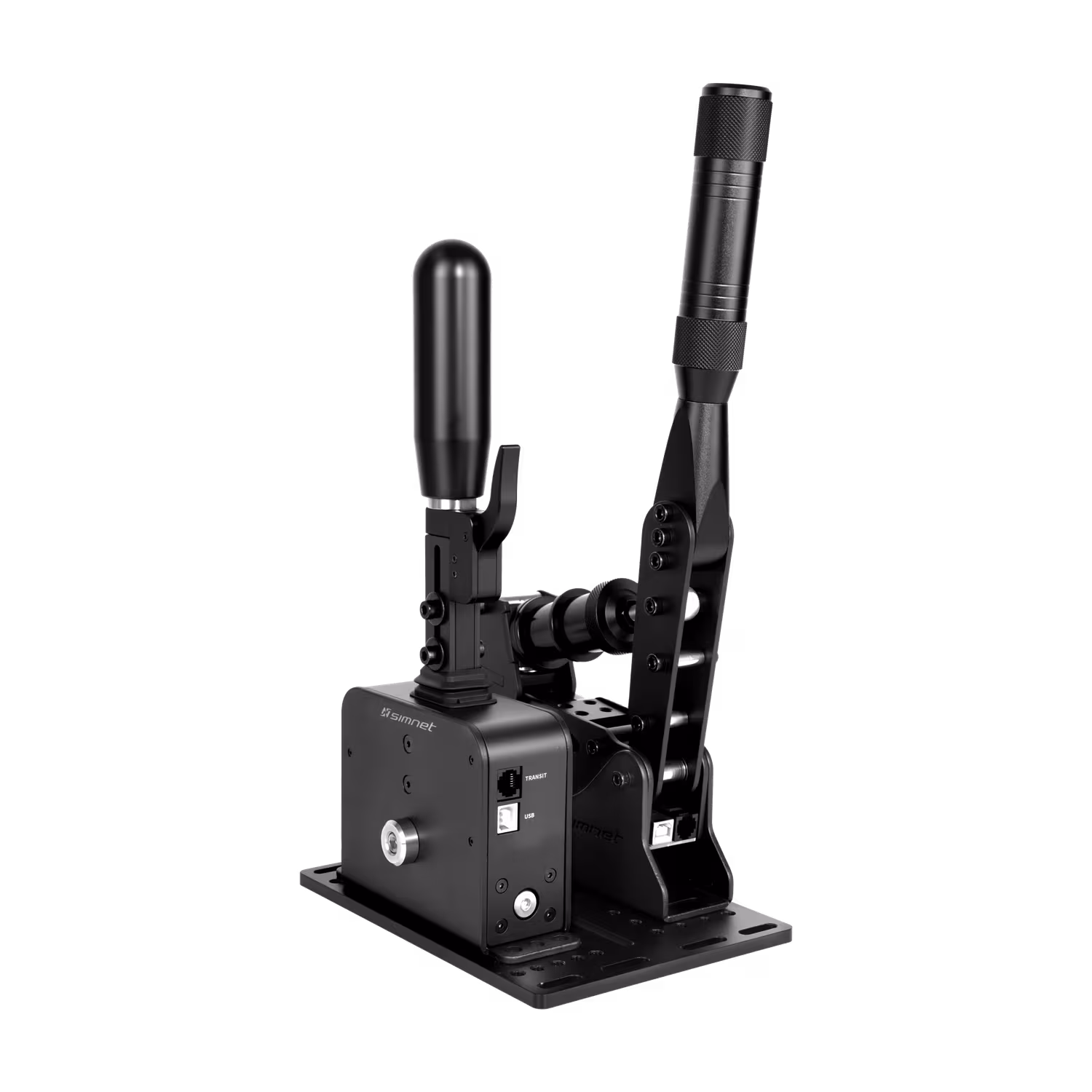

The A-PSH can be flipped to change the relative arrangement of the shifter and handbrake. SIMNET illustrates both left-hand-drive and right-hand-drive cockpit layouts. Before final tightening, check from the seat that both levers have clearance through their full movement and that you can reach each one without leaning your torso.

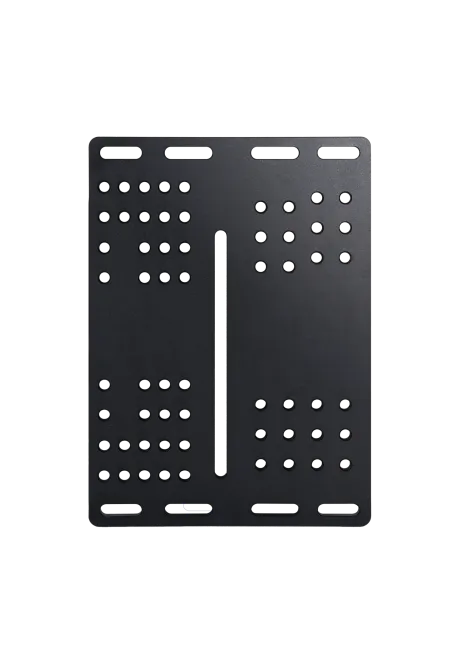

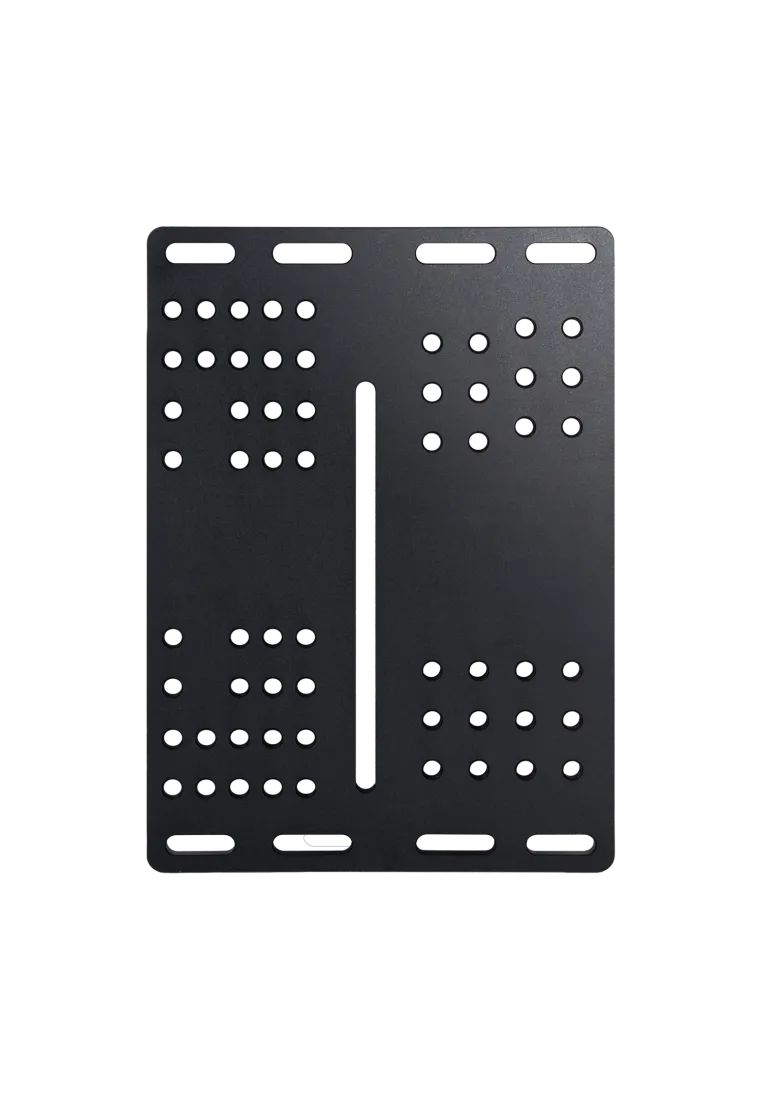

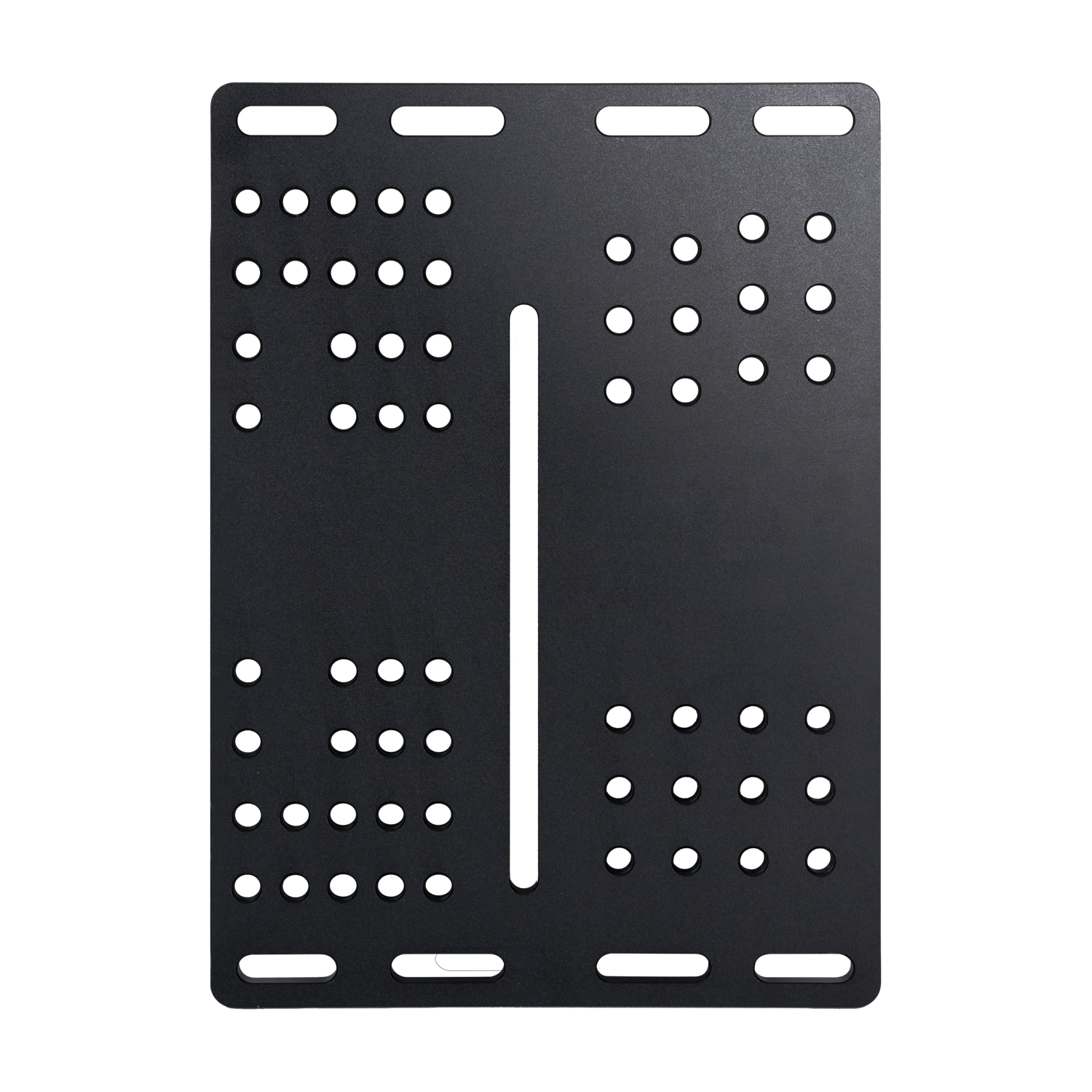

The plate has circular holes, elongated openings near the edges and a long central slot. Compare these with your cockpit's accessory mount before buying. Confirmed compatibility covers the SSQ-1 and SHB-100, not every cockpit or third-party shifter. The A-PSH joins the hardware mechanically and does not replace the cables needed to operate either device.
| Parameter | Details |
|---|---|
| Manufacturer | SIMNET |
| Model | A-PSH |
| Type | Shared shifter and handbrake mounting plate |
| Intended devices | SIMNET SSQ-1 and SIMNET SHB-100 |
| Position adjustment | Independent horizontal and vertical adjustment for each device |
| Angular adjustment | Yes, within a limited range; no value in degrees is specified |
| Orientation | Reversible plate for LHD and RHD layouts |
| Mounting openings | Circular holes and elongated slots, including a central slot |
| Colour | Black |
| Power and software | Not required by the plate; each mounted device retains its own connection method |
| Hardware or configuration | Compatibility and conditions |
|---|---|
| SIMNET SSQ-1 Sequential Shifter | Designed to mount this shifter alongside the SHB-100 |
| SIMNET SHB-100 Handbrake | Designed to mount this handbrake alongside the SSQ-1 |
| LHD and RHD cockpits | Both layouts are illustrated by SIMNET; flip the plate to change the orientation |
| Cockpits and accessory supports | Compare mounting points, clearance and installation method. SIMNET does not publish a list of compatible cockpit models |
| Third-party shifters and handbrakes | Compatibility has not been confirmed |
The SSQ-1 and SHB-100 are not included. SIMNET does not publish a separate list of bolts, nuts or tools for the A-PSH option, so their inclusion requires confirmation.
It is a shared plate for mounting the SIMNET SSQ-1 shifter and SHB-100 handbrake side by side.
No. The A-PSH is the mount only. The SSQ-1 and SHB-100 are sold separately or in different bundles.
No. The shifter and handbrake can be adjusted independently in the horizontal and vertical directions.
Yes. The mounting arrangement allows angular adjustment within a limited range. SIMNET does not specify the range in degrees.
Yes. SIMNET illustrates both configurations. Flip the plate to change the arrangement of the shifter relative to the handbrake.
Universal fit is not claimed. Check your cockpit's mounting points and the space available for both devices before buying.
SIMNET confirms the SSQ-1 and SHB-100 combination. Compatibility with devices from other manufacturers is not confirmed.
No. It is a mechanical mount, not a controller or signal adapter. Each device retains its own connection.
No. The A-PSH itself has no electronics and does not require software or power.
SIMNET does not publish a separate hardware list for the A-PSH. The SSQ-1 shifter's box contents should not be assumed to apply to the plate alone.
SIMNET products purchased from Simline.eu are covered by a 12-month warranty in accordance with SIMNET warranty terms. Simline.eu is an authorised partner of the brand.
Simline.eu acts as an intermediary in the warranty process and handles the case after receiving the documentation. Once the issue has been reviewed, we provide further instructions.
Email support@simline.eu or simnet@simline.euwith a description of the fault, photos or a video showing the issue and proof of purchase. We will provide further instructions after reviewing the claim.
