1,104.07zł

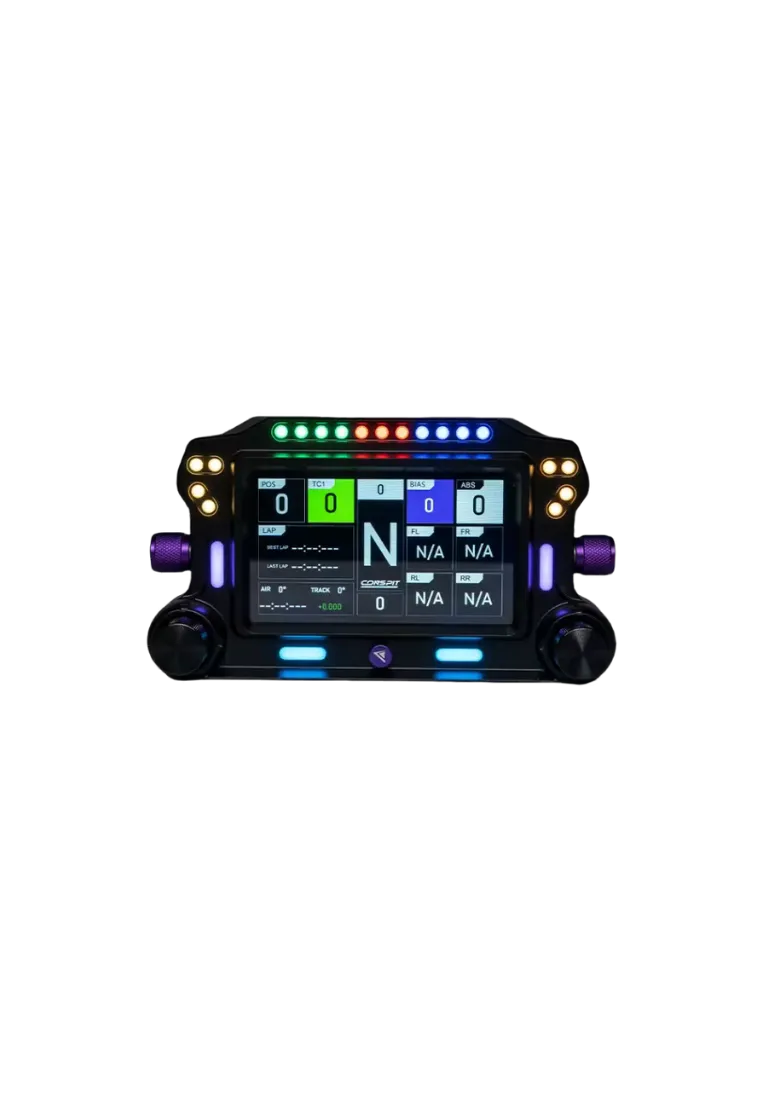

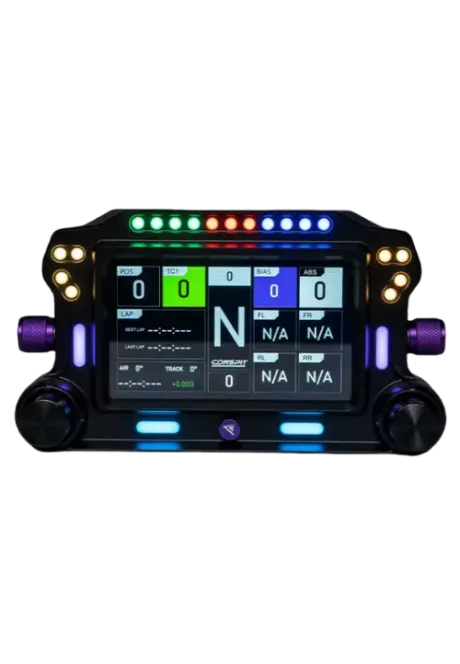

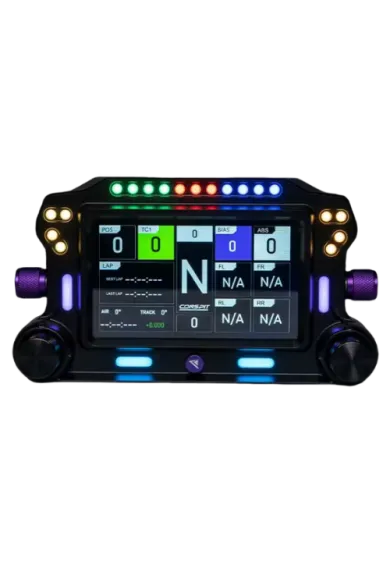

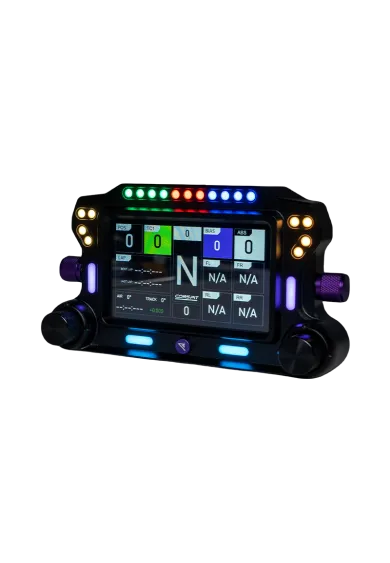

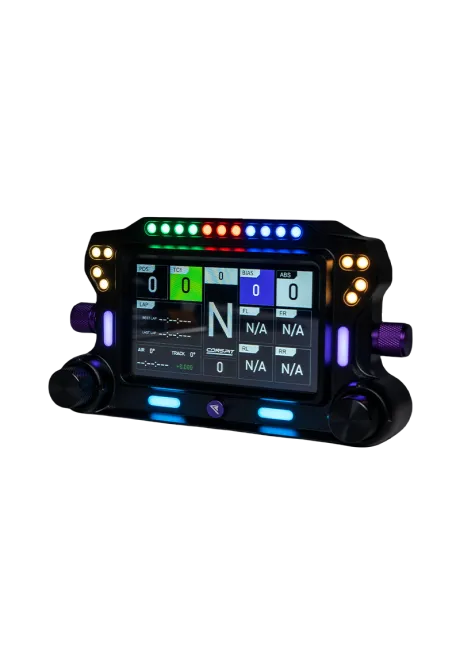

The Conspit CSD Dashboard is a high-end sim racing display featuring a 5″ IPS touchscreen, 31 RGB alert LEDs, physical encoder controls, and seamless integration with SimHub. Its CNC-machined aluminium housing and multi-mount compatibility make it ideal for both cockpits and wheelbases.
You might also like
Flashy Focus
The CSD offers a 5‑inch IPS touchscreen displaying telemetry from SimHub, complemented by four physical encoder knobs and a customizable RGB LED array for RPM, flags, and alerts—delivering immersive race-oriented feedback
CONSPIT and SimHub collaborated to provide ready-to-use presets for dashboards, telemetry indicators, and controls. CSD runs seamlessly with SimHub’s interface.
Equipped with a 854×480 resolution touchscreen and 350 lumens brightness, the display can be quickly adapted using the upper-right knob to match ambient lighting during gameplay.
n addition to standard SimHub layouts, CONSPIT offers optimized custom dashboards tailored for competitive sim racing—perfectly matching the brand’s aesthetic.
With four LED zones and 31 individually customizable RGB LEDs, CSD dynamically displays race-critical alerts like RPM, session status, and radar without distracting the driver.
Side knobs allow quick brightness and LED mode adjustments. The larger knob changes dashboard pages, while the touchscreen provides auxiliary page navigation. All controls are fully customizable via SimHub.
The CSD features four rotary encoder knobs and a touchscreen with intuitive presets. Side knobs allow quick adjustment of LED lighting and brightness. The main front knob lets you switch between dashboard pages, while the touchscreen enables cycling through auxiliary views. All controls are fully customizable via SimHub to match individual preferences.
Constructed from 6061‑T6 aluminum alloy, the shell features a sandblasted, anodized finish for durability and premium feel.
Two data ports at the rear enable flexible mounting options on sim-rigs or wheelbases, tailored to your cockpit configuration.
Mounts to GT‑Lite rigs, aluminum profile cockpits, or bases from Fanatec, Simucube, Simagic, and MOZA using dedicated adapters.
The CSD can also be installed directly onto a variety of steering wheel bases using dedicated adapter brackets. This makes it easy to integrate the display onto compact setups or custom cockpits, offering flexibility in placement and seamless access during drives.
Designed with precision and modern aesthetics, the CSD complements CONSPIT hardware, blending high-tech visuals with racing-inspired form.
The CSD offers a 5‑inch IPS touchscreen displaying telemetry from SimHub, complemented by four physical encoder knobs and a customizable RGB LED array for RPM, flags, and alerts—delivering immersive race-oriented feedback.
CONSPIT and SimHub collaborated to provide ready-to-use presets for dashboards, telemetry indicators, and controls. CSD runs seamlessly with SimHub’s interface.
Equipped with a 854×480 resolution touchscreen and 350 lumens brightness, the display can be quickly adapted using the upper-right knob to match ambient lighting during gameplay
In addition to standard SimHub layouts, CONSPIT offers optimized custom dashboards tailored for competitive sim racing—perfectly matching the brand’s aesthetic.
With four LED zones and 31 individually customizable RGB LEDs, CSD dynamically displays race-critical alerts like RPM, session status, and radar without distracting the driver.
Side knobs allow quick brightness and LED mode adjustments. The larger knob changes dashboard pages, while the touchscreen provides auxiliary page navigation. All controls are fully customizable via SimHub.
The CSD features four rotary encoder knobs and a touchscreen with intuitive presets. Side knobs allow quick adjustment of LED lighting and brightness. The main front knob lets you switch between dashboard pages, while the touchscreen enables cycling through auxiliary views. All controls are fully customizable via SimHub to match individual preferences.
Constructed from 6061‑T6 aluminum alloy, the shell features a sandblasted, anodized finish for durability and premium feel
Two data ports at the rear enable flexible mounting options on sim-rigs or wheelbases, tailored to your cockpit configuration.
Mounts to GT‑Lite rigs, aluminum profile cockpits, or bases from Fanatec, Simucube, Simagic, and MOZA using dedicated adapters.
The CSD can also be installed directly onto a variety of steering wheel bases using dedicated adapter brackets. This makes it easy to integrate the display onto compact setups or custom cockpits, offering flexibility in placement and seamless access during drives.
Designed with precision and modern aesthetics, the CSD complements CONSPIT hardware, blending high-tech visuals with racing-inspired form.
| Product Name: | CSD |
|---|---|
| Display: | 5'' 854 x 480 resolution, 350 lumens, |
| Indicators: | 31 x RGB LEDs |
| Product Dimensions: | 191x107x43 mm |
| Main Material: | Aluminum Alloy |
| Mounting: | Aluminum Alloy Bracket |
| Platform: | Windows PC |
| Connection: | USB direct, CONSPIT CAN |
| Cable: | Usb,Usb typ C |
| Software: | SimHub |
| Technical Specifications – Conspit CSD Dashboard | |
|---|---|
| Product name | CSD |
| Display | 5" IPS touchscreen | 854×480 px | 350 lm | adjustable brightness |
| LED indicators | 31 × RGB | 4 indicator zones (RPM, flags, vehicle status, radar) |
| Controls | 4 encoders (brightness/LED adjustment, dashboard page switching) + touchscreen |
| Dimensions | 191 × 107 × 43 mm |
| Material | 6061-T6 aluminium alloy (CNC machined, sandblasted, anodized) |
| Mounting | Aluminium M4 bracket | GT-Lite cockpit / aluminium profile | wheelbase: Fanatec, Simucube, Simagic, MOZA (adapter required) |
| Platform | Windows PC |
| Connectivity | USB direct | CONSPIT CAN |
| Cable | USB / USB Type-C |
| Software | SimHub (ready-to-use display and telemetry presets included) |
| Manufacturer | CONSPIT |
Yes. The Conspit CSD is fully compatible with SimHub and includes ready-to-use presets for the display interface and telemetry indicators that can be loaded directly in the software. CONSPIT works closely with the SimHub team to ensure tight, optimised integration.
The CSD features 31 RGB LEDs arranged across four indicator zones. They display engine RPM, race flags, vehicle status, radar and other session information. A pre-installed LED profile includes over 20 pre-configured modes for vehicle status and track conditions — all fully customisable in SimHub.
The two side encoders handle quick adjustment of screen brightness and LED brightness. The main encoder switches between dashboard pages. The touchscreen manages additional sub-pages and auxiliary functions. All controls are fully customisable to suit individual preferences.
The CSD mounts directly onto Fanatec (DD1, DD2, CSL, CSL DD), Simucube (Sport, Pro) and Simagic (Alpha Mini, Alpha, Alpha U) bases using the included brackets. Mounting on MOZA bases requires an additional adapter. The dashboard also installs on GT-Lite cockpits and aluminium profile rigs.
The CSD housing is CNC-machined from 6061-T6 aerospace-grade aluminium alloy with a sandblasted and anodized surface finish. This ensures high durability, resistance to mechanical damage and the refined aesthetic characteristic of CONSPIT hardware.
The CSD connects to a PC via direct USB (USB-C cable included) or through the CONSPIT CAN interface. Two data ports on the rear of the housing allow you to choose the most convenient cable routing orientation depending on your cockpit or wheelbase mounting setup.
The box includes the CSD dashboard unit, 3 types of mounting brackets and a USB cable. Ready-to-use SimHub presets for the display and LED indicators are available for download from the CONSPIT website.
