Simucube Wheelbase Mount V2 example of use

Simucube Wheelbase Mount V2

Name: Simucube Wheelbase Mount V2
Brand: Simucube
SKU: SCWBM2A
Price: 538.21 PLN
Availability: InStock

Reference SCWBM2A

538.21zł

Ready to send

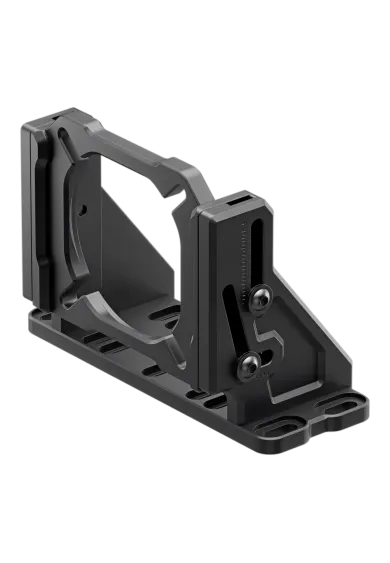

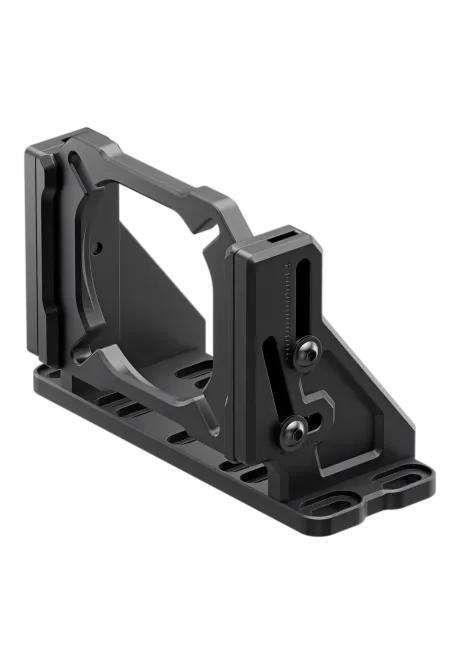

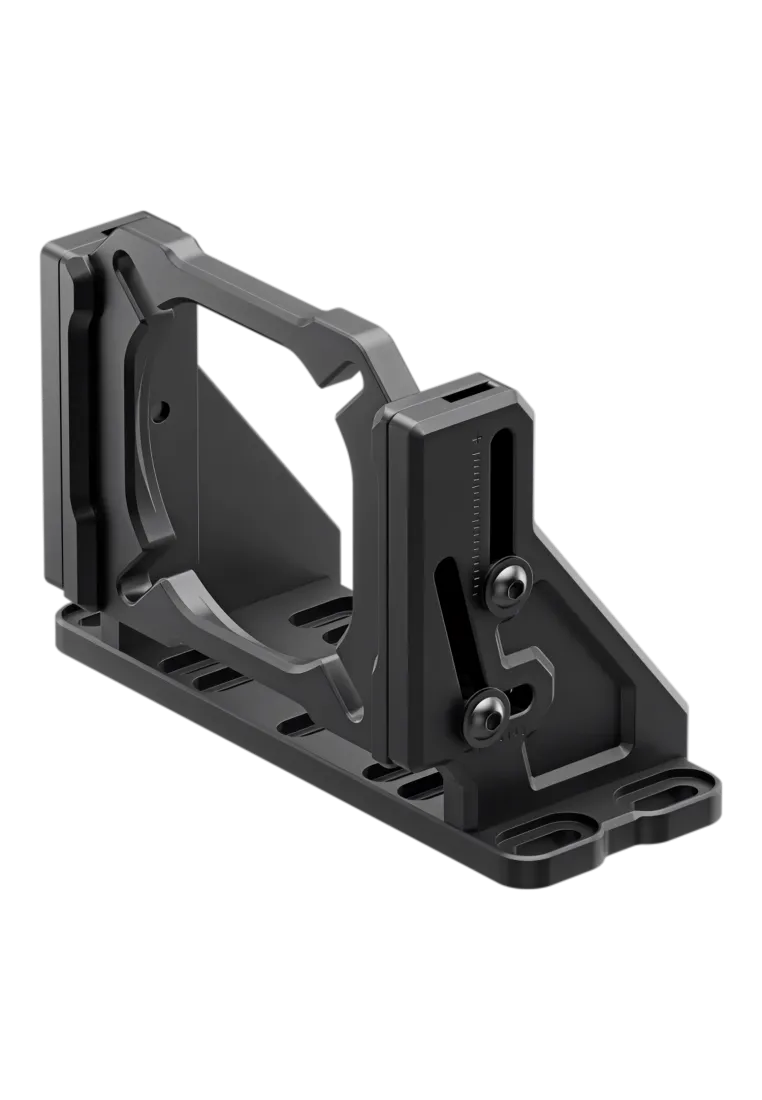

Simucube Wheelbase Mount V2 is a CNC-machined aluminium bracket for Simucube 2 and Simucube 3 wheelbases. It offers stepless adjustment from -24° to +20° and supports both standard and inverted installation. The drop-down design holds the wheelbase in place before the bolts are tightened, making a heavy Direct Drive unit easier and safer to install.

Ask about product

You will receive an 5.38zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Install the wheelbase without supporting its full weight

Simucube Wheelbase Mount V2 uses a drop-down installation method. The wheelbase is lowered into the prepared cradle, which holds it in position before the fasteners are tightened. There is no need to support a heavy wheelbase and align the bolts at the same time.

This is useful during the first installation, when moving the equipment to another cockpit, and whenever the driving position needs to be adjusted. It reduces the risk of dropping the drive unit while leaving the adjustment bolts accessible after the wheelbase has been seated. The supplied hardware covers the mounting points specified by the manufacturer for the bracket and compatible wheelbases.

Stepless adjustment across a 44 degree range

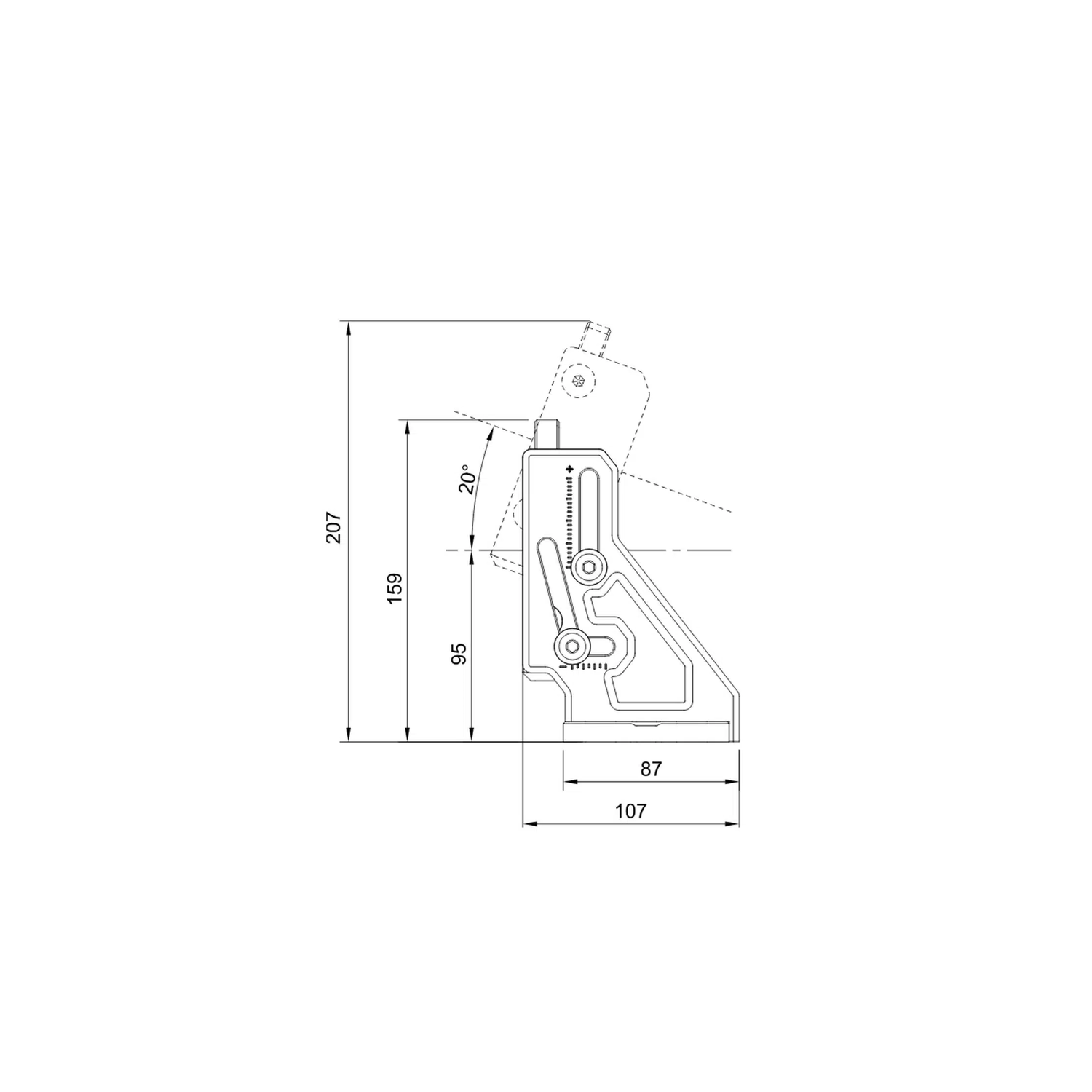

The wheelbase angle can be adjusted continuously from -24° to +20°. This 44° range makes it possible to align the steering shaft with the seat height, wheel distance and the driver's hand position. The same bracket can suit an upright GT cockpit, a low Formula layout or a custom aluminium profile rig.

A scale on the side of the mount helps reproduce a previous setting after maintenance or removal. Both sides should be set to the same angle and tightened securely. This keeps the wheelbase square to the driver and allows the supports to share the loads generated by Force Feedback.

Standard or inverted installation

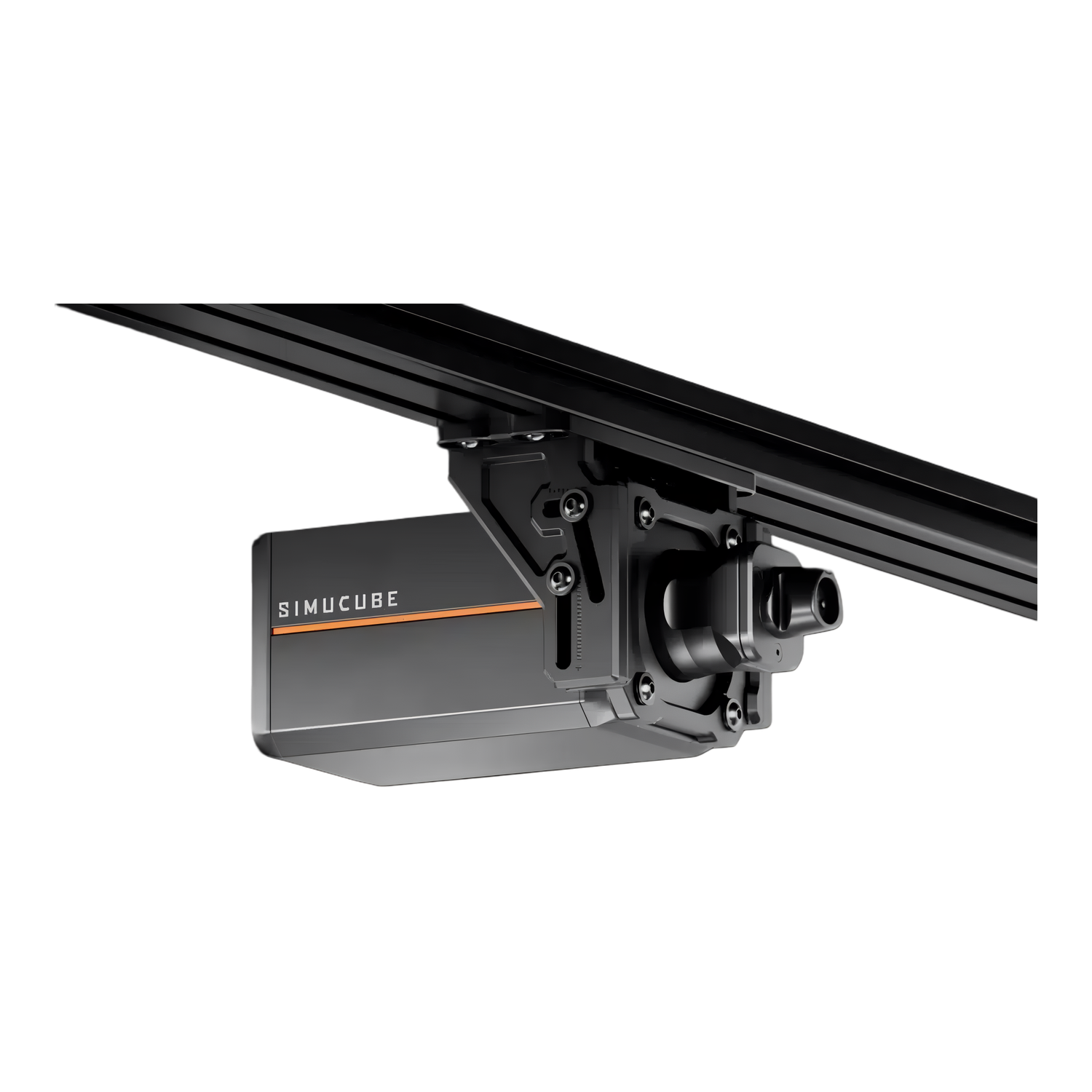

The mount supports a conventional wheelbase position and an inverted layout beneath the upper cockpit profiles. An inverted installation can free space above the driver's legs and may allow the monitor to sit lower when the rig and display arrangement permit it. The installation method can therefore be matched to the cockpit instead of forcing the drive unit into one fixed location.

Before using the inverted layout, check clearance for the housing, shaft, cables and steering wheel through their full working range. The profile carrying the mount must also be secured correctly to the cockpit. The rigidity of this cross-member is just as important as tightening the supplied bolts correctly.

One mount for Simucube 2 and Simucube 3

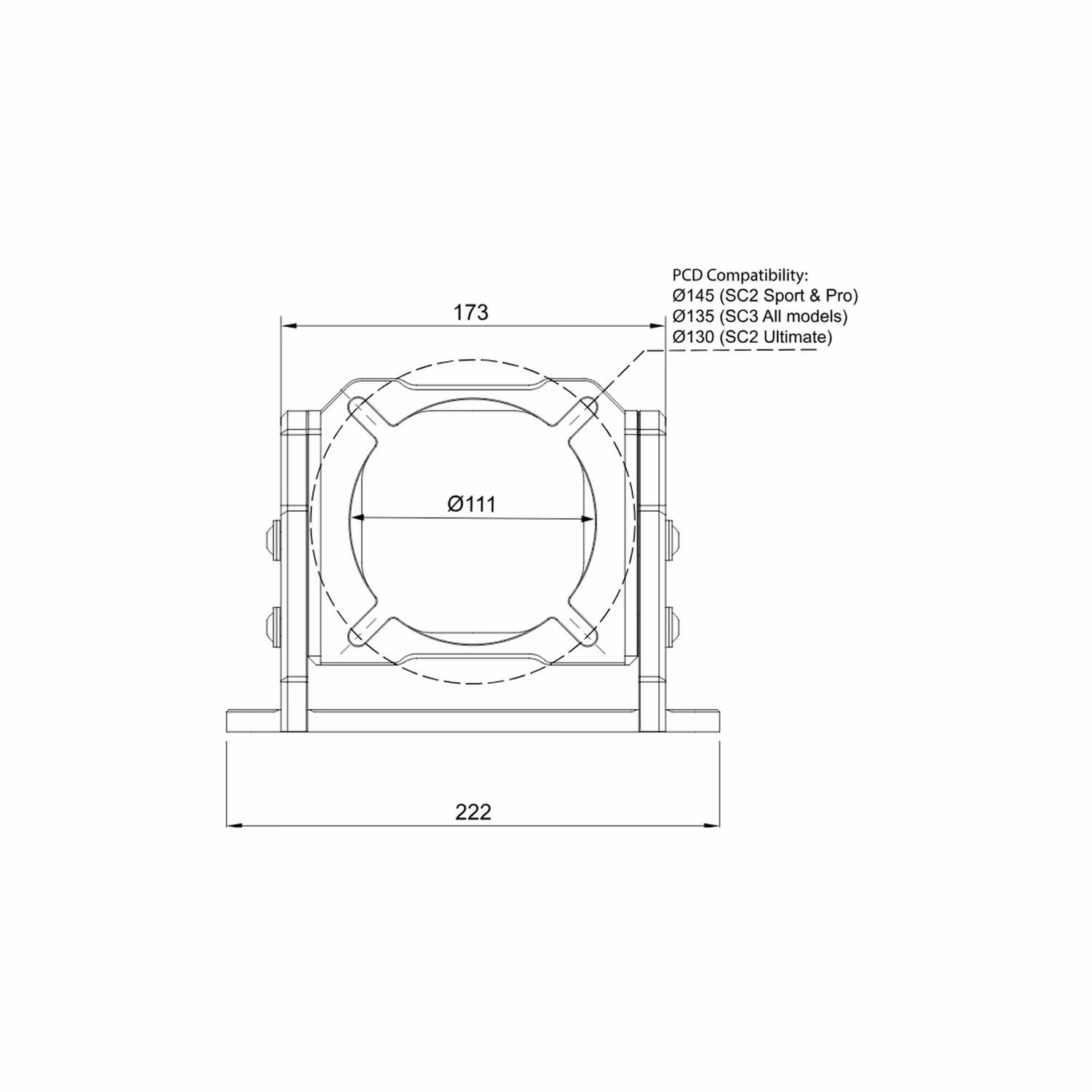

The hole patterns cover Simucube 2 Sport, Simucube 2 Pro, Simucube 2 Ultimate and every Simucube 3 model. Simucube 2 Sport and Pro use the 145 mm PCD, Simucube 3 wheelbases use the 135 mm PCD, and Simucube 2 Ultimate uses the 130 mm PCD. The central opening measures 111 mm in diameter.

The main structure is CNC-machined from aluminium. Overall dimensions are 222 × 207 × 107 mm and weight is 1.5 kg. M8 and M6 fasteners, washers, M8 T-slot nuts and a 5 mm hex key are included, so the core hardware specified for installation does not need to be sourced separately.

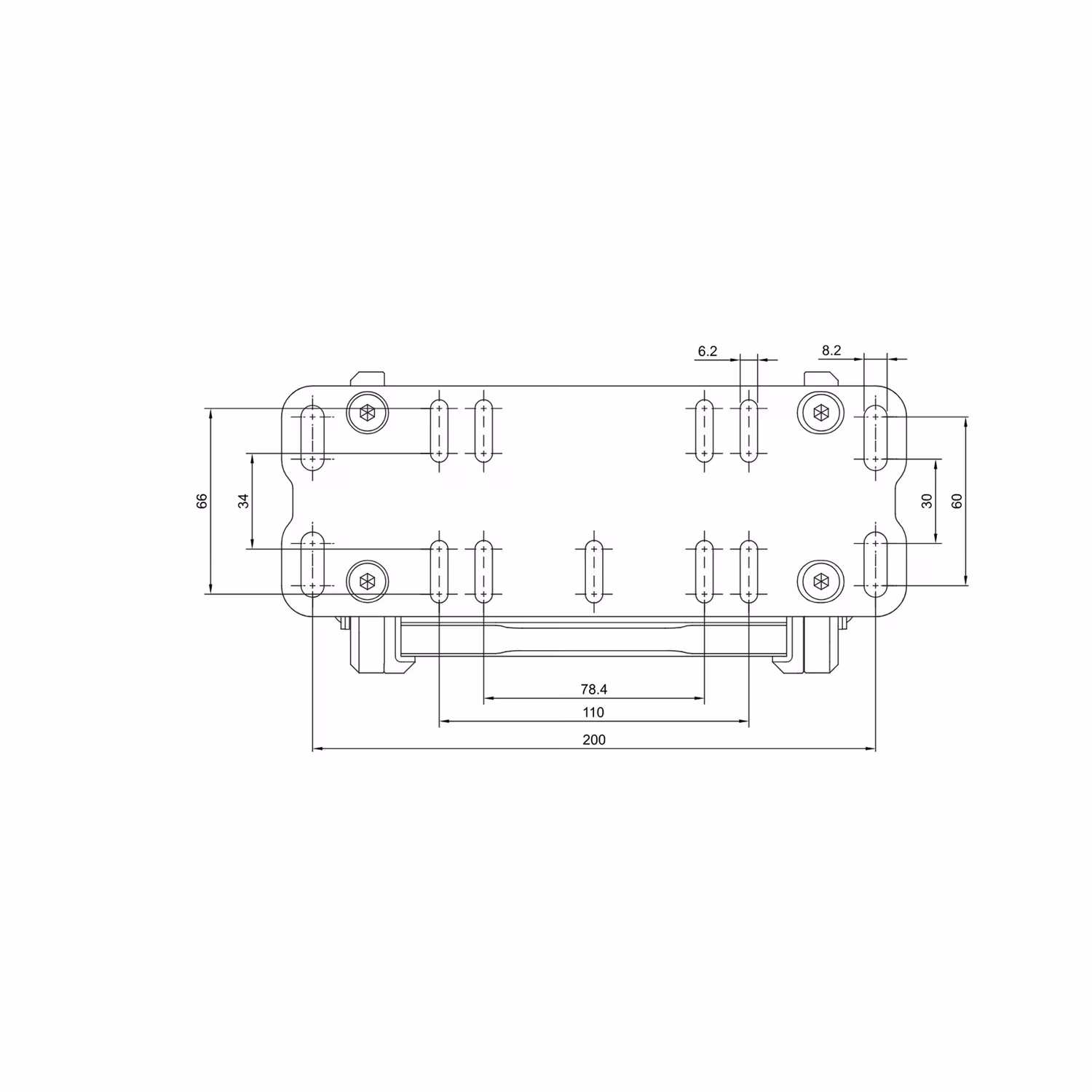

Fixing method: Bottom
Front mount

Parameter	Details
Manufacturer	Simucube
Product name	Simucube Wheelbase Mount V2
Type	Adjustable Direct Drive wheelbase mount
Material	CNC-machined aluminium
Adjustment range	-24° to +20°, stepless
Total angular range	44°
Installation options	Standard or inverted, drop-down design
Compatible wheelbases	Simucube 2 Sport, Simucube 2 Pro, Simucube 2 Ultimate and all Simucube 3 models
145 mm PCD	Simucube 2 Sport and Simucube 2 Pro
135 mm PCD	All Simucube 3 models
130 mm PCD	Simucube 2 Ultimate
Centre clearance	Ø111 mm
Dimensions	222 × 207 × 107 mm
Weight	1.5 kg
Included M8 hardware	8 M8×18 flanged hex head screws, 4 M8×30 flanged hex head screws, 12 M8 washers and 4 M8 T-slot nuts
Included M6 hardware	5 M6×16 hex head screws and 5 M6 washers
Included tool	5 mm L-shaped hex key

1 × Simucube Wheelbase Mount V2
8 × M8×18 flanged hex head screw
4 × M8×30 flanged hex head screw
5 × M6×16 hex head screw
12 × M8 washer
5 × M6 washer
4 × M8 T-slot nut
1 × 5 mm L-shaped hex key

The wheelbase, cockpit and mounting profiles shown in the manufacturer's materials are not included.

Wheelbase	Compatible	PCD	Installation
Simucube 2 Sport	Yes	Ø145 mm	Standard or inverted
Simucube 2 Pro	Yes	Ø145 mm	Standard or inverted
Simucube 2 Ultimate	Yes	Ø130 mm	Standard or inverted
Simucube 3 Sport	Yes	Ø135 mm	Standard or inverted
Simucube 3 Pro	Yes	Ø135 mm	Standard or inverted
Simucube 3 Ultimate	Yes	Ø135 mm	Standard or inverted

1. Which wheelbases fit Simucube Wheelbase Mount V2?

The mount fits Simucube 2 Sport, Simucube 2 Pro, Simucube 2 Ultimate and every Simucube 3 wheelbase.

2. What is the tilt adjustment range?

The angle is continuously adjustable from -24° to +20°, providing a total range of 44°.

3. Can the wheelbase be mounted upside down?

Yes. The bracket supports both a standard position and an inverted installation beneath the upper cockpit profiles.

4. What does drop-down installation mean?

The wheelbase is lowered into the mount and supported there before the bolts are tightened. The installer does not have to hold the full weight of the drive unit throughout the process.

5. Does the mount fit wheelbases from other brands?

Official compatibility is limited to the listed Simucube 2 and Simucube 3 models. The manufacturer does not confirm compatibility with other wheelbases.
