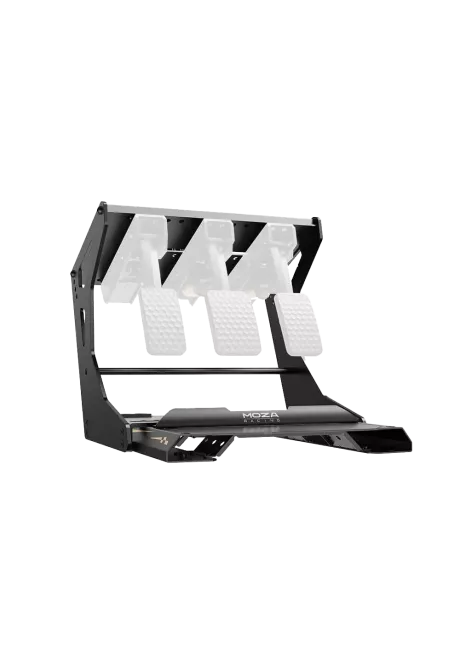

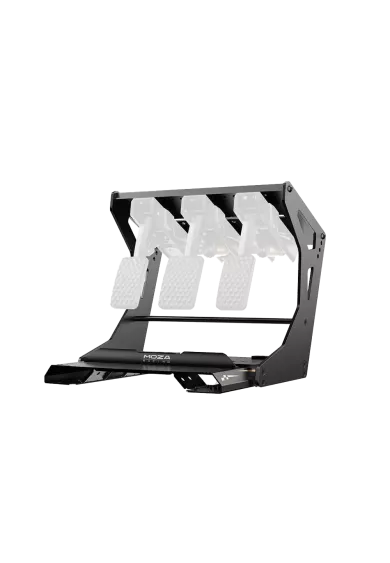

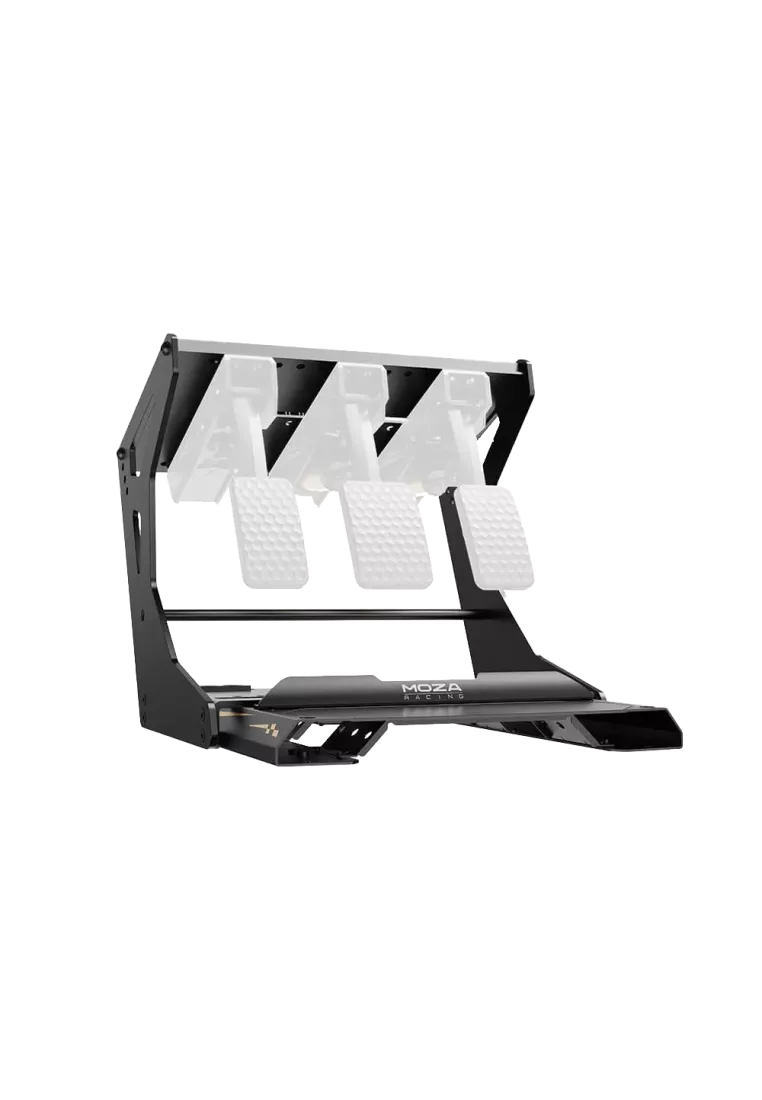

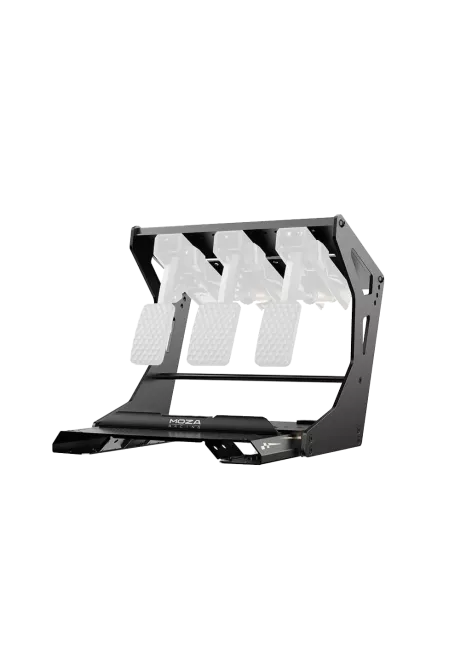

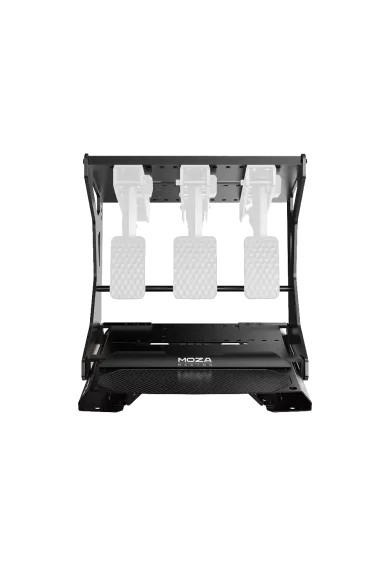

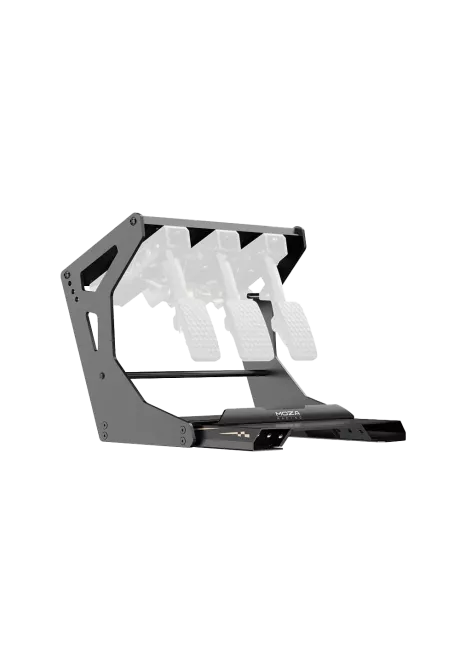

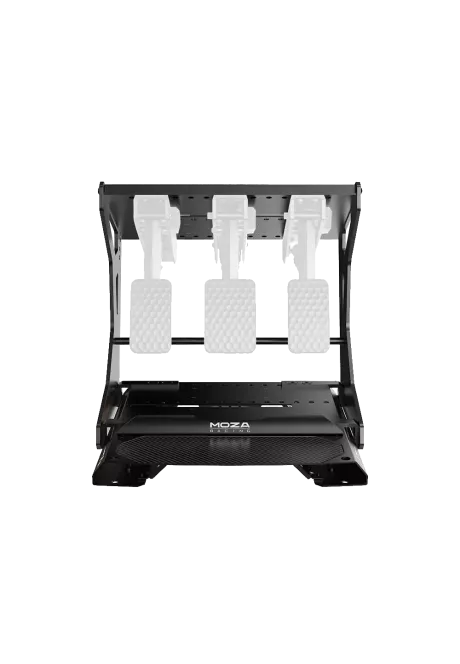

673.98zł -15%Transform your MOZA CRP2 Load Cell pedals into an inverted configuration with the Inversion Mount. This mount is made of durable aluminum alloy and provides reliable support and stability during intense sessions. The adjustable 20° angle and configurable pedal spacing make it versatile for a variety of scenarios and seating arrangements. After customer return.
You might also like
The kit changes MOZA CRP2 pedals from a floor-mounted arrangement to a suspended layout. Each pedal arm is attached to the upper part of the frame and moves in a configuration similar to that used in many road cars and selected racing vehicles. The product is intended solely for the mechanical conversion of a cockpit.
CRP2 pedals are not supplied. The existing throttle, brake and optional clutch modules are transferred together with their factory electronics. The inversion kit does not replace the sensors, wiring or controller, and it does not change how the pedals connect to a PC or compatible MOZA ecosystem.
MOZA states that the angle can be adjusted by 20 degrees. This allows the pedal position to be matched to seat height, driver distance and the geometry of the cockpit pedal area. Before fully tightening the frame, check the complete travel of every pedal and confirm that each foot meets the pedal face naturally.
Changing the angle affects leg position and force direction, but it does not alter the sensors fitted to the CRP2 pedals. After the conversion, verify the minimum and maximum readings in the software you use, particularly if a stop position or the available mechanical travel has changed.
The frame allows the lateral position of the CRP2 modules to be changed. Throttle, brake and clutch spacing can be set according to the available room, cockpit width and preferred foot movement. The final arrangement does not have to reproduce the spacing of the standard pedal base plate.
Leave enough room for free arm movement, wiring and the adjustment components of every pedal. Position all modules without mechanical interference before the fasteners are fully tightened. MOZA does not publish minimum or maximum spacing measurements in millimetres.
The main kit components are made from aluminium alloy. MOZA describes installation with the standard parts supplied with the frame, but the product page does not provide a complete count or dimensions for every fastener. Lay out the hardware according to the current MOZA instructions before assembly begins.
The cockpit must provide sufficient space above the pedals and suitable mounting points for the frame. MOZA does not publish a list of specific rigs or the overall dimensions of the assembled kit, so compare the available area and mounting pattern with the cockpit before installation. The kit is not a freestanding pedal base.
CRP Pedals are compatible with other products as you can use them with USB together with any other brand.
| Overall material | All aluminum alloy with CNC process |
| Load cell | 200kg |
| Throttle Form | Organ Floor Type |
| Pedal Force | Adjustable |
| Pedal Face Angle | Adjustable |
| Pedal Distance | Adjustable |
| Pedal Flush | Adjustable |
| Pedal Travel | Adjustable |
| Connection | USB |
| Size | 364mm*415.1mm*256.5mm |
| Mass | 7.5KG |
Outlet products are usually items returned by customers or products whose packaging was damaged during transport. Before shipping, each item is checked by us, remains complete, works properly and comes with a full warranty.
What can an outlet product mean?
Outlet items are shipped randomly from the available stock. This means that one unit may only have a slightly damaged box, while another may show small signs of being unpacked or used before. These details do not affect the product’s operation or warranty.
Important: by choosing an outlet product, the customer accepts the conditions described above. Claims based only on damaged or replacement packaging, minor signs of use, or replaced accessory bags will not be treated as a product defect.
If you prefer a product in standard packaging condition, without possible signs of previous use, please choose the regular product version instead of the outlet one.
The product can be viewed at our company premises by prior appointment.
