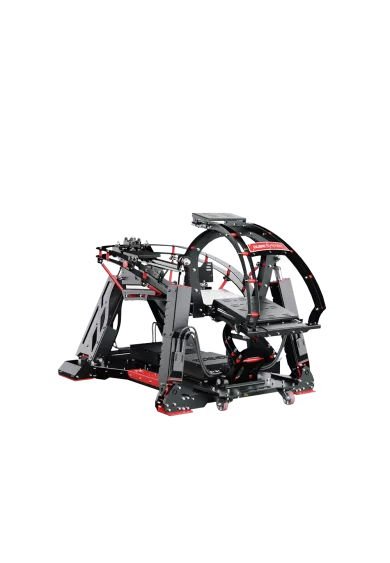

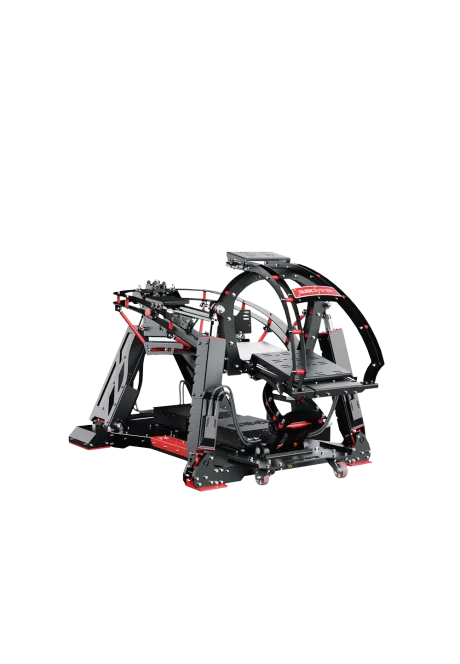

Qubic System QS-V20 without accessories

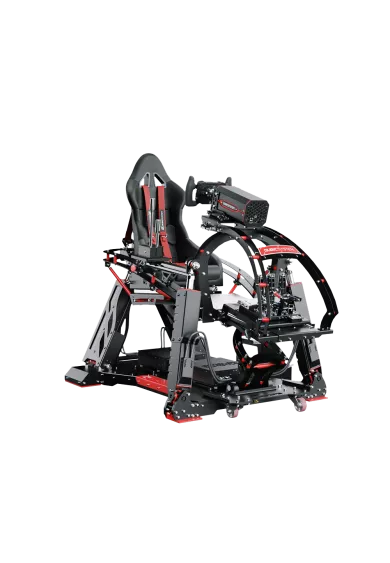

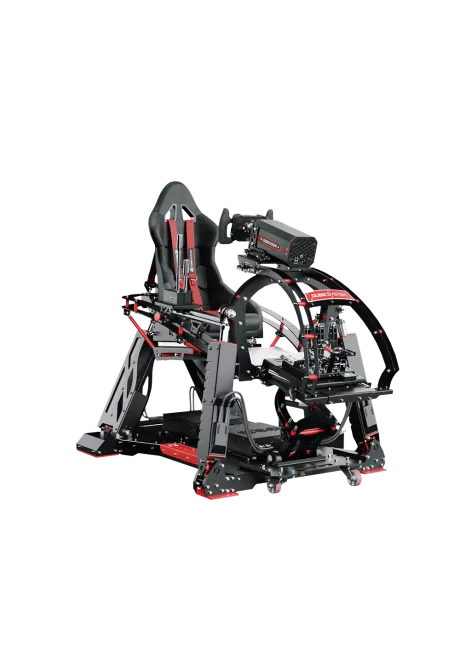

Qubic System QS-V20 with accessories
Qubic System QS-V20 without accessories
Qubic System QS-V20 with accessories

Qubic System QS-V20

QS-V20
84,456.10zł

84,456.10zł

Ready to send

Qubic System QS-V20 is a complete 4DOF motion cockpit for racing and flight simulation, with heave, roll, pitch and yaw axes. Four QS-220 actuators provide 100 mm of stroke, motion speed up to 0.9 m/s and 0-100 Hz vibration. The set includes the frame, controller, adjustable wheel, seat and pedal mounts, cabling, entry step and a bracket for the optional QS-BT1. If You want to order outside Poland contact us to check transport costs.

Ask about product
Zapytanie dotyczy produktu: Qubic System QS-V20
* - pola obowiązkowe
You will receive an 844.56zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Wheelbase

Simucube 3 Sport

Simucube 3 Sport

4,715.21zł Customize
Simucube 3 Pro

Simucube 3 Pro

5,557.21zł
Simucube 3 Ultimate

Simucube 3 Ultimate

11,619.60zł Customize
Simagic Alpha Evo Ultra

Simagic Alpha Evo Ultra

3,971.55zł
Conspit ARES Platinum 20

Conspit ARES Platinum 20

2,869.11zł
Moza R25 Ultra

Moza R25 Ultra

3,462.60zł
VNM Direct Drive Xtreme

VNM Direct Drive Xtreme

5,132.24zł

+ Steering Wheels

Simline AMG GT3

Simline AMG GT3

1,941.00zł
Simline GT3-R

Simline GT3-R

1,656.00zł Customize
Simline 720s GT3

Simline 720s GT3

2,420.00zł
Simline Corvette C7R

Simline Corvette C7R

2,200.00zł Customize
Simline Huracan GT3

Simline Huracan GT3

2,420.00zł
Simline Fiesta WRC

Simline Fiesta WRC

1,505.00zł Customize

+ Plug and Play Accessories

Qubic System QS-BT1

Qubic System QS-BT1

6,008.13zł
Qubic System Mount for QS-BT1

Qubic System Mount for QS-BT1 Shipping in 3-7 days

346.34zł

+ Pedals

MOZA mBooster Active Pedal Set

MOZA mBooster Active Pedal Set

3,478.86zł
Simucube ActivePedal PRO Set1

Simucube ActivePedal PRO Set1 On order

8,288.08zł Pack content


Four motion axes in one cockpit

QS-V20 reproduces motion across four axes. Heave handles vertical impacts and height changes, roll tilts the cockpit from side to side, pitch reacts to braking and acceleration, while yaw moves the rear of the platform to create a traction-loss effect. All four axes are integrated into one structure, so a separate yaw frame is not required.

The total movement is approximately 103 mm in heave, 15.2 degrees in roll, 11 degrees in pitch and 12.2 degrees in yaw. This layout allows QS-V20 to work with both racing and flight simulators.

QS-220 actuators with a fast telemetry response

Four QS-220 actuators provide 100 mm of stroke and reproduce vibration between 0 and 100 Hz. In Q-MODE, maximum vertical velocity reaches 0.90 m/s and acceleration reaches 8.8 m/s². The system runs at a control frequency of up to 1000 Hz, with a stated latency below 8 ms.

Motion profiles can be adjusted for the selected vehicle, track and driver preference. Individual effects can be reduced in software without altering the platform mechanically.

Adjustable driving position and hardware mounting

The package includes adjustable mounts for the seat, pedals and steering wheel. They allow the key controls to be positioned before motion calibration. Check the bolt pattern of a specific wheel base, pedal set or seat against the QS-V20 mounting points before installation.

The platform weighs 280 kg and measures 1716 x 1195 x 1101 mm. The manufacturer states a maximum user weight of 150 kg for the basic platform without additional accessories. Installation requires a flat, stable floor and sufficient clearance for the full range of motion.

Qubic System QS-V20 rozmiar symulatora na porównaniu

Little Monster in Your Room

Thanks to its compact actuators and well-designed structure, it does not take up much space in the room. Qubic System's refined design delivers a powerful motion system within a footprint of approximately one square metre, comparable to a static simulator.

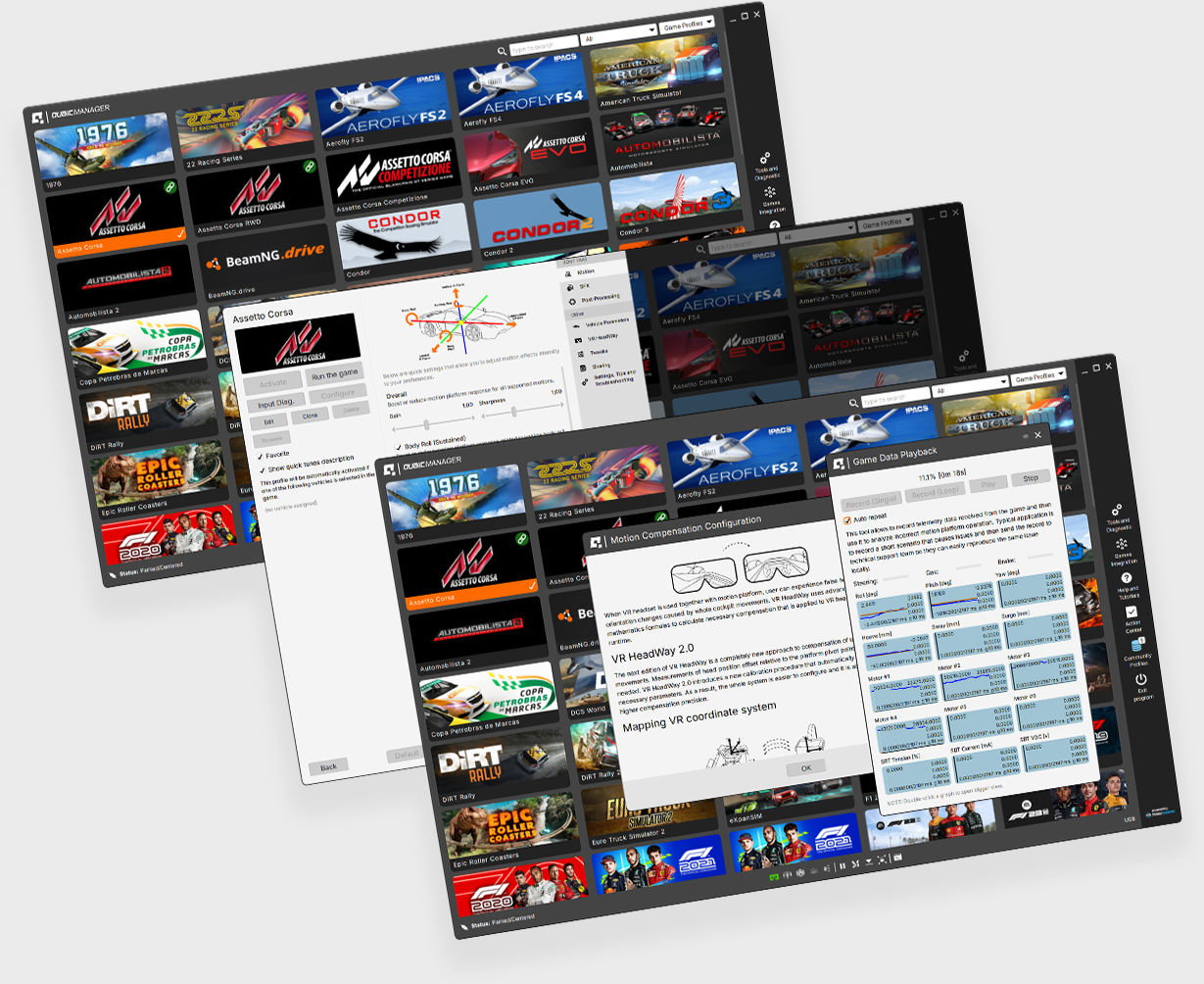

Qubic Manager, VR support and QS-BT1 expansion

QS-V20 connects to a PC through USB and is configured in Qubic Manager. The software handles motion profiles, diagnostics, updates and effect mapping for telemetry from compatible games. VR HeadWay provides motion compensation for supported VR setups.

The frame includes a mounting bracket prepared for the QS-BT1 belt tensioner. The tensioner itself is not supplied with QS-V20, but the included bracket removes the need to design a separate mounting solution.

Qubic System QS-V20 compatibility with software
Bazy Direct Drive:
Dostępne Kierownice:
E-stop button
Yes
Warranty
24 months
Monitor/TV mount
Excluded
Shifter/Handbrake mount
Included
Width
1716 mm
Length
1195 mm
Driver position
Universal
Parameter Details
Type Complete 4DOF motion cockpit
Motion axes Heave, roll, pitch, yaw / traction loss
Actuators 4 x Qubic System QS-220
Actuator stroke 100 mm
Heave range -51.8 to +51.5 mm
Roll range -7.6 to +7.6 degrees
Pitch range -5.5 to +5.5 degrees
Yaw range -6.1 to +6.1 degrees
Maximum Q-MODE heave velocity 0.90 m/s
Maximum Q-MODE heave acceleration 8.8 m/s², approximately 0.9 G
Vibration range 0-100 Hz
Control frequency Up to 1000 Hz
Latency Below 8 ms
Maximum user weight 150 kg
Product weight 280 kg
Overall dimensions 1716 x 1195 x 1101 mm
Power supply 120/230 V AC +/-10%, 50-60 Hz, single phase
PC connection USB
Software Qubic Manager with a free licence
Operating environment Indoor use, 5-40°C, 0-70% humidity without condensation
Item Information
Computer PC with a USB port and Qubic Manager software
Racing games Supported titles with telemetry integration available in Qubic Manager
Flight simulators Supported flight titles available in Qubic Manager
VR VR headset support with VR HeadWay motion compensation
Qubic System QS-BT1 Compatible; mounting bracket included, belt tensioner sold separately
Wheel, pedals and seat Installed on adjustable brackets; verify the mounting pattern of the selected hardware before purchase
Motion safety MOTION-LOCK switch included
