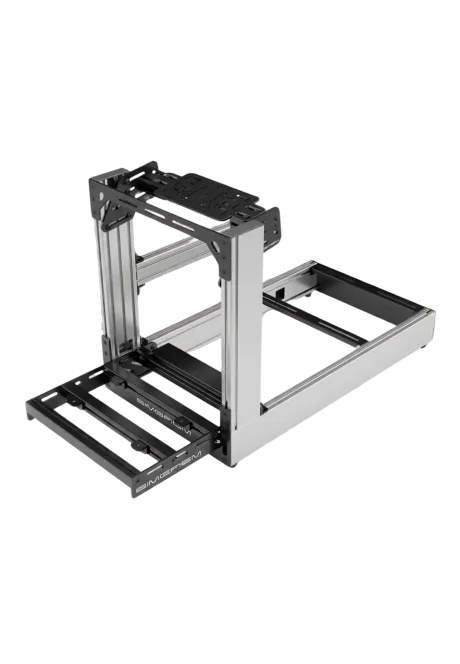

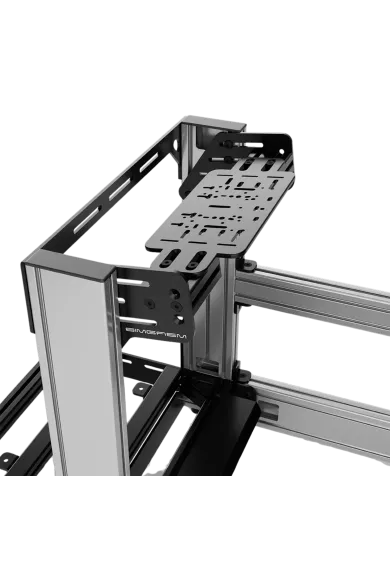

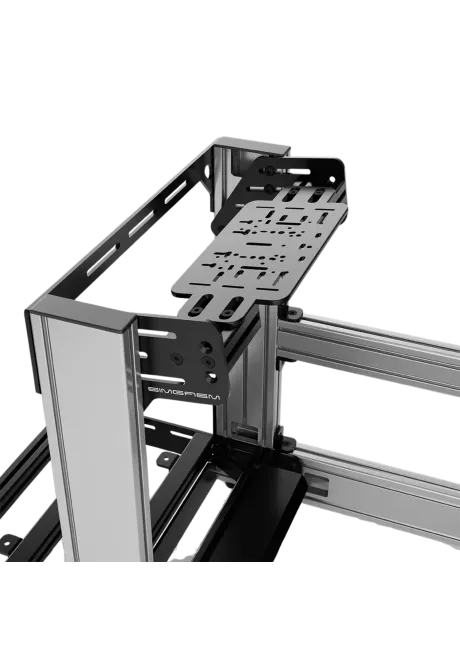

Simgasm Sport Silver bottom mount zoom view

Model:

Simgasm Sport Silver

Name: Simgasm Sport Silver
Brand: SIMGASM
SKU: 1409
Price: 2031.71 PLN
Availability: OutOfStock

Reference C120-BWM-SIL

2,031.71zł

PREORDER

SIMGASM Sport Silver puts its 40 x 120 mm profile geometry on display and provides an adjustable foundation for GT or Formula-style driving. The 600 x 1350 x 800 mm chassis weighs 38.94 kg, includes integrated cable passthroughs and is prepared for a future motion system.

Its pedal deck is rated to 300 kg. Choose one of four wheelbase mounts, then select the seat, slider and display solution separately. An Apex side-profile arm is included.

Wheelbase Mount Variant

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 20.32zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

A silver motion-ready rig with exposed engineering

SIMGASM Sport Silver treats the frame as part of the equipment's visual language. Its natural-looking finish highlights the 40 x 120 mm profile sections, straight load paths and metal brackets. The result suits an engineering-led room or a workshop-style simulator where the structure should remain visible rather than disappear behind the controls.

SIMGASM recommends Sport or Pro for wheelbases above 26 and up to 40 Nm. A lower-torque base is equally valid when the buyer wants the 300 kg pedal-deck rating, integrated cable routing or future motion preparation. Alternative sizes and tiers can be compared under sim racing cockpits.

Build the GT or Formula posture as one system

The 600 x 1350 x 800 mm chassis gives the wheel, pedals and seat one adjustable reference. Profile slots allow depth, height and angle changes, making an upright GT posture or a lower Formula-style arrangement possible. The final range is defined by the selected seat shell, side brackets and slider as much as by the cockpit itself.

A 300 kg rated braking load gives the pedal deck structural headroom for firm load-cell settings and selected hydraulic systems. This rating does not confirm every bolt pattern, so the pedal drawing still needs to be compared with the available mounting points. Match the driving posture with a suitable option from sim racing seats.

An installation platform designed to change

Sport Silver can begin as a static rig and accept more complex hardware later. Integrated passthroughs move cable runs into the profiles, while motion-ready construction preserves a route towards future actuator integration. The motion kit, controls and system-specific brackets are not supplied with the base cockpit.

The 38.94 kg chassis arrives in two boxes. Profiles, structural brackets, the chosen wheelbase mount, Apex side arm, heel rest, rubber feet, fasteners, tools, instructions and assembly gloves are included. Trays, device brackets and cable-management additions can be selected from sim rig accessories.

Move between hardware ecosystems without replacing the frame

The four wheelbase-mount variants classify hardware by housing design. Bottom Mount covers supported underside threads. Front Mount serves listed Fanatec, Simucube and VRS patterns. Side Mount is available for specified Fanatec, MOZA, SIMAGIC and Conspit models, while Asetek Front Mount is dedicated to La Prima, Forte and Invicta.

A chassis torque recommendation is not a mounting ban. A more powerful base may fit mechanically, but its usable torque should be limited to the safe structural range. The reserve can still provide signal headroom and help reduce clipping when driver output and game gain are configured together. Explore current Direct Drive wheelbases and plan the screen with TV and monitor stands.

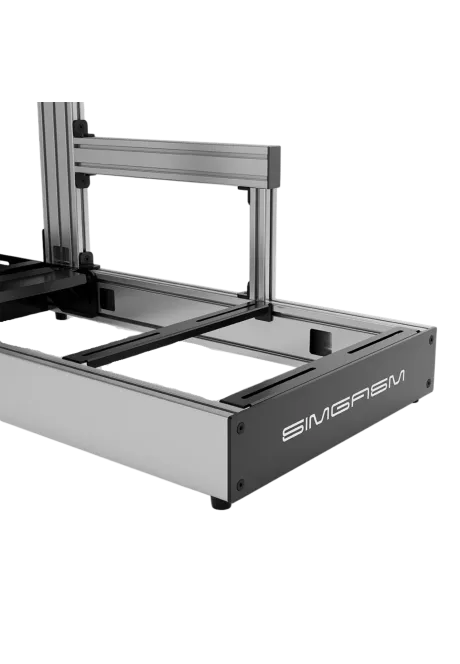

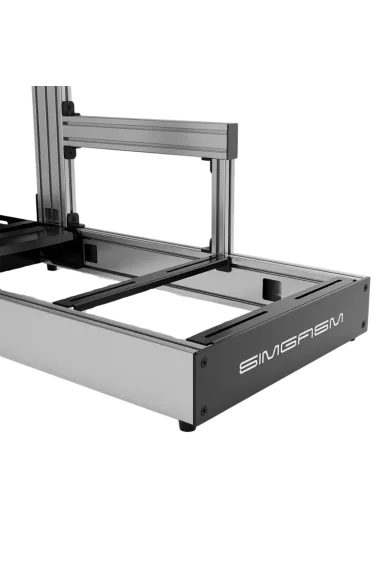

Simgasm Sport Silver - side mount rear view

A silver motion-ready rig with exposed engineering

Build the GT or Formula posture as one system

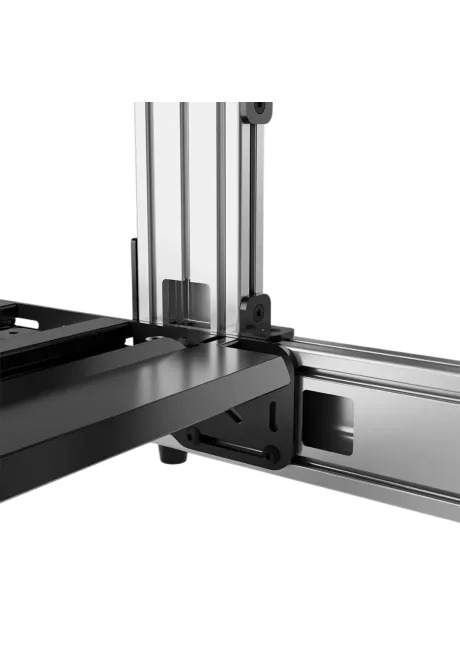

Simgasm Sport Silver - profiles zoom view

An installation platform designed to change

Move between hardware ecosystems without replacing the frame

Simgasm Sport Manual

Download (6.94MB)

Technical specification - SIMGASM Sport Silver
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C120-BWM-SIL
Material	Aluminium profiles and metal mounting components
Main profile	40 x 120 mm
Colour	Silver
Assembled dimensions	600 x 1350 x 800 mm (W x L x H)
Weight	38.94 kg
Load and preparation
Manufacturer wheelbase guidance	Sport or Pro above 26 and up to 40 Nm; Pro recommended above 40 Nm
Rated braking load	Up to 300 kg at the pedal deck
Position adjustment	Component depth, height and angle; GT or Formula-style layout
Cable routing	Integrated cable passthroughs
Motion preparation	Motion-ready; motion hardware sold separately
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake arm	Apex side-profile mounting arm
Number of boxes	2
Box dimensions	Box 1: 1050 x 190 x 200 mm; box 2: 615 x 270 x 110 mm
Included	Profiles, brackets, selected wheelbase mount, Apex arm, heel rest, rubber feet, bolts, tools, gloves and instructions
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display, stand and motion system
Manufacturer warranty	2 years

SIMGASM Sport Silver - questions and answers

1. What defines the Silver edition?

Its finish highlights the 40 x 120 mm profile geometry and gives the rig an engineering-led appearance. Functionally, it retains the Sport pedal rating, cable routing and motion-ready structure.

2. How much room should I reserve?

The chassis itself measures 600 x 1350 x 800 mm. Add clearance for the seat, driver access, display support and the travel of any future motion system.

3. Can it be adjusted for GT and Formula driving?

The profiles support depth, height and angle changes. Seat shape, brackets and slider also determine the final posture, so plan them as one system.

4. Does Sport make sense below 26 Nm?

Yes. The 26-40 Nm statement is a manufacturer recommendation band, not a minimum requirement. Lower-torque equipment can still benefit from the frame, cable routing and pedal deck.

5. Which wheelbases use Front Mount?

The regular version covers listed Fanatec, Simucube and VRS front patterns. It is not compatible with SIMAGIC and does not replace Asetek Front Mount.

6. What is the benefit of the 300 kg pedal rating?

It provides structural headroom for firm brake settings. The actual pedal set still needs a compatible bolt pattern and correct support.

7. Can cables run inside the profiles?

Yes. Integrated passthroughs allow part of the harness to be routed through the frame for a cleaner, more serviceable installation.

8. How is Sport Silver packaged?

The 38.94 kg cockpit arrives in two boxes. Prepare a flat assembly area and sort the profiles, brackets and fasteners before starting.

9. Is a shifter arm included?

Yes, the package contains the Apex side-profile arm. The device and any model-specific adapter remain separate.

10. When is the Pro cockpit the better choice?

Pro is recommended above 40 Nm and adds structural reserve through a 40 x 160 mm main profile. Sport remains the more compact option within its intended band.

SIMGASM Sport Silver - wheelbase mount compatibility
Variant	Compatible models and families	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra, Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; Asetek La Prima, Forte and Invicta; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses underside threads. A base above 40 Nm may fit mechanically but needs output limiting or the Pro chassis.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport, Pro and Ultimate plus Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not support SIMAGIC and does not replace the Asetek system.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra; Conspit ARES 20 Platinum.	Uses side housing points. Confirm the exact model and revision.
Asetek Front Mount	Asetek La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm.	Dedicated Asetek system; Invicta sits inside the Sport guidance.
