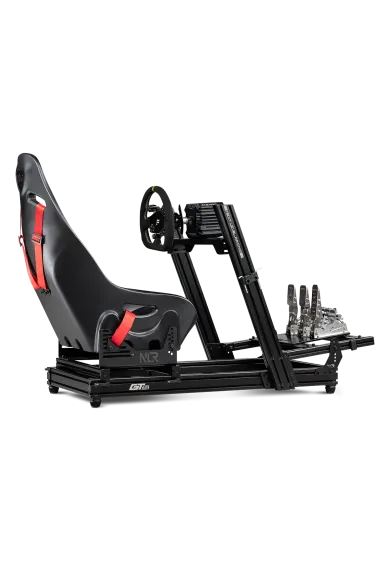

Next Level Racing F-GT Elite Lite Wheelplate example of use with accessories

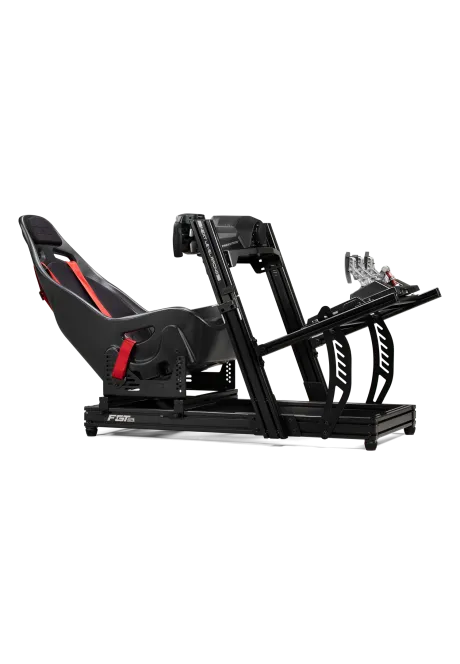

Next Level Racing F-GT Elite Lite Wheelplate formula position

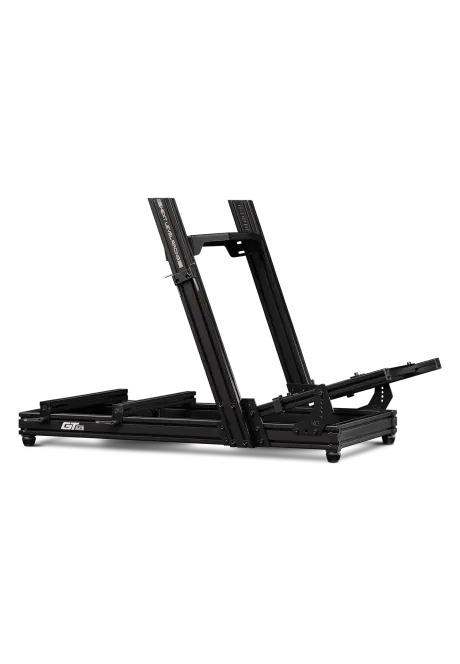

Next Level Racing F-GT Elite Lite Wheelplate front view
  • New
Next Level Racing F-GT Elite Lite Wheelplate rear view
Next Level Racing F-GT Elite Lite Wheelplate example of use with accessories
Next Level Racing F-GT Elite Lite Wheelplate formula position
Next Level Racing F-GT Elite Lite Wheelplate front view

Next Level Racing F-GT Elite Lite Wheelplate

NLR-E032
2,462.60zł

2,462.60zł

PREORDER

The Next Level Racing F-GT Elite Lite Wheelplate Edition is an aluminium-profile sim racing cockpit that supports Formula, GT, Hybrid, Truck and Tank driving positions. Its Wheelplate is designed for bottom-mounted wheel bases, while two sliding pedal plates provide height, angle and distance adjustment. Seat and electronics are sold separately.


Ask about product
Zapytanie dotyczy produktu: Next Level Racing F-GT Elite Lite Wheelplate
* - pola obowiązkowe
You will receive an 24.63zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Wheelbase

Moza R16 Ultra

Moza R16 Ultra PREORDER

1,917.89zł
SIMAGIC Alpha EVO

SIMAGIC Alpha EVO

1,979.67zł Customize
SIMAGIC Alpha EVO Pro

SIMAGIC Alpha EVO Pro

2,516.26zł
Fanatec ClubSport F1 18 Nm

Fanatec ClubSport F1 18 Nm

4,064.23zł

+ MOZA Wheels

Moza KS Pro

Moza KS Pro

1,137.40zł
Moza FSR2

Moza FSR2

2,438.21zł
Simagic ZEUS Formula

Simagic ZEUS Formula

2,072.36zł

+ Pedals

Simnet SP Pro 2P

Simnet SP Pro 2P

863.00zł
MOZA CRP2

MOZA CRP2

1,291.87zł
Simagic P1000 F

Simagic P1000 F

1,394.31zł
Heusinkveld Sprint

Heusinkveld Sprint

1,905.88zł
MOZA mBooster Active Pedal

MOZA mBooster Active Pedal

2,779.67zł

+ Motion Systems

Moza HMA150 Motion System

Moza HMA150 Motion System PREORDER

11,186.18zł
Simline 3DOF Race and Fly Motion System

Simline 3DOF Race and Fly Motion System

15,121.95zł
Motion System 3dof

Motion System 3dof On order

20,325.20zł


One frame for Formula and GT positions

The F-GT Elite Lite can create Formula, GT or Hybrid positions on the same frame. Its adjustment range also supports layouts for truck and tracked-vehicle simulators.

The 80 × 40 mm base profiles use a black anodised finish. Pre-machined holes and dedicated connectors simplify assembly and remove the need for many generic industrial corner brackets.

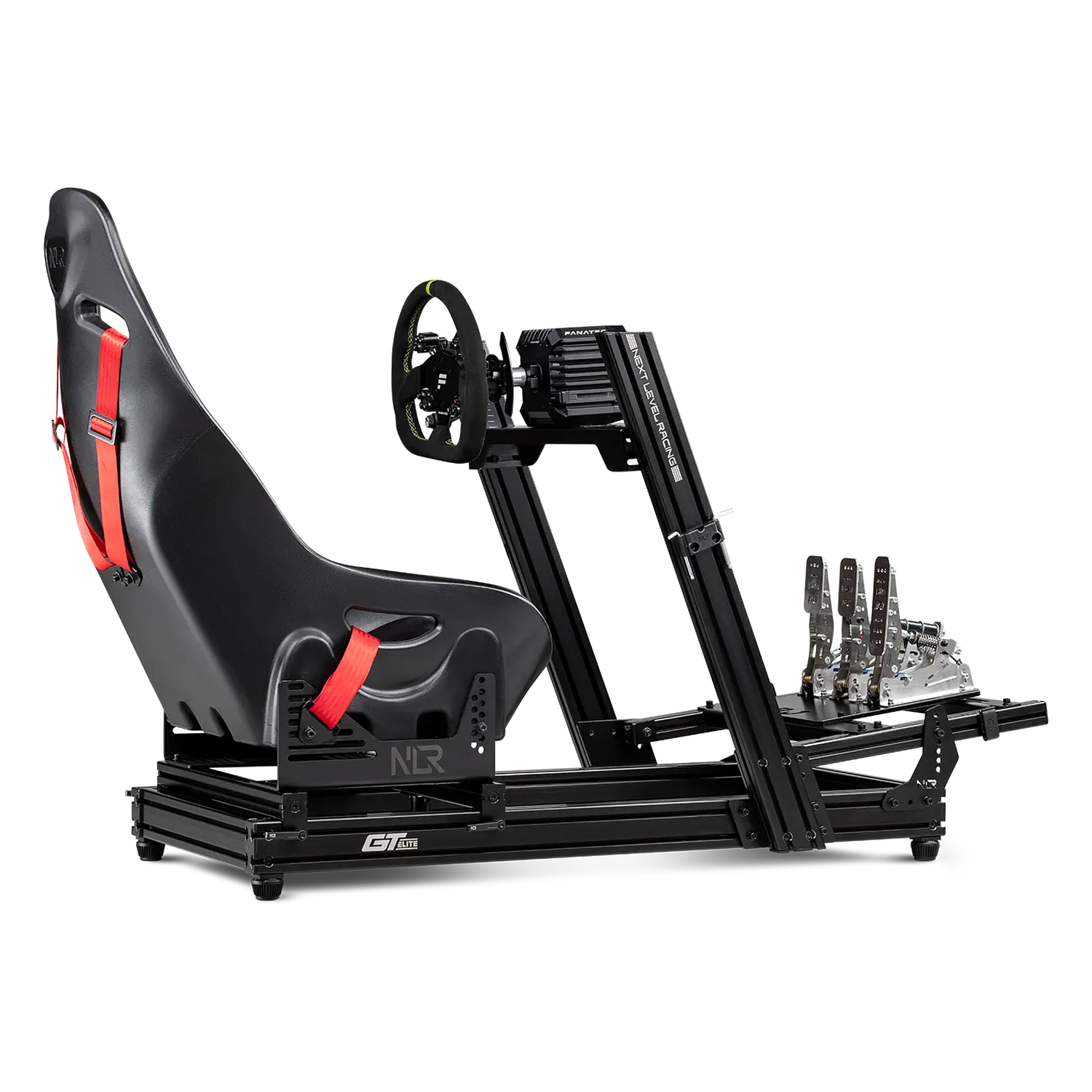

Next Level Racing F-GT Elite Lite Wheelplate gt position

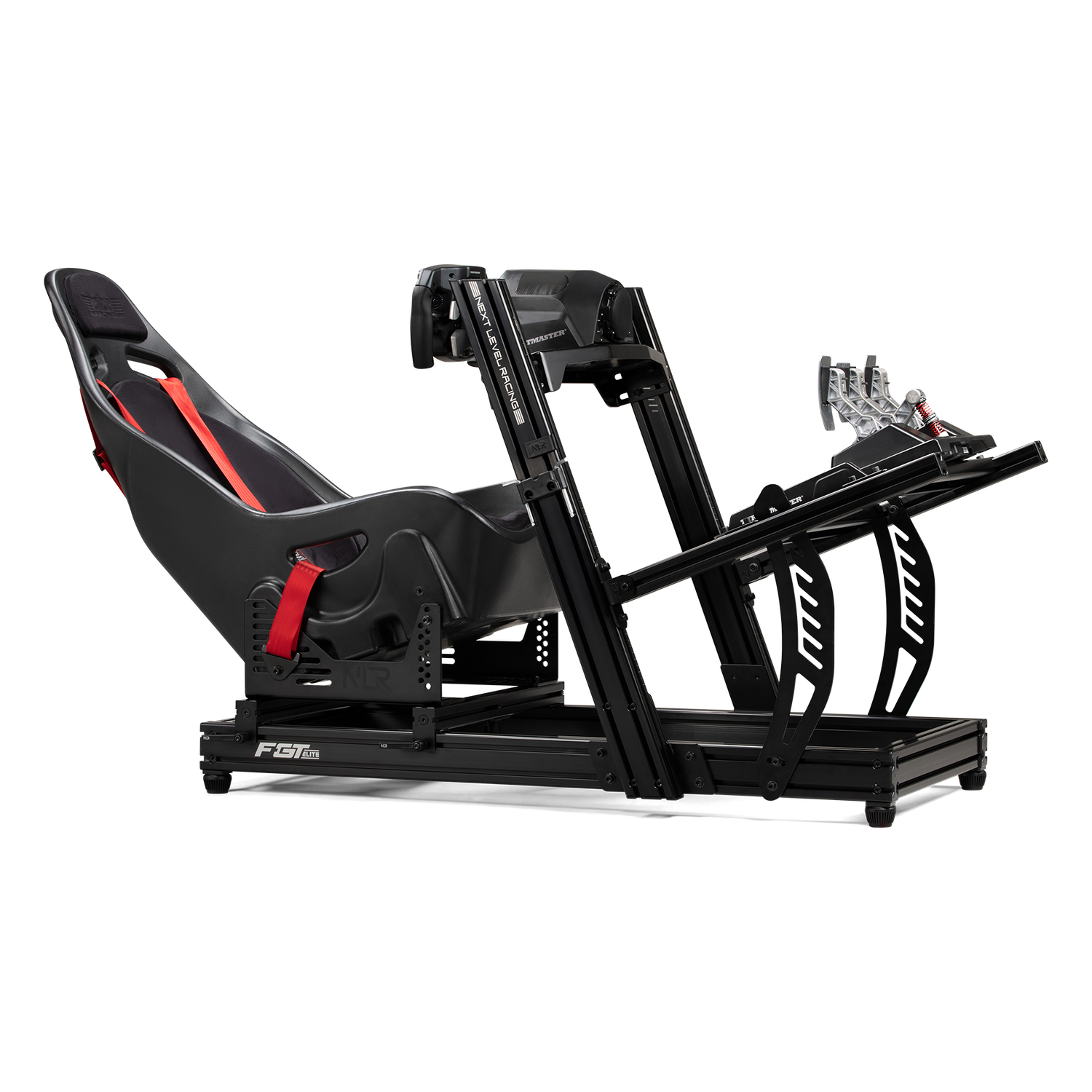

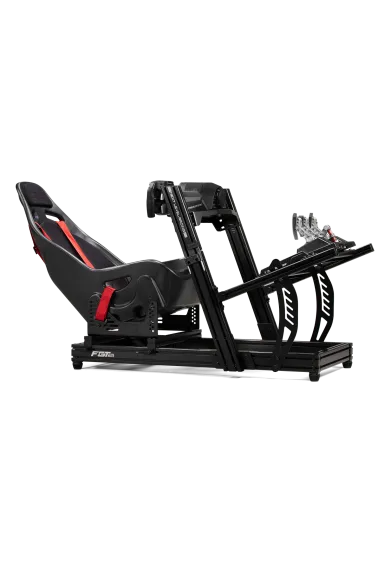

Next Level Racing F-GT Elite Lite Wheelplate formula position

A Wheelplate for bottom-mounted bases

The Wheelplate version uses a steel plate intended primarily for wheel bases bolted from below. The manufacturer identifies selected Logitech, Thrustmaster, Fanatec CSL and CSL DD, and SimXperience AccuForce products as suitable examples.

Wheel-deck adjustment changes distance and angle for the chosen driving position. Bases that require front or side mounting may need a separate adaptor or the Front & Side Mount edition.

Pedals and seat positioned for the driver

The two pedal plates are made from 5 mm carbon steel. Distance, height and angle adjustment places the pedals lower for a GT layout or higher for a Formula configuration.

The included 5 mm seat brackets provide 98 adjustment options and support side-mounted bucket seats. The NLR slider system moves the seat without the flex associated with simpler mechanisms. The seat itself is sold separately.

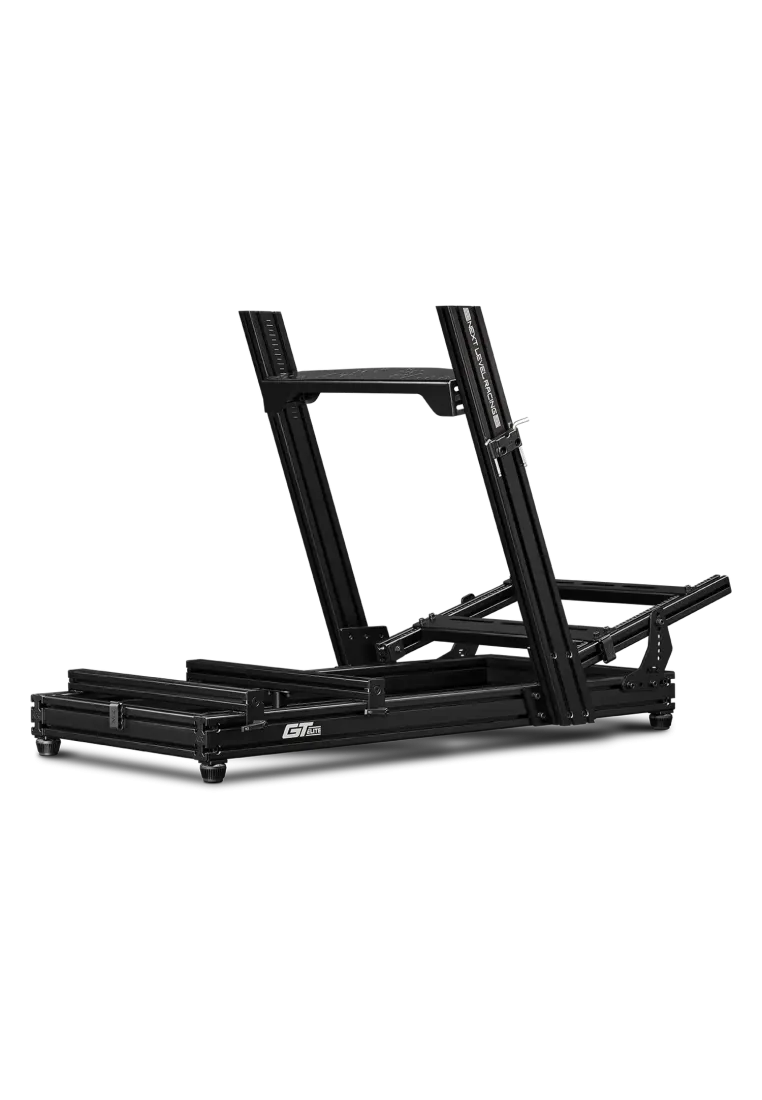

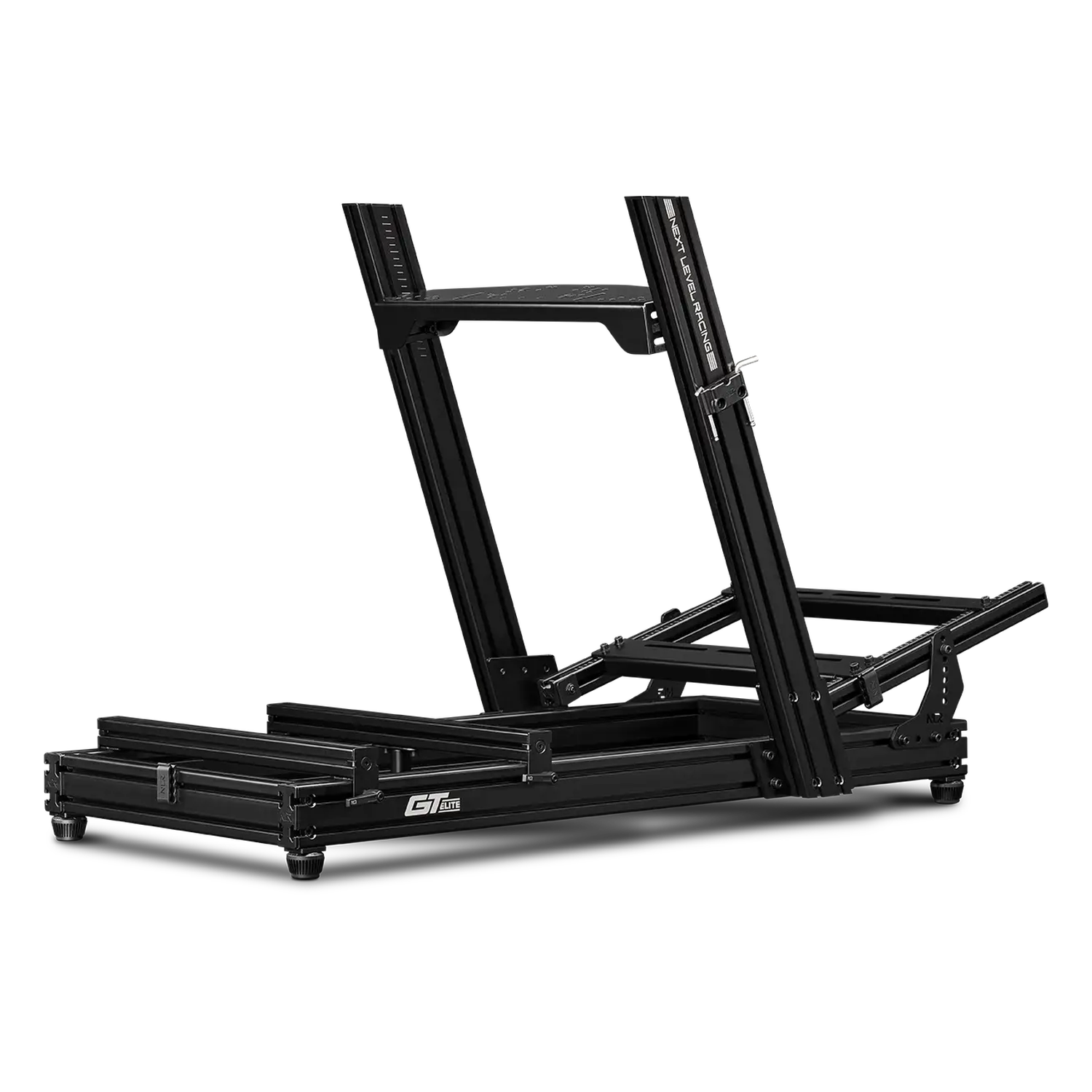

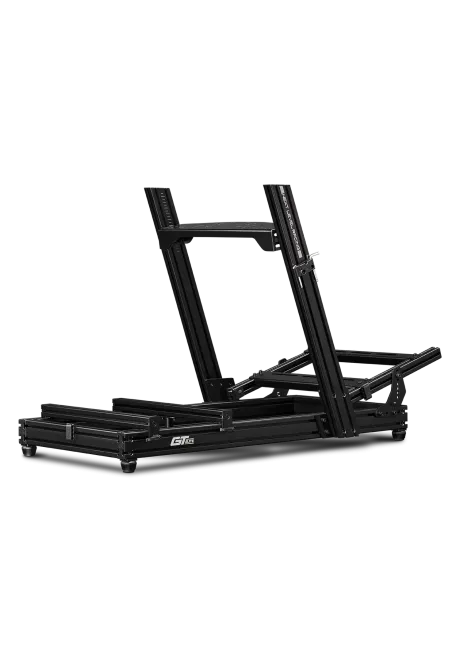

Next Level Racing F-GT Elite Lite Wheelplate rear view

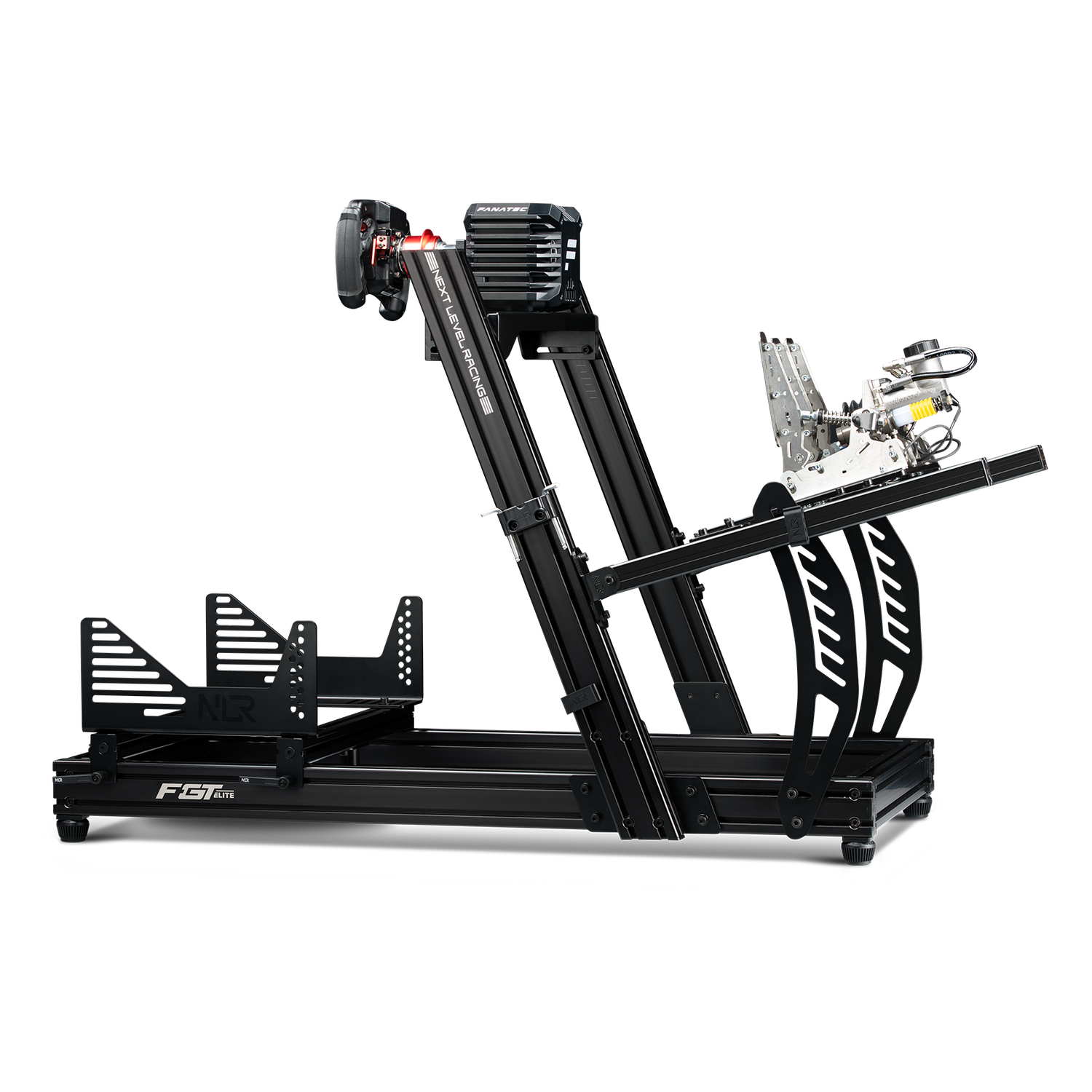

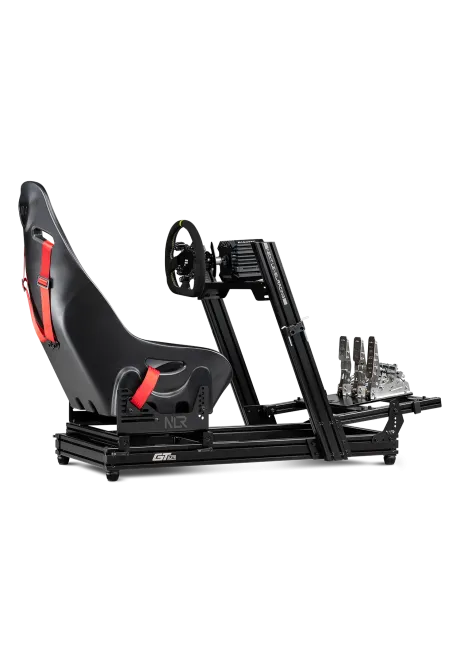

Next Level Racing F-GT Elite Lite Wheelplate side view with accessories

Motion and Elite accessory expansion

The cockpit is compatible with the Motion Plus Platform. Motion Platform V3 or Traction Plus integration requires the Elite Motion Adaptor Upgrade Kit. T-slot profiles also accept compatible monitor, keyboard, mouse, tablet and button-box mounts.

Height-adjustable feet help level the frame and absorb vibration. A ButtKicker adaptor, six cable clips, tool holder and spirit level are included, while a shifter mount is sold separately.

Monitor/TV mount
Excluded
Shifter/Handbrake mount
Excluded
Konstruction
Aluminium profiles
Width
690mm
Length
1380mm
Driver position
Universal
Parameter Details
Product name Next Level Racing F-GT Elite Lite Wheelplate Edition
SKU NLR-E032
Product type Aluminium-profile sim racing cockpit without seat or electronics
Driving positions Formula, GT, Hybrid, Truck and Tank
Construction Black-anodised aluminium profiles; 80 × 40 mm base profiles
Steel components Powder-coated carbon steel
Wheel mounting Adjustable Wheelplate for bottom-mounted wheel bases
Pedal mounting Two sliding 5 mm carbon-steel plates; height, angle and distance adjustment
Seat mounting 5 mm side-mount steel brackets with 98 adjustment options and NLR seat-slider system
Supported user height 120–210 cm
Maximum user weight 150 kg
Product dimensions 138 × 69 × 86 cm (L × W × H)
Product weight 36 kg
Box dimensions 126 × 40 × 27.5 cm
Boxed weight 39.7 kg
Warranty Up to 2 years
Item Information
Wheel bases Bottom-mounted bases, including selected Logitech, Thrustmaster, Fanatec CSL and CSL DD, and SimXperience AccuForce models; other devices after confirming the hole pattern or with a suitable adaptor
Pedals Selected sets from major manufacturers where the dimensions and holes match the two sliding plates
Seats Side-mounted bucket seats; Next Level Racing recommends its Elite seats
Motion Plus Platform Directly compatible
Motion Platform V3 and Traction Plus Require the separately sold Elite Motion Adaptor Upgrade Kit
Accessories Selected Elite monitor mounts, keyboard and mouse trays, tablet and button-box mounts, Elite Shifter Add-on, wheel-base adaptors and floor mat

Important: the Wheelplate Edition is intended primarily for bottom-mounted wheel bases. Confirm the exact hole pattern, enclosure dimensions and any adaptor requirement before purchase.

1. What is the Next Level Racing F-GT Elite Lite Wheelplate Edition?

It is an adjustable aluminium-profile cockpit for Formula, GT, Hybrid, Truck and Tank positions. The package includes the frame and hardware mounts but does not include a seat or electronics.

2. What is the official product SKU?

The official manufacturer SKU is NLR-E032.

3. How does the Wheelplate version differ from the Front & Side Mount version?

The Wheelplate is intended mainly for wheel bases bolted from below. The Front & Side Mount version includes dedicated components for front- or side-mounted bases.

4. Which driving positions can be configured?

The cockpit supports Formula, GT, Hybrid, Truck and Tank positions. Changing the layout requires adjustment of the seat, wheel and pedals.

5. Is a seat included?

No. Steel side-mount seat brackets and the NLR slider system are included, but the seat itself is sold separately.

6. How can the pedals be adjusted?

Two sliding plates provide distance, height and angle adjustment. Laser-etched markings help align both sides evenly.

7. Which users does the cockpit support?

The manufacturer states a user-height range of 120–210 cm and a maximum user weight of 150 kg.

8. Is the cockpit compatible with motion platforms?

Yes. Motion Plus is supported directly. Motion Platform V3 and Traction Plus require the separately sold Elite Motion Adaptor Upgrade Kit.

9. Can a shifter and handbrake be installed?

Yes, by adding a compatible Elite accessory such as the Elite Shifter Add-on. A shifter mount is not part of the standard NLR-E032 package.

10. Are the wheel, pedals and monitor included?

No. The wheel base, steering wheel, pedals, seat, monitor, shifter, handbrake and other electronics shown in product images are sold separately.

11. How long is the warranty on Next Level Racing products?

Simline is the largest authorised distributor of Next Level Racing products in Poland and Europe. As an authorised Next Level Racing partner, all products from this brand are covered by full warranty protection for up to two years within the European Union, in accordance with Next Level Racing warranty terms.

12. How do I submit a warranty claim for a Next Level Racing product?

Simline.eu is an authorised Next Level Racing partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or nextlevelracing@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

  • Next Level Racing F-GT Elite Lite frame with 80 × 40 mm aluminium base profiles
  • Adjustable Wheelplate
  • Two sliding pedal plates
  • Side-mount steel seat brackets
  • Next Level Racing seat-slider system
  • Tool holder with M6 and M8 Allen keys
  • Height-adjustable shock-absorbing feet
  • 6 cable-management clips
  • ButtKicker Gamer adaptor
  • Bolts for hard-mounting the wheel and pedals
  • Next Level Racing custom profile end caps
  • Magnetic spirit level
  • Colour assembly booklet
  • Access to digital instructions and assembly video

Not included: seat, wheel base, steering wheel, pedals, shifter, handbrake, monitor or other electronics.
