Simgasm Pro White

Name: Simgasm Pro White
Brand: SIMGASM
SKU: 1413
Price: 2397.56 PLN
Availability: OutOfStock

Reference C160-BWM-WIT

2,397.56zł

PREORDER

SIMGASM Pro White combines 40 x 160 mm aluminium profiles with black mounting hardware to create a bright cockpit for demanding Direct Drive builds. The 600 x 1350 x 890 mm frame weighs 45 kg and adds steel reinforcement, a 300 kg pedal-deck rating, integrated cable routing and motion readiness.

Select Bottom, Front, Side or Asetek Front Mount. The Apex arm is included; the seat, slider, electronics and motion system remain separate products.

Wheelbase Mount Variant

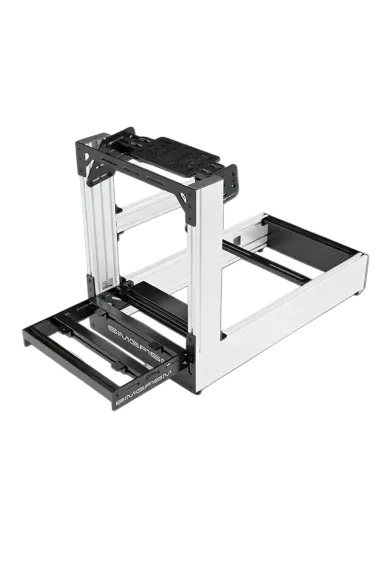

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 23.98zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

A white flagship cockpit designed as part of the room

SIMGASM Pro White is not intended to disappear into the background. Its 40 x 160 mm profiles create an architectural shape for a gaming room, studio or presentation simulator, while black brackets and electronics separate functional points from the frame.

Colour does not reduce the specification. White retains the 45 kg structure, steel reinforcement, 300 kg pedal rating, three cable zones and motion readiness. Compare other finishes under sim racing cockpits.

Use hardware contrast to organise the installation

Dark wheelbases, pedals and cables remain easy to trace against white profiles. Front, centre and rear passthrough zones hide part of the harness, while exposed sections can follow the chassis without crossing movable brackets.

The 600 x 1350 x 890 mm dimensions exclude the seat, access and display. Motion also needs safe actuator travel. Choose a screen solution from TV and monitor stands.

Build braking and steering around driver ergonomics

Begin adjustment with the seat. Once the hips and back are supported, place the pedals and steering axis around the driver. This can create an upright GT posture or a lower Formula-like configuration.

The pedal deck carries a 300 kg rated braking load without guaranteeing every bolt pattern. A powerful wheelbase also need not run at 100 percent: lower output can preserve headroom and reduce clipping. Compare Direct Drive wheelbases before selecting the mount.

Black mounting hardware on white profiles

Bottom, Front, Side and Asetek Front Mount cover different housing points. Regular front hardware serves listed Fanatec, Simucube and VRS. Alpha EVO can use the SIMAGIC MB-F, while Asetek needs its dedicated mount.

The boxes contain profiles, brackets, selected support, Apex arm, heel rest, feet, fasteners, tools, gloves and guide. Seat, slider, controls, display and motion are separate. Select seating from sim racing seats and complete the build with sim rig accessories.

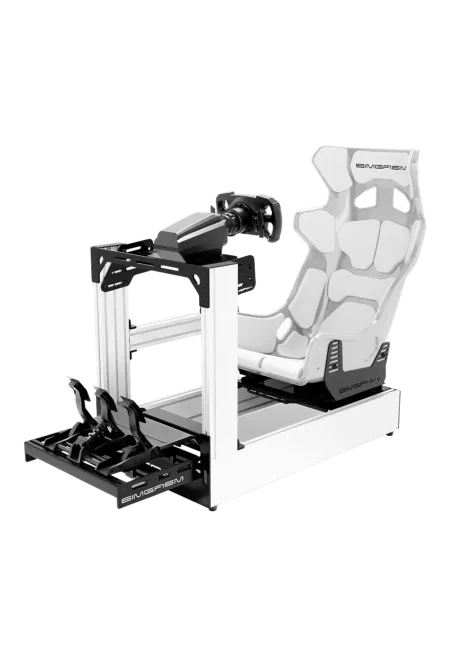

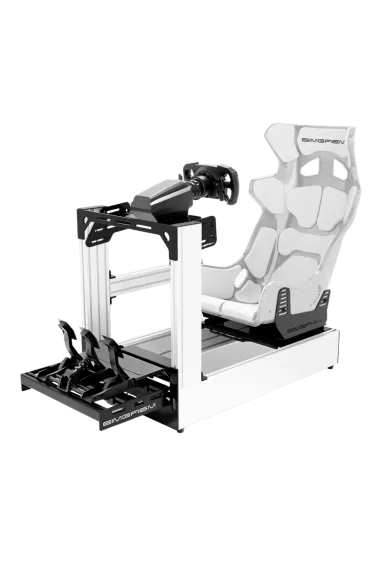

Simgasm Pro White - front view of example setup

A white flagship cockpit designed as part of the room

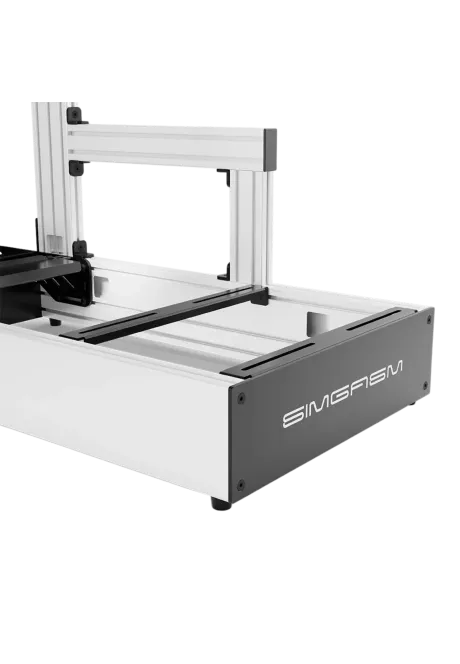

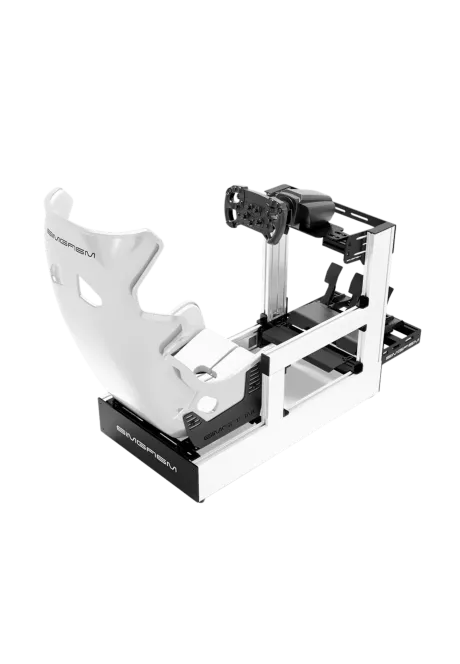

Simgasm Pro White - rear view of example setup

Use hardware contrast to organise the installation

The 600 x 1350 x 890 mm dimensions exclude the seat, access and display. Motion also needs safe actuator travel. Choose a screen solution from TV and monitor stands.

Build braking and steering around driver ergonomics

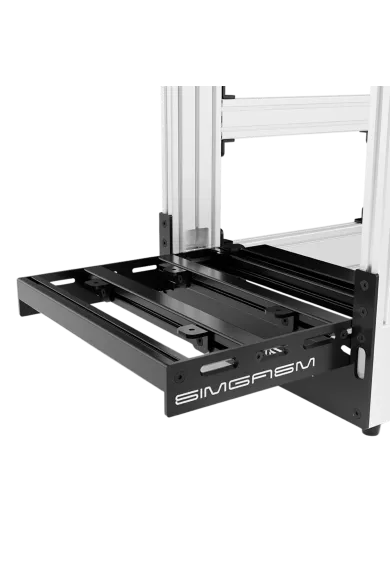

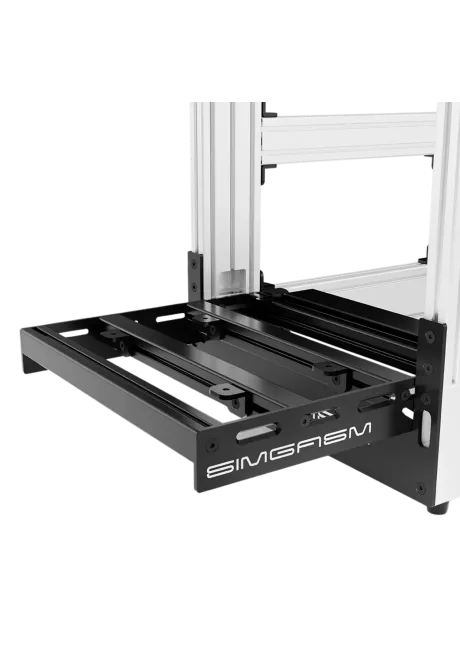

Simgasm Pro White - pedal deck zoom view

Black mounting hardware on white profiles

Technical specification - SIMGASM Pro White
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C160-BWM-WIT
Material	Aluminium profiles and metal mounting components
Main profile	40 x 160 mm
Colour	White with black mounting hardware
Assembled dimensions	600 x 1350 x 890 mm (W x L x H)
Weight	45 kg
Load and preparation
Manufacturer wheelbase guidance	Pro recommended above 40 Nm; SIMGASM does not publish an upper torque limit
Rated braking load	Up to 300 kg at the pedal deck
Position adjustment	Component depth, height and angle; GT or Formula-style layout
Cable routing	Integrated cable passthroughs
Motion preparation	Motion-ready; motion hardware sold separately
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake arm	Apex side-profile mounting arm
Number of boxes	2
Box dimensions	Box 1: 1050 x 220 x 200 mm; box 2: 615 x 270 x 110 mm
Included	Profiles, brackets, selected wheelbase mount, Apex arm, heel rest, rubber feet, bolts, tools, gloves and instructions
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display, stand and motion system
Manufacturer warranty	2 years

SIMGASM Pro White - wheelbase mount compatibility
Variant	Compatible models and families	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra, Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; Asetek La Prima, Forte and Invicta; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses underside threads. Compare the plate pattern with the exact wheelbase revision. Fit depends on the hole pattern and selected mount. SIMGASM recommends Pro above 40 Nm but does not publish an upper torque limit.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport, Pro and Ultimate plus Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not fit SIMAGIC or replace the Asetek system.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra; Conspit ARES 20 Platinum.	Uses side housing points. Confirm model and revision before ordering.
Front Mount + SIMAGIC MB-F	SIMAGIC Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra with the SIMAGIC MB-F adapter.	MB-F uses the wheelbase side points and converts them to front mounting. Without the adapter, the regular Front Mount does not attach Alpha EVO bases directly.
Asetek Front Mount	Asetek La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm.	Dedicated Asetek system; the regular Front Mount is not a substitute.
