Model:

Simgasm Sport White

Name: Simgasm Sport White
Brand: SIMGASM
SKU: 1410
Price: 2031.71 PLN
Availability: OutOfStock

Reference C120-BWM-WIT

2,031.71zł

PREORDER

SIMGASM Sport White combines a bright 40 x 120 mm aluminium frame with contrasting black mounting hardware, giving the wheelbase, pedals and cable layout clear visual definition. The 600 x 1350 x 800 mm cockpit has a pedal deck rated to 300 kg, integrated cable passthroughs and motion-ready architecture.

Four wheelbase-mount variants are available. The seat, slider, controls and monitor are selected separately. An Apex side arm is included.

Wheelbase Mount Variant

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 20.32zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

A white Direct Drive cockpit for a brighter room

SIMGASM Sport White is designed for a simulator that remains part of the room rather than disappearing behind dark hardware. White 40 x 120 mm profiles form the main visual body, while black brackets, wheelbase housings and pedals provide clear contrast. A matching white seat can create one continuous shape; a black seat defines the driver area more strongly.

The finish does not reduce the Sport specification. This edition retains the 300 kg pedal-deck rating, integrated cable passthroughs, motion-ready planning and four wheelbase-mount choices. Compare other colours and frame tiers under sim racing cockpits. Accessories not included.

Plan the complete footprint, not only the white frame

The chassis measures 600 mm wide, 1350 mm long and 800 mm high. Those dimensions cover the rig itself, so a room plan should add the seat envelope, driver access and the monitor position. A future motion system also needs travel clearance and a safe gap from walls, shelves or furniture.

Dark cables and adjustment points stand out clearly against the lighter profiles. Integrated passthroughs let part of the harness move inside the structure, preserving a more deliberate outline as the cockpit gains new controls. Brackets, trays and organisation parts can be selected from sim rig accessories.

Support firm braking and keep torque in reserve

The pedal deck carries a stated braking-load rating of 300 kg, giving it structural reserve for firm load-cell settings and selected hydraulic systems. Compatibility still depends on the bolt pattern. Pedal angle and reach should also allow the driver to apply force without lifting the heel or shifting the hips in the seat.

SIMGASM recommends Sport or Pro above 26 and up to 40 Nm. A stronger base may still match the bracket, but it should not automatically run at full torque. Restricting output to the safe chassis range leaves the benefit of transient headroom. With driver strength and game gain balanced together, that reserve helps reduce clipping. Browse current Direct Drive wheelbases.

Use black mounts to define the final white build

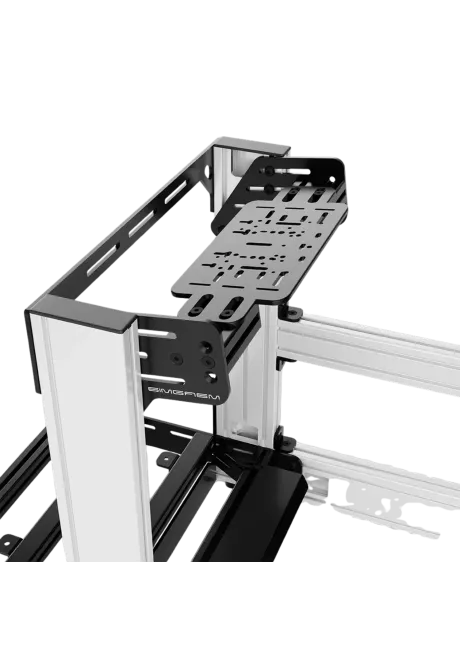

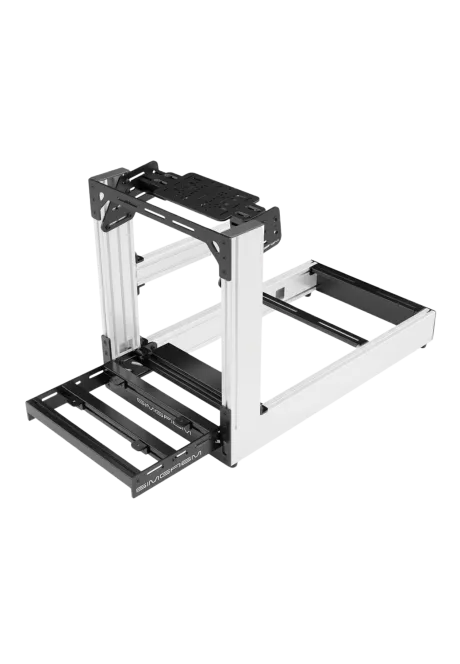

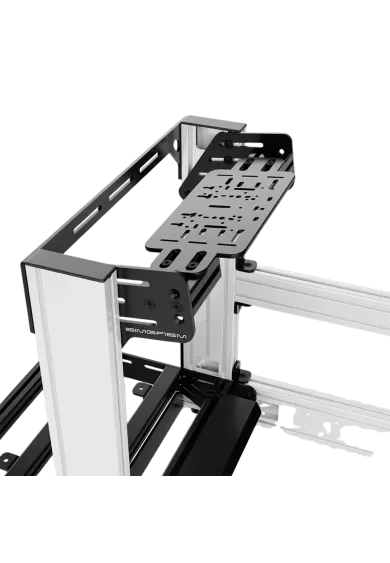

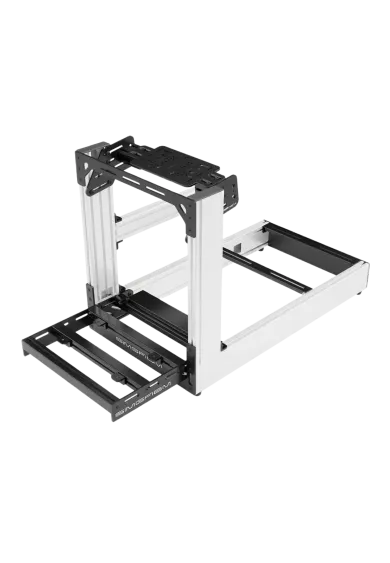

Black mounting hardware creates distinct junctions on the white frame. Bottom Mount uses underside threads, Front Mount covers supported Fanatec, Simucube and VRS patterns, and Side Mount serves listed Fanatec, MOZA, SIMAGIC and Conspit housings. Asetek La Prima, Forte and Invicta use the dedicated Asetek Front Mount.

Profiles, brackets, the selected wheelbase support, Apex arm, heel rest, rubber feet, hardware, tools, instructions and gloves are included. The seat, slider, controls, side devices, display, stand and motion components are separate. Complete the cockpit through sim racing seats and TV and monitor stands.

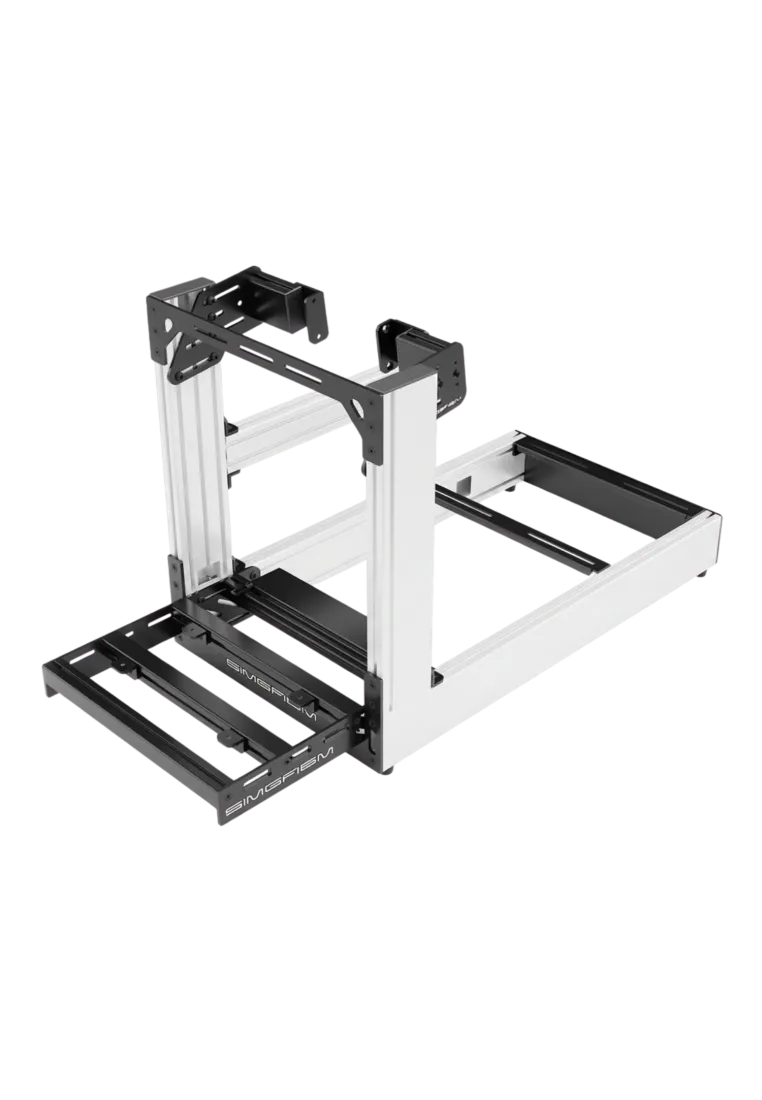

Simgasm Sport White - example setup front view

A white Direct Drive cockpit for a brighter room

Simgasm Sport White - example setup rear view

Plan the complete footprint, not only the white frame

Simgasm Sport White - profiles connection view

Support firm braking and keep torque in reserve

Simgasm Sport White - pedal deck zoom view

Use black mounts to define the final white build

Simgasm Sport Manual

Download (6.94MB)

Technical specification - SIMGASM Sport White
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C120-BWM-WIT
Material	Aluminium profiles and metal mounting components
Main profile	40 x 120 mm
Colour	White with black mounting hardware
Assembled dimensions	600 x 1350 x 800 mm (W x L x H)
Weight	38.94 kg
Load and preparation
Manufacturer wheelbase guidance	Sport or Pro above 26 and up to 40 Nm; Pro recommended above 40 Nm
Rated braking load	Up to 300 kg at the pedal deck
Position adjustment	Component depth, height and angle; GT or Formula-style layout
Cable routing	Integrated cable passthroughs
Motion preparation	Motion-ready; motion hardware sold separately
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake arm	Apex side-profile mounting arm
Number of boxes	2
Box dimensions	Box 1: 1050 x 190 x 200 mm; box 2: 615 x 270 x 110 mm
Included	Profiles, brackets, selected wheelbase mount, Apex arm, heel rest, rubber feet, bolts, tools, gloves and instructions
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display, stand and motion system
Manufacturer warranty	2 years

SIMGASM Sport White - wheelbase mount compatibility
Variant	Compatible models and families	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra, Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; Asetek La Prima, Forte and Invicta; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses underside threads. A base above 40 Nm may fit mechanically but needs output limiting or the Pro cockpit.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport, Pro and Ultimate plus Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not fit SIMAGIC or replace the Asetek system.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra; Conspit ARES 20 Platinum.	Uses side housing points. Confirm model and revision before ordering.
Front Mount + SIMAGIC MB-F	SIMAGIC Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra with the SIMAGIC MB-F adapter.	MB-F uses the wheelbase side points and converts them to front mounting. Without the adapter, the regular Front Mount does not attach Alpha EVO bases directly.
Asetek Front Mount	Asetek La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm.	Dedicated Asetek system; Invicta is within the Sport band.

SIMGASM Sport White - questions and answers

1. Is Sport White structurally different from the other colours?

No. It retains the 40 x 120 mm profiles, 300 kg pedal-deck rating, cable passthroughs and motion-ready construction. Its distinction is the white frame with black mounting hardware.

2. Should I use a white or black seat?

A white seat creates a continuous visual shape, while black reinforces the contrast of the mounts. Correct brackets, slider and driving posture are more important than colour.

3. How should I plan around the 600 x 1350 x 800 mm frame?

Add room for the seat, driver access and display stand. A future motion system also needs travel clearance and a safe distance from nearby furniture.

4. Will dark cables remain visible?

They create more contrast, but integrated passthroughs allow much of the harness to run inside the profiles. External sections can follow the frame with suitable clips.

5. Which bases need Asetek Front Mount?

The dedicated choice covers Asetek La Prima, Forte and Invicta. Do not substitute the regular Front Mount intended for different patterns.

6. How can I front-mount a SIMAGIC wheelbase?

Front Mount supports SIMAGIC Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra when used with the SIMAGIC MB-F adapter. The adapter uses the wheelbase side points and transfers the connection to the front.

7. Can a stronger wheelbase reduce clipping?

Extra torque capacity can preserve headroom for sharp effects. The base must still run within the safe chassis range, with driver output and game gain configured together.
