Simgasm Club Black bottom mount rear view

Model:

Simgasm Club Black

Name: Simgasm Club Black
Brand: SIMGASM
SKU: 1405
Price: 1300 PLN
Availability: OutOfStock

Reference C80-BWM-BLK

1,300.00zł

PREORDER

SIMGASM Club Black is a modular 40 x 80 mm aluminium-profile sim racing cockpit. Its 580 x 1350 x 700 mm frame supports Direct Drive wheelbases up to 26 Nm and has a pedal deck rated for braking loads up to 200 kg. Choose Bottom, Front, Side or Asetek Front Mount.

Wheelbase Mount Variant

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 13.00zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

SIMGASM Club Black - a stronger chassis for regular racing

SIMGASM Club Black is a 40 x 80 mm aluminium-profile cockpit developed for regular racing and future upgrades to stronger Direct Drive hardware. Its neutral black finish brings components from different brands into one coherent setup without competing with the display.

The assembled chassis measures 580 x 1350 x 700 mm. Club sits between the compact Hobby range and the more extensively equipped Sport platform, adding wheelbase and braking headroom without moving to a 40 x 120 mm main profile. Alternative sizes and layouts are available under sim racing cockpits. Seat with brackets and slider are not included.

40 x 80 mm profiles and adjustable GT or Formula geometry

The main structure of the SIMGASM Club Black uses 40 x 80 mm aluminium profiles. Their slots allow the steering section, pedal deck and seat mounting points to move in depth, height and angle, letting the driving position be built around the user. The cockpit itself weighs 20.5 kg.

The layout can be arranged for an upright GT posture or moved towards a lower Formula-style position. The final range also depends on the seat, slider and brackets, which are not supplied with the chassis. Suitable options can be compared under sim racing seats.

Four wheelbase mounts for systems up to 26 Nm

One wheelbase mounting system is selected when ordering the SIMGASM Club Black. Bottom Mount uses threads beneath the housing. The regular Front Mount serves compatible Fanatec, Simucube and VRS bases, while Side Mount uses the side points of selected Fanatec, MOZA, SIMAGIC and Conspit models. Asetek Front Mount is a separate layout for supported Asetek hardware.

SIMGASM recommends the Club tier for wheelbases rated up to and including 26 Nm. Matching bolt holes do not make a higher-output base suitable for this chassis. Confirm the complete wheelbase name, mounting layout and rated torque before ordering. Current hardware can be reviewed under Direct Drive wheelbases.

200 kg pedal-deck rating, Core arm and room to expand

The pedal deck carries a stated braking-load rating of up to 200 kg. This figure describes force applied to the pedal platform, not driver weight. It provides useful reserve for many load-cell sets, although the bolt pattern of the pedals still has to match the deck.

The package contains the black profiles, structural brackets, one selected wheelbase mount, a Core side arm for a compatible shifter or handbrake, bolts, tools, assembly guide and white gloves. The seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display and monitor stand are separate purchases.

A keyboard arm, mouse tray, cable-management parts and display structure can be added as the simulator develops. Suitable modules are available under sim rig accessories and TV and monitor stands.

SIMGASM Club Black - front view with added seat

SIMGASM Club Black - a stronger chassis for regular racing

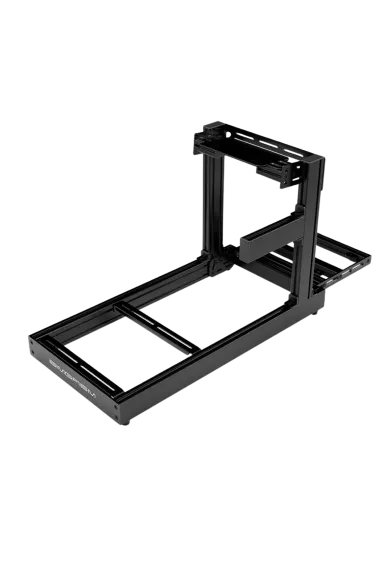

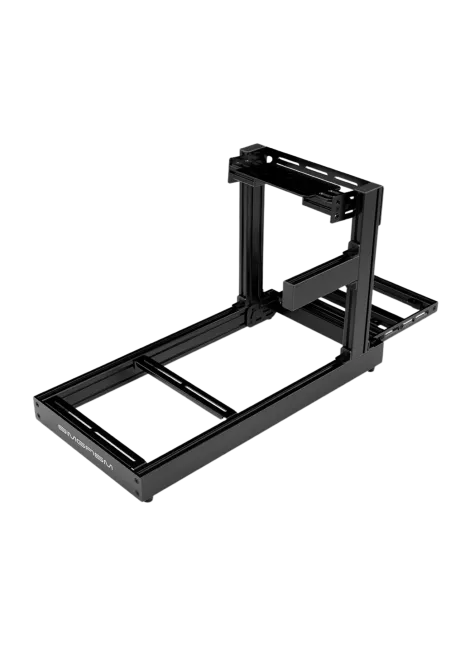

SIMGASM Club Black - rear view bottom mount

40 x 80 mm profiles and adjustable GT or Formula geometry

SIMGASM Club Black - front view side mount

Four wheelbase mounts for systems up to 26 Nm

SIMGASM Club Black - front view front mount

200 kg pedal-deck rating, Core arm and room to expand

A keyboard arm, mouse tray, cable-management parts and display structure can be added as the simulator develops. Suitable modules are available under sim rig accessories and TV and monitor stands.

Simgasm Club Manual

Download (6.67MB)

Technical specification - SIMGASM Club Black
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C80-BWM-BLK
Material	Aluminium profiles and metal brackets
Main profile	40 x 80 mm
Colour	Black
Additional livery	None
Assembled dimensions	580 x 1350 x 700 mm (W x L x H)
Weight	20.5 kg
Adjustment and load rating
Position adjustment	Depth, height and component angle
Driving position	GT or Formula-style layout, depending on seat and setup
Recommended wheelbase torque	Up to and including 26 Nm
Rated braking load	Up to 200 kg at the pedal deck
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake support	Core side-profile mounting arm
Number of boxes	1
Package dimensions	1010 x 220 x 130 mm
Included	Profiles, brackets, selected wheelbase mount, Core arm, hardware, tools, gloves and assembly guide
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, monitor and stand
Warranty	2 years

SIMGASM Club Black - questions and answers

1. What is the SIMGASM Club Black?

It is a modular sim racing cockpit built from 40 x 80 mm aluminium profiles. The black version has no additional livery and forms a permanent chassis for a separately selected seat and driving hardware.

2. Which wheelbase mounts can be selected?

Available layouts are Bottom Mount, Front Mount, Side Mount and Asetek Front Mount. The package contains the single option selected for the order, not all four systems.

3. What Direct Drive torque is recommended for the Club tier?

SIMGASM assigns the Club range to wheelbases rated up to and including 26 Nm. Hardware above 26 Nm requires a Sport or Pro cockpit or in case of avoiding clipping You can buy for example even 40 Nm wheelbase but reduce torque for 26 Nm. Any wheelbase torque is compatible, just set torque not exceeding higher than 26 Nm.

4. Does the regular Front Mount fit a SIMAGIC wheelbase?

No. The standard Front Mount is intended for supported Fanatec, Simucube and VRS models. Compatible SIMAGIC bases should be checked against Bottom Mount or Side Mount.

5. Are the seat and slider included?

No. The seat, slider and side brackets are separate components. Available options can be reviewed under sim racing seats.

6. Is a shifter support supplied?

Yes. A Core side-profile arm is included for a compatible shifter or handbrake. The control device itself is not part of the cockpit package.

7. What is the assembled footprint?

The frame measures 580 mm wide, 1350 mm long and 700 mm high. Allow additional room for the seat, display, cables and comfortable entry into the cockpit.

8. Can the pedal deck take load-cell pedals?

It is rated for braking loads up to 200 kg, providing useful reserve for many load-cell sets. The pedal bolt pattern must still match the available holes in the deck.

9. Is the cockpit compatible with PC, Xbox and PlayStation?

The chassis is passive and does not determine platform support. PC or console compatibility comes from the fitted wheelbase, steering wheel, pedals and their connection method.

10. Can the SIMGASM Club Black be expanded later?

Yes. The profile slots accept compatible monitor, keyboard and mouse supports along with other sim rig accessories.

SIMGASM Club Black - wheelbase mount compatibility
Mount	Compatible examples up to 26 Nm	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO and Alpha EVO Pro; Simucube 3 Sport and Simucube 3 Pro; Asetek La Prima and Forte; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses threaded points beneath the wheelbase. Always compare the deck pattern with the exact hardware revision.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport/Pro plus Simucube 3 Sport and Simucube 3 Pro; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not fit any SIMAGIC wheelbase. Simucube 2/3 Ultimate exceeds the 26 Nm recommendation.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO and Alpha EVO Pro; Conspit ARES 20 Platinum.	Match the bracket to the exact housing. SIMAGIC Alpha EVO Ultra at 28 Nm exceeds the Club recommendation.
Asetek Front Mount	Asetek La Prima 12 Nm and Forte 18 Nm.	Invicta 27 Nm fits the mounting system but exceeds the Club recommendation by 1 Nm. Choose Sport or Pro for that wheelbase.
