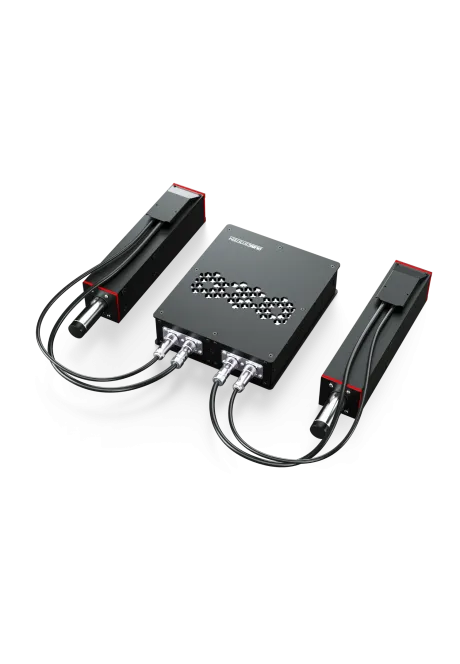

Name: Qubic System QS-210
Brand: Qubic System
SKU: 1519
Price: 15174.8 PLN
Availability: BackOrder

Telemetry-driven QS-210 motion

Designed and manufactured in Poland

QS-210 is a motion system manufactured in Poland that uses game telemetry to control cockpit movement. Four actuators in the 3DOF configuration reproduce braking, acceleration, body roll, surface changes and suspension movement. Each actuator provides 60 mm of travel.

Setup is handled through the free Qubic Manager software developed by Motion Systems engineers. Its washout filters organise incoming game data and keep the platform within its available movement range. Individual effects can be adjusted separately to match the selected simulator and the driver's preferences.

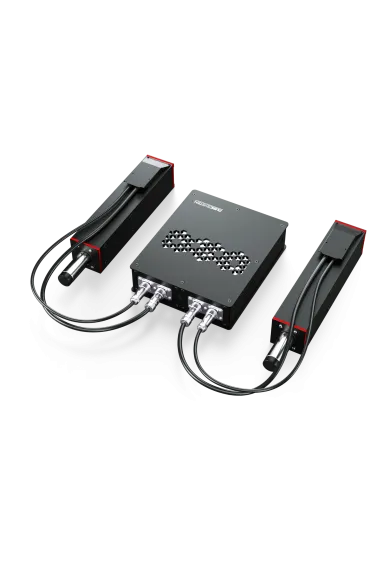

Starter Set: a complete 2DOF configuration

The Starter Set provides everything needed to run a motion system without selecting the controller and power hardware separately. Two QS-210 actuators offer 60 mm of travel each and move the cockpit in a 2DOF arrangement. Another actuator pair can be added later.

The QS-MC6 connects the system to the PC. It also includes a MOTION-LOCK Switch for stopping movement before entering the cockpit or working on the rig.

Included:

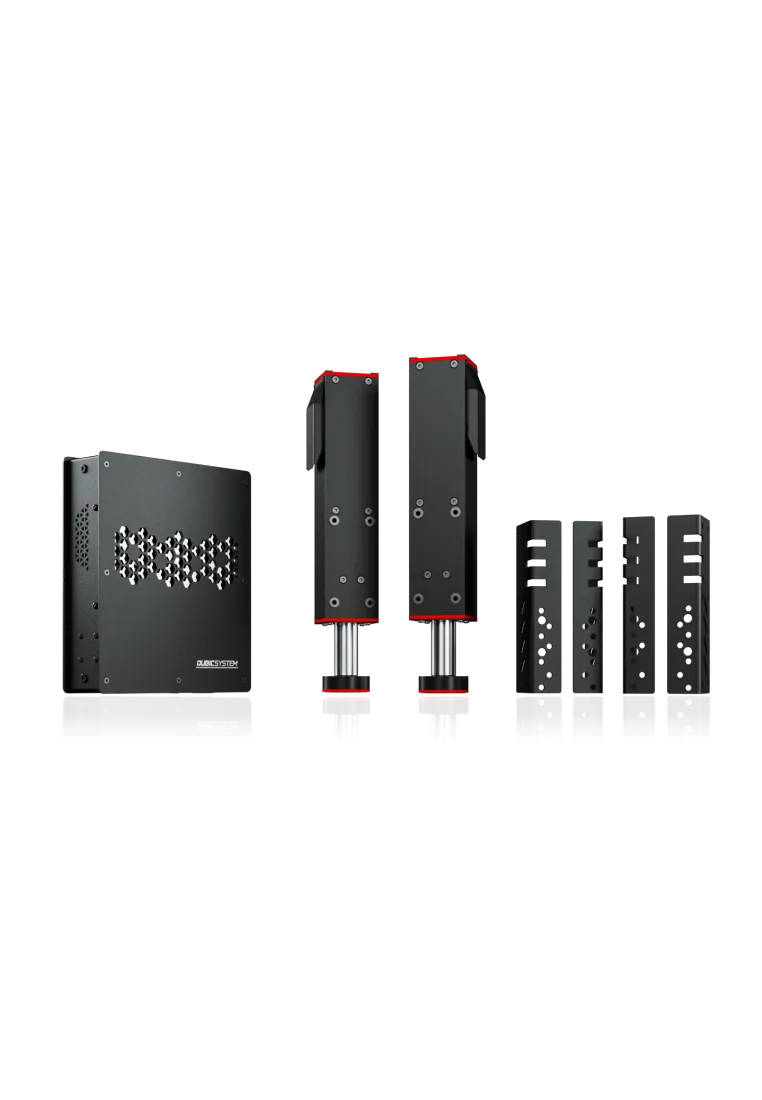

QS-210 set with two actuators, power cabinet, brackets and flat-profile adapters,
QS-MC6 with M10 controller and MOTION-LOCK Switch.

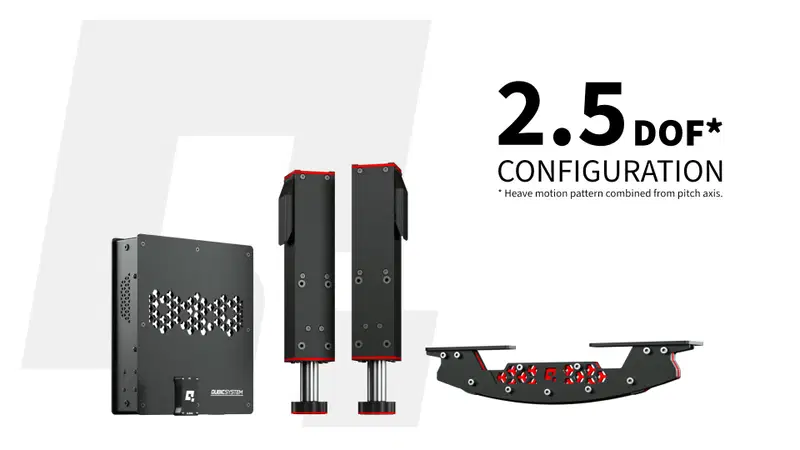

Pivot Set: more movement from two actuators

The Pivot variant combines two QS-210 actuators with a QS-Pivot support installed on the opposite side of the cockpit. Qubic System describes this arrangement as 2.5DOF. It adds another type of movement without requiring a four-actuator system.

QS-Pivot height is matched to the QS-210. It also works with the taller QS-220, although the cockpit may sit at a slight angle when those actuators are at mid-stroke. An aluminium-profile spacer can be used when a level starting position is required.

Included:

QS-210 set with two actuators, power cabinet, brackets and mounting adapters,
QS-Pivot with mounting hardware,
QS-MC6 with M10 controller and MOTION-LOCK Switch.

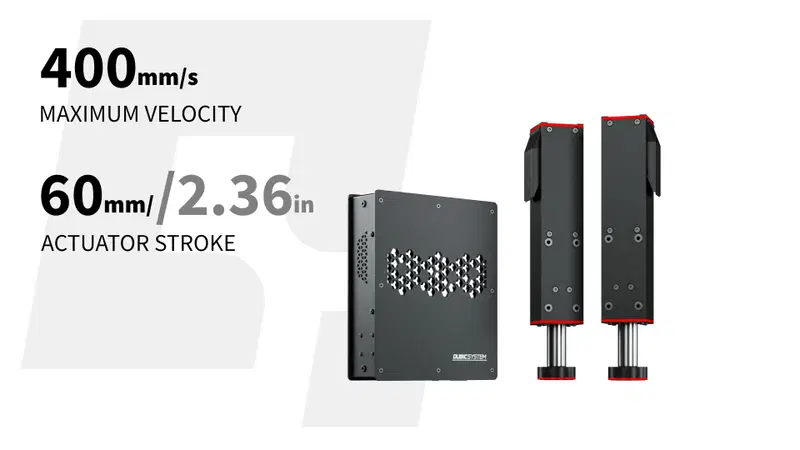

Upgrade Set: moving from 2DOF to 3DOF

This variant is intended for an existing Starter Set. It adds another pair of actuators and a second power cabinet, turning the 2DOF system into a 3DOF setup without replacing previously purchased hardware.

The second cabinet joins the working system, so another USB controller is not required. Four support points allow the left and right sides of the cockpit to move separately, making roll, kerbs and vehicle load changes easier to read.

Included:

two additional QS-210 actuators,
power cabinet, brackets and mounting adapters,
no QS-MC6, as the set uses the controller already installed in the existing system.

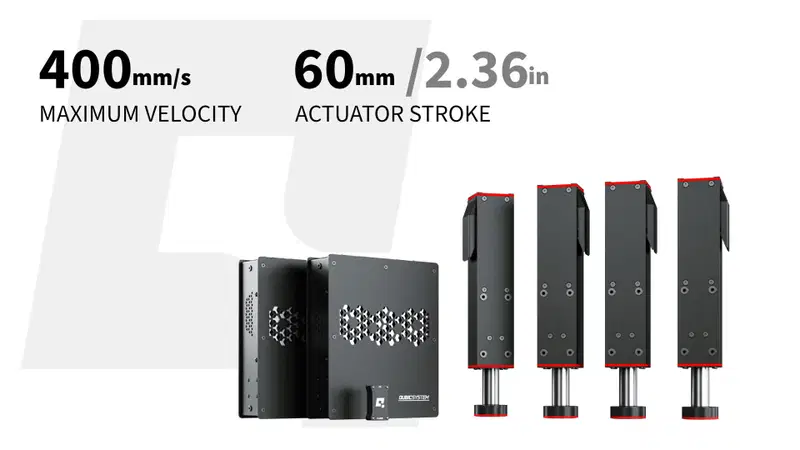

Complete QS-210 set: four-actuator 3DOF configuration

The complete 3DOF configuration includes four QS-210 actuators, two power cabinets and one QS-MC6. Each actuator provides 60 mm of travel, allowing the cockpit to respond with pitch, roll and vertical movement generated from game telemetry.

Four actuators make it easier to separate movement between the left and right sides of the rig. The driver can feel kerbs, bumps, balance changes and differences in wheel loading more clearly. Individual effects are adjusted in Qubic Manager.

Included:

four QS-210 actuators,
two power cabinets with a full set of brackets and adapters,
QS-MC6 with M10 controller and MOTION-LOCK Switch.

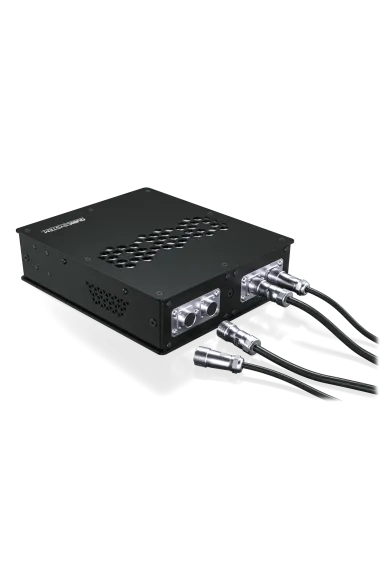

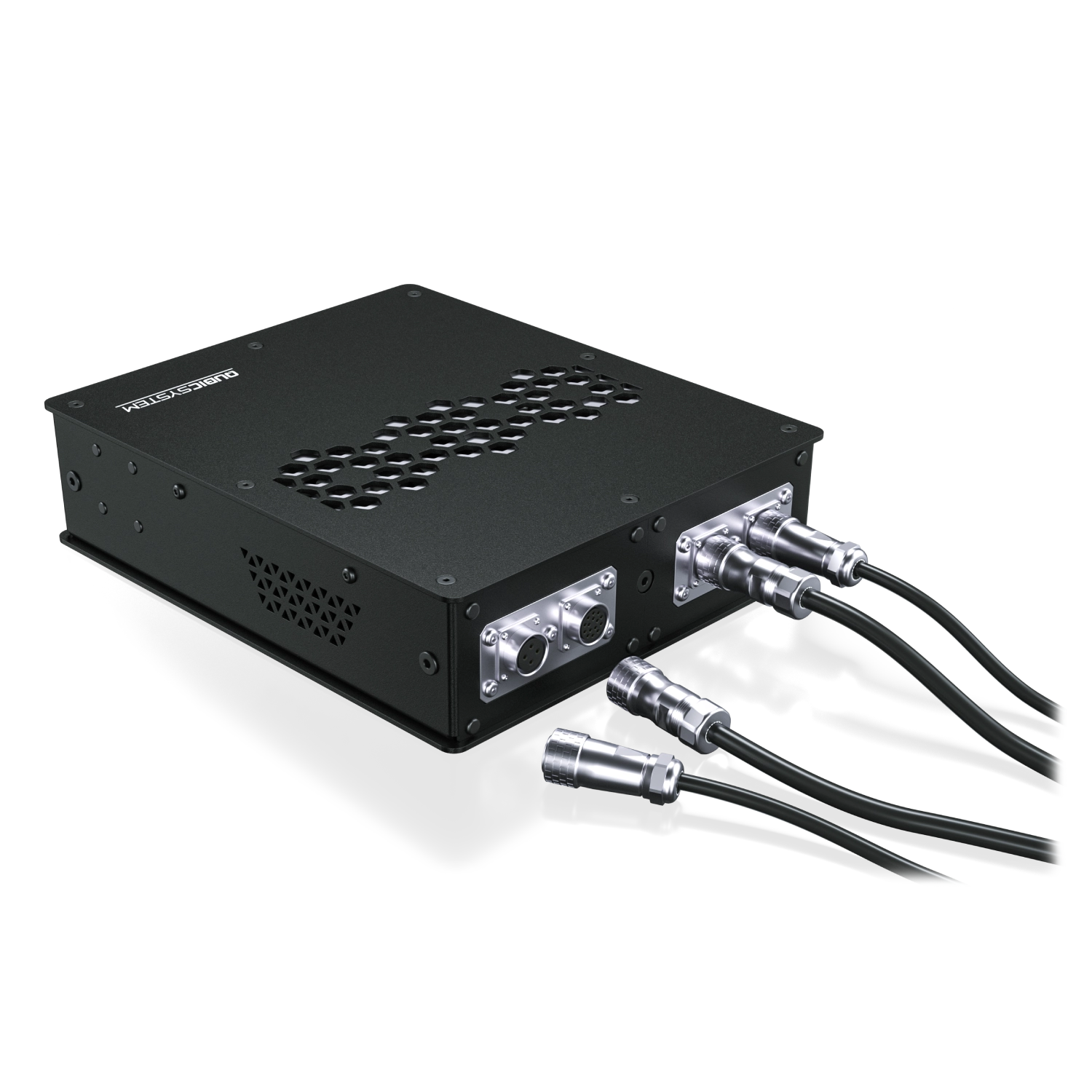

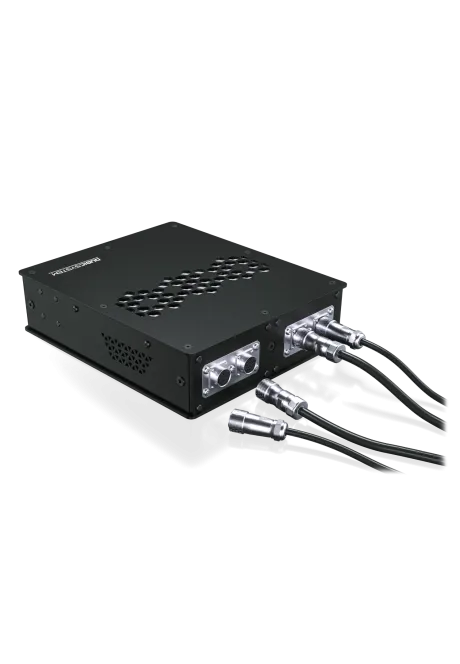

Detachable shielded connectors

Newer QS-210 actuators and power cabinets use detachable connectors with chrome-plated brass housings. Their shielded construction helps limit electromagnetic interference around signal cables and nearby equipment.

The cable does not have to be routed together with the complete actuator. The connector can be unplugged, the wiring can be placed along the frame, and the connection can then be restored. This also makes it easier to remove one component for servicing.

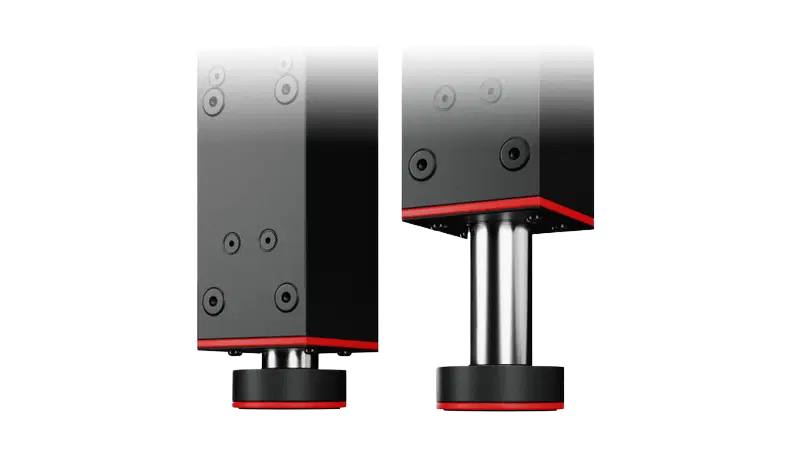

What 60 mm of travel means on the rig

Each QS-210 actuator provides 60 mm of travel. In a two-actuator or four-actuator arrangement, this range is used to create pitch, roll and vertical movement of the complete cockpit.

A short impulse can reproduce a kerb or surface bump, while a larger part of the stroke is available for braking, acceleration and changes in platform angle. Actual seat movement also depends on actuator spacing and the geometry of the frame.

Mounting, power and initial setup

The set includes the parts required to fit the QS-210 to an aluminium-profile cockpit. Once the actuators are installed, the power cabinet, QS-MC6 controller and computer must be connected according to the manufacturer's instructions.

The system accepts 115/230 V AC power. The free Qubic Manager software detects the devices, loads a game profile and controls motion intensity. Before driving, check the cable routing and the cockpit's full range of movement.

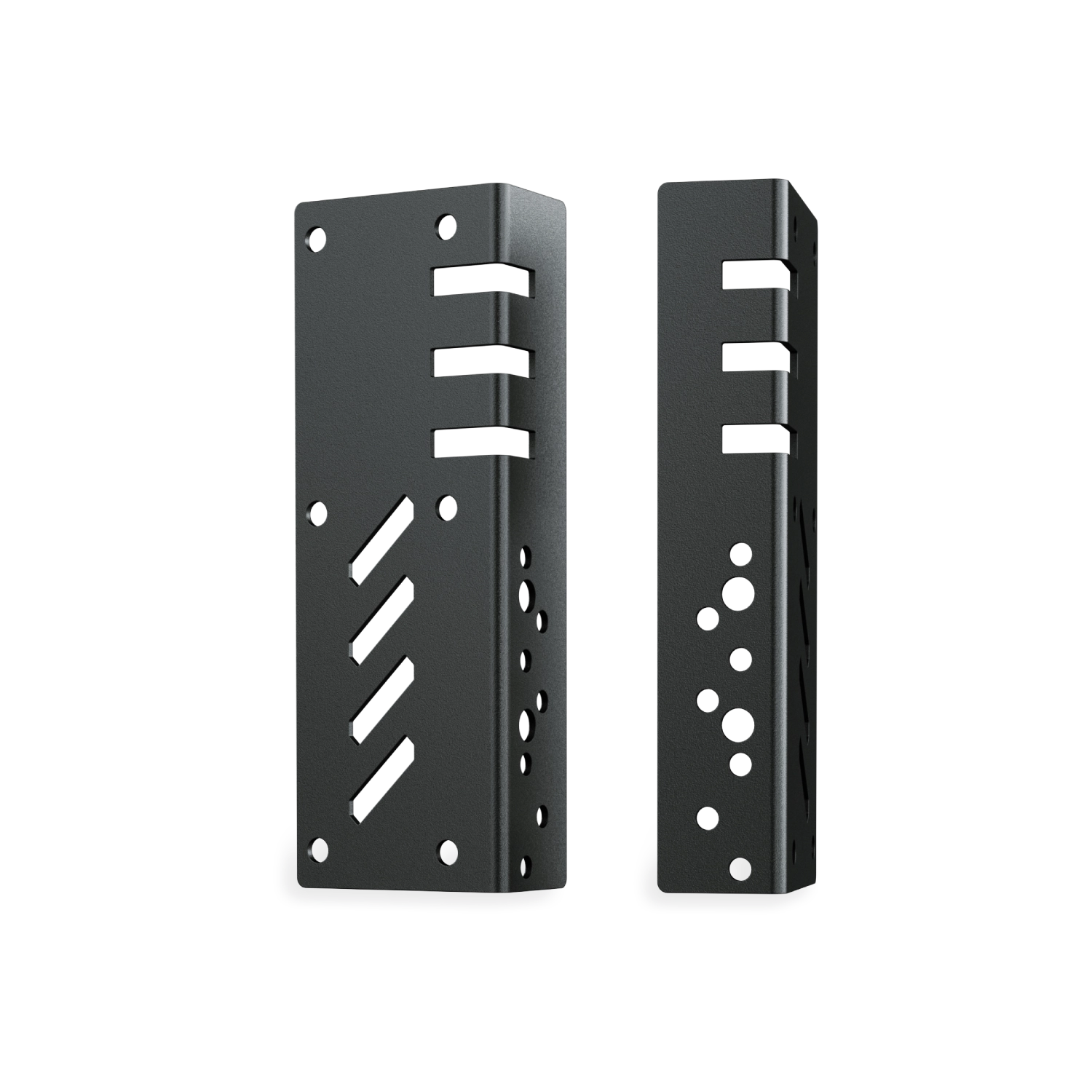

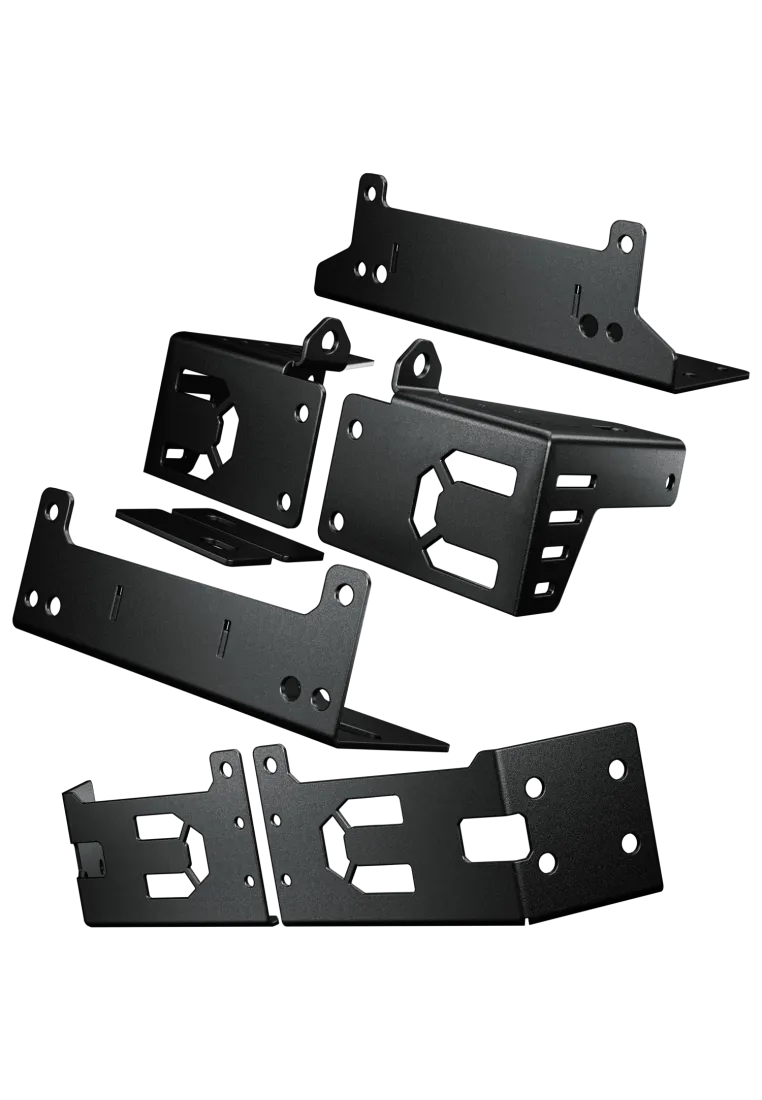

Brackets for flat profile surfaces

Dedicated brackets and adapters position the actuators against the flat sides of the cockpit profiles. Their adjustment helps match the width of the frame and maintain similar geometry on both sides of the rig.

The adapters do not compensate for a flexible cockpit. Before installation, check that the profiles, corner brackets and all joints can support the combined weight of the driver, seat and equipment while the platform is moving.

Two bracket mounting layouts

The QS-210 brackets can be installed in two layouts. This allows the actuator position to be matched to the space beside the profile and to the required height of the cockpit support point.

Use the same arrangement on both sides of the frame and leave enough clearance for the full 60 mm stroke. Before driving, run a low-intensity movement test and make sure no part catches on the frame or nearby equipment.

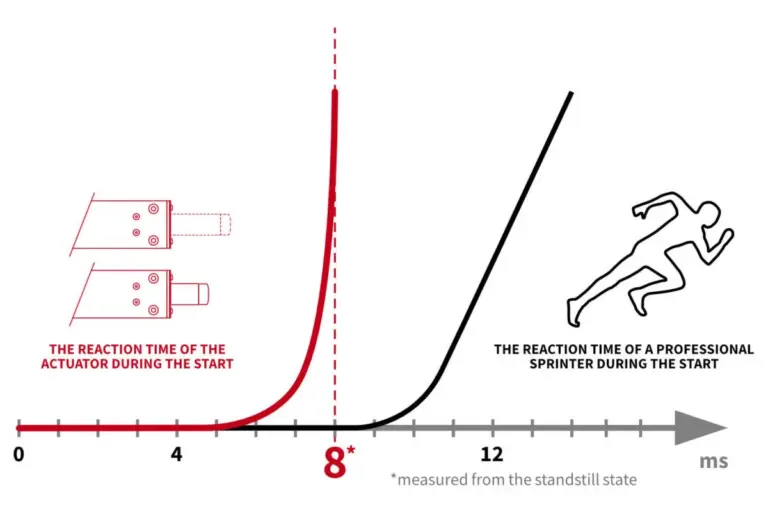

System response below 8 ms

The manufacturer specifies system latency below 8 ms. Platform movement therefore begins very shortly after telemetry data is received from the game.

This matters for quick cues such as hitting a kerb, locking a wheel or experiencing a sudden load change. When movement remains closely aligned with the image and steering feedback, the platform does not feel late to react.

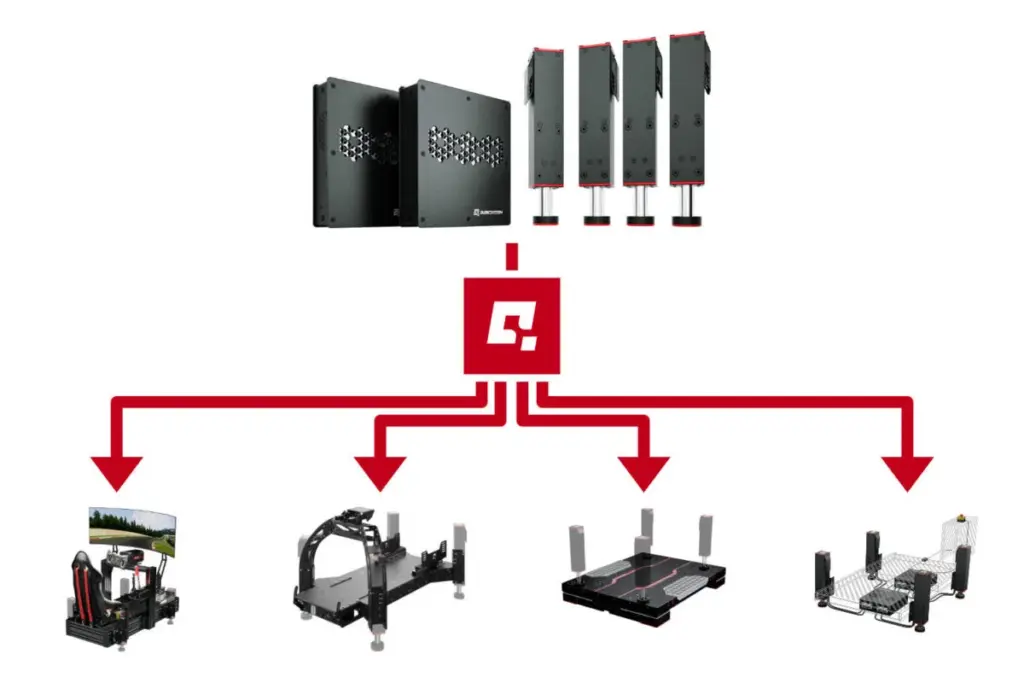

QS-210 within the Qubic System ecosystem

QS-210 can form the base of a separate motion system or become part of a larger configuration. A four-actuator arrangement fits the QS-CH1 frame, and the QS-210 can also be used with the QS-CH2 platform.

Installation on another aluminium-profile cockpit requires suitable brackets and a sufficiently rigid frame. Qubic System devices are configured in one program, so adding another module does not require a separate application.

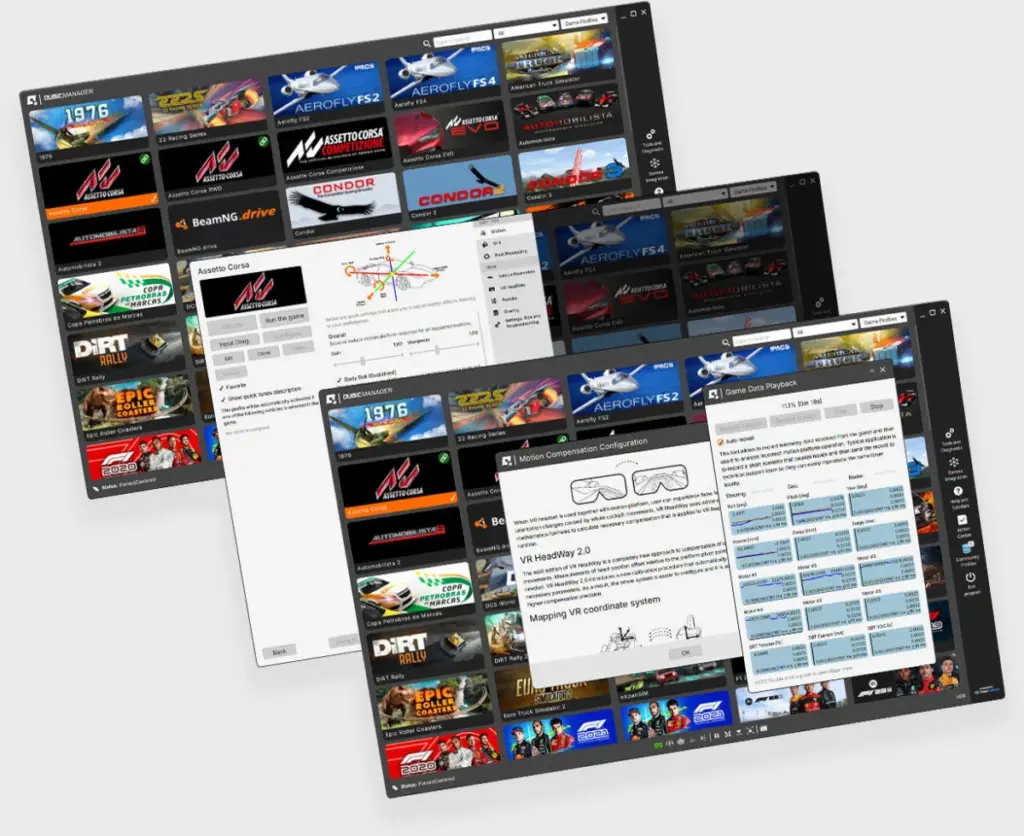

Motion control in Qubic Manager

Qubic Manager receives telemetry from supported PC titles and converts it into actuator movement. Braking, acceleration, roll, pitch, surface effects and vibration can be adjusted separately.

The software is available free of charge and receives updates that expand the list of supported titles. Check the current game list before purchase, as the available telemetry channels vary between simulators.

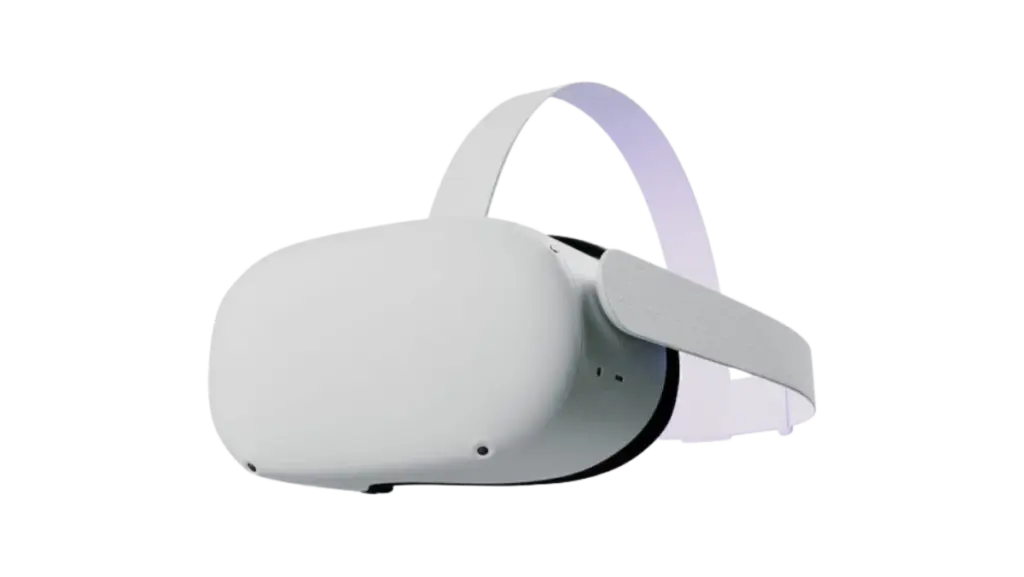

VR with motion compensation

QS-210 can be used on a rig equipped with a VR headset. The VR HeadWay function in Qubic Manager compensates for cockpit movement so the virtual viewpoint does not move together with the physical platform.

The computer must still maintain the frame rate required by the chosen headset. Route the headset cable outside the working area of the actuators and all other moving parts of the cockpit.

Warranty: 24 months
Fixing method: Side

Variant	SKU	Configuration	Purpose
Starter Set	QS-210 + QS-MC6	2 actuators, power cabinet and controller	Complete 2DOF configuration
Pivot Set	QS-210 + QS-Pivot + QS-MC6	2 actuators, power cabinet, Pivot Bar and controller	2.5DOF configuration
Upgrade Set	QS-210	2 actuators and power cabinet, without QS-MC6	Upgrade an existing 2DOF setup to 3DOF
3DOF Configuration	2 × QS-210 + QS-MC6	4 actuators, 2 power cabinets and controller	Complete 3DOF system

Parameter	Data
SKU	QS-210
Type	Modular linear-actuator motion system
Architecture	2DOF / 2.5DOF / 3DOF
Actuator travel	60 mm
Maximum payload	Performance: 200 kg; Heavy Duty: 250 kg
Maximum velocity	Performance: 400 mm/s; Heavy Duty: 300 mm/s
Maximum acceleration	Performance: up to 0.6 G; Heavy Duty: up to 0.4 G
Q-Mode	Not available for QS-210
Vibration frequency range	0–100 Hz
Maximum control frequency	1000 Hz
Weight of one QS-210 set	30 kg
Single actuator dimensions	106 × 92 × 517 mm
Power	120/230 V AC ±10%, 50–60 Hz, single phase, protective earth and neutral
Software	Qubic Manager; free licence according to the manufacturer
Country of manufacture	Poland, European Union

Item	Status	Notes
Windows PC	Required	USB connection through QS-MC6
Qubic Manager	Compatible	Game profiles, effect configuration and diagnostics
Aluminium-profile cockpit	Conditionally compatible	The structure must withstand dynamic loads; brackets and adapters are included with the relevant variant
QS-Pivot	Optional / included with Pivot Set	Creates a 2.5DOF configuration
QS-CH1	Compatible	Can create a 3DOF system with the QS-CH1 frame
QS-CH2	Compatible	Adds surge and yaw axes
VR headsets	Supported	Qubic Manager provides VR HeadWay motion compensation

1. What is the Qubic System QS-210?

It is a set of industrial linear actuators, a power cabinet and — depending on the variant — a QS-MC6 controller for building a 2DOF, 2.5DOF or 3DOF motion platform.

2. How do the four variants differ?

The Starter Set creates 2DOF, the Pivot Set adds a pivot support, the Upgrade Set adds two actuators to an existing system, and the 3DOF configuration already contains four actuators and QS-MC6.

3. Can the Upgrade Set operate on its own?

Not as a complete PC-controlled system. It is intended to be combined with an existing Starter Set and does not include its own QS-MC6.

4. What is the actuator travel?

Each actuator provides 60 mm of travel.

5. How much load can the QS-210 support?

The manufacturer specifies up to 200 kg in Performance mode and up to 250 kg in Heavy Duty mode. This includes the complete moving mass with the user and equipment.

6. Can the 2DOF configuration be expanded later?

Yes. Adding the Upgrade Set creates a 3DOF system without requiring a second USB controller.

7. Is QS-Pivot always included?

No. It is included only with the Pivot Set variant.

8. Is QS-MC6 required?

Yes, one QS-MC6 is required for a complete QS-210 simulator. It is included with the Starter, Pivot and complete 3DOF variants, but not with the Upgrade Set.

9. Does the QS-210 support VR?

Yes. Qubic Manager supports VR HeadWay, while the PC should maintain a stable frame rate suitable for the selected headset.

10. Can it be installed on any cockpit?

Full universality should not be assumed. The frame, mounting points and floor must withstand the mass and dynamic forces generated by the system.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems products in Poland and Europe. As an authorised Qubic Systems partner, all products of this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with the Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle claims. Please send an email to support@simline.eu or qubicsystem@simline.eu with evidence in the form of photos and videos showing the defect, together with a description, and pack the equipment.

2DOF Starter Set

1 × pair of QS-210 linear actuators
1 × power cabinet
4 × stabilisation plate
Actuator brackets and flat-face profile adapters
1 × power cable
1 × QS-MC6: M10 controller, MOTION-LOCK Switch, M-BUS terminator, BUS cable and USB-C cable
