Name: Qubic System QS-S25 Spider
Brand: Qubic System
SKU: 499
Price: 10829.27 PLN
Availability: BackOrder

The highest level of simulation

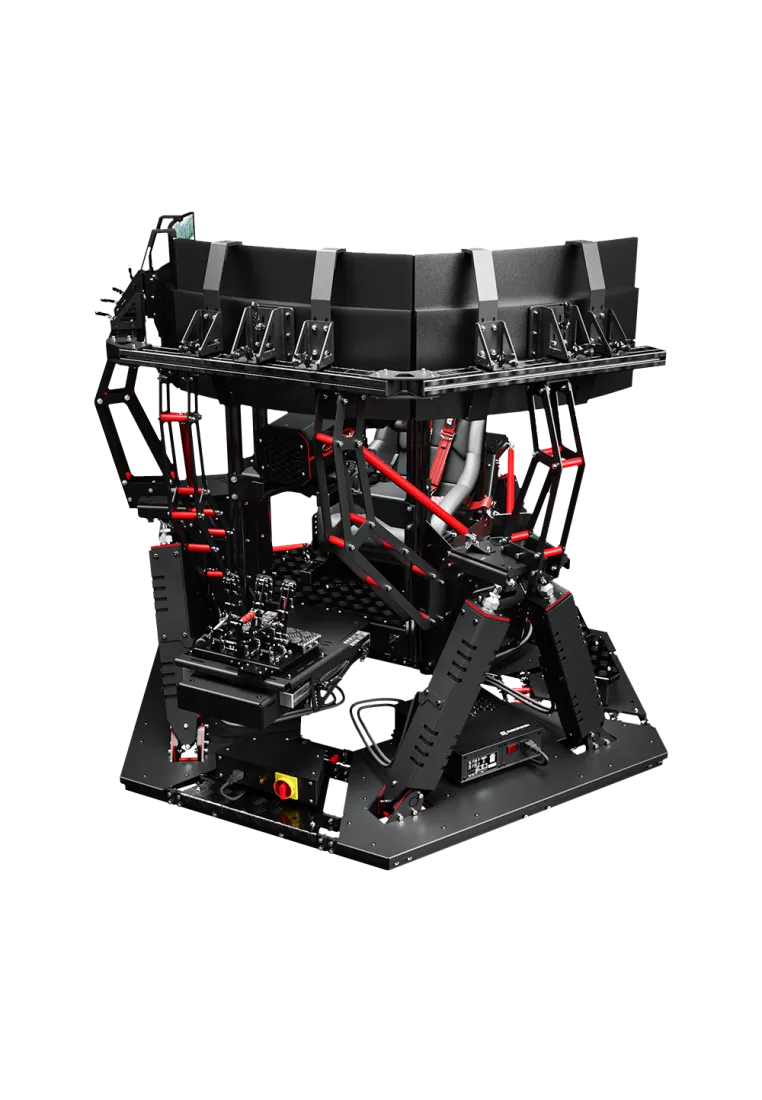

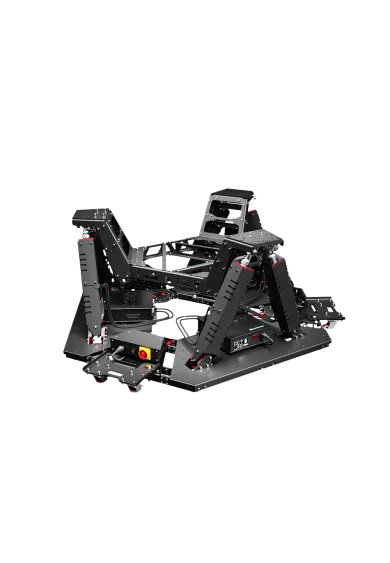

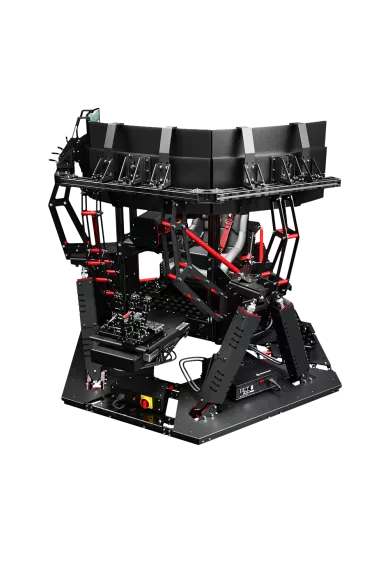

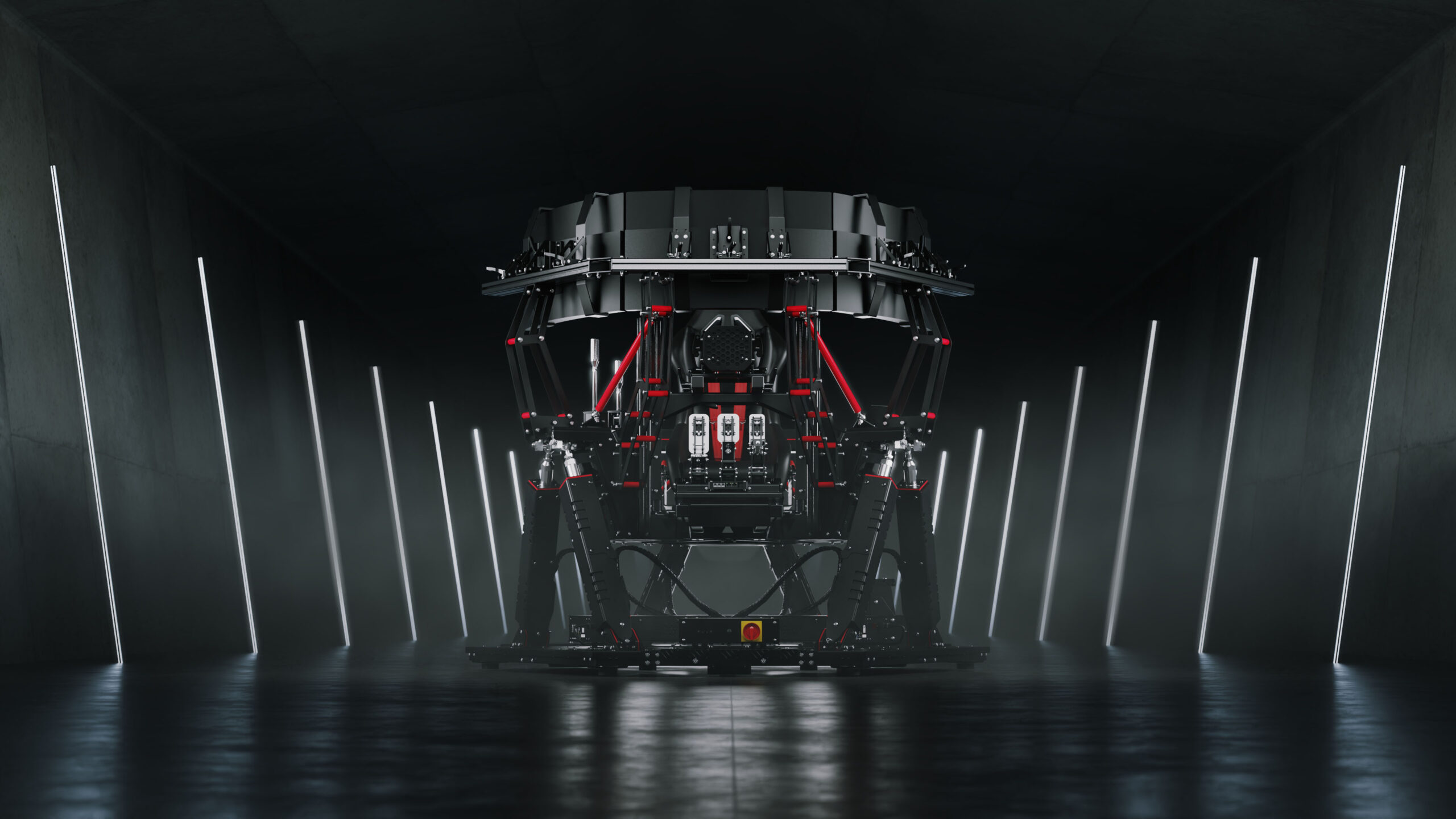

Qubic System QS-S25 is a full-size 6DOF motion platform for racing and flight installations. Six actuators work between the lower and upper frames, allowing the complete cockpit to move as one system together with the user and all hardware fitted to it.

The system can carry up to 250 kg of total moving load. This limit must include the driver or pilot, seat, controls, displays and every accessory attached to the moving section of the platform.

All six degrees of freedom

QS-S25 delivers three linear movements: surge moves the cockpit forwards and backwards, sway handles lateral movement and heave raises or lowers the platform. These are combined with three angular movements: roll, pitch and yaw.

The platform can therefore reproduce acceleration, braking, elevation changes, chassis lean, lateral displacement and rotation at the same time. The range, speed and acceleration available on each axis are listed separately in the technical specification.

Industrial-grade linear actuators

Six QS-220 linear actuators generate both large platform movements and short impulses taken from game telemetry. Each actuator provides 100 mm of stroke, while the platform geometry converts their combined movement into all six degrees of freedom.

The control system responds to telemetry with latency below 8 ms. This allows rapid direction changes, suspension impacts and brief physical cues to remain closely synchronised with the image and the driver's control inputs.

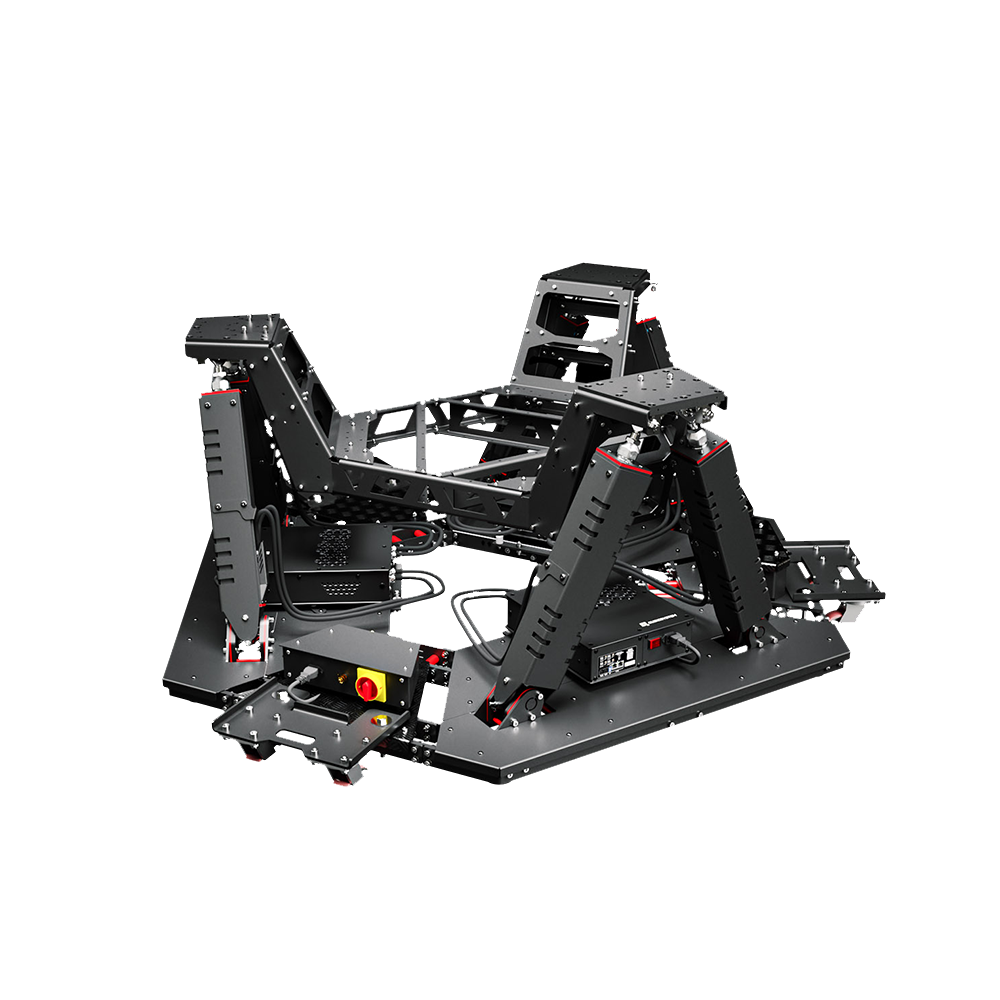

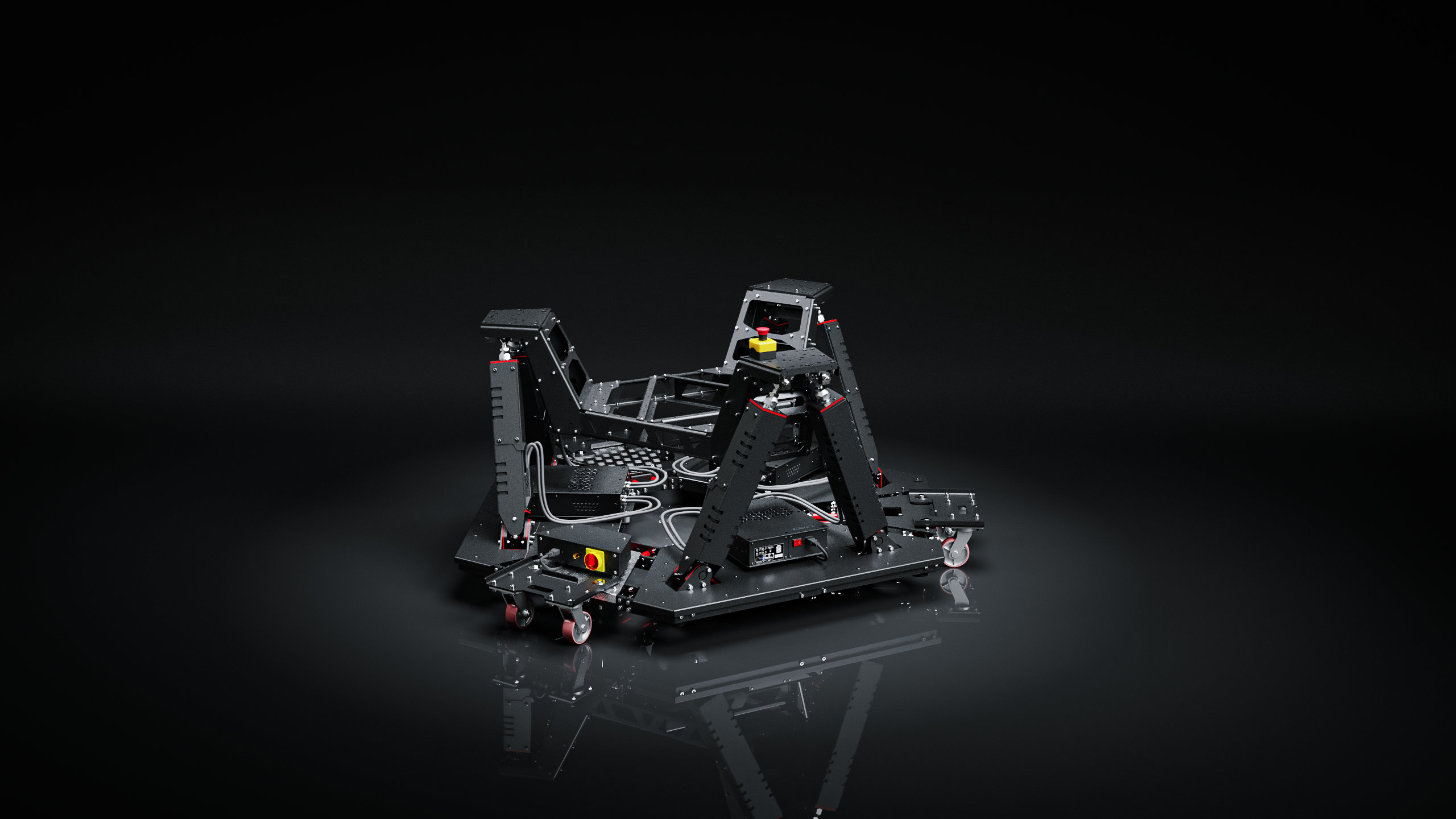

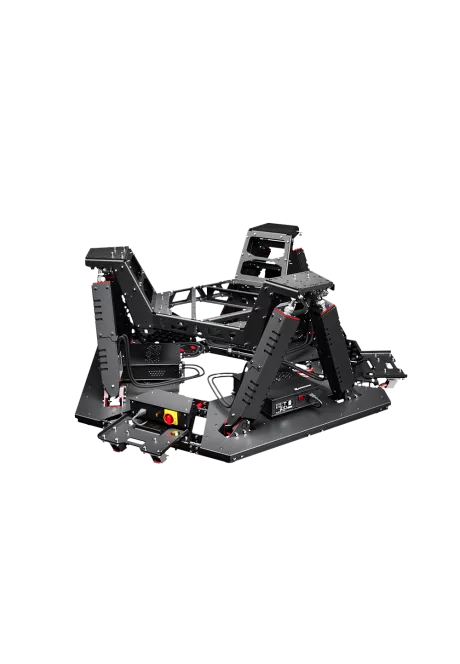

Modular construction for easier installation

QS-S25 is supplied as separate modules that can pass through standard doorways and be assembled in the target room. The complete system weighs approximately 350 kg, so the access route, floor capacity and clearance required for the full motion envelope must be checked before delivery.

The platform can operate from 120 or 230 V AC, although performance may be limited on 120 V. Anchoring plates are included, and the installation method and safety distances must follow the manual and the conditions at the installation site.

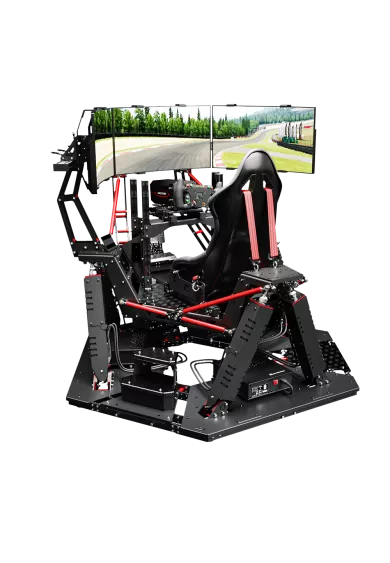

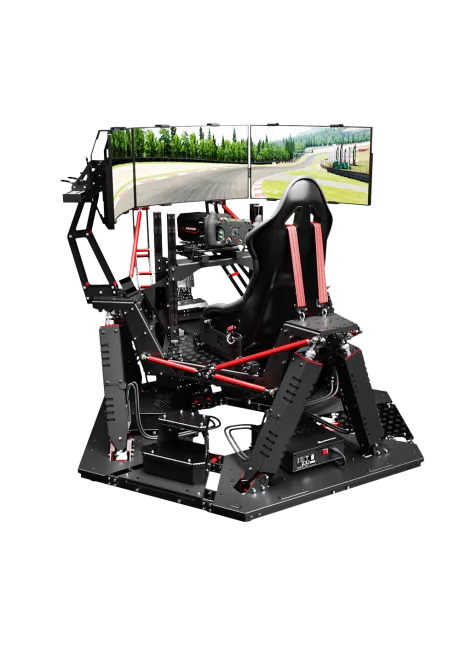

Car control at the edge of grip

In racing simulators, the six axes separate the cues created by weight transfer, brake dive, acceleration, cornering and chassis rotation. Yaw and sway help the driver recognise the beginning of a slide before it becomes apparent from the screen alone.

Qubic Manager allows motion intensity and individual effects to be adjusted for the selected car and circuit. The same QS-S25 can therefore be configured for a road car, formula car, GT racer or rally vehicle without mechanical changes to the platform.

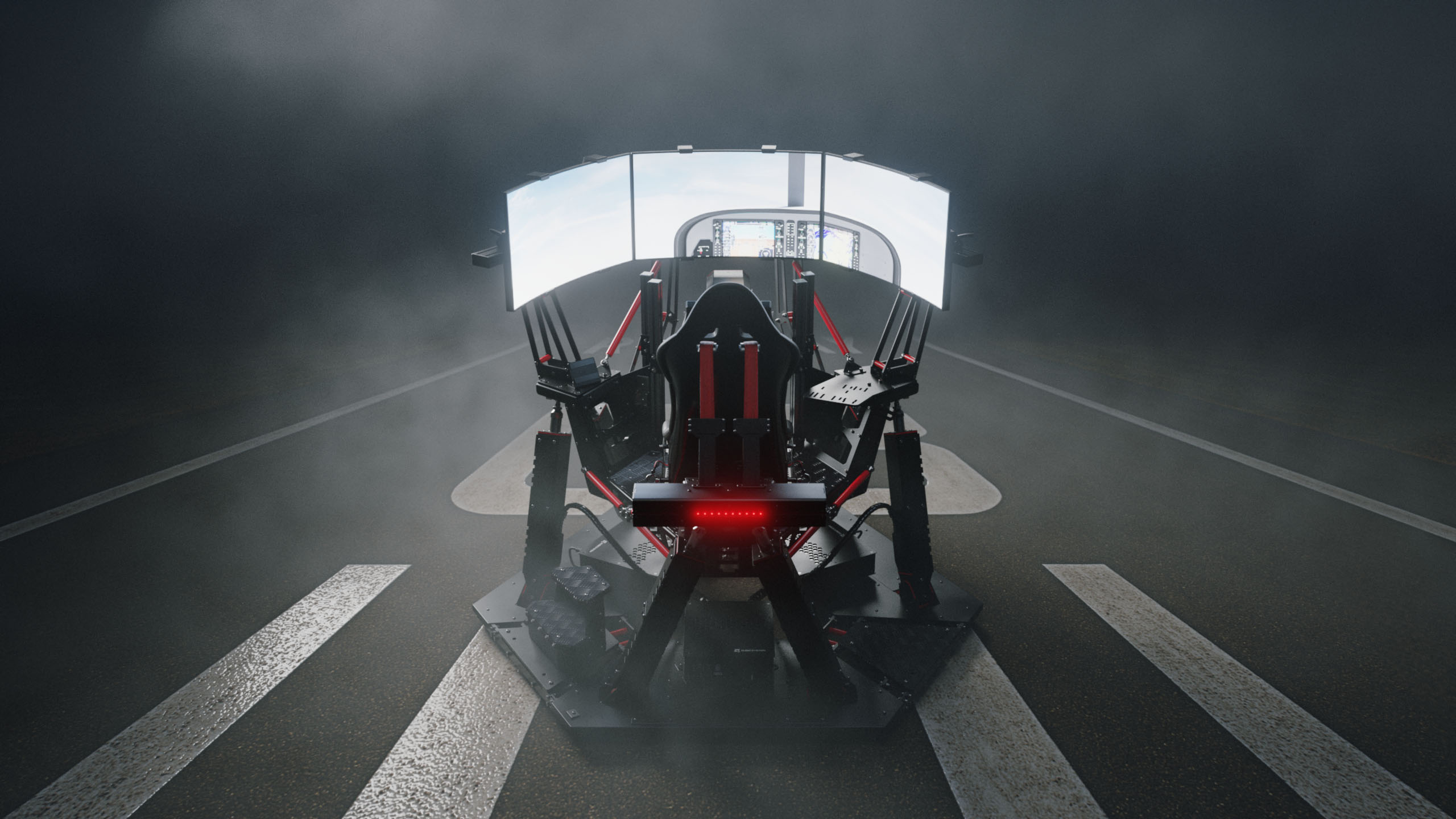

A platform for professional flight simulation

In flight simulators, QS-S25 uses surge, sway, heave, roll, pitch and yaw to reproduce take-off, climbing, banking, stalls and spins. Movement is calculated from telemetry supplied by compatible software rather than from the image displayed on the monitor.

Washout filters gradually return the platform towards its neutral position, preserving travel for the next manoeuvre. Profiles can be adjusted for the aircraft type, control sensitivity and the level of motion accepted by the user.

Haptic feedback from 0 to 100 Hz

The actuators reproduce both cockpit movement and vibration across a 0-100 Hz range. In racing titles these effects can represent engine operation, road texture, kerbs and tyre slip, while flight profiles can use them for airframe vibration or turbulence.

Haptic effects are produced by the same system that moves the platform. A separate set of tactile transducers is not required, and the effect level can be adjusted in Qubic Manager independently of the main motion axes.

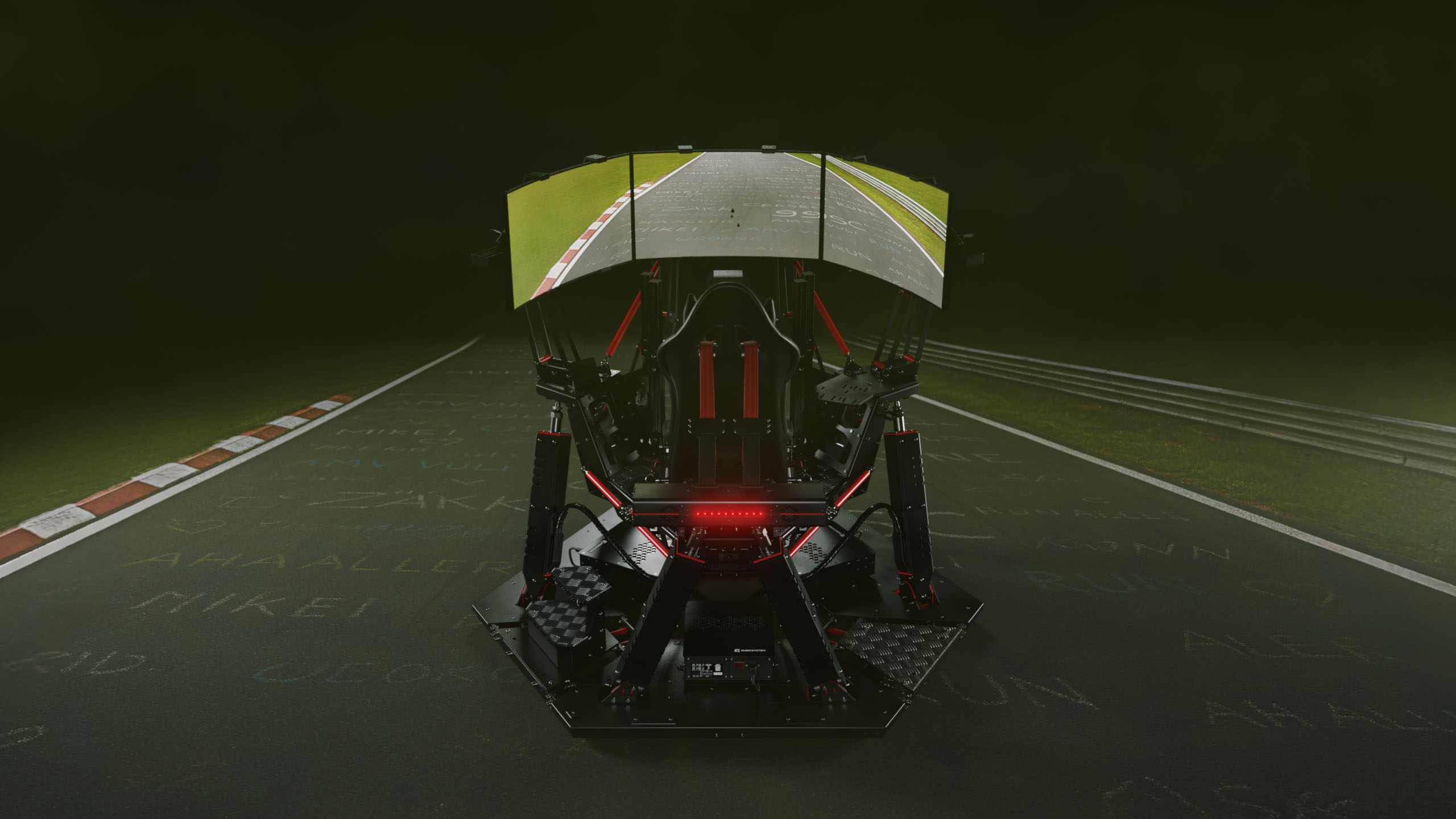

Prepared for QS-BT1 integration

QS-S25 can be expanded with the Qubic System QS-BT1 belt tensioner. A dedicated bracket is included with the Cockpit Set, while the tensioner itself is sold separately.

QS-BT1 changes belt tension in response to telemetry, adding physical cues for braking, acceleration and sustained loads. The belts must be adjusted correctly, and cables must remain outside the actuator movement zone before the system is enabled.

Qubic System QS-BT1

6,008.13zł

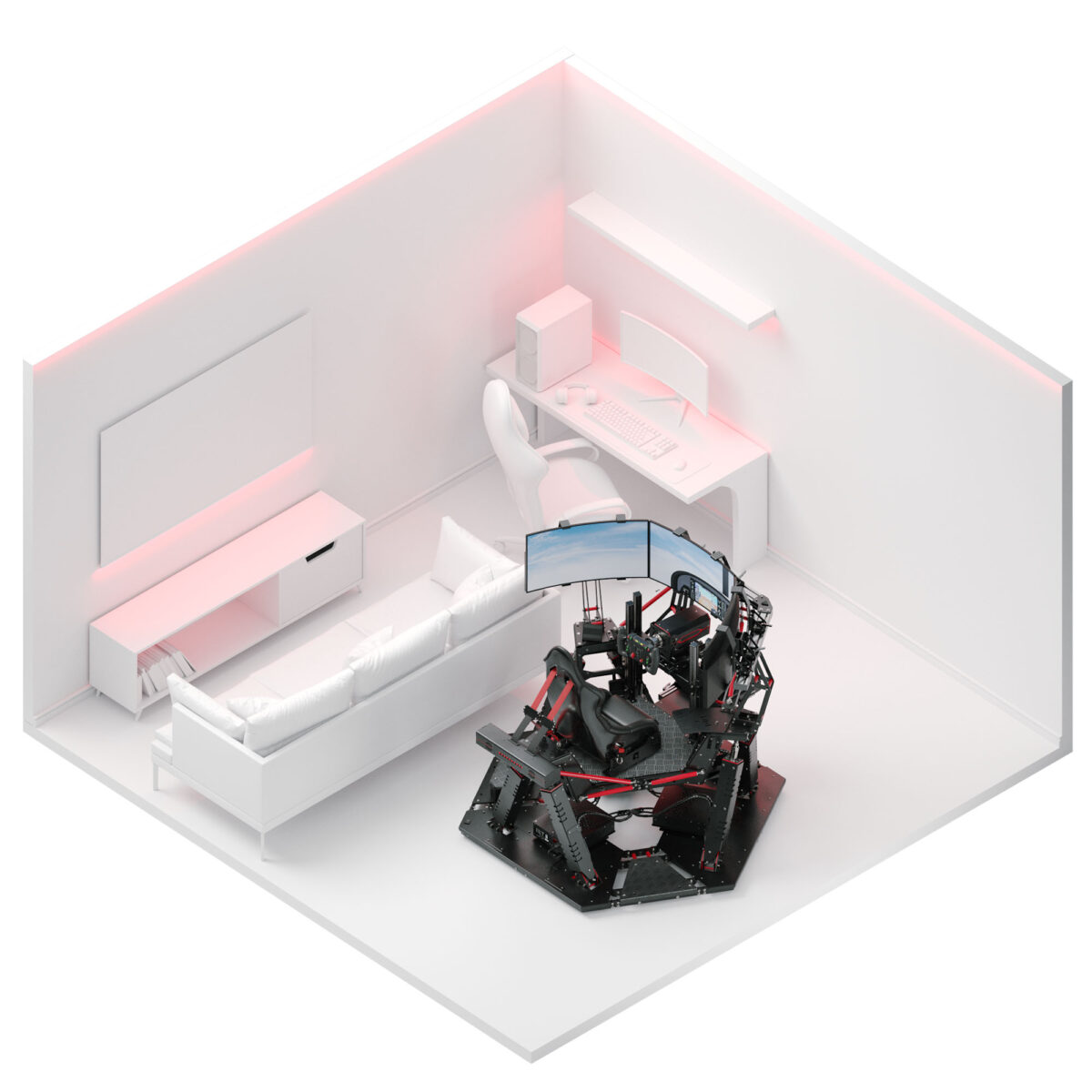

Quiet and efficient operation

The QS-S25 drives and control system are designed to limit operating noise, allowing the platform to be used in homes, VR studios, training centres and entertainment venues. The manufacturer does not publish one fixed sound-pressure value for every hardware configuration and motion profile.

The system is prepared for extended sessions and maintains stable thermal performance during continuous operation. Actual noise also depends on the floor, installed cockpit, profile intensity and any movement or looseness in additional hardware.

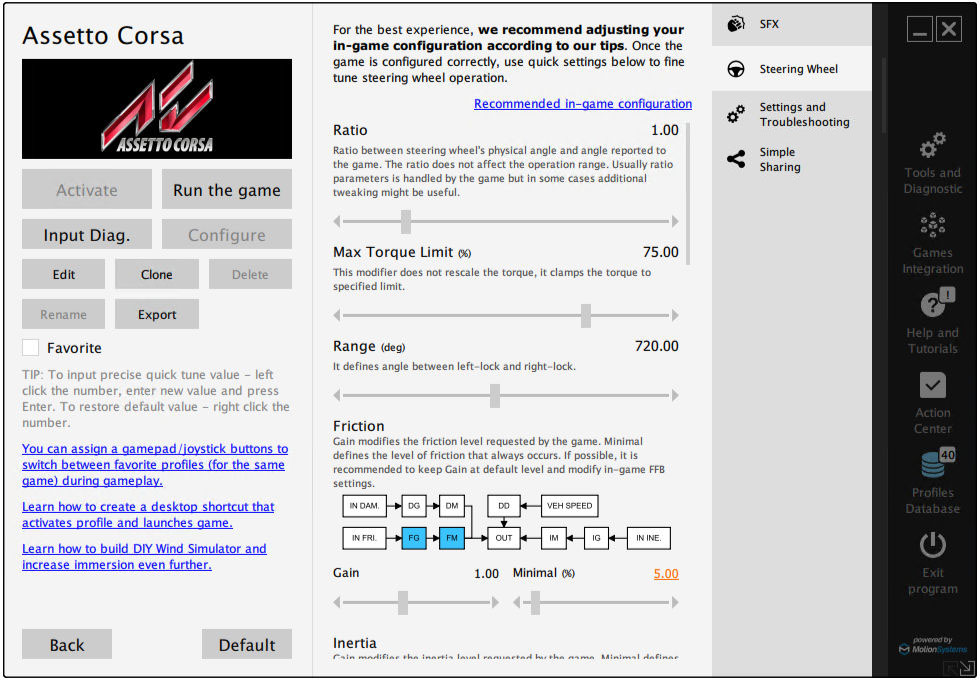

Qubic Manager

Used by professional racing drivers and pilots worldwide. A high-quality ecosystem for personal and commercial applications, powered by dedicated Qubic Manager software. More than 80 racing and flight simulation titles are integrated and supported. Compatible with professional simulation applications through the Motion SDK, with FSMI or FSDI available for software developers.

Direct Drive Wheelbases:

Direct Drive

Simucube 2 Sport

Simucube

SC2SPORT

4,414.63zł

The Simucube 2 Sport is the ideal wheelbase for a sim racer who wants to experience a high-end wheelbase at a slightly lower price than the Simucube 2 Pro.

View

Direct Drive

Simucube 2 Pro

Simucube

SC2PRO

5,148.78zł

The Direct Drive base Simucube 2 Pro offers up to 25 Nm of torque, zero latency, and high signal responsiveness while simultaneously avoiding throttling or cogging.

View

Direct Drive

Simucube 2 Ultimate

Simucube

SCULT2

11,187.39zł

Simucube 2 Ultimate is the highest-quality sim racing equipment available. Designed and crafted with race drivers and future champions in mind, it reflects the behavior of a car as realistically as possible without compromising. With an impressive 32 Nm of torque, zero latency, and an uninterrupted signal, it is a tool built for winning.

View

-28.09%

Simagic

SIMAGIC Alpha

Simagic

Alpha-BW

1,735.77zł 2,413.82zł

As the #1 choice of the champions, the most demanding users who know real racing so well, the Alpha is bound to find the FFB balance between enough torque and enough details Incrased compatibility Aluminum and carbon fiber body Wireless power supply 262144 ppr Encoder Resolution

-20.95%

Simagic

SIMAGIC Alpha Mini

Simagic

AlphaM-BW

1,361.79zł 1,722.76zł

Simagic Alpha Mini is a compact 10 Nm Direct Drive wheelbase for sim racing drivers who want strong, quick and detailed Force Feedback without belts or gears. Its 5-pole servo motor, 262144 ppr encoder, 1 ms response, 3rd Gen filter and SimPro Manager support make it a strong choice for GT, rally, drift and endurance. Pair it with Simagic wheels, pedals...

SIMAGIC Alpha U front view from left side

-15.29%

Simagic

SIMAGIC Alpha U

Simagic

AlphaU-BW

2,630.08zł 3,104.88zł

Simagic Alpha U is a 23 Nm Direct Drive wheelbase for serious sim racing cockpits. Its 5-pole servo motor, 262144 ppr encoder, 1 ms response, 3rd Gen filter and 2.4 GHz wireless communication deliver strong, clean and detailed force feedback. Wheelbase is fully compatible with Simagic ecosystem. Pair it with Simagic wheels, pedals and shifters or handbrakes.

-4.38%

Moza

Moza R9 v3

Moza Racing

RS080

1 Reviews

1,064.23zł 1,113.01zł

The MOZA R9 v3 is the wheelbase for the racers that want to take it seriously. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor, ensuring unparalleled performance. Crafted with aviation-grade aluminum alloy, it combines minimum weight with maximum torque. New version with 360Hz Iracing support and 21 bit encoder.

-5.56%

Moza

Moza R12 v2

Moza Racing

RS081

1,381.30zł 1,462.60zł

The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands. 360Hz Iracing support, 21 bit encoder.

-9.78%

Simagic

SIMAGIC Alpha EVO

Simagic

ALPHA-EVO-12nm

1,979.67zł 2,194.31zł

The Simagic Alpha EVO 12Nm is a high-end Direct Drive wheelbase with 12 Nm of torque, active cooling, and a low-inertia servo motor. Perfect for iRacing, ACC, and rFactor 2. Fully compatible with Simagic wheels, pedals, and peripherals.

-13.77%

Simagic

SIMAGIC Alpha EVO Sport

Simagic

Alpha-EVO-Sport-9nm

1,471.54zł 1,706.50zł

The Simagic Alpha EVO Sport is a compact 9Nm Direct Drive base offering smooth and responsive force feedback. Designed for beginner to mid-level simracers, it's compatible with Simagic wheels, pedals, and peripherals. A great first step into the Direct Drive world.

-8.13%

Simagic

SIMAGIC Alpha EVO Pro

Simagic

Alpha-EVO-Pro-18nm

2,516.26zł 2,739.02zł

The Simagic Alpha EVO Pro is a high-end Direct Drive wheelbase with 18Nm of torque. Designed for professional simracers demanding maximum realism and control. Compatible with Simagic wheels, pedals, and accessories. The ultimate choice for serious competition.

VNM

VNM Direct Drive Premier

VNM

VNM-DD01PRE

2,475.78zł

VNM Direct Drive Premier is the compact entry point to the VNM wheelbase range. It delivers 13 Nm, uses a 23-bit encoder and supports experimental Telemetry Force Feedback. An E-stop and base-side Quick Release are included. Add a wheel separately, such as the VNM Apex-R. The wheelbase is designed for PC.

VNM

VNM Direct Drive Elite

VNM

VNM-DD01ELI

3,184.19zł

VNM Direct Drive Elite is the mid-range VNM model combining substantial torque with a compact housing. It delivers 18 Nm, uses a 23-bit encoder and supports experimental Telemetry Force Feedback. An E-stop and base-side Quick Release are included. Add a wheel separately, such as the VNM Apex-R. The wheelbase is designed for PC.

VNM

VNM Direct Drive Supreme

VNM

VNM-DD01SUP

4,246.76zł

VNM Direct Drive Supreme delivers 25 Nm of torque, combining strength, precision, and Direct Drive technology. With Telemetry Force Feedback and compatibility with top racing sims, it offers immersive control and unmatched reliability. Ideal for sim racers seeking high performance and quality in one compact package.

VNM

VNM Direct Drive Xtreme

VNM

VNM-DD01XTR

5,132.24zł

VNM Direct Drive Xtreme is a 32 Nm Direct Drive wheelbase with a 23-bit absolute encoder and extensive FFB adjustment. The box includes an E-stop button and the base-side Quick Release. Add a wheel separately, such as the VNM Apex-R, to complete the setup. The wheelbase is designed for PC.

Conspit

Conspit ARES 12

Conspit

CP120

2,039.02zł

Conspit ARES 12 – compact 12 Nm direct‑drive base with 23‑bit optical encoder (<0.01°), CDR quick‑release, aerospace-aluminum build, real‑time thermal control

Steering Wheels:

SIMLINE wheels

Simline WRC/TCR wheel

Simline

simline_wrc_tcr

2,025.00zł

Simline WRC / TCR wheel 12x high-quality backlit MEC buttons 4x high quality ELMA E33 encoders Illuminated front panel Aluminum housing Perfect for 320-350mm rims High-quality spiral cable Controller LeoBodnar or Simucube Optional shifters Several rims to choose from

View options

Complete steering wheels

VNM Apex-R Wheel

VNM

VNM-APEXR01

1,225.50zł

The VNM Apex-R is a 330 mm leather-wrapped sim racing wheel with aluminium construction, four encoders, two funky switches, six buttons and SimHub support. It pairs with all four VNM Direct Drive bases: Premier 13 Nm, Elite 18 Nm, Supreme 25 Nm and Xtreme 32 Nm. Complete the rig with VNM Pedals V1 and the VNM Slipring.

SIMLINE wheels

Simline R5 WRC

Simline R5 steering wheel is a replica of the Skoda R5 Rally steering wheel, made of carbon fiber, with Japanese motorsport switches and optional shifters.

View options

-9.73%

SIMAGIC wheels

Simagic GTS Leather

Simagic

GTS(Leather)

1,056.10zł 1,169.92zł

Simagic GTS Leather is a versatile 300 mm round steering wheel for GT, touring, rally and road cars. Its lightweight magnesium-aluminium alloy construction, leather grips, 7 RGB buttons, two adjustable Hall-sensor shift paddles and the included QR50 create a compact, practical setup. It works with Simagic Alpha and Alpha EVO wheelbases.

SIMAGIC wheels

Simagic GT4

Simagic

GT4

1,353.66zł

Simagic GT4-C is a 300 mm GT wheel with a carbon-fibre body, silicone grips, 12 RGB buttons and two seven-way switches. Hall-sensor shifters and the included QR50 keep the setup responsive and easy to swap between sessions. It works with Simagic Alpha and Alpha EVO wheelbases.

View

Conspit Steering Wheels

Conspit PW1

Conspit

CP104

6,506.50zł

Conspit PW1 Formula delivers an elite F1-style experience: 280 mm carbon fiber grip, retina‑sharp display, dual‑mode clutch paddles, magnetic rocker shifters, and CDP quick‑release. Only 500 units made—engineered for serious simracers.

SIMLINE wheels

Simline RS5 DTM

Simline

simline_r5_DTM

2,032.52zł

An upgraded, limited-edition replica of the 2015 Audi RS5 DTM steering wheel. Available in USB and Simucube 2 / Simucube 3 Wireless versions, ensuring compatibility with almost any wheelbase ecosystem. A faithful replica, fully adapted to meet modern simracing standards.

View options

-2.62%

SIMAGIC wheels

Simagic GT1-SR Leather

Simagic

GT1-SR(Leather)

1,210.57zł 1,243.09zł

Simagic GT1-SR Leather is a 330 mm round wheel that feels at home in GT cars, rally stages, drifting and classics. The leather rim is easy to live with, while the aluminum hub, magnetic paddles and Simagic Quick Release give the wheel a reassuringly solid feel. It works with Simagic Alpha and Alpha EVO wheelbases.

Fanatec Steering Wheels

Fanatec CSL Elite WRC

Fanatec

CRD-9020016-WW

893.50zł

The Fanatec CSL Elite Steering Wheel WRC is an officially licensed 300 mm sim-racing wheel designed for rallying and other cars suited to a round rim. It features a genuine Alcantara® grip, brushed-aluminium spokes, RevStripe, a three-digit LED display and removable metal shifter paddles. Integrated Xbox electronics make the complete system compatible...

Complete steering wheels

Heusinkveld ONE

Heusinkveld

HE-SW1

2,150.41zł

The wait is over. Heusinkveld, famous for their bulletproof pedals, has just launched their first-ever steering wheel: the Heusinkveld One. This isn't just another rim—it’s a precision tool designed for sim racers who demand maximum rigidity and unfiltered feedback. The engineering is all about how the rim handles the force from your Direct Drive base,...

Fanatec Steering Wheels

Fanatec Clubsport Formula V3

Fanatec

CRD-9020019-WW

1,381.30zł

Fanatec ClubSport Formula V3 is a 290 mm sim racing steering wheel with replaceable perforated leather grips, 2.7-inch white oled, 9 revleds and 6 flagleds and QR2 Wheel-Side. The wider Formula format retains the quick response suited to single-seaters and prototypes while creating more room for the grips and expanded control panel.

Conspit Steering Wheels

Conspit 290 GP

Conspit

CP106

2,487.80zł

Conspit 290 GP Formula Wheel delivers a Formula‑style simracing experience with a rigid carbon‑aluminium build (~1.4 kg), ergonomic 3D layout, 4.3″ LCD dashboard, 18 RGB LEDs, MagFlip magnetic paddles, dual‑clutch and optional CDP quick‑release.

Simline 720s GT3 – a replica of the McLaren 720S GT3 steering wheel for racing simulators

SIMLINE wheels

Simline 720s GT3

Simline

simline_720s

2,420.00zł

The Simline 720s GT3 is an accurate replica of the McLaren 720s GT3 steering wheel, crafted from aluminum and carbon fiber. It features a choice of Alcantara or synthetic leather finish, equipped with 12 buttons, 4 encoders, and magnetic shifters with carbon paddles. It offers options for different types of carbon fiber and connectivity, with various...

View options

Fanatec CSL Steering Wheel BMW front view

Fanatec CSL Steering Wheel BMW front view 2

Fanatec Steering Wheels

Fanatec CSL BMW

Fanatec

CRD-9020018-WW

649.59zł

The Fanatec CSL Steering Wheel BMW is an officially licensed 300 mm sim-racing wheel designed for compatible Fanatec wheel bases. It features a BMW-designed graphic, rubberised grip, 12 buttons, a five-way directional stick, RevStripe™, a three-digit LED display and metal shifter paddles. Its preinstalled QR2 Lite Wheel-Side provides a tool-free...

SIMLINE wheels

Simline GT3-R

Simline

simline_gt3_r

1,656.00zł

Steering wheel inspired by the 2018 Porsche GT3-R. 10 momentary buttons 2 CTS288 encoders two magnetic shift paddles real carbon fiber engraved descriptions optional wireless connectivity optional funky switch PCD standard 6×70 spiral cable extending up to 3 meters

View options

Simagic GT Pro Hub(K) D-Shape Leather front view

SIMAGIC wheels

Simagic GT Pro Hub(K) D-Shape Leather

Simagic

GTpro-D(K)(Leather)

1,381.30zł

Simagic GT Pro Hub(K) D-Shape Leather is a complete 325 mm GT steering wheel built around the leather-covered P-325D-K rim. A carbon-fibre front plate, CNC-machined aluminium housing, 8 RGB buttons, multiple rotary controls, Hall-sensor shift paddles and dual-clutch paddles provide a practical layout for circuit racing. The QR50 is included, and the wheel...

E-stop button: Yes
Warranty: 24 months
Monitor/TV mount: Optional
Shifter/Handbrake mount: Optional
Keyboard holder: Optional
Driver position: Universal

Parameter	Data
SKU	QS-S25
Type	Modular 6DOF motion platform and cockpit
Architecture	6DOF: surge, sway, heave, roll, pitch and yaw
Number of actuators	6
Actuator travel	100 mm
Maximum payload	250 kg
System weight	350 kg
Base-system dimensions	1825 × 1761 × 960 mm (W × L × minimum H)
Surge	−132/+105 mm; up to 1250 mm/s; acceleration limited to 1 G
Sway	±106 mm; up to 1000 mm/s; acceleration limited to 1 G
Heave	−56/+55 mm; up to 350 mm/s; acceleration limited to 0.5 G
Roll	±5.1°; up to 40°/s; acceleration up to 500°/s²
Pitch	±4.7°; up to 40°/s; acceleration up to 500°/s²
Yaw	±9°; up to 100°/s; acceleration up to 1000°/s²
Vibration range	0–100 Hz
Power	120/230 V AC ±10%, 50–60 Hz, protective earth and neutral
Software	Qubic Manager / ForceSeatPM; licence depends on the variant

Variant	SKU	Set scope	Purpose
QS-S25 Motion System 6DOF	QS-S25	6 actuators, frames, controller, MOTION-LOCK, cables and wheels	Complete 6DOF motion base
QS-S25 Cockpit Set	QS-S25 Cockpit Set	Upper frame plus control, seat and accessory mounts	Build the platform into a cockpit
Mounting Bracket 3× Monitors	QS-S25 Monitor Bracket	Mount for three monitors up to 32 inches, VESA 100 × 100	Displays that move with the platform

Item	Status	Notes
Windows PC	Required	Qubic Manager and USB connection
Qubic Manager	Compatible	Driving and flight profiles, diagnostics and effect configuration
VR headsets	Supported	VR HeadWay compensates for platform movement
32-inch VESA 100 × 100 monitors	Compatible with separate mount	The triple-monitor bracket is a separate variant
QS-DD-20 and other wheel bases	Compatible depending on bracket	The Cockpit Set provides wheel deck and front mount options
QS-BT1	Integration possible	Requires the correct mount and motion-clearance check
Floor anchoring	Recommended / installation dependent	Safe distances must be maintained and the manufacturer provides an anchoring procedure

1. What is the Qubic System QS-S25?

It is a professional modular 6DOF motion platform that can be equipped with a dedicated Cockpit Set and triple-monitor mount.

2. What does 6DOF mean?

The platform moves in surge, sway and heave and rotates in roll, pitch and yaw.

3. Does the page cover one complete product?

No. Simline can offer three variants: the motion system, the separate Cockpit Set and the separate triple-monitor bracket.

4. What is the maximum payload?

The manufacturer specifies 250 kg of total moving mass, including the user and every item mounted on the platform.

5. Does the Cockpit Set include a wheel, pedals, seat and monitors?

No. It contains the frame and mounts; controls, seat, PC and displays are purchased separately.

6. Which monitors fit the dedicated bracket?

It is designed for three monitors up to 32 inches with VESA 100 × 100 mounting.

7. Does the platform support VR?

Yes. Qubic Manager supports VR HeadWay, and headset cables must be routed outside the motion envelope.

8. Can a Direct Drive wheel base be installed?

Yes. The Cockpit Set provides two steering mount types, including a front mount. Exact model compatibility should be verified.

9. Does the platform require floor anchoring?

The manual provides anchoring plates and a procedure. The decision depends on the floor and configuration, while safe distances are always mandatory.

10. Is Q-Mode available?

No. The current manufacturer manual states that Q-Mode is unavailable for the QS-S25.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems products in Poland and Europe. As an authorised Qubic Systems partner, all products of this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with the Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle claims. Please send an email to support@simline.eu or qubicsystem@simline.eu with evidence in the form of photos and videos showing the defect, together with a description, and pack the equipment.
