Qubic System QS-CH2 without controller
Qubic System QS-CH2 without controller

Qubic System QS-CH2

QS-CH2
42,365.04zł

42,365.04zł
Shipping in 3-7 days

Qubic System QS-CH2 is a 2DOF motion platform that reproduces surge and yaw, including acceleration, braking, oversteer and traction loss. It is available with a QS-MC6 controller for standalone operation or without the controller for expanding a system that already has QS-MC6. Combined with QS-210 or QS-220, it creates a 5DOF configuration.

QS-CH2 Variant
  • Without Controller
  • With Controller

Ask about product
Zapytanie dotyczy produktu: Qubic System QS-CH2
* - pola obowiązkowe
Send
You will receive an 423.65zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like



Surge and yaw under the complete cockpit

The QS-CH2 moves the whole structure rather than only the seat. Surge communicates braking and acceleration, while yaw rotation reproduces direction change and rear-axle slip.

A ±50 mm surge range and ±7.2° yaw range provide a distinct effect without requiring a full 6DOF platform.

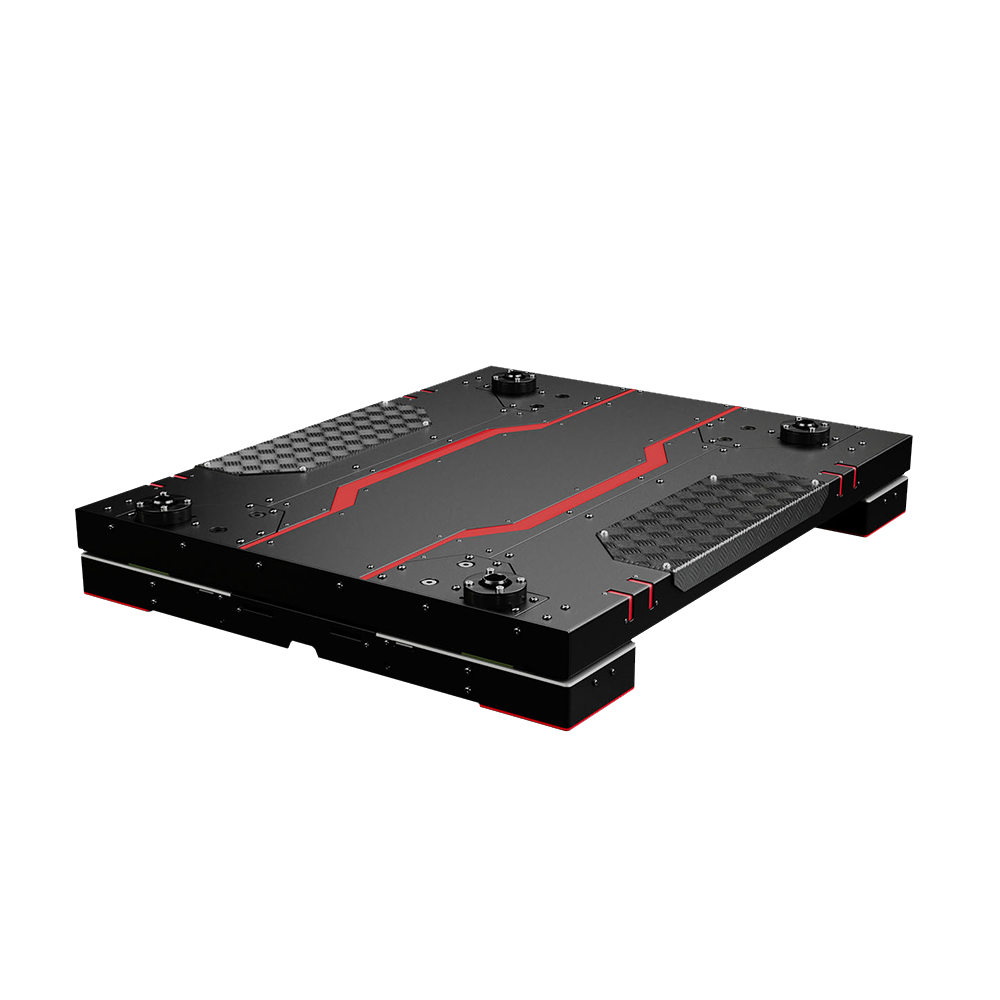

Qubic System QS-CH2 side view

Traction loss for rally, GT and drift

Yaw motion helps identify the start and direction of oversteer. It is useful in rally, drift and circuit training because the entire cockpit and the driver’s body move together.

The exact effect depends on game telemetry and Qubic Manager settings. Intensity should complement the information from the steering wheel rather than replace it.

Standalone 2DOF or part of a 5DOF system

Choose the variant with QS-MC6 for a standalone setup. The controller-free version is intended for expanding a system that already has QS-MC6, such as a configuration with QS-210 or QS-220. Shared control then adds surge and yaw to heave, roll and pitch.

Switch configuration and cable order must follow the wiring diagram for the selected layout in the manufacturer’s manual.

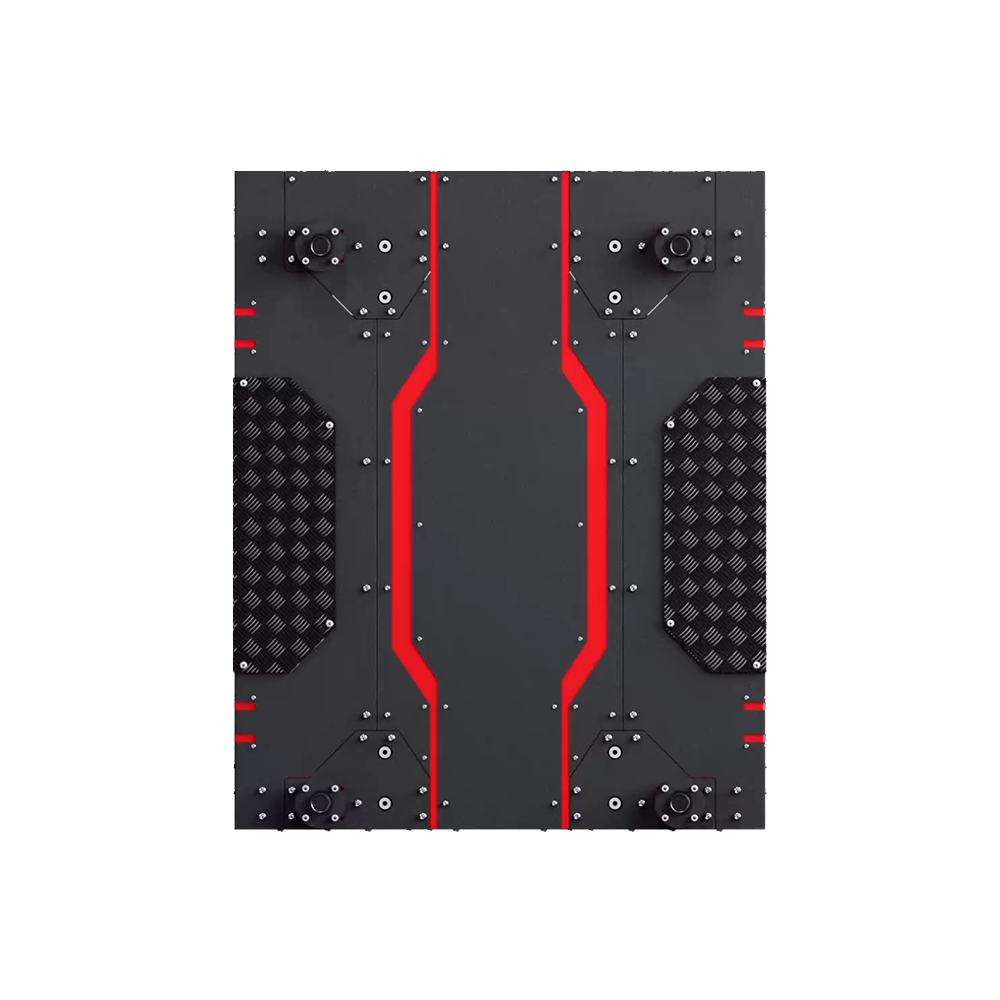

Qubic System QS-CH2 upper view

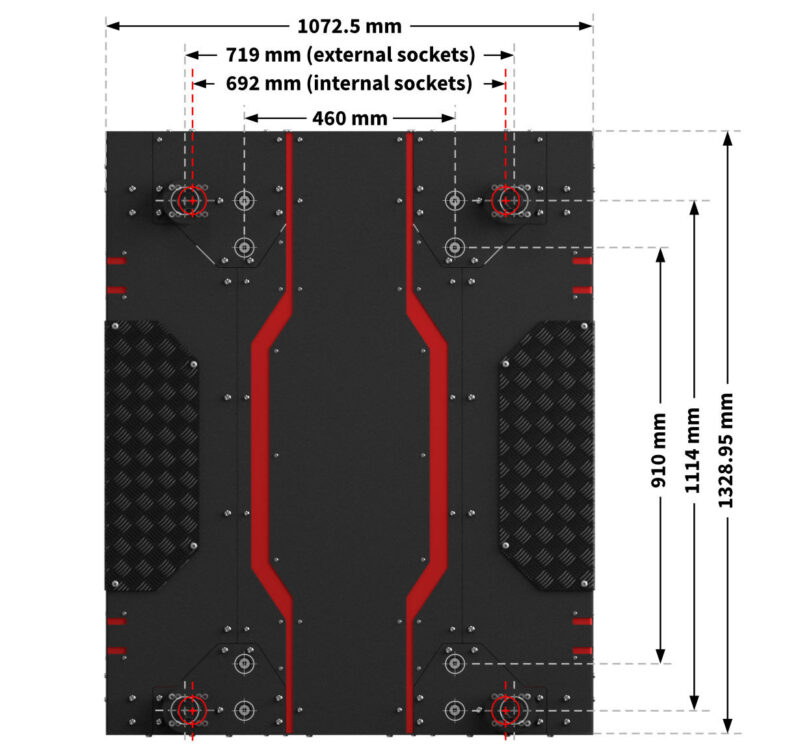

Qubic System QS-CH2 dimensions

Installation, anchoring and safety zone

The platform weighs 160 kg and moves the complete station, so the floor, adapters and cockpit mounts must withstand substantial dynamic loads. Included plates support floor anchoring.

The full motion path, cables and access to MOTION-LOCK must be checked before use. Loose items, pets and bystanders must remain outside the operating zone.

Direct Drive Wheelbases:
Available Steering Wheels:
Parameter Data
SKU QS-CH2
Type Under-cockpit motion platform
Architecture 2DOF: surge and yaw
Actuator travel 100 mm
Platform weight 160 kg
Maximum moving load 300 kg
Dimensions 1329 × 1072.5 × 223.7 mm
Yaw range −7.2° to +7.2°
Yaw velocity / acceleration 70°/s; 1500°/s²
Surge range −50 to +50 mm
Surge velocity / acceleration 450 mm/s; up to 0.56 G
Power 120/230 V AC ±10%, 50–60 Hz, single phase, protective earth and neutral
Controller for standalone use QS-MC6 required and sold separately
Software Qubic Manager
Country of manufacture Poland, European Union

Variant without QS-MC6 controller

  • 1 × QS-CH2 main unit with actuator-foot adapters installed
  • 2 × transport wheel module
  • 4 × anchoring plate
  • 4 × universal cockpit adapter bracket
  • Set of mounting fasteners
  • 1 × power cable
  • 1 × BUS communication cable
  • 1 × MOTION-LOCK interlink cable
  • 1 × M-BUS terminator

Variant with QS-MC6 controller

Includes every item supplied with the controller-free variant, plus:

  • 1 × M10 controller
  • 1 × MOTION-LOCK Switch
  • 1 × M-BUS terminator
  • 1 × M-BUS communication cable
  • 1 × USB-C cable for connection to the PC

Important: standalone QS-CH2 operation requires QS-MC6. Choose the controller-free variant when expanding a system that already has one QS-MC6 set.

Item Status Notes
QS-MC6 Required for standalone use Not included with the QS-CH2
QS-210 / QS-220 Compatible The combination creates a 5DOF system
QS-CH1 Compatible QS-CH2 can move the complete cockpit frame
Third-party cockpits Conditionally compatible Require suitable mounting points and must stay within the load limit
Windows PC Required Qubic Manager controls motion from telemetry
Racing and flight titles Supported Available effects depend on the profile and telemetry

1. What is the Qubic System QS-CH2?

It is a 2DOF platform positioned under the cockpit, moving the complete structure in surge and rotating it in yaw.

2. Which effects does it reproduce?

Primarily acceleration, braking, rear-axle slip, oversteer and traction loss.

3. Can the QS-CH2 operate independently?

Yes, but it requires a separate QS-MC6 set with the M10 controller and MOTION-LOCK Switch.

4. Is QS-MC6 included?

No. It must be purchased separately when the QS-CH2 is used on its own.

5. What is the maximum load?

The manufacturer specifies up to 300 kg of moving mass, including the cockpit, controls, seat and user.

6. Is it suitable for drifting and rallying?

Yes. The yaw axis is particularly useful for reproducing oversteer and changes of direction during a slide.

7. Can it be combined with QS-210 or QS-220?

Yes. The vertical actuators add heave, roll and pitch, while the QS-CH2 adds surge and yaw for a total of 5DOF.

8. How much room does the system require?

The manufacturer states that the complete system needs approximately 1.5 m², plus a clear motion safety zone.

9. Does the platform require anchoring?

Anchoring plates are included. The fastening method must suit the floor and comply with the manual.

10. Does the QS-CH2 work with VR?

It can operate in a VR setup, and Qubic Manager supports motion compensation for compatible configurations.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems products in Poland and Europe. As an authorised Qubic Systems partner, all products of this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with the Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle claims. Please send an email to support@simline.eu or qubicsystem@simline.eu with evidence in the form of photos and videos showing the defect, together with a description, and pack the equipment.
