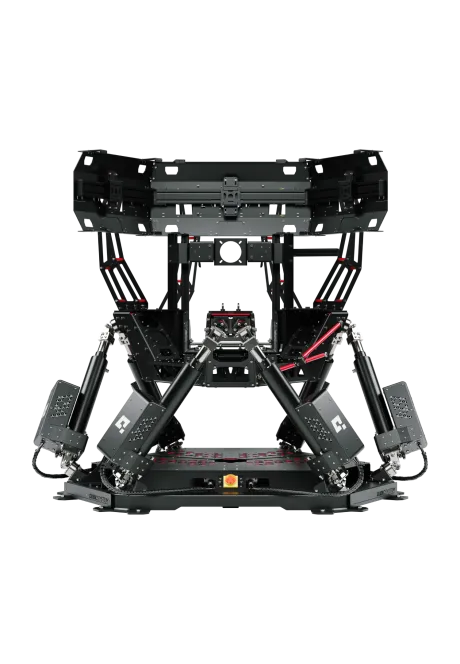

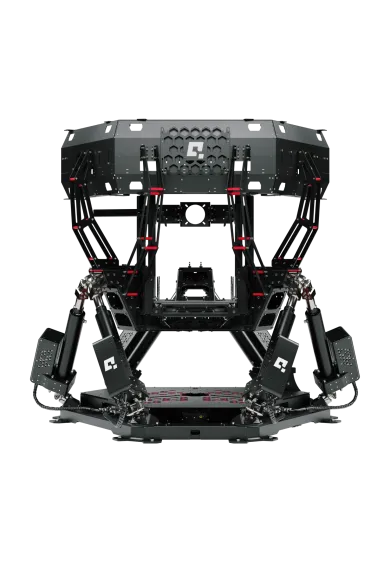

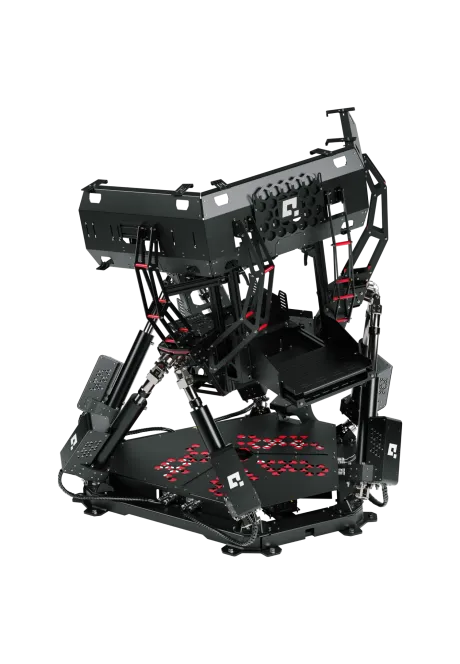

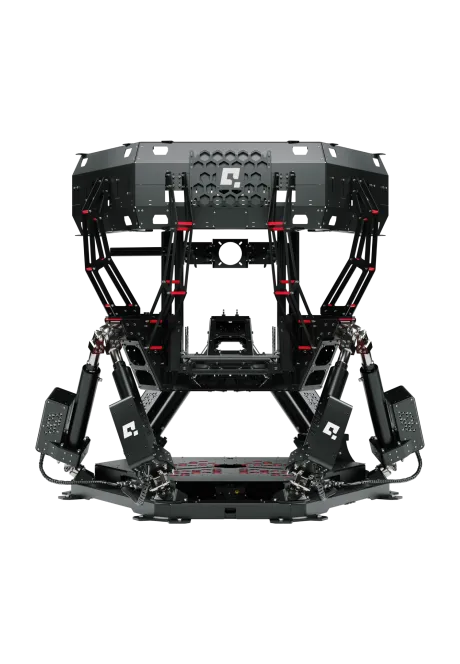

Name: Qubic System QS-S35
Brand: Qubic System
SKU: QS-S35
Price: 257703.25 PLN
Availability: BackOrder

Keeping travel available through successive manoeuvres

Long actuator travel matters when several things happen at once. The platform has enough room to combine chassis roll, suspension compression and elevation change instead of reducing everything to one simple movement.

The QS-S35 also makes gentle background corrections known as ghost moves. There is no sudden snap back to centre, and the system keeps travel in reserve for the next braking zone, impact or change of direction.

Feel the Eau Rouge on Spa like real racecar

On track, the goal is not simply to tilt the cockpit. The QS-S35 can show grip loss, understeer, oversteer, balance changes and wheel lock. You feel these cues through the seat, steering system and pedals together.

Climbs, descents and road camber can be felt separately from kerbs or suspension impacts. The exact effects depend on the telemetry provided by the game and the profile selected in Qubic Manager.

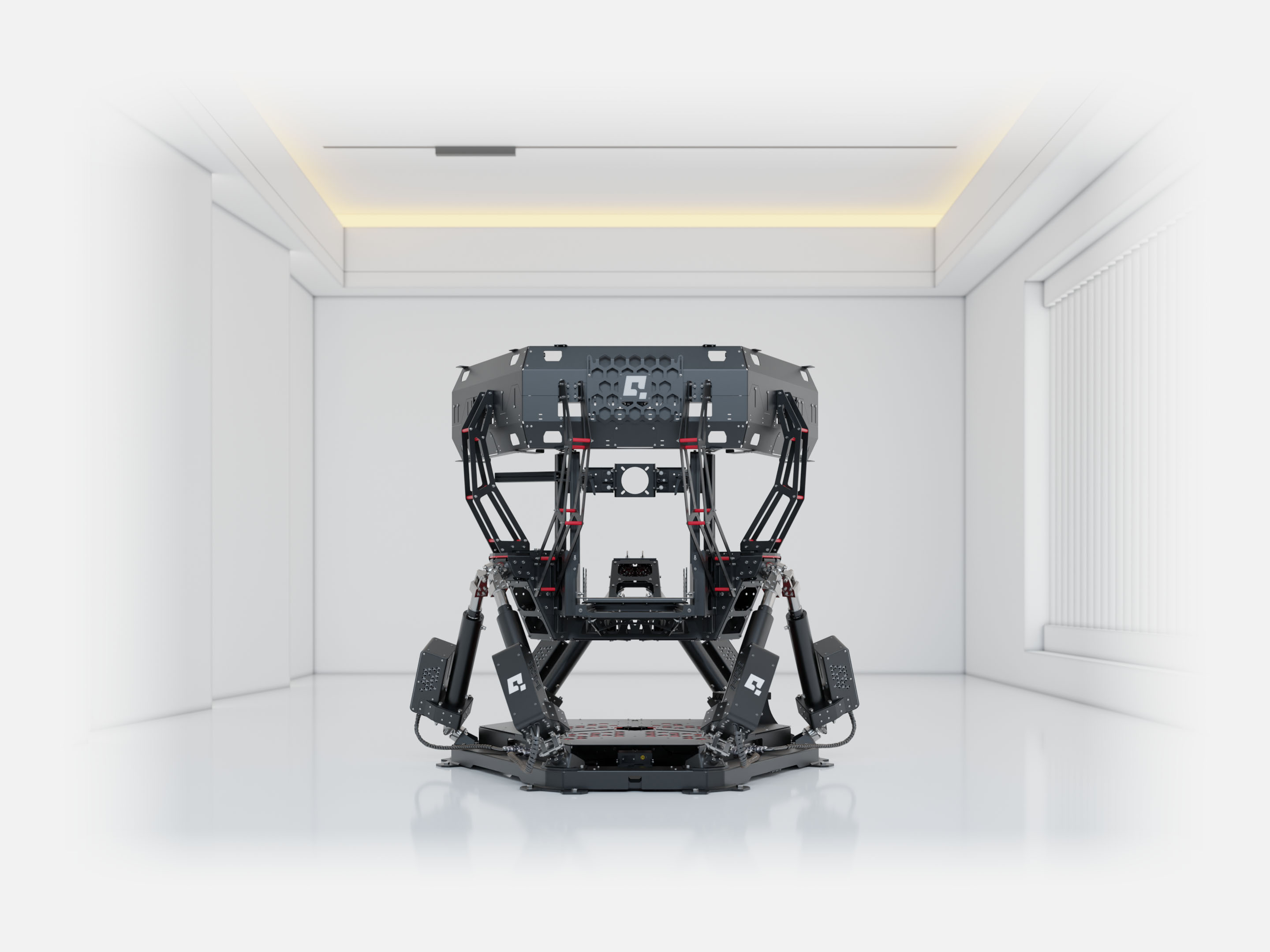

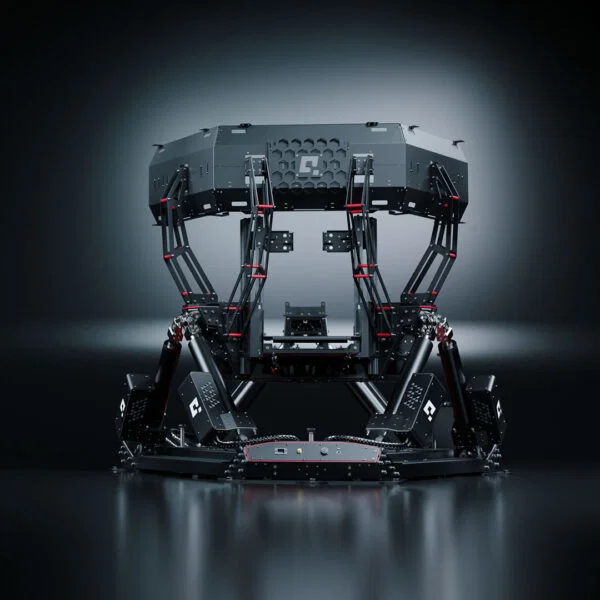

Six industrial linear actuators

Six actuators mounted between the lower and upper frames move the complete platform. They are intended for long sessions in racing, flight, training and research simulators.

All six work as one system. The frame must therefore be level, correctly anchored and commissioned according to the manual. Lock the platform before making adjustments or carrying out service work.

Large-scale motion with controlled operating noise

The QS-S35 is a large platform, but its drive system is designed to keep operating noise low. That matters in training centres, esports venues and home rooms, especially during longer sessions.

The floor still needs proper preparation. The structure weighs 475 kg and must be anchored, so check floor capacity, vibration transfer and free space around the platform before installation.

Integrated frame for controls, displays and QS-BT1

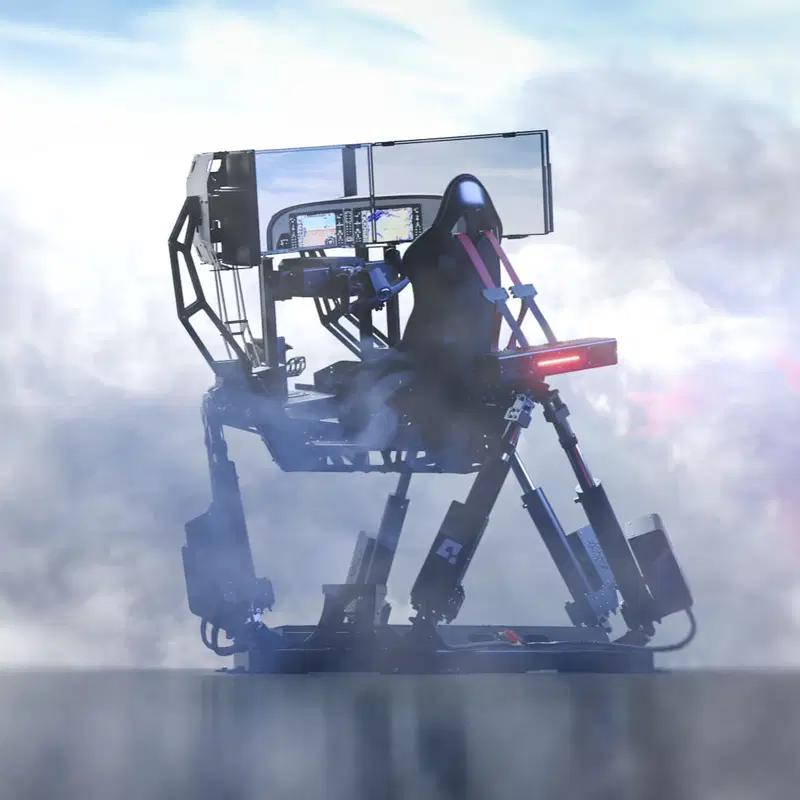

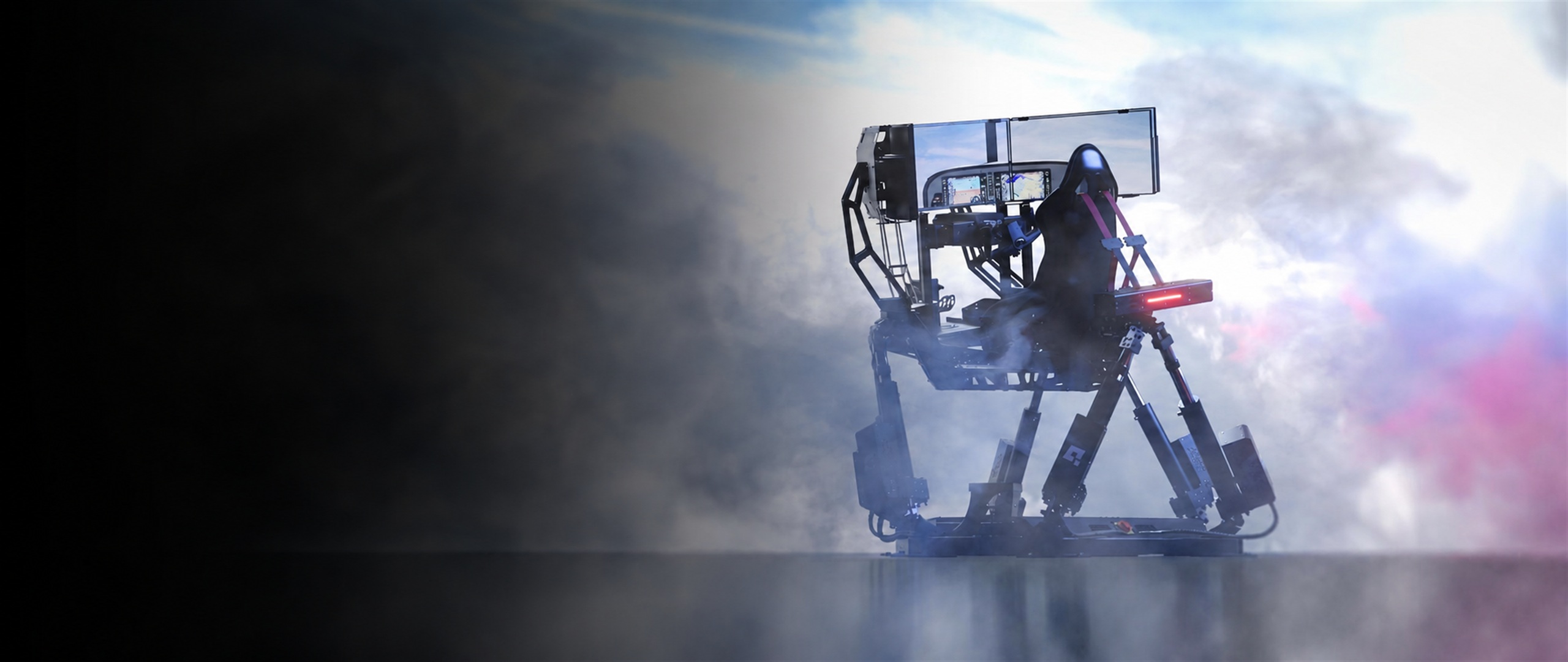

The QS-S35 is not supplied as a bare motion base. The frame includes mounts for a wheel base or yoke, pedals, seat, accessories and the QS-BT1 belt tensioner. The same main structure can be used for a racing or flight setup.

The integrated support moves three monitors up to 32 inches together with the seat, so the displays stay in the same position relative to the user. VR with VR HeadWay motion compensation is also supported. Displays, seat, controls, QS-BT1 and PC are sold separately.

Qubic System QS-BT1

6,008.13zł

E-stop button: Yes
Seat: Excluded
Monitor/TV mount: Included
Width: 2013
Length: 1912
Driver position: Universal

Parameter	Data
SKU	QS-S35
Type	Complete 6DOF motion platform
Architecture	6DOF: surge, sway, heave, roll, pitch and yaw
Number of actuators	6 industrial-grade linear actuators
Maximum payload	250 kg for the basic platform without accessories
Product weight	475 kg
Dimensions	1912 × 2013 × 2046 mm (L × W × H)
Roll	Single axis ±15.8°; maximum ±16.5°; 35°/s; 450°/s²
Pitch	Single axis ±14.3°; maximum −18.8/+18.6°; 35°/s; 350°/s²
Yaw	Single axis ±22.9°; maximum ±27.1°; 60°/s; 700°/s²
Heave	−169.9/+173.3 mm; 400 mm/s; 0.51 G
Surge	Single axis −306.2/+283.2 mm; maximum −366/+364 mm; 700 mm/s; 0.76 G
Sway	Single axis ±270.2 mm; maximum ±316 mm; 700 mm/s; 0.76 G
Average power consumption	Approximately 500 W during operation according to the manufacturer
Monitors	Integrated mount for three displays up to 32 inches
Anchoring	Required
Software	Qubic Manager; free licence according to the manufacturer

Item	Status	Notes
Windows PC	Required	Qubic Manager controls motion and profiles
Driving and flight simulators	Supported	Available effects depend on compatible application telemetry
Three monitors up to 32 inches	Compatible	Dedicated mount is included; monitors are not supplied
VR headsets	Supported	Qubic Manager provides VR HeadWay
QS-BT1	Compatible	Dedicated mounting bracket is included
Wheel bases and yokes	Compatible depending on mount	The set includes wheel deck and front-mount variants
Structural floor	Anchoring required	Use the included base plates and anchors suitable for the floor type

1. What is the Qubic System QS-S35?

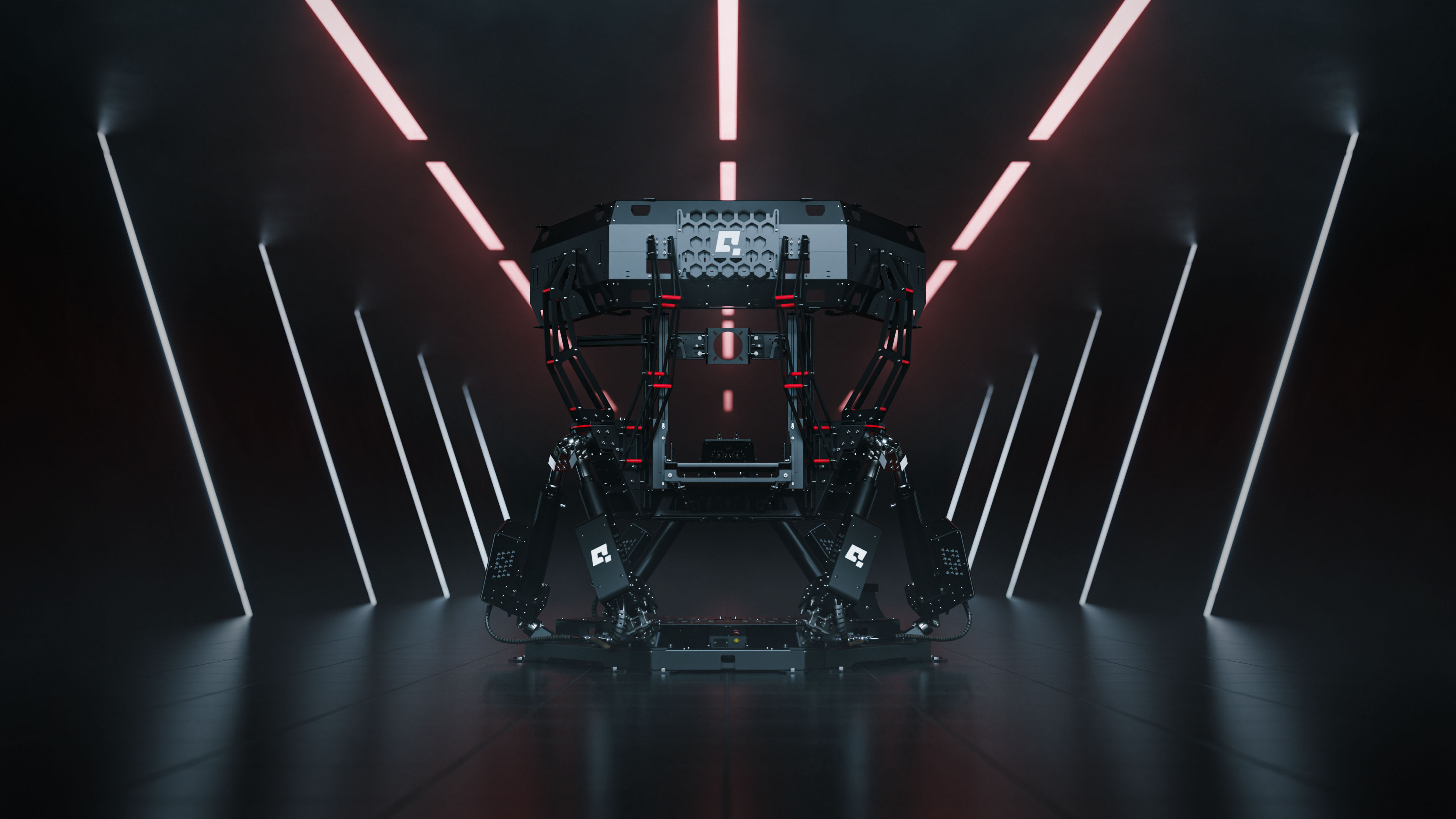

It is a complete professional 6DOF platform with a cockpit frame, hardware mounts and an integrated triple-monitor support.

2. Which motion axes does it support?

Surge, sway, heave, roll, pitch and yaw.

3. What is the vertical motion range?

Heave extends from −169.9 to +173.3 mm, for more than 342 mm in total.

4. What is the maximum payload?

The manufacturer specifies 250 kg for the basic platform without extra accessories. Every component and the user count towards this load.

5. Are monitors included?

No. An integrated mount for three displays up to 32 inches is included, while the monitors are purchased separately.

6. Does the platform need to be anchored?

Yes. The manufacturer requires floor anchoring because of the large motion envelope and dynamic loads.

7. Does the QS-S35 support VR?

Yes. Qubic Manager supports VR HeadWay, and headset cables must remain outside the motion envelope.

8. Can a QS-BT1 be installed?

Yes. A dedicated belt-tensioner bracket is included as standard.

9. How much power does the platform use?

The manufacturer states approximately 500 W average consumption during gameplay. Circuit requirements must be checked in the installation documentation.

10. Are the seat, steering wheel and pedals included?

No. The set contains the frame and mounts; controls, seat, PC and displays are purchased separately.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems products in Poland and Europe. As an authorised Qubic Systems partner, all products of this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with the Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle claims. Please send an email to support@simline.eu or qubicsystem@simline.eu with evidence in the form of photos and videos showing the defect, together with a description, and pack the equipment.
