Qubic System Mount for QS-BT1 MPV3 MOUNT

Qubic System Mount for QS-BT1

Name: Qubic System Mount for QS-BT1
Brand: Qubic System
SKU: 1514
Price: 346.34 PLN
Availability: BackOrder

Reference QS-BT1-NLR-MPV3

346.34zł

Shipping in 3-7 days

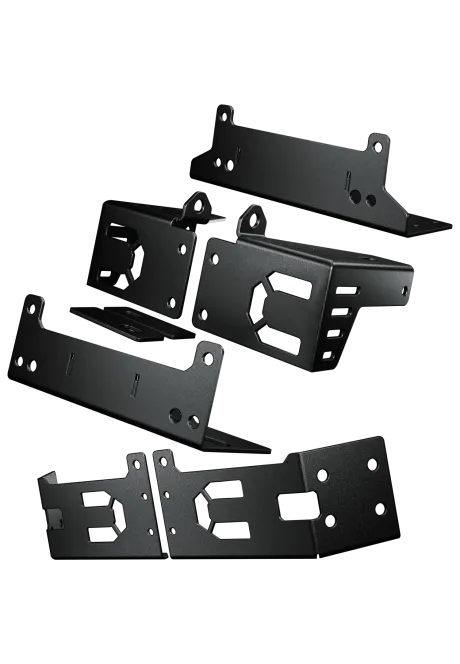

Qubic System Mount for QS-BT1 installs the belt tensioner on a supported motion platform or cockpit without modifying its structure. Four variants are available: QS-CH1, QS-V20, QS-S25 and NLR Motion Platform V3. Each kit uses different brackets and hardware, so the option must match the installed rig. The Qubic System QS-BT1 belt tensioner is not included.

Qubic QS-BT1 Mount Variant

MPV3
CH1
V20
S25

Ask about product

You will receive an 3.46zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

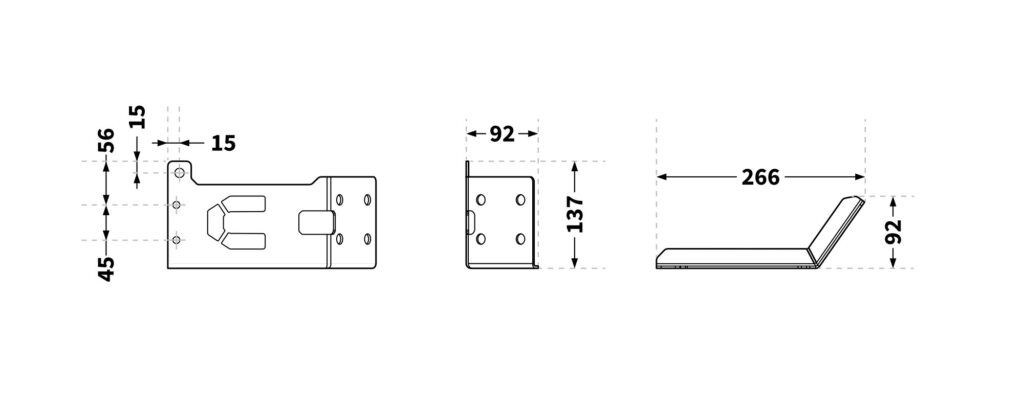

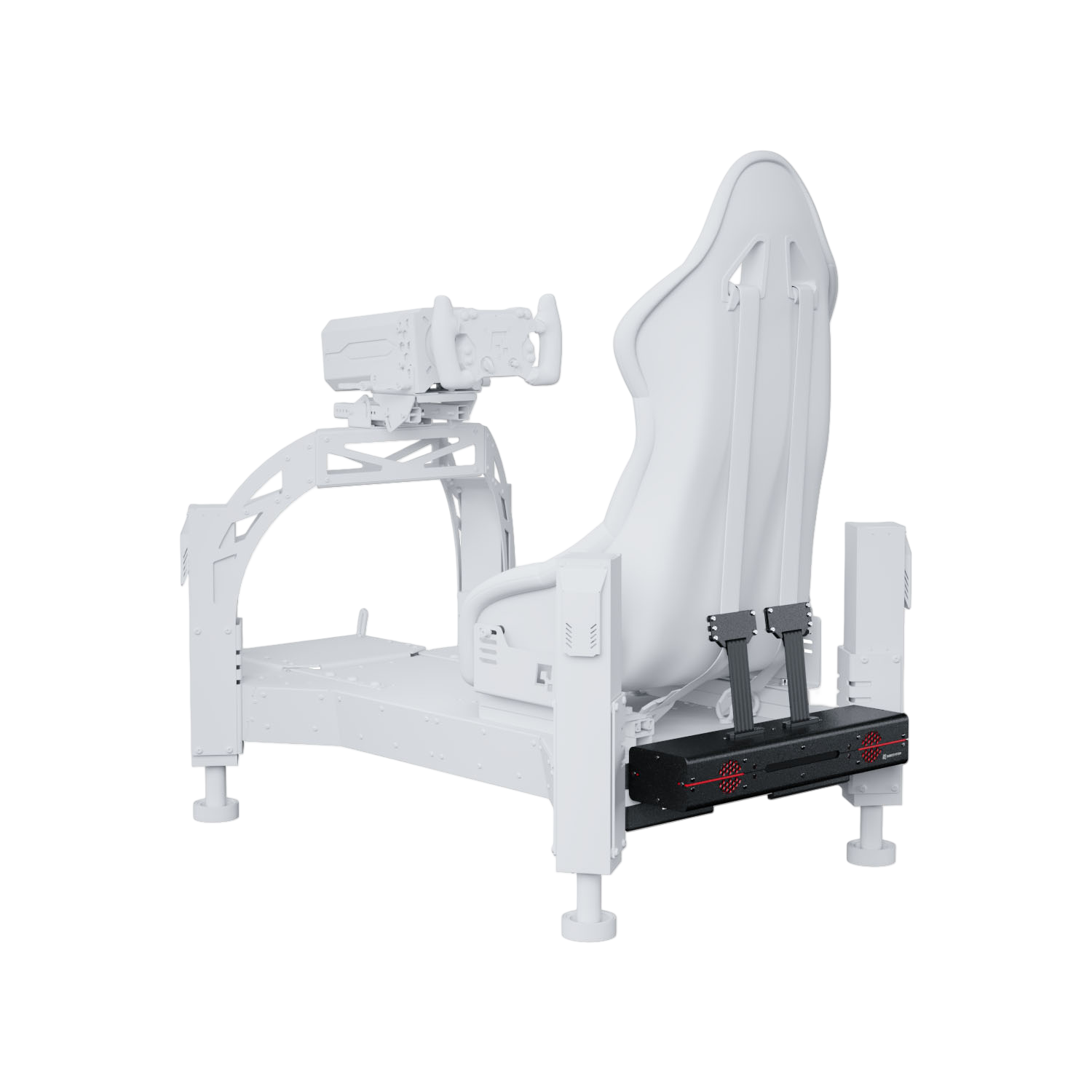

MOUNTING THE QS-BT1 ON A QS-CH1 COCKPIT

The QS-CH1 variant consists of two separate brackets fitted between the rear section of the cockpit base and the rear QS-210 or QS-220 actuator mounts. The left and right parts have fixed positions and are not interchangeable. The lower metal lip on each bracket must face downwards.

Installation requires the rear actuators to be removed, the brackets positioned and the structure reassembled. Qubic System specifies 25 Nm for the actuator mounting bolts. The QS-BT1 is then attached with the hardware supplied with the tensioner, with a maximum torque of 10 Nm for the M8 x 40 DIN 913 screws.

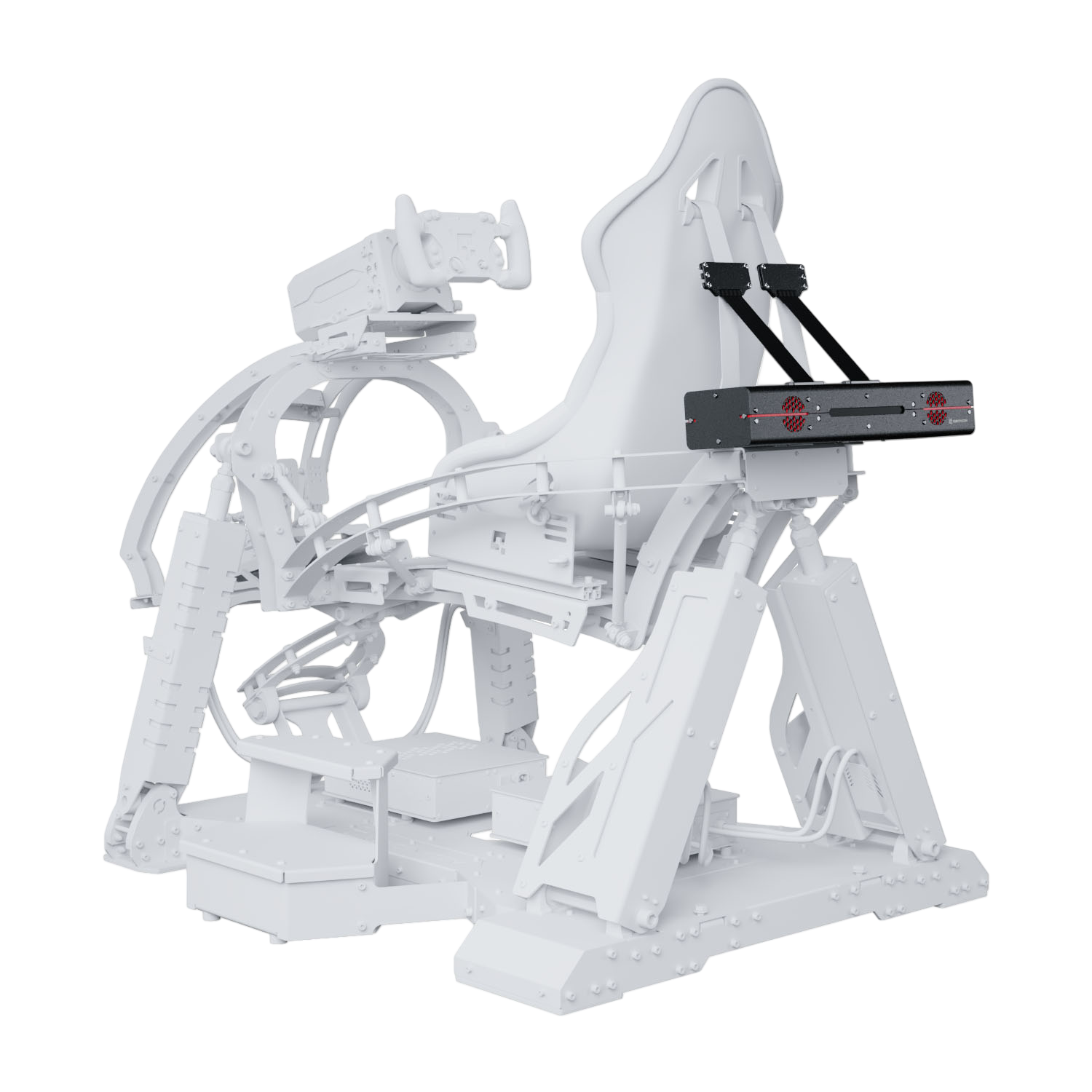

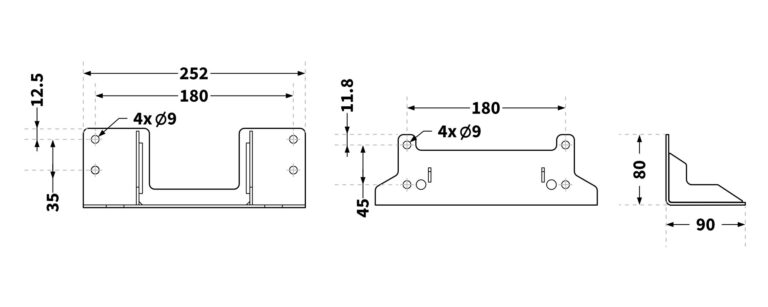

MOUNTING THE QS-BT1 ON A QS-V20 PLATFORM

The QS-V20 version uses one wide bracket fitted to the rear section of the platform frame. It works with existing QS-V20 mounting points. On some units, the rear logo plate can be removed first to improve access and refitted after installation.

The variant includes four M8 x 25 bolts plus two M8 nuts and washers. The four connections between the bracket and platform are tightened to 23 Nm. The tensioner is attached with the M8 x 40 screws supplied as part of the standard QS-BT1 package.

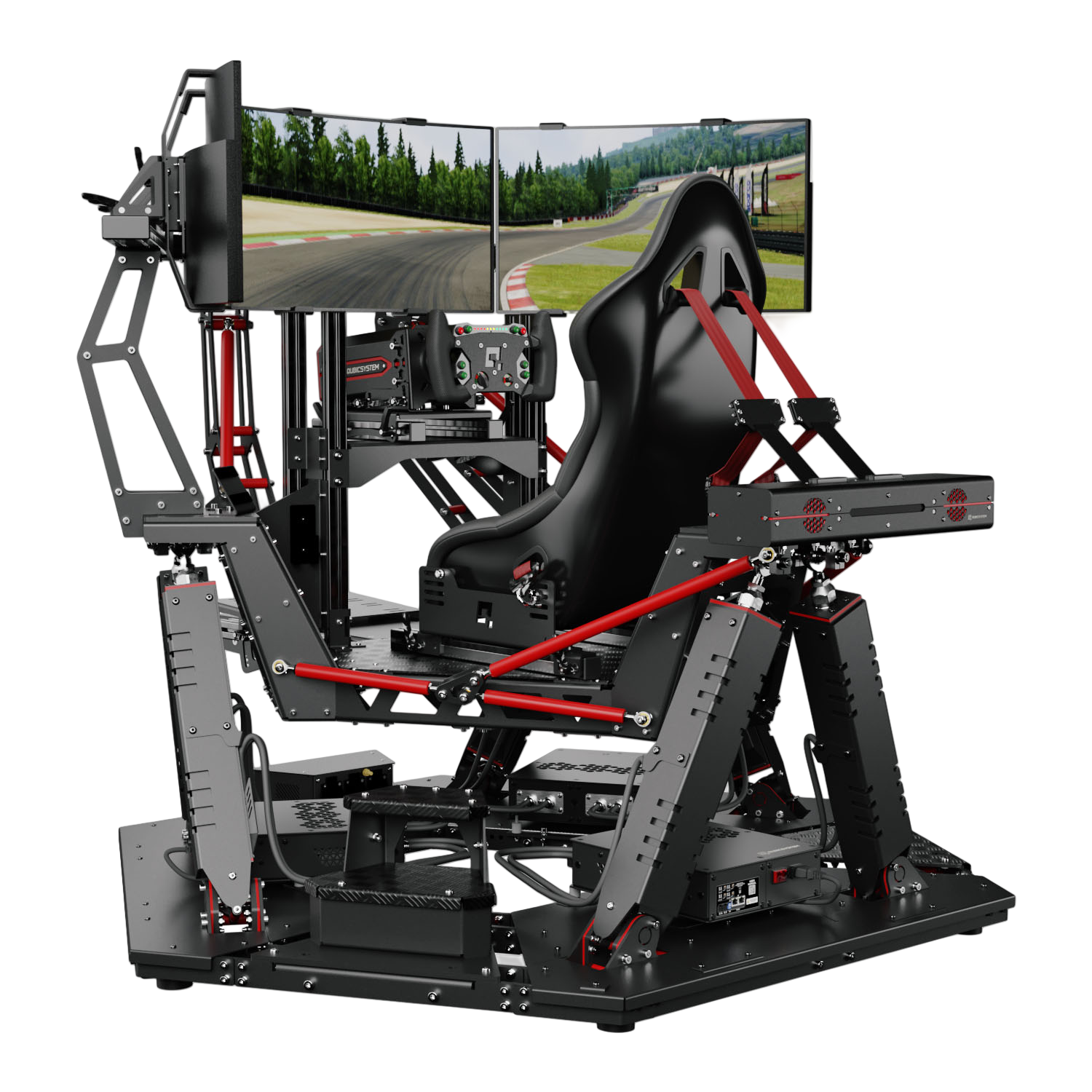

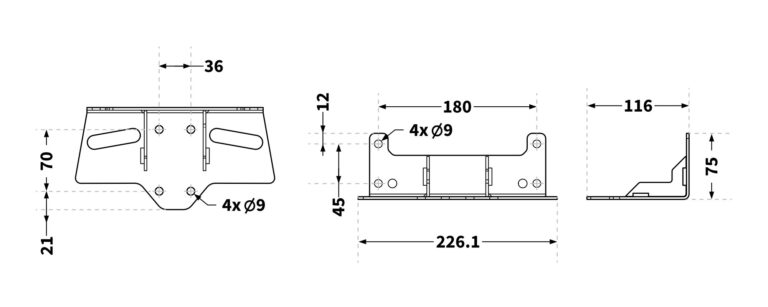

MOUNTING THE QS-BT1 ON A QS-S25 PLATFORM

The QS-S25 variant positions the tensioner at the rear of the platform frame. A single bracket rests flat against the structure and four bolts pass through the prepared holes. The nuts are tightened from below, so access to the underside of the rear frame is required during installation.

The kit contains the bracket, four M8 x 35 bolts, four M8 nuts and four washers. The connections to the frame are tightened to 23 Nm after the bracket has been aligned. Screws joining the QS-BT1 to the bracket must not exceed 10 Nm.

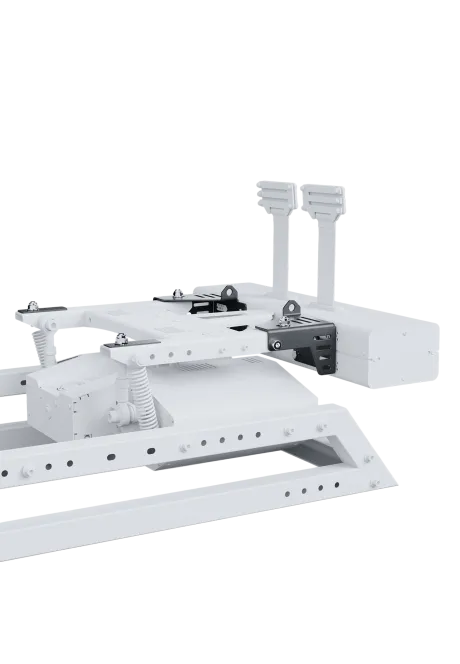

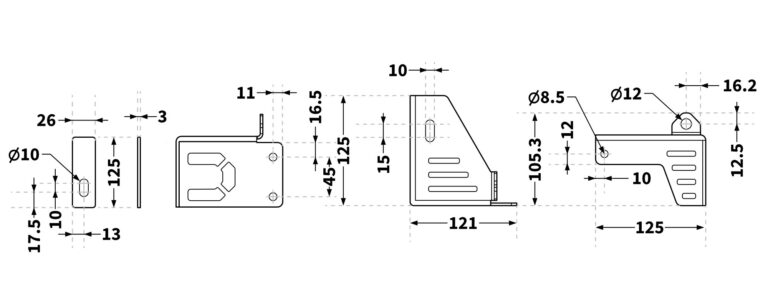

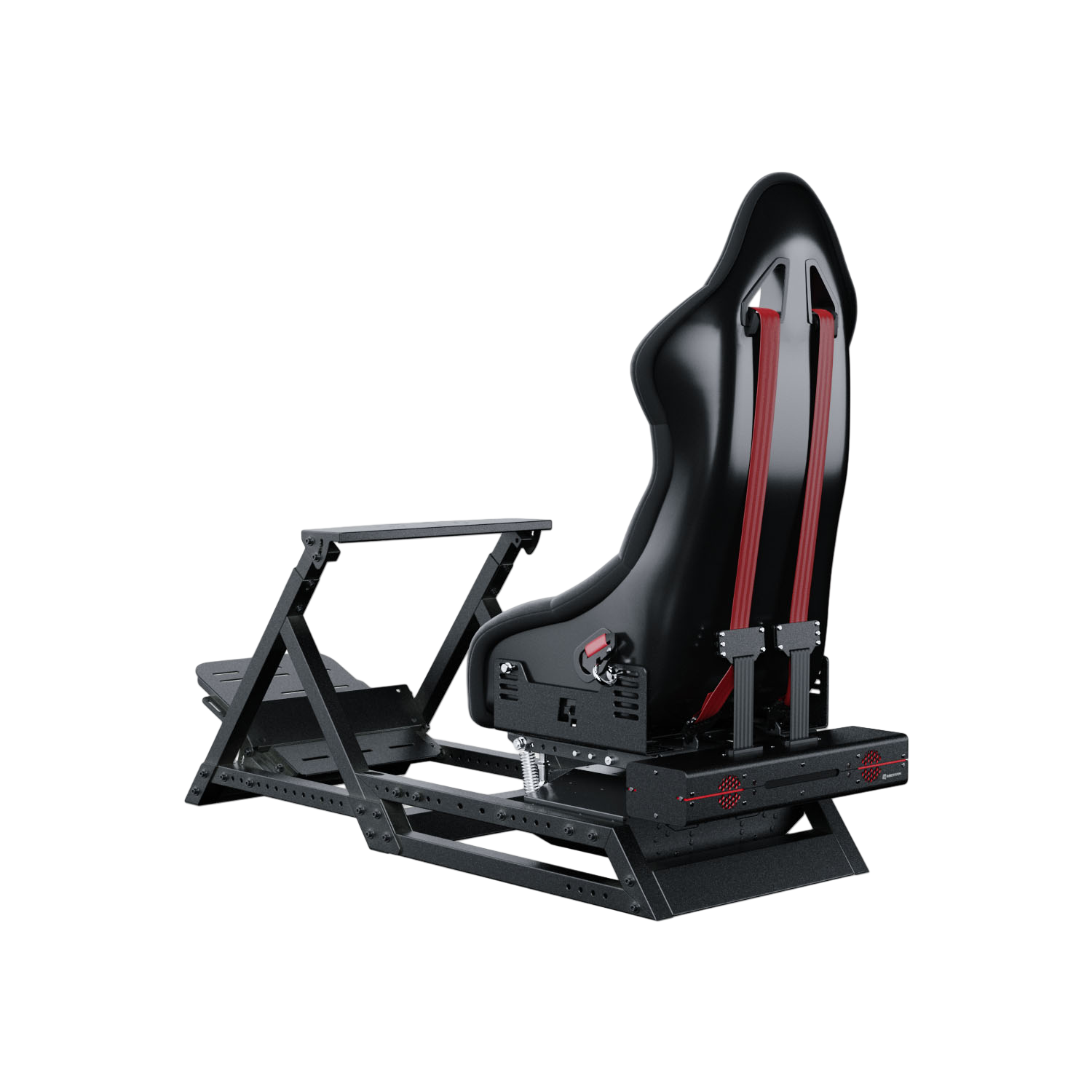

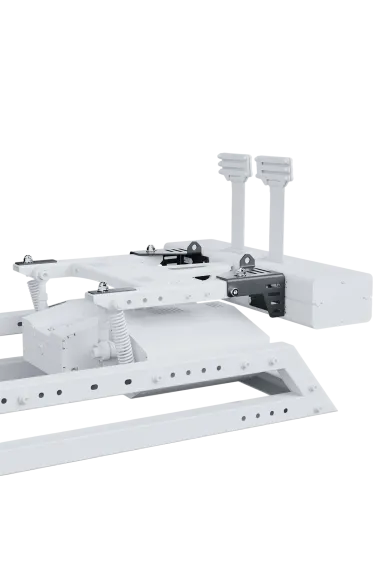

MOUNTING THE QS-BT1 ON NEXT LEVEL RACING MOTION PLATFORM V3

The NLR MPV3 variant contains two different brackets and two spacers. They fit between the moving upper frame of the Motion Platform V3 and the seat mount or sliders. The tensioner has to move with the seat, so it must not be attached to a static cockpit section or installed with the standard Buttkicker Gamer 2 bracket.

The mounting kit contains two M8 x 55 bolts, four M8 x 25 bolts, six nuts and six washers. The seat mounting connection is tightened to 23 Nm. After a QS-BT1 is installed, Qubic System reduces the maximum user weight for the NLR Motion Platform V3 to 115 kg.

EAN13 5904121191218

Variant	Kit construction	Platform connection torque	QS-BT1 connection torque
QS-CH1	2 brackets, left and right	25 Nm for the rear actuator bolts	Max. 10 Nm
QS-V20	1 bracket	23 Nm	Max. 10 Nm
QS-S25	1 bracket	23 Nm	Max. 10 Nm
NLR MPV3	2 brackets and 2 spacers	23 Nm	Max. 10 Nm
Kit dimensions	The manufacturer does not publish overall dimensions for the individual mounting kits
Kit weight	The manufacturer does not publish individual mounting-kit weights

Selected variant	Compatible rig	Mounting location	Important note
QS-CH1	Qubic System QS-CH1 cockpit with rear QS-210 or QS-220 actuators	At the rear actuator mounts	Left and right brackets are not interchangeable
QS-V20	Qubic System QS-V20 platform	Rear section of the platform frame	The bracket uses existing points in the frame
QS-S25	Qubic System QS-S25 platform	Rear section of the platform frame	Access to the nuts from below is required during installation
NLR MPV3	Next Level Racing Motion Platform V3	Moving upper frame, underneath the seat mount or sliders	Maximum user weight after installing the QS-BT1 is 115 kg
Other aluminium-profile cockpits	Not covered by these four variants	Use the universal adapters supplied with the QS-BT1 or another approved solution	Do not select a variant solely because the frame looks similar

Variant	Mounting-kit contents
QS-CH1	2 mounting brackets: left and right
QS-V20	1 bracket, 4 M8 x 25 DIN 912 bolts, 2 M8 DIN 985 nuts, 2 A8.4 DIN 125 washers
QS-S25	1 bracket, 4 M8 x 35 DIN 912 bolts, 4 M8 DIN 985 nuts, 4 A8.4 DIN 125 washers
NLR MPV3	2 brackets, 2 spacers, 2 M8 x 55 DIN 912 bolts, 4 M8 x 25 DIN 912 bolts, 6 M8 DIN 985 nuts, 6 A8.4 DIN 125 washers
Not included	QS-BT1 belt tensioner, harness, platform or cockpit, and installation tools

1. What is the Qubic System Mount for QS-BT1 used for?

It is a dedicated bracket kit for installing the QS-BT1 belt tensioner on one of four supported rigs.

2. Which mounting variants are available?

Separate versions are offered for the QS-CH1, QS-V20, QS-S25 and Next Level Racing Motion Platform V3.

3. Does one variant fit all four platforms?

No. Each version has different geometry and contents. Select the exact variant made for the installed rig.

4. Is the QS-BT1 belt tensioner included?

No. The product contains only the selected mounting kit. The QS-BT1, harness, cockpit and motion platform are sold separately.

5. Does the QS-CH1 version work with QS-210 and QS-220 actuators?

Yes. The brackets fit at the rear QS-210 or QS-220 actuator mounts used on the QS-CH1 cockpit.

6. Where is the QS-BT1 installed on NLR Motion Platform V3?

On the moving upper frame, between the platform and the seat mount or sliders. It must not be fixed to a stationary cockpit section.

7. Can the Buttkicker Gamer 2 bracket be used with the NLR MPV3 version?

No. Qubic System explicitly prohibits use of the standard Buttkicker Gamer 2 bracket for this installation.

8. Does a QS-BT1 change the NLR Motion Platform V3 user-weight limit?

Yes. Once the QS-BT1 is installed, the maximum user weight for this platform is 115 kg.

9. How tightly should the QS-BT1 be attached to its bracket?

The M8 x 40 DIN 913 screws entering the tensioner must be tightened to no more than 10 Nm.

10. Does the kit fit a standard aluminium-profile cockpit?

Do not assume that it does. A standard profile cockpit uses the universal adapters supplied with the QS-BT1 rather than one of the four variants described here.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems in Poland and Europe. As an authorised Qubic Systems partner, all products from this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle submissions. Please email support@simline.eu or qubicsystems@simline.eu with photos and videos showing the defect, a description of the issue, and pack the equipment for collection.
