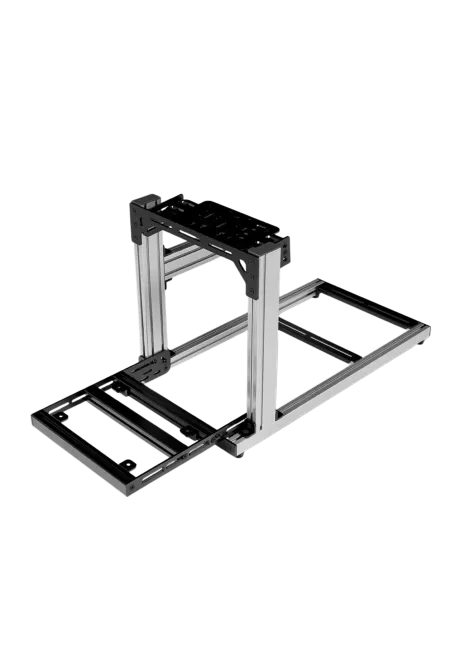

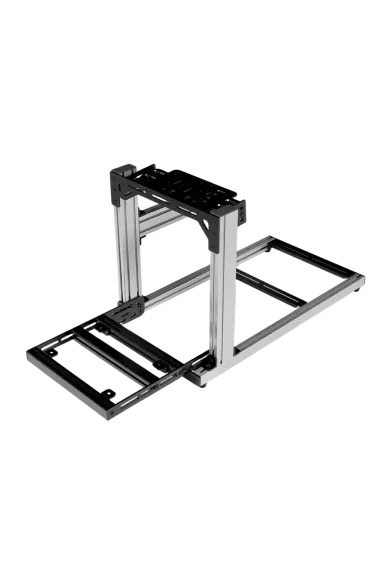

Simgasm Hobby Silver bottom mount
Simgasm Hobby Silver bottom mount side view

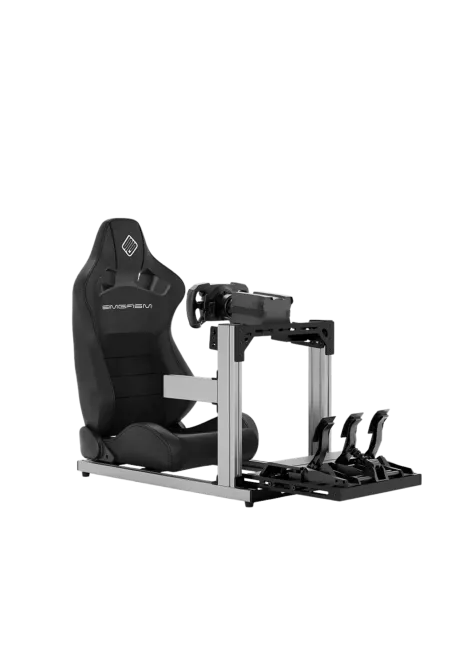

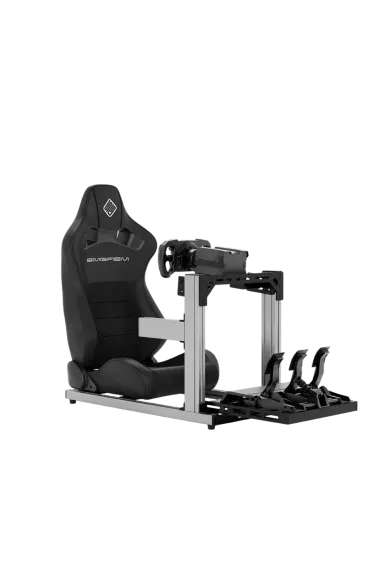

Simgasm Hobby Silver bottom mount front right side view
Simgasm Hobby Silver dimensions
  • New
Simgasm Hobby Silver bottom mount
Simgasm Hobby Silver bottom mount side view
Simgasm Hobby Silver bottom mount front right side view
Simgasm Hobby Silver dimensions
Model:

Simgasm Hobby Silver

C40-BWM-SIL
934.15zł

934.15zł
PREORDER

SIMGASM Hobby Silver is a silver sim racing cockpit built from 40 × 40 mm aluminium profiles. It measures 580 × 1300 × 725 mm, weighs 20.5 kg and carries a 150 kg rated braking load at the pedal deck. Select Bottom, Front, Side or Asetek Front Mount when ordering, then choose a separate sim racing seat.

Wheelbase Mount Variant
  • Bottom Mount
  • Front Mount
  • Side Mount
  • Asetek Front Mount


Ask about product
Zapytanie dotyczy produktu: Simgasm Hobby Silver
* - pola obowiązkowe
Send
You will receive an 9.34zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like



SIMGASM Hobby Silver - a compact cockpit with an engineering-led finish

SIMGASM Hobby Silver is a compact aluminium-profile cockpit for drivers who want to move their wheelbase, pedals and seat away from a desk and onto a permanent chassis. Its silver finish makes the profile geometry part of the design and works naturally with black controls, grey hardware and other metallic components.

The assembled chassis occupies a 580 x 1300 mm footprint and stands 725 mm high. As the compact entry point to the modular range, it suits a bedroom, office or dedicated racing corner without requiring the space of a deeper-profile frame. Alternative sizes and layouts are available under sim racing cockpits.

Simgasm Hobby Biały - A plain white chassis without a livery

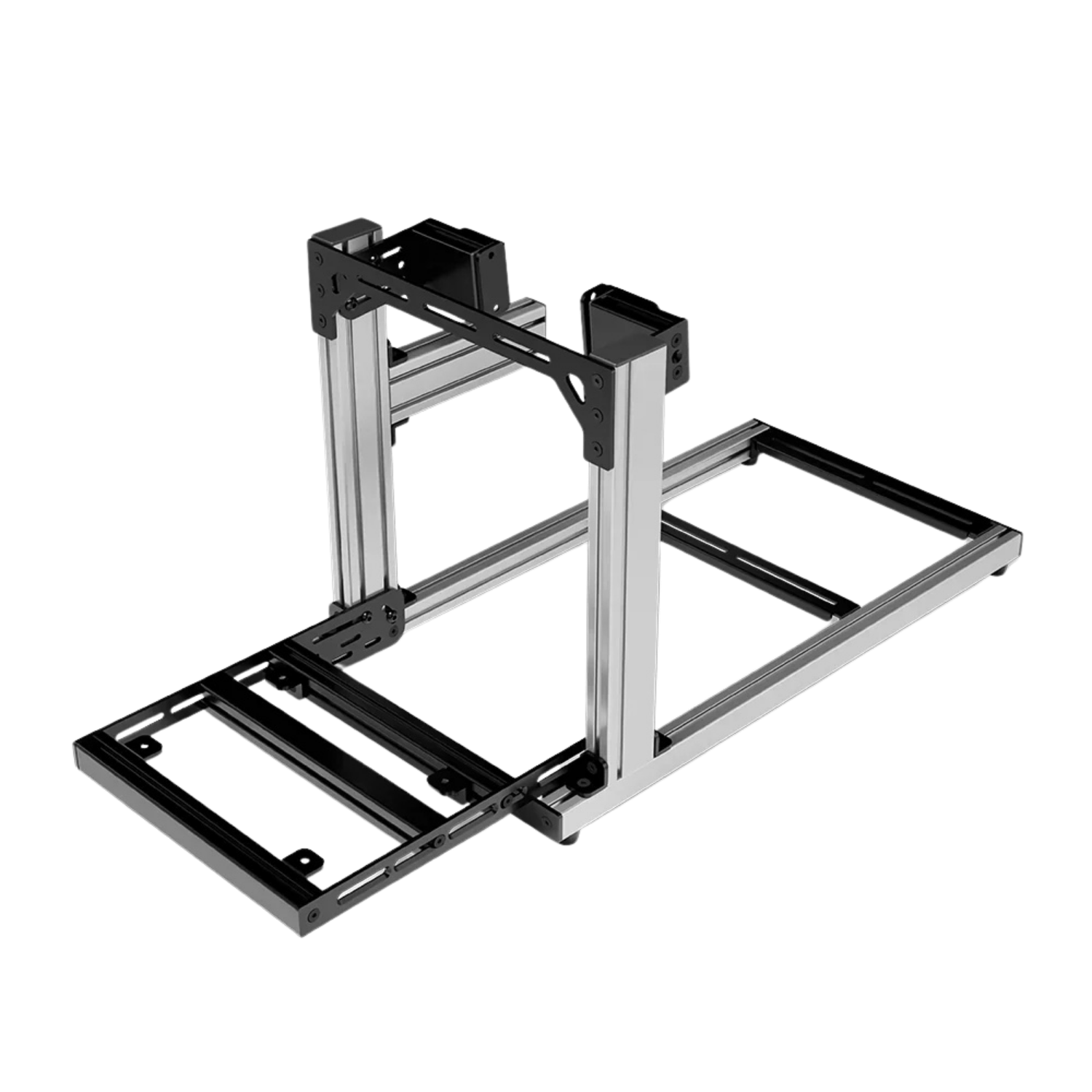

A compact 40 × 40 mm platform for a permanent setup

40 x 40 mm profiles and adjustable GT or Formula geometry

The main structure of the SIMGASM Hobby Silver uses 40 x 40 mm aluminium profiles. Their slots allow the steering section, pedal deck and seat mounting points to move in depth, height and angle, letting the driving position be built around the user. The cockpit itself weighs 20.5 kg.

The layout can be arranged for an upright GT posture or moved towards a lower Formula-style position. The final range also depends on the seat, slider and brackets, which are not supplied with the chassis. Suitable options can be compared under sim racing seats.

Four wheelbase mounts for systems up to 16 Nm

One wheelbase mounting system is selected when ordering the SIMGASM Hobby Silver. Bottom Mount uses threads beneath the housing. The regular Front Mount serves compatible Fanatec, Simucube and VRS bases, while Side Mount uses the side points of selected Fanatec, MOZA, SIMAGIC and Conspit models. Asetek Front Mount is a separate layout for supported Asetek hardware.

SIMGASM recommends the Hobby tier for wheelbases rated up to and including 16 Nm. Matching bolt holes do not make a higher-output base suitable for this chassis. Confirm the complete wheelbase name, mounting layout and rated torque before ordering. Current hardware can be reviewed under Direct Drive wheelbases.

Four wheelbase mounting layouts

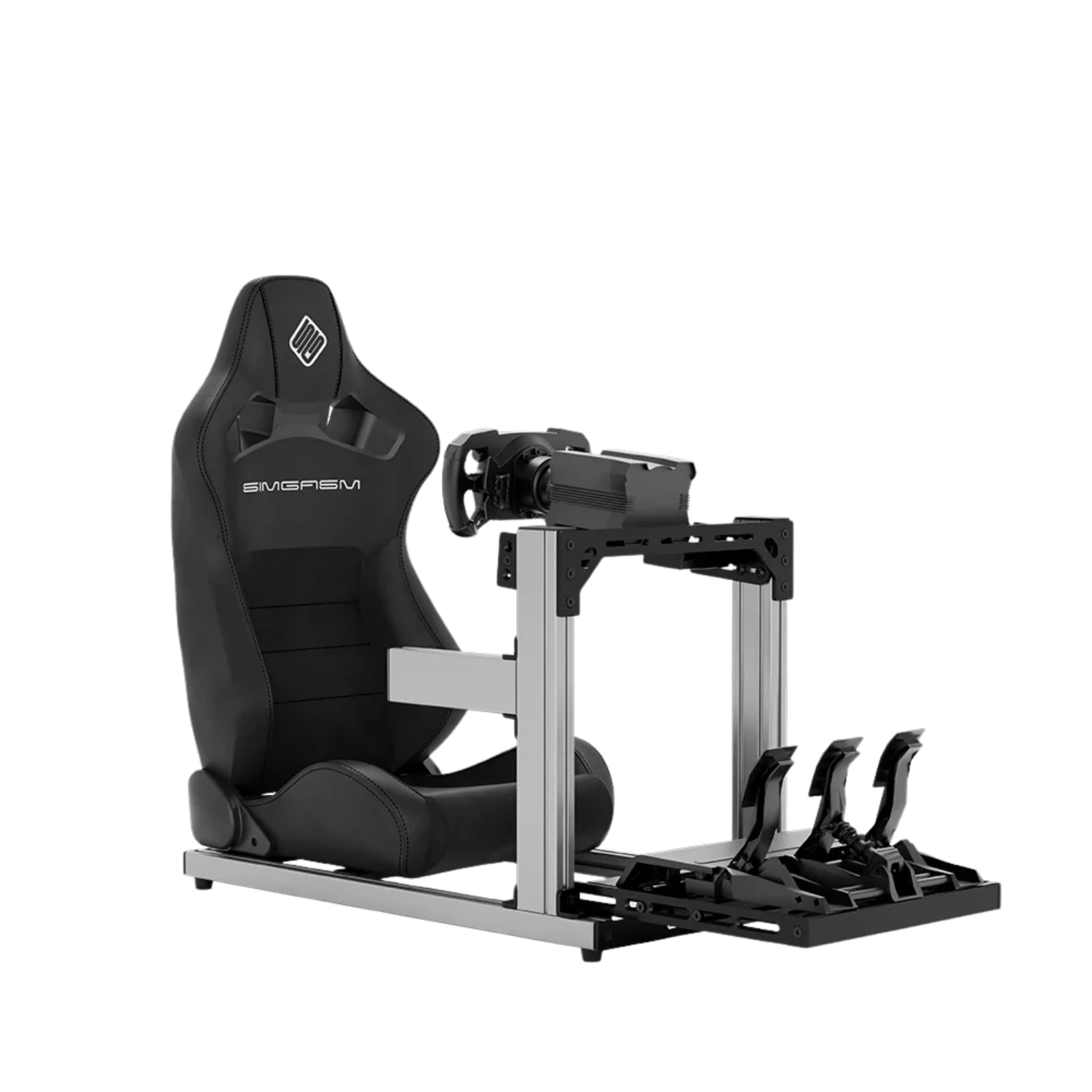

Pedal support, Core side arm and upgrade path

150 kg pedal-deck rating, Core arm and room to expand

The pedal deck carries a stated braking-load rating of up to 150 kg. This figure describes force applied to the pedal platform, not driver weight. It provides useful reserve for many load-cell sets, although the bolt pattern of the pedals still has to match the deck.

The package contains the silver profiles, structural brackets, one selected wheelbase mount, a Core side arm for a compatible shifter or handbrake, bolts, tools, assembly guide and white gloves. The seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display and monitor stand are separate purchases.

A keyboard arm, mouse tray, cable-management parts and display structure can be added as the simulator develops. Suitable modules are available under sim rig accessories and TV and monitor stands.

Simgasm Hobby White - side mount

SIMGASM Hobby Silver - a compact cockpit with an engineering-led finish

SIMGASM Hobby Silver is a compact aluminium-profile cockpit for drivers who want to move their wheelbase, pedals and seat away from a desk and onto a permanent chassis. Its silver finish makes the profile geometry part of the design and works naturally with black controls, grey hardware and other metallic components.

The assembled chassis occupies a 580 x 1300 mm footprint and stands 725 mm high. As the compact entry point to the modular range, it suits a bedroom, office or dedicated racing corner without requiring the space of a deeper-profile frame. Alternative sizes and layouts are available under sim racing cockpits.

Simgasm Hobby White - front mount

40 x 40 mm profiles and adjustable GT or Formula geometry

The main structure of the SIMGASM Hobby Silver uses 40 x 40 mm aluminium profiles. Their slots allow the steering section, pedal deck and seat mounting points to move in depth, height and angle, letting the driving position be built around the user. The cockpit itself weighs 20.5 kg.

The layout can be arranged for an upright GT posture or moved towards a lower Formula-style position. The final range also depends on the seat, slider and brackets, which are not supplied with the chassis. Suitable options can be compared under sim racing seats.

Simgasm Hobby White - bottom mount

Four wheelbase mounts for systems up to 16 Nm

One wheelbase mounting system is selected when ordering the SIMGASM Hobby Silver. Bottom Mount uses threads beneath the housing. The regular Front Mount serves compatible Fanatec, Simucube and VRS bases, while Side Mount uses the side points of selected Fanatec, MOZA, SIMAGIC and Conspit models. Asetek Front Mount is a separate layout for supported Asetek hardware.

SIMGASM recommends the Hobby tier for wheelbases rated up to and including 16 Nm. Matching bolt holes do not make a higher-output base suitable for this chassis. Confirm the complete wheelbase name, mounting layout and rated torque before ordering. Current hardware can be reviewed under Direct Drive wheelbases.

Simgasm Hobby White - bottom mount left bottom side view

150 kg pedal-deck rating, Core arm and room to expand

The pedal deck carries a stated braking-load rating of up to 150 kg. This figure describes force applied to the pedal platform, not driver weight. It provides useful reserve for many load-cell sets, although the bolt pattern of the pedals still has to match the deck.

The package contains the silver profiles, structural brackets, one selected wheelbase mount, a Core side arm for a compatible shifter or handbrake, bolts, tools, assembly guide and white gloves. The seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display and monitor stand are separate purchases.

A keyboard arm, mouse tray, cable-management parts and display structure can be added as the simulator develops. Suitable modules are available under sim rig accessories and TV and monitor stands.

Technical specification - SIMGASM Hobby Grey
Construction
Material Aluminium profiles and metal brackets
Main profile 40 × 40 mm
Colour Grey
Additional livery None
Assembled dimensions 580 × 1300 × 725 mm
Weight 20.5 kg
Braking-load rating Up to 150 kg at the pedal deck
Variants and package
Wheelbase mount Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake support Core side-profile mounting arm
Number of boxes 1
Package dimensions 960 × 220 × 120 mm
Included Profiles, brackets, selected mount, Core arm, hardware, tools, gloves and guide
Sold separately Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, monitor and stand
Warranty 2 years

SIMGASM Hobby Grey - questions and answers

1. Does the grey version include a livery kit?

No. Its visual theme comes from the grey-finished profiles, and no additional decal set is supplied.

2. Which wheelbase mount should I choose?

Choose according to the wheelbase model and its mounting holes. Options are Bottom, Front, Side and Asetek Front Mount.

3. Are all four mounts included?

No. The box contains the mounting version selected for the order, not a complete set of all four bracket types.

4. Can regular Front Mount hold a SIMAGIC base?

No. Compatible SIMAGIC models should be checked against Bottom Mount or Side Mount instead.

5. Is there a shifter bracket in the box?

Yes. A Core side-profile arm is included for a compatible shifter or handbrake. The device itself is sold separately.

6. Is a seat supplied with the chassis?

No. The seat, brackets and slider must be selected separately. Available choices can be found under sim racing seats.

7. What is the assembled footprint?

The frame measures 580 mm wide, 1300 mm long and 725 mm high. Leave extra room for the seat, display and access.

8. Can the pedal deck take load-cell pedals?

It is rated for braking loads up to 150 kg. The pedal set's hole pattern must also match the deck.

9. Is the frame itself platform compatible?

The chassis is passive. PC, Xbox or PlayStation support is determined by the fitted wheelbase, wheel and pedals.

10. Can the cockpit be expanded later?

Yes. Its profile construction accepts compatible monitor supports, keyboard arms and other sim rig accessories.
