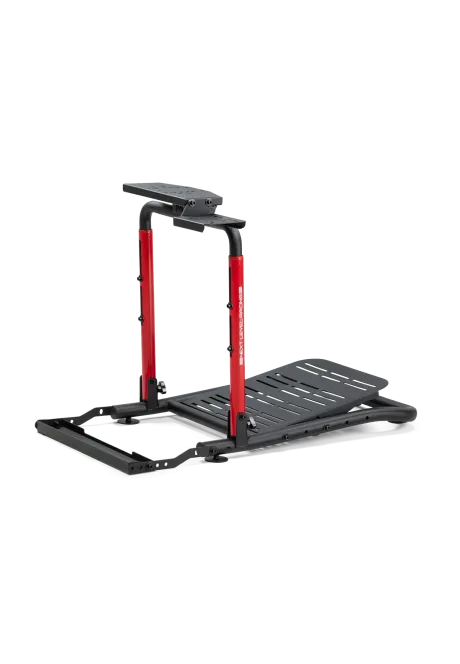

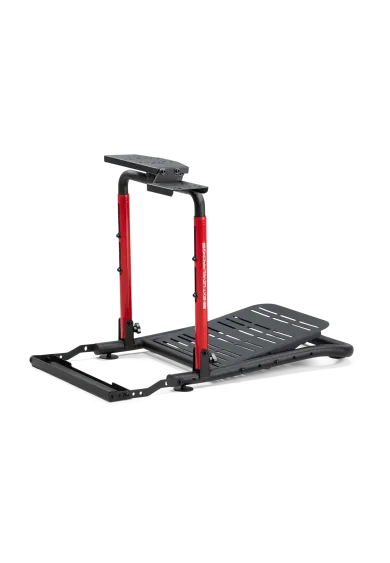

Next Level Racing Wheel Stand Lite 2.0 rear view

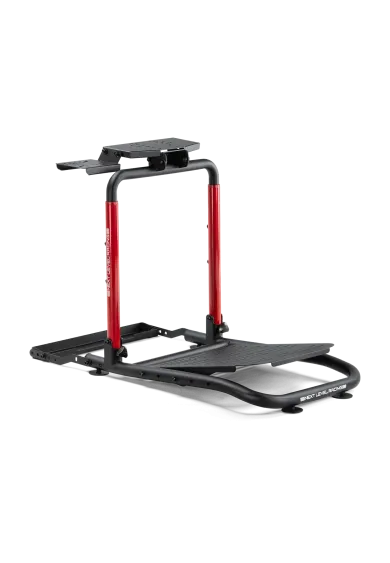

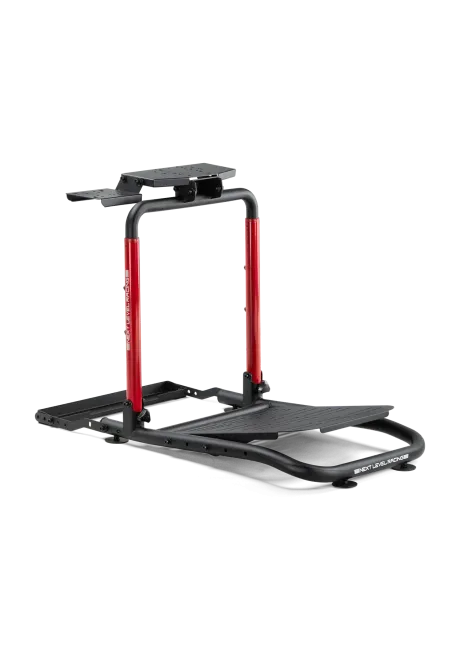

Next Level Racing Wheel Stand Lite 2.0 front view

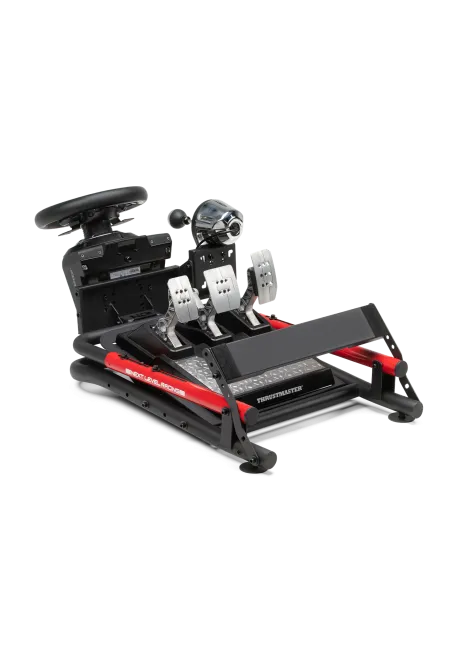

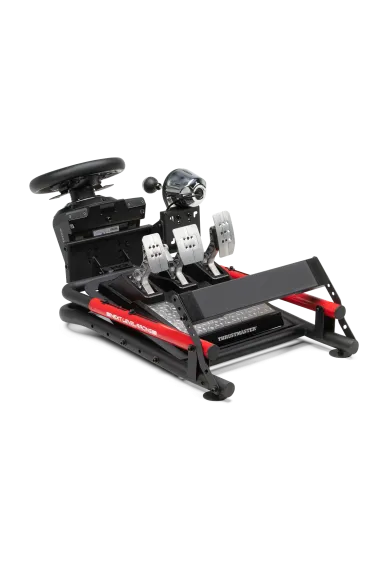

Next Level Racing Wheel Stand Lite 2.0 folded position

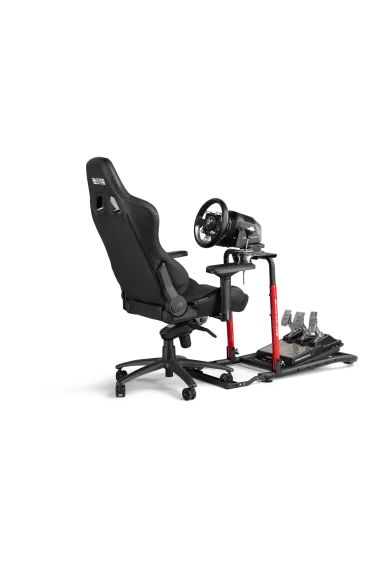

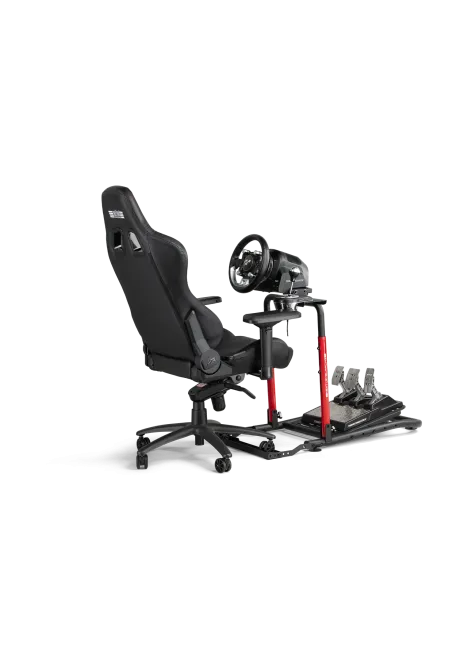

Next Level Racing Wheel Stand Lite 2.0 with wheelchair

Next Level Racing Wheel Stand Lite 2.0

Name: Next Level Racing Wheel Stand Lite 2.0
Brand: Next Level Racing
SKU: NLR-S040
Price: 527.64 PLN
Availability: OutOfStock

Reference NLR-S040

527.64zł

PREORDER

Next Level Racing Wheel Stand Lite 2.0 is a foldable stand for a wheelbase, pedals and shifter, rated for wheelbases up to 10 Nm. Wheel height and angle can be adjusted together with pedal position, while the Gaming Chair Cradle helps stop a wheeled chair from rolling back under braking. Browse more Next Level Racing products and sim racing cockpits.

Ask about product

You will receive an 5.28zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Racing Bundles

MOZA R3 bundle XBOX/PC

1,064.23zł

MOZA R5 bundle

1,243.09zł

Moza R5 PRO Bundle

1,462.60zł

Fanatec Gran Turismo DD PRO 5NM

2,398.37zł

Huzaro Speed 2.0 Wheel Stand

1 Reviews

161.79zł 202.44zł

Next Level Racing HF8 Pro

735.42zł 877.24zł

Next Level Racing Floor Mat

104.07zł 153.66zł

Next Level Racing Cockpit Boeing...

2,763.41zł 2,934.15zł

Huzaro Speed 2.5 Wheel Stand

243.09zł

A foldable stand for use with a regular chair

Wheel Stand Lite 2.0 provides mounting points for a wheelbase, pedals and shifter without taking up the permanent floor space of a full cockpit. After a session, the uprights fold down, the chair cradle lifts and the supplied straps secure the frame for storage. At 11.7 kg, the stand is easier to move than a complete rig with a fixed seat.

Much of the frame arrives pre-assembled. The remaining work covers the wheel plate, shifter support, chair cradle and racing hardware. When open, the stand measures 73 x 57 cm, with an adjustable height of 67 to 75 cm. Next Level Racing does not publish its dimensions in the folded position.

Wheel and pedal position adjustment

The wheel plate can be adjusted for height, distance and angle. The pedal platform slides horizontally and supports angle adjustment. Next Level Racing specifies a supported driver-height range of 150 to 210 cm, although the final driving position also depends on chair height and the dimensions of the installed wheelbase.

Once the controls are mounted, check that the shoulders remain supported, the elbows are slightly bent and the leg does not fully straighten at maximum pedal travel. Changing the wheel and pedal plate angles requires the relevant bolts to be loosened, the part repositioned and the connections tightened again.

Chair cradle and left or right shifter position

The Gaming Chair Cradle sits behind the pedal platform and captures the wheels of a gaming chair. It helps prevent the chair from rolling away from the controls under heavier braking. The cradle is intended for wheeled chairs, so a chair with fixed legs should be checked for suitable positioning before use.

The shifter plate can be installed on the left or right. Four levelling feet and cable-management straps are also included. The straps organise wiring and secure the frame after folding. A handbrake needs a matching hole pattern or the separately available Next Level Racing Universal Handbrake Plate.

Wheelbases up to 10 Nm and an upgrade path

Next Level Racing rates the stand for wheelbases up to 10 Nm and up to 30 kg of installed electronics. Its mounting pattern supports selected hardware from MOZA, Fanatec, Logitech, Thrustmaster, Simagic, Cammus and Asetek. A matching bolt pattern on a stronger wheelbase does not mean the stand is approved for that wheelbase's full torque.

The Wheel Stand Lite 2.0 Victory Seat Add-On converts the stand into a complete GT cockpit. Compatible options also include selected free-standing monitor mounts, floor mats, lockable castors and the Universal Handbrake Plate. A seat, wheelbase, steering wheel, pedals, shifter and other electronics are not included.

Seat: Excluded
Monitor/TV mount: Excluded
Shifter/Handbrake mount: Included
Width: 570mm
Length: 730mm
Driver position: Universal

EAN13 9359668000596

Parameter	Details
Manufacturer	Next Level Racing
Product name	Next Level Racing Wheel Stand Lite 2.0
Type	Foldable stand for a wheelbase, pedals and shifter
Frame material	Powder-coated round steel tubing
Colour	Black
Maximum wheelbase torque	Up to 10 Nm
Maximum electronics load	30 kg
Supported driver height	150-210 cm
Open dimensions	73 x 57 x 67-75 cm
Product weight	11.7 kg
Box dimensions	76 x 54.5 x 15.5 cm
Boxed weight	14.7 kg
Wheel-plate adjustment	Height, distance and angle
Pedal-platform adjustment	Horizontal position and angle
Shifter mount	Included, left or right installation
Chair restraint	Gaming Chair Cradle included
Folding	Yes, with securing straps

Hardware or accessory	Compatibility	Notes
MOZA R3, R5 and R9	Yes	Models listed by Next Level Racing
Fanatec CSL DD 5 Nm, CSL DD 8 Nm and Gran Turismo DD Pro	Yes	Supported mounting patterns
Simagic Alpha Mini	Yes	Model listed by Next Level Racing
Logitech G PRO, G25, G27, G29, G920 and G923	Yes	Hard mounting on the wheel plate
Thrustmaster T500 RS, T-GT, T-GT II, TS-PC, TX, T248, T598 and T818	Yes	Models listed in the manual and support centre
Cammus C5 and C12	Mounting supported	Do not exceed the stand's 10 Nm rating with the C12
Asetek La Prima	Mounting supported	Do not exceed the stand's 10 Nm rating
MOZA R16, R21, R21 Ultra and R25 Ultra	Mounting possible, not recommended	These wheelbases exceed the intended torque range
Fanatec DD1, DD2, Asetek Forte, Asetek Invicta, Simagic Alpha and Simucube	Not recommended	Higher-output wheelbases fall outside the stand's intended use; Simucube also needs a bottom-mount bracket
Fanatec CSL, CSL Elite and ClubSport V3 pedals	Yes	Models listed by Next Level Racing
Thrustmaster T3PA, T-LCM and T300RS pedal sets	Yes	Models listed by Next Level Racing
MOZA SR-P, CRP and R5 pedals	Yes	Compatibility applies to the listed models
Fanatec ClubSport, Logitech G29/G923 and Thrustmaster TH8A shifters	Yes	The shifter support can be fitted on the left or right
Next Level Racing Wheel Stand Lite 2.0 Victory Seat Add-On	Yes	GT cockpit conversion sold separately
Next Level Racing Universal Handbrake Plate and Lockable Castor Wheels	Yes	Accessories sold separately

stand frame with pedal platform
wheel plate
shifter plate and support bracket
Gaming Chair Cradle
2 chair-cradle mounting brackets
2 threaded frame-locking knobs
4 levelling feet
6 cable-management and folded-frame securing straps
M6 and M8 mounting bolts, nuts and washers
13 mm wrench
5 mm and 6 mm Allen keys
assembly instructions

The wheelbase, steering wheel, pedals, shifter, handbrake, seat, monitor mount and other electronics are not included.

1. What is the Next Level Racing Wheel Stand Lite 2.0 used for?

It is a foldable stand for a wheelbase, pedals and shifter, designed for use with a separate chair.

2. What wheelbase torque does the stand support?

Next Level Racing rates it for wheelbases up to 10 Nm. Mounting a stronger wheelbase does not mean the stand can be used at that wheelbase's full output.

3. What are the dimensions when open?

73 x 57 x 67-75 cm. The last value depends on the selected height.

4. Can the stand be folded with the hardware installed?

Yes, the frame is foldable. Check the total electronics weight and secure any loose cables and parts before lifting or storing it.

5. Is a seat included?

No. The package includes a Gaming Chair Cradle that helps stop a wheeled gaming chair from rolling back under braking.

6. Can the wheel and pedal positions be adjusted?

Yes. Wheel-plate height, distance and angle can be adjusted, while the pedal platform supports horizontal and tilt adjustment.

7. Which side can the shifter use?

The supplied shifter plate can be installed on either the left or right side of the stand.

8. Is it suitable for a driver taller than 200 cm?

Next Level Racing specifies a supported height range of 150 to 210 cm. Comfort also depends on the height and design of the chair.

9. Can Wheel Stand Lite 2.0 be upgraded with a seat?

Yes. The separately available Wheel Stand Lite 2.0 Victory Seat Add-On converts it into a complete GT cockpit.

10. Are the wheel, pedals and shifter included?

No. The package contains the stand, mounting plates, chair cradle, feet, straps, mounting hardware and tools. Electronics are sold separately.

11. How long is the warranty on Next Level Racing products?

Simline is the largest authorised distributor of Next Level Racing in Poland and Europe. As an authorised Next Level Racing partner, we provide full warranty protection for all products from this brand for up to 2 years within the European Union, in accordance with Next Level Racing warranty terms.

12. How do I submit a warranty claim for a Next Level Racing product?

Simline.eu is an authorised Next Level Racing partner, so we act as an intermediary in the warranty process and handle claims. Please email support@simline.eu or nextlevelracing@simline.eu with photos and videos showing the fault, together with a description, and pack the equipment.
