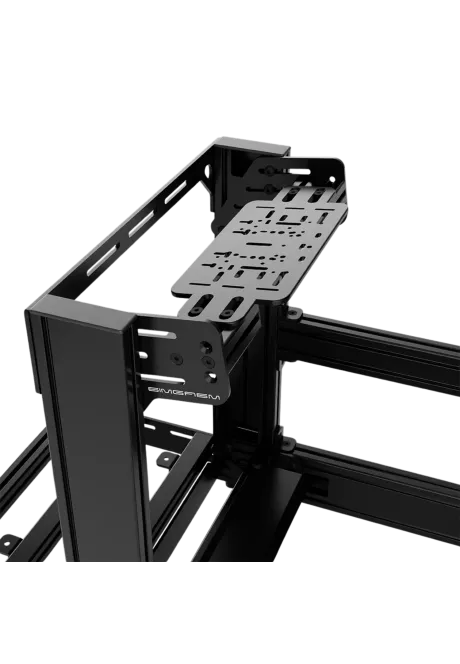

Simgasm Sport Black bottom mount zoom view

Model:

Simgasm Sport Black

Name: Simgasm Sport Black
Brand: SIMGASM
SKU: 1408
Price: 2031.71 PLN
Availability: OutOfStock

Reference C120-BWM-BLK

2,031.71zł

PREORDER

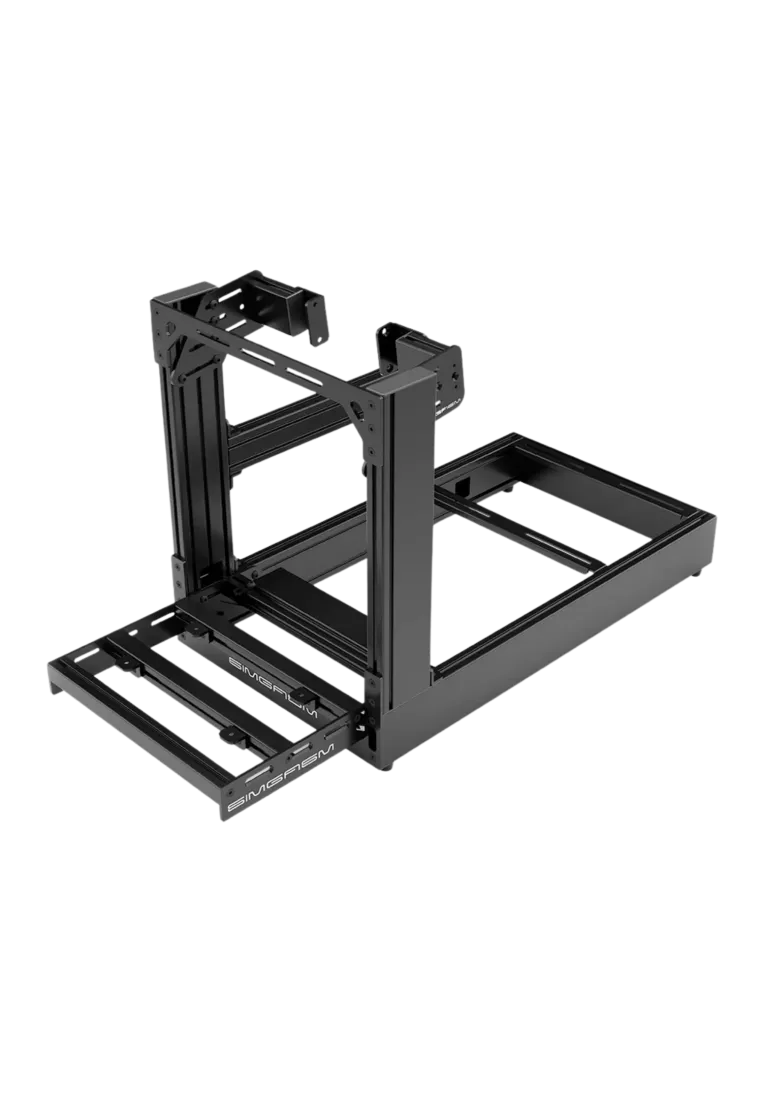

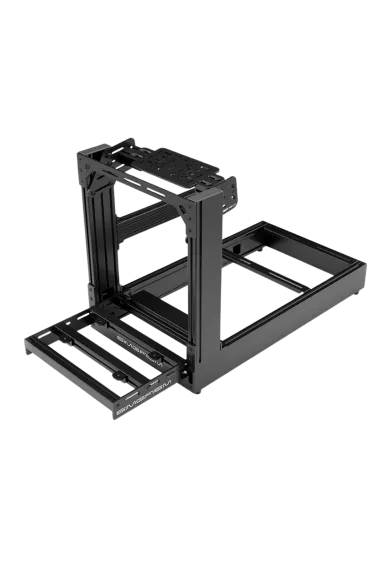

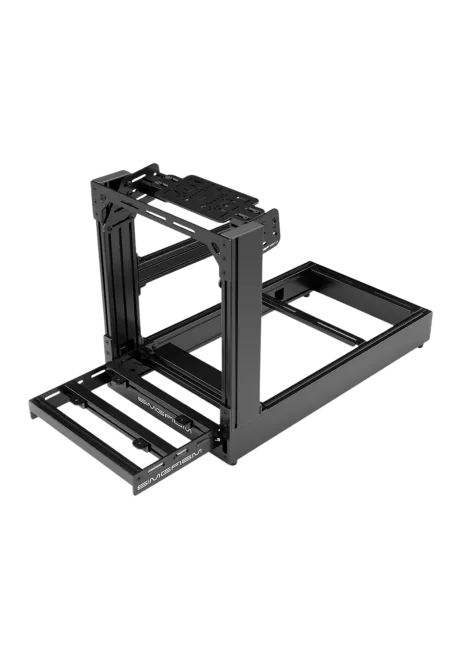

SIMGASM Sport Black is a 40 x 120 mm aluminium-profile cockpit for demanding Direct Drive builds. Its 600 x 1350 x 800 mm frame combines a pedal deck rated to 300 kg, integrated cable passthroughs and motion-ready architecture.

SIMGASM recommends Sport or Pro for wheelbases above 26 and up to 40 Nm. Select Bottom, Front, Side or Asetek Front Mount hardware, then add the seat and controls separately. An Apex side arm is included.

Wheelbase Mount Variant

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 20.32zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

A black 40 Nm cockpit for focused practice

SIMGASM Sport Black is the compact high-torque step below the larger Pro platform. Its 40 x 120 mm main profiles suit league practice, endurance sessions and Direct Drive hardware that needs a stable reference point. SIMGASM places Sport and Pro in the same recommended band for wheelbases producing more than 26 and up to 40 Nm.

The black finish keeps the frame visually quiet when the cockpit carries hardware from several ecosystems. It lets the display, wheel and telemetry remain the focal point while the chassis blends with common black housings. Compare alternative layouts in sim racing cockpits.

Preserve force-feedback detail without chasing full output

A wheelbase number does not describe the complete load path. The wheel support, uprights and lower frame must keep the steering axis consistent as torque changes direction. Sport combines deep profiles with tier-specific metal hardware so the structure does not absorb the short cues used to read grip, kerbs and countersteer.

A higher-rated wheelbase can still be useful when the driver runs less than its nominal torque. That reserve creates headroom for transients and can reduce clipping once driver strength and in-game gain are balanced correctly. A base above the chassis guideline may fit mechanically, but its output must be limited to a safe level or paired with the Pro tier. Browse current Direct Drive wheelbases when planning the mount.

Route the installation before adding motion

Integrated cable passthroughs give the build a defined path for wheelbase, pedal and accessory wiring. Keeping cables inside the profiles reduces loose loops near adjustable brackets and leaves a cleaner area around the seat. The dark finish makes the remaining harness less prominent without hiding access points during service.

The chassis is motion-ready, meaning the frame has been planned with later system integration in mind. Actuators, controls and the hardware required for a specific motion kit are not included. A static build can therefore start with the essential controls and gain new functions later. Suitable trays, supports and cable accessories are available under sim rig accessories.

Match the housing first, then complete the rig

Choose Bottom, Front, Side or Asetek Front Mount at checkout. The correct decision comes from the threaded points on the exact wheelbase housing, not from brand recognition alone. The regular Front Mount supports listed Fanatec, Simucube and VRS models but is not the SIMAGIC solution. Supported SIMAGIC hardware uses Bottom or Side Mount.

The package contains profiles, structural brackets, the selected wheelbase mount, Apex shifter and handbrake arm, heel rest, rubber feet, bolts, tools, instructions and assembly gloves. The seat, slider, wheelbase, wheel, pedals, side devices, display and stand remain separate. Select seating from sim racing seats and plan the display through TV and monitor stands.

Simgasm Sport Black - rear view right side

A black 40 Nm cockpit for focused practice

Simgasm Sport Black - profiles zoom view

Preserve force-feedback detail without chasing full output

Route the installation before adding motion

Match the housing first, then complete the rig

Simgasm Sport Manual

Download (6.94MB)

Technical specification - SIMGASM Sport Black
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C120-BWM-BLK
Material	Aluminium profiles and metal mounting components
Main profile	40 x 120 mm
Colour	Black
Assembled dimensions	600 x 1350 x 800 mm (W x L x H)
Weight	38.94 kg
Load and preparation
Manufacturer wheelbase guidance	Sport or Pro above 26 and up to 40 Nm; Pro recommended above 40 Nm
Rated braking load	Up to 300 kg at the pedal deck
Position adjustment	Component depth, height and angle; GT or Formula-style layout
Cable routing	Integrated cable passthroughs
Motion preparation	Motion-ready; motion hardware sold separately
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake arm	Apex side-profile mounting arm
Number of boxes	2
Box dimensions	Box 1: 1050 x 190 x 200 mm; box 2: 615 x 270 x 110 mm
Included	Profiles, brackets, selected wheelbase mount, Apex arm, heel rest, rubber feet, bolts, tools, gloves and instructions
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display, stand and motion system
Manufacturer warranty	2 years

SIMGASM Sport Black - wheelbase mount compatibility
Variant	Compatible models and families	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra, Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; Asetek La Prima, Forte and Invicta; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses underside threads. Compare the plate with the exact wheelbase revision. A base above 40 Nm may fit mechanically but requires output limiting or the Pro chassis.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport, Pro and Ultimate plus Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not fit SIMAGIC or replace the Asetek system. Simucube Ultimate models remain inside the Sport guidance up to 40 Nm.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra; Conspit ARES 20 Platinum.	Uses side housing points. Match the bracket to the exact model, not just its brand.
Asetek Front Mount	Asetek La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm.	This is the dedicated Asetek system. Invicta sits inside the recommended Sport torque band.

SIMGASM Sport Black - questions and answers

1. Who is SIMGASM Sport Black designed for?

It suits drivers planning a permanent high-rigidity cockpit with Direct Drive hardware, serious pedals and a possible motion upgrade. The black frame is easy to combine with mixed-brand equipment.

2. What wheelbase torque band does SIMGASM recommend?

Sport or Pro is recommended for wheelbases producing more than 26 and up to 40 Nm. Above 40 Nm, the Pro platform is the manufacturer's preferred tier.

3. Can a wheelbase rated above 40 Nm be installed?

It may fit when the housing pattern and bracket match, but mechanical compatibility is not a full-output rating. Limit torque to a safe level for the chassis or move to Pro.

4. Why choose a stronger base if full torque is not required?

Extra capacity provides headroom for sharp peaks. With the driver strength and game gain balanced correctly, this helps retain signal separation and reduce clipping.

5. How do I select the wheelbase mount?

Choose Bottom, Front or Side Mount from the threaded points on the exact housing. Asetek La Prima, Forte and Invicta use the dedicated Asetek Front Mount option.
