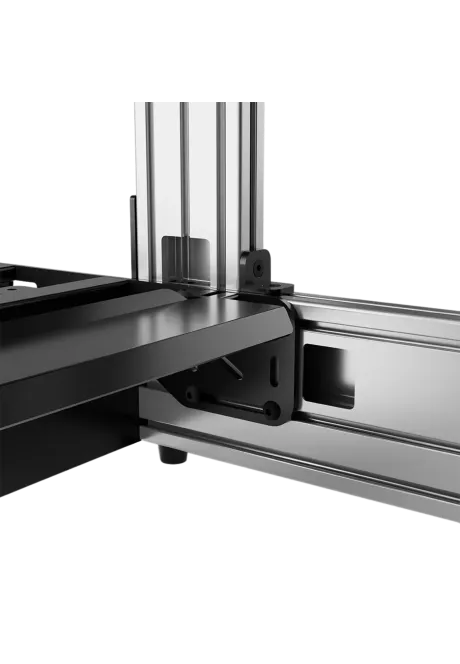

Simgasm Pro Silver profiles connection zoom view

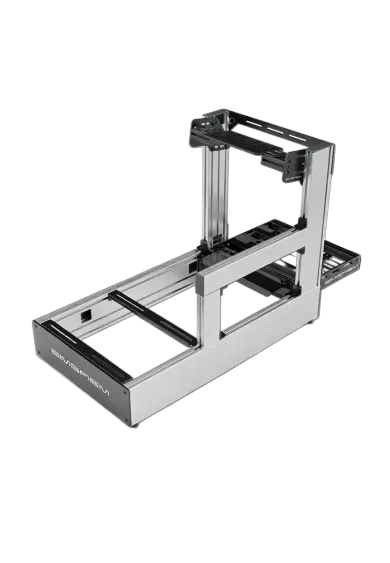

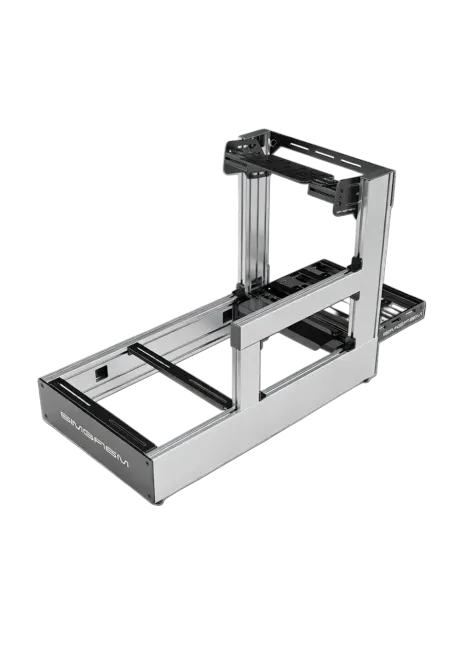

Simgasm Pro Silver bottom mount rear view

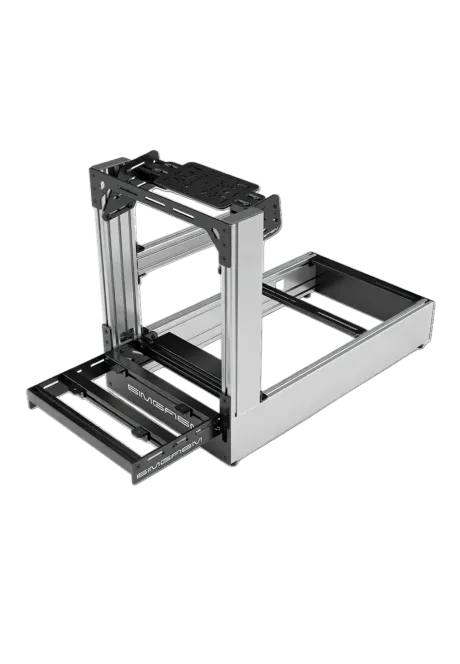

Simgasm Pro Silver

Name: Simgasm Pro Silver
Brand: SIMGASM
SKU: 1412
Price: 2397.56 PLN
Availability: OutOfStock

Reference C160-BWM-SIL

2,397.56zł

PREORDER

SIMGASM Pro Silver presents its 40 x 160 mm aluminium structure as an exposed engineering platform. The 600 x 1350 x 890 mm chassis weighs 45 kg and combines steel reinforcement, a 300 kg pedal-deck rating, integrated cable routing and motion readiness.

Match Bottom, Front, Side or Asetek Front Mount to the wheelbase. An Apex side arm is included, while the seat, slider, electronics and motion hardware are purchased separately.

Wheelbase Mount Variant

Bottom Mount
Front Mount
Side Mount
Asetek Front Mount

Ask about product

You will receive an 23.98zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

An exposed engineering platform in silver aluminium

SIMGASM Pro Silver makes the structure part of the visual language. The natural finish shows frame divisions, bracket positions and added modules, suiting a cockpit that is measured and rebuilt over time. Its 40 x 160 mm profile provides flagship structural reserve.

The 600 x 1350 x 890 mm dimensions describe the chassis itself. Silver works in workshop-style, demonstration and training installations where multi-brand hardware stays visible. Compare frames under sim racing cockpits.

Treat posture as a repeatable setup process

Profile slots allow depth, height and angle changes. Set the seat and hips first, place the pedals second and align the steering axis last. This makes it easier to reproduce an upright GT posture or a lower Formula-like arrangement after hardware changes.

The pedal deck carries a 300 kg rated braking load without becoming a universal bolt pattern. Pedal holes must align directly or through an adapter, while the seat should stabilise the driver. Select one from sim racing seats.

A chassis intended for modules, wiring and motion

Three cable zones separate power, USB and peripheral wiring before accessories fill the frame. Silver profiles make fasteners and adjustment points easier to identify during servicing, a wheelbase change or pedal repositioning.

Motion-ready construction supports future planning but includes no actuators. The 45 kg rig arrives in two boxes. Trays, brackets and integration parts are available under sim rig accessories.

Change wheelbase ecosystems without replacing the frame

Bottom, Front, Side and Asetek Front Mount address different housing points. Regular front hardware covers listed Fanatec, Simucube and VRS patterns. Alpha EVO uses the SIMAGIC MB-F, while Asetek has its own mount.

SIMGASM recommends Pro above 40 Nm but publishes no maximum. A stronger base may run below full strength and retain headroom rather than staying at 100 percent. Compare Direct Drive wheelbases and plan the display through TV and monitor stands.

An exposed engineering platform in silver aluminium

Treat posture as a repeatable setup process

A chassis intended for modules, wiring and motion

Motion-ready construction supports future planning but includes no actuators. The 45 kg rig arrives in two boxes. Trays, brackets and integration parts are available under sim rig accessories.

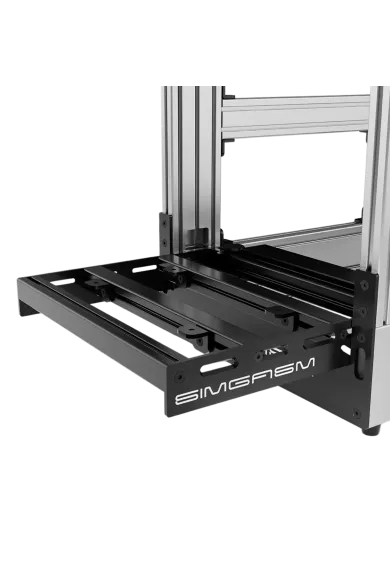

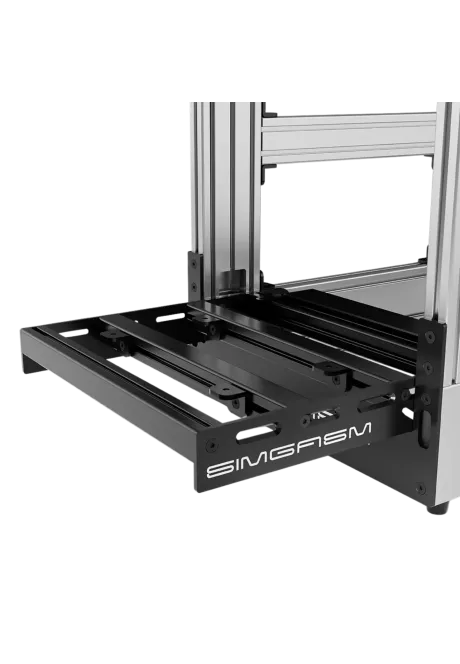

Simgasm Pro Silver - pedal deck zoom view

Change wheelbase ecosystems without replacing the frame

Technical specification - SIMGASM Pro Silver
Construction
Product type	Modular sim racing cockpit
Bottom Mount reference	C160-BWM-SIL
Material	Aluminium profiles and metal mounting components
Main profile	40 x 160 mm
Colour	Silver
Assembled dimensions	600 x 1350 x 890 mm (W x L x H)
Weight	45 kg
Load and preparation
Manufacturer wheelbase guidance	Pro recommended above 40 Nm; SIMGASM does not publish an upper torque limit
Rated braking load	Up to 300 kg at the pedal deck
Position adjustment	Component depth, height and angle; GT or Formula-style layout
Cable routing	Integrated cable passthroughs
Motion preparation	Motion-ready; motion hardware sold separately
Variants and package
Wheelbase mount	Bottom Mount, Front Mount, Side Mount or Asetek Front Mount
Shifter / handbrake arm	Apex side-profile mounting arm
Number of boxes	2
Box dimensions	Box 1: 1050 x 220 x 200 mm; box 2: 615 x 270 x 110 mm
Included	Profiles, brackets, selected wheelbase mount, Apex arm, heel rest, rubber feet, bolts, tools, gloves and instructions
Sold separately	Seat, slider, wheelbase, wheel, pedals, shifter, handbrake, display, stand and motion system
Manufacturer warranty	2 years

SIMGASM Pro Silver - wheelbase mount compatibility
Variant	Compatible models and families	Important note
Bottom Mount	Logitech G25, G27, G29, G920, G923, G Pro and RS50; Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R3, R5, R5 Pro, R9 V3, R12 V2, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra, Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; Asetek La Prima, Forte and Invicta; VRS DFP15, uDFP20 and DFP20; PXN VD4, VD6, VD10 and V12/V12 Pro; Thrustmaster T248, T300/TX/TS-XW, T500, T598 and T818; Conspit ARES 12 and ARES 20 Platinum.	Uses underside threads. Compare the plate pattern with the exact wheelbase revision. Fit depends on the hole pattern and selected mount. SIMGASM recommends Pro above 40 Nm but does not publish an upper torque limit.
Front Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; Simucube 2 Sport, Pro and Ultimate plus Simucube 3 Sport, Simucube 3 Pro and Simucube 3 Ultimate; VRS DFP15, uDFP20 and DFP20.	The regular Front Mount does not support SIMAGIC and does not replace the Asetek system.
Side Mount	Fanatec CSL DD 5/8 Nm, GT DD Pro 8 Nm, ClubSport DD 15 Nm, DD+ 18 Nm and Podium DD 25 Nm; MOZA R16 Ultra, R21 Ultra and R25 Ultra; SIMAGIC Alpha Mini, Alpha, Alpha U, Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra; Conspit ARES 20 Platinum.	Uses side housing points. Confirm the exact model and revision.
Front Mount + SIMAGIC MB-F	SIMAGIC Alpha EVO Sport, Alpha EVO, Alpha EVO Pro and Alpha EVO Ultra with the SIMAGIC MB-F adapter.	The adapter uses the wheelbase side points and enables front mounting. The regular Front Mount alone does not fit Alpha EVO bases.
Asetek Front Mount	Asetek La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm.	Dedicated Asetek system; the regular Front Mount is not a substitute.
