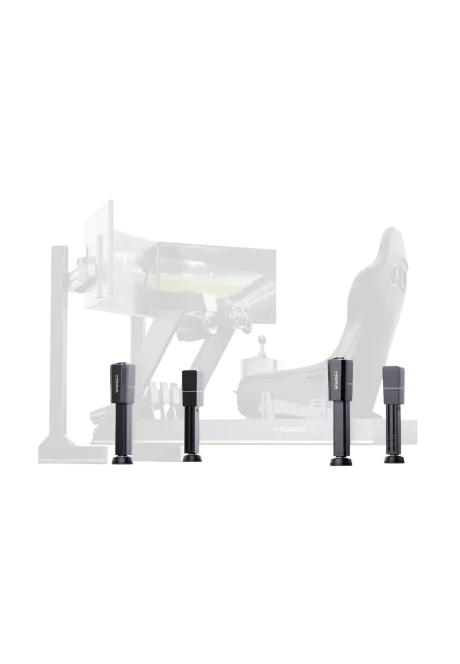

Moza HMA150 Motion System example of mount
Moza HMA150 Motion System rear side view
Moza HMA150 Motion System front view
Moza HMA150 Motion System front side view
  • New
Moza HMA150 Motion System example of mount
Moza HMA150 Motion System rear side view
Moza HMA150 Motion System front view
Moza HMA150 Motion System front side view

Moza HMA150 Motion System

MP001
11,186.18zł

11,186.18zł
PREORDER

Available from: 2026-10-01

MOZA Haptic Motion Actuator HMA150 forms a four-actuator 3DOF motion system with 150 mm travel, speeds up to 300 mm/s and a 350 kg platform payload. Motion Manager controls movement and vibration, while AI Motion supports games without telemetry. Compatible with moza ecosystem, easy configuration.

Ask about product
Zapytanie dotyczy produktu: Moza HMA150 Motion System
* - pola obowiązkowe
Send
You will receive an 111.86zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Plug and Play Accessories

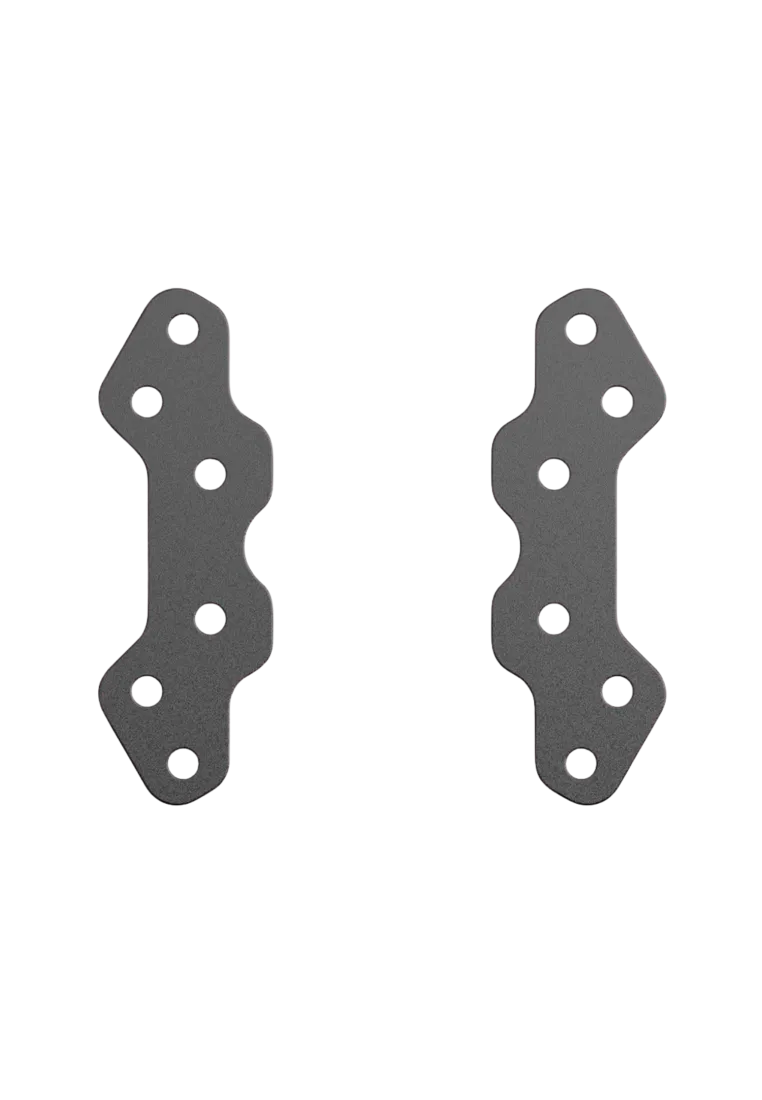

Moza HMA Adapter Kit

Moza HMA Adapter Kit PREORDER

210.57zł

You might also like

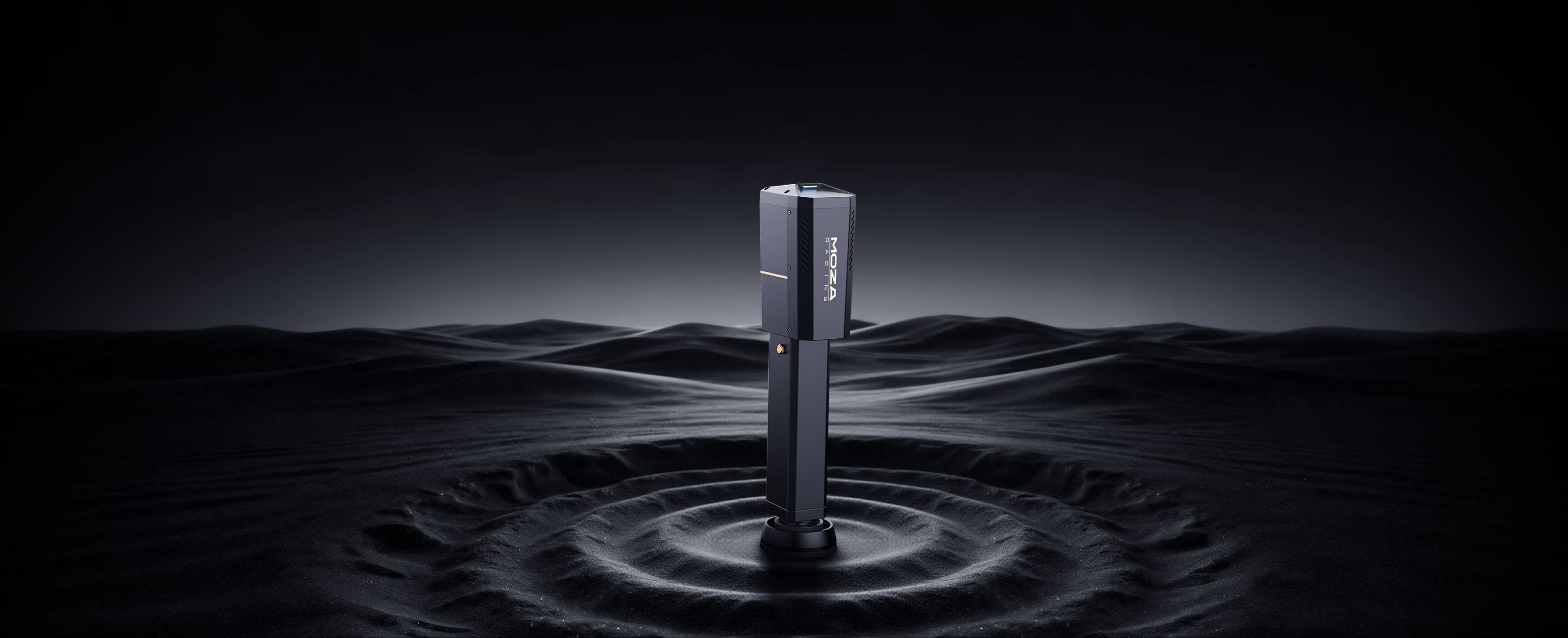

Moza HMA150 Motion System Ruchu - główny baner produktu

Moza HMA150 Motion System - Four actuators and full cockpit movement

The Moza HMA150 Motion System transmits information from the simulator to the entire platform, not just the steering wheel or pedals. Four actuators work together to move the seat, frame, and mounted equipment. This allows braking, acceleration, load changes, and track irregularities to be felt throughout the entire platform.

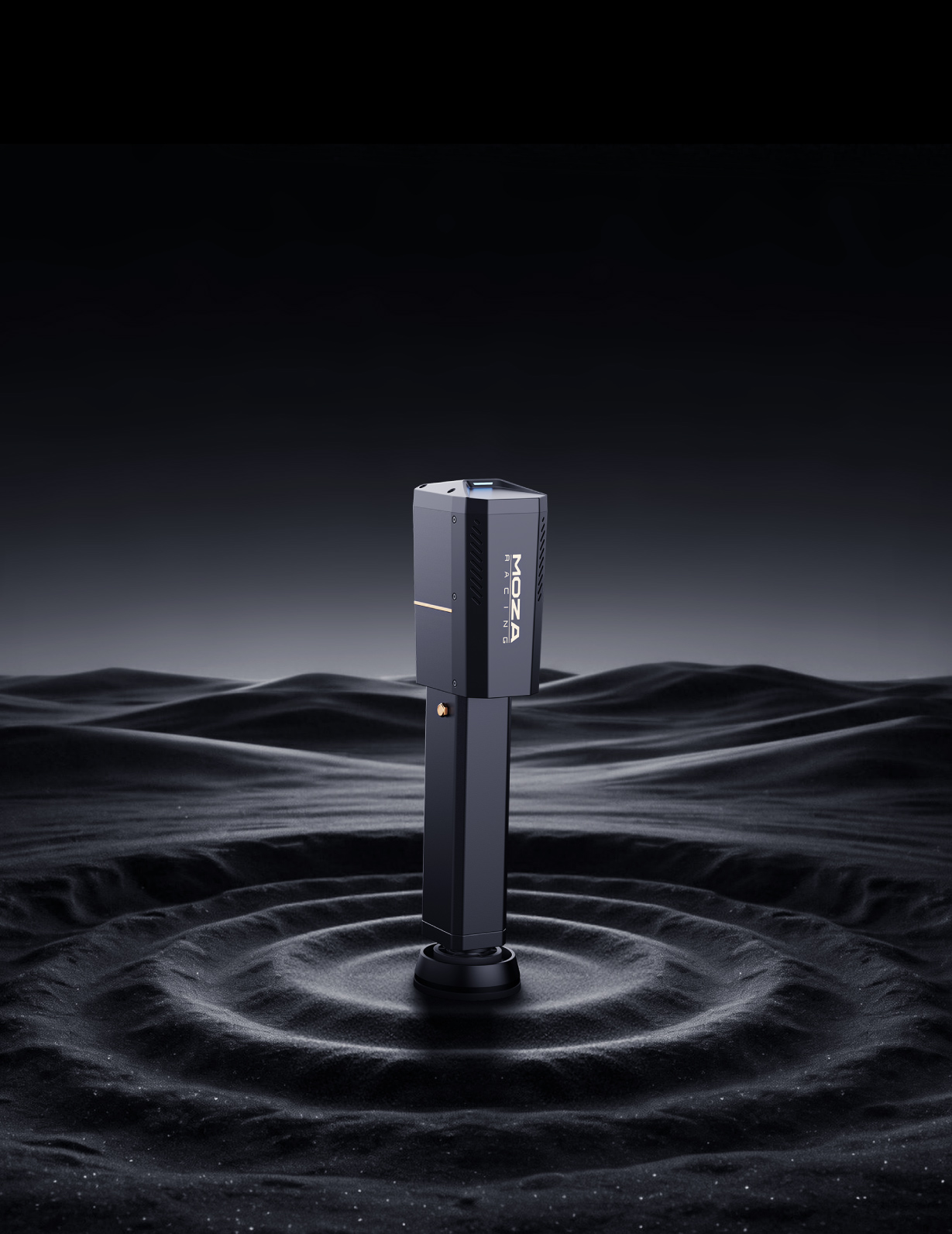

Moza HMA150 Motion System Ruchu - główne zdjęcie produktu

Moza HMA150 Motion System - Four actuators and full cockpit movement

The Moza HMA150 Motion System transmits information from the simulator to the entire platform, not just the steering wheel or pedals. Four actuators work together to move the seat, frame, and mounted equipment. This allows braking, acceleration, load changes, and track irregularities to be felt throughout the entire platform.

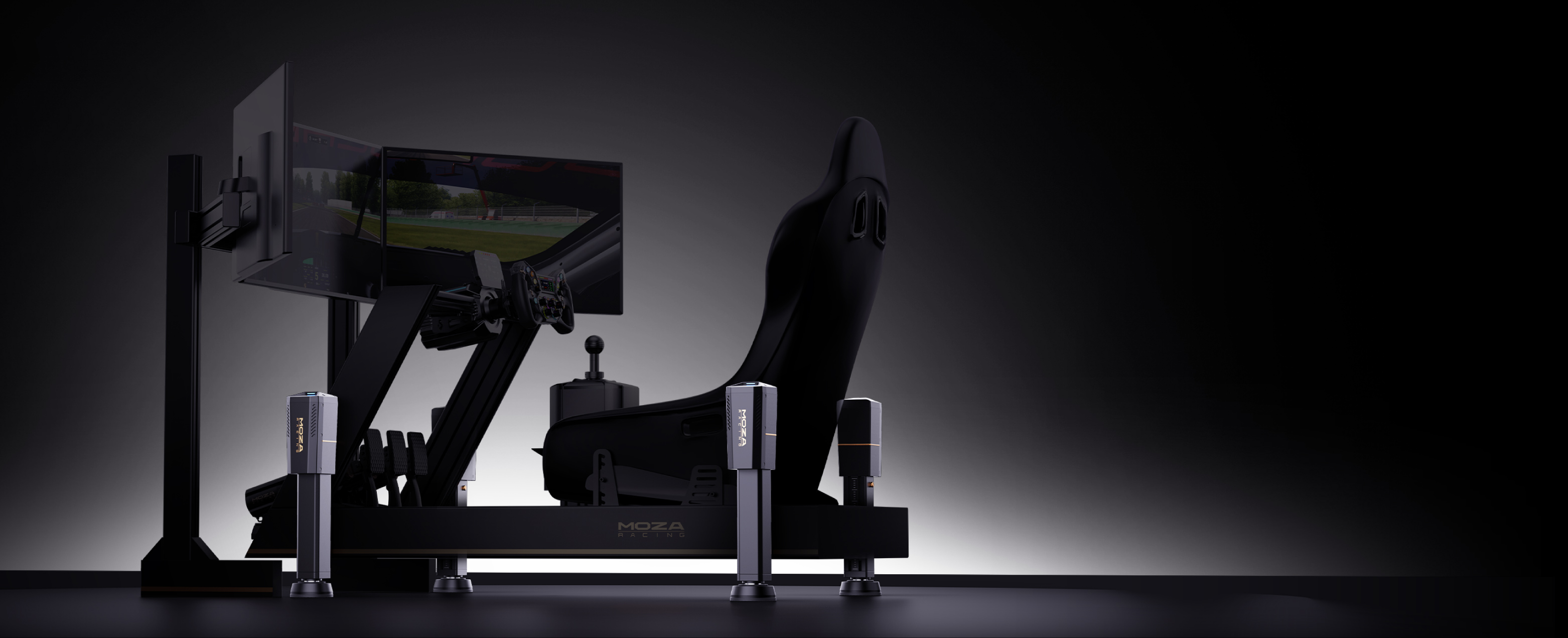

Moza HMA150 Motion System Ruchu - układ 3dof

MOZA's flagship step into full-cockpit motion

MOZA Haptic Motion Actuator HMA150 is the brand's first flagship motion system within its wider simulation ecosystem. MOZA develops the servo motors, control logic, Motion Manager software and actuator structure as parts of one platform. The result moves feedback beyond individual controls and into the complete cockpit.

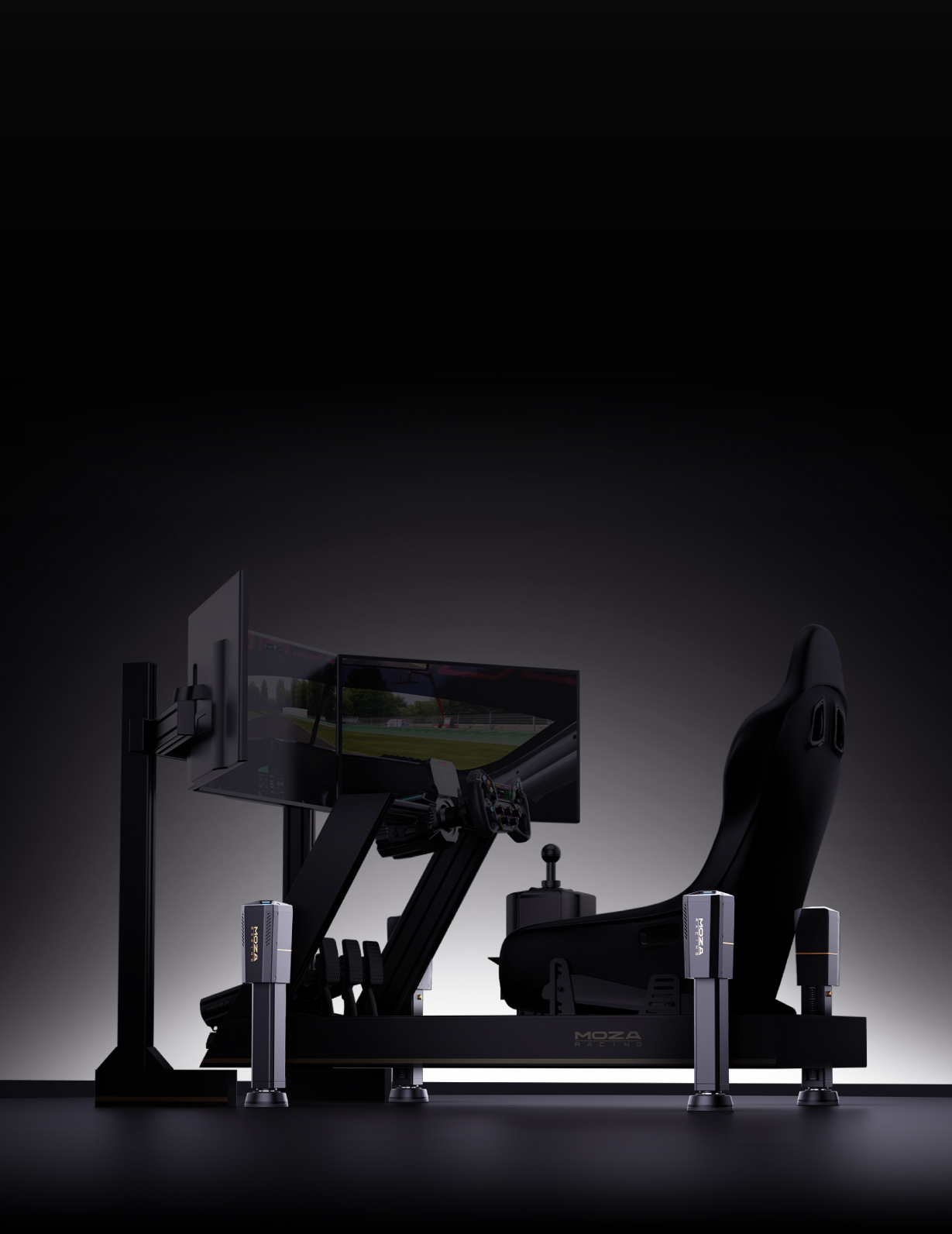

Moza HMA150 Motion System Ruchu - 3 stopnie swobody pitch roll i heave

MOZA's flagship step into full-cockpit motion

MOZA Haptic Motion Actuator HMA150 is the brand's first flagship motion system within its wider simulation ecosystem. MOZA develops the servo motors, control logic, Motion Manager software and actuator structure as parts of one platform. The result moves feedback beyond individual controls and into the complete cockpit.

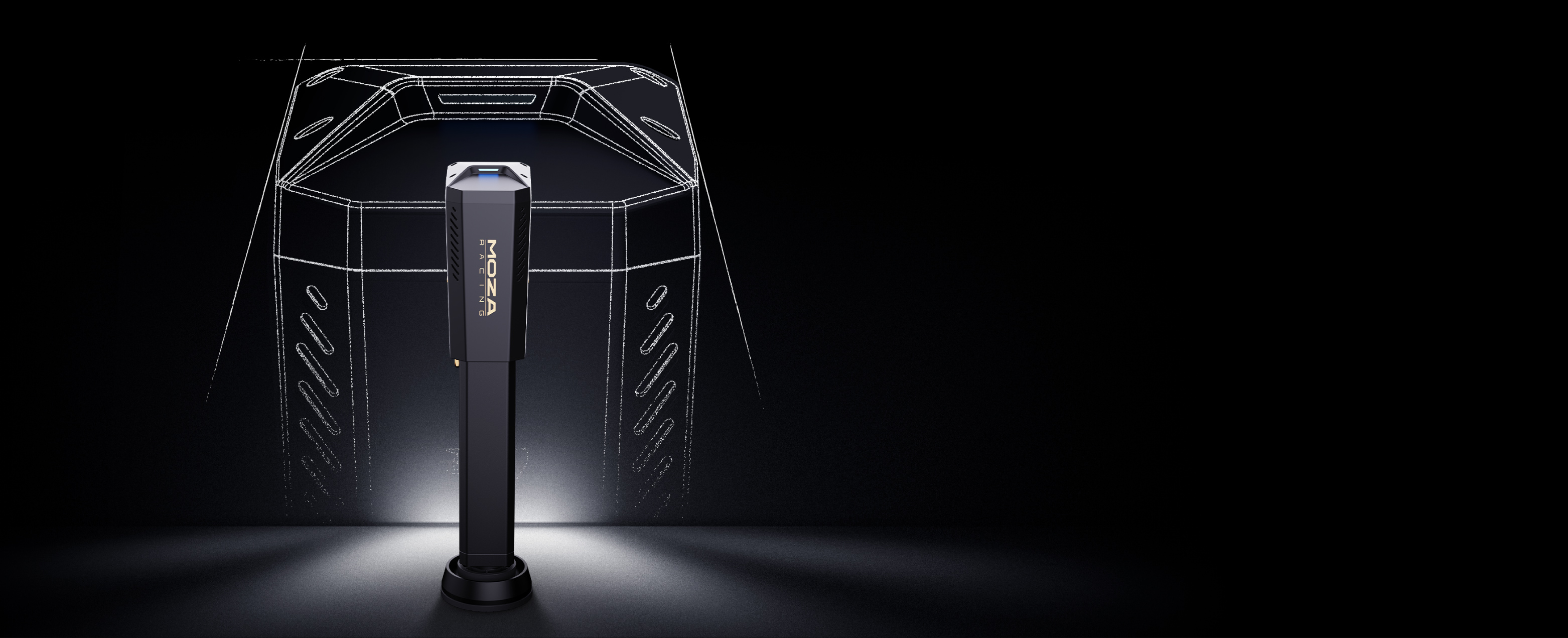

Moza HMA150 Motion System Ruchu - skok 150mm i podświetlenie rgb

Streamlined hardware with telemetry-driven lighting

The narrow, uncluttered housing sits naturally beside an aluminium-profile chassis without overwhelming the rest of the rig. Customisable RGB lighting offers 16.7 million colours and can react to telemetry events. ABS and traction-control activity, flag signals and other in-game information can therefore appear directly on the actuator.

Moza HMA150 Motion System Ruchu - ledy rgb i skok 150mm

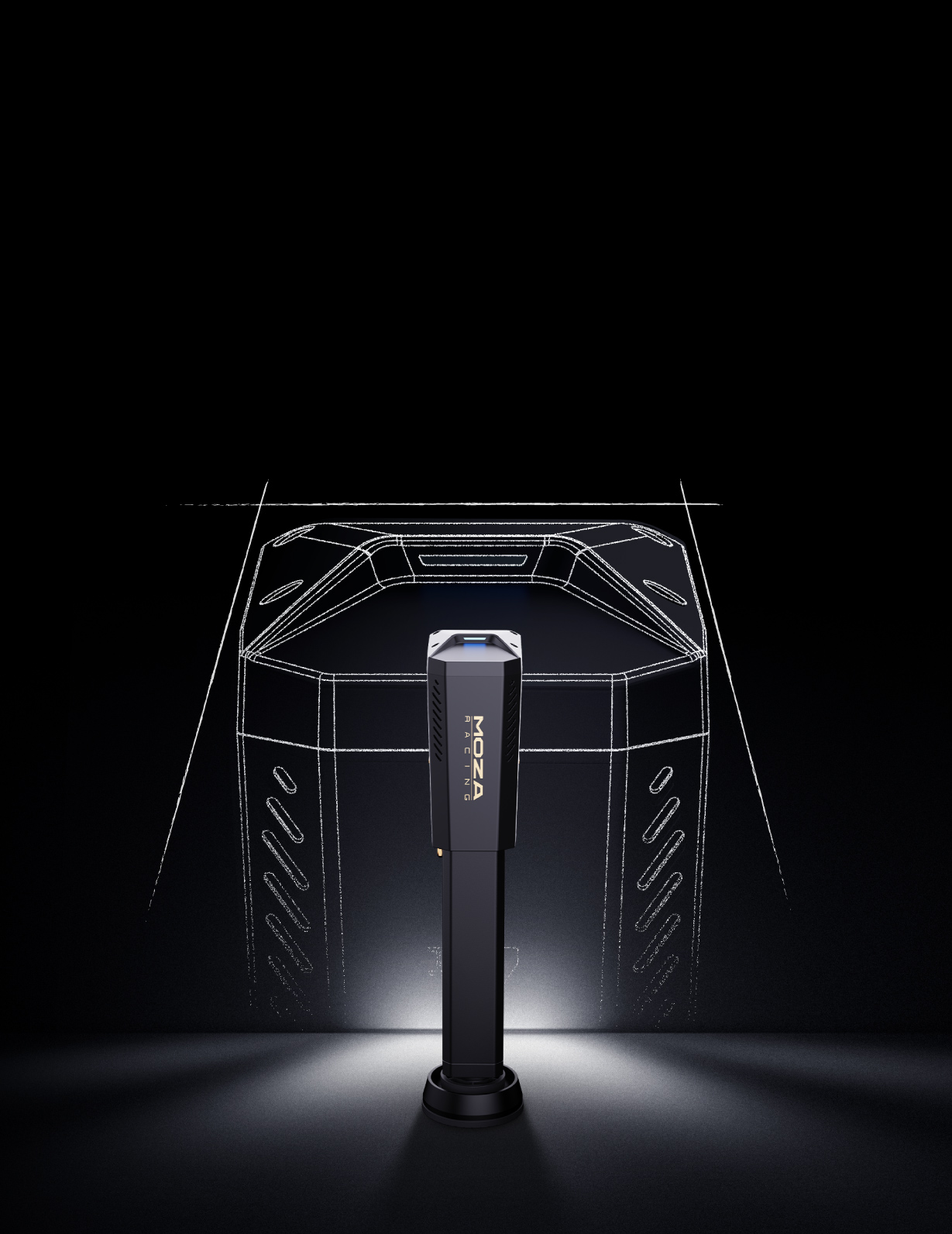

Streamlined hardware with telemetry-driven lighting

The narrow, uncluttered housing sits naturally beside an aluminium-profile chassis without overwhelming the rest of the rig. Customisable RGB lighting offers 16.7 million colours and can react to telemetry events. ABS and traction-control activity, flag signals and other in-game information can therefore appear directly on the actuator.

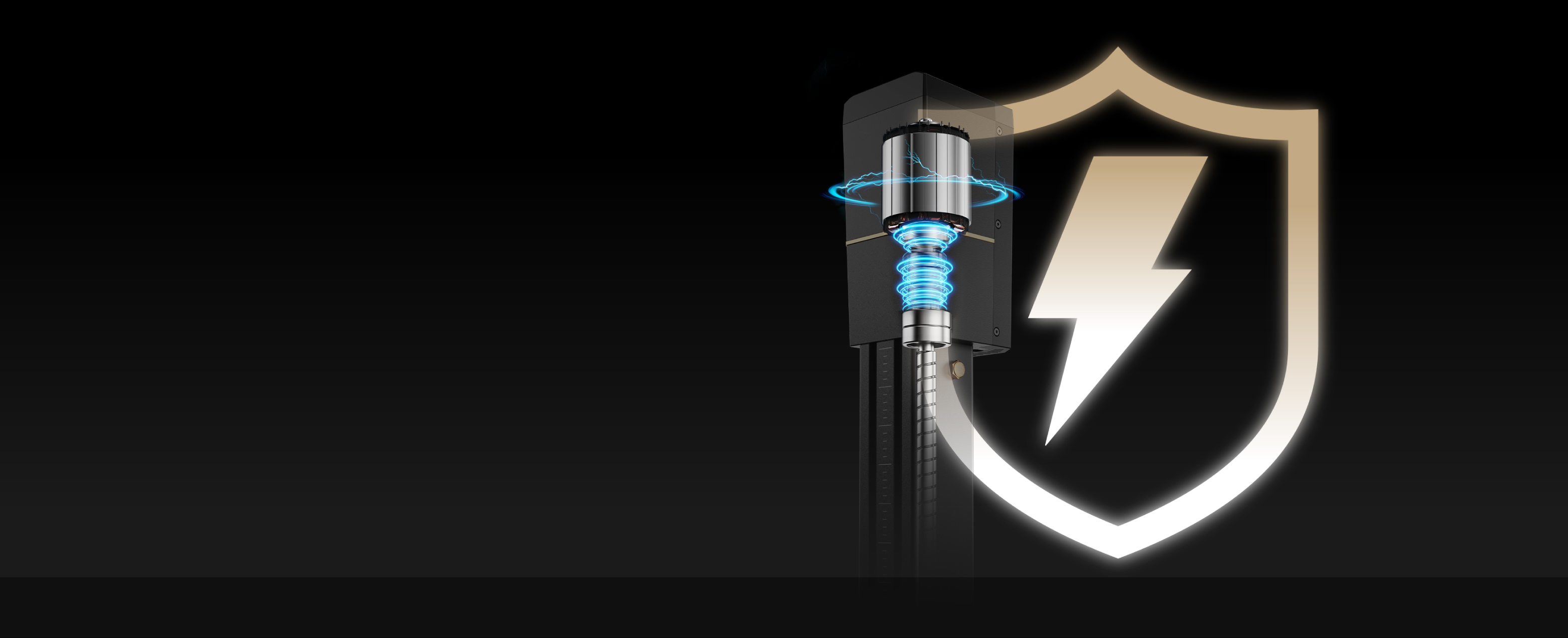

Moza HMA150 Motion System Ruchu - niskonapięciowe zasilanie

Home-friendly 48 V low-voltage operation

The servo system runs at 48 V DC, keeping industrial mains voltage away from the moving actuators. This architecture is better suited to a home simulator while still supplying the four axes with the power required for rapid motion. The external supply accepts 110–220 V AC and converts it to low-voltage direct current for the platform.

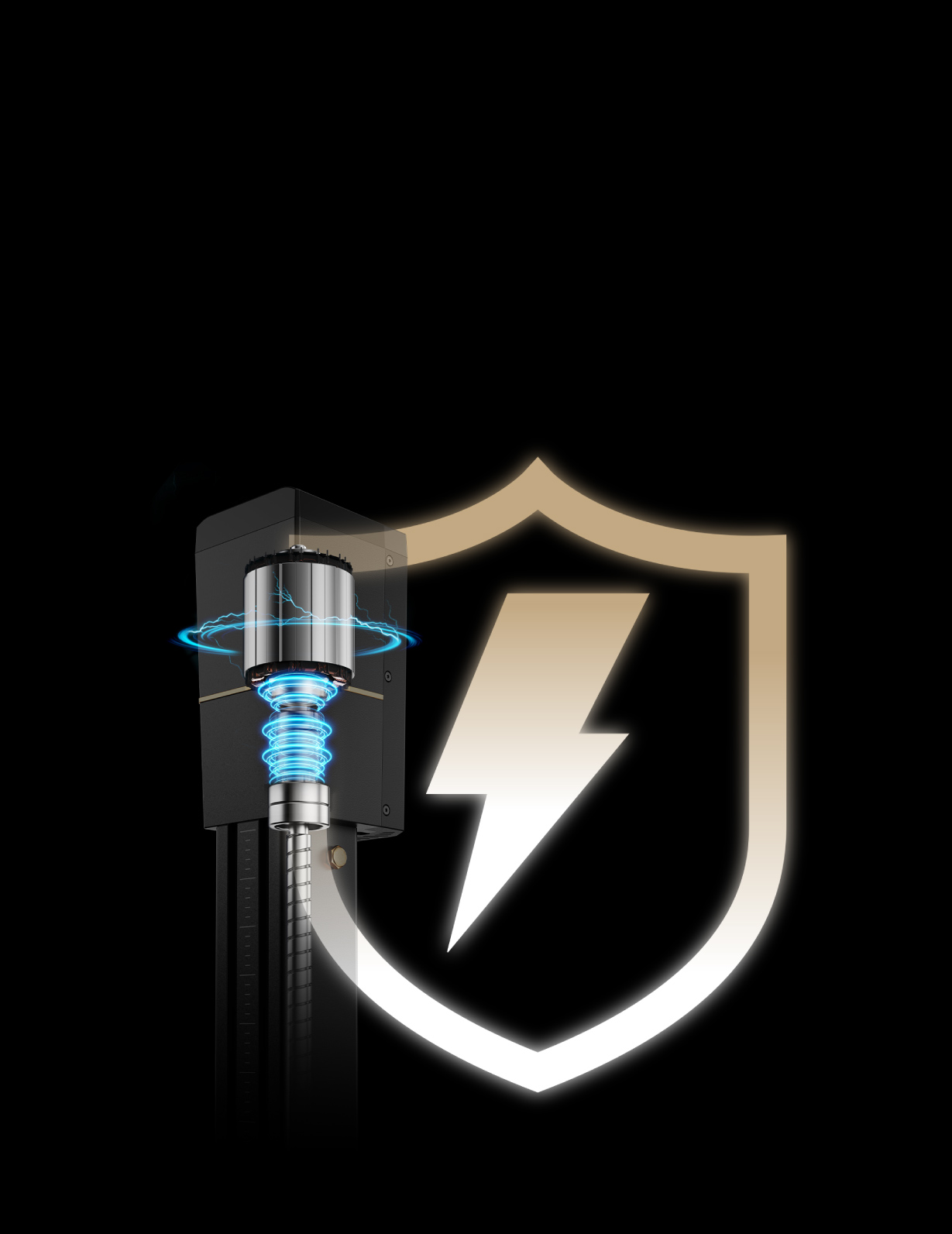

Moza HMA150 Motion System Ruchu - bezpieczne zasilanie o niskim napięciu

Home-friendly 48 V low-voltage operation

The servo system runs at 48 V DC, keeping industrial mains voltage away from the moving actuators. This architecture is better suited to a home simulator while still supplying the four axes with the power required for rapid motion. The external supply accepts 110–220 V AC and converts it to low-voltage direct current for the platform.

Moza HMA150 Motion System Ruchu - moza estop

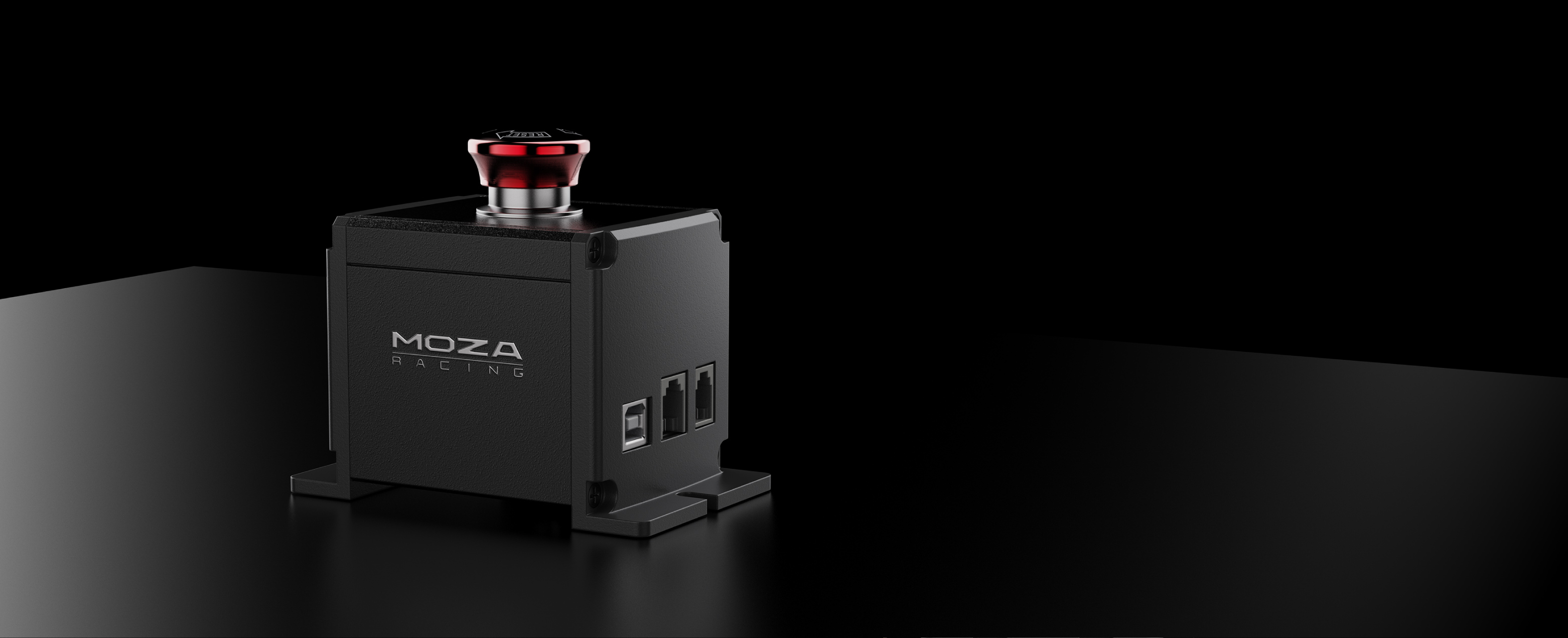

Immediate shutdown and controlled platform descent

A dedicated emergency-stop switch cuts movement immediately when the rig needs to be halted. Power-loss protection handles a different problem: rather than leaving the cockpit suspended, it lowers the platform smoothly towards its resting position. The stop control should remain within easy reach whenever the system is active.

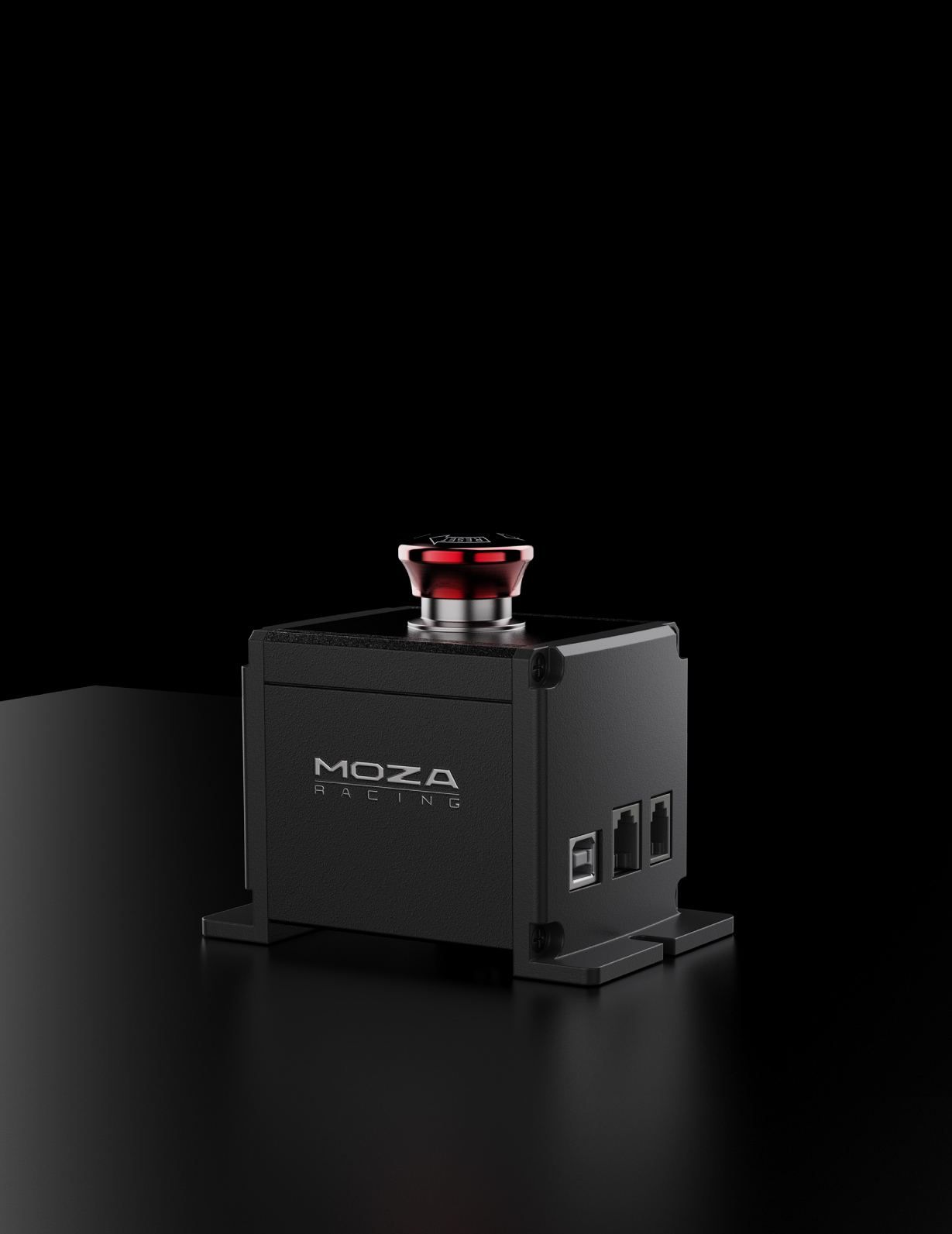

Moza HMA150 Motion System Ruchu - wyłącznik bezpieczeństwa

Immediate shutdown and controlled platform descent

A dedicated emergency-stop switch cuts movement immediately when the rig needs to be halted. Power-loss protection handles a different problem: rather than leaving the cockpit suspended, it lowers the platform smoothly towards its resting position. The stop control should remain within easy reach whenever the system is active.

Moza HMA150 Motion System Ruchu - możliwość regulacji wysokości mocowania

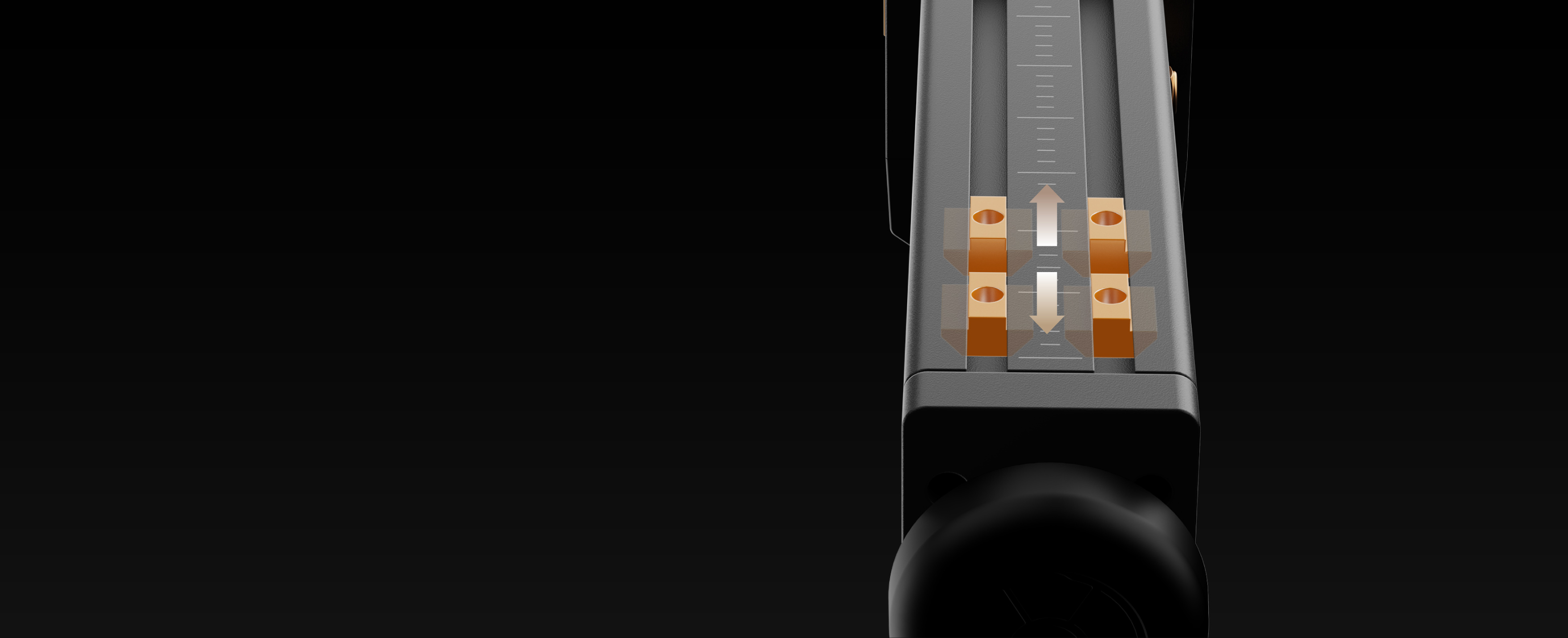

Millisecond response that stays close to the picture

A maximum stroke of 150 mm, speed of 300 mm/s and acceleration above 1 G allow the same hardware to handle both large platform movement and brief impacts. Rally jumps, heavy landings, rough ground and aggressive kerb strikes each demand a different response. Motion Manager can reduce the range when comfort matters more than using the full available output.

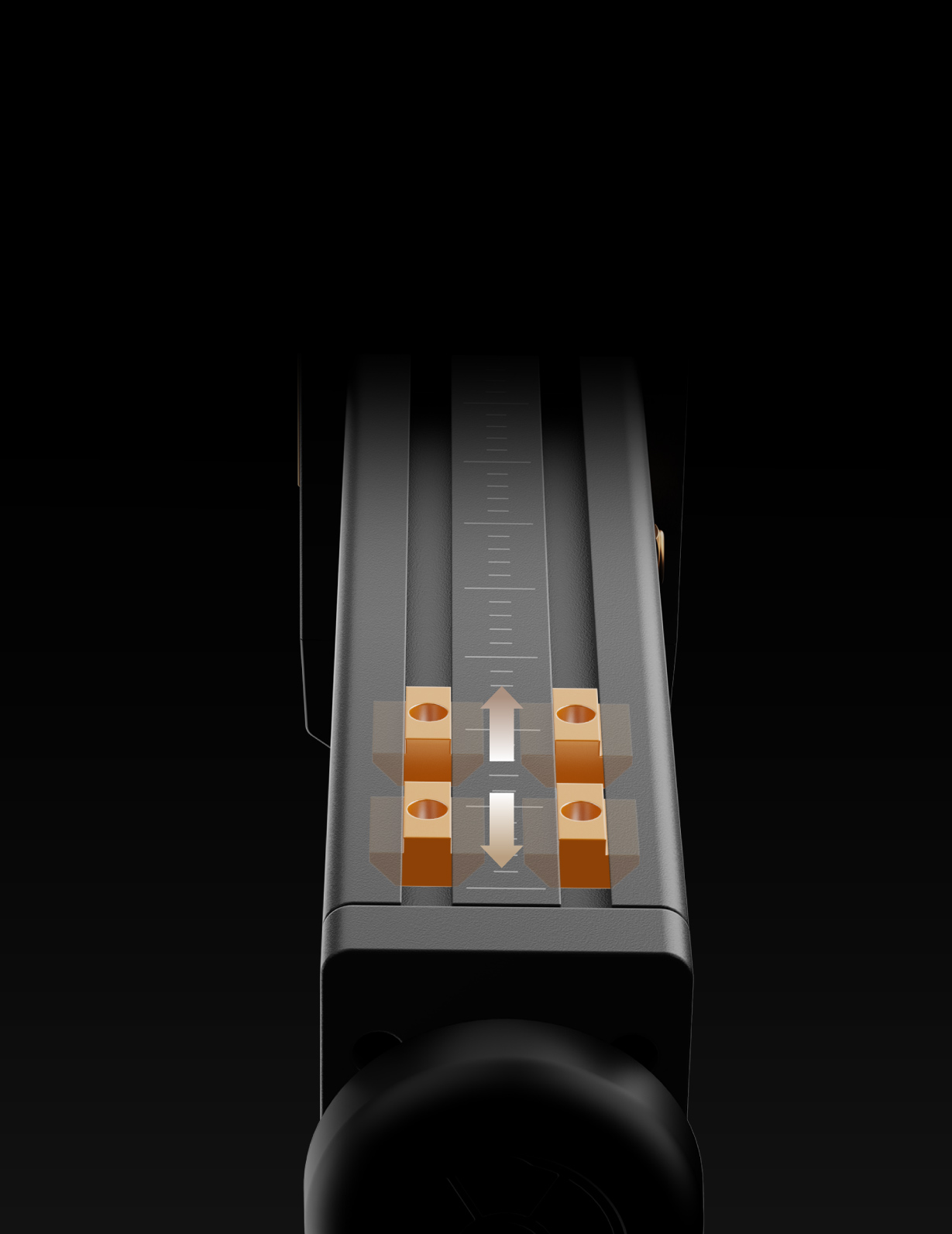

Moza HMA150 Motion System Ruchu - regulowana wysokość mocowania

Millisecond response that stays close to the picture

A maximum stroke of 150 mm, speed of 300 mm/s and acceleration above 1 G allow the same hardware to handle both large platform movement and brief impacts. Rally jumps, heavy landings, rough ground and aggressive kerb strikes each demand a different response. Motion Manager can reduce the range when comfort matters more than using the full available output.

Moza HMA150 Motion System - four driven corners

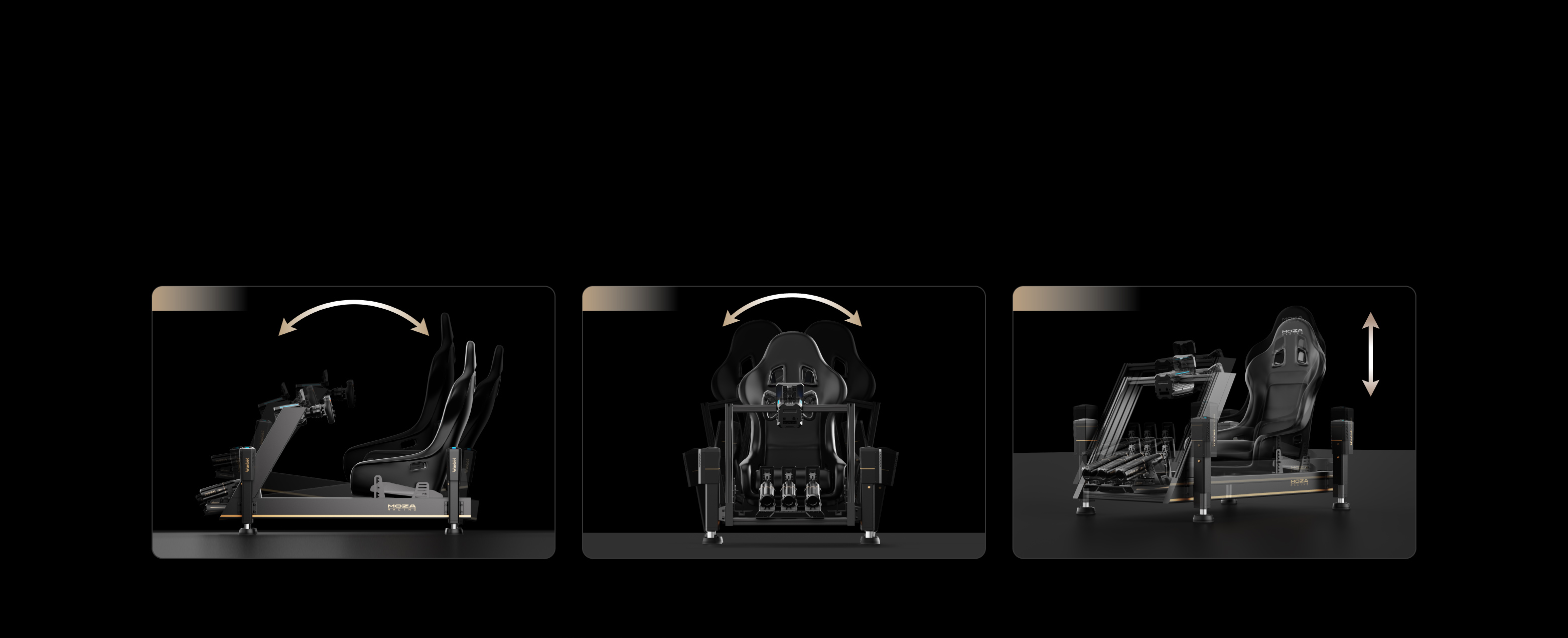

Four driven corners creating three motion axes

Four actuators form a 3DOF platform that reproduces pitch, roll and heave. Pitch communicates braking dive and acceleration, roll follows lateral load transfer, and heave raises or lowers the complete rig over crests, compressions and kerbs. Their combined response represents vehicle behaviour more convincingly than one-dimensional platform movement.

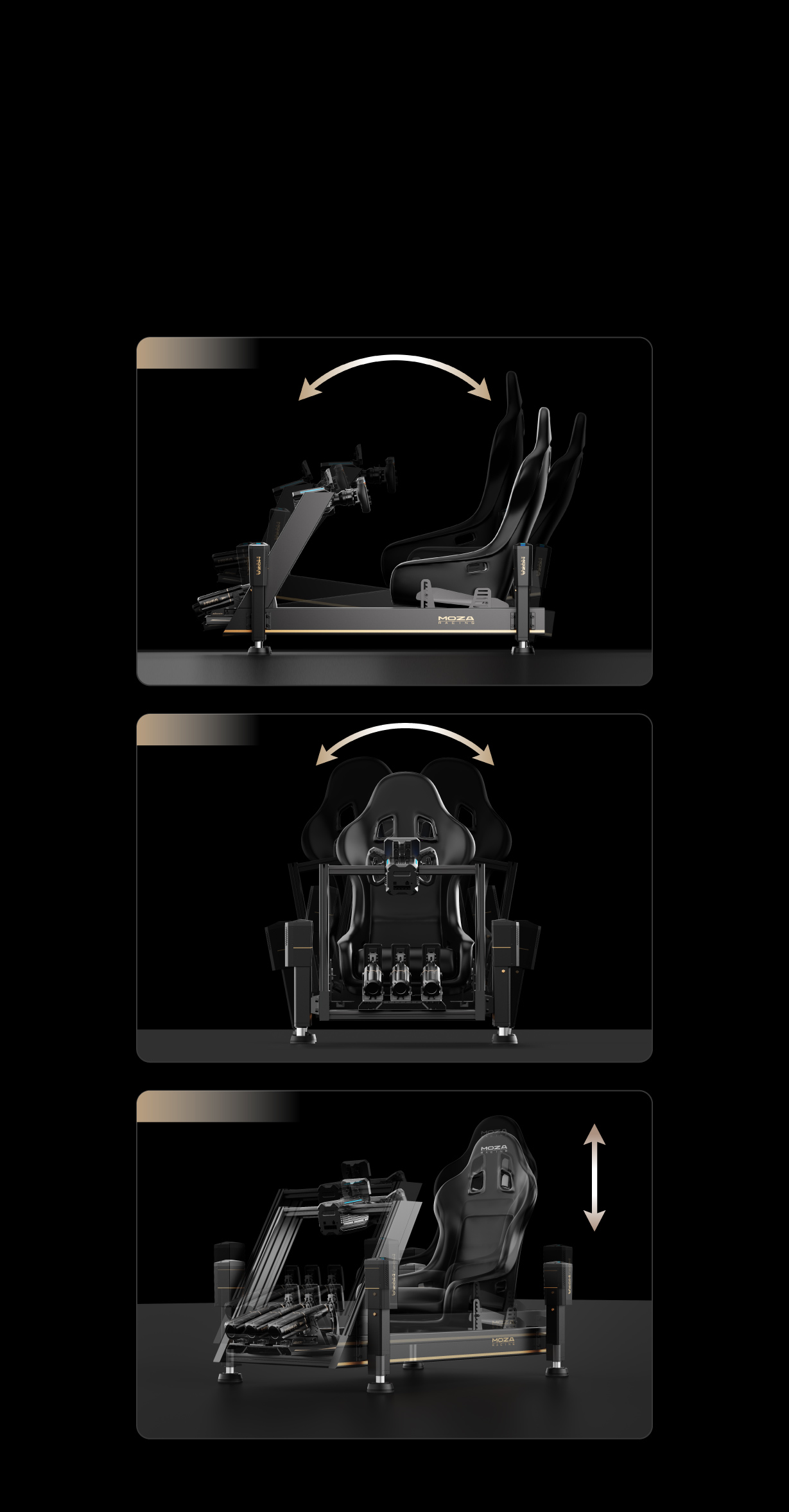

Moza HMA150 Motion System Ruchu - 3 ways of freedom

Four driven corners creating three motion axes

Four actuators form a 3DOF platform that reproduces pitch, roll and heave. Pitch communicates braking dive and acceleration, roll follows lateral load transfer, and heave raises or lowers the complete rig over crests, compressions and kerbs. Their combined response represents vehicle behaviour more convincingly than one-dimensional platform movement.

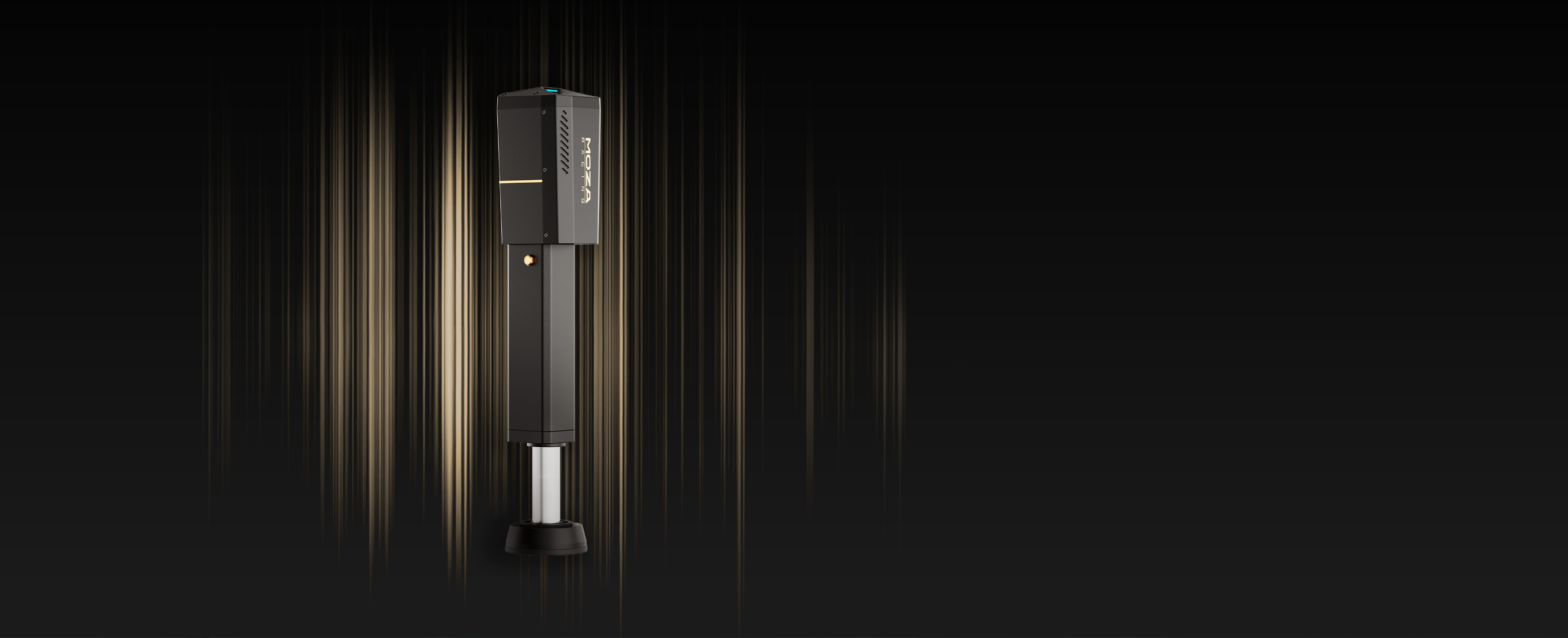

Moza HMA150 Motion System - ultra low latency

Wide-band vibration from 0 to 200 Hz

HMA150 adds a 0–200 Hz vibration layer to the larger platform movements. Lower frequencies can reinforce engine activity and stronger events, while higher frequencies reveal road seams and finer surface texture.

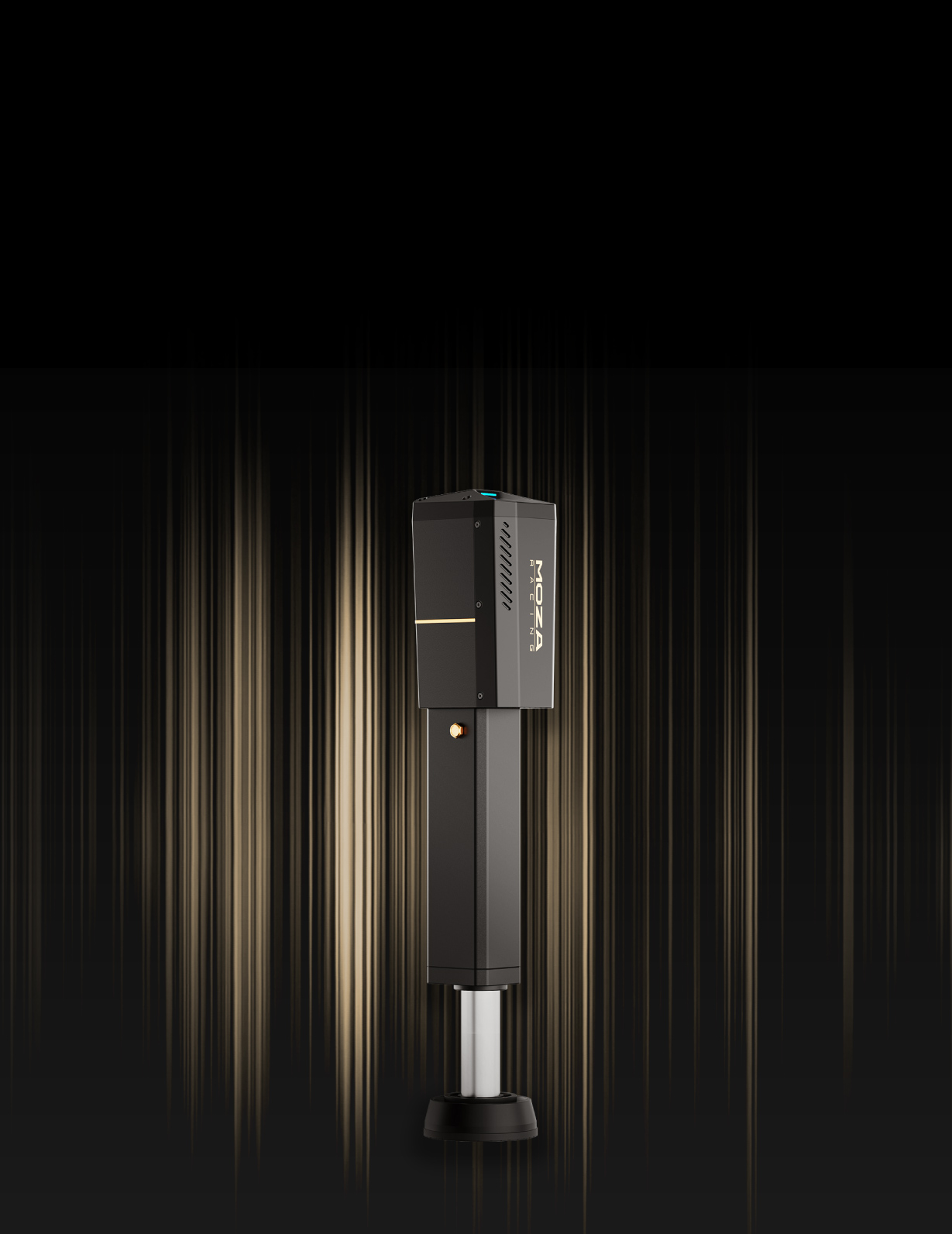

Moza HMA150 Motion System - wide band vibration

Wide-band vibration from 0 to 200 Hz

HMA150 adds a 0–200 Hz vibration layer to the larger platform movements. Lower frequencies can reinforce engine activity and stronger events, while higher frequencies reveal road seams and finer surface texture.

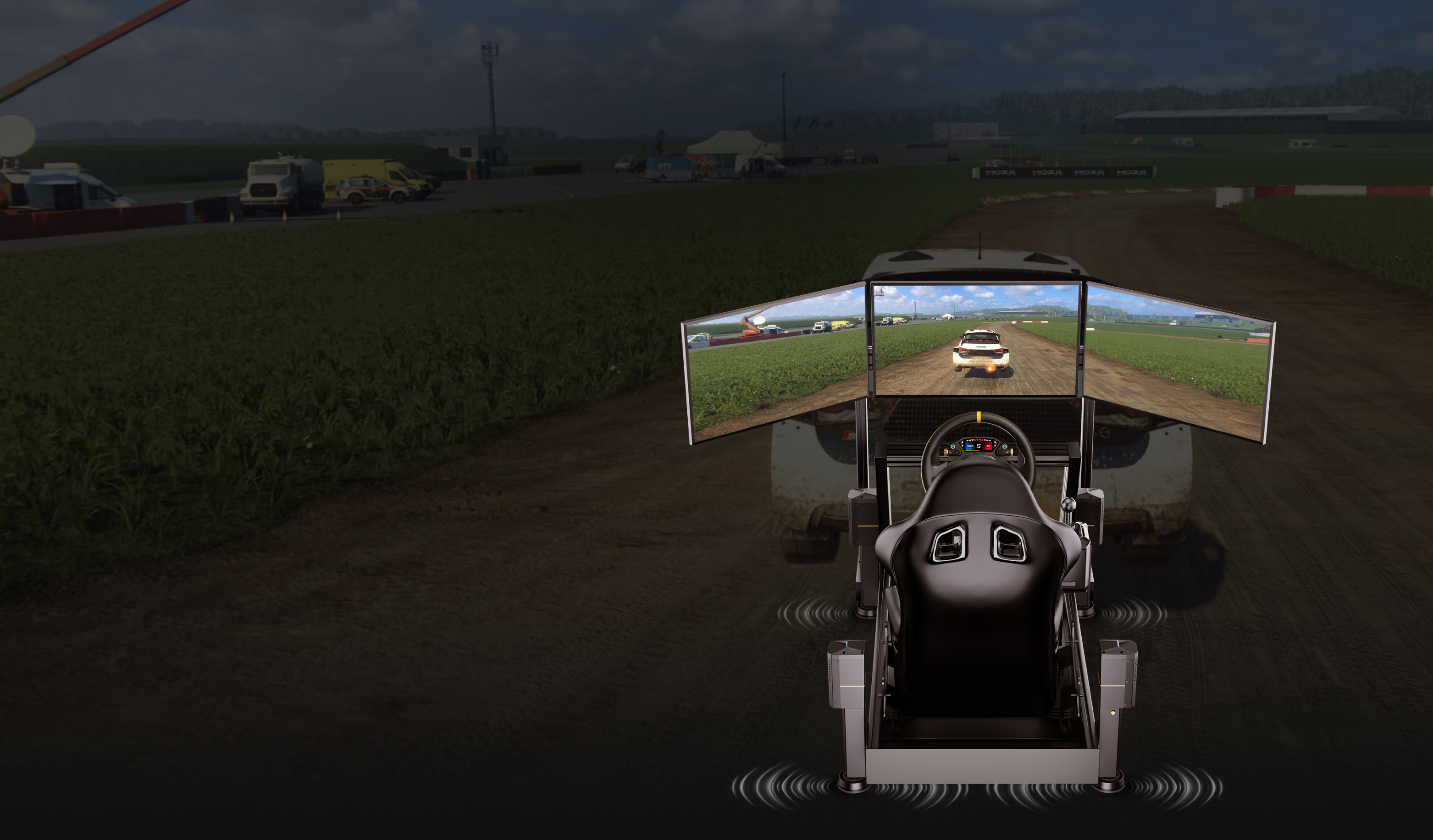

Moza HMA150 Motion System - up to 350kg payload

Up to 350 kg payload with performance in context

MOZA states motion figures against the actual platform load. At 250 kg, the system can exceed 1 G and reach 300 mm/s; at the 350 kg maximum, the quoted figures become 0.45 G and 150 mm/s.

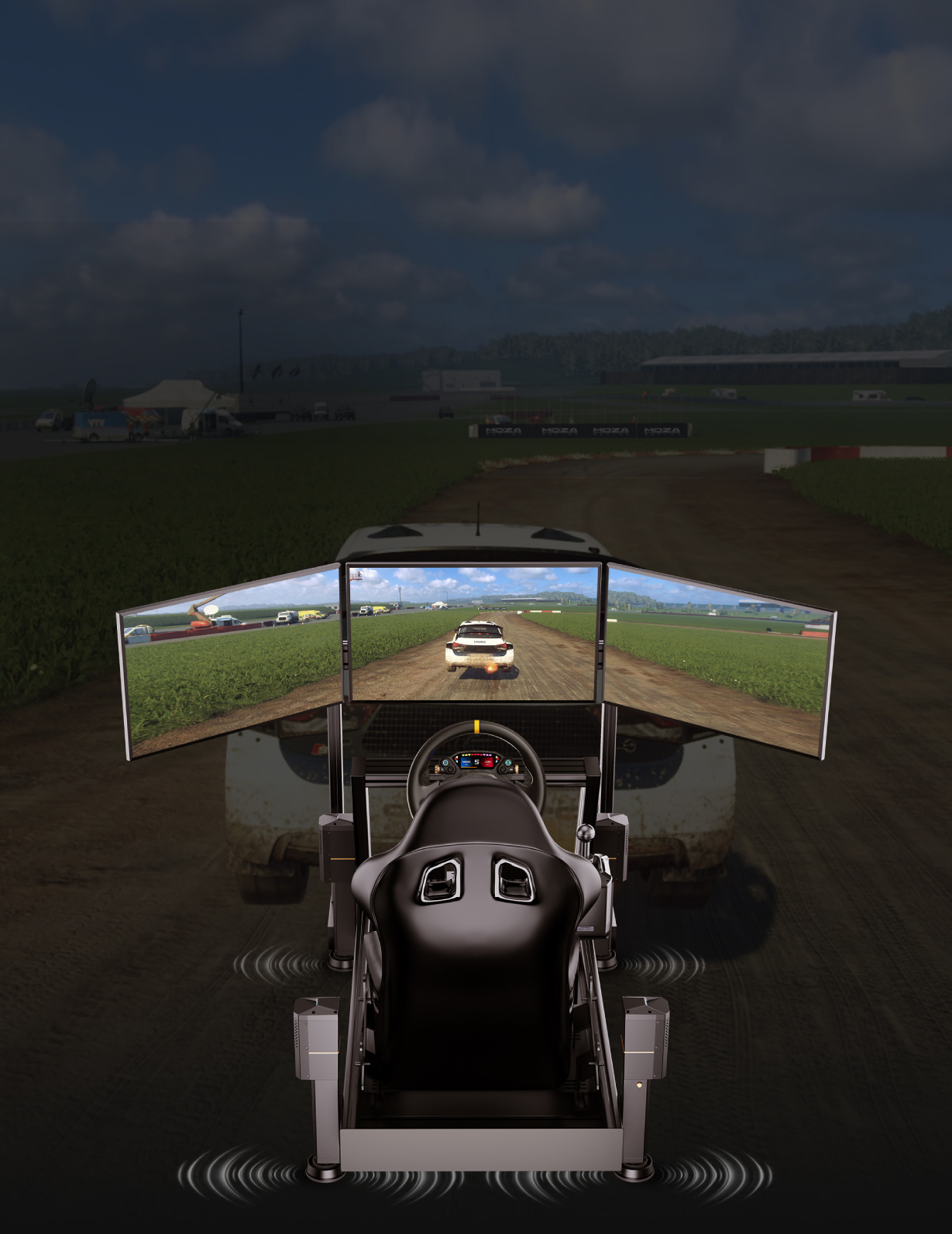

Moza HMA150 Motion System - speed 300 mm/s

Up to 350 kg payload with performance in context

MOZA states motion figures against the actual platform load. At 250 kg, the system can exceed 1 G and reach 300 mm/s; at the 350 kg maximum, the quoted figures become 0.45 G and 150 mm/s.

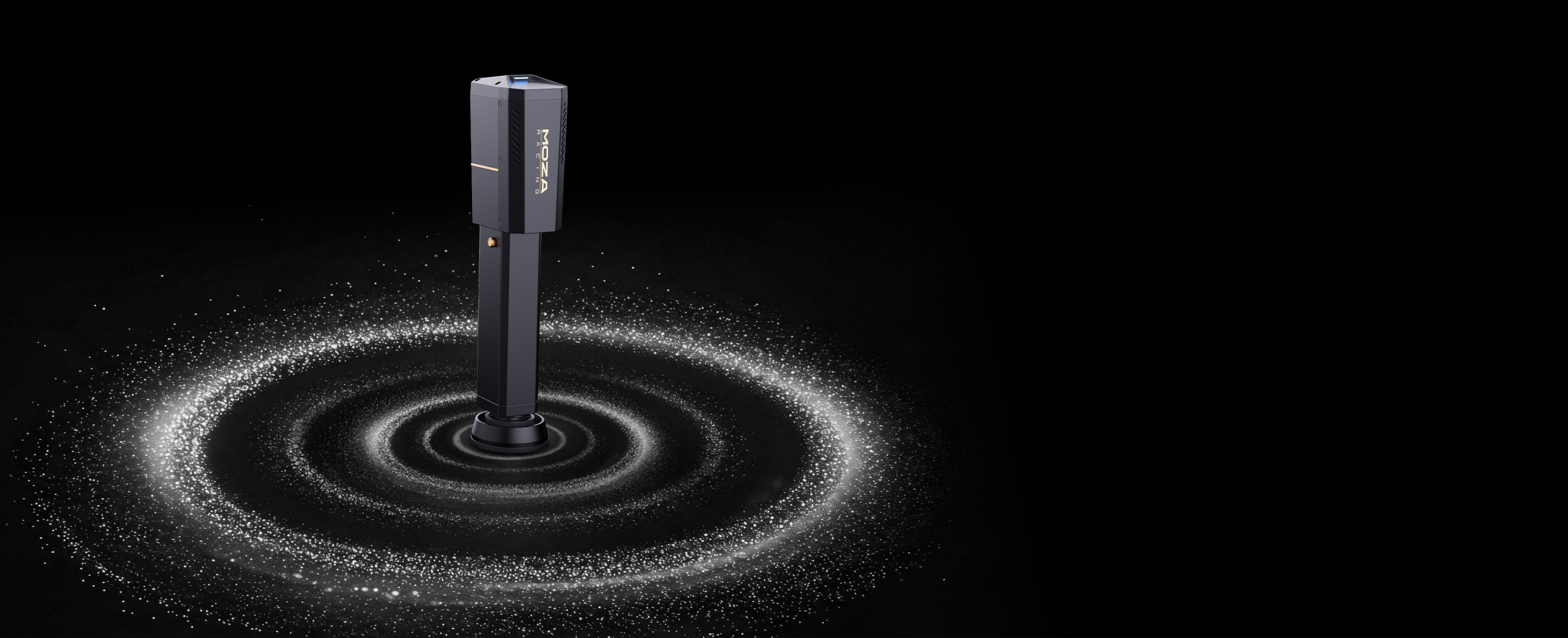

Moza HMA150 Motion System - smooth motion

Smooth motion without overpowering mechanical noise

The high-performance servo motor and precision ball screw deliver controlled travel at a measured sound level intended for indoor use. From one metre away, MOZA recorded no more than 55 dB at maximum speed and acceleration, and up to 58 dB when running racing titles with official presets. This helps the motion stay present without dominating the room.

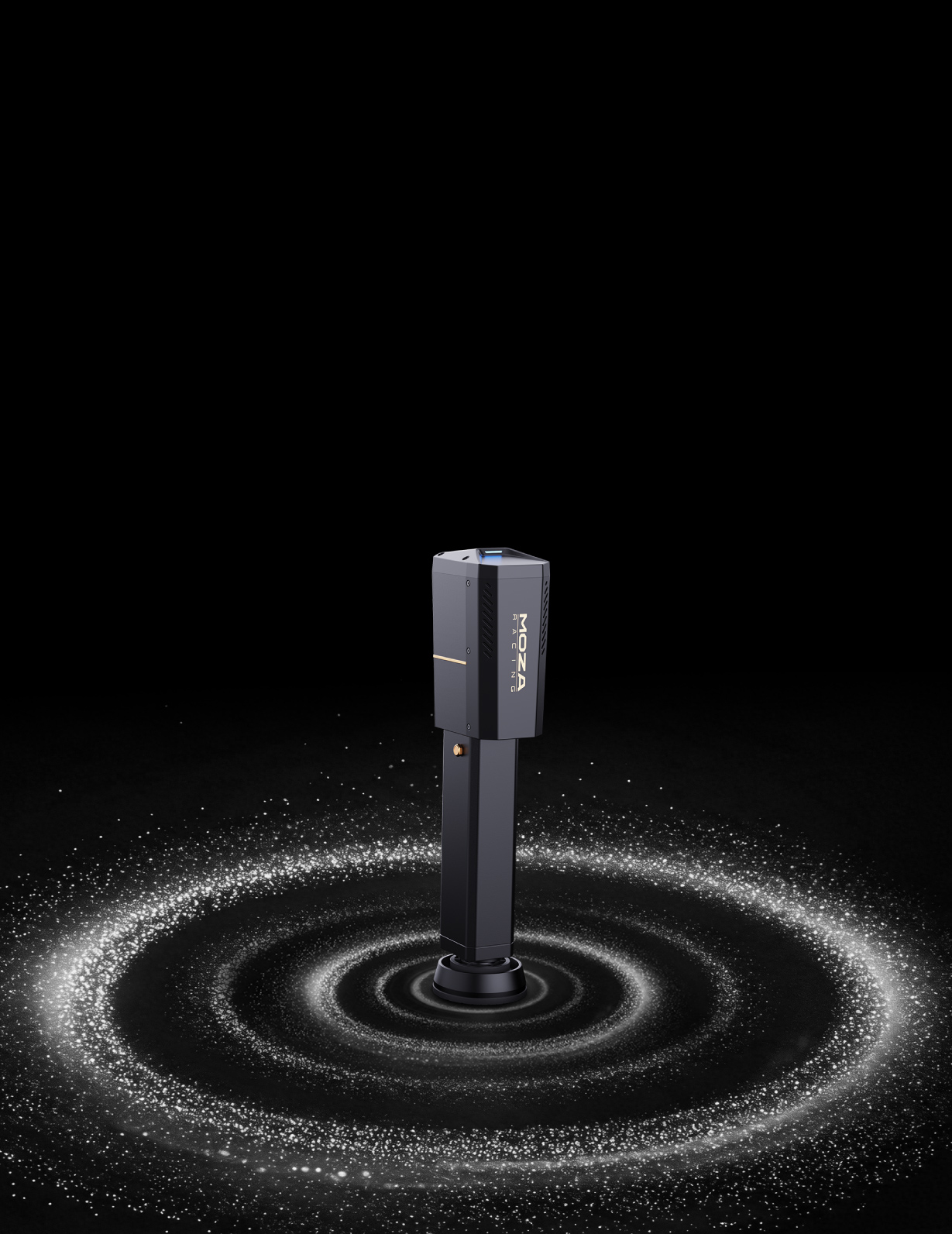

Moza HMA150 Motion System - high performance servo motor

Smooth motion without overpowering mechanical noise

The high-performance servo motor and precision ball screw deliver controlled travel at a measured sound level intended for indoor use. From one metre away, MOZA recorded no more than 55 dB at maximum speed and acceleration, and up to 58 dB when running racing titles with official presets. This helps the motion stay present without dominating the room.

Moza HMA150 Motion System - processor 600mhz

21-bit position sensing and a 600 MHz controller

The 21-bit magnetic encoder resolves 2,097,152 positions, giving the control system a detailed view of actuator movement. A 600 MHz processor evaluates motion data in real time and applies the control algorithms without waiting for a slow update cycle. Together they support fine progressive cues as well as sudden high-energy commands.

Moza HMA150 Motion System- encoder 21 bit

21-bit position sensing and a 600 MHz controller

The 21-bit magnetic encoder resolves 2,097,152 positions, giving the control system a detailed view of actuator movement. A 600 MHz processor evaluates motion data in real time and applies the control algorithms without waiting for a slow update cycle. Together they support fine progressive cues as well as sudden high-energy commands.

Moza HMA150 Motion System Ruchu - metal case

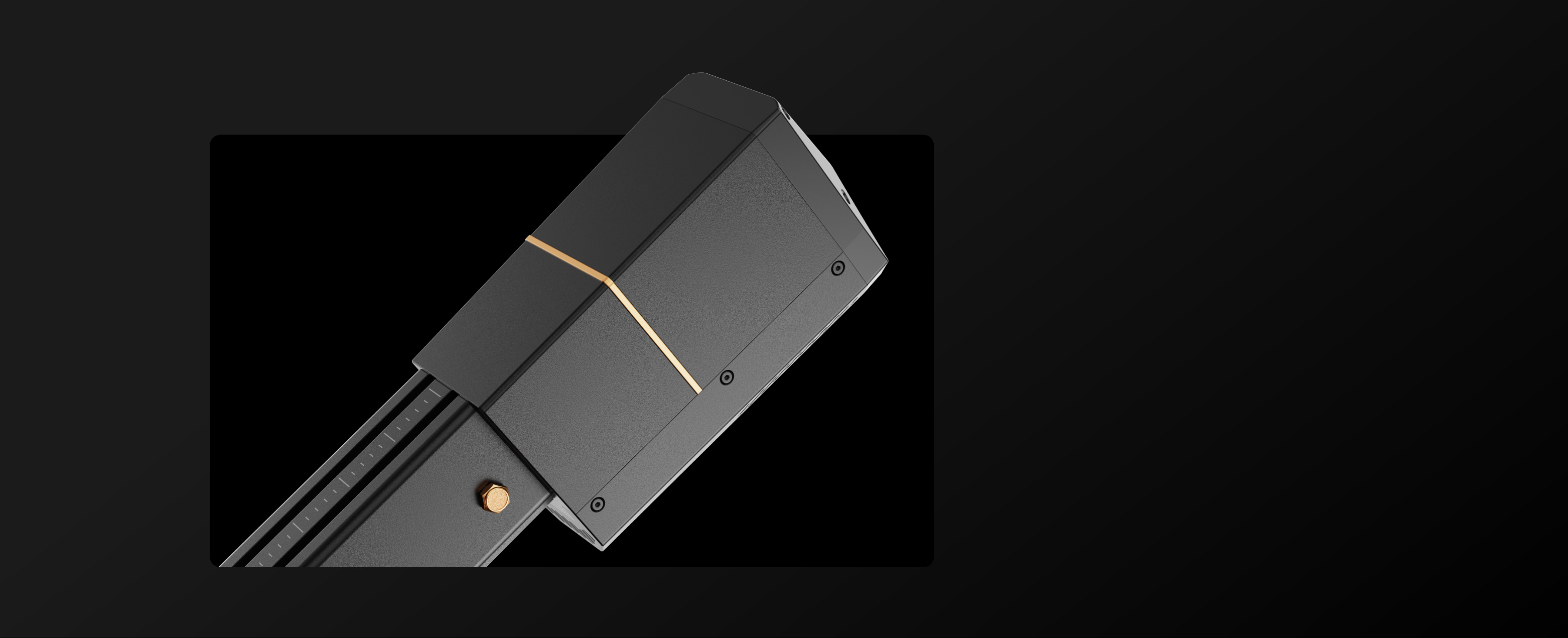

A rigid, lightweight aluminium-alloy housing

The actuator body uses high-strength aluminium alloy to combine low mass with the rigidity required beneath a moving cockpit. A stable enclosure supports the drive mechanism and helps preserve alignment through repeated changes of direction. Each actuator weighs 6.8 kg and measures 475 × 110 × 85 mm.

Moza HMA150 Motion System - aluminium case

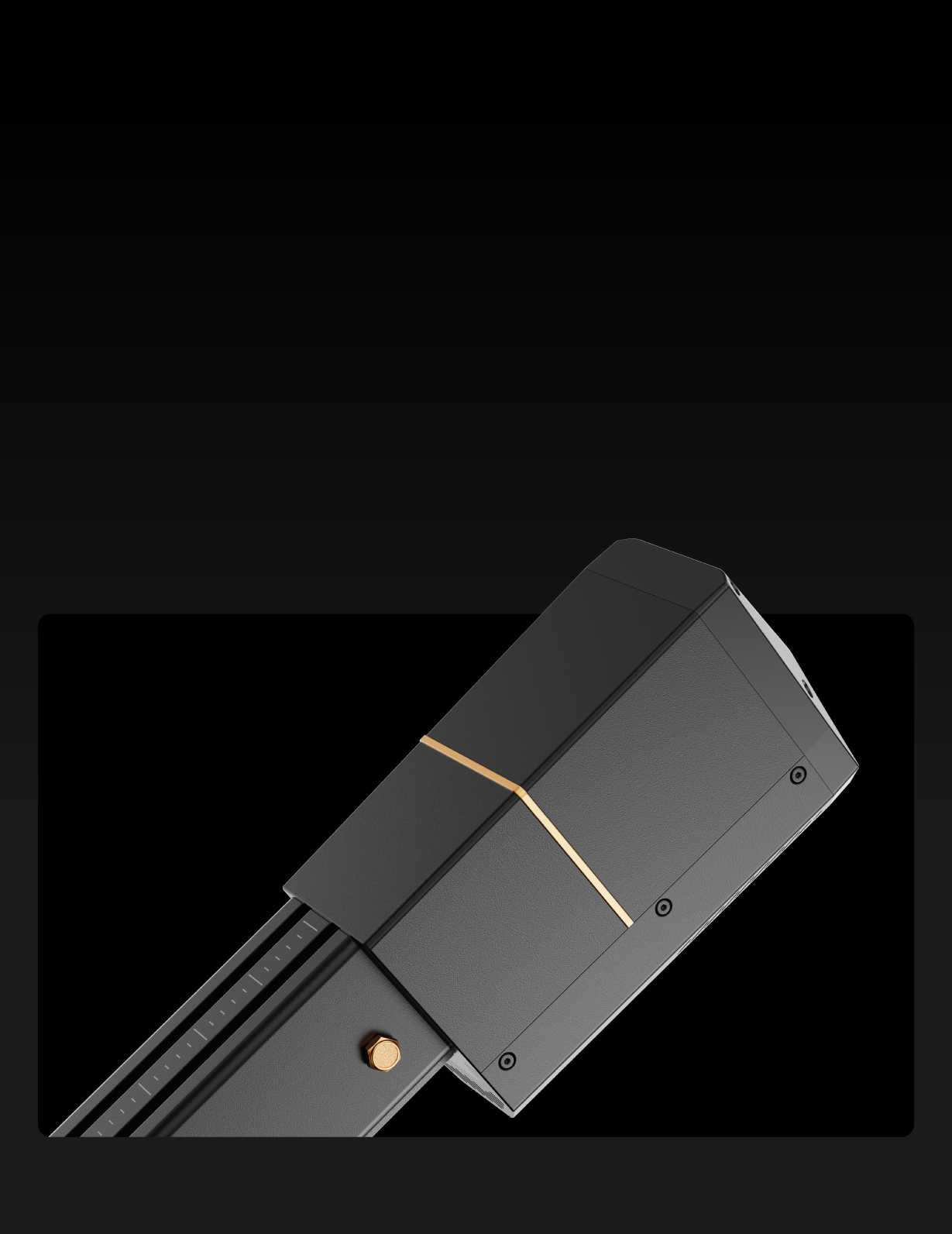

A rigid, lightweight aluminium-alloy housing

The actuator body uses high-strength aluminium alloy to combine low mass with the rigidity required beneath a moving cockpit. A stable enclosure supports the drive mechanism and helps preserve alignment through repeated changes of direction. Each actuator weighs 6.8 kg and measures 475 × 110 × 85 mm.

Moza HMA150 Motion System - tested technology

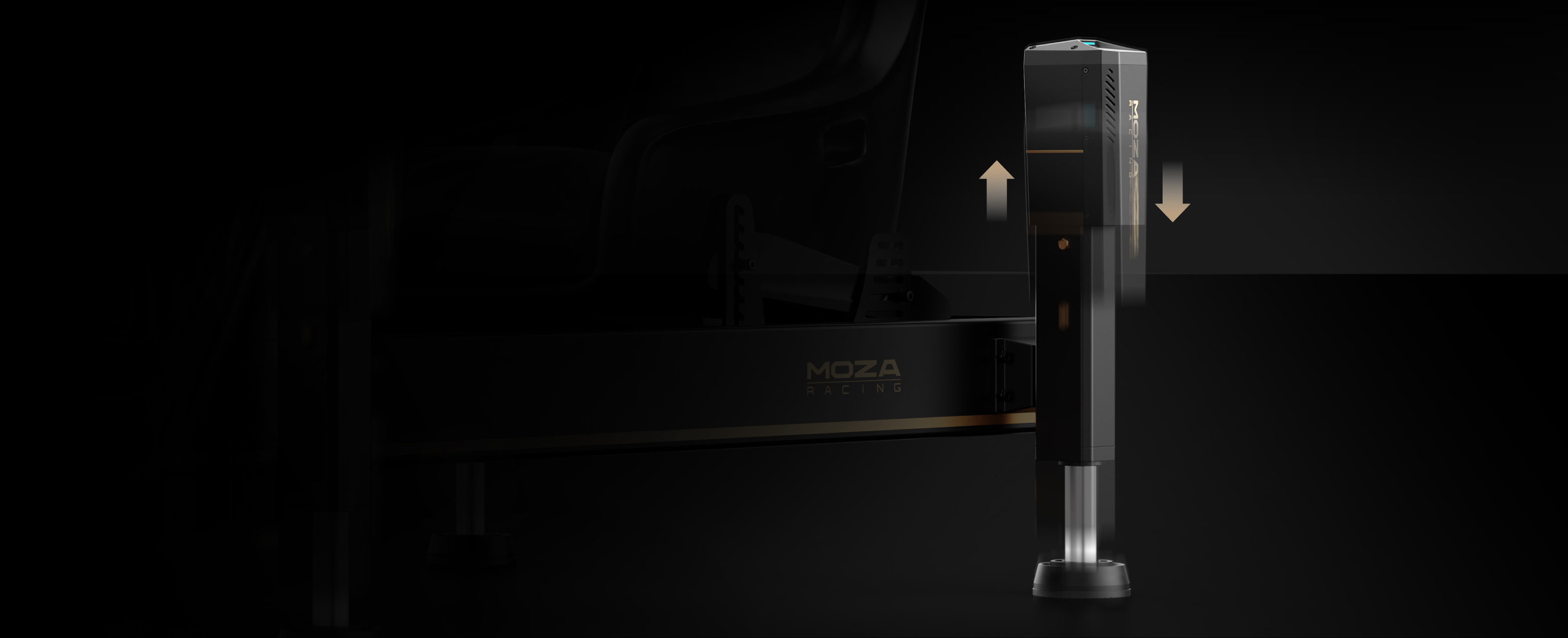

Durability proven through repeated full-stroke testing

MOZA reports more than five million full-stroke cycles during HMA150 durability testing. The actuator was also subjected to continuous 24-hour high- and low-temperature trials and retained stable operation afterwards. These manufacturer laboratory results address repeated mechanical use rather than performance observed only during a short demonstration.

Moza HMA150 Motion System - rigid construction

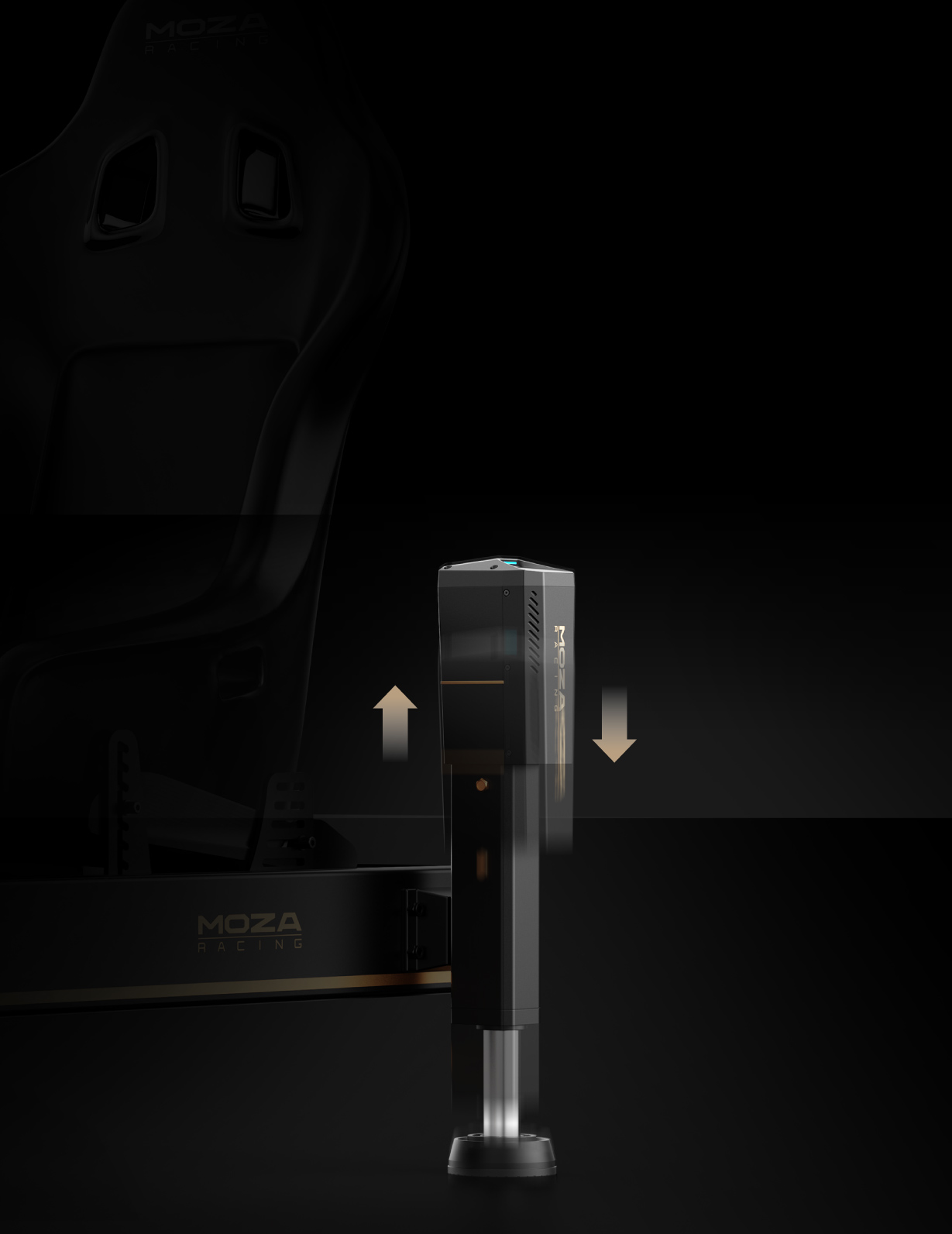

Durability proven through repeated full-stroke testing

Producent przetestował HMA150 w ponad pięciu milionach cykli wykorzystujących pełny zakres ruchu. System przeszedł także całodobowe próby w wysokiej i niskiej temperaturze, po których miał zachować stabilne parametry. Dane pochodzą z testów laboratoryjnych MOZA i odnoszą się do długotrwałej pracy mechanizmu, a nie wyłącznie krótkiej demonstracji.

Moza HMA150 Motion System - moza motion manager

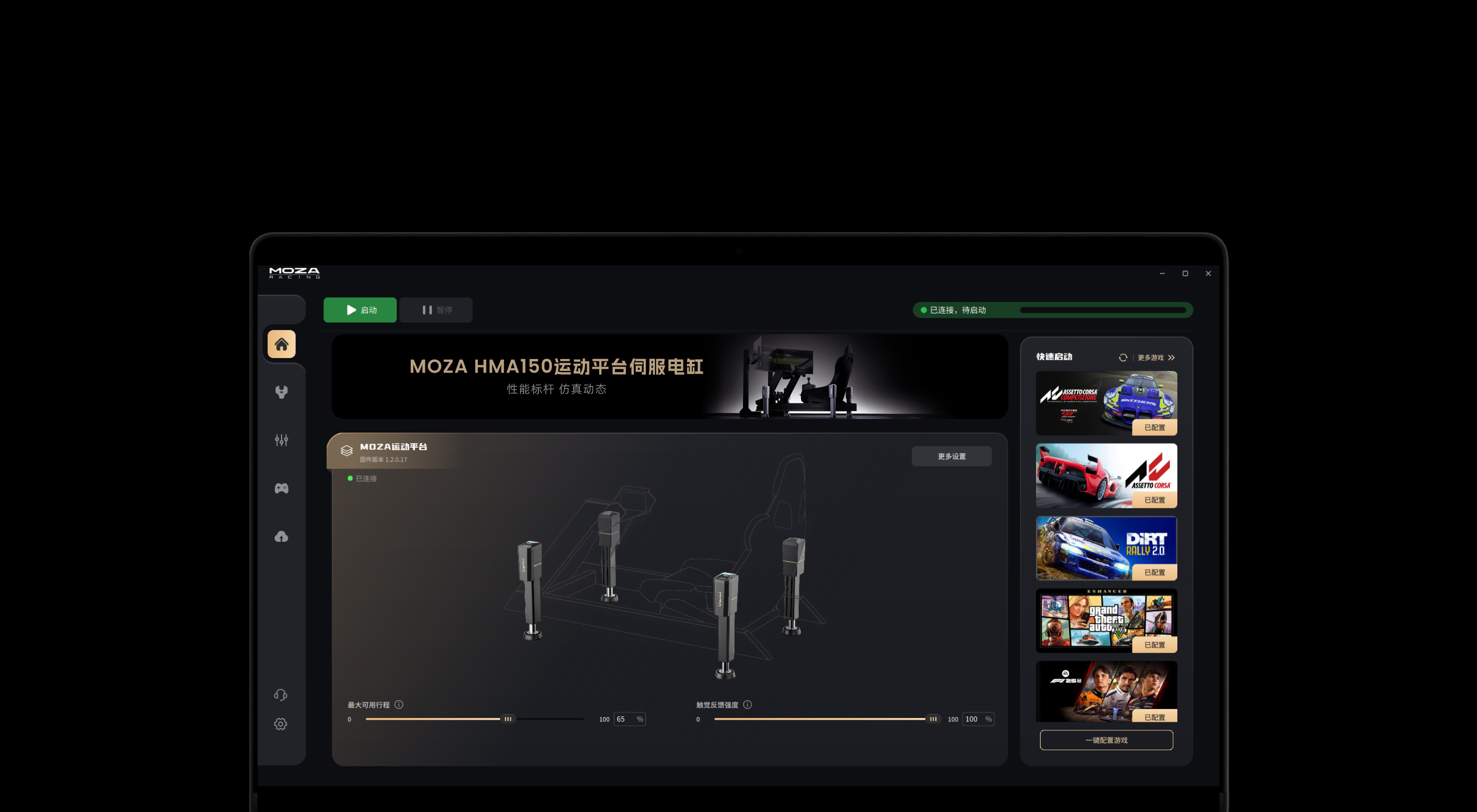

MOZA Motion Manager

The motion system is operated by Moza Motion Manager software. Calibration, settings, changes and user profiles in one place. Compatibility with racing and aviation simulators and games.
Moza HMA150 Motion System - manufacturer software

MOZA Motion Manager

The motion system is operated by Moza Motion Manager software. Calibration, settings, changes and user profiles in one place. Compatibility with racing and aviation simulators and games.

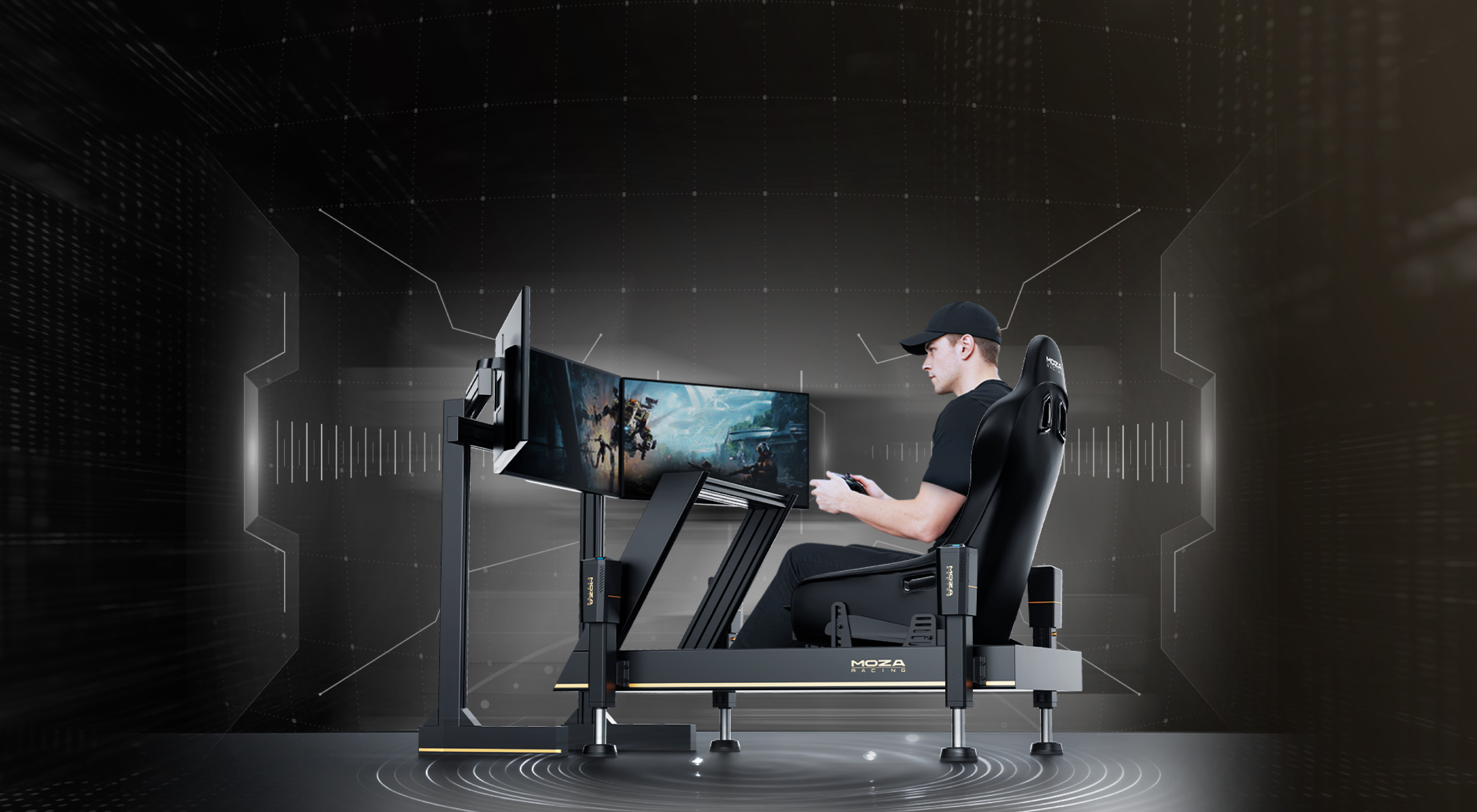

Moza HMA150 Motion System - motion ai

MOZA AI Motion

The MOZA HM150 supports not only simulations but also select games thanks to AI Motion support. This allows you to play GTA V, Cyberpunk, and Red Dead Redemption 2 using the motion system.

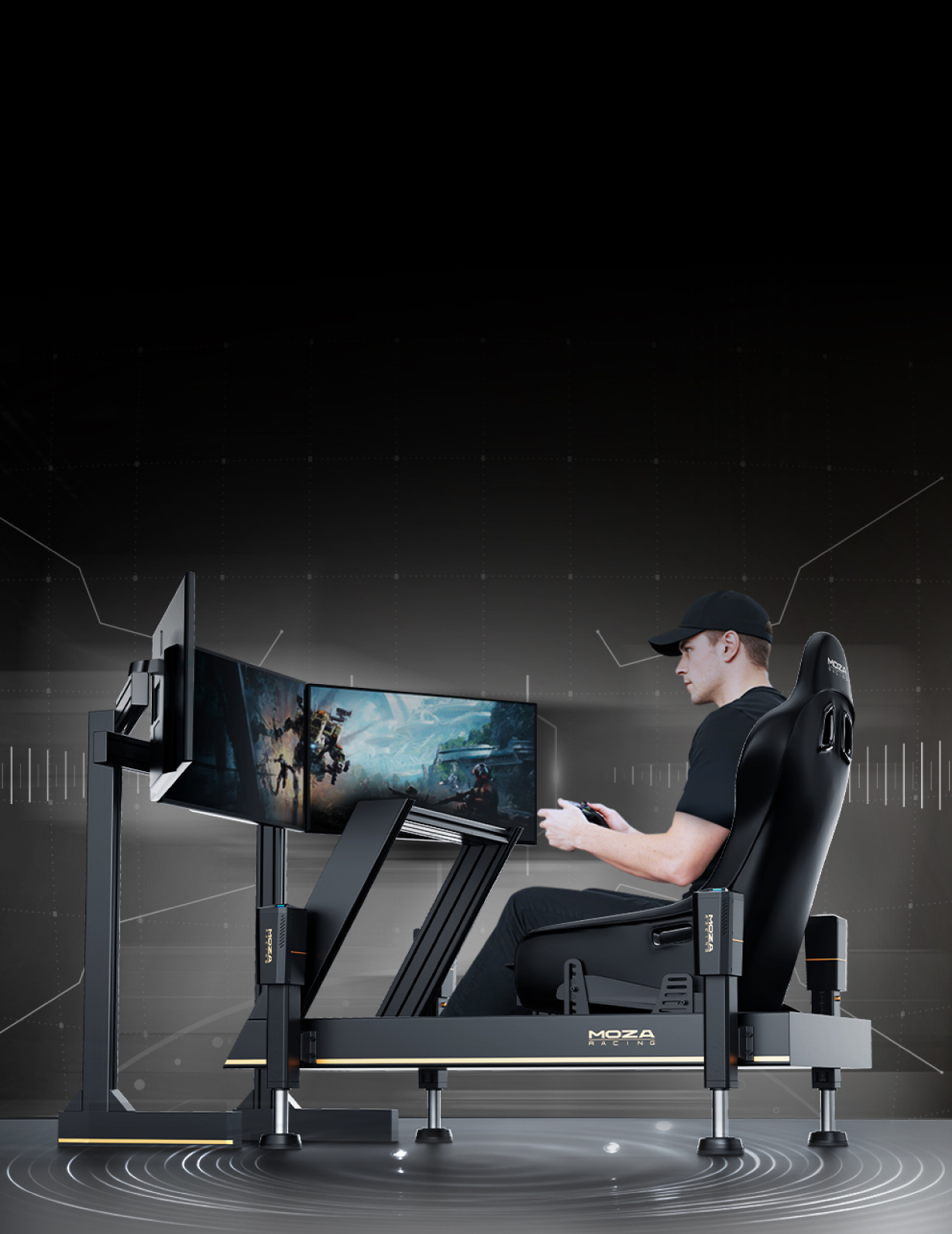

Moza HMA150 Motion System - ai motion

MOZA AI Motion

The MOZA HM150 supports not only simulations but also select games thanks to AI Motion support. This allows you to play GTA V, Cyberpunk, and Red Dead Redemption 2 using the motion system.

Szeroka kompatybilność z grami

System współpracuje z symulatorami wykorzystującymi natywną telemetrię, a AI Motion rozszerza obsługę o wybrane gry bez bezpośrednich danych ruchu.

Natywna telemetria
Assetto Corsa Competizione
DiRT Rally 2.0
BeamNG.drive
F1 25
Assetto Corsa EVO
iRacing
Automobilista 2
F1 24
Assetto Corsa Rally
Le Mans Ultimate
EA SPORTS WRC
F1 23
Assetto Corsa
Forza Horizon 5
Forza Motorsport
Euro Truck Simulator 2
American Truck Simulator
RaceRoom Racing Experience
Obsługa AI Motion
Grand Theft Auto V Enhanced
Cyberpunk 2077
Red Dead Redemption 2

Wide game compatibility

The system works with simulators using native telemetry, and AI Motion technology extends support to titles without direct motion data.

Native telemetry
  • Assetto Corsa Competizione
  • Assetto Corsa EVO
  • Assetto Corsa Rally
  • Assetto Corsa
  • Euro Truck Simulator 2
  • DiRT Rally 2.0
  • iRacing
  • Le Mans Ultimate
  • Forza Horizon 5
  • American Truck Simulator
  • BeamNG.drive
  • The Automobilist 2
  • EA SPORTS™ WRC
  • Forza Motorsport
  • RaceRoom Racing
  • F1® 25
  • F1® 24
  • F1® 23
AI Motion Support
  • Grand Theft Auto V Enhanced
  • Cyberpunk 2077
  • Red Dead Redemption 2

The scope of telemetry, motion effects, and supported features depends on the specific title, its version, and current drivers.

850083320041
6973137271466
Technical specification – MOZA Haptic Motion Actuator HMA150
Motion performance
Standard configuration 4 actuators
Degrees of freedom 3DOF: pitch, roll and heave
Actuator travel 150 mm
Maximum speed Up to 300 mm/s
Acceleration Above 1 G under supported load
Maximum platform payload 350 kg
Haptic vibration Up to 200 Hz
Stated latency Approx. 8 ms in launch material
Electronics and construction
Encoder 21-bit magnetic, approx. 2.09 million points
Processor 600 MHz
Drive Servo motor and ball screw
Structural material Aluminium alloy
Motor power 48 V DC
Mains adapter 110–220 V AC
Actuator height 475 mm
Actuator body 85 × 110 mm; Ø100 mm foot
Installation and software
Software MOZA Motion Manager
Data modes Native telemetry and AI Motion
Compatible profiles 4080, 40120 and 40160
Profile adapter Required for 40120/40160 with a closed centre channel
Recommended cockpit footprint 1200 × 750 mm
Minimum spacing 700 × 500 mm
Actuator connection RJ11
Emergency stop RJ9
Current primary use Racing simulators
Planned feature Wider flight-simulator compatibility

MOZA Haptic Motion Actuator HMA150 – questions and answers

1. What is the MOZA HMA150?

It is a motion-actuator system designed to move a complete cockpit. The standard platform uses four actuators and three degrees of freedom.

2. Which movements can it reproduce?

The 3DOF configuration reproduces pitch, roll and heave: front-to-back tilt, side-to-side tilt and vertical movement.

3. How much travel does each actuator provide?

Each HMA150 supplies 150 mm of travel and speeds up to 300 mm/s, combining large movement with rapid response.

4. How much weight can the system carry?

Maximum platform payload is 350 kg. The total must include the user, seat, frame and every mounted component.

5. Can the HMA150 generate vibration?

Yes. The system can reproduce haptic frequencies up to 200 Hz for engine texture, kerbs and road detail in addition to platform movement.

6. What is AI Motion used for?

AI Motion analyses video and audio in games without complete native telemetry. It complements direct profiles, although results vary by title.

7. Which aluminium profiles are compatible?

The system is designed for 4080, 40120 and 40160 profiles. A closed centre channel on 40120 or 40160 requires the matching adapter.

8. Can it be installed on a tubular cockpit?

Current documentation does not confirm tubular-cockpit support. Treat that installation as unsupported until a dedicated solution is released.

9. Which safety features are included?

The system includes an emergency stop and controlled descent. Users must also keep a clear area around the actuators and never place limbs beneath the moving cockpit.

10. How is the HMA150 different from a haptic pad?

The HMA150 moves the complete cockpit and adds vibration. The Next Level Racing HF8 Pro delivers eight zones of seat vibration but does not change the platform position.
