Moza HMA Adapter Kit front right side view

Moza HMA Adapter Kit

Name: Moza HMA Adapter Kit
Brand: Moza Racing
SKU: MP003
Price: 210.57 PLN
Availability: BackOrder

Reference MP003

210.57zł

PREORDER

Available from: 2026-10-01

MOZA HMA Profile Adapter Kit is a mounting accessory for the MOZA HMA150 Motion System. It enables secure actuator installation on 40120 and 40160 aluminium profiles with a closed centre channel, where the standard mount cannot use the central slot. The adapter is not an actuator and does not alter motion-system performance.

Ask about product

You will receive an 2.11zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Motion Systems

Moza HMA150 Motion System PREORDER

11,186.18zł

MOZA HMA ADAPTER KIT- An adapter for a closed profile channel

MOZA HMA Profile Adapter Kit is designed to mount an actuator from the MOZA HMA150 Motion System when the cockpit profile prevents use of the standard attachment point. Some 40120 and 40160 aluminium profiles have a closed centre channel, so the normal bracket cannot be positioned as it would on an open profile. The adapter creates a compatible interface between actuator and frame.

The accessory does not increase motion travel, speed or payload. Its role is to provide the correct geometry and a solid path for transferring load into the cockpit structure.

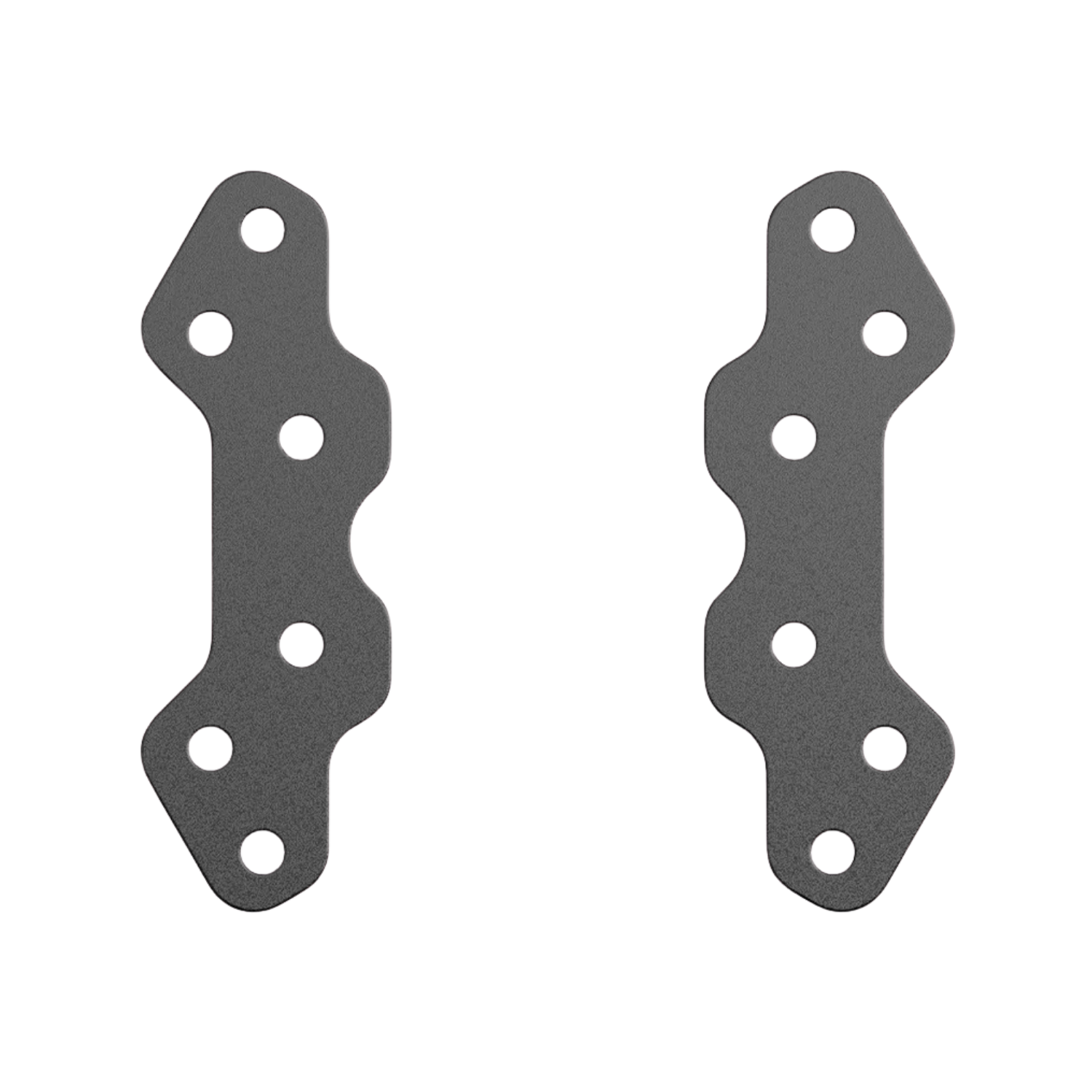

Moza HMA Adapter - front view of product

MOZA HMA ADAPTER KIT- An adapter for a closed profile channel

The accessory does not increase motion travel, speed or payload. Its role is to provide the correct geometry and a solid path for transferring load into the cockpit structure.

When the adapter is required

Use the kit with a 40120 or 40160 profile that has a closed centre section. If a 4080, 40120 or 40160 profile has an open centre slot compatible with the standard bracket, the adapter is not required. Inspect the profile cross-section rather than relying only on its outer dimensions.

Different profile series can look alike from the side yet guide fasteners in different ways. The safest reference is a clear view of the beam end or the cockpit manufacturer's technical drawing.

Vertical installation of four actuators

In a standard HMA150 system, all four actuators must be vertical, aligned at the same height and attached to stable frame points. The adapter should be installed consistently at every corner that uses a closed channel. Once tightened, check the angles and run MOZA Motion Manager calibration.

The recommended rig footprint is 1200 × 750 mm, while minimum installation spacing is 700 × 500 mm. The adapter does not override these dimensions or the total platform mass limit.

A small component with a safety-critical job

A motion actuator sends rapidly changing loads through the frame, so an improvised washer or a fastener resting against a thin profile wall is not an appropriate substitute. The MOZA HMA Profile Adapter Kit is intended to create a predictable connection for the specified profile type.

After assembly, run a self-test and manual movement test with nobody seated in the cockpit. The adapter does not include an actuator; the compatible MOZA HMA150 Motion System is a separate product. The seat, frame, pedals and other equipment must still be included in the total platform mass.

UPC 850083320256

EAN13 6973137271626

Technical specification – MOZA HMA Profile Adapter Kit
Purpose
Product type	Mounting adapter for the MOZA HMA150 system
Primary use	Actuator installation on a profile with a closed centre channel
Profiles requiring the adapter	40120 or 40160 with a closed centre section
Profiles normally used without it	4080, 40120 or 40160 with an open compatible channel
Installation and operation
Actuator orientation	Vertical
Alignment	All actuators at the same height
System	Four-actuator MOZA HMA150 platform
Calibration after installation	MOZA Motion Manager
Recommended cockpit footprint	1200 × 750 mm
Minimum spacing	700 × 500 mm
Performance effect	Does not change HMA150 travel, speed or payload

MOZA HMA Profile Adapter Kit – questions and answers

1. What is the MOZA HMA Profile Adapter Kit for?

It enables correct HMA150 actuator mounting when a closed centre channel prevents use of the standard installation method.

2. Which profiles use the adapter?

It is primarily intended for 40120 and 40160 profiles with a closed centre section.

3. Does a 4080 profile always need the adapter?

No. If its centre slot is open and compatible with the standard bracket, the adapter is not required.

4. Does every 40120 profile require the kit?

No. Channel construction is what matters. An open profile may accept the normal bracket, while a closed version needs the adapter.

5. How can I identify the profile design?

Inspect the beam cross-section at its end or use the cockpit manufacturer's technical drawing. Outer size alone is not sufficient.

6. Does the adapter increase HMA150 payload?

No. It is a mounting component and does not change the specified payload, travel or speed of the motion system.

7. Is calibration required after installation?

Yes. After checking vertical alignment and tightening every point, perform configuration, self-test and calibration in MOZA Motion Manager.

8. Must all actuators be at the same height?

Yes. Unequal corner height can distort platform geometry and produce incorrect movement.

9. Can an ordinary washer replace the adapter?

That is not recommended. A motion system creates dynamic loads, so a component designed for the exact mounting method should be used.

10. Is the MOZA HMA150 included with the adapter?

No. This is a separate mounting component. The compatible MOZA HMA150 Motion System must be ordered separately.
