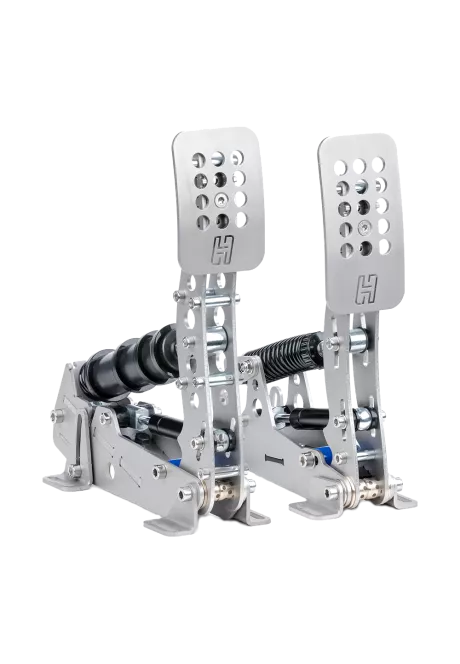

Heusinkveld Ultimate+
HE-SPU2SC
4,092.96zł
4,092.96zł
Ready to send
Heusinkveld Ultimate+ are flagship sim racing pedals with a 200 kg load cell and up to 140 kg braking force. Hydraulic damping and progressive elastomers deliver lifelike brake feel, while SmartControl software ensures precise calibration. The ultimate choice for professional esports drivers and elite sim racers.
Ask about product
You will receive an 40.93zł for each item of this product to use on your next purchase.
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0
You might also like
Heusinkveld Ultimate+ Upgrade Kit
760.27zł
Heusinkveld Ultimate+ Base Plate
430.47zł
Heusinkveld Ultimate+
For Professional Motorsport Simulators
Hydraulic Damping
The bespoke hydraulic dampers of the Sim Pedals Ultimate
are ultra-reliable and do not require periodic maintenance.
Even in the unlikely case of a failure,
all hydraulic dampers can easily be removed while the pedal still retains its basic
functionality as the pedal sensors are separated from the hydraulic circuit.
are ultra-reliable and do not require periodic maintenance.
Even in the unlikely case of a failure,
all hydraulic dampers can easily be removed while the pedal still retains its basic
functionality as the pedal sensors are separated from the hydraulic circuit.
Highest Quality
Designed with CAD and FEA, all structural parts are CNC precision
laser cut stainless steel with a glass bead blasted finish.
The pedals are strong, stiff, compact and durable.
laser cut stainless steel with a glass bead blasted finish.
The pedals are strong, stiff, compact and durable.
Clutch
A clutch feels lighter towards the end of travel. The Sim Pedals Ultimate+ clutch features a regressive spring mechanism simulating this concave force curve and also allows you to greatly adjust the pedal resistance, travel and feel.
Brake
The brake features a realistic dual stage brake system with a 200kg load cell, capable of handling actual pedal forces up to 140kg (measured at the pedal footplate). The adjustable coil spring simulates the initial pad-to-disc gap. The main brake springs are all new custom made Heusinkveld injection molded thermoset elastomers.
Throttle
Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer.
Professional Environment
For professional driver training. For home use (eg. eSports simulators, simracing enthusiasts). In commercial applications (eg. rental simulators).
Sensors And Output
The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle and clutch position and brake force.
Installation
Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Sim Pedals Ultimate+, even if you use the optional Sim Pedals Ultimate+ Baseplate.
Smartcontrol Live: Configuration Tool
Our Heusinkveld Ultimate+ come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.
Direct Drive Wheelbases:
- Brake Sensor
- LC 200 kg
- Throttle Sensor
- Load Cell
- Clutch sensor
- Load Cell
- Pedals variant
- 2 pedals
3 pedals
Only clutch
HE-SPU
| Primary Material | Stainless Steel |
| Secondary Material | Aluminum |
| Adjustable Angle | Yes |
| Driver Customisation | Yes |
| Mounting | 80/20 Beams or 3rd party mounts |
