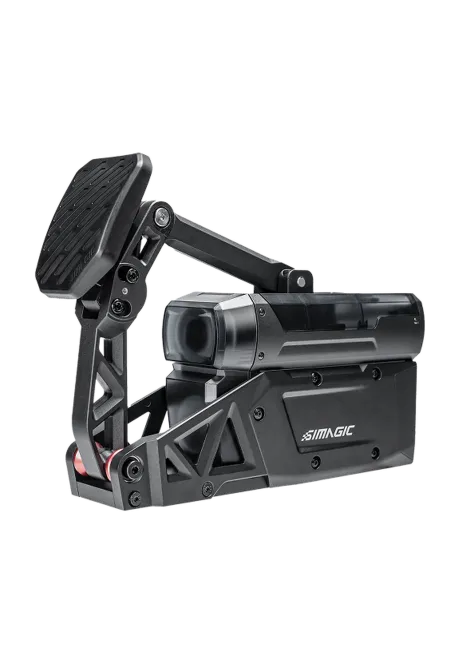

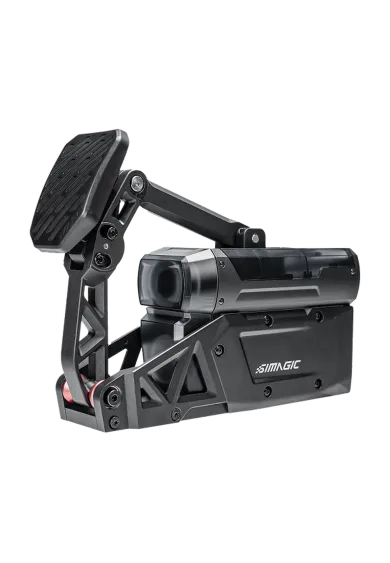

Simagic P-Active Pedal front side view

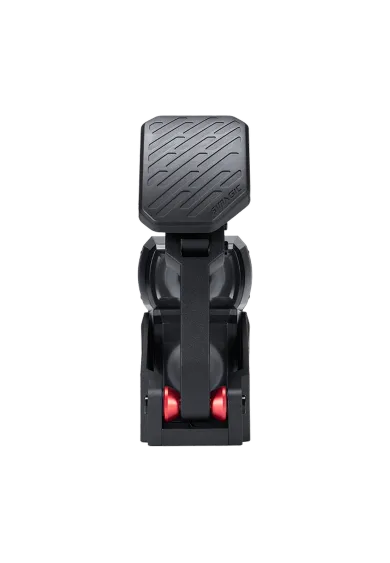

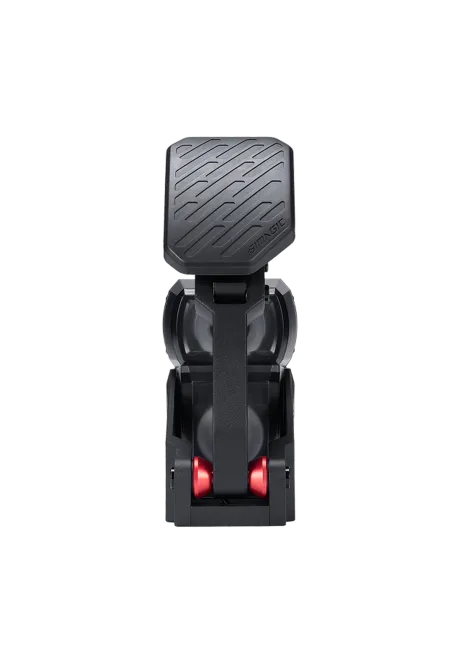

Simagic P-Active Pedal front view

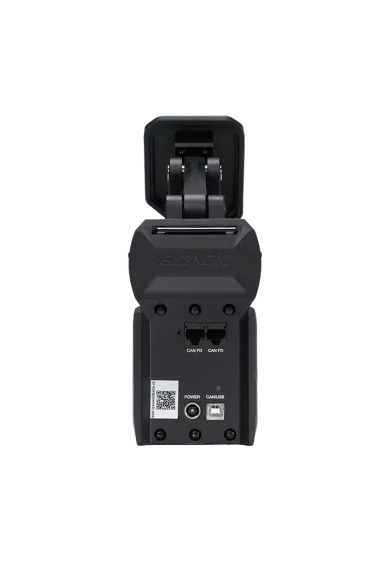

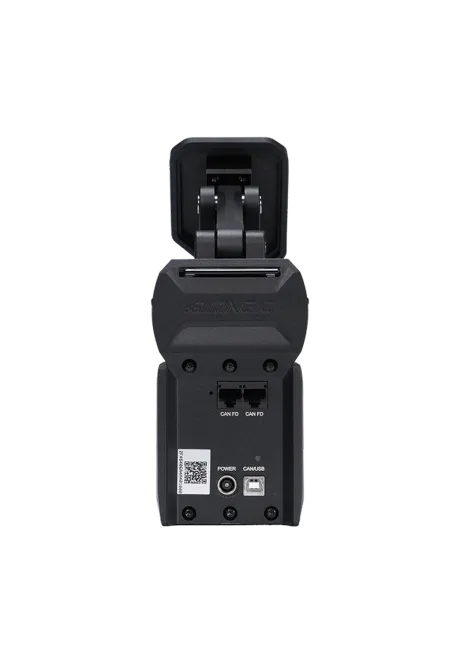

Simagic P-Active Pedal rear view
  • New
Simagic P-Active Pedal front side view
Simagic P-Active Pedal front view
Simagic P-Active Pedal rear view

Simagic P-Active Pedal

P-Active
3,924.39zł

3,924.39zł
PREORDER

Simagic P-Active is a servo-driven active pedal with resistance, travel and response settings in SimPro. Telemetry can provide ABS, wheel-lock and gear-shift feedback. Choose the single P-Active pedal or P1000-FB, which combines an active brake, a P1000 throttle and a shared baseplate. The P-Active control box is included.

P-Active Variant
  • P-Active Pedal
  • P1000-FB Bundle


Ask about product
Zapytanie dotyczy produktu: Simagic P-Active Pedal
* - pola obowiązkowe
Send
You will receive an 39.24zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like



Simagic P-Active Pedal

AVAILABILITY WILL BE ANOUNCED SOON

Want to know more when the P-Active Pedal becomes available? Sign up for our newsletter!

In addition to product availability updates, our newsletter also includes special offers and discount codes. You can unsubscribe at any time. For more details, please refer to our legal notice.

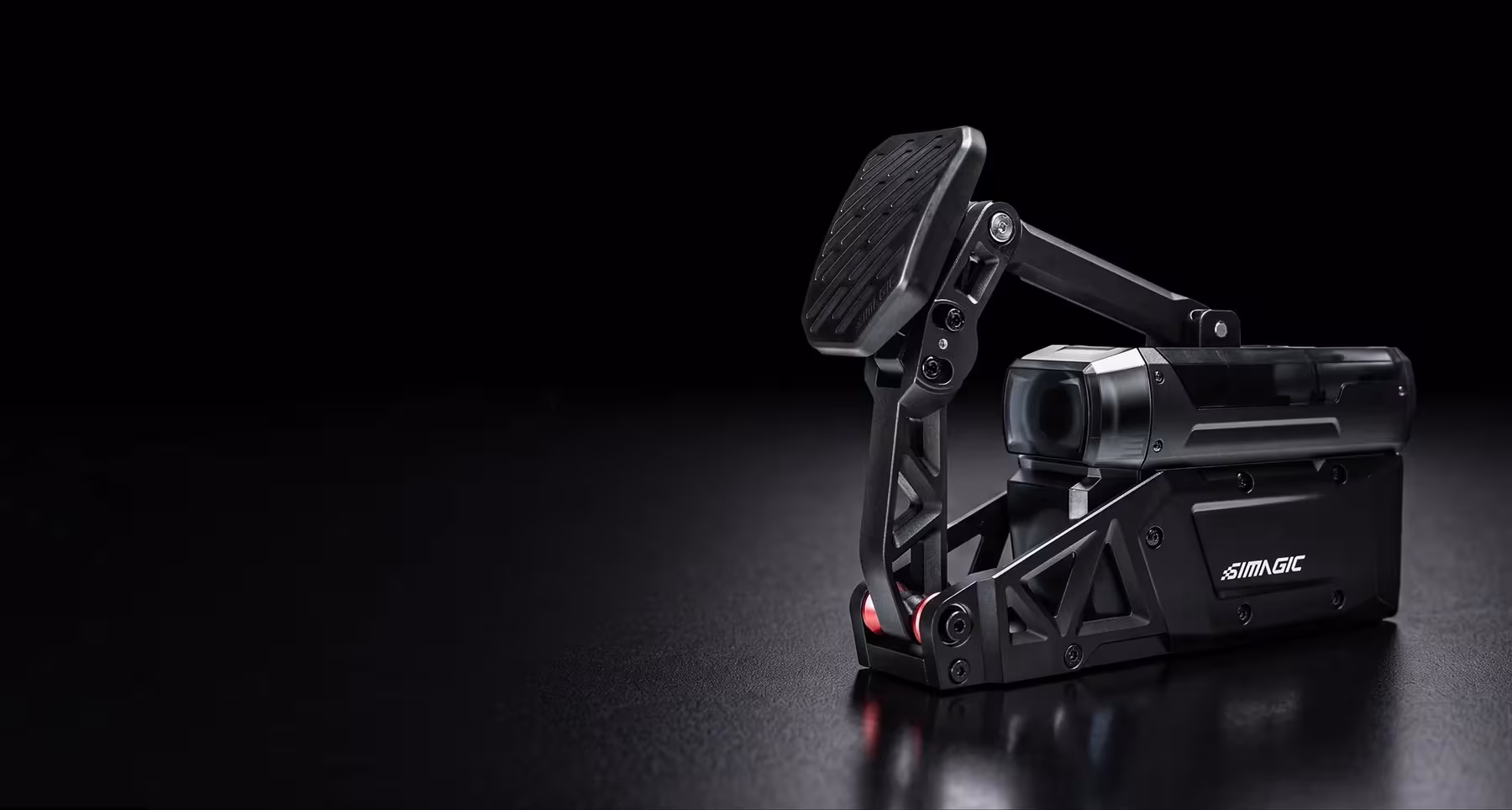

Simagic P-Active Pedal product baner
Simagic P-Active Pedal one pedal or set

One active pedal or a set with a P1000 throttle

The single P-Active can replace one pedal in an existing setup, such as the brake. P1000-FB combines a P-Active brake with a P1000 throttle on a shared baseplate with a heel rest. It is a two-pedal configuration and does not include a clutch.

The P1000-FB throttle is not a second P-Active. Servo-controlled resistance and active effects belong to the P-Active module. If you already have a throttle and clutch, the single-pedal option lets you keep them in your setup.

Change the pedal response in SimPro

SimPro provides force, travel, response-curve and deadzone settings. Select brake, throttle or clutch mode for the P-Active module. Its servo recreates different resistance characteristics, so changing pedal feel starts with software settings rather than swapping springs or elastomers.

The measuring system uses dual 250 kg load-cell sensors with 16-bit resolution. Its software measurement limit is 180 kg. These are pressure-sensing specifications, which are separate from the force generated by the motor.

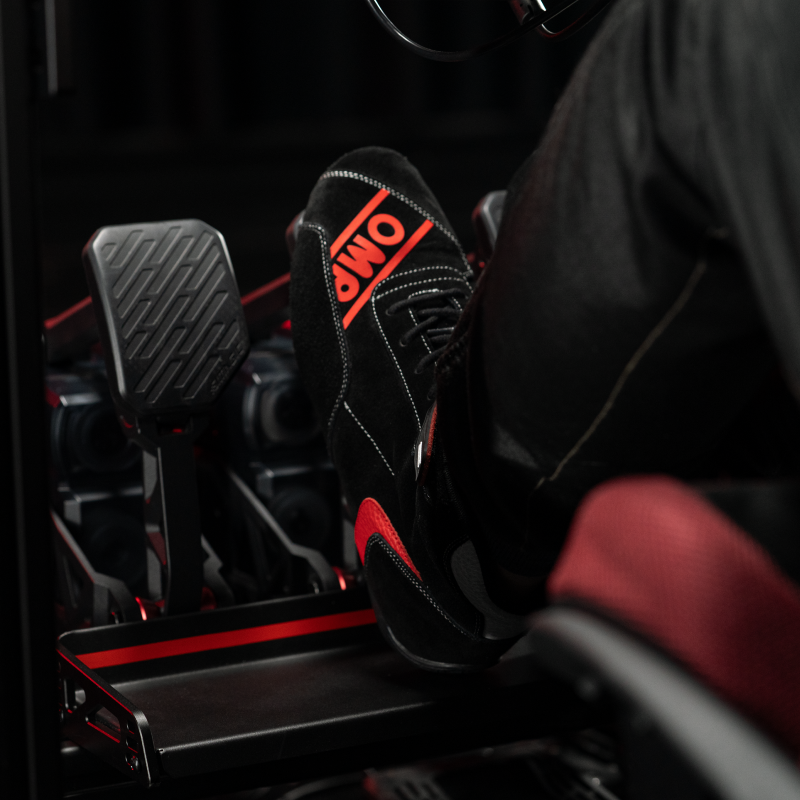

Simagic P-Active Pedal change the pedal response
Simagic P-Active Pedal feel abs

Feel ABS and wheel lock through the pedal

The servo sets pedal resistance and can also turn game data into physical feedback. SIMAGIC lists ABS, traction control, wheel lock, wheel slip, engine RPM, gear shifts and clutch bite point. Available signals depend on game telemetry and the selected pedal mode.

Start with the brake's basic resistance and travel, then add effects individually. This helps separate normal braking pressure from ABS feedback. Clutch mode and bite-point simulation apply to a module configured as a clutch; they do not indicate an extra clutch pedal in P1000-FB.

Fit it to P1000, P2000 or a profile rig

The single P-Active includes a P1000 adaptor kit and a P2000/profile adaptor kit. A dedicated P-Active Base Plate is available separately. Check mounting holes and space rather than assuming every inverted pedal arrangement or cockpit plate will accept it.

The raised pivot directs more of the pedal stroke forward, reducing the ankle rotation needed for the movement. Adjust the pedal face and heel position after installation. The manufacturer lists PC or a compatible SIMAGIC base connection and includes a control box. DC 48 V power is required; the pedal is not powered solely by the computer port.

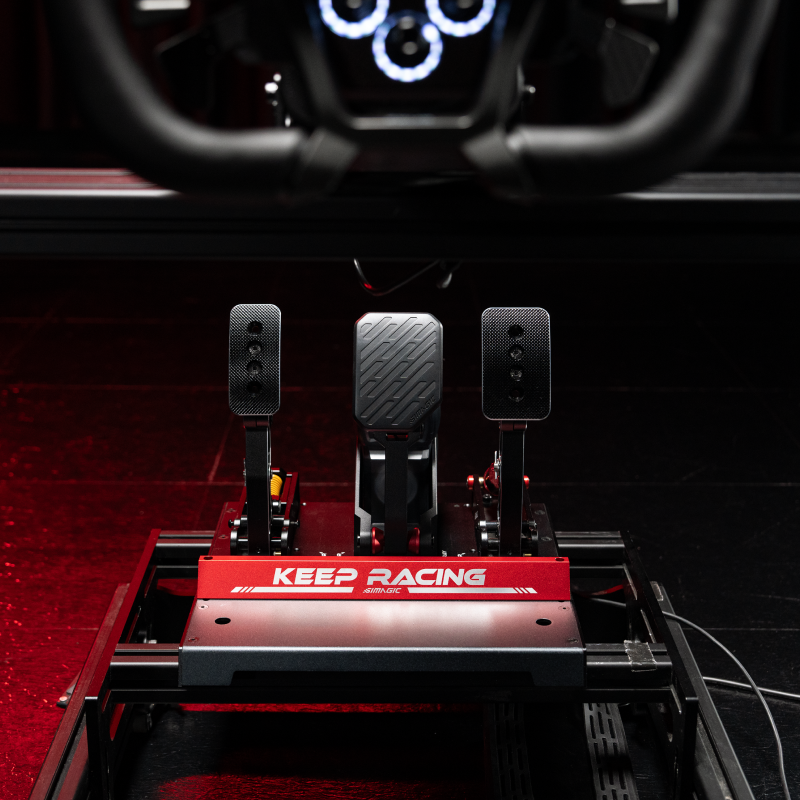

Simagic P-Active Pedal choose function

Brake, throttle or clutch

In SimPro, you choose whether Simagic P-Active works as a brake, throttle or clutch. Set a short, firm brake feel or longer travel with lighter throttle resistance. Clutch mode simulates the bite point, while telemetry feedback can signal ABS activation and wheel lock during braking. Adjust these settings in software without replacing springs or elastomers.

The P-Active variant includes one active pedal that performs the selected function. P1000-FB pairs it as a brake with a P1000 throttle on a shared baseplate. The throttle is not a second active module, and a clutch is not included in this set.

Warranty
24 months
Type of pedals
Active
Position of pedals
Standard
Parameter P-Active P1000-FB
Manufacturer SIMAGIC SIMAGIC
Variant P-Active P1000-FB
Configuration Single active pedal P-Active brake and P1000 throttle
Pedals 1 2
Separate clutch pedal Not included Not included
Shared baseplate and heel rest Not included; P-Active Base Plate sold separately P1000 baseplate with heel rest
Active pedal control Servo-driven Servo-driven P-Active brake, not the P1000 throttle
Active module software SimPro SimPro
P-Active modes Brake, throttle or clutch P-Active used as the brake; the module also supports other modes
Active pedal sensors Dual 250 kg load cells Dual 250 kg load cells in the P-Active brake
Software measurement limit 180 kg 180 kg for the active module
Active module resolution 16-bit 16-bit for P-Active
Software adjustments Force, travel, response curve and deadzones As on P-Active; does not imply active throttle adjustment
P-Active mechanical adjustments Pedal-face angle and position Active brake pedal-face angle and position
P-Active telemetry effects ABS, TC, wheel lock, wheel slip, RPM, gear shifts and clutch bite point, depending on game and mode As on P-Active; the active pedal in this configuration is the brake
P-Active power specification DC 48 V / 8.3 A, maximum 398 W stated by SIMAGIC P-Active module: DC 48 V / 8.3 A, maximum 398 W
P-Active control box Included Control box for the active module
Active module materials CNC aluminium alloy, PC plastic and rubber As on P-Active; these specifications do not cover the whole set
P-Active pedal face Aluminium alloy and rubber Aluminium alloy and rubber
Active pedal dimensions, L × W × H 335.9 × 87 × 241.5 mm 335.9 × 87 × 241.5 mm for P-Active only; complete set dimensions not published
Net weight 6.12 kg for P-Active Complete set weight not published; 6.12 kg refers only to the P-Active module
Hardware or platform Compatibility and conditions
PC Computer connection is confirmed by SIMAGIC. Configure the active module in SimPro
SIMAGIC wheel bases Connection to a compatible base is listed. This product page does not provide a generation-by-generation list or port details
P1000 platform Fit the single P-Active with its included P1000 adaptor kit
P2000 platform and profiles The single P-Active includes a P2000/profile adaptor kit
P-Active Base Plate Optional dedicated baseplate, sold separately
Third-party throttle and clutch pedals SIMAGIC describes these configurations on P-Active Base Plate. Check spacing, clearance and the separate connection requirements
Inverted P1000 configurations Not separately confirmed for every version. Check geometry and mounting points before installation
SimHub The product page does not separately confirm P-Active control through SimHub. SimPro is the confirmed software
PlayStation and Xbox Not confirmed on this product page. A wheel-base connection alone does not establish console support
  • 1 P-Active active pedal.
  • Control Box, confirmed as included in the specification.
  • P1000 adaptor kit.
  • P2000/profile adaptor kit.
  • Screw kit.
  • Cable kit.
  • Quick guide.
  • Stickers.

The single-pedal option does not include a separate throttle, clutch or dedicated P-Active Base Plate.

  • P-Active active brake.
  • P1000 throttle pedal.
  • Shared P1000 baseplate with heel rest.
  • Control box for the P-Active module.

A clutch is not included. SIMAGIC does not publish a separate complete small-accessory list for P1000-FB; do not assume it includes every adaptor supplied with the single P-Active.

1. What is the difference between P-Active and P1000-FB?

P-Active is one active pedal. P1000-FB is a two-pedal configuration with a P-Active brake, P1000 throttle and shared baseplate.

2. Are both P1000-FB pedals active?

No. The brake is the P-Active module. The throttle belongs to the P1000 series and is not a second P-Active.

3. Does P1000-FB include a clutch?

No. The manufacturer's variant image shows a brake and throttle. Selecting clutch mode for P-Active does not add a third pedal to the package.

4. Can P-Active operate as a throttle or clutch?

Yes. SIMAGIC describes brake, throttle and clutch modes selectable in software. P1000-FB uses the module as a brake.

5. What can I adjust in SimPro?

Force, travel, response curve and deadzones. Pedal-face angle and position are mechanical adjustments.

6. Does the 250 kg rating mean the pedal can push on my foot with that force?

No. It is the load-cell sensor rating, not a confirmed continuous servo output force. The software measurement limit is 180 kg. The two sensor ratings must not be added together to claim 500 kg.

7. Which feedback effects are supported?

SIMAGIC lists ABS, traction control, wheel lock, wheel slip, engine RPM, gear shifts and clutch bite point. Effects depend on game telemetry and the selected pedal mode.

8. Do I need to buy a baseplate for the single P-Active?

Not necessarily. The single-pedal package includes P1000 and P2000/profile adaptor kits. P-Active Base Plate is optional. Check fit for your specific setup.

9. Is a control box included, and do I need a SIMAGIC base?

SIMAGIC confirms an included Control Box and connection to PC or a compatible SIMAGIC base. A SIMAGIC base is not required for a PC setup. The pedal also requires DC 48 V power.

10. What are the P-Active dimensions and weight?

The single module measures 335.9 × 87 × 241.5 mm and weighs 6.12 kg net. These are not the complete P1000-FB dimensions or weight; separate figures for that set are not published.

11. How long is the warranty on SIMAGIC pedals?

Simline.eu is an authorised SIMAGIC partner in Poland. SIMAGIC pedals receive warranty protection for up to 2 years, subject to the warranty and purchase terms. The manufacturer's policy lists 24 months for pedals; claims for purchases from Simline.eu should be sent to us.

12. How is the warranty handled for a SIMAGIC product bought from Simline.eu?

Simline.eu acts as an intermediary in the warranty process and manages the case from receipt of documentation. After reviewing the issue, we provide further instructions for handling the claim.

13. How do I submit a claim for P-Active or P1000-FB?

Email support@simline.eu or simagic@simline.eu with proof of purchase, a fault description and photos or videos showing the problem. After reviewing the claim, we will explain how to prepare and return the equipment.
