Fanatec Clubsport Pedals V3 Brake Performance Kit
  • New
Fanatec Clubsport Pedals V3 Brake Performance Kit

Fanatec Clubsport Pedals V3 Brake Performance Kit

CSP_V3_BPK
161.79zł

161.79zł
Lowest price in the last 30 days before the price reduction: 429.00zł
Ready for shipping

The Fanatec ClubSport Pedals V3 Brake Performance Kit shortens brake travel and increases resistance on ClubSport Pedals V3 and V3 Inverted. It includes red and green Eladur elastomers in two diameters, a PU foam element, lithium grease and the required installation tool.

Ask about product
Zapytanie dotyczy produktu: Fanatec Clubsport Pedals V3 Brake Performance Kit
* - pola obowiązkowe
Send
You will receive an 1.62zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like



Firmer brake with shorter travel

The kit changes brake mechanics without replacing the load cell. A selected elastomer combination reduces pedal movement and creates a higher, more clearly defined pressure point.

This is aimed at drivers who modulate braking through leg force and want less foot travel. It does not raise the sensor rating beyond the specification of the pedals themselves.

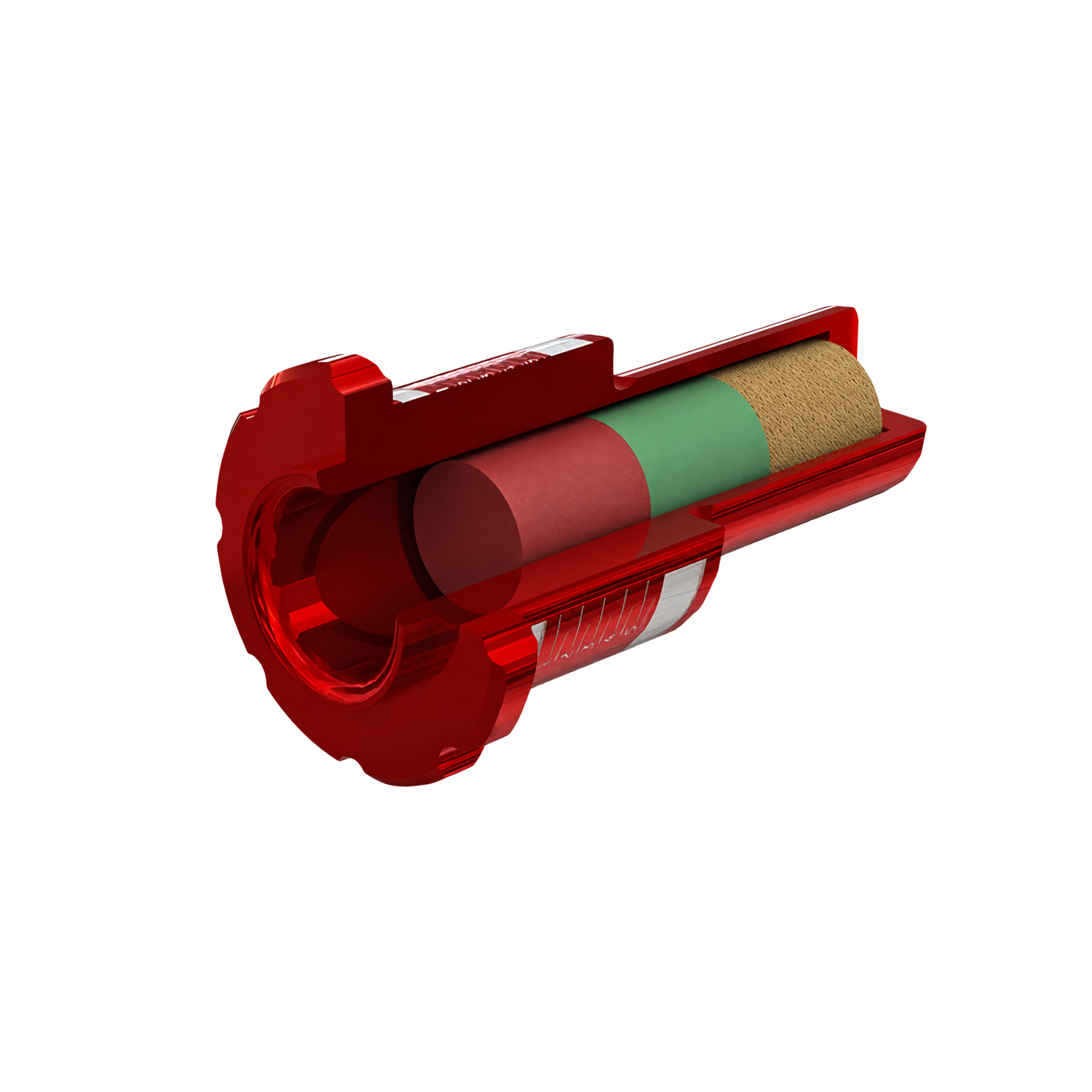

Kit installation position inside the ClubSport Pedals V3 brake

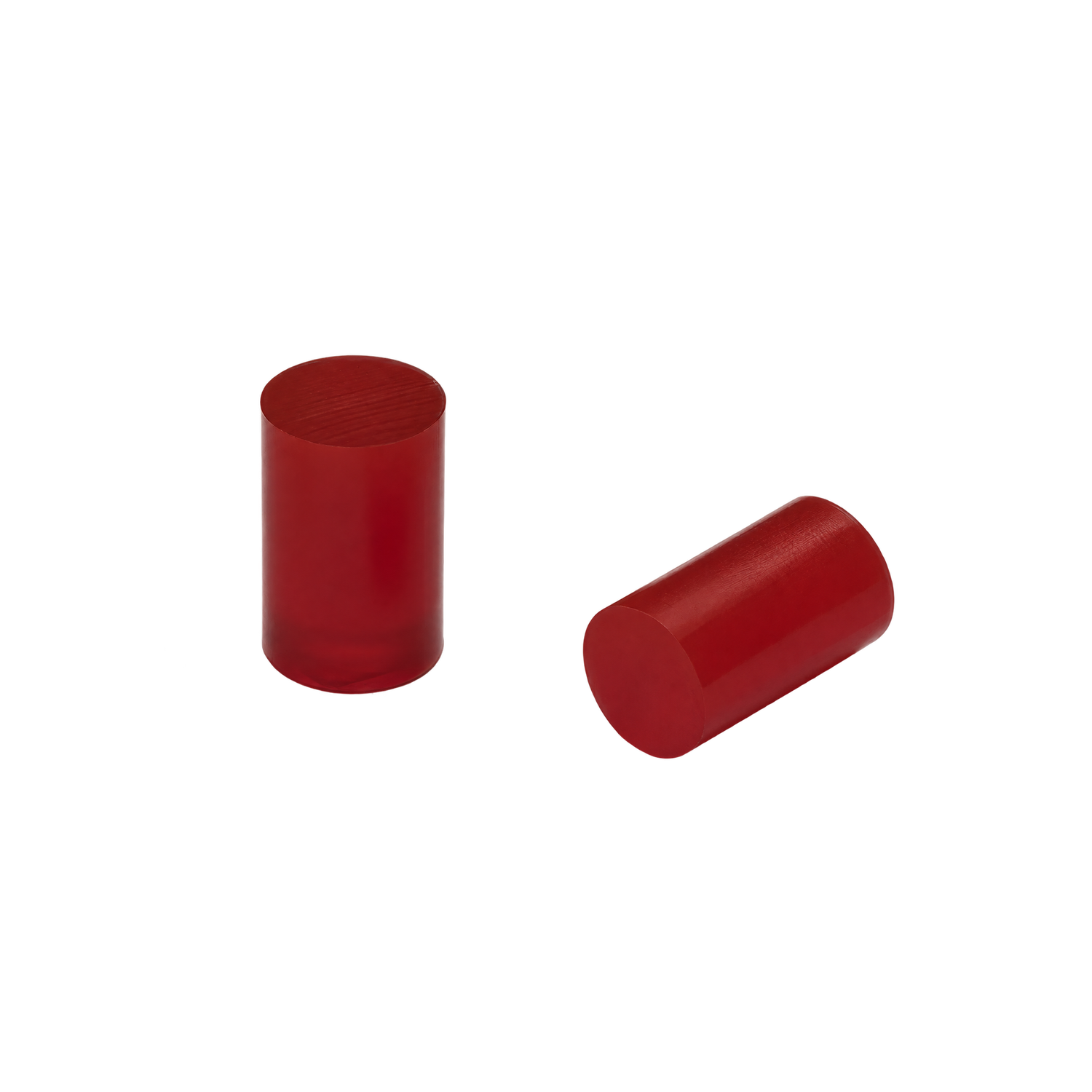

Red and green Eladur brake elastomers

Red and green Eladur elements

The package contains red and green elastomers in two diameters. Their combination determines stiffness and travel, so the configuration must follow the manufacturer's chart.

Eladur material is tested beyond one million cycles. Lithium grease is included for installation and service of the working elements.

Installation in the preload mechanism

The Brake Performance Kit installs in place of the brake preload mechanism. The procedure requires partial pedal disassembly and correct placement of elements with the specified diameter.

After installation, the preload screw is used only to remove mechanical play. It should not be used to over-compress the elastomers for additional stiffness.

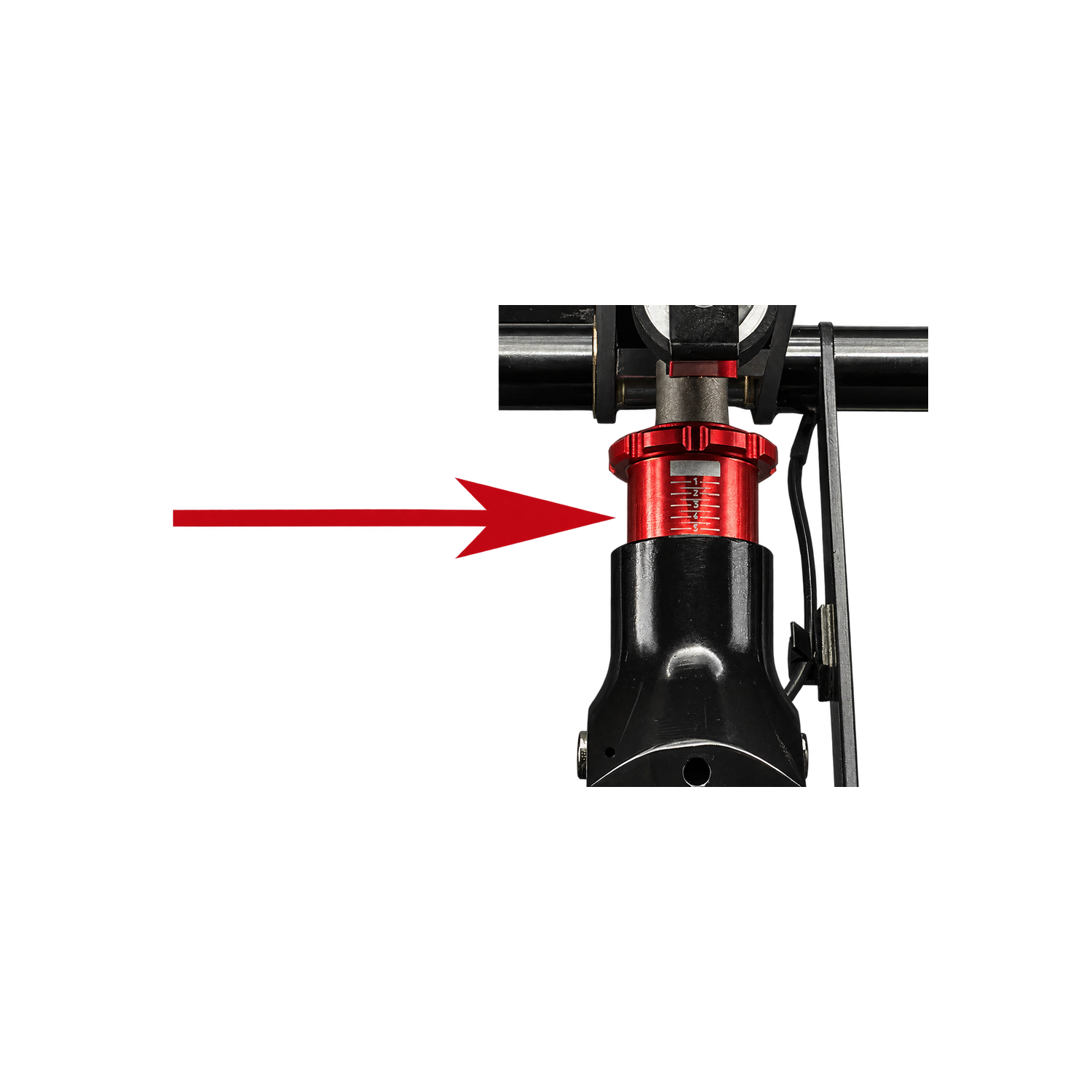

Placing of preload mechanism

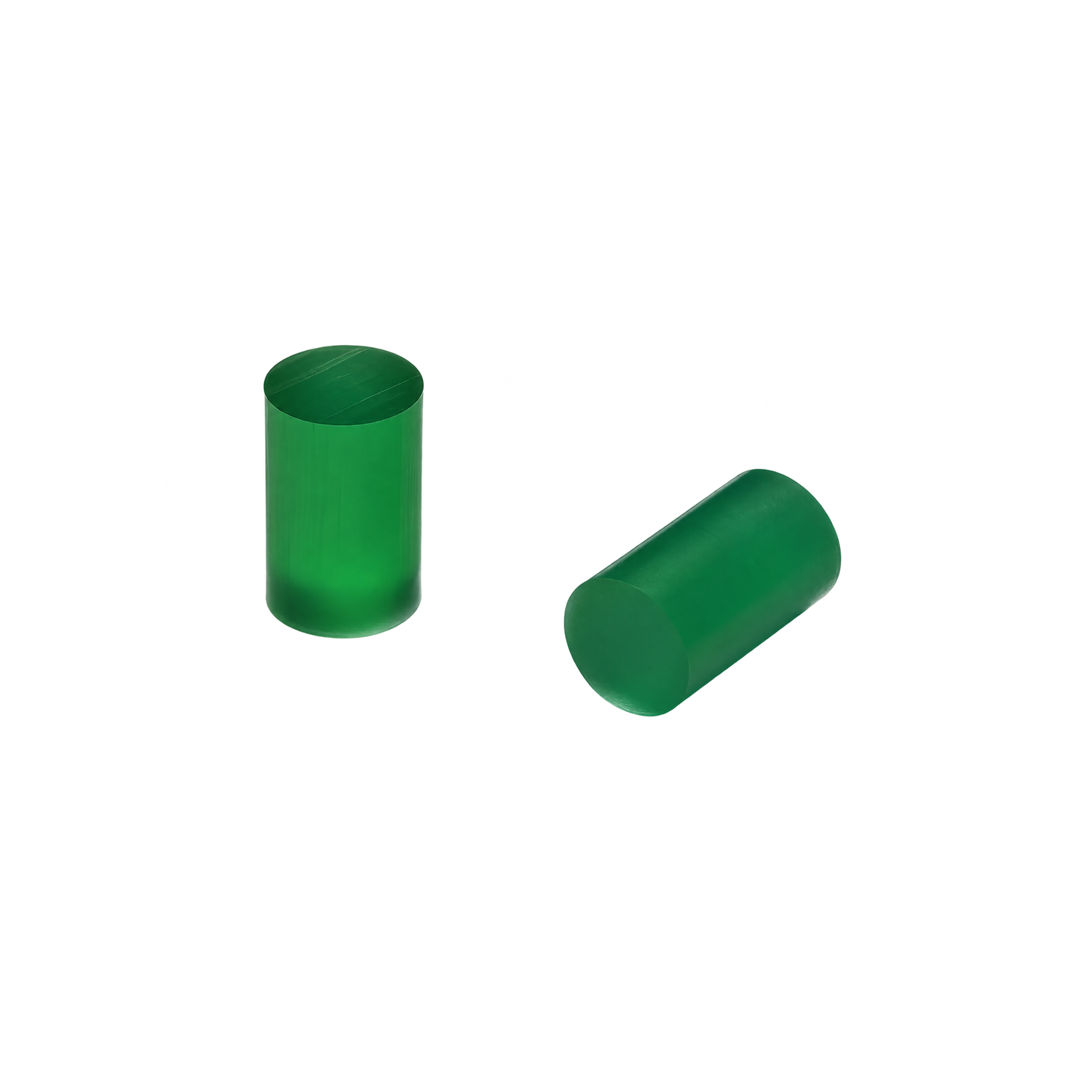

Green elastomers from brake performance kit for clubsport pedals

Only for ClubSport Pedals V3

Fanatec confirms compatibility with standard ClubSport Pedals V3 and the V3 Inverted version. The kit is not intended for CSL Pedals or other pedal generations.

Pedals are not included. This is a tuning and service component set for an existing V3 assembly.

Type of pedals
Standard
Parameter Details
Manufacturer Fanatec
Type Brake-mechanics tuning kit
Working material Eladur and PU foam
Red elastomers 2 x 13 x 20 mm and 1 x 12 x 20 mm
Green elastomers 2 x 13 x 20 mm and 1 x 12 x 20 mm
PU foam 13.5 x 15 mm
Adjustment effect Shorter travel and higher resistance
Material endurance Tested beyond 1 million cycles
In the box Elastomers, PU foam, lithium grease, Fix-1 tool and guide
Pedals included No
Component or configuration Status Information
ClubSport Pedals V3 Compatible Installs inside the brake mechanism
ClubSport Pedals V3 Inverted Compatible Follow the inverted-version procedure
CSL Pedals Not compatible Different brake construction
Other Fanatec pedals Not confirmed Do not use without official support
ClubSport Pedals V3 Damper Kit Separate accessory Does not replace the Brake Performance Kit

1. What does the Brake Performance Kit change?

It shortens travel and increases mechanical brake resistance.

2. Does it increase the load-cell range?

No. It changes mechanical feel, not the sensor specification.

3. Which pedals are compatible?

ClubSport Pedals V3 and ClubSport Pedals V3 Inverted.

4. Is it compatible with CSL Pedals?

No.

5. Are pedals included?

No. The package contains brake-tuning components only.

6. Why are there red and green elastomers?

They create different stiffness and travel combinations according to Fanatec's chart.

7. Does installation require brake disassembly?

Yes. The brake mechanism must be partially disassembled.

8. What is the included grease for?

It is used during correct installation and service of the moving components.

9. How should the preload screw be used afterward?

Only to remove mechanical play, without over-compressing the elastomers.

10. Is this the same as the Damper Kit?

No. The Damper Kit is a separate hydraulic accessory with a different function.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

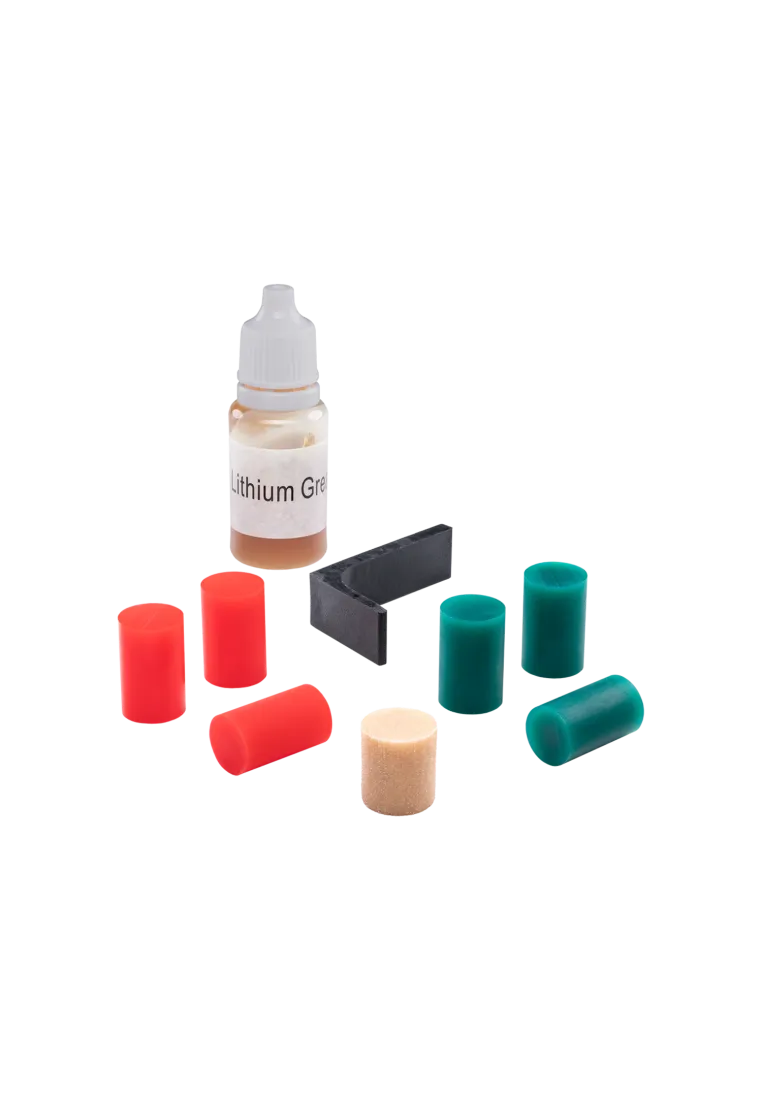

  • 2 × red elastomer springs, Ø13 × 20 mm
  • 1 × red elastomer spring, Ø12 × 20 mm
  • 2 × green elastomer springs, Ø13 × 20 mm
  • 1 × green elastomer spring, Ø12 × 20 mm
  • 1 × polyurethane PU foam spring, Ø13.5 × 15 mm
  • 1 × lithium grease container for the elastomers
  • 1 × Fix-1 installation tool
  • 1 × Quick Guide

Pedals and the tools required for partial brake-mechanism disassembly are not included. ClubSport Pedals V3 or ClubSport Pedals V3 Inverted are required.
