2,130.08zł
Fanatec Podium Pedals Sport is a two-pedal sim racing set with GT-style aluminium pedal plates. The Load Cell brake and Compression Control System allow tool-free adjustment of travel and resistance, while the throttle uses a Hall sensor. The set connects directly to a Windows PC by USB or to a compatible Fanatec wheel base by RJ12. The mounting plate with heel rest and the clutch module are sold separately.
You might also like
Check them in every angle using 3d model!
Podium Pedals Sport obejmuje gaz i hamulec z szerokimi aluminiowymi płytkami w stylu GT. Taka forma daje miejsce zarówno na hamowanie lewą nogą, jak i na pracę prawą nogą podczas jazdy samochodami drogowymi lub GT.
Każdy pedał jest osobnym modułem. Można dopasować ich wzajemne położenie do kokpitu, a na odpowiedniej konstrukcji zastosować również montaż odwrócony. Opcjonalna płyta Podium Pedals Mounting Plate and Heel Rest zapewnia zintegrowaną podstawę i regulowany podnóżek.
The brake pedal arm and mid arm are made from forged aluminium. Its Load Cell sensor is rated above 200 kg, while the system is calibrated for 150 kg of force at the pedal plate. These are different figures: one describes the sensor, the other the force under the driver's foot.
The Compression Control System adjusts travel and resistance without tools. Cup positions can create a short, firm stroke or resistance that builds in stages. The included springs and elastomers extend the range of mechanical settings.
The throttle uses a factory-calibrated Hall sensor and a bearing at its pivot. Travel and preload can be adjusted independently without tools, with approximately 20 mm of travel adjustment.
The Fanatec App offers preset and custom input curves as well as dead-zone settings. Selected parameters are stored in pedal memory, so they remain active when the set is used on a supported console through a Fanatec wheel base.
The connection box supports RJ12 for a compatible Fanatec wheel base and USB Type-C for standalone use on Windows PC. Both cables can remain connected. Console operation requires a base compatible with the platform, plus an Xbox-licensed wheel for Xbox use.

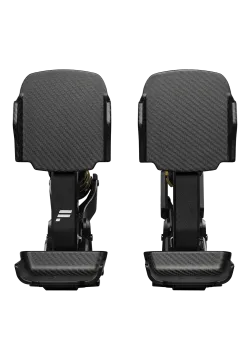

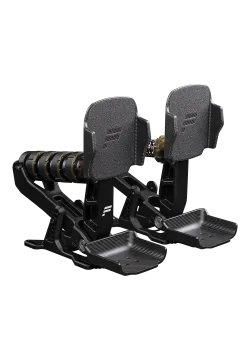

Separately available accessories include the mounting plate and heel rest, the clutch module, and carbon-fibre pedal plates and heel cups from Podium Pedals Formula. The set also has mounts for future haptic modules.
| Parameter | Details |
|---|---|
| SKU | CRD-9030005-WW |
| Layout | Two individual modules: throttle and brake |
| Pedal plates | GT-style aluminium |
| Brake construction | Forged aluminium pedal arm and mid arm |
| Brake sensor | Load Cell sensor rated above 200 kg; calibrated for 150 kg at the pedal plate |
| Brake adjustment | Compression Control System: tool-free travel, resistance and mechanical progression adjustment |
| Elastic elements | Brake elastomers and alternative springs; two blue softer springs and two green softest springs included |
| Throttle sensor | Factory-calibrated Hall sensor |
| Throttle adjustment | Independent tool-free travel and preload adjustment; approximately 20 mm of travel adjustment |
| Bearings | Industrial-grade ball bearings |
| Connections | RJ12 to a compatible Fanatec base and USB Type-C to a PC; both cables can remain connected |
| Signal settings | Input curves and dead zones through the Fanatec App; settings saved to pedal memory |
| Mounting | Individual mounting points; inverted mounting on a suitable rig; Podium Pedals Mounting Plate and Heel Rest sold separately |
| Platform or component | Compatibility conditions |
|---|---|
| Windows PC | Standalone USB connection or RJ12 through a compatible Fanatec wheel base |
| PlayStation 4 and PlayStation 5 | Connection through a PlayStation-licensed Fanatec wheel base; feature support depends on the game |
| Xbox One and Xbox Series X|S | Connection through a compatible Fanatec wheel base with an Xbox-licensed Fanatec steering wheel; feature support depends on the game |
| Fanatec wheel bases | CSL DD, Gran Turismo DD Pro, ClubSport DD, ClubSport DD+, Podium DD1, Podium DD1 PS4, Podium DD2, and Podium DD (2026) |
| Podium mounting plate and heel rest | Compatible; sold separately |
| Podium Pedals clutch module | Compatible; sold separately |
| Podium Pedals Formula plates and heel cups | Compatible carbon-fibre accessories; sold separately |
Two: throttle and brake. The clutch module is not included.
No. Above 200 kg is the Load Cell sensor's rated capacity. The brake is calibrated for 150 kg of force at the pedal plate.
The Compression Control System lets you change travel and resistance without tools. Cup positions can provide a more linear feel or resistance that increases in stages.
Yes. The included alternative springs change its feel. The blue springs are softer, while the green springs are the softest options listed by Fanatec.
It uses a factory-calibrated Hall sensor. Travel and preload can be adjusted independently without tools.
Yes. Fanatec states that both cables can remain connected to the Podium Pedals Sport connection box.
No. The compatible Podium Pedals Mounting Plate and Heel Rest is sold separately. The pedal modules also have individual mounting points for a suitable rig.
Yes. They can operate as a standalone USB device on a Windows PC.
PlayStation requires a compatible PlayStation-licensed Fanatec wheel base. Xbox requires a compatible base and an Xbox-licensed Fanatec steering wheel. The pedals connect to the base by RJ12.
Yes. The compatible Podium Pedals clutch module is a separate accessory and is not part of the Sport set.
Simline is the largest authorised seller of Fanatec in Poland and Europe. As an authorised Fanatec partner, all products from this brand are covered by full warranty protection for up to 5 years within the European Union, in accordance with Fanatec warranty terms.
As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.
Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.
The mounting plate with heel rest and the clutch module are not included.
