Fanatec CSL Pedal Clutch Kit

Name: Fanatec CSL Pedal Clutch Kit
Brand: Fanatec
SKU: CSL_P_CK
Price: 267.48 PLN
Availability: BackOrder

Reference CSL_P_CK

267.48zł

PREORDER

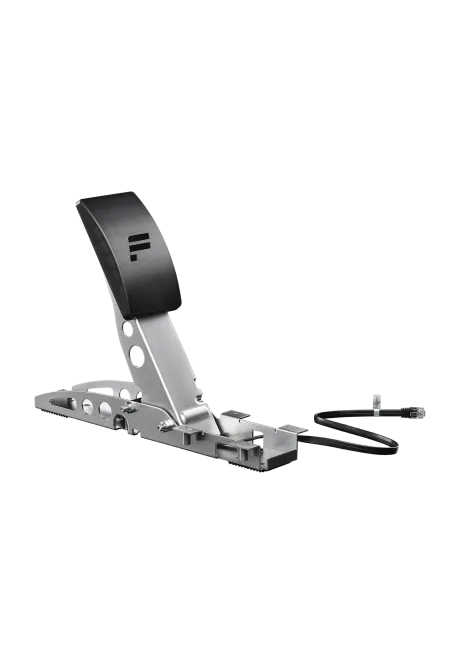

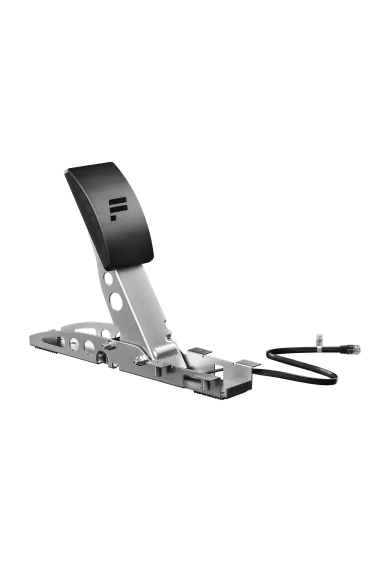

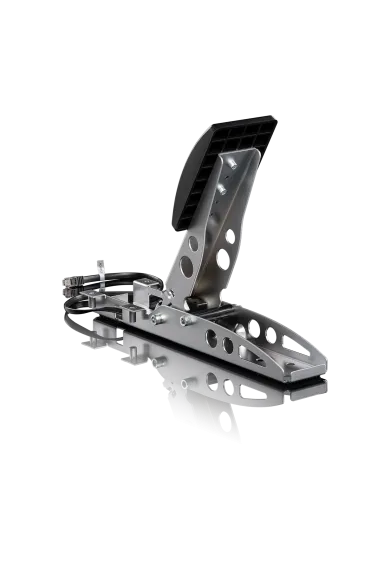

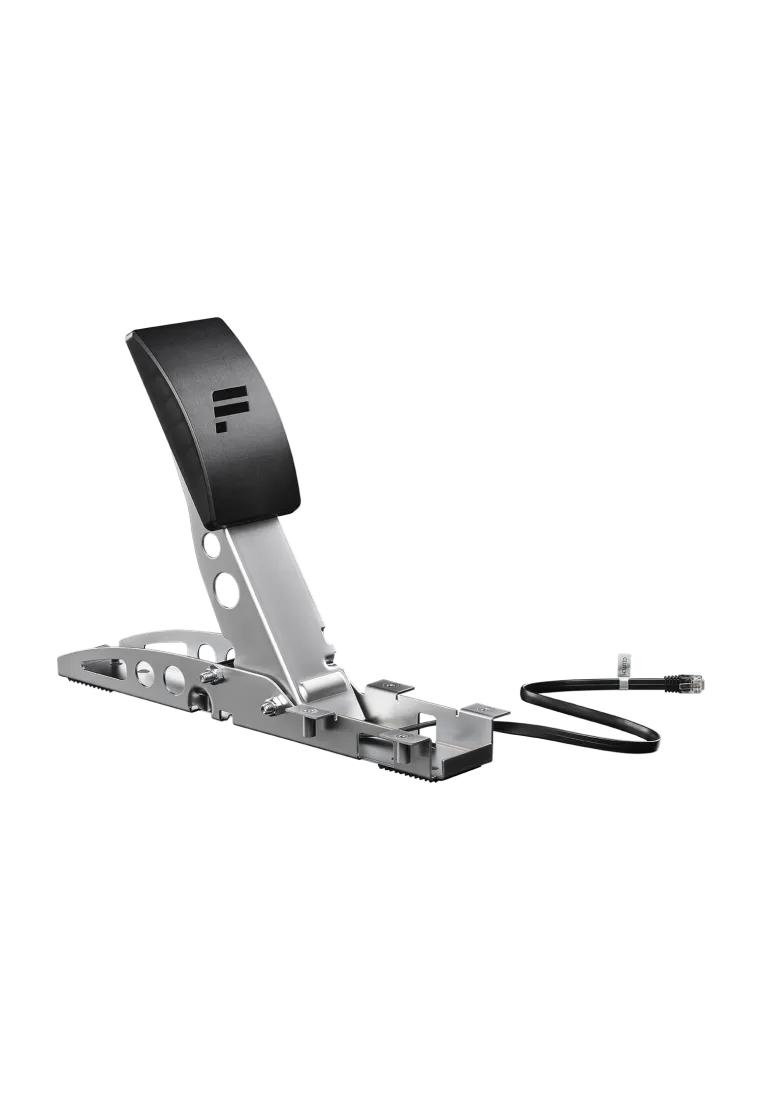

Fanatec CSL Pedals Clutch Kit adds a clutch to the CSL Pedals set. Its contactless Hall sensor reads pedal position at 12-bit resolution, with a stiffer spring than the throttle. Adjust pedal spacing and pedal-face height to suit your setup. Mounting bolts and a Torx key are included. This is one add-on pedal, not a complete CSL Pedals set or a USB upgrade.

Ask about product

You will receive an 2.67zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Add a clutch for manual shifting

If your CSL Pedals currently have a throttle and brake, Clutch Kit adds the third pedal for clutch control. Your existing brake stays in service, so this upgrade does not require changing how you brake.

For H-pattern shifting, you will also need a separate shifter and a game that supports that control layout. This product contains the clutch and its mounting accessories, not a complete three-pedal set.

Pedal-position sensing without a potentiometer

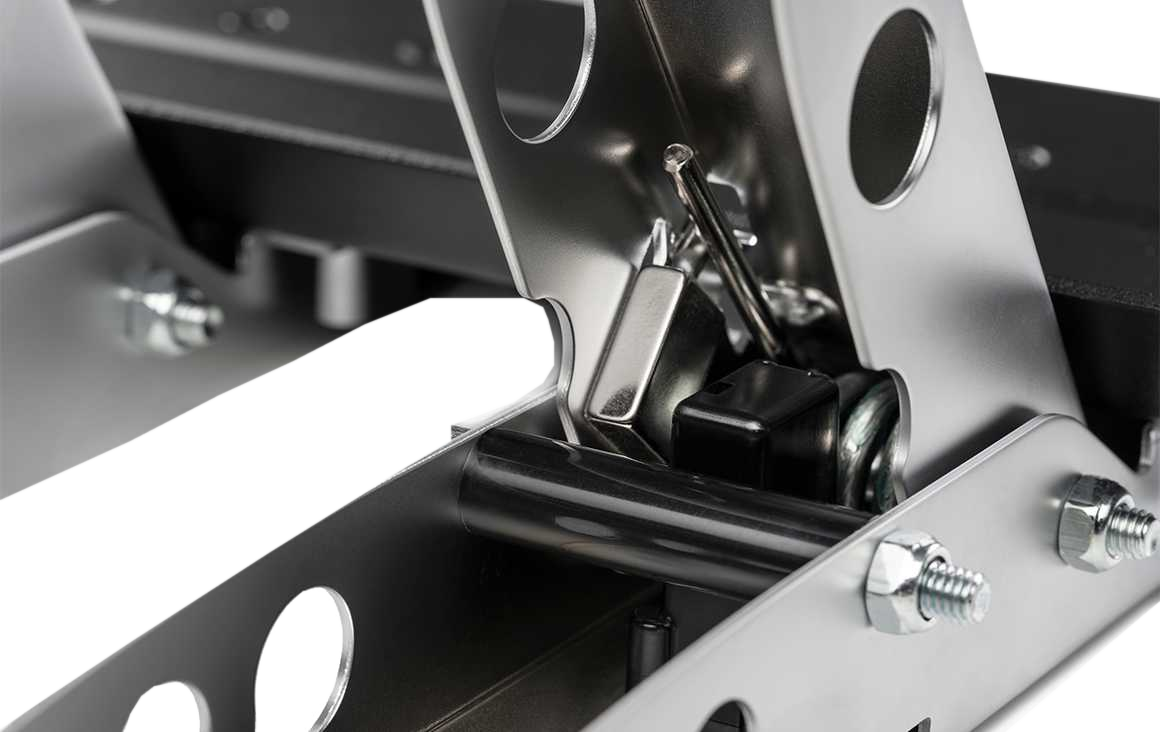

A Hall sensor measures clutch travel without mechanical contact inside the sensor. The signal has 12-bit resolution, giving 4096 levels. It reads pedal position rather than pressure, unlike a load cell brake.

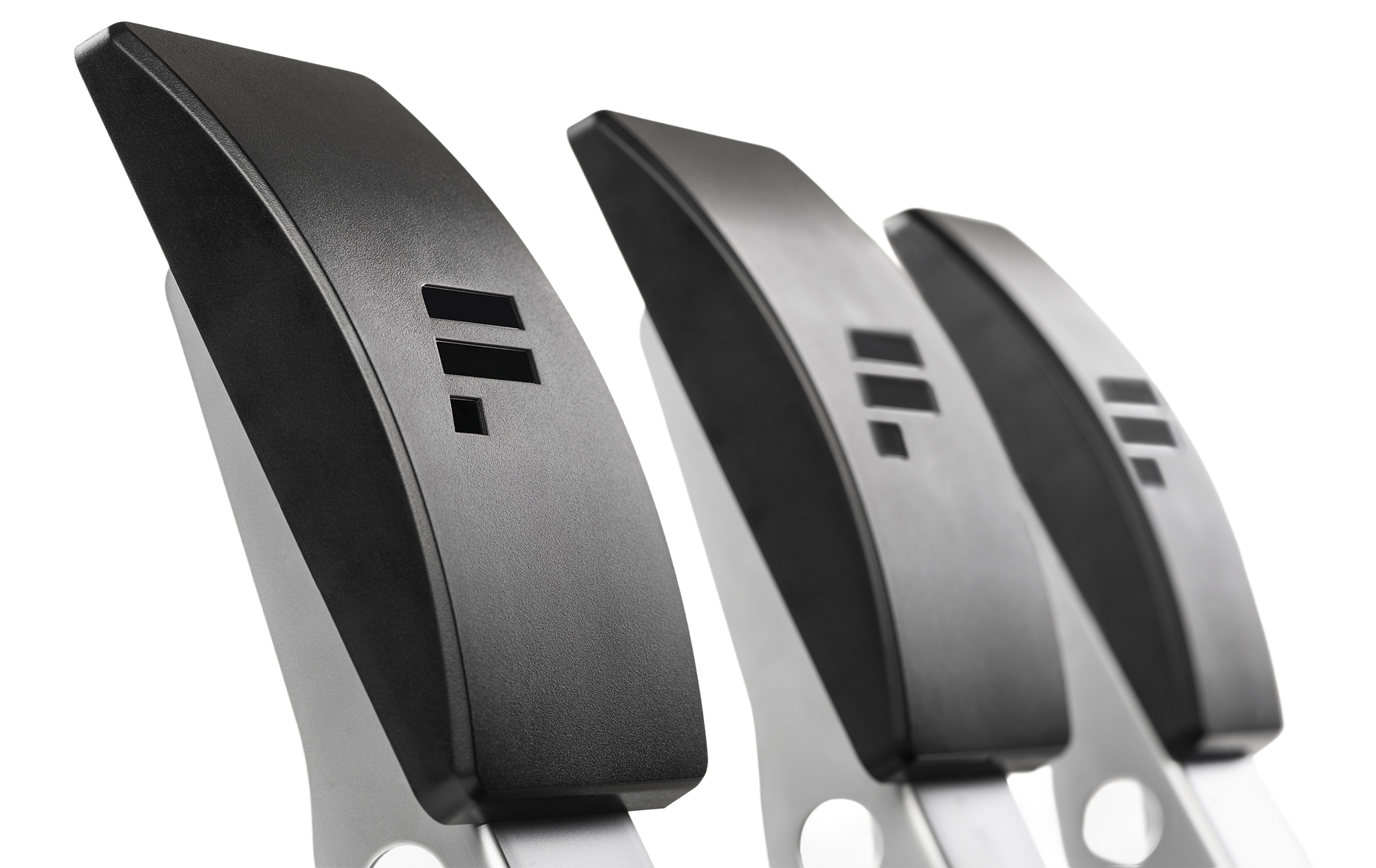

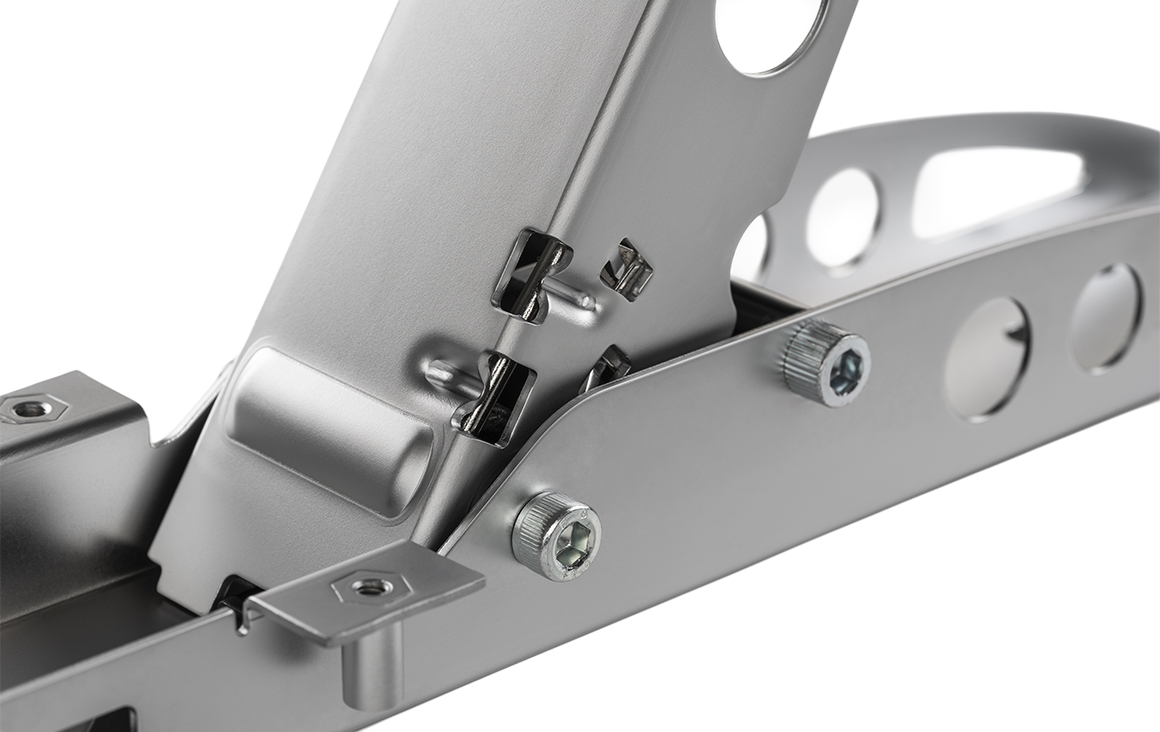

The spring is stiffer than the CSL Pedals throttle spring. The clutch also uses the wider pedal face found on the standard brake. Fanatec does not publish a full-travel force rating or specify an adjustable mechanical bite point.

Set the spacing and attach the clutch to the heel rest

The clutch bolts onto the shared CSL Pedals heel rest. Move it sideways to set the spacing and adjust the pedal-face height to suit your feet. Four M4×12 bolts and a T20 Torx key for this installation are included.

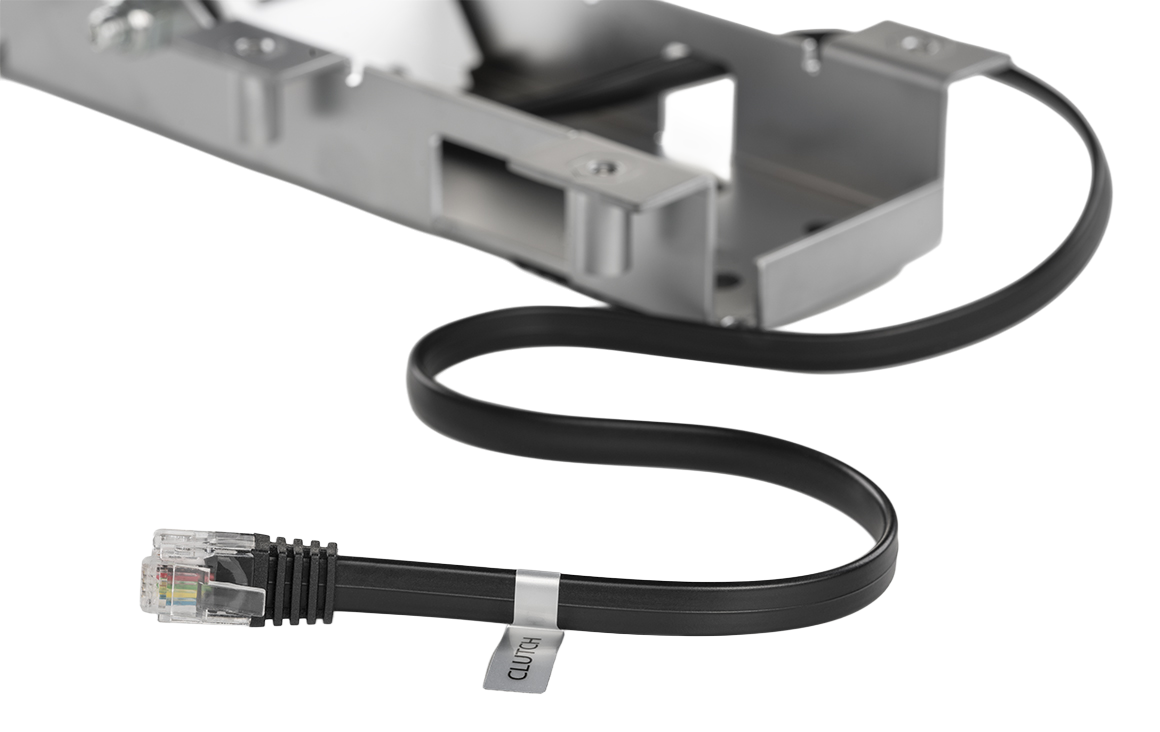

Do not trap the cable while assembling the parts. Route it through the holders beneath the heel rest, then plug the RJ12 connector into the throttle module's “Clutch” port. The quick guide shows the cable path.

Connect through CSL Pedals, not directly to your computer

Clutch Kit uses the CSL Pedals electronics and does not add a USB port. Connect the standard pedal set with its added clutch to a compatible Fanatec wheel base over RJ12. Console use requires a setup supported by that platform.

For standalone PC use, you need a separate ClubSport USB Adapter or the electronics supplied with the CSL Pedals Load Cell Kit. The USB adapter does not provide standalone pedal connectivity on consoles.

Pedals variant: Only clutch
Type of pedals: Standard
Platforms Compatibility: PC
PS4 and PS5 with compatible Playstation Wheelbase
Xbox with Xbox Compatible Wheel

EAN13 4030534031122

Parameter	Details
Manufacturer	Fanatec
Model	CSL Pedals Clutch Kit
Type	Add-on clutch pedal for CSL Pedals
Number of pedals supplied	1
Sensor	Contactless Hall sensor, measuring pedal position
Resolution	12-bit, 4096 levels
Resistance	Stiffer spring than the CSL Pedals throttle
Construction	Steel, excluding the pedal face
Pedal base and arm finish	Pearl chrome plating
Pedal face	Wider face as used on the standard CSL Pedals brake; height adjustable
Pedal spacing	Sideways adjustment along the CSL Pedals heel rest
Clutch connection	RJ12 cable to the CSL Pedals throttle module's “Clutch” port
Built-in USB port	None
Inverted mounting	Possible with suitable mounting of the modules to a cockpit; the required support structure is not included
Heel-rest mounting bolts	4 × M4×12 mm countersunk bolts, included
Assembly tool	T20 Torx key, included
Product dimensions and weight	Not published in the official specification checked
Package dimensions and weight	Not published in the official specification checked
Manufacturer warranty for a new product	3 years under Fanatec's current terms

Hardware or platform	Compatibility and conditions
Fanatec CSL Pedals	Required base pedal set; the clutch mounts to its heel rest and connects to its throttle module
Other Fanatec pedal ranges	Not a universal module for CSL Elite or ClubSport pedals; designed for CSL Pedals
CSL Elite, CSL DD, ClubSport and Podium wheel bases	Supported through the CSL Pedals set; RJ12 runs from the pedal set to the base, not directly from the clutch
ClubSport USB Adapter	Optional USB connection for the complete CSL Pedals set on PC; adapter sold separately
CSL Pedals Load Cell Kit	Can be added later. If purchasing Load Cell Kit from the outset, the standard brake can become the clutch, so a separate Clutch Kit is unnecessary
Windows PC	Through a compatible Fanatec base, a separate ClubSport USB Adapter or the Load Cell Kit electronics
Xbox One and Xbox Series X/S	Through a compatible Fanatec base with an Xbox-licensed steering wheel; clutch support depends on the game
PlayStation 4 and PlayStation 5	Through an officially PlayStation-compatible Fanatec base; clutch support depends on the game
Direct USB connection on consoles	Not supported. The ClubSport USB Adapter does not enable console operation

1 × CSL Pedals Clutch Kit pedal with RJ12 cable.
4 × M4×12 mm countersunk mounting bolts for attaching the pedal to the heel rest.
1 × T20 Torx key.
1 × Quick Guide.

The base CSL Pedals set with throttle, brake and heel rest, shifter, wheel base, ClubSport USB Adapter and Load Cell Kit are sold separately.

1. Which pedals does the Fanatec CSL Pedals Clutch Kit fit?

It is designed for Fanatec CSL Pedals. It is not a universal clutch for the CSL Elite or ClubSport pedal ranges.

2. Is this a complete three-pedal set?

No. You receive one clutch pedal, mounting bolts, a Torx key and a Quick Guide. The base CSL Pedals set is required separately.

3. What sensor does the clutch use?

A contactless 12-bit Hall sensor. It reads pedal position rather than pressure.

4. Does Clutch Kit add USB connectivity?

No. Connecting CSL Pedals directly to a PC requires a separate ClubSport USB Adapter or the CSL Pedals Load Cell Kit electronics.

5. Does the clutch feel as light as the CSL Pedals throttle?

No. It uses a stiffer spring and the wider pedal face found on the standard CSL Pedals brake. Fanatec does not publish a resistance rating in kilograms.

6. What can be adjusted?

The clutch can move sideways relative to the other pedals, and its pedal-face height can be changed. The modular construction also permits inverted mounting on a suitably prepared cockpit.

7. Where does the clutch cable connect?

To the “Clutch” port on the CSL Pedals throttle module. Route the cable through the holders beneath the heel rest and avoid pinching it during assembly.

8. Do I need Clutch Kit if I buy Load Cell Kit?

Not if you reuse the standard brake as a clutch. Load Cell Kit replaces the original brake, which can then move to the clutch position.

9. Can I add a load cell brake after installing Clutch Kit?

Yes. Fanatec confirms that a CSL Pedals set with Clutch Kit can later be upgraded with CSL Pedals Load Cell Kit.

10. Is an H-pattern shifter included?

No. The shifter is sold separately. Manual shifting with a clutch also requires the game to support that control configuration.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. Fanatec products receive full warranty protection for up to 5 years within the European Union, in accordance with Fanatec warranty terms. The period depends on the product. The current manufacturer warranty for a new CSL Pedals Clutch Kit is 3 years.

12. How is a Fanatec warranty claim handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims through Door-to-Door service. Collection and return of the equipment follow the instructions we provide.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle claims. Email support@simline.eu or fanatec@simline.eu with a fault description and photos or videos showing the problem, then prepare and pack the equipment.

14. Does Fanatec CSL Pedals Clutch Kit work with Xbox One and Xbox Series X/S?

Yes, as part of a CSL Pedals set connected to a compatible Fanatec base with a steering wheel containing licensed Xbox electronics. The pedal itself does not add Xbox compatibility. Clutch support also depends on the game and firmware.

15. Does Fanatec CSL Pedals Clutch Kit work with PlayStation 4 and PlayStation 5?

Yes, through CSL Pedals and an officially PlayStation-compatible Fanatec base. The base contains the electronics that provide PlayStation compatibility. Clutch functionality depends on the game.

16. Is Fanatec CSL Pedals Clutch Kit compatible with PC?

Yes, with a Windows PC, but not on its own. Connect the clutch to CSL Pedals, then connect the complete set through a compatible Fanatec base, a separate ClubSport USB Adapter or the Load Cell Kit electronics. Assign the clutch axis in the game.
