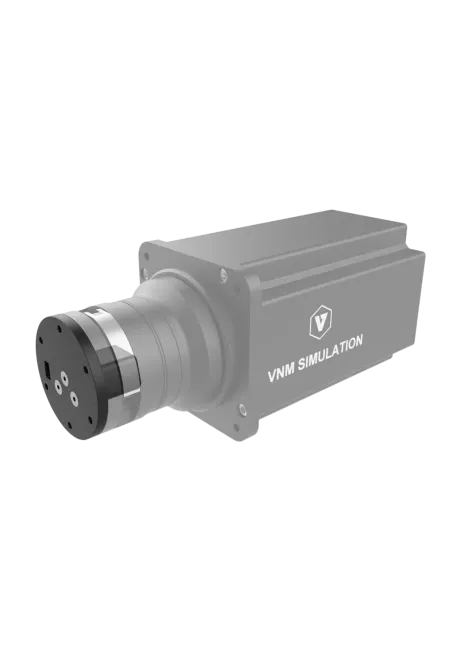

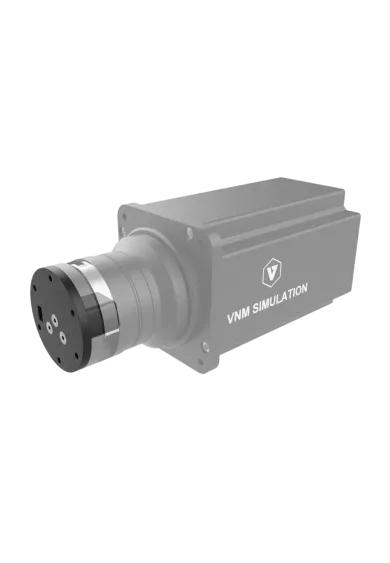

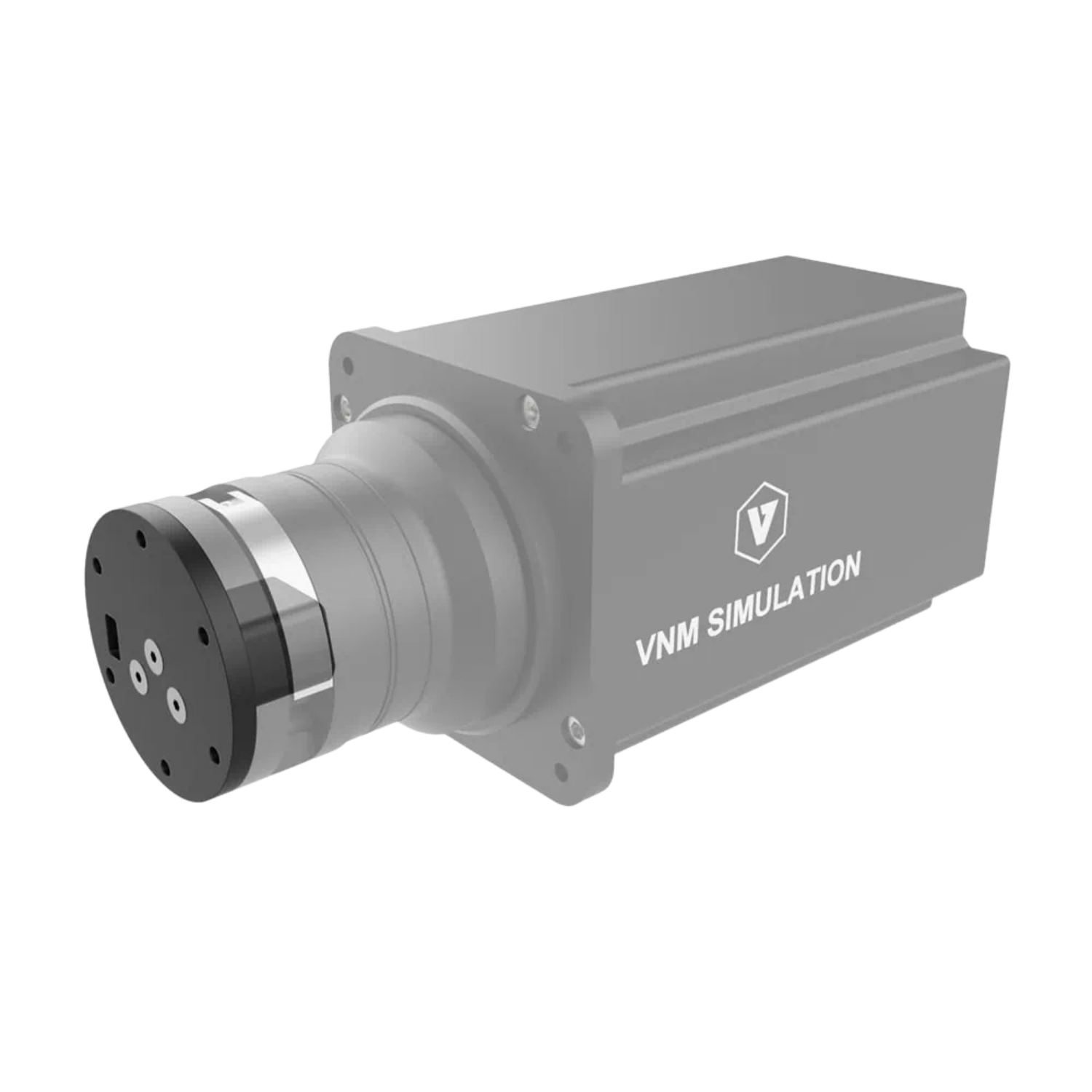

VNM Quick Relase Wheel Side example of use

VNM Quick Relase Wheel Side

Name: VNM Quick Relase Wheel Side
Brand: VNM
SKU: VNM-QRWS01
Price: 247.97 PLN
Availability: InStock

Reference VNM-QRWS01

247.97zł

Ready to send

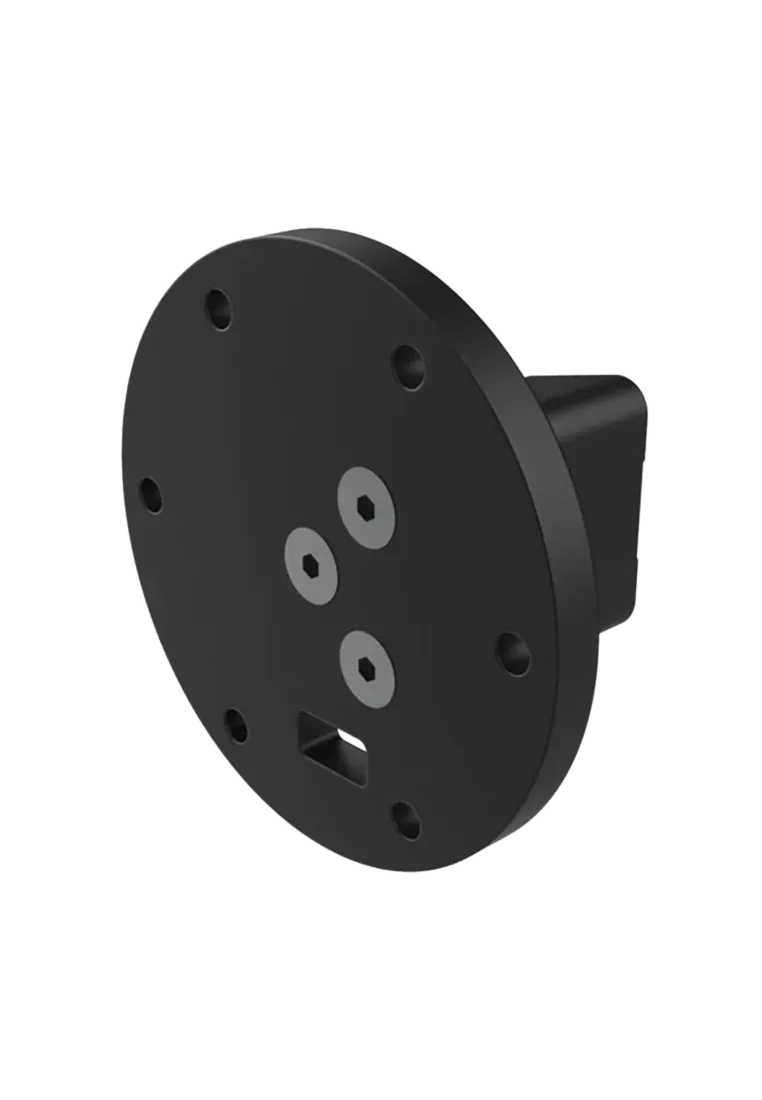

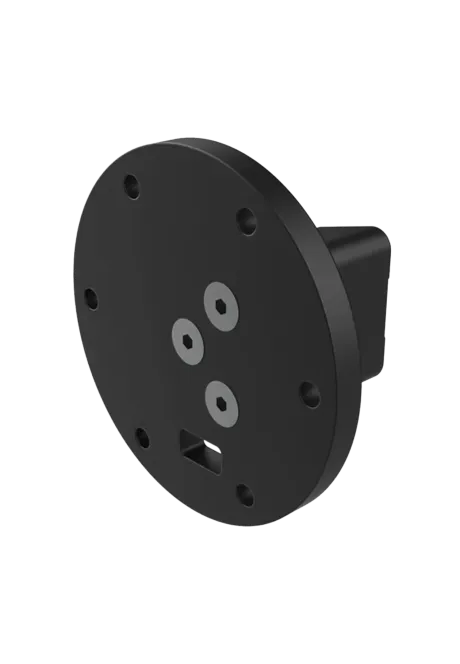

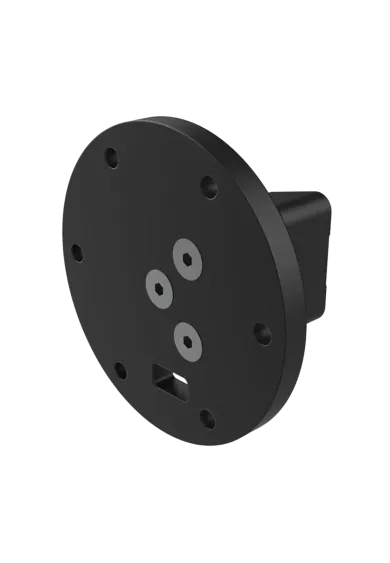

VNM Quick Release Wheel Side is the part of the quick release fitted to the steering wheel. The CNC aluminium adapter uses a 6 x 70 mm bolt pattern and connects the wheel to VNM Quick Release Base Side. Its tool-free release makes wheel changes easier, while fitting one Wheel Side to each rim is useful with a VNM Direct Drive wheelbase and multiple wheels.

Ask about product

You will receive an 2.48zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

The quick-release component fitted to the steering wheel

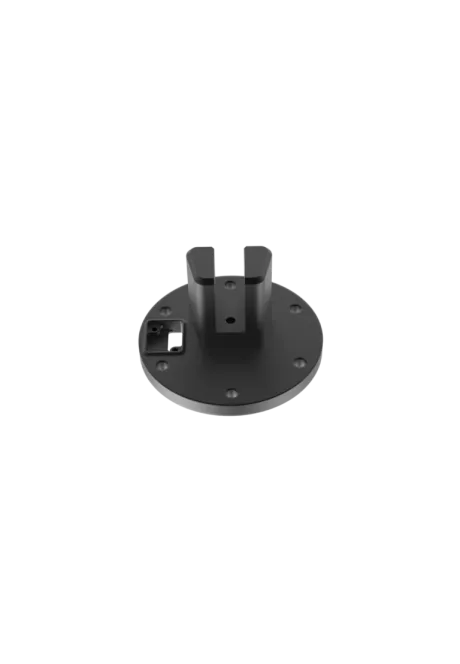

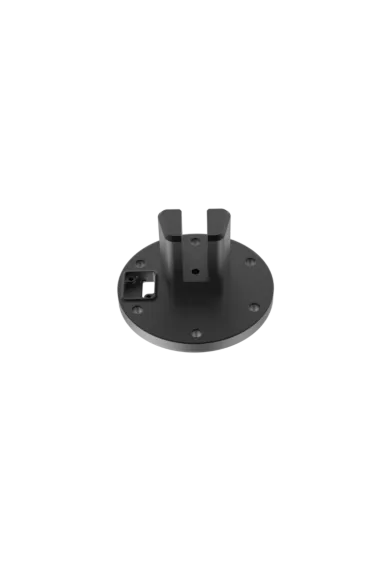

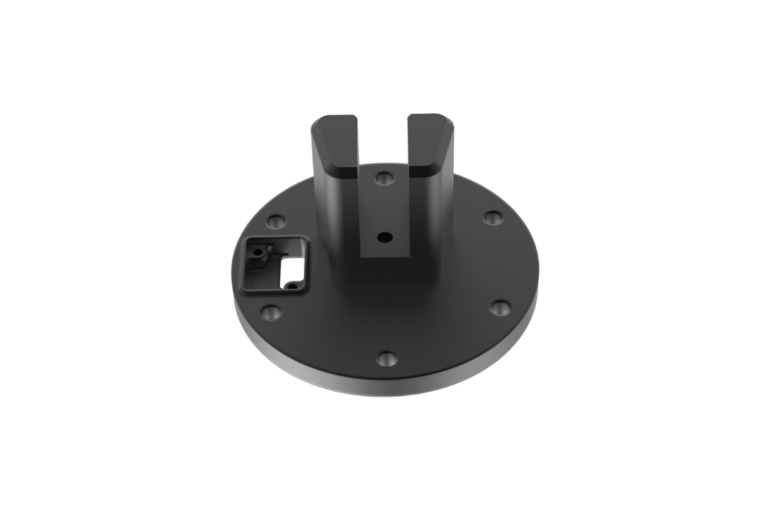

VNM Quick Release Wheel Side attaches to the rear of a compatible steering wheel. It remains on the wheel and connects to VNM Quick Release Base Side installed on the wheelbase shaft. The Wheel Side alone is not a complete quick release, so check that the rig already has the matching base-side component.

This layout is useful with several steering wheels. Each wheel can have its own Wheel Side, while a single Base Side remains on the wheelbase. The adapter no longer has to be unbolted and moved whenever the driving discipline changes.

Six-hole 70 mm mounting pattern

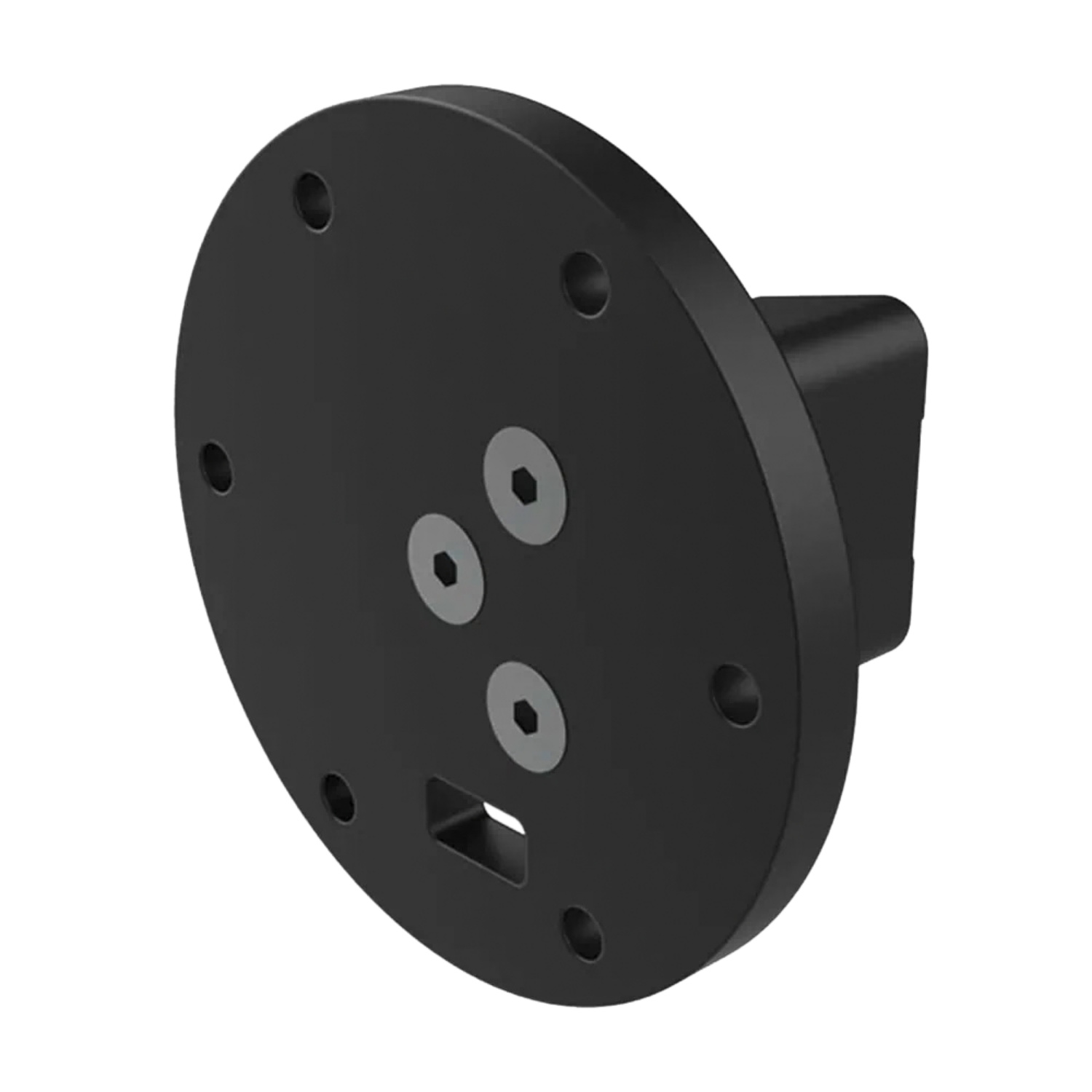

The steering-wheel face uses six holes arranged on a 70 mm pitch circle. This is a common pattern on sim racing rims and button modules. Compatibility must still be checked against the complete 6 x 70 mm layout rather than the pitch-circle diameter alone.

A wheel with a 50.8 mm pattern or another hole layout requires the correct adapter. Also check the screw length and thread depth in the steering wheel before installation. VNM does not publish one screw specification that covers every compatible rim.

CNC aluminium with a black anodised finish

The adapter is CNC-machined from aluminium and finished with black anodising. Accurate engagement between both parts of the quick release is intended to limit movement between the wheel and wheelbase, preventing a loose joint from masking Force Feedback detail.

Check every fastener after the initial installation with the wheelbase switched off. The wheel should seat evenly, and the locking mechanism must be fully engaged before Force Feedback is enabled.

Tool-free steering-wheel changes

The Quick Release mechanism lets the complete steering wheel detach from its matching base-side component without undoing bolts. Tools are required for the initial attachment of the Wheel Side to the rim, but not for later wheel changes.

VNM Quick Release Wheel Side is a mechanical component. Its product page does not confirm integrated power or data transfer. A wheel that requires a computer connection must use a cable or another compatible electrical solution intended for the selected system.

Parameter	Details
Manufacturer	VNM Simulation
Product type	Wheel-side quick-release component
System	VNM Quick Release
Material	CNC-machined aluminium
Finish	Black anodised
Steering-wheel mounting pattern	6 x 70 mm PCD
Wheel-release method	Tool-free Quick Release mechanism
Required wheelbase-side component	VNM Quick Release Base Side

Component or system	Compatibility information
VNM Quick Release Base Side	Required matching component installed on the wheelbase.
VNM Direct Drive Premier 13 Nm	The wheelbase is supplied with the base-side Quick Release. Wheel Side completes the steering-wheel connection.
VNM Direct Drive Elite 18 Nm	The wheelbase is supplied with the base-side Quick Release. Wheel Side completes the steering-wheel connection.
VNM Direct Drive Supreme 25 Nm	The package list includes the base-side Quick Release. A compatible Wheel Side is required on the steering wheel.
VNM Direct Drive Xtreme 32 Nm	The wheelbase is supplied with the base-side Quick Release. Wheel Side completes the steering-wheel connection.
Steering wheels with 6 x 70 mm PCD	Compatible mechanical pattern. Check clearance, threads and the correct screw length before installation.
Steering wheels with 50.8 mm or another pattern	Not a direct match for the 6 x 70 mm pattern. A suitable adapter is required.
Quick releases from other manufacturers	Not automatically compatible. This Wheel Side must engage with VNM Quick Release Base Side.

Item	Quantity
VNM Quick Release Wheel Side	1 pc

VNM Quick Release Base Side, the steering wheel and the Direct Drive wheelbase are not part of this product. Available sources do not provide a complete mounting-screw list for the Wheel Side alone, so verify the physical package before publishing an expanded contents list.
