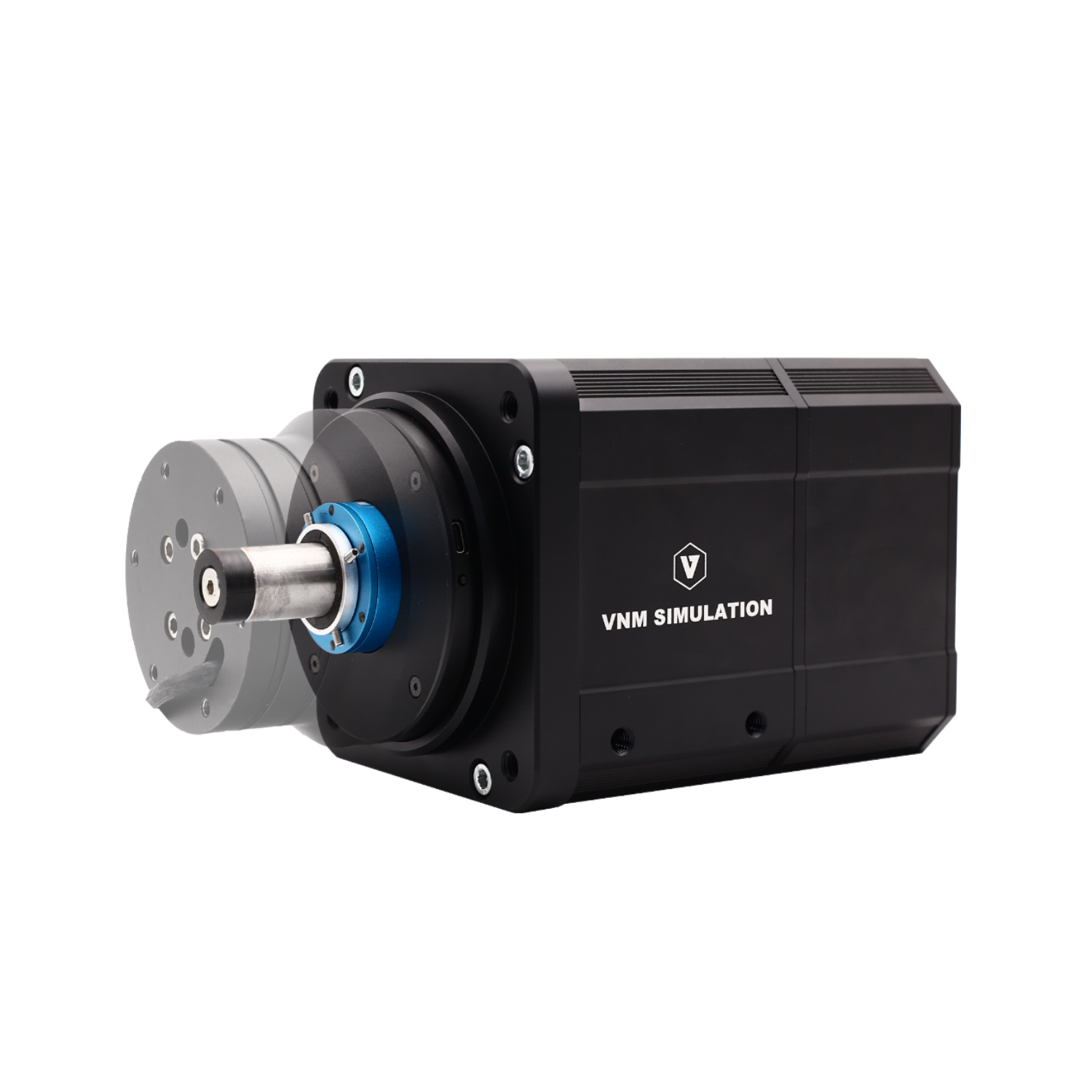

VNM Slipring example of use on wheelbase

VNM Slipring

Name: VNM Slipring
Brand: VNM
SKU: VNM-SR01
Price: 310.33 PLN
Availability: InStock

Reference VNM-SR01

310.33zł

Shipping in 3-5 days

VNM Slipring is a slip ring for Direct Drive wheelbases, carrying power, data and control signals without twisting the steering-wheel cable. It fits the VNM Premier 13 Nm, Elite 18 Nm, Supreme 25 Nm and Xtreme 32 Nm. It works best with wheels that do not have a display.

Ask about product

You will receive an 3.10zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

VNM SLIPRING - A slip ring in place of a cable turning with the wheel

VNM Slipring deals with the loose cable that normally turns and coils around the wheelbase shaft. The electromechanical slip ring carries power, control signals and data between the fixed and rotating sides of the VNM system. This lets the steering wheel complete repeated full rotations without pulling or twisting its lead. The benefit is easy to notice in rally driving, drifting and road-car simulations, where the wheel regularly travels through a large steering range. There is less cable near the driver’s hands, less strain on the connector and fewer things moving around the front of the cockpit.

A tidy path for power, controls and wheel data

The connection follows a straightforward route: steering wheel, VNM Quick Release, VNM Slipring and finally the PC. The unit uses the wheelbase’s front USB Type-C port and carries the connection towards the rear, keeping the cable away from the rotating shaft. The VNM Apex-R Wheel is a natural companion for this arrangement. It provides physical controls and RPM lighting without relying on a built-in screen. That matters because the slip ring is most dependable with steering wheels that do not require continuous high-speed display data.

Made for all four VNM Direct Drive wheelbases

VNM Slipring can be included in a new VNM rig or added while reorganising an existing setup. It supports the complete wheelbase family: VNM Premier 13 Nm, VNM Elite 18 Nm, VNM Supreme 25 Nm and VNM Xtreme 32 Nm. The torque level can therefore be selected around the driver and cockpit without giving up the cleaner cable arrangement. In every case, the wheel rotates while the external connection remains under control.

Display limitations and mounting details worth checking

This Direct Drive slip ring works best with steering wheels that do not contain a display. VNM notes that wheels using high-speed USB data, including some VoCore-based screens, may occasionally disconnect. A third-party wheel can be used when it is fitted with a VNM Quick Release Wheel Side and the matching Wheel Side Extension Kit. Front-mount thickness must also be checked before installation. The mounting plate should not exceed 10 mm; a thicker plate calls for a spacer or a slim USB-C connector. For an unusual wheel or cockpit layout, compare the planned parts with the manufacturer’s current VNM Slipring installation notes.

VNM SLIPRING - A slip ring in place of a cable turning with the wheel

A tidy path for power, controls and wheel data

Made for all four VNM Direct Drive wheelbases

Display limitations and mounting details worth checking

EAN13 8936230214042

Technical specification – VNM Slipring
Product details
Product name	VNM Slipring
Product reference	VNM-SR01
EAN	8936230214042
Device type	Electromechanical slip ring
Manufacturer-listed weight	1 kg
Transmission and connection
Transmitted media	Power, control signals and data
Signal path	Steering wheel → VNM Quick Release → VNM Slipring → PC
Wheel connector	USB Type-C
Connection routing	From the wheelbase’s front USB-C port towards the rear connection
Wheel rotation	Continuous rotation without twisting the steering-wheel cable
Compatibility
VNM Direct Drive wheelbases	Premier 13 Nm, Elite 18 Nm, Supreme 25 Nm, Xtreme 32 Nm
Recommended wheel type	Steering wheel without an integrated display
Wheels with displays	Occasional disconnections may occur, particularly with VoCore displays
Third-party steering wheels	Require VNM Quick Release Wheel Side and Quick Release Wheel Side Extension Kit
Installation requirements
Maximum front-mount thickness	10 mm
Mount thicker than 10 mm	Spacer or slim USB Type-C connector required
Platform	PC

VNM Slipring – Questions and Answers

1. What is VNM Slipring?

VNM Slipring is an electromechanical rotary coupling for VNM Direct Drive wheelbases. It transfers power, control signals and data between the stationary side of the setup and the steering wheel turning on the drive shaft.

2. Which cable problem does the slip ring solve?

It removes the loose lead that would otherwise rotate with the wheel. The cable no longer needs to wrap around the shaft or tighten during larger steering movements. This is particularly useful in rallying, drifting and road cars with a wide steering range.

3. How does the wheel signal reach the PC?

The connection follows a clear route: steering wheel, VNM Quick Release, VNM Slipring and then the PC. The device uses the wheelbase’s front USB Type-C port and carries the connection towards the rear of the base.

4. Which VNM wheelbases work with Slipring?

It can be used across the VNM Direct Drive range: VNM Premier 13 Nm, VNM Elite 18 Nm, VNM Supreme 25 Nm and VNM Xtreme 32 Nm.

5. Which steering wheels give the most reliable connection?

The system works best with wheels that do not contain an integrated display or depend on a continuous high-speed USB data stream. Buttons, encoders, paddles and RPM LEDs are not the main concern. Display bandwidth is the more important point to check.

6. Can VNM Apex-R be connected through Slipring?

This pairing is part of the intended VNM setup. VNM Apex-R Wheel does not use a central telemetry screen, so it matches the recommended operating conditions. The connection also removes the loose cable turning beside the shaft.

7. Will a wheel with a VoCore display work correctly?

It may connect, but VNM warns that wheels using high-speed USB data can occasionally disconnect. Some VoCore displays fall into this group. A driver who relies on the wheel display throughout a race should take this limitation into account before ordering.

8. Can a third-party steering wheel use VNM Slipring?

Third-party wheels can be connected when fitted with VNM Quick Release Wheel Side and the matching Quick Release Wheel Side Extension Kit. Mechanical mounting, cable type and USB data requirements should all be checked before combining parts from different systems.

9. Is there a front-mount thickness limit?

Yes. A front-mount plate should not exceed 10 mm. If the plate is thicker, the installation needs a spacer or a slim USB Type-C connector that can fit correctly beside the mounted slip ring.

10. Does VNM Slipring remove every wheel cable?

It does not make the PC connection disappear. Instead, it manages the rotating section of the signal path and routes it through the wheelbase. The Slipring USB Type-C port is still used for the wheel’s direct connection to the PC.
