Simucube 3 Adapter 70mm front view side angle

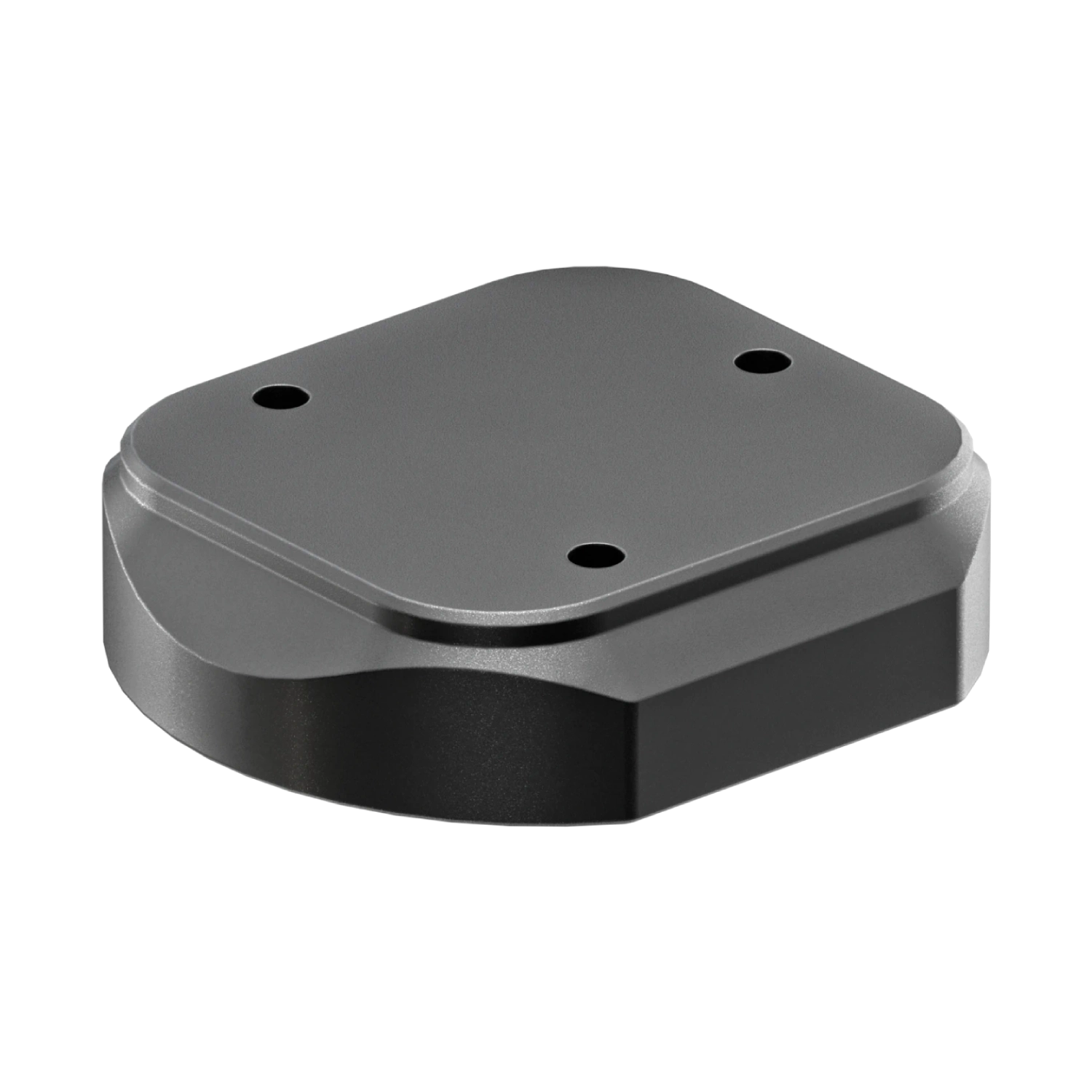

Simucube 3 Adapter 70mm screw holes view upside down

Simucube 3 Adapter 70mm wheelbase side view

Simucube 3 Adapter 70mm wheelbase front view

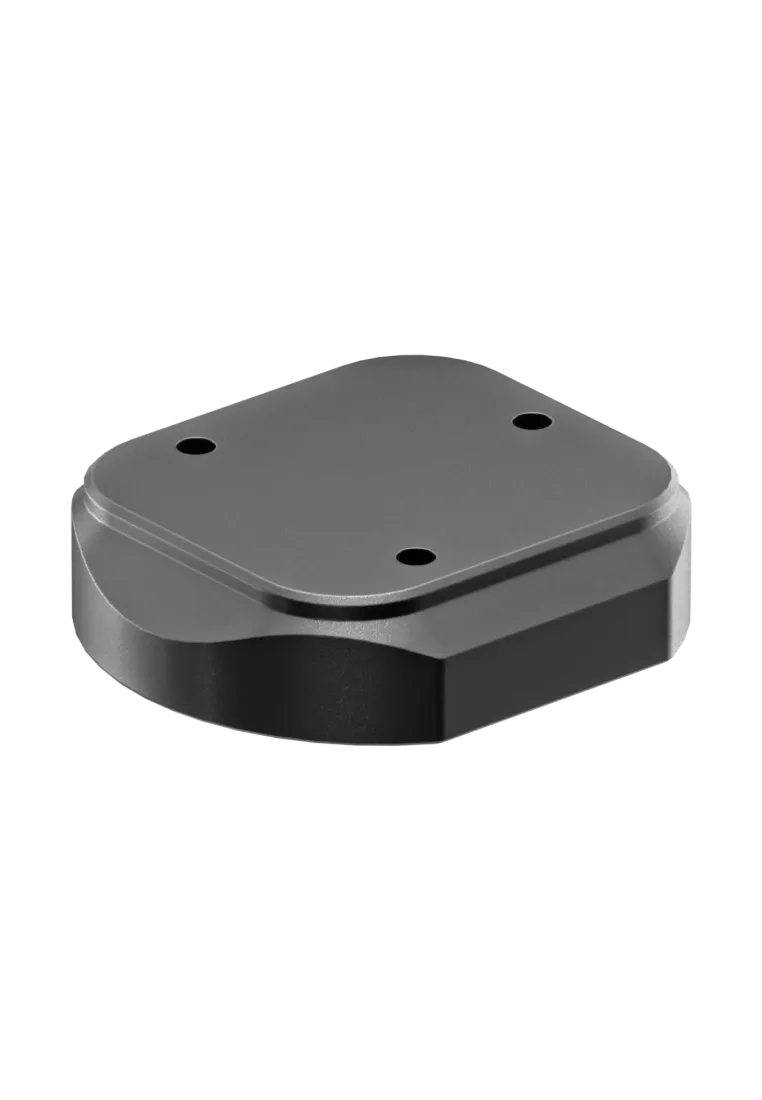

Simucube 3 Adapter 70mm

Name: Simucube 3 Adapter 70mm
Brand: Simucube
SKU: SC3WB70A
Price: 169.92 PLN
Availability: InStock

Reference SC3WB70A

169.92zł

Ready to send

Simucube 3 70 mm Adapter replaces the wheelbase-side Link Quick Release interface and lets you install a third-party QR system using the industry-standard 70 mm pattern. Six threaded M5 holes provide flexible mounting across Simucube 3 Sport, Pro and Ultimate wheelbases. Required fasteners and installation tools are included. The adapter does not support wireless data or power transfer through the Simucube Link interface during use.

Ask about product

You will receive an 1.70zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Simucube 2 Sport

4,414.63zł

Simucube 2 Pro

5,148.78zł

Simucube 2 Ultimate

11,187.39zł

Simucube 3 Sport

4,715.21zł

Simucube 3 Pro

5,557.21zł

Simucube 3 Ultimate

11,619.60zł

Keep your preferred quick release with Simucube 3

The Simucube 3 70 mm Adapter is made for drivers who want the latest Simucube wheelbase while continuing to use a familiar third-party quick release. It replaces the original wheelbase-side Simucube Link Quick Release component and creates an industry-standard 70 mm mechanical interface directly on the motor shaft.

That means an established collection of wheels does not always need to be rebuilt around a new QR ecosystem. The adapter is useful when moving to Simucube 3 from another platform, building a motorsport-style installation or using USB and Bluetooth steering wheels that already have their own independent method of communication.

Six M5 mounting points on a 70 mm pattern

Six threaded M5 holes are arranged on a 70 mm pitch circle, a common pattern among wheelbase-side quick release systems. Simucube instructs users to engage at least three of the available mounting points. Before ordering, verify both the 70 mm diameter and the mounting arrangement used by the selected QR rather than relying on its outside dimensions alone.

The adapter fits the complete Simucube 3 family: Sport, Pro and Ultimate. It is not a Simucube 2 shaft adapter and it does not convert a 50.8 mm pattern into 70 mm. Keeping these different accessories separate helps prevent an incorrect purchase when two products appear similar but connect to entirely different parts of the steering system.

Installation hardware and tools are included

The package contains the adapter, three M5x20 screws, six M5x16 screws, three M5 locking washers, a 3 mm hex key and a T10 Torx key. These parts support removal of the original Link interface and installation of the adapter plate. Simucube also specifies a 4 mm hex key for tightening the adapter to the motor shaft.

Screw length for the third-party quick release depends on the thickness of that component. A screw must not project more than 10 mm beyond the QR mounting face, so thin interfaces may need alternative fasteners. Switch the wheelbase off, disconnect its power supply and protect the Link cable during removal before installing the plate.

Understand what changes without Simucube Link

This adapter provides a mechanical connection while replacing the original Simucube Link QR interface on the wheelbase. Wireless power and data are therefore not carried through a third-party quick release. The wheel must use its own USB cable, battery or separately supported Bluetooth connection.

The adapter does not alter force feedback quality or the way the wheelbase attaches to a cockpit. Its single purpose is to connect the Simucube 3 shaft to an external QR system. Compatible bases and related hardware are available in the Simucube Direct Drive wheelbases category and on the Simucube brand page.

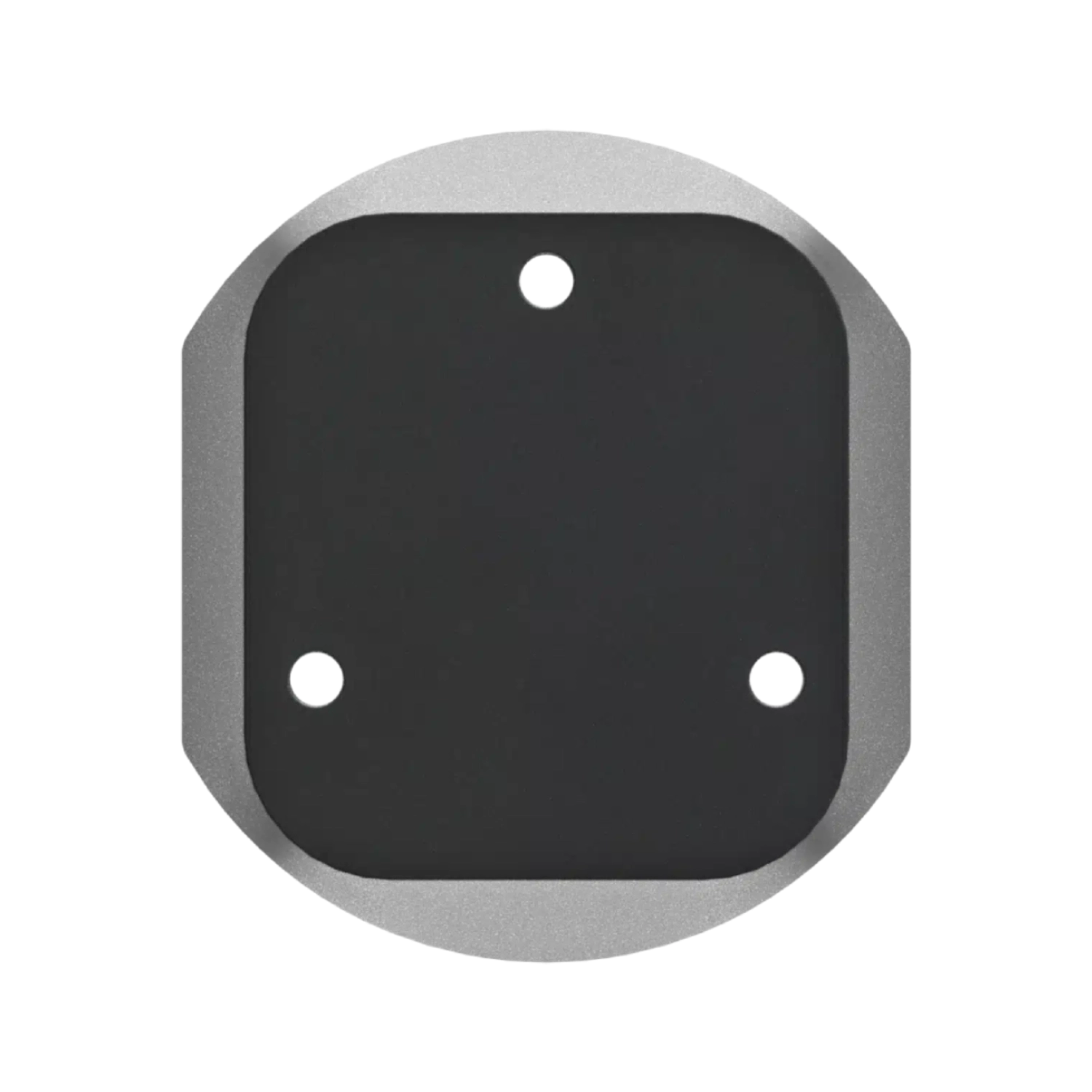

Circular 70 mm interface plate for the latest Simucube wheelbase generation

Keep your preferred quick release with Simucube 3

Fasteners supplied for replacing the original Link Quick Release component

Six M5 mounting points on a 70 mm pattern

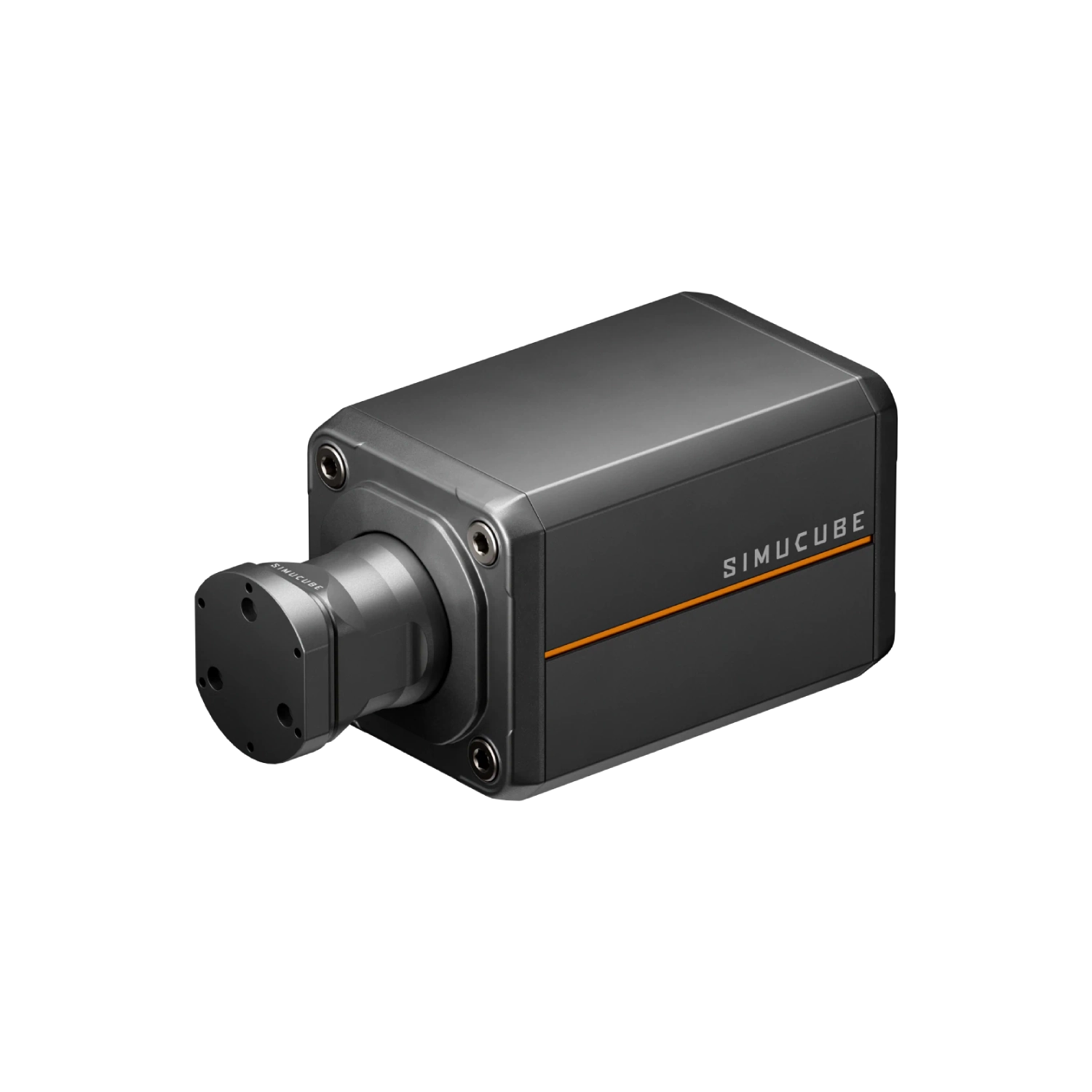

Close view of the adapter connection at the front of a Simucube 3 shaft

Installation hardware and tools are included

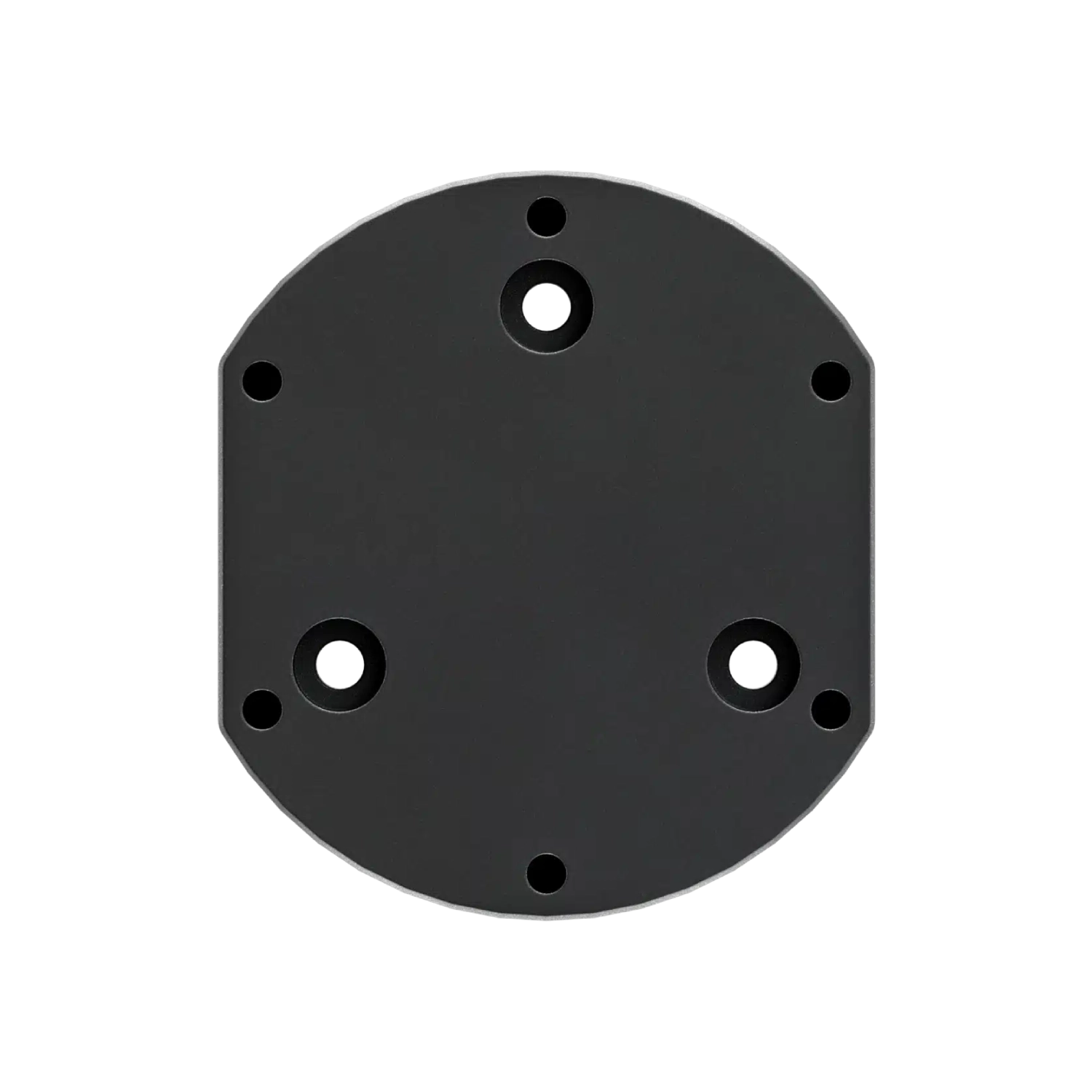

Six-point M5 pattern prepared for an external wheelbase-side QR system

Understand what changes without Simucube Link

Product specifications
Product type	Third-party quick release adapter for Simucube 3 wheelbases
Mounting position	Motor shaft, replacing the original Simucube Link Quick Release component
Mounting pattern	70 mm PCD
Quick release holes	6 threaded M5 holes
Minimum holes engaged	At least 3
Maximum screw projection	10 mm beyond the quick release mounting face
Compatible wheelbases	Simucube 3 Sport, Simucube 3 Pro, Simucube 3 Ultimate
Power transfer through Simucube Link	No
Data transfer through Simucube Link	No
Package weight	0.42 kg
Package dimensions	11.5 x 11.5 x 7 cm
Package contents	Adapter, 3 M5x20 screws, 6 M5x16 screws, 3 M5 locking washers, 3 mm hex key, T10 Torx key

Wheelbase or system	Compatibility	Important note
Simucube 3 Sport	Yes	The adapter replaces the original wheelbase-side Link Quick Release component.
Simucube 3 Pro	Yes	Installation is performed directly on the shaft after removing the original QR.
Simucube 3 Ultimate	Yes	Switch the wheelbase off and disconnect its power before installation.
Third-party wheelbase-side QR with 70 mm PCD and M5 mounting	Yes	Use at least 3 of the 6 holes and select the correct screw length.
Wheelbase-side Simucube Link Quick Release	Replaced	The original part is removed, so both solutions cannot operate at the same time.
Quick release with a pattern other than 70 mm	Not directly	A separate, correctly matched conversion plate is required.
Simucube 2 Sport, Pro and Ultimate	No	This product is designed exclusively for the Simucube 3 shaft construction.
Simucube Link wireless power and data	No	A third-party steering wheel needs its own power and communication method.
