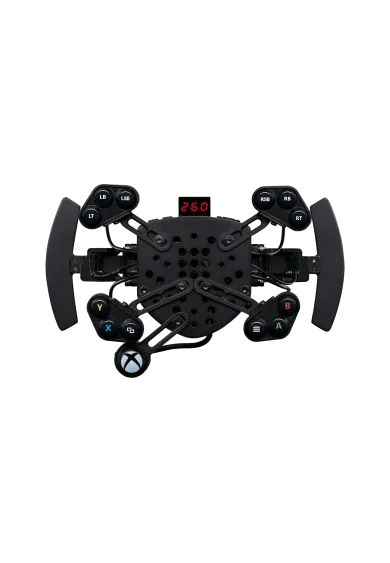

Fanatec ClubSport Universal Hub V2 for Xbox QR2 front view

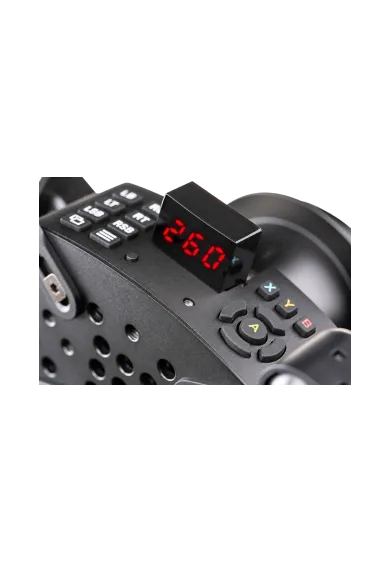

Fanatec ClubSport Universal Hub V2 for Xbox QR2 upper side view

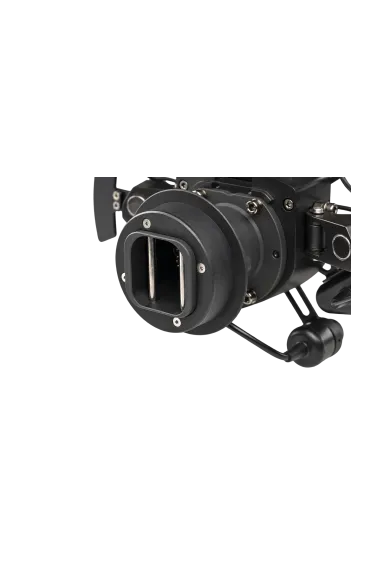

Fanatec ClubSport Universal Hub V2 for Xbox QR2 rear view
  • New

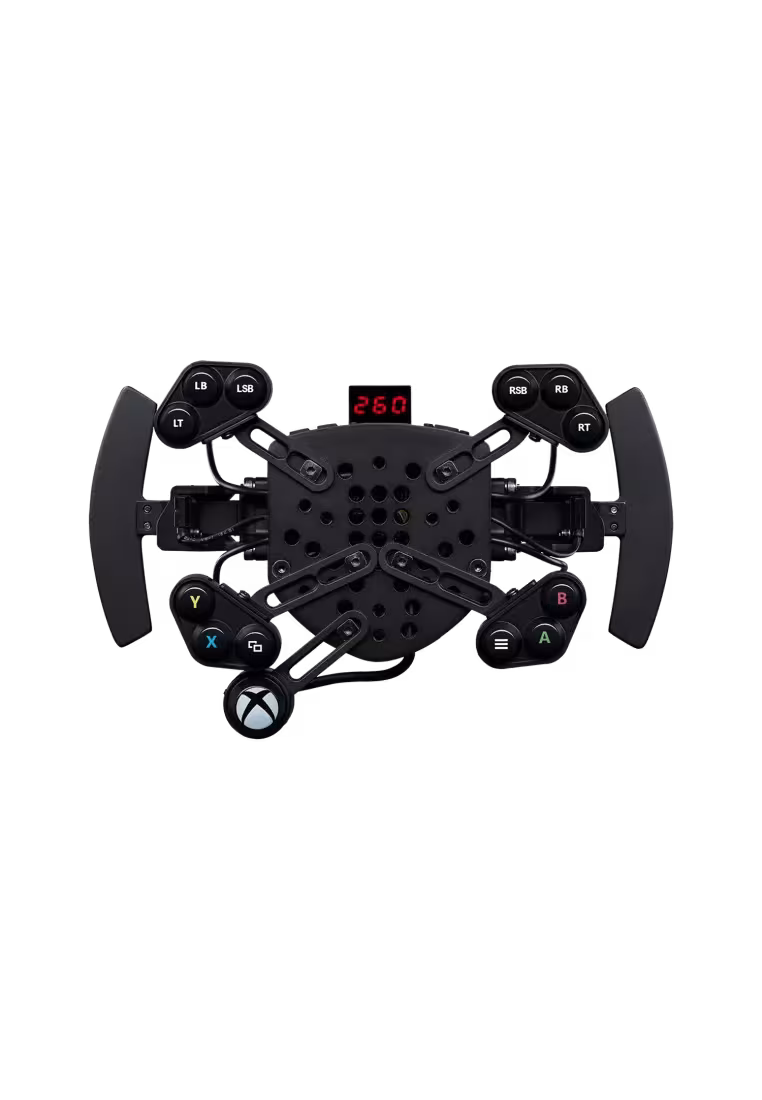

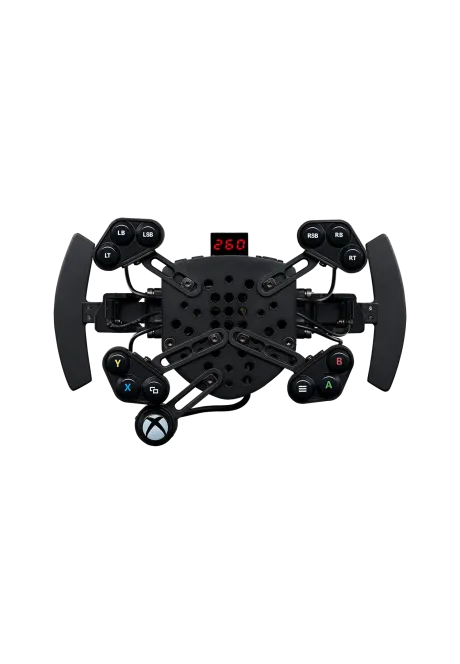

Fanatec ClubSport Universal Hub V2 for Xbox QR2 front view

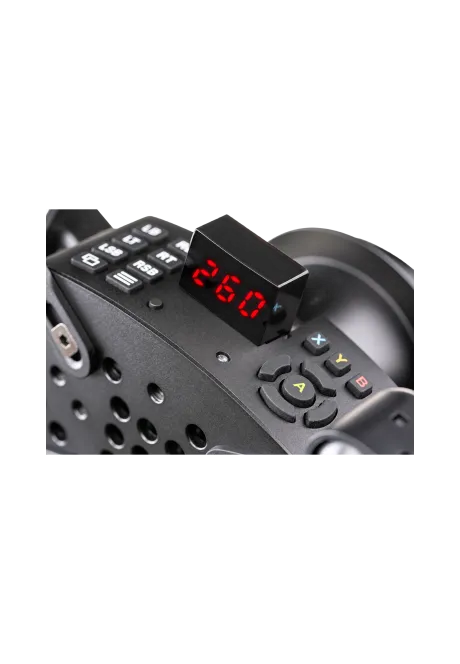

Fanatec ClubSport Universal Hub V2 for Xbox QR2 upper side view

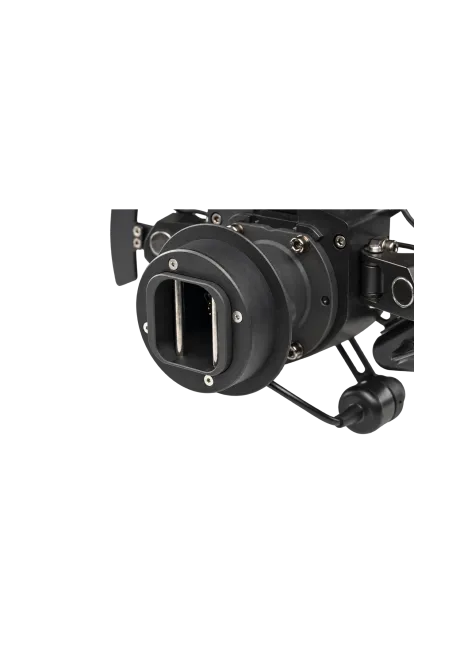

Fanatec ClubSport Universal Hub V2 for Xbox QR2 rear view

Fanatec ClubSport Universal Hub V2 for Xbox QR2

CRD-9020014-WW
1,200.81zł

1,200.81zł
Ready to send

The Fanatec ClubSport Universal Hub V2 for Xbox QR2 combines electronics, buttons and magnetic shifters for building a steering wheel with a separately chosen rim. It accepts 6 × 70 mm or 3 × 50 mm rim mounting patterns and enables Xbox One and Xbox Series X|S support through a compatible Fanatec wheel base. It includes four adjustable button clusters, a FunkySwitch and a three-digit LED display.

Ask about product
Zapytanie dotyczy produktu: Fanatec ClubSport Universal Hub V2 for Xbox QR2
* - pola obowiązkowe
Send
You will receive an 12.01zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Optional rim

Sparco P310

Sparco P310

1,011.76zł
Sparco Eco Slider

Sparco Eco Slider

217.89zł
Simline GT3 Cup R320 Suede

Simline GT3 Cup R320 Suede

491.87zł Customize
Simline GT3 Cup R350 Suede

Simline GT3 Cup R350 Suede Out of stock

438.00zł Customize
Simline GT3 Cup R320 Leather

Simline GT3 Cup R320 Leather

491.87zł Customize
Simline GT3 Cup D-Shape Rim Suede

Simline GT3 Cup D-Shape Rim Suede Out of stock

491.87zł Customize
Simline GT3 Cup D-Shape Leather

Simline GT3 Cup D-Shape Leather

491.87zł Customize
Simline/Sportline Rally 330/65mm Leather

Simline/Sportline Rally 330/65mm Leather

491.87zł
Simline/Sportline Rally 330/65mm Suede

Simline/Sportline Rally 330/65mm Suede

491.87zł
Simline/Sportline Rally 350/65mm Suede

Simline/Sportline Rally 350/65mm Suede

491.87zł
Simline/Sportline Rally 350/65mm Leather

Simline/Sportline Rally 350/65mm Leather

491.87zł
Simline/Sportline U300 Leather

Simline/Sportline U300 Leather

580.00zł Customize
Simline/Sportline U300 Suede

Simline/Sportline U300 Suede

580.00zł Customize

You might also like



Your choice of rim with Fanatec controls

The Universal Hub V2 connects your chosen rim to a compatible Fanatec base while keeping buttons and shifters at the wheel. A rim is not included, so its shape and diameter can be matched to the cars you drive most often.

The hub accepts 6 × 70 mm and 3 × 50 mm mounting patterns. Compatible Fanatec rims and selected third-party models fit, but the bolt pattern is only part of the choice: a deeply dished rim can leave the paddles and buttons further from your hands. The included metal QR2 Wheel-Side requires a matching QR2 on the base.

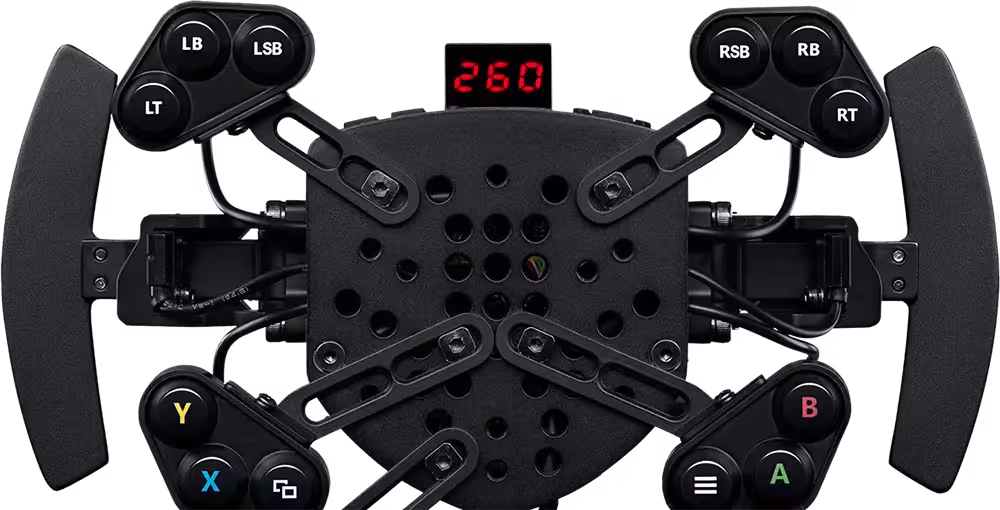

Fanatec ClubSport Universal Hub V2 for Xbox without a rim, with four button clusters and shifter paddles

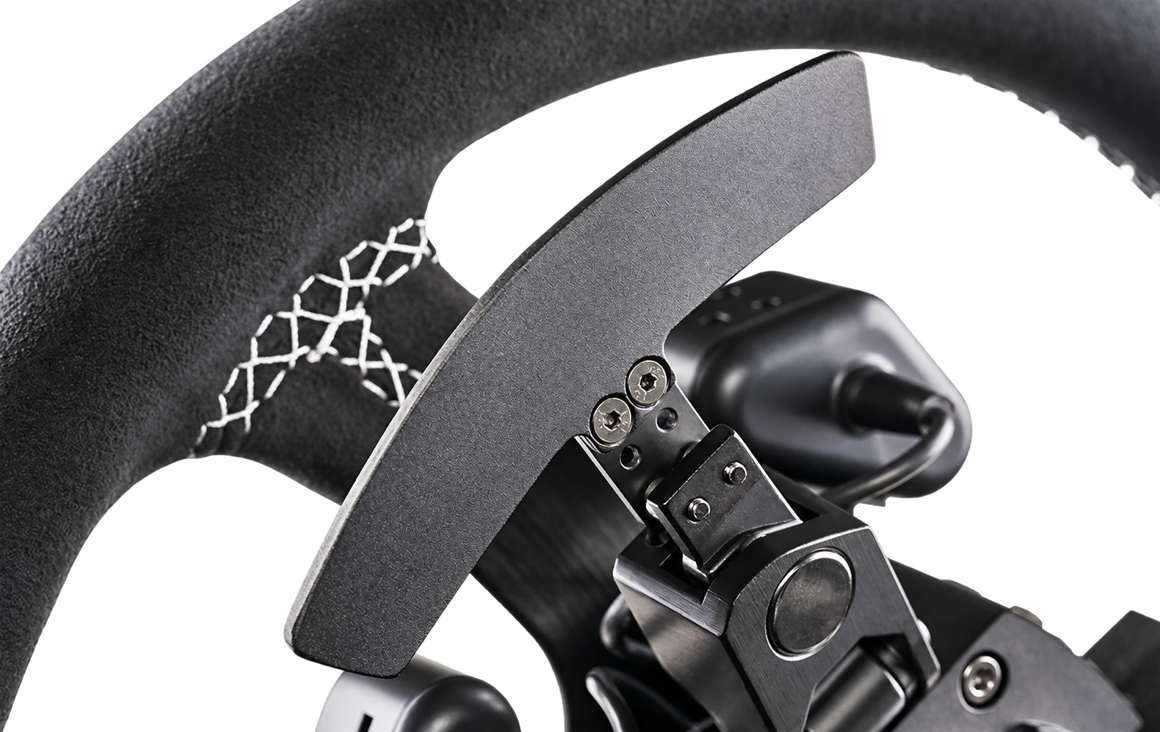

Aluminium paddle plate and ClubSport Magnetic Paddle Module mechanism behind a steering wheel rim

Magnetic shifters adjusted to your rim

The preinstalled ClubSport Magnetic Paddle Module uses neodymium magnets to give each shift a distinct actuation point. Its cage is made from CNC-machined aluminium, while the black anodised aluminium paddle plates are 3 mm thick.

Small and large paddle plates and spacers let you adjust their reach to suit the rim's size and position. The standard module handles gear changes, not analogue clutch input. A separately available Podium Advanced Paddle Module is the upgrade for a dual-clutch configuration.

Adjustable button clusters and replaceable caps

Four external clusters provide three buttons each. Adjustable arms let you bring them closer to the grips, while interchangeable caps offer Xbox symbols or racing-style labels. Their positions can be adapted to the chosen rim.

The clusters can also be removed, leaving the controls on top of the hub available. Fanatec lists 16 top-mounted button controls, including directional inputs. The external buttons duplicate some of these functions, so their physical count does not represent the same number of independent in-game commands.

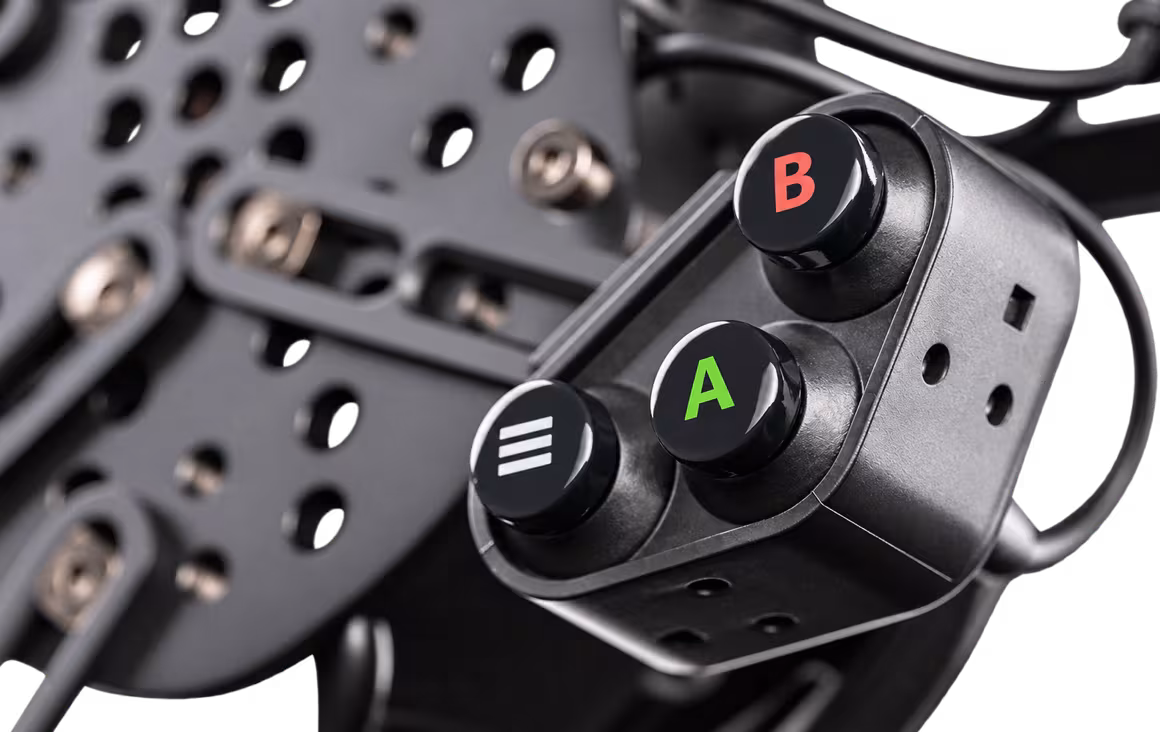

Adjustable A, B and menu button cluster on the Fanatec ClubSport Universal Hub V2

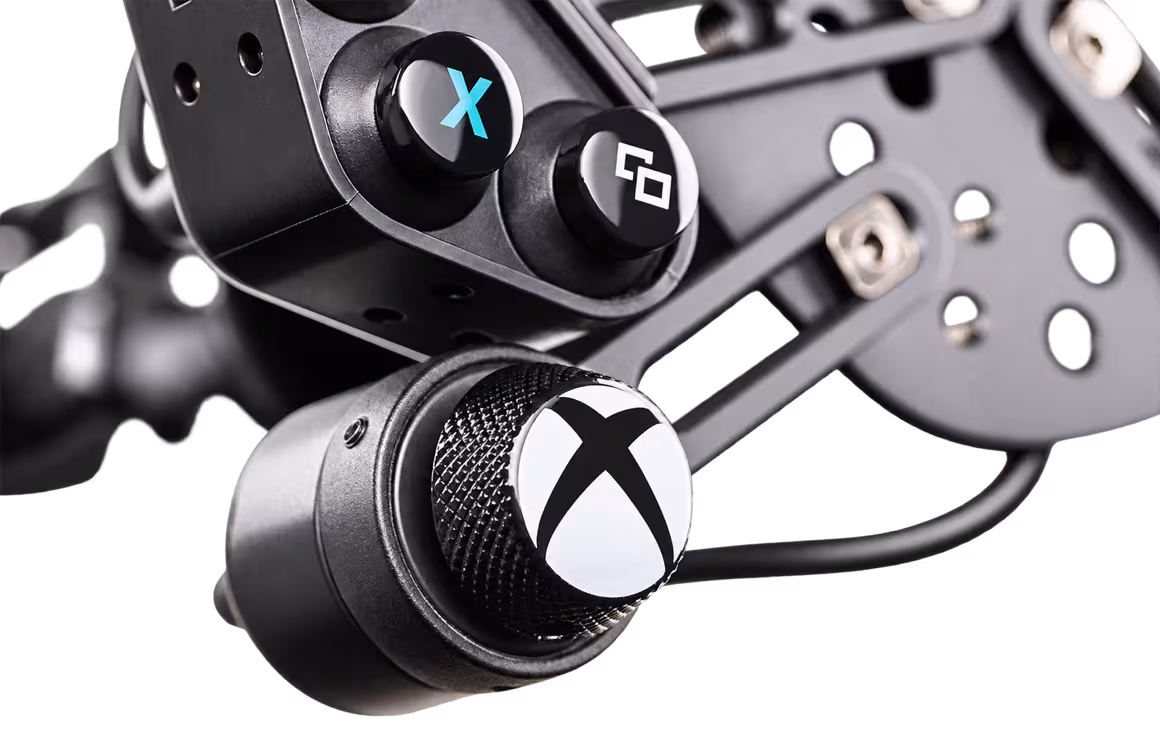

Xbox-branded FunkySwitch beside the ClubSport Universal Hub V2 button cluster

FunkySwitch, LED display and platform support

The FunkySwitch combines four directions, push input and a rotary encoder. It makes navigating the Tuning Menu and changing compatible base settings straightforward. The three-digit LED display shows settings and supported telemetry, with upright or flat positioning.

The hub's electronics provide Xbox licensing. On PC it operates through a compatible Fanatec base, while PlayStation requires a base licensed for that platform. Button and display functionality depends on the game and software. DataPort-C connects compatible Fanatec modules, not USB devices.

Explore pedals
Explore steering wheels
Explore Direct Drive wheel bases
Buttons quantity
16
Funky switch
Yes
Display
Yes
QR Included
Yes
PCD
3x50,8
6x70
Platforms Compatibility
PC
PS4 and PS5 with compatible Playstation Wheelbase
Xbox One and Series X/S
Parameter Details
SKU CRD-9020014-WW
Product type Wheel rim hub with electronics, buttons and a shifter paddle module
Rim mounting patterns 6 × 70 mm or 3 × 50 mm; rim shape and dish also affect suitability
Steering wheel diameter Depends on the separately chosen rim; a rim is not included
Top-mounted button controls 16 according to Fanatec, including D-pad directional controls; some functions are duplicated by the external clusters
External button clusters 4 clusters with 3 buttons each, 12 in total; adjustable and removable
FunkySwitch and Tuning Menu 1 FunkySwitch: four directions, push and clockwise / anticlockwise encoder input; separate Tuning Menu button
Side / thumb rotary controls No separate rotary controls
Display Removable three-digit LED for Tuning Menu and supported telemetry; upright or flat positioning
RevLEDs No separate rev-light strip
Shifter paddles Preinstalled ClubSport Magnetic Paddle Module; two magnetic shifters, without analogue clutch paddles
Paddle module materials CNC-machined aluminium cage, neodymium magnets and 3 mm black anodised aluminium paddle plates
Paddle adjustment Small and large paddle plates, with spacers to adjust their position relative to the rim
Quick Release Metal QR2 Wheel-Side, supplied in a separate package
QR mounting PCD Not specified in mm; dedicated Fanatec interface, separate from the rim mounting pattern
Button caps Xbox symbols and interchangeable racing-style caps included
DataPort-C Connector for compatible Fanatec button modules; not for USB devices or direct connection to a PC or console
Optional upgrades Podium Advanced Paddle Module, an additional fifth button cluster and compatible Podium Button Module Endurance / Rally, sold separately
Product weight A verified hub weight including QR2 is not specified
Component or platform Compatibility requirements
Wheel rims Compatible Fanatec rims and selected MOMO, Sparco and OMP rims with 6 × 70 mm or 3 × 50 mm patterns; sufficient button and paddle clearance is required
CSL DD and Gran Turismo DD Pro A compatible QR2 Base-Side is required
ClubSport DD and ClubSport DD+ QR2 connection; available platforms depend on the wheel base model
Podium DD, DD1, DD2 and DD1 PS4 Listed by the hub manufacturer; the supplied QR2 Wheel-Side requires the appropriate QR2 Base-Side
Older ClubSport V2 / V2.5 and CSL Elite bases Electronic compatibility does not make the supplied QR2 fit a QR1 shaft; the connection must be checked for the specific base
Xbox One and Xbox Series X|S The hub provides Xbox licensing; a compatible Fanatec base and matching Quick Release are required
PlayStation 4 and PlayStation 5 Requires a PlayStation-licensed base, such as Gran Turismo DD Pro or ClubSport DD+; the hub does not provide this licence
Windows PC Through a compatible Fanatec wheel base; configuration and updates use Fanatec software

1. Is the Universal Hub V2 a complete steering wheel?

No. It is a hub with electronics, buttons, a display and shifter paddles. QR2 Wheel-Side is included, but the rim and compatible Fanatec wheel base are sold separately.

2. Which rims fit this hub?

Rims with a 6 × 70 mm or 3 × 50 mm mounting pattern and suitable geometry. These include compatible Fanatec rims and selected MOMO, Sparco and OMP models. A deeply dished rim can make the buttons and paddles harder to reach even when its bolt pattern fits.

3. How many buttons and rotary controls does the hub have?

Fanatec lists 16 integrated top-mounted button controls and four external clusters with three buttons each. A rotary FunkySwitch and Tuning Menu button are also provided. Some functions are duplicated, and the top controls include a D-pad, so these should not be described as 28 independent assignments. There are no separate side rotary controls.

4. Is QR2 included, and does it fit a QR1 base?

Metal QR2 Wheel-Side is included in a separate package. It does not connect directly to QR1 Base-Side. The wheel base needs a matching QR2 system. The 6 × 70 mm and 3 × 50 mm patterns refer to rim mounting, not the QR interface.

5. Which paddles are included, and are there clutch paddles?

The preinstalled ClubSport Magnetic Paddle Module provides two magnetic shifters. Small and large paddle plates and spacers are included. There are no analogue clutch paddles; adding them requires the separately sold Podium Advanced Paddle Module.

6. Does the hub have an OLED display and RevLEDs?

It has neither an OLED nor a separate RevLED strip. A three-digit LED display shows Tuning Menu settings and supported game data. The display is removable and can sit upright or flat. Telemetry support depends on the game, platform and software.

7. Can the button positions be adjusted to suit the rim?

Yes. The four external clusters use adjustable mounting arms and can also be disconnected. Integrated controls remain on top of the hub. Interchangeable caps let you replace the Xbox symbols with racing-style labels.

8. Can DataPort-C connect the hub through USB?

No. DataPort-C is not USB and must not be connected to a computer or console. It supports compatible Fanatec modules such as the Podium Button Module Endurance and Podium Button Module Rally. The hub communicates with the platform through the wheel base.

9. Can the hub be upgraded?

Yes. Options include the Podium Advanced Paddle Module, a fifth button cluster and compatible Podium modules connected through DataPort-C. These are sold separately. Check clearance around the chosen rim and feature support on your platform before adding accessories.

10. How do I adjust Force Feedback and update the hub?

Settings for a compatible wheel base are available through the Tuning Menu, operated with the FunkySwitch or top-mounted D-pad. Updates use the base connected to a Windows PC and current Fanatec software. The hub does not generate Force Feedback itself; that comes from the motor in the wheel base.

11. How long is the warranty for Fanatec products?

Simline is the largest authorised seller of Fanatec in Poland and Europe. We are also a Fanatec Certified Partner and are listed in Fanatec's official directory of authorised resellers and certified partners. As an authorised Fanatec partner, all products from this brand are covered by full warranty protection for up to 5 years within the European Union, in accordance with Fanatec warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

14. What enables Xbox One and Xbox Series X|S compatibility?

The Xbox-licensed electronics are inside the hub. Combined with a compatible Fanatec wheel base and matching QR, they enable Xbox One and Xbox Series X|S operation. Button, encoder and display support also depends on the game, firmware and platform limitations.

15. Can the for Xbox version work on PlayStation?

Yes, through a compatible PlayStation-licensed Fanatec base, such as Gran Turismo DD Pro or ClubSport DD+. The base provides PlayStation licensing, not the hub. Attaching this hub does not make the ClubSport DD without the plus sign PlayStation-compatible.

16. Does the hub work on a Windows PC?

Yes, through a compatible Fanatec wheel base connected to the PC. It is not a standalone USB controller. The available settings and functions depend on the base, current software and game support.

  • ClubSport Universal Hub V2 for Xbox with hub cover plate
  • 4 external clusters with 3 buttons each
  • 2 short and 2 long cluster mounting arms
  • 1 FunkySwitch
  • Three-digit LED display unit
  • ClubSport Magnetic Paddle Module, preinstalled
  • Large and small aluminium paddle plates, spacers and mounting hardware
  • Metal QR2 Wheel-Side in a separate package
  • Set of mounting bolts, nuts and washers
  • 2 mm, 2.5 mm, 3 mm and 4 mm Allen keys, plus an 8 mm wrench
  • Racing-style button caps
  • “F” FunkySwitch sticker
  • Quick Guide

The wheel rim, wheel base and optional upgrade modules are sold separately.
