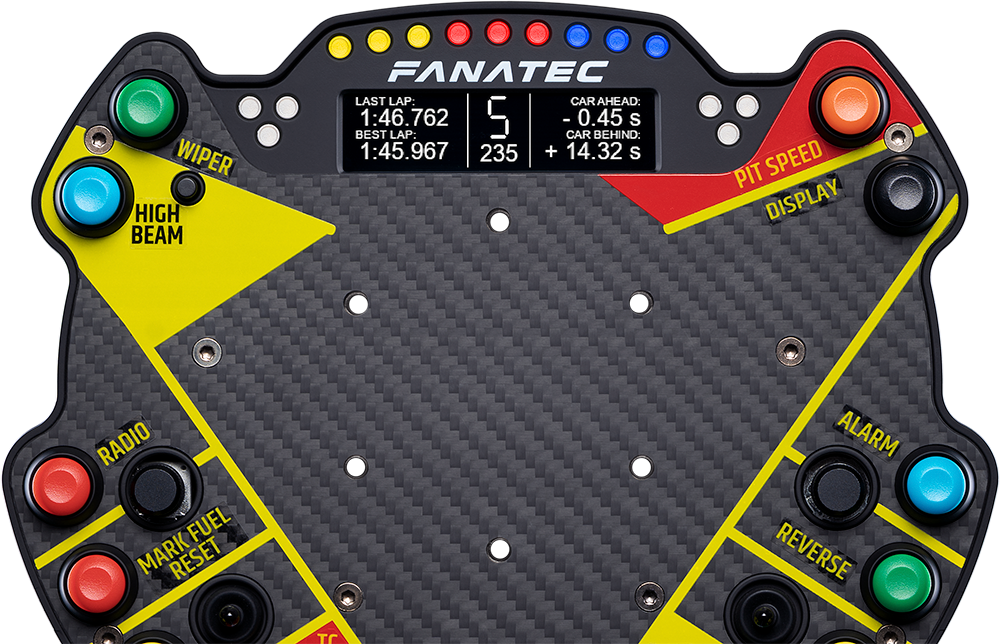

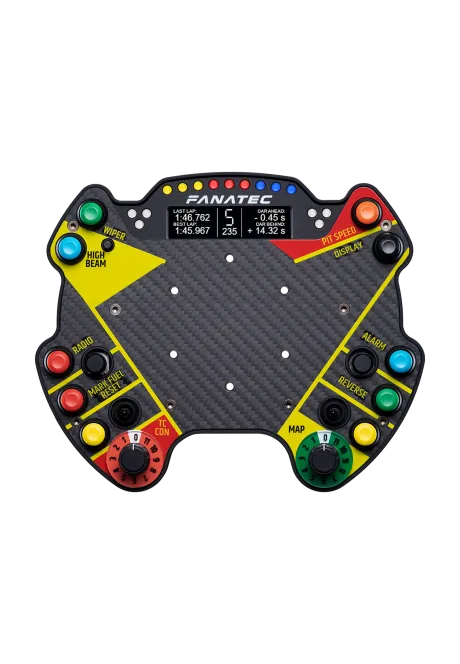

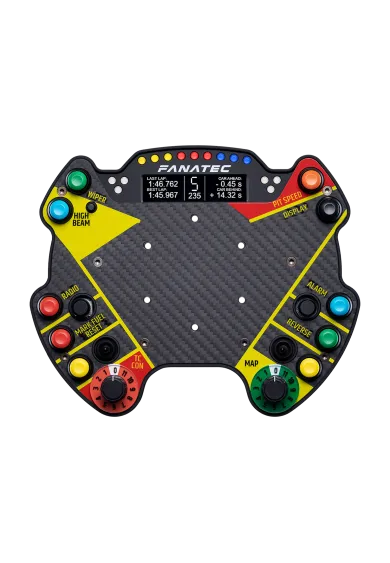

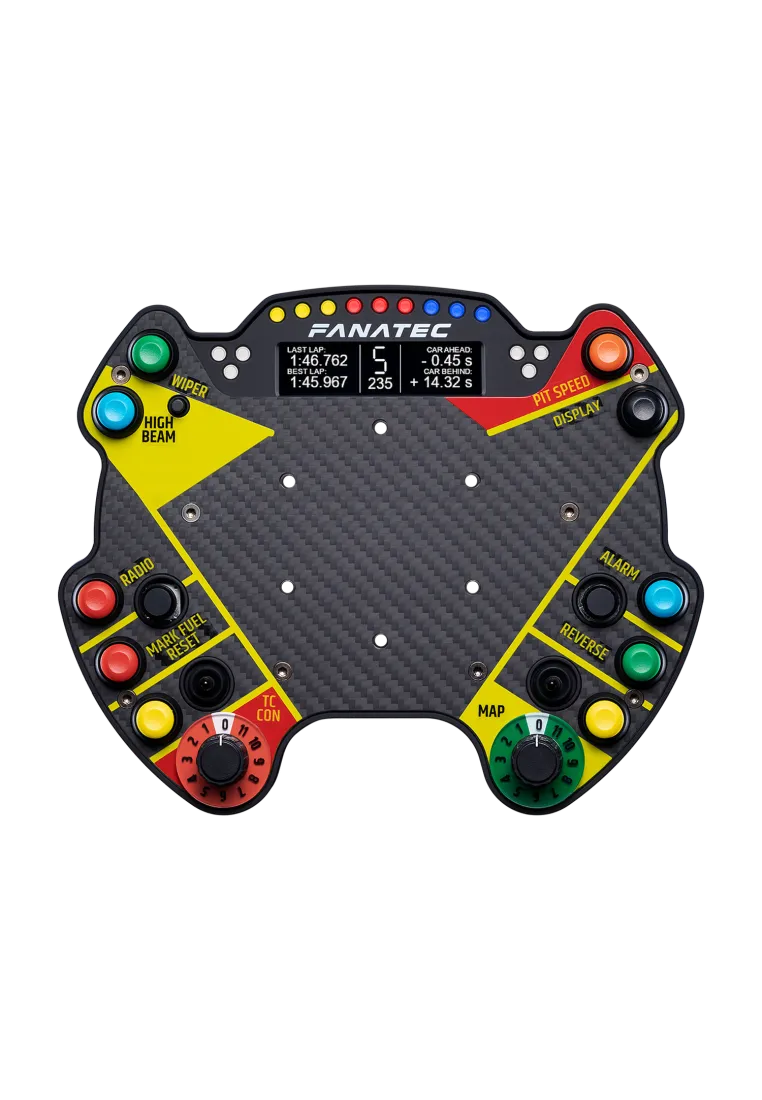

Fanatec Podium Button Module Endurance is a control panel for a GT wheel built with a compatible hub and 6 × 70 mm rim. It has 10 buttons, two 12-position switches, an analogue joystick and a FunkySwitch. A 2.7-inch OLED and RGB LEDs show game data, depending on the platform and software. Bolts, an RJ12 adapter and stickers are included. The rim, hub and paddle modules are sold separately.
You might also like
Spin, zoom or turn whatever angle You like!
You get 10 buttons, two two-way toggle switches and two 12-position rotary switches. Assign functions such as the pit limiter, lights, traction control or brake bias where the car and game allow those settings to be changed.

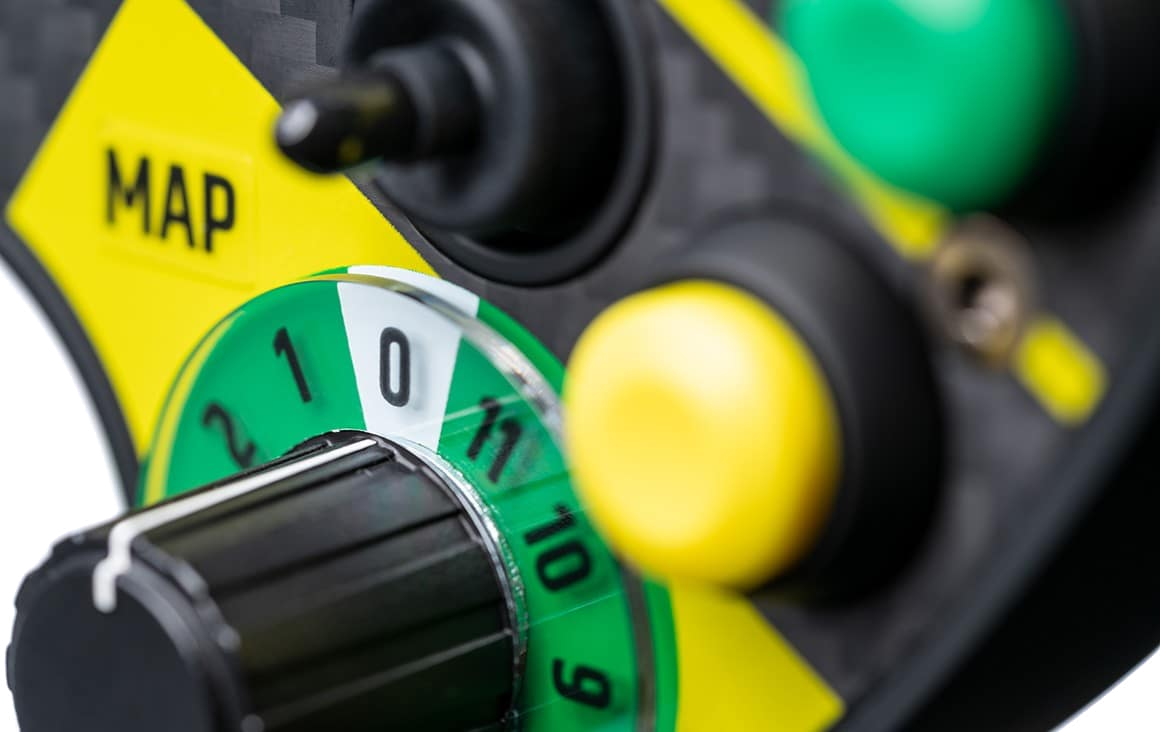

The rotary switches can select a function at each position or work as encoders that increase and decrease a value. A separate analogue joystick provides two axes. The 7-way FunkySwitch combines directional movement, a push action and rotation. These are two different controls, not two names for the same joystick.

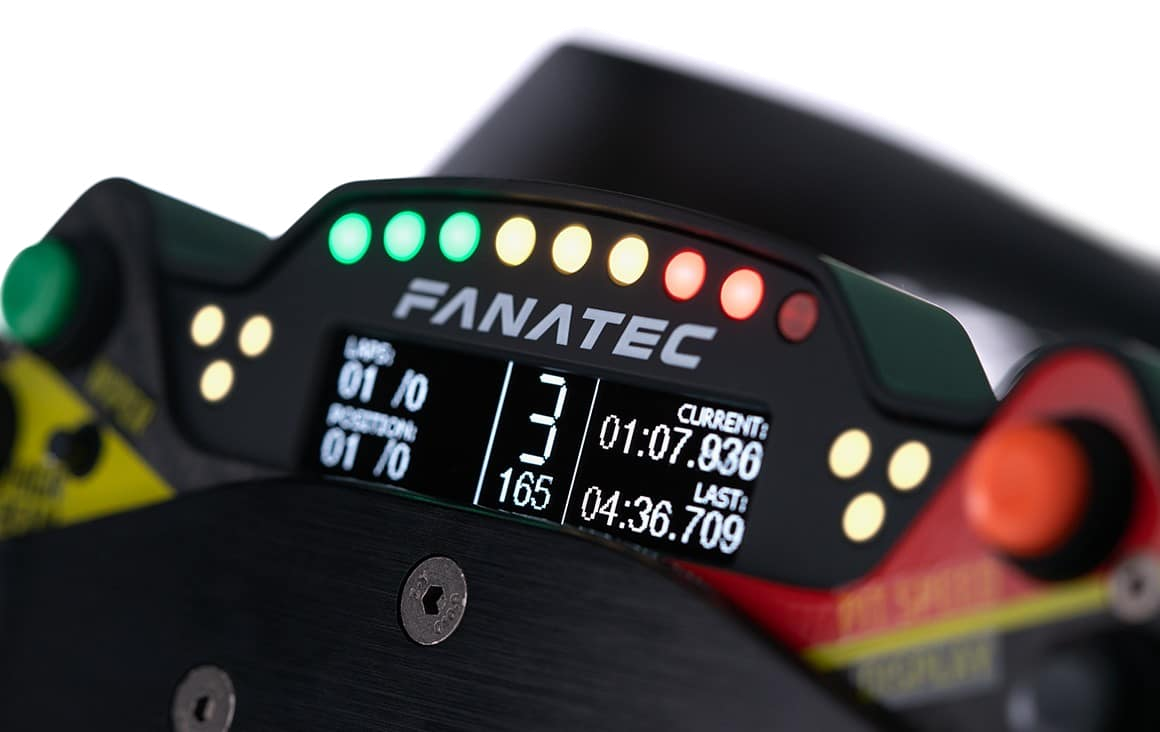

The 2.7-inch OLED has a resolution of 256 × 64 pixels. ITM offers five telemetry layouts, switched manually or by a supported game. When ITM is unavailable, the display falls back to Legacy Mode.
Nine RevLEDs above the screen indicate engine speed. Two FlagLED groups, each with three RGB LEDs, provide additional signals at the sides. Available information depends on the game and configuration. ITM requires a Windows PC and the Fanatec App; the same telemetry features are not guaranteed on consoles.
A dedicated Tuning Menu button opens hardware settings on the module's display. Use the FunkySwitch to select a profile, move between parameters and change their values. You can adjust Force Feedback without switching to the software window, within the options supported by your base.
If you add a Podium Advanced Paddle Module to a compatible hub, the OLED can also show the clutch bite point. Paddle modules are not included with this product. Supplied stickers let you label button functions, and the removable caps can be replaced with compatible Fanatec caps.

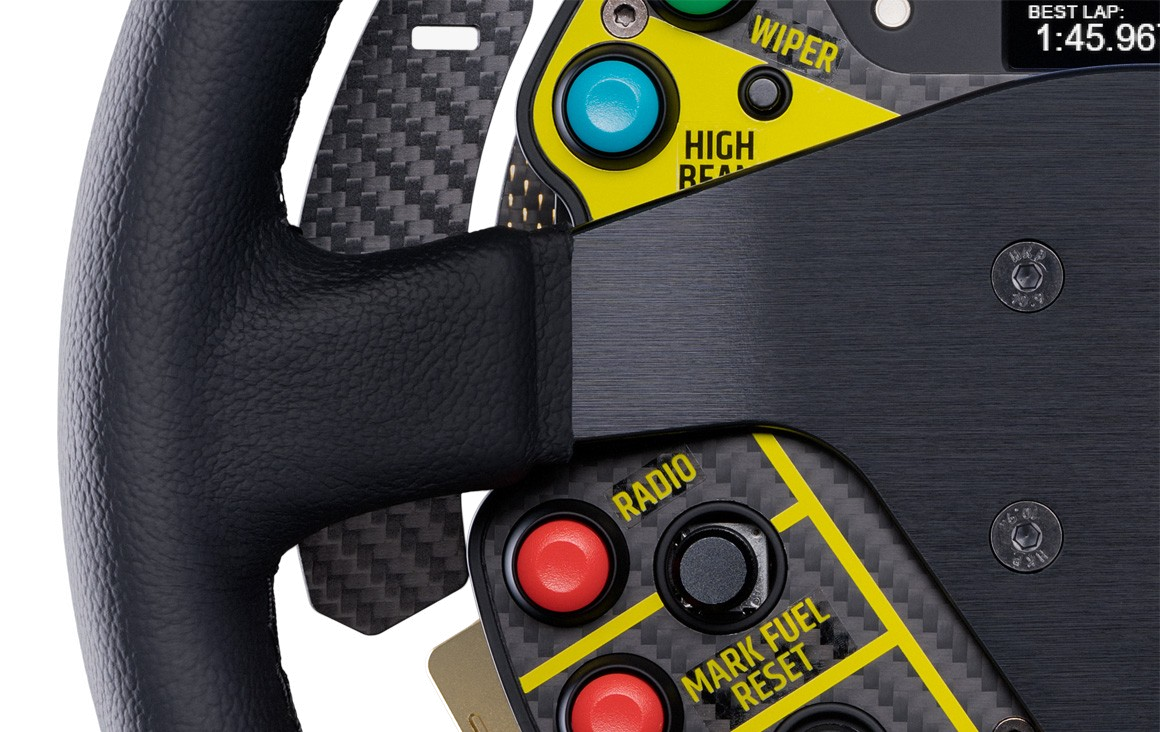

The panel fits between a compatible hub and a rim with a 6 × 70 mm pattern, using the supplied M5 × 25 bolts. It adds 11 mm between hub and rim. Clearance is tight near the bottom of an R300; check a third-party rim against Fanatec's sizing template.
Podium Hub and ClubSport Universal Hub V2 connect directly via DataPort-C. The RJ12 adapter is for the legacy Universal Hub for Xbox One. Universal Hub installation requires removal of its standard button clusters and FunkySwitch as instructed. This is not a standalone USB device.
| Parameter | Details |
|---|---|
| Manufacturer | Fanatec |
| Model | Podium Button Module Endurance |
| Type | Button panel and display for a wheel assembled with a compatible hub and rim |
| Function buttons | 10 |
| Settings button | Separate Tuning Menu button |
| Two-way toggle switches | 2 |
| Multi-position switches | 2 × 12 positions; support for endless encoder operation |
| Analogue joystick | 1, two axes |
| FunkySwitch | 1, 7-way joystick with encoder function |
| Display | 2.7-inch OLED, 256 × 64 pixels |
| Telemetry mode | Intelligent Telemetry Mode with five data layouts; Legacy Mode when ITM is unavailable |
| ITM requirements | Windows PC, Fanatec App and a supported game |
| RevLEDs | 9 RGB LEDs |
| FlagLEDs | 6 RGB LEDs, in two groups of three |
| Hardware settings | On-screen Tuning Menu; available parameters depend on the base |
| Clutch bite point indication | Yes, with a compatible hub and Podium Advanced Paddle Module |
| Front plate | Carbon fibre |
| Rear construction | Rubber-coated glass fibre-reinforced backplate; internal metal reinforcements |
| Module weight | 410 g |
| Rim mounting pattern | 6 × 70 mm |
| Added distance between hub and rim | 11 mm |
| Connection | DataPort-C to a compatible hub; RJ12 adapter for the legacy Universal Hub for Xbox One |
| Button labels | Stickers included; removable button caps |
| Module external dimensions | No confirmed values in the official materials checked |
| Package dimensions and shipping weight | No confirmed values in the official materials checked |
| Manufacturer warranty for a new product | 3 years, subject to current Fanatec terms |
| Component or platform | Compatibility and conditions |
|---|---|
| Podium Hub | Compatible; direct DataPort-C connection |
| ClubSport Universal Hub V2 / V2 for Xbox | Compatible; direct DataPort-C connection |
| Legacy ClubSport Universal Hub for Xbox One | Compatible through the supplied DataPort-C to RJ12 adapter |
| CSL Universal Hub / CSL Universal Hub V2 | Not listed as compatible with this module; do not assume support |
| Podium Wheel Rim Porsche 911 GT3 Cup | Leather and suede versions are compatible |
| Podium Wheel Rim R300 | Compatible; tight clearance between the module and the lower part of the rim |
| ClubSport Wheel Rim 320 / 320 Alcantara | Compatible |
| ClubSport Wheel Rim GT3 Endurance | Compatible; confirmed in Fanatec's official guide |
| ClubSport Wheel Rim Drift | Physically compatible according to Fanatec, but not recommended |
| ClubSport Wheel Rim GT and rims with a similar spoke layout | Not compatible due to insufficient clearance between spokes and buttons |
| Third-party rims | Require a 6 × 70 mm pattern and a geometry check against Fanatec's sizing template; the bolt pattern alone does not establish fit |
| Podium bases | DD1, DD2 and DD1 PS4 |
| ClubSport bases | ClubSport Wheel Base V2.5, ClubSport DD and ClubSport DD+ |
| CSL bases | CSL DD, CSL Elite Wheel Base + and CSL Elite Wheel Base V1.1 |
| Gran Turismo DD Pro | Compatible base |
| Quick release | Must match the hub and base; no quick release is included with the module |
| Podium Advanced Paddle Module | Works on a compatible hub, including clutch bite point indication; paddle modules are sold separately |
| Windows PC | Through a hub and compatible Fanatec base; functions depend on the game |
| Xbox One / Xbox Series X/S | Requires Universal Hub for Xbox One or Universal Hub V2 for Xbox and a compatible base; functionality may be limited |
| PlayStation 4 / PlayStation 5 | Requires a PlayStation-licensed base and compatible hub; functionality may be limited |
The hub, rim, quick release, paddle modules and wheel base are not included. The stickers are for labelling panel functions.
No. It is a button panel with a display. A compatible hub, rim, matching quick release and any paddle modules are separate purchases. A compatible Fanatec wheel base is also required for operation.
It has 10 function buttons, two two-way toggles, two 12-position switches, a two-axis analogue joystick and a 7-way FunkySwitch. Hardware settings use a separate Tuning Menu button.
Podium Hub, ClubSport Universal Hub V2, Universal Hub V2 for Xbox and the legacy Universal Hub for Xbox One. The first three connect directly via DataPort-C. The legacy Xbox One model requires the supplied RJ12 adapter.
Not necessarily. That pattern is required, but the spokes and inner rim profile must also clear the module's controls. Fanatec lists ClubSport Wheel Rim GT as incompatible. Check third-party rims against Fanatec's sizing template.
A 2.7-inch OLED with 256 × 64 pixels, nine RGB RevLEDs and six RGB FlagLEDs arranged in two groups. Available data and light signals depend on the game and software.
Intelligent Telemetry Mode provides five data layouts. The current manual requires the Fanatec App on a Windows PC for ITM. Console compatibility does not confirm ITM support. The screen uses Legacy Mode when ITM is unavailable.
Yes. Both 12-position switches can work as encoders that increase and decrease a value. Position-based modes, including pulse and constant signals, are also supported. Mode availability and usefulness depend on the game and configuration.
No. DataPort-C connects to a compatible Fanatec hub, rather than providing a standalone computer USB connection. On PC, the assembled setup communicates through the wheel base.
No. Podium Advanced Paddle Module is a separate product. When it is installed on a compatible hub, Button Module Endurance can show the clutch bite point on its OLED.
Use the supplied M5 × 25 bolts, allow for the extra 11 mm between hub and rim, and check finger clearance. Remove the Universal Hub's standard button clusters and FunkySwitch. Install its shifter paddles in the rearward mounting holes as instructed, and avoid trapping cables when closing a legacy hub.
Simline.eu is the largest authorised Fanatec partner in Poland and Europe. Fanatec products receive full warranty protection for up to 5 years within the European Union, in accordance with Fanatec warranty terms.
As an official Fanatec partner within the European Union, we handle valid warranty claims through Door-to-Door service. Collection and return of the equipment follow the instructions we provide.
Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle claims. Email support@simline.eu or fanatec@simline.eu with a fault description and photos or videos showing the problem, then prepare and pack the equipment.
Yes, with ClubSport Universal Hub for Xbox One or ClubSport Universal Hub V2 for Xbox and a compatible base. The licensed Xbox electronics are in the hub, not this panel. Podium Hub does not provide Xbox support. Not every input or module feature is necessarily available on console.
Yes, as part of a setup with a compatible hub and a PlayStation-licensed Fanatec base. The base provides console compatibility. Available buttons, telemetry and other functions depend on the platform, game and firmware.
Yes, with a Windows PC through a compatible Fanatec hub and base. Use supported Fanatec software for configuration, updates and ITM. Button, axis and rotary assignments depend on the game. The panel is not a standalone USB controller.
