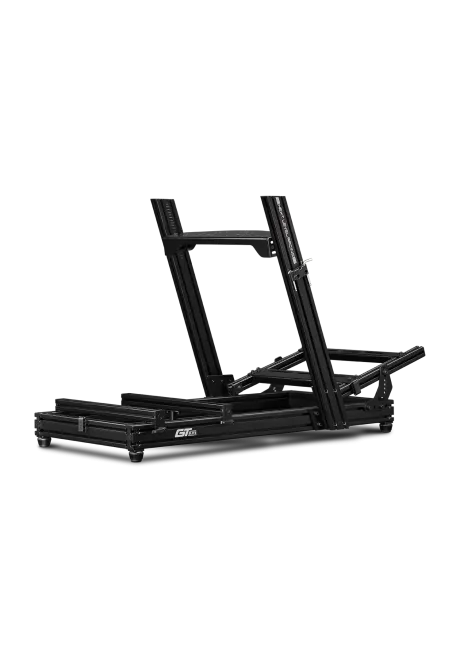

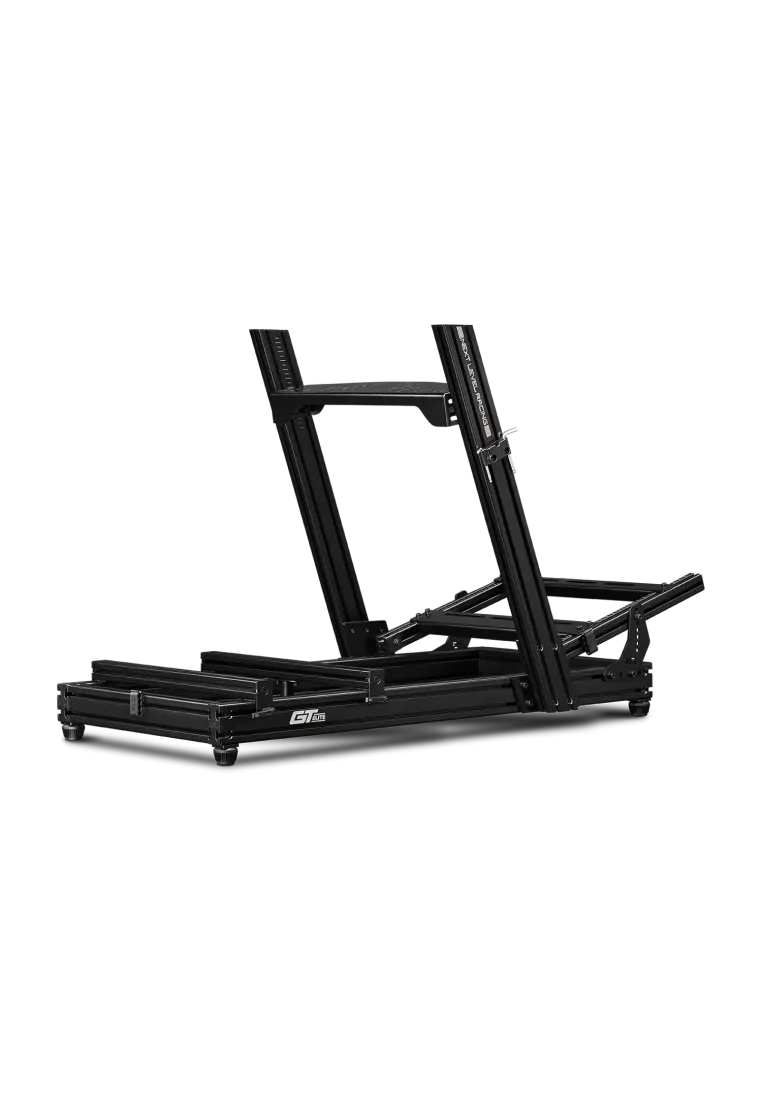

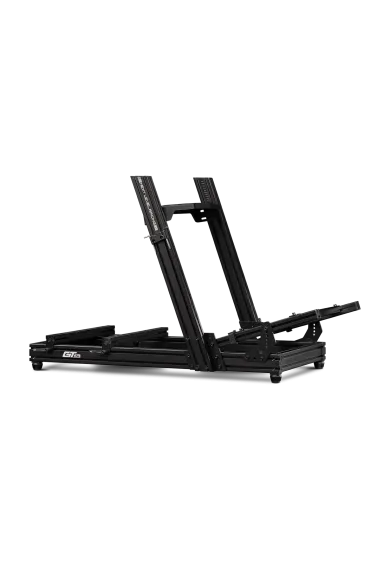

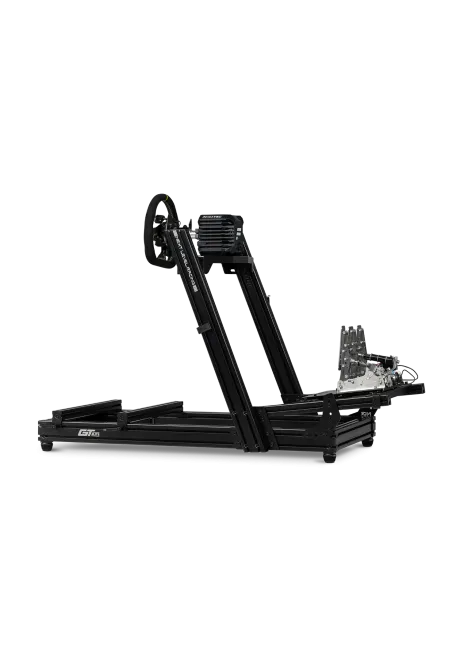

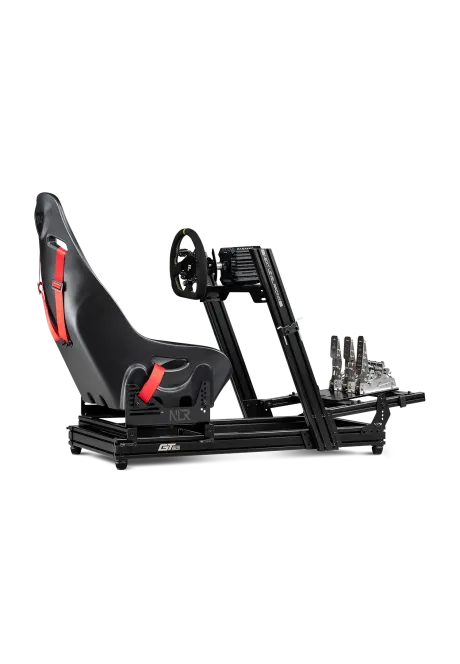

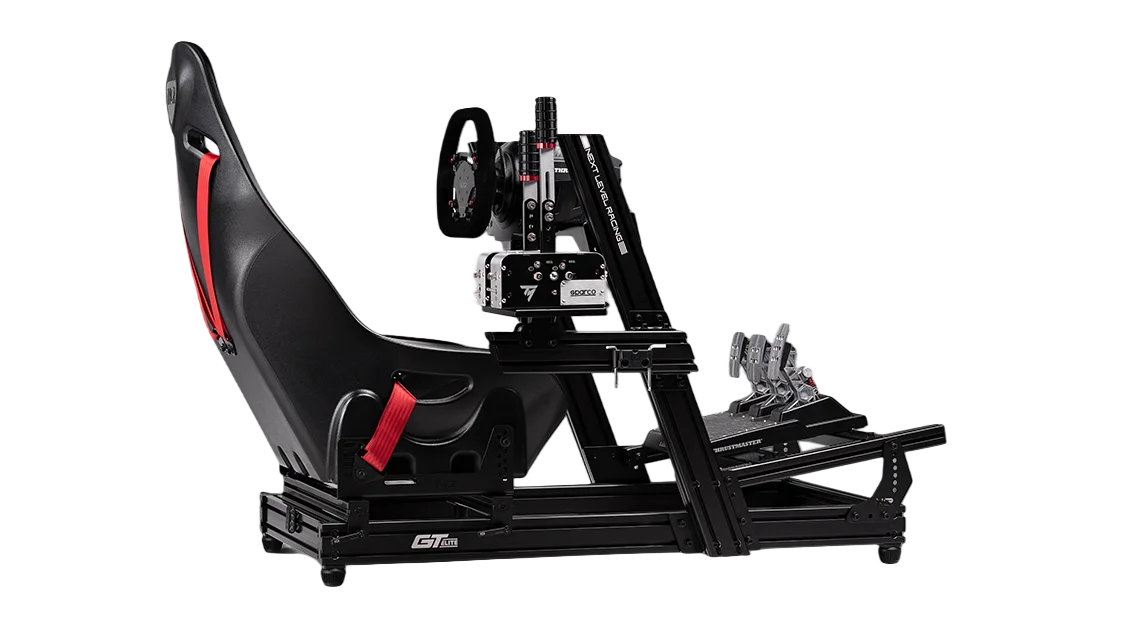

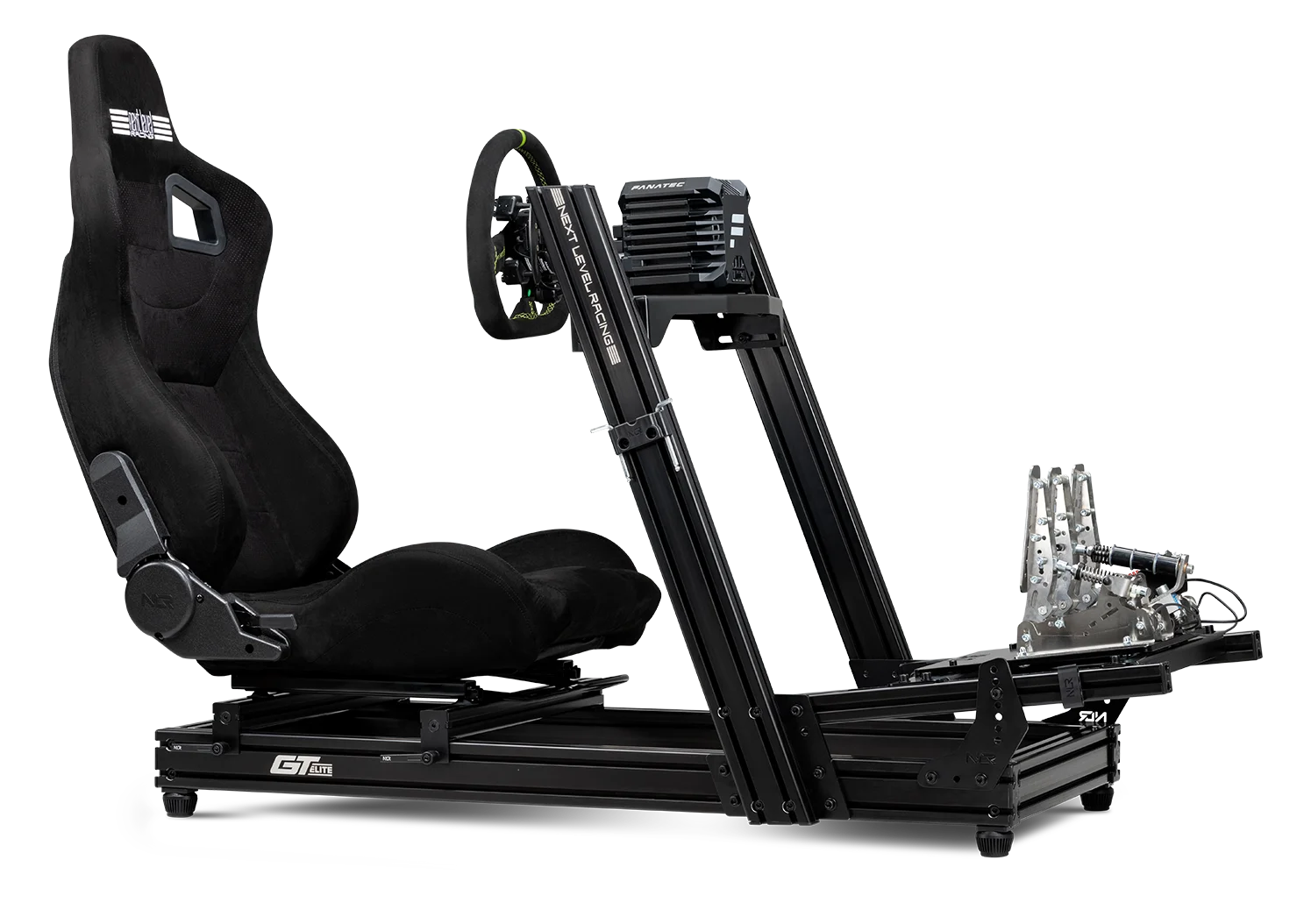

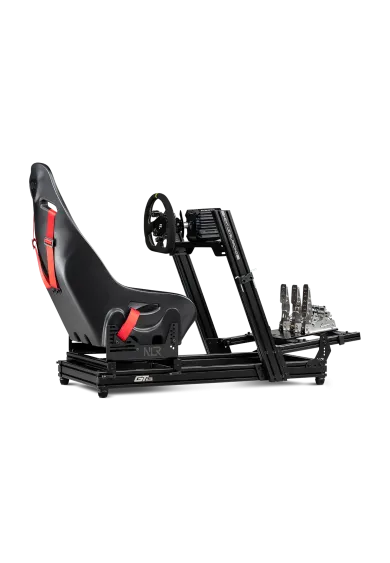

Next Level Racing GTElite Lite Wheel Plate Edition is a GT cockpit with a bottom-mount wheel plate, adjustable pedal platform and seat sliding system. Its 40 × 80 mm aluminium-profile base supports a setup you can expand with Next Level Racing accessories. The seat, electronics and shifter mount are sold separately.
Available accessories
- Wheelbase
+ Steering Wheels
+ Monitor Stands
+ Pedals
+ Seats
+ Seat Sliders and Mounts
+ Motion Systems
- Fixing method
- Bottom
- Seat
- Excluded
- Monitor/TV mount
- Excluded
- Shifter/Handbrake mount
- Excluded
- Keyboard holder
- Excluded
- Driver position
- GT
- Position of pedals
- Standard
| Parameter | Details |
|---|---|
| Manufacturer | Next Level Racing |
| Model | GTElite Lite Wheel Plate Edition |
| Type | Stationary sim racing cockpit without a seat |
| Standard driving position | GT |

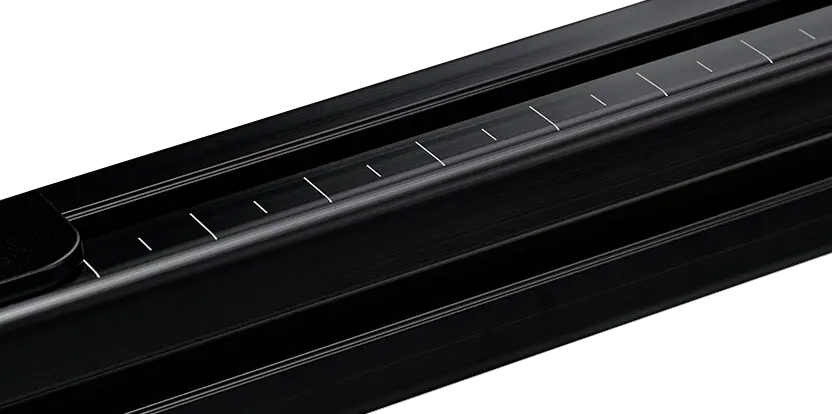

| Base profiles | 40 × 80 mm aluminium |
| Finish | Black anodised aluminium and powder-coated steel components |
| Upright mounting plates | 8 mm carbon steel |
| Wheel-base mounting | Bottom-mount wheel plate |

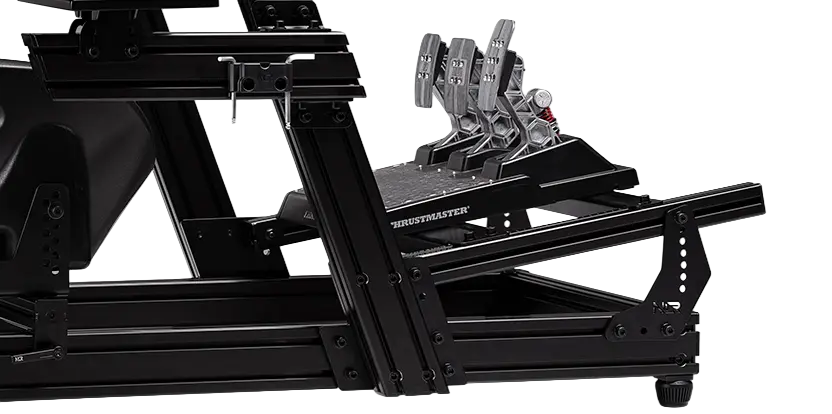

| Pedal adjustment | Height, angle and distance from the seat |
| Seat positioning | Included frame-mounted sliding system; seat and any side-mount brackets sold separately |
| Supported user height | 120-210 cm |
| Maximum user weight | 150 kg |
| Assembled dimensions, L × W × H | 148 × 82.5 × 86.5 cm |
| Product weight | 31 kg |
| Box dimensions, L × W × H | 128.5 × 41 × 25.1 cm |
| Boxed weight | 34.3 kg |
| Feet | Height-adjustable, shock-absorbing |
| Cable clips | 6 |
| ButtKicker adaptor | Gamer 2; the ButtKicker device is sold separately |
| Hardware or upgrade | Compatibility and conditions |
|---|---|
| Logitech, Thrustmaster, Fanatec and SimXperience | Brands named by the manufacturer. Check the bolt pattern for each specific wheel base and pedal set |
| Fanatec CSL / CSL DD and SimXperience AccuForce | Bottom-mounted wheel-base examples in the official FAQ |
| Bases requiring front or side mounting only | Those mounts are not included with the Wheel Plate Edition. A suitable separate mounting solution is needed |
| ERS1 and ERS2 seats | Listed as compatible NLR products; seats are sold separately |
| ES1 and ES2 bucket seats | Require suitable side-mount brackets. Next Level Racing specifies Universal Seat Brackets for the ES2 |
| Motion Plus Platform | Compatible without an additional motion adaptor; platform sold separately |
| Motion Platform V3 and Traction Plus | Require the Elite Motion Adaptor Upgrade Kit |
| Formula or hybrid position | Requires the Elite Formula and Hybrid Pedal Upgrade Kit and Universal Seat Brackets |
| Elite Direct Monitor Mount and Elite freestanding stands | Listed as compatible accessories; not included with the frame |
| Elite Keyboard and Mouse Tray and Elite Tablet/Button Box Mount | Optional accessories on the official compatibility list |
| Shifter and handbrake | Require a separate cockpit-compatible mount |
| PC, PlayStation and Xbox | The frame has no electronics. Platform support depends on the installed wheel base, steering wheel and pedals |

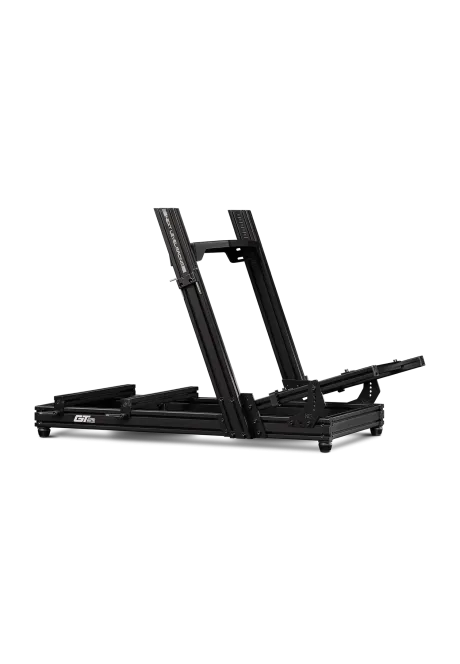

- GTElite Lite frame with wheel plate, pedal platform and seat sliding system.
- Tool holder and Allen keys.
- Height-adjustable shock-absorbing feet.
- 6 cable management clips.
- ButtKicker Gamer 2 adaptor.
- Bolts to hard-mount the wheel or wheel base and pedals.
- Next Level Racing profile end caps.
- Magnetic spirit level.
- Colour assembly booklet; digital guides and assembly resources available from the manufacturer.
The seat, side-mount seat brackets, wheel base, steering wheel, pedals, shifter, handbrake, shifter/handbrake mount, monitor, monitor mount, ButtKicker device and motion platform are not included in the standard package.
1. Does Next Level Racing GTElite Lite Wheel Plate Edition include a seat?
No. The seat is sold separately. The frame includes a seat sliding system, but not additional side-mount seat brackets.
2. How does the Wheel Plate Edition differ from the Front & Side Mount Edition?
The Wheel Plate Edition uses a plate for bottom-mounted wheel bases. The Front & Side Mount Edition uses front and side mounts. They are different mounting packages.
3. Can the pedal position be adjusted?
Yes. Pedal platform height, angle and distance from the seat can be adjusted.
4. What are the assembled cockpit dimensions?
Next Level Racing specifies 148 × 82.5 × 86.5 cm, in length, width and height order. A separately fitted seat and accessories can increase the space needed for a complete setup.
5. What user height and weight does the frame support?
The published height range is 120-210 cm, with a maximum user weight of 150 kg. Choose a seat that also fits your build.
6. Is a shifter mount included?
No. A shifter and handbrake require a separate mount compatible with GTElite Lite.
7. Can it provide a Formula position without extra parts?
No. The standard configuration is for GT driving. Conversion requires the Elite Formula and Hybrid Pedal Upgrade Kit and Universal Seat Brackets.
8. Is the cockpit compatible with motion?
Yes. Motion Plus Platform does not need an additional adaptor. Motion Platform V3 and Traction Plus require the Elite Motion Adaptor Upgrade Kit. Platforms and the adaptor kit are sold separately.
9. Are a monitor or monitor mount included?
No. Both are separate purchases. The manufacturer lists Elite Direct Monitor Mount and Elite freestanding stands as compatible accessories.
10. How much does the frame weigh, and what is the box size?
Product weight is 31 kg and boxed weight is 34.3 kg. The box measures 128.5 × 41 × 25.1 cm. These figures cover the cockpit only, without a separately purchased seat or electronics.
11. How long is the warranty on Next Level Racing products?
Simline is the largest authorised seller of Next Level Racing in Poland and Europe. As an authorised Next Level Racing partner, we provide full warranty protection for all products from this brand for up to 2 years within the European Union, in accordance with Next Level Racing warranty terms.
12. How do I submit a warranty claim for a Next Level Racing product?
Simline.eu is an authorised Next Level Racing partner, so we act as an intermediary in the warranty process and handle claims. Please email support@simline.eu or nextlevelracing@simline.eu with photos and videos showing the fault, together with a description, and pack the equipment.
