852.85zł

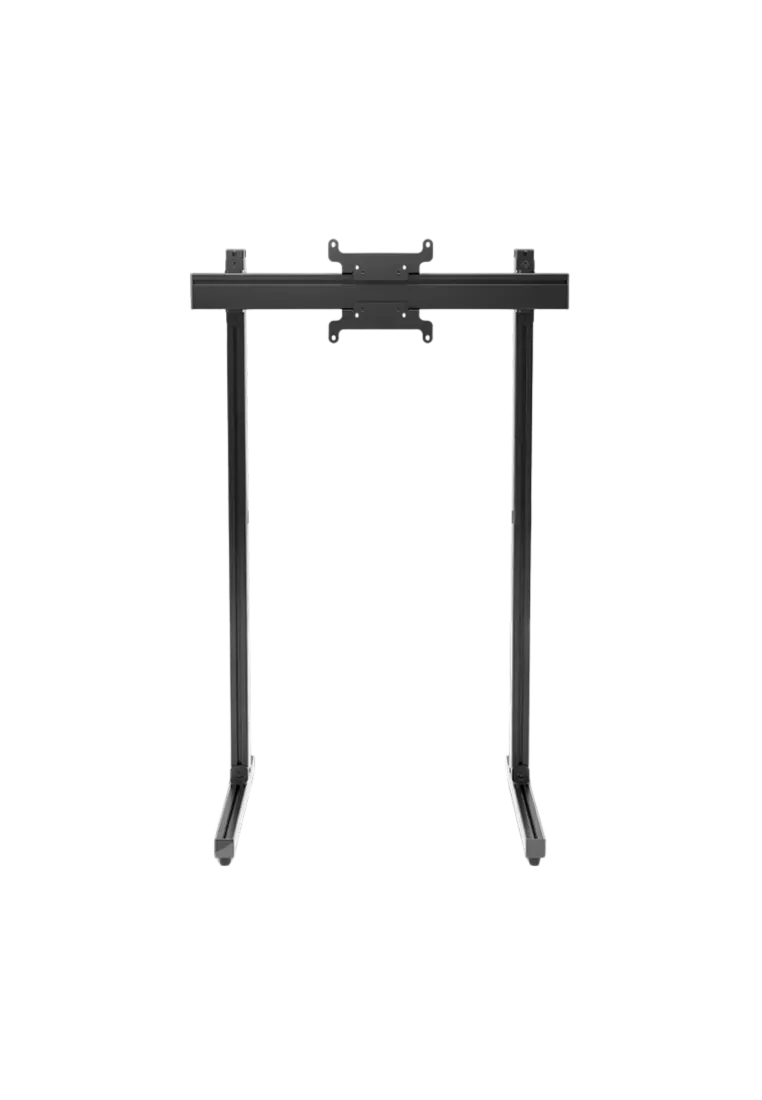

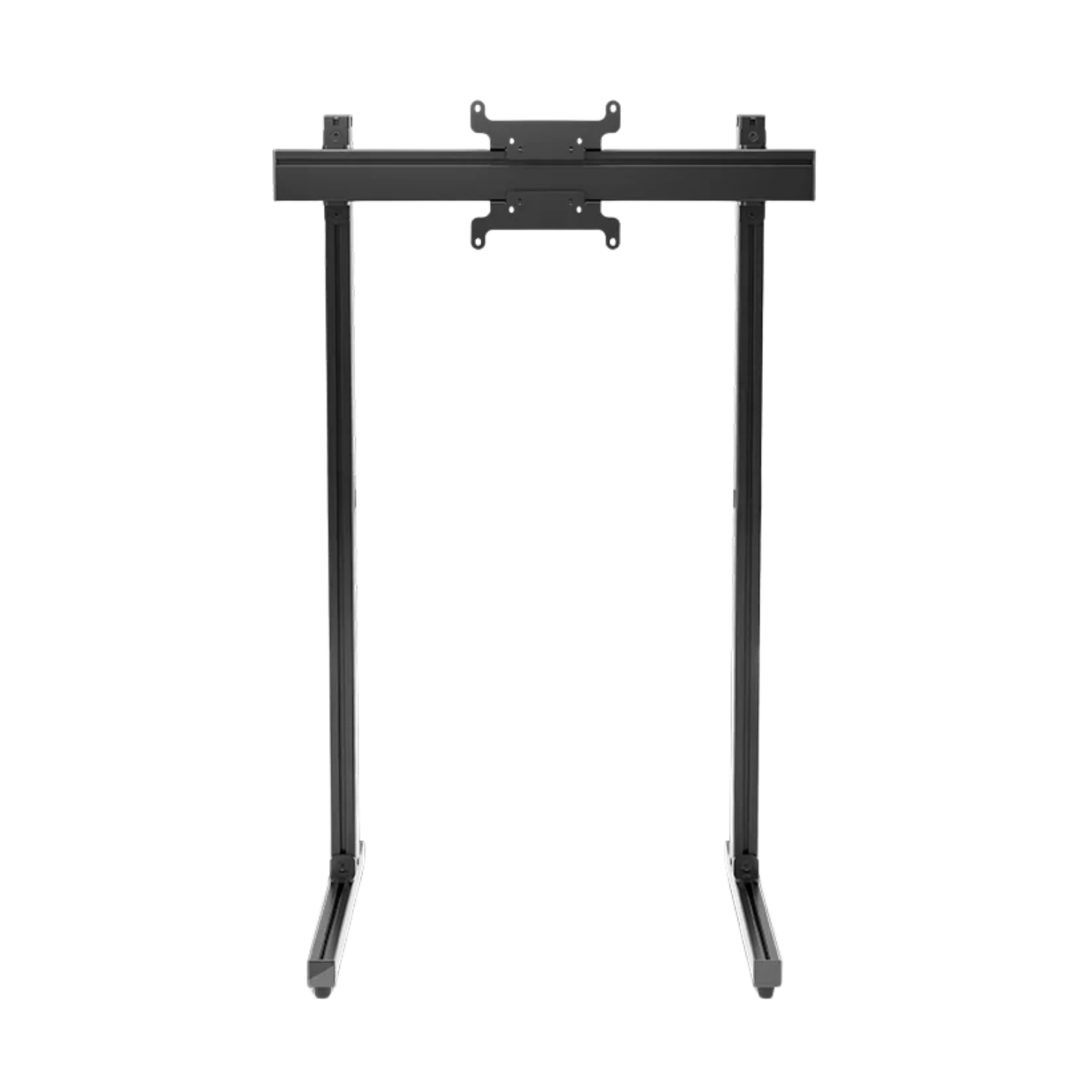

SIMGASM Apex is a black freestanding single-monitor stand that does not attach to the cockpit or desk. Its 40 x 80 mm aluminium structure with steel mounting parts weighs 15.7 kg and provides adjustable screen height and position. It supports VESA 75 x 75, 100 x 100 and 200 x 200 mm.
The 83 x 61 x 129 cm structure can sit beside a sim racing cockpit or workstation while keeping the display position independent from the cockpit frame.
You might also like
SIMGASM Apex gives a single display its own supporting structure. It does not bolt to the cockpit or desk, so screen position remains independent from chassis geometry. This layout works beside a sim rig, at a computer workstation or within a professional display installation.
The floor-standing design makes viewing-distance changes possible without rebuilding the wheelbase section. The display also stays behind when the cockpit is repositioned. Alternative screen solutions are available under TV and monitor stands.

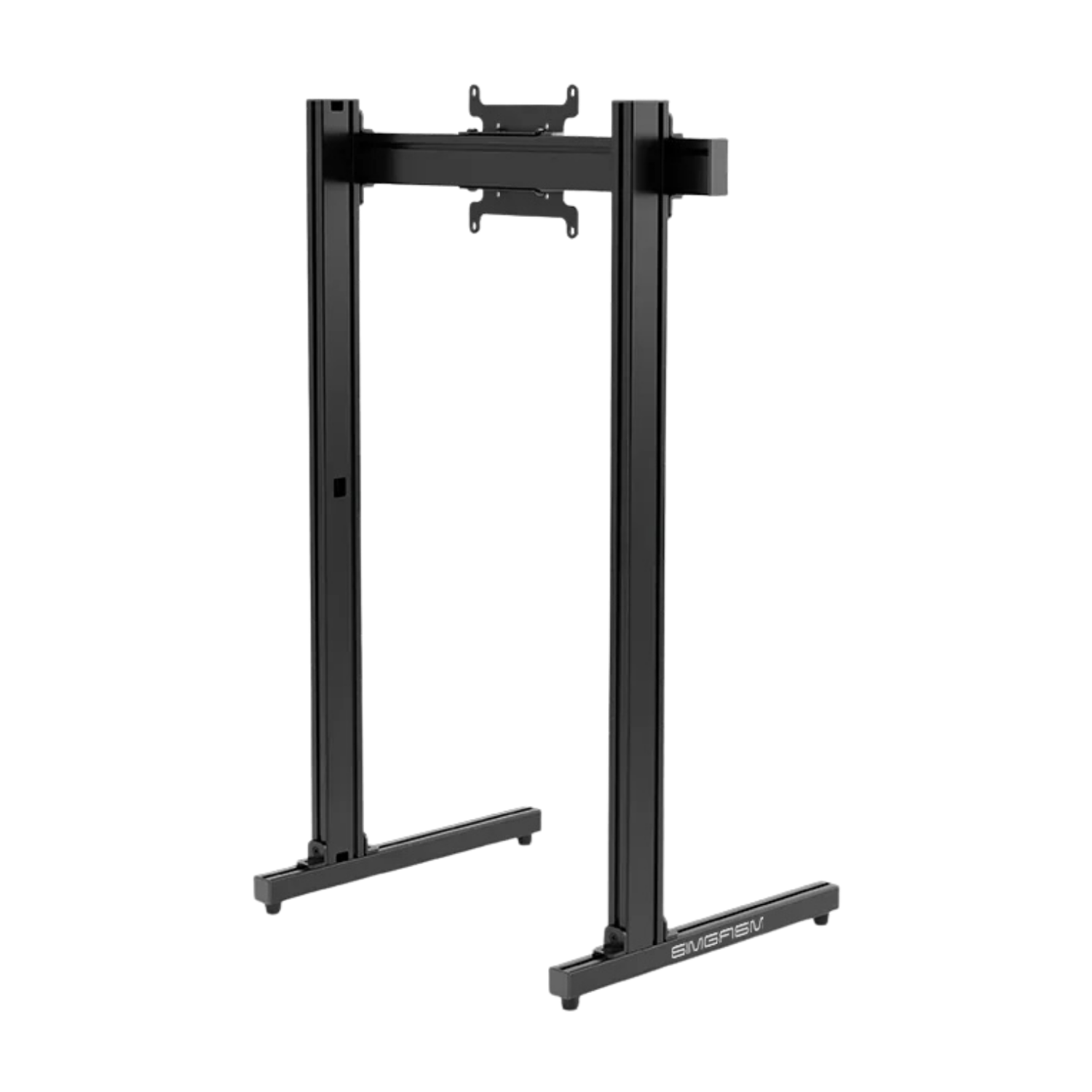

Height and position adjustment let the user align the image with eye level, the steering wheel and the virtual dashboard. This freedom matters when changing seats, moving between GT and Formula-style posture or altering the distance between the cockpit and display.
SIMGASM states an occupied space of 83 x 61 x 129 cm. Installation planning should also account for the monitor width, stand base, cables and access around the setup. A suitable chassis can be selected under sim racing cockpits.

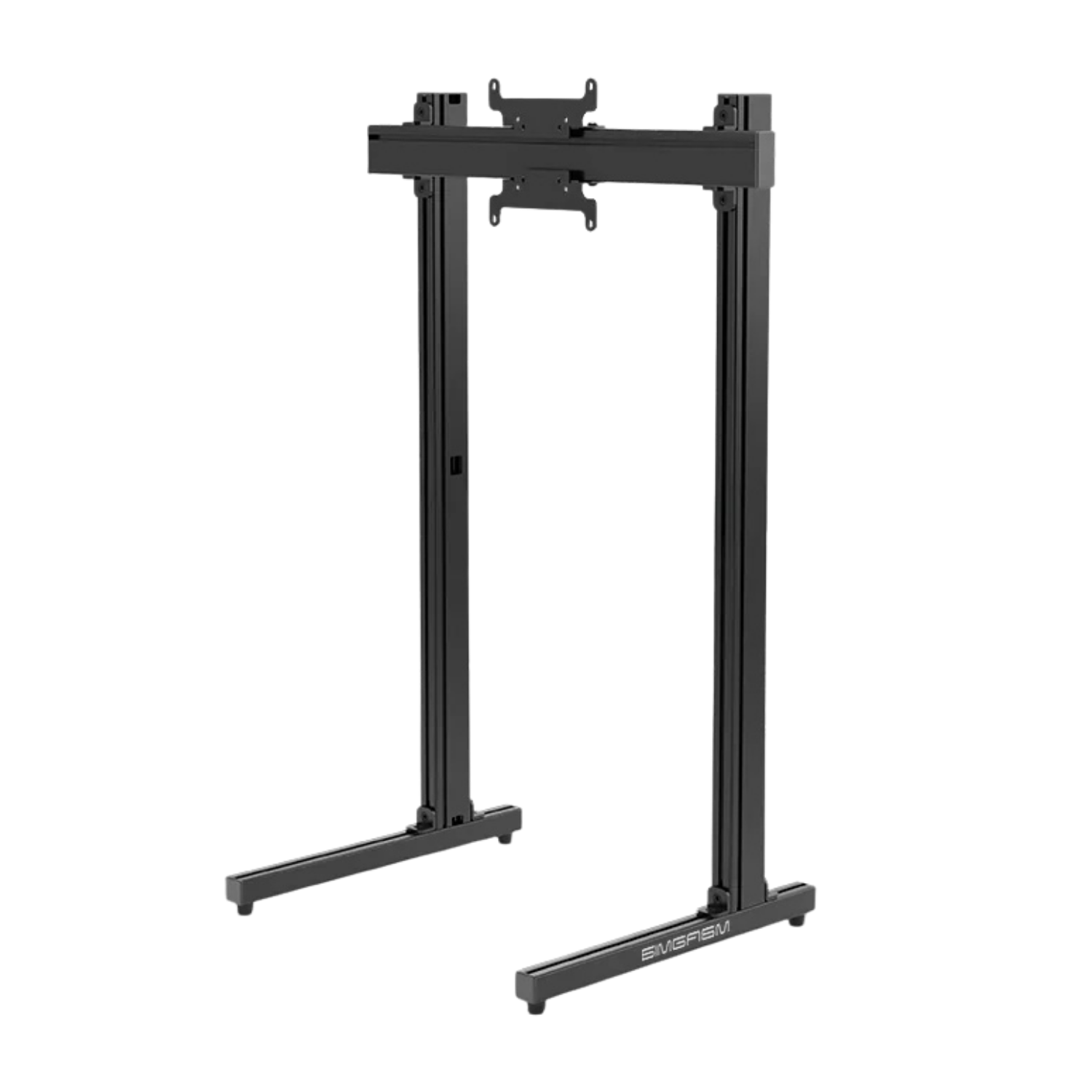

The mounting structure supports VESA 75 x 75, 100 x 100 and 200 x 200 mm. It can therefore accept many monitors and selected televisions when the rear bolt pattern matches one of these layouts. Diagonal screen size alone does not confirm compatibility.
The verified manufacturer page does not state a maximum diagonal size or display weight. Check the VESA pattern, device mass, connector clearance and secure fastener engagement before installation. Do not assume fit merely because the screen fits between the profiles.

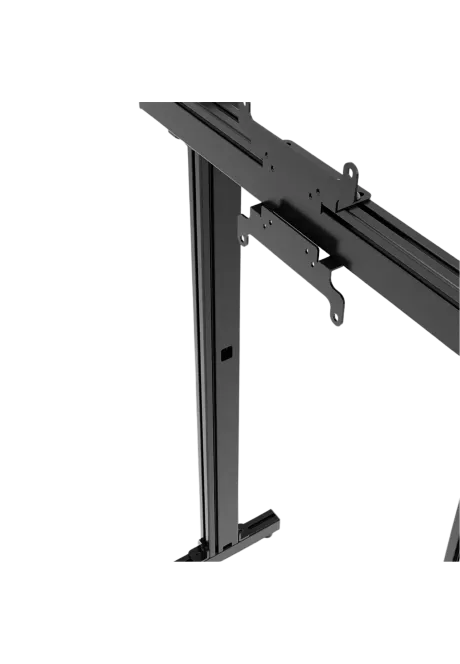

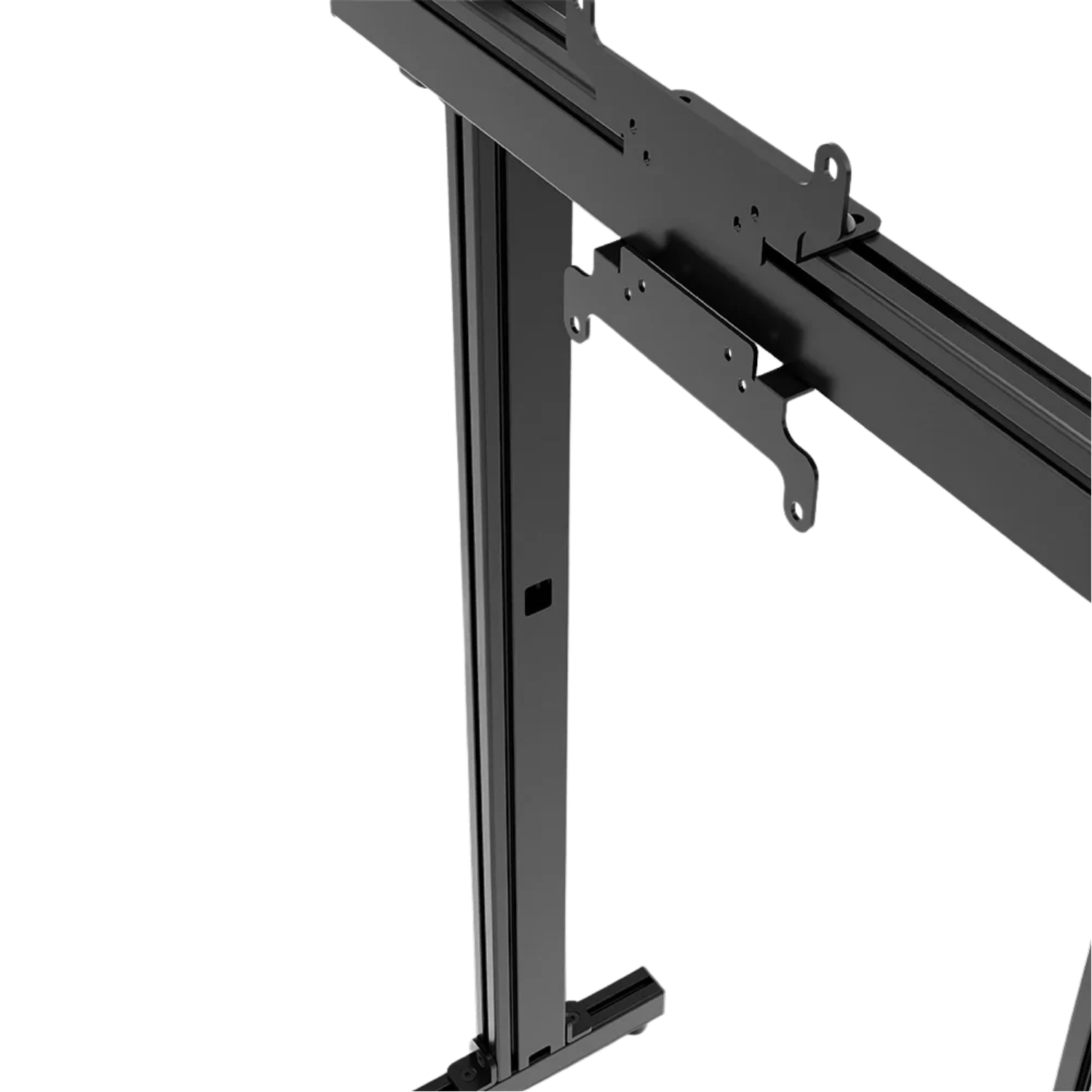

The main frame uses 40 x 80 mm aluminium profiles, while steel mounting parts reinforce the connection between the display and stand. The complete structure weighs 15.7 kg and ships in one 850 x 260 x 110 mm box.
Apex can remain a single-monitor installation or become the starting point for a triple-screen layout with the correct side-arm kit. Match the upgrade to the same series and colour, then confirm the complete display load before assembly. Other parts of the ecosystem are listed on the SIMGASM brand page.
SIMGASM Apex gives a single display its own supporting structure. It does not bolt to the cockpit or desk, so screen position remains independent from chassis geometry. This layout works beside a sim rig, at a computer workstation or within a professional display installation.
The floor-standing design makes viewing-distance changes possible without rebuilding the wheelbase section. The display also stays behind when the cockpit is repositioned. Alternative screen solutions are available under TV and monitor stands.
Height and position adjustment let the user align the image with eye level, the steering wheel and the virtual dashboard. This freedom matters when changing seats, moving between GT and Formula-style posture or altering the distance between the cockpit and display.
SIMGASM states an occupied space of 83 x 61 x 129 cm. Installation planning should also account for the monitor width, stand base, cables and access around the setup. A suitable chassis can be selected under sim racing cockpits.
The mounting structure supports VESA 75 x 75, 100 x 100 and 200 x 200 mm. It can therefore accept many monitors and selected televisions when the rear bolt pattern matches one of these layouts. Diagonal screen size alone does not confirm compatibility.
The verified manufacturer page does not state a maximum diagonal size or display weight. Check the VESA pattern, device mass, connector clearance and secure fastener engagement before installation. Do not assume fit merely because the screen fits between the profiles.
The main frame uses 40 x 80 mm aluminium profiles, while steel mounting parts reinforce the connection between the display and stand. The complete structure weighs 15.7 kg and ships in one 850 x 260 x 110 mm box.
Apex can remain a single-monitor installation or become the starting point for a triple-screen layout with the correct side-arm kit. Match the upgrade to the same series and colour, then confirm the complete display load before assembly. Other parts of the ecosystem are listed on the SIMGASM brand page.
| Technical specification - SIMGASM Apex single monitor stand | |
|---|---|
| Construction | |
| Product type | Freestanding single monitor stand |
| Reference | MSAS1-BLK |
| Colour | Black |
| Main material | Aluminium |
| Mounting hardware | Steel parts for increased joint rigidity |
| Profile size | 40 x 80 mm |
| Weight | 15.7 kg |
| Dimensions and adjustment | |
| Occupied space | 83 x 61 x 129 cm |
| Height adjustment | Yes |
| Display-position adjustment | Yes |
| Display mounting | |
| Number of displays | 1 in the standard configuration |
| VESA patterns | 75 x 75 mm, 100 x 100 mm, 200 x 200 mm |
| Maximum display size | Not stated on the verified manufacturer page |
| Maximum display weight | Not stated on the verified manufacturer page |
| Packaging and expansion | |
| Number of boxes | 1 |
| Box dimensions | 850 x 260 x 110 mm |
| Expansion route | Triple-monitor configuration with the compatible Apex side-arm kit |
| SIMGASM Apex - single monitor stand compatibility | ||
|---|---|---|
| Standard or setup | Compatible products and uses | Important note |
| VESA 75 x 75 mm | Monitors and other displays with four holes in a 75 x 75 mm layout. | Confirm display mass and connector access. The manufacturer does not publish a maximum load. |
| VESA 100 x 100 mm | Monitors and selected displays using a 100 x 100 mm pattern. | Diagonal size does not replace a VESA check. Confirm the exact rear housing pattern. |
| VESA 200 x 200 mm | Larger monitors and selected televisions using a 200 x 200 mm pattern. | Confirm both device weight and stand load capacity before installing a heavier display. |
| SIMGASM Hobby cockpits | Hobby Black, Hobby Blue, Hobby Green, Hobby White and Hobby Silver. | Place the stand beside the cockpit. It does not need mounting points in the Hobby frame. |
| SIMGASM Club cockpits | Club Black, Club Silver and Club White. | Compatibility comes from the separate floor-standing structure. Leave sufficient room for the stand base. |
| SIMGASM Sport cockpits | Sport Black, Sport Silver and Sport White. | The monitor remains on its own structure and does not move with the cockpit. |
| SIMGASM Pro cockpits | Pro Black, Pro Silver and Pro White. | Freestanding Apex does not use the Pro profiles, keeping display placement independent from cockpit expansion. |
| Other cockpits and desks | Setups with enough space for the 83 x 61 x 129 cm structure. | No matching cockpit profile is required, but the floor must be stable and leave room for the base. |
| Apex expansion | Compatible Apex side arms convert the stand from one to three monitors. | The arms are a separate kit. Confirm their variant, colour and the complete display load before expansion. |
It is a black freestanding single-monitor stand for use beside a cockpit, desk or workstation.
No. It is an independent floor structure and should not be confused with the integrated MSAI1-BLK mount.
Confirmed patterns are 75 x 75, 100 x 100 and 200 x 200 mm.
SIMGASM does not state a maximum diagonal size. Check VESA, weight, housing dimensions and safe centre-of-gravity placement.
It is not published on the verified page. Confirm this value before installing a heavy monitor or television.
Yes. The structure provides both height and display-position adjustment.
The stated figure is 83 x 61 x 129 cm. Add the display width, cables and access space.
Yes, as an independent stand beside the chassis. It does not need matching cockpit bolt holes.
Yes. SIMGASM provides an expansion route through a compatible Apex side-arm kit, sold separately.
It uses 40 x 80 mm aluminium profiles with steel mounting parts and weighs 15.7 kg.
